IEC 61076-2-101
(Second edition – 2008)
Connectors for electronic equipment – Product requirements –
Part 2-101: Circular connectors – Detail specification for M12 connectors with screw-locking
CORRIGENDUM 1
1.3 Ratings and characteristics
Instead of:
Rated voltage C-coding 5 and 6 contacts 250 V d.c. or a.c.
read:
Rated voltage C-coding 5 contacts 60 V d.c. or a.c.
6 contacts 30 V d.c. or a.c.
3.2.1 Pin front view A-coding
Replace existing Figure 21 – Pin front view A-coding by the following:
March 2010
10 min.
3 max.
45° ± 30′ 0
0,5
−0,5
1,2
−0,1
+0,15
7,1
5 way
6,9 ± 0,2
5× 0
∅1 ± 0,03
8,9
−0,2
∅0,1
A
+0,15
∅8,3
Sealing surface
IEC 1156/08
6 × 49° (=294°)
33°
8 way
8×
∅0,1
A
∅5,5
+0,15 ∅0,8 ± 0,03
∅8,3
IEC 1157/08
2 × 120°
8 × 37,625°
29,5°
∅2,2
∅5,8
12 way
+0,15
∅8,3
12×
∅0,6 ± 0,03
∅0,1
A
IEC 477/10

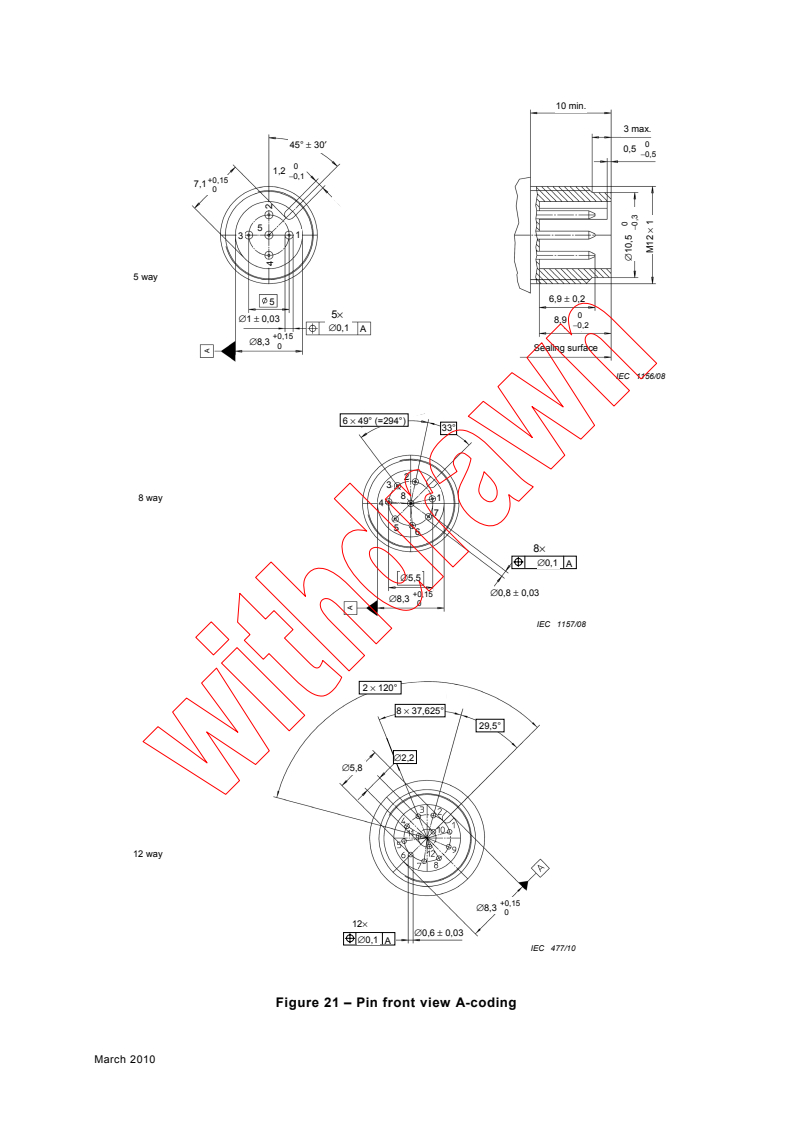

Figure 21 – Pin front view A-coding
March 2010
A
A
∅10,5
−0,3
M12 × 1
3.2.3 Pin front view C-coding
Replace existing Figure 27 – Pin front view 5 way with C-coding, by the following:
5×
∅0,76 ± 0,03
∅0,1 A
+0,2
5,5
4 × 72°
PE
5 way
5 1
4,6
−0,2
∅4,57
IEC 478/10
Figure 27 – Pin front view 5 way with C-coding
March 2010
∅10,5
−0,3
M12 × 1

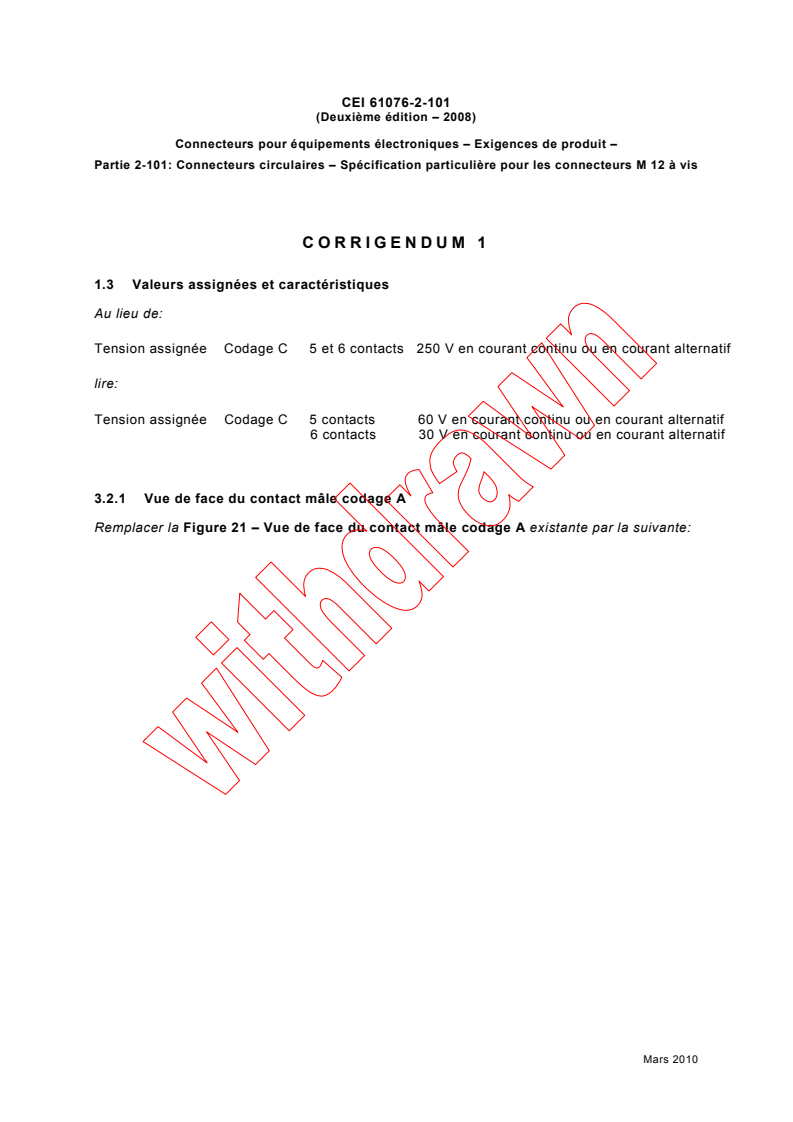

CEI 61076-2-101
(Deuxième édition – 2008)
Connecteurs pour équipements électroniques – Exigences de produit –
Partie 2-101: Connecteurs ci
...
