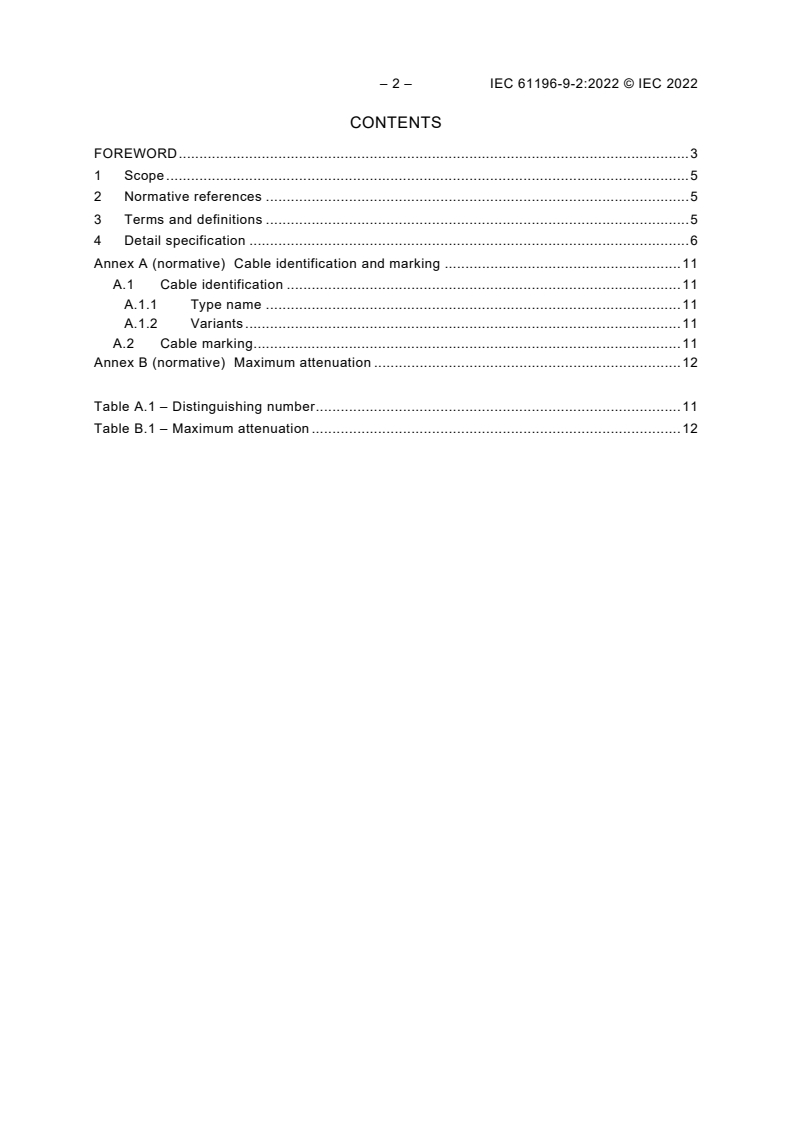

CONTENTS
FOREWORD . 3
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 Detail specification . 6
Annex A (normative) Cable identification and marking . 11
A.1 Cable identification . 11
A.1.1 Type name . 11
A.1.2 Variants . 11
A.2 Cable marking . 11
Annex B (normative) Maximum attenuation . 12

Table A.1 – Distinguishing number . 11
Table B.1 – Maximum attenuation . 12

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
COAXIAL COMMUNICATION CABLES –

Part 9-2: Detail specification for 50-0,4 type RF flexible cables

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as "IEC Publication(s)"). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent
rights. IEC shall not be held responsible for identifying any or all such patent rights.
IEC 61196-9-2 has been prepared by subcommittee 46A: Coaxial cables, of IEC technical
committee 46: Cables, wires, waveguides, RF connectors, RF and microwave passive
components and accessories. It is an International Standard.
The text of this International Standard is based on the following documents:
Draft Report on voting
46A/1553/FDIS 46A/1558/RVD
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this International Standard is English.

– 4 – IEC 61196-9-2:2022 © IEC 2022
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/standardsdev/publications.
This part of IEC 61196 is to be used in conjunction with IEC 61196-1:2005 and
IEC 61196‑9:2014.
A list of all the parts in the IEC 61196 series, published under the general title Coaxial
communication cables, can be found on the IEC website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
COAXIAL COMMUNICATION CABLES –

Part 9-2: Detail specification for 50-0,4 type RF flexible cables

1 Scope
This part of IEC 61196 applies to coaxial communication cables described in IEC 61196-9. It
specifies the requirements for 50-0,4 type RF flexible cables. These cables are used in routers,
notebook computers, mobile phones or other electronics. The operating frequency is from
5 MHz to 6 000 MHz.
It determines the layout and style with respect to the model and type.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies.
For undated references, the latest edition of the referenced document (including any
amendments) applies.
NOTE Documents which are needed to achieve the tests according to Clause 4, item [8] or item [9], respectively,
are listed in IEC 61196-9.
IEC 60068-2-20:2021, Environmental testing – Part 2-20: Tests – Test T: Test methods for
solderability and resistance to soldering heat of devices with leads
IEC 61196-1:2005, Coaxial communication cables – Part 1: Generic specification – General，
Definitions and requirements
IEC 61196-9:2014, Coaxial communication cables – Part 9: Sectional specification for RF
flexible cables
IEC 61196-1-115:2006, Coaxial communication cables – Part 1-115: Electrical test methods –
Test for regularity of impedance (pulse/step function return loss)
IEC 61196-1-314:2015, Coaxial communication cables – Part 1-314: Mechanical test methods
– Test for bending
IEC 62153-4-3, Metallic communication cable test methods – Part 4-3: Electromagnetic
compatibility (EMC) – Surface transfer impedance – Triaxial method
IEC 62153-4-4, Metallic communication cable test methods – Part 4-4: Electromagnetic
compatibility (EMC) – Test method for measuring of the screening attenuation as up to and
above 3 GHz, triaxial method
IEC 62153-4-5, Metallic communication cable test methods – Part 4-5: Electromagnetic
compatibility (EMC) – Screening or coupling attenuation - Absorbing clamp method
3 Terms and definitions
No terms and definitions are listed in this document.

– 6 – IEC 61196-9-2:2022 © IEC 2022
ISO and IEC maintain terminological databases for use in standardization at the following
addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
4 Detail specification
COAXIAL COMMUNICATION CABLES –
Part 9-2: Detail specification for 50-0,4 type RF flexible cables
[1] Prepared by: [2] Document No.:  IEC 61196-9-2
IEC SC 46A Issue:         First
Date:
[3] Available from: [4] Generic specification:    IEC 61196-1
IEC Sectional specification:  IEC 61196-9
[5] Additional references
[6] Cable construction
50-0,4-XYZ-IEC 61196-9-2 (Braid shield cable)

1 Inner conductor (SPC) 2 Dielectric (Solid FEP or PFA)
3 Braid shield (TC or SPC) 4 Sheath or jacket (FEP or PFA)
NOTE For abbreviations, see the end of this table.
a
Variants
50-0,4- 50-0,4- 50-0,4- 50-0,4-
50-0,4- 50-0,4- 50-0,4- 50-0,4-
F 11 F 12 F 21 F 22
F11 F12 F21 F22
k k k k
Constructions
Material SPC SPC
Inner
Stranding No. of
conductor
7 × 0,05 7 × 0,05
Strands × diameter (mm)
Dielectric Material FEP PFA
Diameter (mm) Nom.0,41 Nom.0,41
Outer Material SC TC SC TC
conductor
Braid coverage (%) ≥85 ≥85 ≥85 ≥85
or shield
Material FEP PFA FEP PFA FEP PFA FEP PFA
Sheath or
jacket
Diameter (mm) Nom.0,81 Nom.0,81 Nom.0,81 Nom.0,81
a
Variants are shown in Annex A.

50-0,4-XYZ-IEC 61196-9-2 (Spiral shield cable)

1 Inner conductor (SPC) 2 Dielectric (Solid FEP or PFA)
3 Spiral shield (TC or SPC) 4 Sheath or jacket (FEP or PFA)
NOTE For abbreviations, see the end of this table.
a
Variants
50-0,4- 50-0,4- 50-0,4- 50-0,4-
50-0,4- 50-0,4- 50-0,4- 50-0,4-
F 31 F 32 F 41 F 42
F31 F32 F41 F42
k k k k
Constructions
Material SPC SPC
Inner
Stranding No. of Strands
conductor
7 × 0,05 7 × 0,05
× diameter (mm)
Material FEP PFA
Dielectric
Diameter (mm) Nom.0,44 Nom.0,44
Outer Material SPC TC SPC TC
conductor
Wrap coverage (%) ≥85 ≥85 ≥85 ≥85
or shield
Material FEP PFA FEP PFA FEP PFA FEP PFA
Sheath or
jacket
Diameter(mm) Nom.0,64 Nom.0,64 Nom.0,64 Nom.0,64
NOTE
SPC － Silver plated copper wire
TC － Tinned copper wire
FEP － Fluorinated ethylene propylene
PFA － Perfluoroalkoxy
[7] Engineering information (reference only)
Operating temperature range −55 °C to 200 °C (SPC shield)
−55 °C to 150 °C (TC shield)
Operating frequency range 5 MHz to 6 000 MHz
Nominal characteristic impedance 50
...
