IEC 62683 ®
Edition 2.0 2015-08
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Low-voltage switchgear and controlgear – Product data and properties for

information exchange
Appareillage à basse tension – Données et propriétés de produits pour

l’échange d’informations
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.130.20 ISBN 978-2-8322-2872-2

– 2 – IEC 62683:2015 © IEC 2015

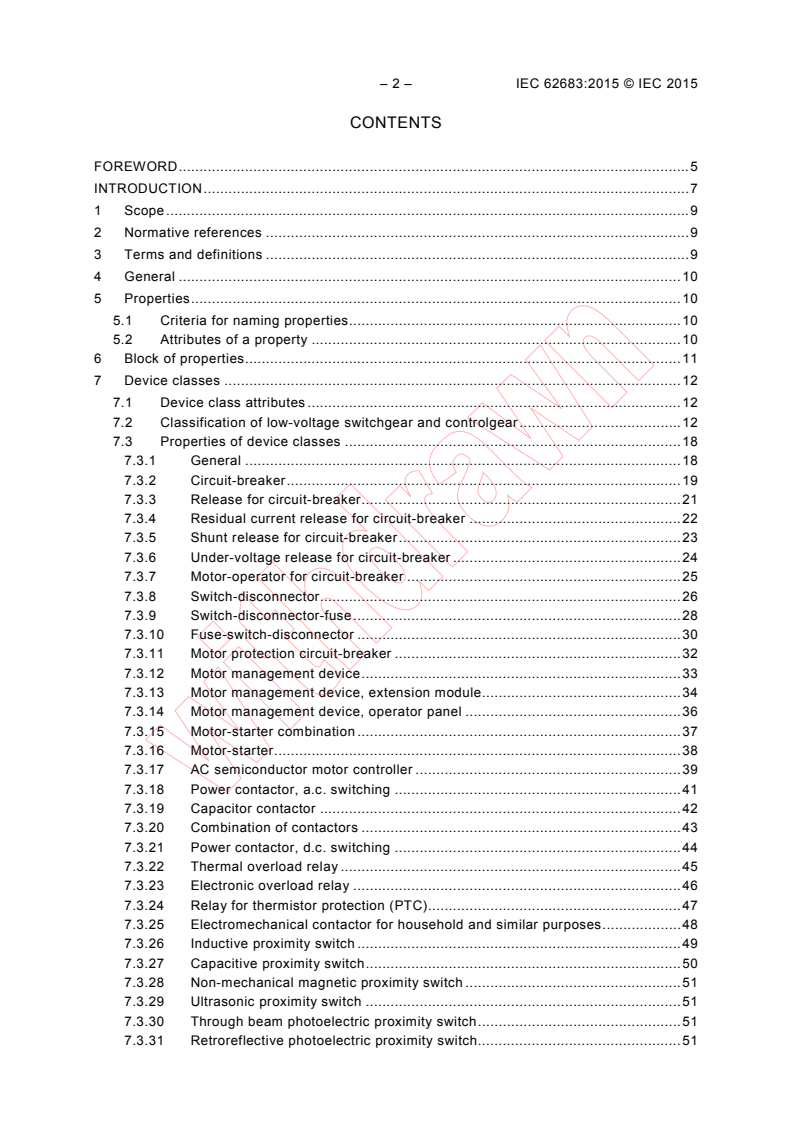

CONTENTS
FOREWORD . 5

INTRODUCTION . 7

1 Scope . 9

2 Normative references . 9

3 Terms and definitions . 9

4 General . 10

5 Properties . 10
5.1 Criteria for naming properties . 10
5.2 Attributes of a property . 10
6 Block of properties . 11
7 Device classes . 12
7.1 Device class attributes . 12
7.2 Classification of low-voltage switchgear and controlgear . 12
7.3 Properties of device classes . 18
7.3.1 General . 18
7.3.2 Circuit-breaker . 19
7.3.3 Release for circuit-breaker . 21
7.3.4 Residual current release for circuit-breaker . 22
7.3.5 Shunt release for circuit-breaker . 23
7.3.6 Under-voltage release for circuit-breaker . 24
7.3.7 Motor-operator for circuit-breaker . 25
7.3.8 Switch-disconnector. 26
7.3.9 Switch-disconnector-fuse . 28
7.3.10 Fuse-switch-disconnector . 30
7.3.11 Motor protection circuit-breaker . 32
7.3.12 Motor management device . 33
7.3.13 Motor management device, extension module. 34
7.3.14 Motor management device, operator panel . 36
7.3.15 Motor-starter combination . 37
7.3.16 Motor-starter . 38
7.3.17 AC semiconductor motor controller . 39
7.3.18 Power contactor, a.c. switching . 41
7.3.19 Capacitor contactor . 42
7.3.20 Combination of contactors . 43
7.3.21 Power contactor, d.c. switching . 44
7.3.22 Thermal overload relay . 45
7.3.23 Electronic overload relay . 46
7.3.24 Relay for thermistor protection (PTC). 47
7.3.25 Electromechanical contactor for household and similar purposes . 48
7.3.26 Inductive proximity switch . 49
7.3.27 Capacitive proximity switch . 50
7.3.28 Non-mechanical magnetic proximity switch . 51
7.3.29 Ultrasonic proximity switch . 51
7.3.30 Through beam photoelectric proximity switch . 51
7.3.31 Retroreflective photoelectric proximity switch. 51

7.3.32 Diffuse reflective photoelectric proximity switch . 51

7.3.33 Diffuse reflective photoelectric proximity switch with background

suppression . 51

7.3.34 Auxiliary contact block . 52

7.3.35 Contactor relay . 53

7.3.36 Position switch. 54

7.3.37 Rotary limit switch . 55

7.3.38 Safety position switch with separate actuator . 55

7.3.39 Safety position switch with interlocking . 55

7.3.40 Trip wire switch . 55

7.3.41 Hinge switch . 55
7.3.42 Push-button . 56
7.3.43 Rotary button . 58
7.3.44 Front element for rotary button . 60
7.3.45 Joy stick . 60
7.3.46 Foot switch . 61
7.3.47 Emergency stop push-button . 61
7.3.48 Indicator light . 63
7.3.49 Indicating tower . 64
7.3.50 Front element for push-button . 65
7.3.51 Contact block for control circuit . 66
7.3.52 Front element for emergency stop push-button . 67
7.3.53 Module for indicating tower . 68
7.3.54 Transfer switching equipment . 68
7.3.55 Feed-through terminal block . 69
7.3.56 Disconnect terminal block . 70
7.3.57 Protective conductor terminal block . 71
7.3.58 Fuse terminal block . 72
8 Device properties . 73
Bibliography . 107

Figure 1 – Height of the device . 103
Figure 2 – Width of the device . 104
Figure 3 – Length of the device . 104

Table 1 – Library of blocks used in the device classes of low-voltage switchgear . 11
Table 2 – Low-voltage switchgear and controlgear classification . 12
Table 3 – Circuit-breaker . 19
Table 4 – Release for circuit-breaker . 21
Table 5 – Residual current release for circuit-breaker . 22
Table 6 – Shunt release for circuit-breaker . 23
Table 7 – Under-voltage release for circuit-breaker . 24
Table 8 – Motor-operator for circuit-breaker . 25
Table 9 – Switch-disconnector . 26
Table 10 – Switch-disconnector-fuse . 28
Table 11 – Fuse-switch-disconnector . 30
Table 12 – Motor protection circuit-breaker . 32

– 4 – IEC 62683:2015 © IEC 2015

Table 13 – Motor management device . 33

Table 14 – Motor management device, extension module . 34

Table 15 – Motor management device, operator panel . 36

Table 16 – Motor-starter combination . 37

Table 17 – Motor-starter . 38

Table 18 – AC semiconductor motor controller . 39

Table 19 – Power contactor, a.c. switching . 41

Table 20 – Capacitor contactor . 42

Table 21 – Combination of contactors . 43
Table 22 – Power contactor, d.c. switching . 44
Table 23 – Thermal overload relay . 45
Table 24 – Electronic overload relay . 46
Table 25 – Relay for thermistor protection (PTC) . 47
Table 26 – Electromechanical contactor for household and similar purposes . 48
Table 27 – Inductive proximity switch . 49
Table 28 – Capacitive proximity switch . 50
Table 29 – Auxiliary contact block . 52
Table 30 – Contactor relay . 53
Table 31 – Position switch . 54
Table 32 – Push-button . 56
Table 33 – Rotary button . 58
Table 34 – Front element for rotary button . 60
Table 35 – Emergency stop push-button . 61
Table 36 – Indicator light . 63
Table 37 – Indicating tower . 64
Table 38 – Front element for push-button . 65
Table 39 – Contact block for control circuit . 66
Table 40 – Front element for emergency stop push-button . 67
Table 41 – Module for indicating tower . 68
Table 42 – Feed-through terminal block . 69
Table 43 – Disconnect terminal block . 70

Table 44 – Protective conductor terminal block . 71
Table 45 – Fuse terminal block . 72
Table 46 – Library of properties used in the device classes . 73
Table 47 – Value lists of properties . 104

INTERNATIONAL ELECTROTECHNICAL COMMISSION

____________
LOW-VOLTAGE SWITCHGEAR AND CONTROLGEAR –

PRODUCT DATA AND PROPERTIES FOR INFORMATION EXCHANGE

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 62683 has been prepared by subcommittee 121A: Low-voltage

switchgear and controlgear, of the IEC technical committee 121: Switchgear and controlgear
and their assemblies for low voltage.
This second edition cancels and replaces the first edition published in 2013. This edition
constitutes a technical revision.
This present edition includes the following significant technical changes with respect to the
first edition:
a) new descriptions of 41 classes for the families of circuit-breakers and their associated
devices (ACC2xx), switches and disconnectors (ACC3xx), control switches (ACC5xx) and
terminal blocks (ACC7xx) in addition to 14 classes for motor-starters of the first edition;
b) new associated properties and value lists necessary for the new classes;
c) three new blocks of properties: ACC017 Head of the control circuit device, ACC018 Light
block of the control circuit device and ACC041 Over-current release;

– 6 – IEC 62683:2015 © IEC 2015

d) use of LEVEL_TYPE for replacing minimum and maximum properties into a single property

with two values.
The text of this standard is based on the following documents:

FDIS Report on voting
121A/47/FDIS 121A/53/RVD
Full information on the voting for the approval of this standard can be found in the report on

voting indicated in the above table.

This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC website under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct
understanding of its contents. Users should therefore print this document using a
colour printer.
INTRODUCTION
Mainly large customers and wholesalers are requesting standardized product descriptions and

product properties from product manufacturers. However, all stakeholders will benefit from

this standardised presentation and data exchange.

Multiple associations or groups of actors launched different initiatives to try to respond to this

demand but, due to the lack of standardisation of classes and properties, the situation is not

satisfactory neither for customers nor for manufacturers.

In order to keep the lead of product description, IEC proposes a new consistent solution

within its product standards.
The purpose of this International Standard is to:
• define device classes and properties for low-voltage switchgear and controlgear in a
dedicated standard,
• provide a basis for introduction of the low-voltage switchgear and controlgear classes and
properties into the IEC 61360 database maintained by IEC/SC3D (see
http://std.iec.ch/iec61360).
This standard is not intended to establish a hierarchy of product classes called classification.
The intended benefits of this standard are to:
• reduce the time and efforts of mapping data for each customer request;
• optimize the workflow of B2B exchanges;
• minimize duplication of articles in customer inventories and in databases;
• minimize losses and misinterpretation of data during exchanges;
• facilitate the selection of a product, especially regarding reliability and safety;
• give access to product data everywhere regardless of country, language and culture;
• provide product data related to environmental aspects such as material declaration;
• contribute to the fast growth of the e-business by simplifying the development of:
– e-Catalogue allowing the differentiation of products performances, certifications and
approvals, etc;
– e-commerce: use of electronic networks to exchange information, products, services
and payments for commercial and communication purposes between individuals
(consumers) and businesses, between businesses themselves.

The output of this standard consists of:
• reference dictionary of low-voltage switchgear and controlgear using existing terms from
IEC standards. However, terminology used in e-business may be relevant for the purpose
of naming classes in this standard to get a high level of acceptance;
• properties for e-commerce purposes, conformity of properties with product standards
being the main goal of this standard.
NOTE The classes "under consideration" are for information only and are intended to be completed during the
next maintenance cycle.
For this project, the introduction of low-voltage switchgear and controlgear within the
IEC 61360 database needs to address the following technical aspect:
• IEC 61360 requires mandatory attributes. The complete set of mandatory attributes with
additional relevant attributes for low-voltage switchgear and controlgear will be available
within the IEC 61360 database. At the development stage, the CDD 62683 database is

– 8 – IEC 62683:2015 © IEC 2015

available at the following address:

http://std.iec.ch/cdd/iec62683/cdddev.nsf/Welcome?OpenPage . Within the present

document, only the most useful attributes will be presented;

• The switchgear and controlgear data model is implemented in an appropriate domain of

the IEC Component Data Dictionary (CDD), IEC 61360, by creating dictionaries of blocks,

classes and properties.
LOW-VOLTAGE SWITCHGEAR AND CONTROLGEAR –

PRODUCT DATA AND PROPERTIES FOR INFORMATION EXCHANGE

1 Scope
This International Standard establishes the reference dictionary of the general description of
low-voltage switchgear and controlgear classes based on defined properties.

This dictionary is used to facilitate the exchange in electronic format of data describing low-
voltage switchgear and controlgear.
This standard provides clear and unambiguous definitions of a limited number of properties
and classes which are mainly used for presentation, selection and identification of products
particularly in electronic catalogues.
Each property has an unambiguously defined meaning and naming, and where relevant, a
defined value list, a defined format and a defined unit.
The intention is not to cover manufacturer specific features.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and
are indispensable for its application. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 60529:1989, Degrees of protection provided by enclosures (IP Code)
IEC 60947-1:2007, Low-voltage switchgear and controlgear – Part 1: General rules
IEC 60947-1:2007/AMD1:2010
IEC 60947-1:2007/AMD2:2014
IEC 61360-1, Standard data element types with associated classification scheme for electric
items – Part 1: Definitions – Principles and methods

3 Terms and definitions
For the purposes of this document, the terms and definitions of IEC 60947-1, as well as the
following terms and definitions apply.
3.1
attribute
data element for description of a property, a relation or a device class
EXAMPLE The name of a property, the code of a class, the measure unit of a property.
3.2
block (of properties)
collection of properties describing one common aspect of the device class
EXAMPLE Diagnostic functions, control circuit.

– 10 – IEC 62683:2015 © IEC 2015

Note 1 to entry: A block is a feature class in the sense of IEC 61360-1 and ISO 13584-42.

3.3
cardinality
pattern defining the number of times a concept reoccurs within a description

Note 1 to entry: Cardinality allows a block of properties contained in a list of properties to be used more than

once for a particular transaction in order to describe, for example, a device with several different outputs or more

than one process cases.
Note 2 to entry: Cardinality is defined by IEC 61987-10.

3.4
device
material element or assembly of such elements intended to perform a required function
Note 1 to entry: In this standard, a device corresponds to a low-voltage switchgear and controlgear.
[SOURCE: IEC 60050-151:2001, 151-11-20, modified – replacement of the note]
3.5
device class
set of properties which gives a description of a device
3.6
polymorphism
pattern that allows substitution of a single concept in the same context by a different more
specific (specialized) concept
Note 1 to entry: A specialised polymorphic block of properties can replace a more generic one in the same
context. A polymorphic operator (control property) can act in selecting between of various specialisations.
Note 2 to entry: Polymorphism is defined by IEC 61987-10.
3.7
property
defined parameter suitable for the description and differentiation of device class specific
characteristic describing an aspect of device class
4 General
The attributes shall follow IEC 61360-1.
Based on IEC 61360-1 data model, the structured data called cardinality and polymorphism

may be used.
5 Properties
5.1 Criteria for naming properties
In order to maintain consistency and clarity in the naming of properties, terms from product
standards shall be used when there available.
Synonymous names may be associated with the property name when well established terms
are used on the market.
5.2 Attributes of a property
The following attributes of a property are considered in this standard:

– identifier;
– preferred name;
– definition;
– source document;
– data type;
– unit of measure;
– value format;
– value list.
6 Block of properties
Each property within a block shall describe one common aspect covered by the definition of
this block.
The list of blocks of properties is defined in Table 1.
Table 1 – Library of blocks used in the device classes of low-voltage switchgear
Block name Definition Source Class ID
information necessary for unambiguous identification
Identification ACC011
of the device
General technical data general technical aspects of the device ACC012
ability to analyse a situation corresponding to a
Diagnostic functions ACC013
predefined set of parameters
IEC 60050-
Main circuit (of a all the conductive parts of a switching device included
441: 1984, ACC014
switching device) in the circuit which it is designed to close or open
441-15-02
Input / Output circuit circuit used to receive or to send signals or data ACC015
all the conductive parts of a switching device which
Control and auxiliary
are intended to be included in a circuit other than the ACC016
circuits
main circuit of the device
part of a device which contains and support the
Head of the control
actuator or contains the lens of an indicator light, ACC017
circuit device
fixed on an enclosure or on the body of the device
Light block of the control part of a device which contains and support the lamp,
ACC018
circuit device fixed on an enclosure or on the body of the device
accidental or intentional conductive path between two
IEC 60050-
or more conductive parts forcing the electric potential
Short-circuit 151: 2001, ACC040
differences between these conductive parts to be

151-12-04
equal to or close to zero
release which causes a mechanical switching device 2.4.25 of
Over-current release to open when the current in the release exceeds a IEC 60947-1: ACC041
predetermined value 2007 modified
communication function for the transfer of information
Data communication ACC050
between the device and the system
Installation, mounting
physical information of the device for installation ACC066
and dimensions
IEC 60050-
terminals, screws or other parts, used for the
Connection facilities 426: 2008, ACC068
electrical connection of conductors of external circuits
426-04-25
Product certificates and conformity of a device with specified requirements
ACC070
standards and compliance with recognised product standards

– 12 – IEC 62683:2015 © IEC 2015

7 Device classes
7.1 Device class attributes
The attributes of the device class shall follow IEC 61360-1.

The following attributes of a device class are considered in this standard:

– identifier,
– preferred name,
– definition,
– synonymous name, and
– source document.
NOTE The synonymous names are limited to those necessary to avoid confusion when selecting a device class.
7.2 Classification of low-voltage switchgear and controlgear
Table 2 gives the classification of low-voltage switchgear and controlgear domain based on
the corresponding product standards. The class name column is structured in four levels of
hierarchy using indent alignments.
Table 2 – Low-voltage switchgear and controlgear classification
Synony- Class Sub-
Class name Definition Source
mous ID clause
domain covering switching
devices and their combination
with associated control,
measuring, protective and 2.1.1 of
LV switchgear and
regulating equipment, also IEC 60947-
ACC001
controlgear domain assemblies of such devices and 1:2007
equipment with associated modified
interconnections, accessories,
enclosures and supporting
structures
set of switching devices and their
combination with associated
control, measuring, protective
2.1.1 of
and regulating equipment, also
LV switchgear and IEC 60947-
assemblies of such devices and ACC100
controlgear classes
1:2007
equipment with associated
modified
interconnections, accessories,
enclosures and supporting
structures
Circuit-breaker
set of circuit-breakers, their
ACC200
classes
releases and accessories
mechanical switching device,
capable of making, carrying and
Moulded
breaking currents under normal
case
circuit conditions and also IEC 60050-
circuit
Circuit-breaker making, carrying for a specified 441:1984, ACC201 7.3.2
breaker,
time and breaking currents under 441-14-20
Air circuit
specified abnormal circuit
breaker
conditions such as those of
short-circuit
unit connected to a circuit-
breaker which initiates action
Release for
Trip unit that causes the protected circuit ACC202 7.3.3
circuit-breaker
to be switched off when a preset
threshold is exceeded
Synony- Class Sub-
Class name Definition Source
mous ID clause
unit connected to a circuit-
breaker which concurrently
performs residual current
Residual current Earth detection, compares such

release for leakage measurements with a preset ACC203 7.3.4

circuit-breaker module value and initiates action that
causes the protected circuit to be
switched off when this value is

exceeded
IEC 60050-
Shunt release
release energized by a source of 441:1984,
for circuit- Shunt trip ACC204 7.3.5

voltage 441-16-41
breaker
modified
release which permits a circuit-
breaker to open with or without
Under-voltage Under-
time-delay, when the voltage
release for voltage ACC205 7.3.6
across the terminals of the
circuit-breaker trip
release falls below a
predetermined value
Motor-operator dependent power operator
for circuit- capable of closing and opening ACC206 7.3.7
breaker the circuit-breaker
set of mechanical switching
device capable of making,
carrying and breaking currents
under normal circuit conditions IEC 60050-
which may include specified 441:1984,
Switch classes ACC300
operating overload conditions 441-14-10
and also carrying for a specified modified
time currents under specified
abnormal circuit conditions such
as those of short-circuit
switch which, in the open
IEC 60050-
Switch- position, satisfies the isolating
441:1984, ACC301 7.3.8
disconnector requirements specified for a
441-14-12
disconnector
Switch- switch-disconnector in which one IEC 60050-
disconnector- or more poles have a fuse in 441:1984, ACC302 7.3.9
fuse series in a composite unit 441-14-16
switch-disconnector in which a
IEC 60050-
Fuse-switch- fuse-link or a fuse-carrier with
441:1984, ACC303 7.3.10
disconnector fuse-link forms the moving
441-14-19
contact
set of devices including:
– contactors
Contactors,
starters and
– motor-starters ACC400
similar equipment
classes
– motor protective devices
NOTE See IEC 60947-4 series.
circuit-breaker providing
overload protection to the motor
Motor protection
ACC401 7.3.11
and the circuit
circuit-breaker
NOTE See IEC 60947-4 series.
derived from
electronic overload relay for
Motor 3.4.31 of
motor, including extended
management IEC 60947-4- ACC402 7.3.12
functions with communication
device 1:2009/AMD1
ability
:2012
Motor
management module providing at least one
device, extended function to a motor ACC403 7.3.13
extension management device
module
– 14 – IEC 62683:2015 © IEC 2015

Synony- Class Sub-
Class name Definition Source
mous ID clause
Motor
human machine interface
management
dedicated to a motor ACC404 7.3.14

device, operator
management device
panel
equipment consisting of a starter,
a manually-operated switching
Protected derived from
device and a short-circuit
Motor-starter starter, 3.4.8 of
protective device, which may or
ACC405 7.3.15
combination Combinati IEC 60947-4-
may not incorporate an isolating
on starter 1:2009
function
NOTE See also IEC 60947-6-2.
combination of all the switching IEC 60050-
means necessary to start and 441:1984,
Motor-starter Starter ACC415 7.3.16
stop a motor in combination with 441-14-38
suitable overload protection modified
semiconductor switching device
that provides the starting
function for an a.c. motor and an
OFF-state
NOTE 1 Because dangerous
levels of leakage currents can
exist in a semiconductor motor
controller in the OFFstate, the
AC 3.3.2 of
Soft- load terminals should be
semiconductor IEC 60947-4- ACC406 7.3.17
starter considered as live parts at all
motor controller 2:2011
times.
NOTE 2 In a circuit where the
current passes through zero
(alternately or otherwise), the
effect of "not making" the current
following such a zero value is
equivalent to breaking the
current.
mechanical switching device
having only one position of rest,
operated otherwise than by
hand, capable of making,
Power
carrying and breaking a.c.
contactor, a.c.  ACC407 7.3.18
currents under normal circuit
switching
conditions including operating
overload conditions
NOTE See IEC 60947-4-1.
contactor used to switch
Capacitor
capacitor lo
...
