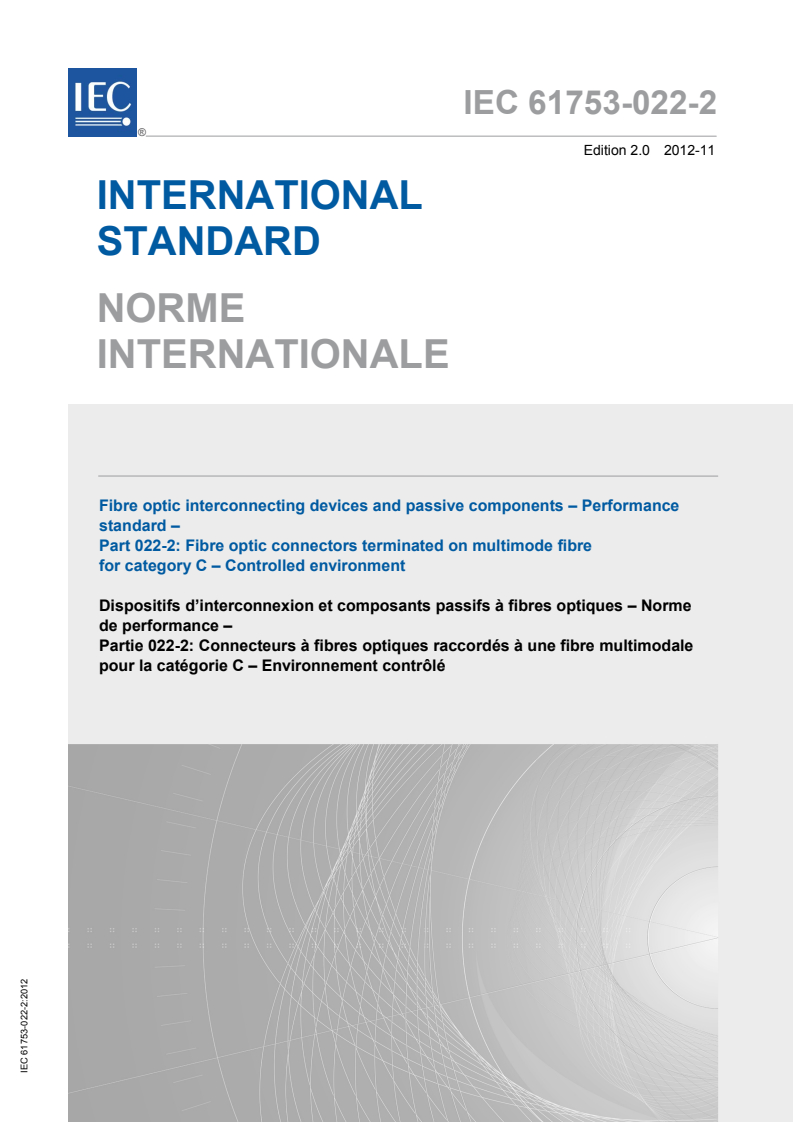

IEC 61753-022-2:2012

IEC 61753-022-2 ®
Edition 2.0 2012-11
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Fibre optic interconnecting devices and passive components – Performance
standard –
Part 022-2: Fibre optic connectors terminated on multimode fibre
for category C – Controlled environment

Dispositifs d’interconnexion et composants passifs à fibres optiques – Norme
de performance –
Partie 022-2: Connecteurs à fibres optiques raccordés à une fibre multimodale
pour la catégorie C – Environnement contrôlé

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,
please contact the address below or your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni
utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie et les
microfilms, sans l'accord écrit de la CEI ou du Comité national de la CEI du pays du demandeur.
Si vous avez des questions sur le copyright de la CEI ou si vous désirez obtenir des droits supplémentaires sur cette
publication, utilisez les coordonnées ci-après ou contactez le Comité national de la CEI de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

Useful links:
IEC publications search - www.iec.ch/searchpub Electropedia - www.electropedia.org
The advanced search enables you to find IEC publications The world's leading online dictionary of electronic and
by a variety of criteria (reference number, text, technical electrical terms containing more than 30 000 terms and
committee,…). definitions in English and French, with equivalent terms in
It also gives information on projects, replaced and additional languages. Also known as the International
withdrawn publications. Electrotechnical Vocabulary (IEV) on-line.

IEC Just Published - webstore.iec.ch/justpublished Customer Service Centre - webstore.iec.ch/csc
Stay up to date on all new IEC publications. Just Published If you wish to give us your feedback on this publication
details all new publications released. Available on-line and or need further assistance, please contact the
also once a month by email. Customer Service Centre: csc@iec.ch.

A propos de la CEI
La Commission Electrotechnique Internationale (CEI) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications CEI
Le contenu technique des publications de la CEI est constamment revu. Veuillez vous assurer que vous possédez
l’édition la plus récente, un corrigendum ou amendement peut avoir été publié.

Liens utiles:
Recherche de publications CEI - www.iec.ch/searchpub Electropedia - www.electropedia.org
La recherche avancée vous permet de trouver des Le premier dictionnaire en ligne au monde de termes
publications CEI en utilisant différents critères (numéro de électroniques et électriques. Il contient plus de 30 000
référence, texte, comité d’études,…). termes et définitions en anglais et en français, ainsi que
Elle donne aussi des informations sur les projets et les les termes équivalents dans les langues additionnelles.
publications remplacées ou retirées. Egalement appelé Vocabulaire Electrotechnique
International (VEI) en ligne.
Just Published CEI - webstore.iec.ch/justpublished
Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications de la CEI.
Just Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur
Disponible en ligne et aussi une fois par mois par email. cette publication ou si vous avez des questions
contactez-nous: csc@iec.ch.

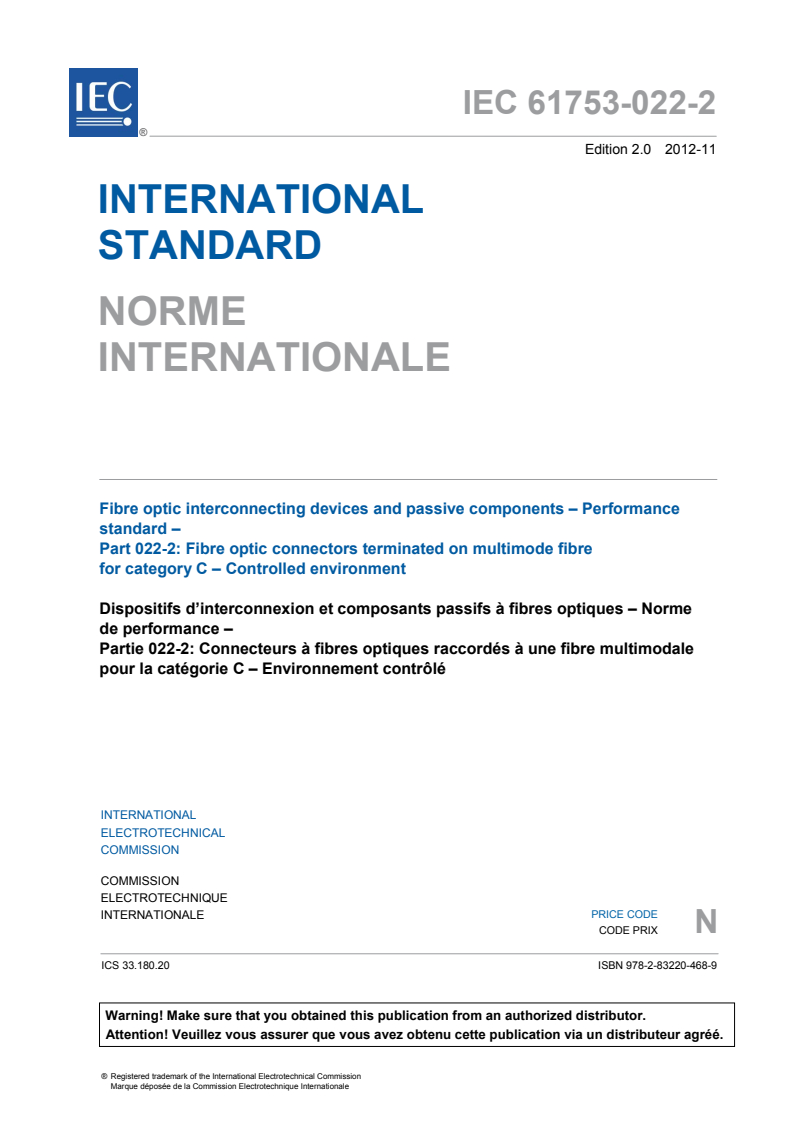

IEC 61753-022-2 ®
Edition 2.0 2012-11
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Fibre optic interconnecting devices and passive components – Performance

standard –
Part 022-2: Fibre optic connectors terminated on multimode fibre

for category C – Controlled environment

Dispositifs d’interconnexion et composants passifs à fibres optiques – Norme

de performance –
Partie 022-2: Connecteurs à fibres optiques raccordés à une fibre multimodale

pour la catégorie C – Environnement contrôlé

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX N
ICS 33.180.20 ISBN 978-2-83220-468-9

– 2 – 61753-022-2 © IEC:2012

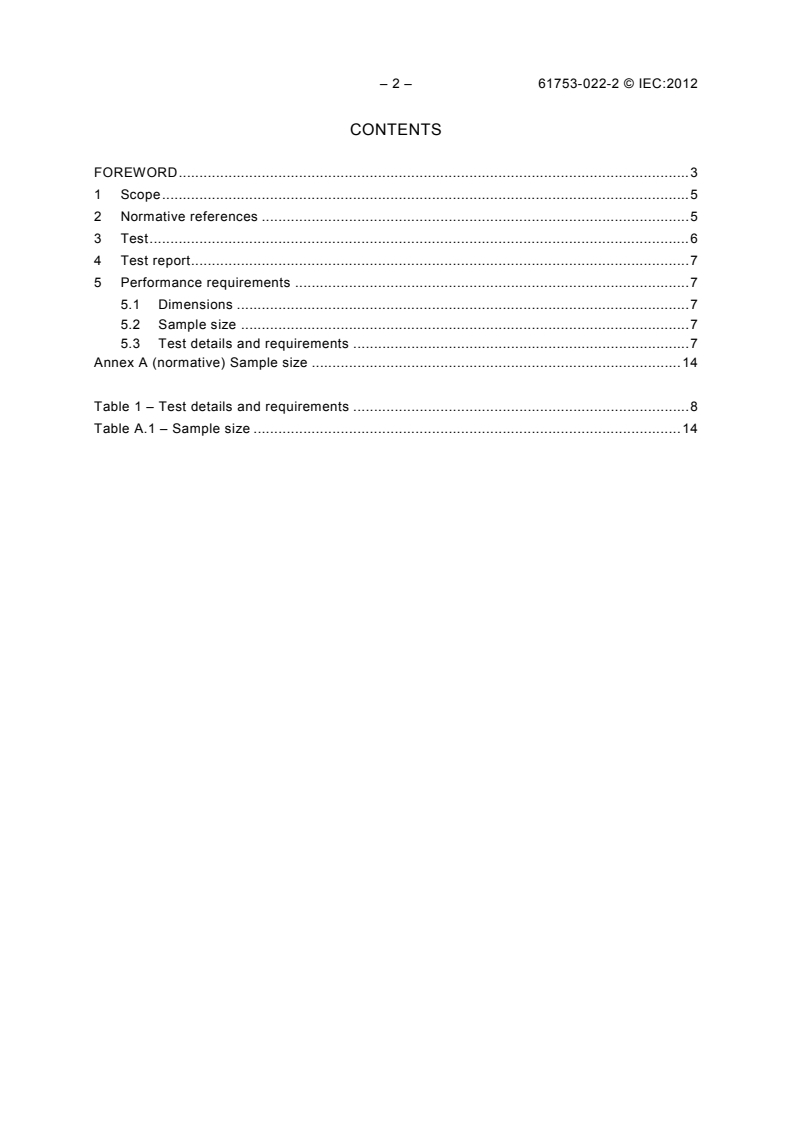

CONTENTS
FOREWORD . 3
1 Scope . 5
2 Normative references . 5
3 Test . 6
4 Test report . 7
5 Performance requirements . 7
5.1 Dimensions . 7
5.2 Sample size . 7
5.3 Test details and requirements . 7
Annex A (normative) Sample size . 14

Table 1 – Test details and requirements . 8
Table A.1 – Sample size . 14

61753-022-2 © IEC:2012 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
FIBRE OPTIC INTERCONNECTING DEVICES AND
PASSIVE COMPONENTS – PERFORMANCE STANDARD –

Part 022-2: Fibre optic connectors terminated
on multimode fibre for category C –
Controlled environment
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 61753-022-2 has been prepared by sub-committee 86B: Fibre
optic interconnecting devices and passive components, of IEC technical committee 86: Fibre
optics.
This second edition cancels and replaces the first edition, published in 2003. This edition
constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
– reconsideration of test requirements and details.

– 4 – 61753-022-2 © IEC:2012
The text of this standard is based on the following documents:
FDIS Report on voting
86B/3493/FDIS 86B/3537/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
A list of all the parts in the IEC 61753 series, published under the general title, Fibre optic
interconnecting and passive components – Perfomance standard can be found on the IEC
website.
Future standards in this series will carry the new general title as cited above. Titles of existing
standards in this series will be updated at the time of the next edition.
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
61753-022-2 © IEC:2012 – 5 –
FIBRE OPTIC INTERCONNECTING DEVICES AND
PASSIVE COMPONENTS – PERFORMANCE STANDARD –

Part 022-2: Fibre optic connectors terminated
on multimode fibre for category C –
Controlled environment
1 Scope
This part of IEC 61753 contains the minimum requirements and severities which a fibre optic
connector terminated on multimode fibre must satisfy in order to be categorized as meeting
the IEC standard category C – Controlled Environment, as defined in Annex A of
IEC 61753-1:2007.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and
are indispensable for its application. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 60793-2-10, Optical fibres – Part 2-10: Product specifications – Sectional specification for
category A1 multimode fibres
IEC 61300-1, Fibre optic interconnecting devices and passive components – Basic test and
measurement procedures – Part 1 General and guidance
IEC 61300-2-1, Fibre optic interconnecting devices and passive components – Basic test and
measurement procedures – Part 2-1: Tests – Vibration (sinusoidal)
IEC 61300-2-2, Fibre optic interconnecting devices and passive components – Basic test and
measurement procedures – Part 2-2: Tests – Mating durability
IEC 61300-2-4, Fibre optic interconnecting devices and passive components – Basic test and
measurement procedures – Part 2-4: Tests – Fibre/cable retention
IEC 61300-2-6, Fibre optic interconnecting devices and passive components – Basic test and
measurement procedures – Part 2-6: Tests – Tensile strength of coupling mechanism
IEC 61300-2-12, Fibre optic interconnecting devices and passive components – Basic test
and measurement procedures – Part 2-12: Tests – Impact
IEC 61300-2-17, Fibre optic interconnecting devices and passive components – Basic test
and measurement procedures – Part 2-17: Tests – Cold
IEC 61300-2-18, Fibre optic interconnecting devices and passive components – Basic test
and measurement procedures – Part 2-18: Tests – Dry heat – High temperature endurance
IEC 61300-2-19, Fibre optic interconnecting devices and passive components – Basic test
and measurement procedures – Part 2-19: Tests – Damp heat (steady state)

– 6 – 61753-022-2 © IEC:2012
IEC 61300-2-22, Fibre optic interconnecting devices and passive components – Basic test
and measurement procedures – Part 2-22: Tests – Change of temperature
IEC 61300-2-42, Fibre optic interconnecting devices and passive components – Basic test
and measurement procedures – Part 2-42: Tests – Static side load for connectors
IEC 61300-2-44, Fibre optic interconnecting devices and passive components – Basic test
and measurement procedures – Part 2-44: Tests – Flexing of the strain relief of fibre optic
devices
IEC 61300-3-3, Fibre optic interconnecting devices and passive components – Basic test and
measurement procedures – Part 3-3: Examinations and measurements – Active monitoring of
changes in attenuation and in return loss
IEC 61300-3-4, Fibre optic interconnecting devices and passive components – Basic test and
measurement procedures – Part 3-4: Examinations and measurements – Attenuation
IEC 61300-3-6, Fibre optic interconnecting devices and passive components – Basic test and
measurement procedures – Part 3-6: Examinations and measurements – Return loss
IEC 61300-3-28, Fibre optic interconnecting devices and passive components – Basic test
and measurement procedures – Part 3-28: Examinations and measurements – Transient loss
IEC 61300-3-34, Fibre optic interconnecting devices and passive components – Basic test
and measurement procedures – Part 3-34: Examinations and measurements – Attenuation of
random mated connectors
3 Test
All test methods are in accordance with the IEC 61300 series.
The connector shall be terminated onto multimode fibre as per IEC 60793-2-10, fibre type A1a
or A1b, in either secondary coated or reinforced cable format.
Each test defines the number of samples to be evaluated.
The samples used for each test are intended to be previously unstressed new samples, but
may be selected from previously used samples if so desired.
All optical testing shall be carried out at one central wavelength only, this shall be either
850 nm ± 30 nm.
Source characteristics shall be S2, S3 and detector D1, as specified in IEC 61300-3-4.
Launch conditions shall be in accordance with IEC 61300-1.
The full set of tests shall be carried out for all fibre types for which compliance to this
standard is claimed.
For different cable structures only requalification to tests 4, 6, 9, 10, 11, 12, 13 and 14 is
requested.
Change in attenuation, for the purpose of the test, is defined as the peak-to-peak variation
and shall be measured using IEC 61300-3-3. For monitoring intermittent discontinuities during
a test, IEC 61300-3-28 shall be used.

61753-022-2 © IEC:2012 – 7 –
4 Test report
Fully documented test reports and supporting evidence shall be prepared and be available for
inspection as evidence that the tests have been carried out and complied with.
5 Performance requirements
5.1 Dimensions
Dimensions shall comply with the appropriate IEC interface standard.
5.2 Sample size
For the purposes of this standard, a sample is a connector set, defined as the complete set of
connector components required to provide demountable coupling between one or more pairs
of optical fibres, i.e. “cable-plug-adapter-plug-cable” or “cable-socket-plug-cable”. The length
of cable (or fibre) inside the chamber on each side of the connector set should be 1,5 m
minimum.
The sample sizes to be used for the tests shall be as defined in Annex A. Samples may either
be a new product or sourced from a previous test.
5.3 Test details and requirements
Table 1 gives test details and requirements.
NOTE Class Bm requires physical contact between fibre cores; Class Cm relates to non physical contact.

– 8 – 61753-022-2 © IEC:2012
Table 1 – Test details and requirements (1 of 6)
No. Test Requirements Details
1 End face All end face geometry Relevant Part 3 of IEC 61755: Optical interface
geometry parameters
2 Attenuation Class Bm: IEC 61300-3-34
(random mate)
Mean ≤ 0,35 dB
METHOD 1
Maximum 0,60 dB for 97 % of
Source stability ± 0,05 dB over the measuring period or at
mating combinations
least 1 h
Source characteristics: (IEC 61300-3-4) for 850 nm:
Class Cm:
S2 type, LED
Mean ≤ 0,50 dB
Power meter: D1
Maximum 1,00 dB for 97 % of
mating combinations
Attenuation measurements shall be made on randomly
selected specimens.
Preconditioning procedure:
Clean the mechanical and optical alignment parts of the
specimen according to the manufacturer’s instructions.
3 Return loss IEC 61300-3-6
Class 2m: RL > 20 dB
(random mate)
METHOD A (Branching device method)

Source:
Class 3m: RL > 8 dB
Stability: ± 0,20 dB over the measuring period or at least
1 h
Spectral width: > 50 nm
Detector:
Sensitivity: < 30 dB under source injected power
Linearity: < 0,5 dB
Branching device:
Directivity: > 35 dB without modal dispersion
Other methods specified in IEC 61300-3-6 may be used as
long as modal condition as specified in IEC 61300-1 is
maintained at the point of measurement.
Preconditioning procedure:
Clean the mechanical and optical alignment parts of the
specimen according to the manufacturer’s instructions
4 Vibration Attenuation shall be IEC 61300-2-1
(sinusoidal) measured before, during and
Frequency range: 10 Hz to 55 Hz
after the test.
Endurance duration per axis: 0,5 h
Class Bm:
Number of axes: Three orthogonal
Maximum change during test
≤ 0,20 dB
Number of sweeps: 15
Maximum change before and Vibration amplitude: 0,75 mm
after test ≤ 0,20 dB
Sampling rate: Maximum sampling interval shall be 2 ms by
Return loss: Before and after means of transient loss IEC 61300-3-28
test > 20 dB
Method of mounting:
An adapter shall be mounted rigidly to the mounting fixture

Specimen shall be optically functioning
Class Cm:
Maximum change during test
Preconditioning procedure:
≤ 0,50 dB
Clean the mechanical and optical alignment parts of the
specimen according to the manufacturer’s instructions
Maximum change before and
after test ≤ 0,40 dB
Return loss: Before and after
test > 8 dB
61753-022-2 © IEC:2012 – 9 –
Table 1 (2 of 6)
No. Test Requirements Details
5 Mating Attenuation shall be measured before, IEC 61300-2-2
durability after each mating during the test.
Coupling mechanism to be cycled: plug-adapter
In the event that the change in
Cycling rate:
attenuation increases above the
Not less than 3 s between each engagement and
allowable limit, the connector may be
separation
cleaned as necessary, but not more
Number of cycles: 500
than 25 times during the course of the
test. (The measurement at which the
Specimen shall be optically functioning
cleaning takes place shall be
Preconditioning and recovery procedure:
discounted from the test results.)
Clean the mechanical and optical alignment parts of
Class Bm:
the specimen according to the manufacturer’s
Maximum change during test ≤ 0,20 dB
instructions
Maximum change before and after test
≤ 0,20 dB
Return loss: Before and after test > 20
dB
Class Cm:
Maximum change during test ≤ 0,50 dB
Maximum change before and after test
≤ 0,40 dB
Return loss: Before and after test > 8
dB
6 Fibre Attenuation shall be measured before, IEC 61300-2-4
cable during and after the test.
Magnitude and rate of application of the tensile load:
retention
Class Bm:
Maximum change during test ≤ 0,20 dB 50 N ± 2 N at a speed of 5 N/s for reinforced cables
5 N ± 0,5 N at a speed of 0,5 N/s for coated fibres
Maximum change before and after test
Point of application of tensile load: 0,3 m from the end
≤ 0,20 dB
face of the connector.
Return loss: Before and after test
Duration of the test (maintaining the load): 60 s
> 20 dB
Sampling rate:
Attenuation shall be measured at least once after the
Class Cm:
load has reached its maximum level and been
Maximum change during test ≤ 0,50 dB
maintained for a minimum period of 30 s.
Maximum change before and after test Method of mounting:
The connector shall be rigidly mounted such that the
≤ 0,40 dB
load is applied to the fibre/cable retention mechanism
Return loss: Before and after test
not the connector coupling mechanism.
> 8 dB
Specimen shall be optically functioning.

Preconditioning procedure:
Clean the mechanical and optical alignment parts of
the specimen according to the manufacturer’s
instructions
– 10 – 61753-022-2 © IEC:2012
Table 1 (3 of 6)
No. Test Requirements Details
7 Strength of coupling Attenuation shall be IEC 61300-2-6
mechanism measured before, during and
Magnitude of the tensile load: 40 N ± 1 N
after the test.
Rate of application of the load: 2 N/s
Class Bm:
Duration of the test: 60 s
Maximum change during test
≤ 0,20 dB
Sampling rate:
Attenuation shall be measured at least once after the
Maximum change before and
load has reached its maximum level and been
after test ≤ 0,20 dB
maintained for a minimum period of 30 s.
Return loss: Before and after
Method of mounting:
test > 20 dB
An adapter shall be mounted rigidly to the mounting
fixture.
Specimen shall be optically functioning.
Class Cm:
Maximum change during test
Preconditioning procedure:
≤ 0,50 dB Clean the mechanical and optical alignment parts of
the specimen according to the manufacturer
Maximum change before and
instructions
after test ≤ 0,40 dB
Return loss: Before and after
test > 8 dB
8 Impact IEC 61300-2-12 (Method A)
Attenuation shall be
measured before, and after
Number of drops: 5
each drop.
Drop height: 1,5 m
Class Bm:
Sampling rate: After each drop
Maximum change before and
after test ≤ 0,20 dB
Specimen shall be unmated during drops, and
remated for measurements after each drop.
Return loss:Before and after
Specimen shall be non-functioning.
test > 20 dB
Preconditioning procedure:
Clean the mechanical and optical alignment parts of
Class Cm:
the specimen according to the manufacturer’s
Maximum change before and
instructions.
after test ≤ 0,40 dB
Recovery procedure after each drop:
Return loss: Before and after Clean the mechanical and optical alignment parts of
the specimen according to the manufacturer’s
test > 8 dB
instructions
9 IEC 61300-2-44
Flexing of the strain Class Bm:
relief of fibre optic Maximum change during test
Load: 2 N for reinforced cable assemblies
device ≤ 0,20 dB
Point of application of the load: 0,5 m from rear of
Maximum change before and
plug
after test ≤ 0,20 dB
Method of mounting: An adapter shall be mounted
Return loss: Before and after
rigidly to the mounting fixture.
test > 20 dB
Class Cm:
Number of flex cycles: 50
Maximum change during test
Direction of flex: X and Y direction
≤ 0,50 dB
Maximum change before and
Specimen optically functioning: Yes
after test ≤ 0,40 dB
Measurements required: Before, during (continuous)
Return loss: Before and after
and after the test.
test > 8 dB
Sampling rate: Maximum sampling interval shall be
2 ms by means of transient loss IEC 61300-3-28.
Pre-conditioning procedure: Clean plug and adapter
according to manufacturer's instructions.

61753-022-2 © IEC:2012 – 11 –
Table 1 (4 of 6)
No. Test Requirements Details
10 Static side load Attenuation shall be IEC 61300-2-42
measured before, at a
Magnitude of the tensile load:
maximum interval of 3 min
1 N (reinforced cable)
during and after the test.
0,2 N (buffered fibre)
Class + Bm:
Point of application of the tensile load:
Maximum change during test:
0,5 m from the end face of the connector
≤ 0,20 dB
Duration of the test (maintaining load):
Maximum change before and
1 h for each tensile load (reinforced cable)
after test: ≤ 0,20 dB
5 min for each tensile load (buffered fibre)
Return loss: Before and after
Sampling rate: 3 min maximum interval
test: > 20 dB
Method of mounting:
An adapter shall be mounted rigidly to the mounting
fixture.
Class Cm:
Specimen shall be optically functioning.
Maximum change during test:
≤ 0,50 dB
Preconditioning procedure:
Clean the mechanical and optical alignment parts of
Maximum change before and
the specimen according to the manufacturer’s
after test: ≤ 0,40 dB
instructions.
Return loss: Before and after
test: > 8 dB
11 Cold Attenuation and return loss IEC 61300-2-17
shall be measured before, at
Temperature: -10 °C
a maximum interval of 1 h
Duration of exposure: 96 h
during and after the test
Length of the cable on each side of the connector:
Class Bm:
1,5 m minimum (inside the chamber).
Maximum change during test
≤ 0,20 dB
Specimen shall be optically functioning.
Maximum change before and
Preconditioning and recovery procedure:
after test ≤ 0,20 dB Before test, specimens shall be maintained in room
temperature condition for 2 h. Clean the mechanical
Return loss: Before and after
and optical alignment parts of the specimen according
test > 20 dB
to the manufacturer’s instructions

Class Cm:
Maximum change during test
≤ 0,50 dB
Maximum change before and
after test ≤ 0,40 dB
Return loss: Before and after
test > 8 dB
– 12 – 61753-022-2 © IEC:2012
Table 1 (5 of 6)
No. Test Requirements Details
12 Dry heat Attenuation and return loss IEC 61300-2-18
shall be measured before,
Temperature: +60 °C
after and at a maximum
Duration of exposure: 96 h
interval of 1 h during the test.
Length of the cable on each side of the connector:
Class Bm:
1,5 m minimum
Maximum change during test
≤ 0,20 dB,
Specimen shall be optically functioning.
Maximum change before and Preconditioning and recovery procedure:
after test ≤ 0,20 dB Before test, specimens shall be maintained in room
temperature condition for 2 h. Clean the mechanical
Return loss: Before and after
and optical alignment parts of the specimen
test> 20 dB
according to the manufacturer’s instructions

Class Cm:
Maximum change during test
≤ 0,50 dB,
Maximum change before and
after tes: ≤ 0,40 dB
Return loss: Before and after
test
> 8 dB
13 Dampe heat Attenuation and return loss IEC 61300-2-19
(steady state) shall be measured before, at a
Temperature: +40 °C ± 2 °C
maximum interval of 1 h
during, and after the test.
Relative humidity: 93 % ± 2 %
Duration of exposure: 96 h
Class Bm:
Maximum change during test
Length of the cable on each side of the connector:
≤ 0,20 dB,
1,5 m minimum (inside the chamber)
Maximum change before and
Specimen shall be optically functioning.
after test ≤ 0,20 dB
Preconditioning and recovery procedure:
Return loss: Before and after
Before test, specimens shall be maintained in room
test
temperature condition for 2 h. Clean the mechanical
and optical alignment parts of the specimen
> 20 dB
according to the manufacturer’s instructions

Class Cm:
Maximum change during test
≤ 0,50 dB
Maximum change before and
after test ≤ 0,40 dB
Return loss: Before and after
test
> 8 dB
61753-022-2 © IEC:2012 – 13 –
Table 1 (6 of 6)
No. Test Requirements Details
14 Change of Attenuation and return loss shall be IEC 61300-2-22
Temperature measured before, at a maximum
High temperature: +60 °C
interval of 10 min during, and after
Low temperature: –10 °C
the test.
Duration at extreme temperatures: 1 h
ClassBm:
Maximum change during test
Temperature rate of change: 1 °C/min
≤ 0,20 dB,
Number of cycles: 5
Maximum change before and after
Length of the cable on each side of the connector:
test ≤ 0,20 dB
1,5 m minimum (inside the chamber)
Return loss: Before and after test
Specimen shall be optically functioning.
> 20 dB
Preconditioning and recovery procedure:

Before test, specimens shall be maintained in room
temperature condition for 2 h. Clean the mechanical
Class Cm:
and optical alignment parts of the specimen according
Maximum change during test
to the manufacturer’s instructions.
≤ 0,50 dB,
Maximum change before and after
test ≤ 0,40 dB
Return loss: Before and after test
> 8 dB
15 End face All end face geometry parameters Relevant Part 3 of IEC IEC 61755-3 Optical interface
geometry
– 14 – 61753-022-2 © IEC:2012
Annex A
(normative)
Sample size
The samples are sourced as defined in Table A.1.
Table A.1 – Sample size
No. Test Sample size Source
Plug Adaptor
1 End face geometry All
2 Attenuation (random mate) 10 10 New
3 Return loss (random mate) 10 10 Test 1
4 Vibration 4 2 Test 1
5 Mating durability 4 2 Test 1
6 Fibre/Cable retention 4 2 Test 1
7 Strength of coupling mechanism 4 4 Test 1
8 Impact (Method A) 4 N/A Test 1
9 Flexing of strain relief of fibre optic device 4 2
10 Static side load 4 2 Test 1
11 Cold 4 2 Test 1
12 Dry heat 4 2 Test 1
13 Damp heat (steady state) 4 2 Test 1
14 Change of temperature:  Test 1
- pigtails 4 2
- cable assemblies  2 4
15 End face geometry All
N/A Not applicable.
The above tests are each intended to be performed individually on product sourced as defin
...
