IEC 60092-379:2024

IEC 60092-379 ®
Edition 1.0 2024-07
INTERNATIONAL
STANDARD
Electrical installations in ships –
Part 379: Symmetrical category cables with transmission characteristics up to
1 000 MHz

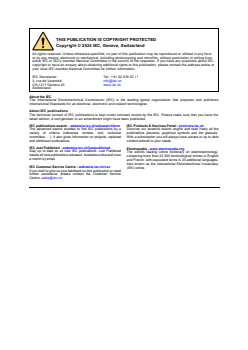

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

IEC Secretariat Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform IEC Products & Services Portal - products.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews, graphical symbols and the glossary.
committee, …). It also gives information on projects, replaced With a subscription you will always have access to up to date
and withdrawn publications. content tailored to your needs.

IEC Just Published - webstore.iec.ch/justpublished
Electropedia - www.electropedia.org
Stay up to date on all new IEC publications. Just Published
The world's leading online dictionary on electrotechnology,
details all new publications released. Available online and once
containing more than 22 500 terminological entries in English
a month by email.
and French, with equivalent terms in 25 additional languages.

Also known as the International Electrotechnical Vocabulary
IEC Customer Service Centre - webstore.iec.ch/csc
(IEV) online.
If you wish to give us your feedback on this publication or need

further assistance, please contact the Customer Service
Centre: sales@iec.ch.

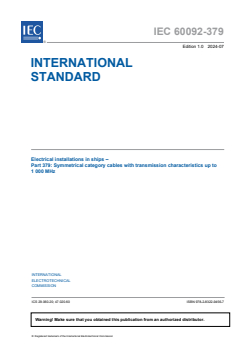

IEC 60092-379 ®
Edition 1.0 2024-07
INTERNATIONAL
STANDARD
Electrical installations in ships –

Part 379: Symmetrical category cables with transmission characteristics up to

1 000 MHz
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 29.060.20; 47.020.60 ISBN 978-2-8322-9456-7

– 2 – IEC 60092-379:2024 © IEC 2024

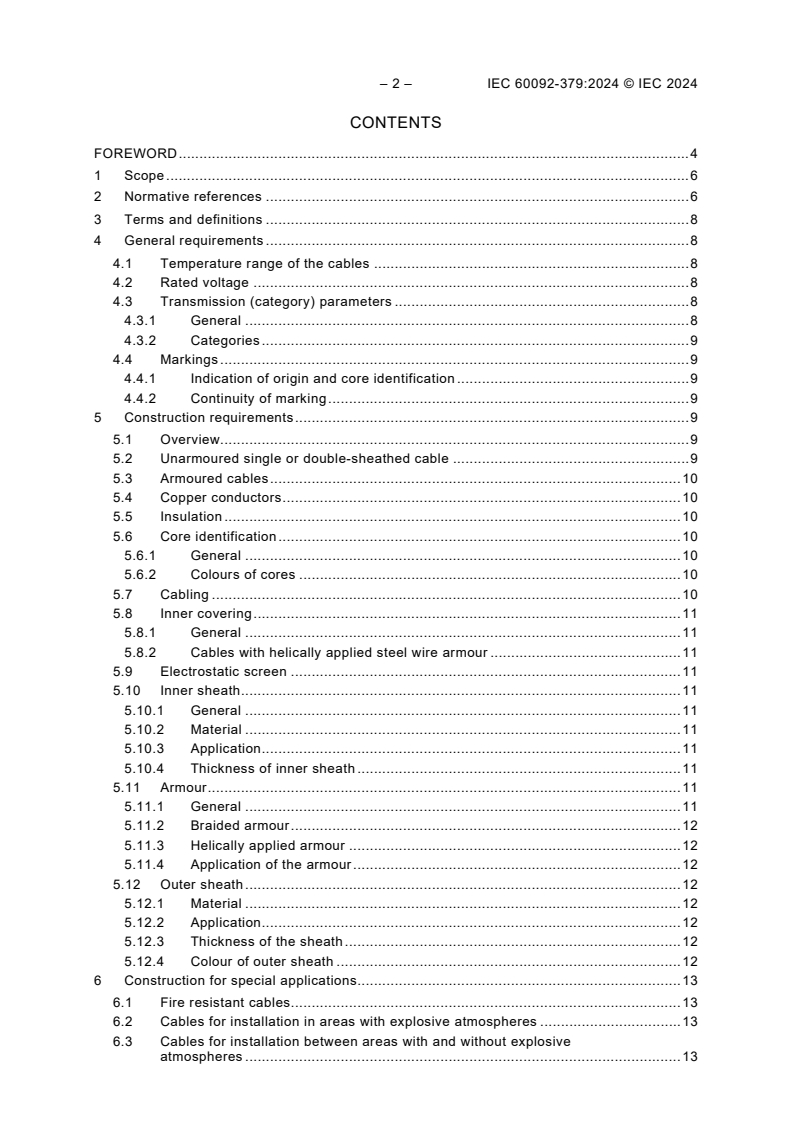

CONTENTS
FOREWORD . 4
1 Scope . 6
2 Normative references . 6
3 Terms and definitions . 8
4 General requirements . 8
4.1 Temperature range of the cables . 8
4.2 Rated voltage . 8
4.3 Transmission (category) parameters . 8
4.3.1 General . 8
4.3.2 Categories . 9
4.4 Markings . 9
4.4.1 Indication of origin and core identification . 9
4.4.2 Continuity of marking . 9
5 Construction requirements . 9
5.1 Overview. 9
5.2 Unarmoured single or double-sheathed cable . 9
5.3 Armoured cables . 10
5.4 Copper conductors . 10
5.5 Insulation . 10
5.6 Core identification . 10
5.6.1 General . 10
5.6.2 Colours of cores . 10
5.7 Cabling . 10
5.8 Inner covering . 11
5.8.1 General . 11
5.8.2 Cables with helically applied steel wire armour . 11
5.9 Electrostatic screen . 11
5.10 Inner sheath . 11
5.10.1 General . 11
5.10.2 Material . 11
5.10.3 Application . 11
5.10.4 Thickness of inner sheath . 11
5.11 Armour . 11
5.11.1 General . 11
5.11.2 Braided armour . 12
5.11.3 Helically applied armour . 12
5.11.4 Application of the armour . 12
5.12 Outer sheath . 12
5.12.1 Material . 12
5.12.2 Application . 12
5.12.3 Thickness of the sheath . 12
5.12.4 Colour of outer sheath . 12
6 Construction for special applications. 13
6.1 Fire resistant cables. 13
6.2 Cables for installation in areas with explosive atmospheres . 13
6.3 Cables for installation between areas with and without explosive
atmospheres . 13

7 Tests – methods and requirements . 13
7.1 General . 13
7.2 Tests on cables for installation in explosive atmospheres . 16
7.3 Additional test on cables for installation between areas with and without
explosive atmospheres . 17
Annex A (informative) Installation of category cables on board of ships and offshore
units . 18
Bibliography . 19

Table 1 – Tests applicable to all cables . 13
Table 2 – Additional test required for low smoke cables . 15
Table 3 – Additional tests required for specific performances . 15
Table 4 – Additional test required for fire resistant cables . 16
Table 5 – Requirements for insulation and functional integrity of Ethernet (category)
cables . 16
Table 6 – Additional test for cables for installation between areas with and without
explosive atmospheres . 17

– 4 – IEC 60092-379:2024 © IEC 2024
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
ELECTRICAL INSTALLATIONS IN SHIPS –

Part 379: Symmetrical category cables with transmission
characteristics up to 1 000 MHz

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as "IEC Publication(s)"). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) IEC draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). IEC takes no position concerning the evidence, validity or applicability of any claimed patent rights in
respect thereof. As of the date of publication of this document, IEC had not received notice of (a) patent(s), which
may be required to implement this document. However, implementers are cautioned that this may not represent
the latest information, which may be obtained from the patent database available at https://patents.iec.ch. IEC
shall not be held responsible for identifying any or all such patent rights.
IEC 60092-379 has been prepared by subcommittee 18A: Electric cables for ships and mobile
and fixed offshore units, of IEC technical committee 18: Electrical installations of ships and of
mobile and fixed offshore units. It is an International Standard.
The text of this International Standard is based on the following documents:
Draft Report on voting
18A/487/FDIS 18A/489/RVD
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this International Standard is English.

This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/publications.
A list of all parts in the IEC 60092 series, published under the general title Electrical installations
in ships, can be found on the IEC website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
• reconfirmed,
• withdrawn, or
• revised.
– 6 – IEC 60092-379:2024 © IEC 2024
ELECTRICAL INSTALLATIONS IN SHIPS –

Part 379: Symmetrical category cables with transmission
characteristics up to 1 000 MHz

1 Scope
This part of IEC 60092 is applicable to shipboard and offshore units Ethernet (category) cables
with extruded solid or foamed insulation, intended for fixed installations. Cables designed to
maintain functional integrity during fire as specified in 6.1 and to be installed in explosive
atmospheres as specified in 6.2 are included.
The various types of Ethernet (category) cables are given in Clause 4. The constructional
requirements and test methods are aligned with those indicated in IEC 60092-350, unless
otherwise specified in this document.
The object of this document is:
– to standardize cables whose safety and reliability is ensured when they are installed in
accordance with the requirements of IEC 60092-352 or IEC 60092-401;
– to allow solid conductor category cables against the recommendations of IEC 60092-352;
– to lay down standard manufacturing requirements and characteristics of such cables directly
or indirectly bearing on safety;
– to specify test methods for checking conformity with those requirements; and
– to add requirements and recommendations for the cable installation in accordance with
Annex A.
All cables described in this document are halogen-free.
Cables within this document can be installed in many different environments that would call for
extra protection where steel wire or tape armouring is required. Examples of areas, such as
outdoor, on the ship, where other moveable objects are within the same space, will require extra
protection. These areas of concern are found in extreme conditions, like offshore drilling and
oil platforms.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies.
For undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 60079-14:2013, Explosive atmospheres – Part 14: Electrical installations design, selection
and erection
IEC 60092-350:2020, Electrical installations in ships – Part 350: General construction and test
methods of power, control and instrumentation cables for shipboard and offshore applications
IEC 60092-352, Electrical installations in ships – Part 352: Choice and installation of electrical
cables
IEC 60092-360, Electrical installations in ships – Part 360: Insulating and sheathing materials
for shipboard and offshore units, power, control, instrumentation and telecommunication cables
IEC 60092-401, Electrical installations in ships – Part 401: Installation and test of completed
installation
IEC 60331-1, Tests for electric cables under fire conditions – Circuit integrity – Part 1: Test
method for fire with shock at a temperature of at least 830 °C for cables of rated voltage up to
and including 0,6/1,0 kV and with an overall diameter exceeding 20 mm
IEC 60331-2, Tests for electric cables under fire conditions – Circuit integrity – Part 2: Test
method for fire with shock at a temperature of at least 830 °C for cables of rated voltage up to
and including 0,6/1,0 kV and with an overall diameter not exceeding 20 mm
IEC 60331-23, Tests for electric cables under fire conditions – Circuit integrity – Part 23:
Procedures and requirements – Electric data cables
IEC 60332-3-24, Tests on electric and optical fibre cables under fire conditions – Part 3-24:
Test for vertical flame spread of vertically-mounted bunched wires or cables – Category C
IEC 60332-3-25, Tests on electric and optical fibre cables under fire conditions – Part 3-25:
Test for vertical flame spread of vertically-mounted bunched wires or cables – Category D
IEC 60332-1-2, Tests on electric and optical fibre cables under fire conditions – Part 1-2: Test
for vertical flame propagation for a single insulated wire or cable – Procedure for 1 kW
pre-mixed flame
IEC 60684-2, Flexible insulating sleeving – Part 2: Methods of test
IEC 60754-1, Test on gases evolved during combustion of materials from cables – Part 1:
Determination of the halogen acid gas content
IEC 60754-2, Test on gases evolved during combustion of materials from cables – Part 2:
Determination of acidity (by pH measurement) and conductivity
IEC 60811-506, Electric and optical fibre cables – Test methods for non-metallic materials –
Part 506: Mechanical tests – Impact test at low temperature for insulations and sheaths
IEC 61034-2, Measurement of smoke density of cables burning under defined conditions –
Part 2: Test procedure and requirements
IEC 61156-1:2023, Multicore and symmetrical pair/quad cables for digital communications –
Part 1: Generic specification
IEC 61156-5:2020, Multicore and symmetrical pair/quad cables for digital communications –
Part 5: Symmetrical pair/quad cables with transmission characteristics up to 1 000 MHz –
Horizontal floor wiring – Sectional specification
IEC 61156-6:2020, Multicore and symmetrical pair/quad cables for digital communications –
Part 6: Symmetrical pair/quad cables with transmission characteristics up to 1 000 MHz – Work
area wiring – Sectional specification
ISO/IEC TS 29125, Information technology – Telecommunications cabling requirements for
remote powering of terminal equipment

– 8 – IEC 60092-379:2024 © IEC 2024
3 Terms and definitions
For the purposes of this document, the terms and definitions given in IEC 60092-350 apply.
ISO and IEC maintain terminology databases for use in standardization at the following
addresses:
• IEC Electropedia: available at https://www.electropedia.org/
• ISO Online browsing platform: available at https://www.iso.org/obp
4 General requirements
4.1 Temperature range of the cables
The category cables, specified in this document, are decided for an operating temperature
range from −25 °C up to +80 °C.
NOTE The specified temperature range is extended compared to the range specified in the IEC 61156 series.
Another temperature range can be agreed between manufacturer and customer. In this case
ensure that the temperature coefficient of the attenuation should be specified in order to provide
this information for network-planning purposes.
4.2 Rated voltage
The rated voltages for category cables are
• 30 V AC for cables with Ethernet data transmission only;
• 57 V AC for cables with Ethernet data transmission and additional Power over Ethernet
(PoE) characteristics.
All voltages are given as RMS values.
If cables are use
...
