General safety requirements for residual current operated protective devices - Part 1: Residual current operated protective devices for DC systems

IEC 60755-1:2022 gives requirements, recommendations and information for the drafting of standards for residual current operated protective devices, intended to be used in DC systems, hereafter referred to as DC-RCDs.
This group safety publication is primarily intended for use by technical committees in the preparation of standards in accordance with the principles laid down in IEC Guide 104 and lSO/lEC Guide 51. It is not intended for use by manufacturers or certification bodies.

General Information

Status
Published
Publication Date
23-Oct-2022
Current Stage
PPUB - Publication issued
Start Date
18-Nov-2022
Completion Date
24-Oct-2022
Ref Project

Buy Standard

Standard
IEC 60755-1:2022 - General safety requirements for residual current operated protective devices - Part 1: Residual current operated protective devices for DC systems Released:10/24/2022
English language
32 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (Sample)


IEC 60755-1 ®
Edition 1.0 2022-10
INTERNATIONAL
STANDARD
GROUP SAFETY PUBLICATION
General safety requirements for residual current operated protected devices –
Part 1: Residual current operated protective devices for DC systems

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

IEC Secretariat Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform IEC Products & Services Portal - products.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews. With a subscription you will always have
committee, …). It also gives information on projects, replaced access to up to date content tailored to your needs.
and withdrawn publications.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
The world's leading online dictionary on electrotechnology,
Stay up to date on all new IEC publications. Just Published
containing more than 22 300 terminological entries in English
details all new publications released. Available online and once
and French, with equivalent terms in 19 additional languages.
a month by email.
Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc

If you wish to give us your feedback on this publication or need
further assistance, please contact the Customer Service
Centre: sales@iec.ch.
IEC 60755-1 ®
Edition 1.0 2022-10
INTERNATIONAL
STANDARD
GROUP SAFETY PUBLICATION
General safety requirements for residual current operated protected devices –

Part 1: Residual current operated protective devices for DC systems

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 29.120.50 ISBN 978-2-8322-5867-5

– 2 – IEC 60755-1:2022 © IEC 2022

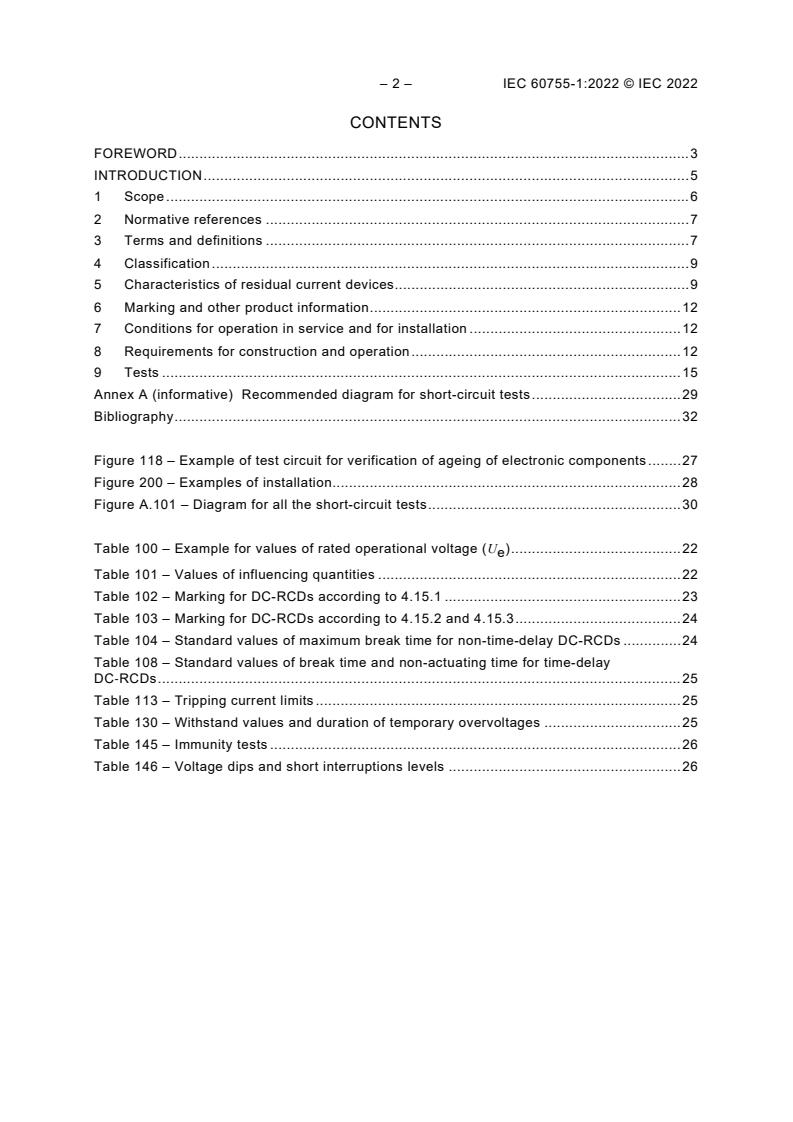

CONTENTS
FOREWORD . 3
INTRODUCTION . 5
1 Scope . 6
2 Normative references . 7
3 Terms and definitions . 7
4 Classification . 9
5 Characteristics of residual current devices . 9
6 Marking and other product information . 12
7 Conditions for operation in service and for installation . 12
8 Requirements for construction and operation . 12
9 Tests . 15
Annex A (informative) Recommended diagram for short-circuit tests . 29
Bibliography . 32

Figure 118 – Example of test circuit for verification of ageing of electronic components . 27
Figure 200 – Examples of installation. 28
Figure A.101 – Diagram for all the short-circuit tests . 30

Table 100 – Example for values of rated operational voltage (U ) . 22
e
Table 101 – Values of influencing quantities . 22
Table 102 – Marking for DC-RCDs according to 4.15.1 . 23
Table 103 – Marking for DC-RCDs according to 4.15.2 and 4.15.3 . 24
Table 104 – Standard values of maximum break time for non-time-delay DC-RCDs . 24
Table 108 – Standard values of break time and non-actuating time for time-delay
DC‑RCDs . 25
Table 113 – Tripping current limits . 25
Table 130 – Withstand values and duration of temporary overvoltages . 25
Table 145 – Immunity tests . 26
Table 146 – Voltage dips and short interruptions levels . 26

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
GENERAL SAFETY REQUIREMENTS FOR RESIDUAL
CURRENT OPERATED PROTECTED DEVICES –

Part 1: Residual current operated protective devices for DC systems

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as "IEC Publication(s)"). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent
rights. IEC shall not be held responsible for identifying any or all such patent rights.
IEC 60755-1 has been prepared by subcommittee 23E: Circuit breakers and similar equipment
for household use, of IEC technical committee 23: Electrical accessories. It is an International
Standard.
This document is intended to be used in conjunction with IEC 60755.
The text of this International Standard is based on the following documents:
Draft Report on voting
23E/1273/FDIS 23E/1299/RVD
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this International Standard is English.

– 4 – IEC 60755-1:2022 © IEC 2022
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/standardsdev/publications.
A list of all parts in the IEC 60755 series, published under the general title General safety
requirements for residual current operated protected devices, can be found on the IEC website.
This International Standard is to be used in conjunction with IEC 60755:2017.
The following differing practices of a less permanent nature exist in the countries indicated
below:
– IEC 60755:2017, IEC 60755:2017, 5.3.1.12: 1 000 A, 2 000 A, 2 500 A, 7 500 A and 9 000 A
are also considered preferred values (Korea and Japan);
– IEC 60755:2017, IEC 60755:2017, 8.1.1: multiple settings are not allowed (Australia,
Germany, Denmark, the UK and Switzerland);
– IEC 60755:2017, IEC 60755:2017, 8.1.2: the colours red and green are not used for contact
position indication (US).
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
INTRODUCTION
Residual current devices are used for protection against electric shocks.
In IEC 60364 (all parts), residual current devices are used for automatic disconnection of supply
in case of fault (see Clause 411 of IEC 60364-4-41:2005+AMD1:2017) and residual current
devices with rated residual operating current not exceeding 30 mA are used as additional
protection (see Clause 415 of IEC 60364-4-41:2005+AMD1:2017). The IEC has developed a
set of standards for residual current operated protective devices intended to be used in AC
systems.
DC systems are used for applications such as photovoltaic installations, data and telecom
centres and electric vehicle charging systems. In addition, standards for plugs and socket-
outlets for ICT equipment installed in data centres and telecom centres have been published.
Residual current devices for DC systems are used to provide fault protection and/or additional
protection (according to IEC 60364-4-41:2005 and IEC 60364-4-41:2005/AMD1:2017).
This document defines the operating characteristics for residual current operated protective
devices for DC systems. Details of how they should be installed to provide the desired level of
protection are specified in the various parts of the IEC 60364 series. The operating
characteristics given in this document are based on the information contained in IEC 60479 (all
parts).
This document has been prepared as a Group Safety Publication by subcommittee 23E in
accordance with its Group Safety Function for residual current devices. It is intended for use by
technical committees in the preparation of standards for residual current unit, function or
devices when it is intended to provide protective measures according to IEC 60364 (all parts).
It is not intended for use as a stand-alone document, for example, for certification.
This document is intended for use in conjunction with IEC 60755. Where a particular subclause
of IEC 60755 is not mentioned in this Part 1, that subclause applies as far as is reasonable.
Where this Part 1 states "addition", "deletion" or "replacement", the corresponding requirement,
test specification or explanatory material in IEC 60755 should be adapted accordingly.

– 6 – IEC 60755-1:2022 © IEC 2022
GENERAL SAFETY REQUIREMENTS FOR RESIDUAL
CURRENT OPERATED PROTECTED DEVICES –

Part 1: Residual current operated protective devices for DC systems

Replacement of Clau
...
