IEC 63241-2-6:2023

IEC 63241-2-6
®

Edition 1.0 2023-07
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE


Electric motor-operated tools – Dust measurement procedure –
Part 2-6: Particular requirements for hand-held hammers

Outils électroportatifs à moteur – Procédure de mesure de la poussière –
Partie 2-6: Exigences particulières pour les marteaux portatifs

IEC 63241-2-6:2023-07(en-fr)

---------------------- Page: 1 ----------------------
THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2023 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.


Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni
utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie et
les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Secretariat Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland

About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform IEC Products & Services Portal - products.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews. With a subscription you will always have
committee, …). It also gives information on projects, replaced access to up to date content tailored to your needs.
and withdrawn publications.

Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
The world's leading online dictionary on electrotechnology,
Stay up to date on all new IEC publications. Just Published
containing more than 22 300 terminological entries in English
details all new publications released. Available online and once
and French, with equivalent terms in 19 additional languages.
a month by email.
Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc
If you wish to give us your feedback on this publication or need
further assistance, please contact the Customer Service
Centre: sales@iec.ch.


A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Recherche de publications IEC - Découvrez notre puissant moteur de recherche et consultez
webstore.iec.ch/advsearchform gratuitement tous les aperçus des publications. Avec un
La recherche avancée permet de trouver des publications IEC abonnement, vous aurez toujours accès à un contenu à jour
en utilisant différents critères (numéro de référence, texte, adapté à vos besoins.
comité d’études, …). Elle donne aussi des informations sur les
projets et les publications remplacées ou retirées. Electropedia - www.electropedia.org

Le premier dictionnaire d'électrotechnologie en ligne au monde,
IEC Just Published - webstore.iec.ch/justpublished
avec plus de 22 300 articles terminologiques en anglais et en
Restez informé sur les nouvelles publications IEC. Just
français, ainsi que les termes équivalents dans 19 langues
Published détaille les nouvelles publications parues.
additionnelles. Egalement appelé Vocabulaire
Disponible en ligne et une fois par mois par email.
Electrotechnique International (IEV) en ligne.


Service Clients - webstore.iec.ch/csc
Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.
IEC Products & Services Portal - products.iec.ch

---------------------- Page: 2 ----------------------
IEC 63241-2-6

®


Edition 1.0 2023-07




INTERNATIONAL



STANDARD




NORME


INTERNATIONALE











Electric motor-operated tools – Dust measurement procedure –

Part 2-6: Particular requirements for hand-held hammers



Outils électroportatifs à moteur – Procédure de mesure de la poussière –

Partie 2-6: Exigences particulières pour les marteaux portatifs
















INTERNATIONAL

ELECTROTECHNICAL

COMMISSION


COMMISSION

ELECTROTECHNIQUE


INTERNATIONALE




ICS 25.140.30 ISBN 978-2-8322-7091-2




Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale

---------------------- Page: 3 ----------------------
– 2 – IEC 63241-2-6:2023 © IEC 2023

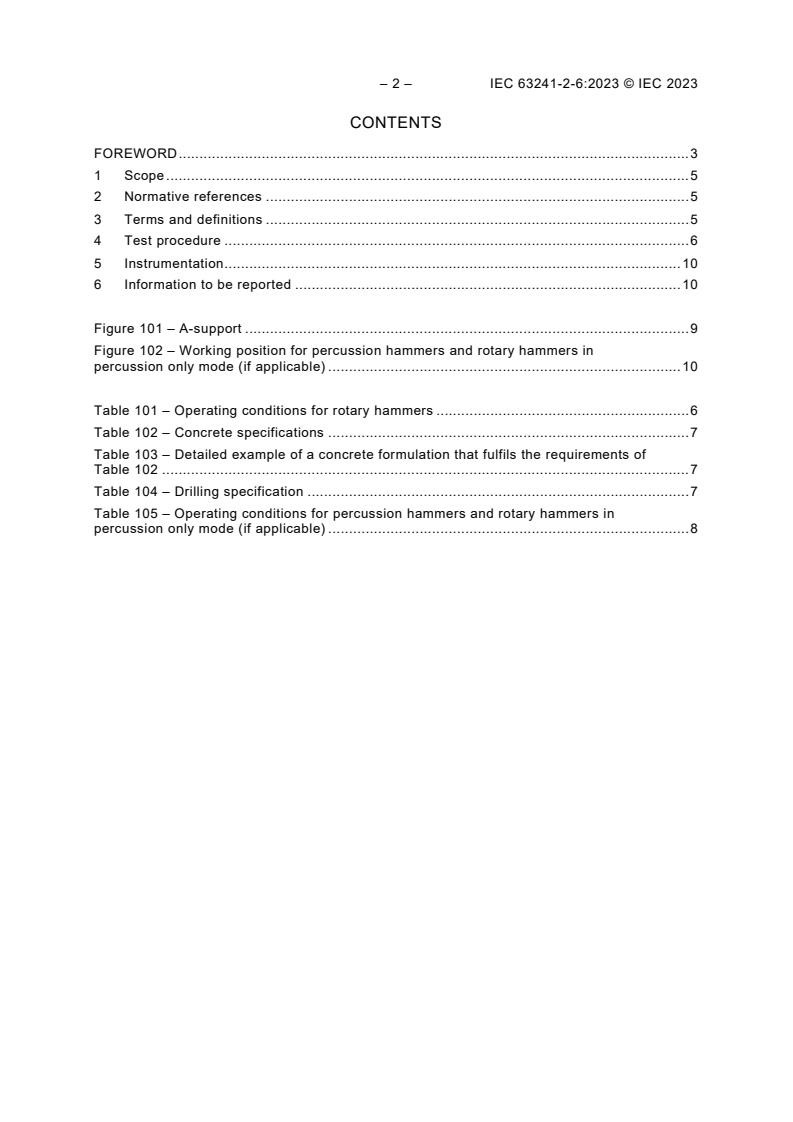

CONTENTS
FOREWORD . 3
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 Test procedure . 6
5 Instrumentation . 10
6 Information to be reported . 10

Figure 101 – A-support . 9
Figure 102 – Working position for percussion hammers and rotary hammers in
percussion only mode (if applicable) . 10

Table 101 – Operating conditions for rotary hammers . 6
Table 102 – Concrete specifications . 7
Table 103 – Detailed example of a concrete formulation that fulfils the requirements of
Table 102 . 7
Table 104 – Drilling specification . 7
Table 105 – Operating conditions for percussion hammers and rotary hammers in
percussion only mode (if applicable) . 8

---------------------- Page: 4 ----------------------
IEC 63241-2-6:2023 © IEC 2023 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________

ELECTRIC MOTOR-OPERATED TOOLS –
DUST MEASUREMENT PROCEDURE –

Part 2-6: Particular requirements for hand-held hammers

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent
rights. IEC shall not be held responsible for identifying any or all such patent rights.
IEC 63241-2-6 has been prepared by IEC technical committee 116: Safety of motor-operated
electric tools. It is an International Standard.
The text of this International Standard is based on the following documents:
Draft Report on voting
116/654/FDIS 116/667/RVD

Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this International Standard is English.
This document is to be used in conjunction with the first edition of IEC 63241-1
(IEC 63241-1:2023).

---------------------- Page: 5 ----------------------
– 4 – IEC 63241-2-6:2023 © IEC 2023
This document supplements or modifies the corresponding clauses in IEC 63241-1, so as to
convert it into the IEC Standard: Electric motor-operated tools – Dust measurement procedure –
Particular requirements for hand-held hammers.
Where a particular subclause of IEC 63241-1 is not mentioned in this document, that subclause
applies as far as reasonable. Where this document states "addition", "modification" or
"replacement", the relevant text in IEC 63241-1 is to be adapted accordingly.
The following print types are used:
– requirements: in roman type;
– test specifications: in italic type;
notes: in small roman type.
–
The terms defined in Clause 3 are printed in bold typeface.
Subclauses, notes, tables and figures which are additional to those in IEC 63241-1 are
numbered starting from 101.
A list of all parts of the IEC 63241 series, under the general title: Electric motor-operated tools –
Dust measurement procedure, can be found on the IEC website.
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/standardsdev/publications.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
NOTE The attention of National Committees is drawn to the fact that equipment manufacturers and testing
organizations may need a transitional period following publication of a new, amended or revised IEC publication in
which to make products in accordance with the new requirements and to equip themselves for conducting new or
revised tests.
It is the recommendation of the committee that the content of this publication be adopted for implementation nationally
not earlier than 36 months from the date of publication.

---------------------- Page: 6 ----------------------
IEC 63241-2-6:2023 © IEC 2023 – 5 –
ELECTRIC MOTOR-OPERATED TOOLS –
DUST MEASUREMENT PROCEDURE –

Part 2-6: Particular requirements for hand-held hammers



1 Scope
IEC 63241-1:2023, Clause 1 is applicable, except as follows:
Addition:
This part of IEC 63241 applies to hand-held hammers.
2 Normative references
IEC 63241-1:2023, Clause 2 is applicable, except as follows:
Addition:
EN 10080:2005, Steel for the reinforcement of concrete – Weldable reinforcing steel – General
IEC 63241-1:2023, Electric motor-operated tools – Dust measurement procedure – Part 1:
General requirements
3 Terms and definitions
IEC 63241-1:2023, Clause 3 is applicable, except as follows:
Addition:
3.101
percussion hammer
tool equipped with a built-in percussion system which is not influenced by the operator and has
no capability of rotational motion
Note 1 to entry: Percussion hammers are also known as chisel hammers, hammers, breakers, concrete breakers
and picks.
3.102
rotary hammer
tool capable of rotational motion and equipped with a built-in percussion system which is not
influenced by the operator (rotary hammer mode) and additionally, may have one or more of
the following modes:
a) with rotational motion disengaged (percussion only mode);
b) with the percussion system disengaged (drill only mode).

---------------------- Page: 7 ----------------------
– 6 – IEC 63241-2-6:2023 © IEC 2023
4 Test procedure
IEC 63241-1:2023, Clause 4 is applicable, except as follows:
4.3 Operating conditions
Addition:
Rotary hammers are tested under load observing the conditions shown in Table 101. This test
is not performed in percussion only mode or drill only mode (if applicable).
NOTE 101 Rotary hammers in percussion only mode are tested in accordance with Table 105.
For battery operated tools, the tests are conducted with a battery recommended by the
manufacturer for the tool with a sufficient capacity to complete the tests.
Table 101 – Operating conditions for rotary hammers
Concrete block without a reinforcement having the formulation specified in Table 102
Material and set-up
and having the minimum dimensions 500 mm × 500 mm and 200 mm in height.
After the 28 days as specified in Table 102, the concrete block shall be stored for
another three weeks under dry conditions.
For rotary hammers with a mass less than or equal to 5 kg (excluding the supply cord,
detachable battery pack or separable battery pack, as applicable), the concrete block
is placed on an A-support, see Figure 101, with 15° inclination, the lower workpiece
support being (1 000 ± 50) mm above the floor. To prevent damage to the A-support,
additional supporting material such as plywood or fibreboard may be used between the
block and the A-support.
For rotary hammers with a mass above 5 kg (excluding the supply cord, detachable
battery pack or separable battery pack, as applicable), the concrete block is placed on
the floor. The blocks may be supported by pallets or the like.
Orientation and Drilling holes into the concrete block perpendicular to the surface of the
operation 500 mm × 500 mm area. The holes shall have a depth in accordance with Table 104.
The distance between the holes and the distance of the holes to the edge of the block
shall be large enough so that the dust collection device of the hammer does not cover
any adjacent holes or overhang the edge of the block.
Tool bit/settings New drill bit as specified by the manufacturer for drilling into concrete at the beginning of
each of the three tests. The diameter of the drill bit shall be in accordance with
Table 104, where the mass of the tool is determined without the supply cord, detachable
battery pack or separable battery pack attached to the tool, if any, and without tool
bits or accessories, but with all attachments needed for normal use. Details of the
required attachments are specified in the manufacturer’s instructions.
If the tool is supplied with more than one attachment, the heaviest configuration shall be
used to determine the mass.
All mass measurements shall be made with an accuracy of ±5 %.
Speed setting devices, if any, shall be adjusted to the setting specified for the drill bit
size and for drilling into concrete.
Feed force The feed force applied to the tool shall be sufficient to ensure stable operation with good
performance.
Test During each test cycle of 10 min, a number of holes as specified in Table 104 are drilled
into the concrete block, equally distributed over the test cycle.
If the above cannot be achieved within 10 min, the time is extended to allow the required
number of holes to be drilled.

---------------------- Page: 8 ----------------------
IEC 63241-2-6:2023 © IEC 2023 – 7 –
Table 102 – Concrete specifications
Minimum compressive strength Largest particle size of
a
(after 28 days)

aggregate
2
32 mm to 40 mm
40 N/mm
a
The aggregate fraction distribution shall be aligned to the largest particle size of
the aggregate. Very hard aggregates such as flint or granite and very soft
aggregates such as limestone shall not be used.

NOTE 102 A more detailed example of a concrete formulation that fulfils the requirements of Table 102 is shown in
Table 103.
Table 103 – Detailed example of a concrete formulation that
fulfils the requirements of Table 102
b
Cement Water
Aggregate
 1 844 kg
 Particle size Fraction
 mm %
a a
0 to 2 38 ± 3
330 kg 183 l
 0 to 8 50 ± 5
 0 to 16 80 ± 5
 0 to 32 100
2
Compressive strength after 28 days shall be 40 N/mm .
a
The water/cement mass ratio shall be (0,55 ± 0,02) (the mass tolerance of cement
and water is +10 % to enable the concrete manufacturer to ensure compressive
strength with local cement).
b
Very hard aggregates such as flint or granite and very soft aggregates such as
limestone shall not be used.

Table 104 – Drilling specification
Tool mass Diameter of Number of holes Depth of hole
m drill bit per test cycle
kg mm mm
m ≤ 3,5 10 24
50
3,5 < m ≤ 5 16 24
5 < m ≤ 7 20 12
7 < m ≤ 10 25 12
100
10 < m ≤ 18 32 12
m > 18 40 12

Percussion hammers and rotary hammers in percussion only mode (if applicable) are tested
under load observing the conditions shown in Table 105.

---------------------- Page: 9 ----------------------
– 8 – IEC 63241-2-6:2023 © IEC 2023
Table 105 – Operating conditions for percussion hammers and rotary hammers
in percussion only mode (if applicable)
Material and set-up Reinforced concrete block(s) having the formulation specified in Table 102 and having
the minimum dimensions 500 mm × 800 mm and 200 mm in height. The concrete block
shall be reinforced with two layers of six rebars each, Ø 12 mm, B500B in accordance
with EN 10080:2005 longitudinally (800 mm direction). The distance from rebar to rebar
and rebar to block edge shall be (70 ± 30) mm.
After the 28 days as specified in Table 102, the concrete block shall be stored for
another three weeks under dry conditions.
For percussion hammers with a mass less than or equal to 5 kg, the concrete block(s)
is (are) placed on an A-support, see Figure 101, with 15° inclination, the lower workpiece
support being (1 000 ± 50) mm above the floor. To prevent damage to the A-support,
additional supporting material such as plywood or fibreboard may be used between the
block(s) and the A-support. In addition, the concrete block(s) may be fastened to the
A-support during the test.
For percussion hammers with a mass above 5 kg, a sufficient number of concrete
blocks are placed side by side on the floor. The blocks may be supported by pallets or
the like.
Orientation and Chisel on concrete blocks.
operation
For percussion hammers with a mass less than or equal to 5 kg, the work starts on either
side of the block, working from top to bottom of the block.
For percussion hammers with a mass above 5 kg, chisel on concrete blocks vertically
downwards.
The concrete block shall be destroyed in the length direction as shown in Figure 102.
The work process is finished when all rebars have been separated.
Tool bit/settings New or re-sharpened pointed chisel as specified by the manufacturer for chiselling
concrete.
Speed setting devices, if any, shall be adjusted to the setting specified by the
manufacturer for chiselling concrete.
Feed force The forces applied to the tool shall be sufficient to chisel with good performance without
overloading the tool.
Test One test consists of four test cycles of 10 min working time and 5 min rest time each.
For percussion hammers with a mass of less than or equal to 5 kg, each test cycle is
started on a new half of a block.
For percussion hammers with a mass above 5 kg, the work is started on the first block,
and after destroying one block, is continued on a new block.

For all hammers, the mass of the tool is measured without accessories and flexible cable or
cord and detachable battery pack or separable battery pack, but including an auxiliary
handle, if provided with the tool. The mass of the tool includes all parts of an integrated dust
extraction unit, if any. Any separate dust extraction unit that can be attached to the tool is
not included in the mass of the tool.

---------------------- Page: 10 ----------------------
IEC 63241-2-6:2023 © IEC 2023 – 9 –
Dimensions in millimetres

Key
1 workpiece
2 additional supporting material
Figure 101 – A-support

---------------------- Page: 11 ----------------------
– 10 – IEC 63241-2-6:2023 © IEC 2023

Figure 102 – Working position for percussion hammers and rotary
hammers in percussion only mode (if applicable)
5 Instrumentation
IEC 63241-1:2023, Clause 5 is applicable.
6 Information to be reported
IEC 63241-1:2023, Clause 6 is applicable, except as follows:
Addition to item j):
The mean value for the concentration of the respirable dust is also required.
Replacement of item o):
o) information about the extension of the cycle time, in case drilling of the required number of
holes could not be performed within the cycle time.

___________

---------------------- Page: 12 ----------------------
– 12 – IEC 63241-2-6:2023 © IEC 2023
