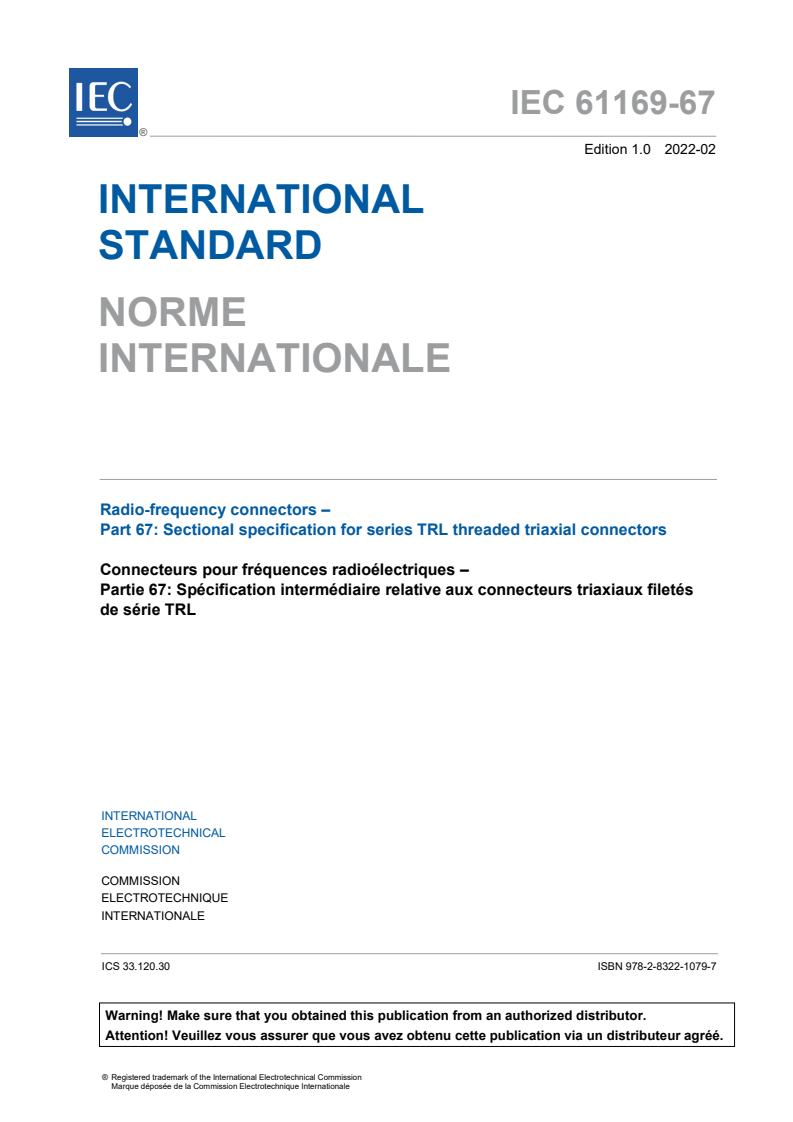

IEC 61169-67:2022

IEC 61169-67 ®
Edition 1.0 2022-02
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Radio-frequency connectors –
Part 67: Sectional specification for series TRL threaded triaxial connectors

Connecteurs pour fréquences radioélectriques –
Partie 67: Spécification intermédiaire relative aux connecteurs triaxiaux filetés
de série TRL
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Secretariat Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform IEC Products & Services Portal - products.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews. With a subscription you will always
committee, …). It also gives information on projects, replaced have access to up to date content tailored to your needs.
and withdrawn publications.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
The world's leading online dictionary on electrotechnology,
Stay up to date on all new IEC publications. Just Published
containing more than 22 300 terminological entries in English
details all new publications released. Available online and
and French, with equivalent terms in 19 additional languages.
once a month by email.
Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc
If you wish to give us your feedback on this publication or
need further assistance, please contact the Customer Service
Centre: sales@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Recherche de publications IEC - IEC Products & Services Portal - products.iec.ch
webstore.iec.ch/advsearchform Découvrez notre puissant moteur de recherche et consultez
La recherche avancée permet de trouver des publications IEC gratuitement tous les aperçus des publications. Avec un
en utilisant différents critères (numéro de référence, texte, abonnement, vous aurez toujours accès à un contenu à jour
comité d’études, …). Elle donne aussi des informations sur adapté à vos besoins.
les projets et les publications remplacées ou retirées.

Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
Le premier dictionnaire d'électrotechnologie en ligne au
Restez informé sur les nouvelles publications IEC. Just
monde, avec plus de 22 300 articles terminologiques en
Published détaille les nouvelles publications parues.
anglais et en français, ainsi que les termes équivalents dans
Disponible en ligne et une fois par mois par email.
19 langues additionnelles. Egalement appelé Vocabulaire

Electrotechnique International (IEV) en ligne.
Service Clients - webstore.iec.ch/csc

Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.
IEC 61169-67 ®
Edition 1.0 2022-02
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Radio-frequency connectors –
Part 67: Sectional specification for series TRL threaded triaxial connectors

Connecteurs pour fréquences radioélectriques –

Partie 67: Spécification intermédiaire relative aux connecteurs triaxiaux filetés

de série TRL
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 33.120.30 ISBN 978-2-8322-1079-7

– 2 – IEC 61169-67:2022 © IEC 2022

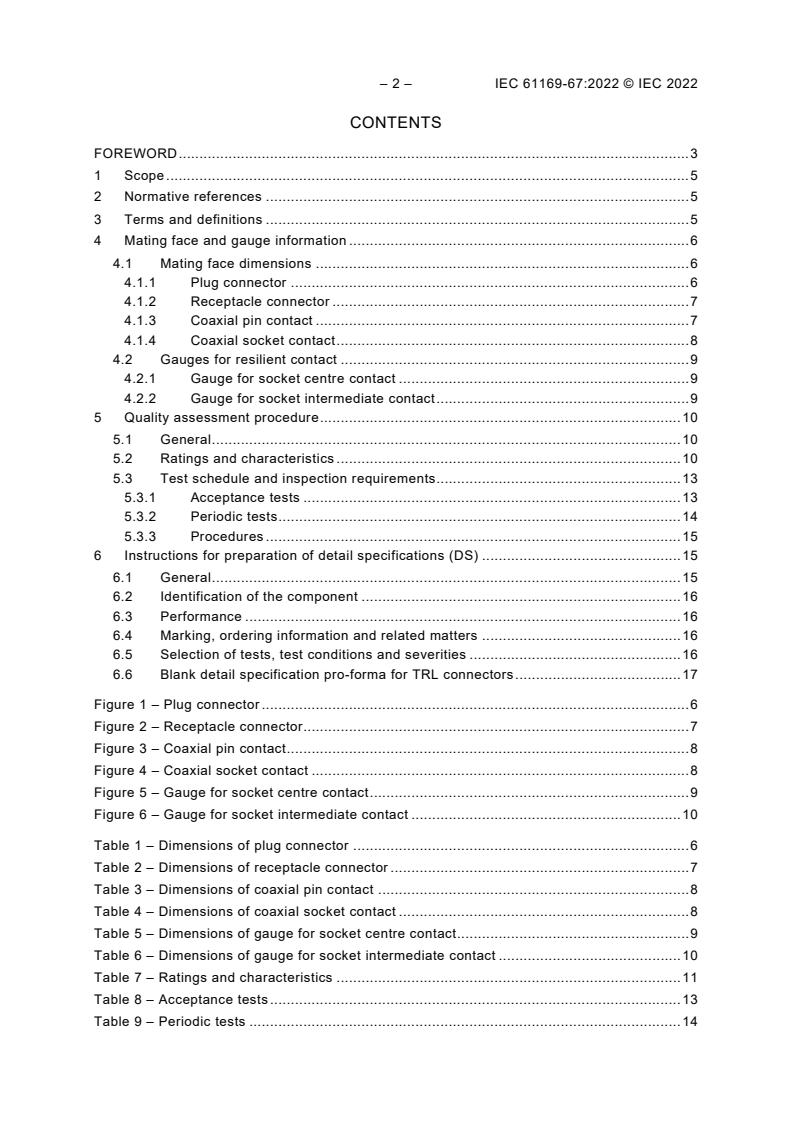

CONTENTS
FOREWORD . 3
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 Mating face and gauge information . 6
4.1 Mating face dimensions . 6
4.1.1 Plug connector . 6
4.1.2 Receptacle connector . 7
4.1.3 Coaxial pin contact . 7
4.1.4 Coaxial socket contact . 8
4.2 Gauges for resilient contact . 9
4.2.1 Gauge for socket centre contact . 9
4.2.2 Gauge for socket intermediate contact . 9
5 Quality assessment procedure . 10
5.1 General . 10
5.2 Ratings and characteristics . 10
5.3 Test schedule and inspection requirements. 13
5.3.1 Acceptance tests . 13
5.3.2 Periodic tests . 14
5.3.3 Procedures . 15
6 Instructions for preparation of detail specifications (DS) . 15
6.1 General . 15
6.2 Identification of the component . 16
6.3 Performance . 16
6.4 Marking, ordering information and related matters . 16
6.5 Selection of tests, test conditions and severities . 16
6.6 Blank detail specification pro-forma for TRL connectors . 17

Figure 1 – Plug connector . 6
Figure 2 – Receptacle connector . 7
Figure 3 – Coaxial pin contact . 8
Figure 4 – Coaxial socket contact . 8
Figure 5 – Gauge for socket centre contact . 9
Figure 6 – Gauge for socket intermediate contact . 10

Table 1 – Dimensions of plug connector . 6
Table 2 – Dimensions of receptacle connector . 7
Table 3 – Dimensions of coaxial pin contact . 8
Table 4 – Dimensions of coaxial socket contact . 8
Table 5 – Dimensions of gauge for socket centre contact . 9
Table 6 – Dimensions of gauge for socket intermediate contact . 10
Table 7 – Ratings and characteristics . 11
Table 8 – Acceptance tests . 13
Table 9 – Periodic tests . 14

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
RADIO-FREQUENCY CONNECTORS –
Part 67: Sectional specification for
series TRL threaded triaxial connectors

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent
rights. IEC shall not be held responsible for identifying any or all such patent rights.
IEC 61169-67 has been prepared by subcommittee 46F: RF and microwave passive
components, of IEC technical committee 46: Cables, wires, waveguides, RF connectors, RF
and microwave passive components and accessories. It is an International Standard.
The text of this International Standard is based on the following documents:
Draft Report on voting
46F/599/FDIS 46F/609/RVD
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this International Standard is English.

– 4 – IEC 61169-67:2022 © IEC 2022
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/standardsdev/publications.
A list of all parts of the IEC 61169 series, under the general title Radio frequency connectors
can be found on the IEC website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
RADIO-FREQUENCY CONNECTORS –
Part 67: Sectional specification for
series TRL threaded triaxial connectors

1 Scope
This part of IEC 61169, which is a sectional specification (SS), provides information and rules
for the preparation of detail specifications (DS) for series TRL threaded triaxial connectors.
Series TRL threaded triaxial connectors with high reliability, small size, good salt characteristics
can be connected with symmetrically twisted pair cables or triaxial cables. It has been used in
1553B data bus systems or other communication systems for digital signal transmission.
It specifies mating face dimensions for series TRL threaded triaxial connectors, gauging
information and tests selected from IEC 61169-1, applicable to all detail specifications relating
to series TRL threaded triaxial connectors.
This specification indicates recommended performance characteristics to be considered when
writing a detail specification and it covers test schedules and inspection requirements for
assessment levels M and H.
NOTE Metric dimensions are original dimensions. All undimensioned pictorial configurations are for reference
purpose only.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies.
For undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 61169-1:2013, Radio frequency connectors – Part 1: Generic specification − General
requirements and measuring methods
IEC 61169-1-5, Radio frequency connectors – Part 1-5: Electrical test methods − Rise time
degradation
3 Terms and definitions
For the purposes of this document, the terms and definitions given in IEC 61169-1 and the
following apply.
ISO and IEC maintain terminological databases for use in standardization at the following
addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
3.1
coaxial pin contact
connecting part with a coaxial structure, the outer conductor of which is a pin and the inner
conductor is a socket
– 6 – IEC 61169-67:2022 © IEC 2022
3.2
coaxial socket contact
connecting part with a coaxial structure, the outer conductor of which is a socket and the inner
conductor is a pin
4 Mating face and gauge information
4.1 Mating face dimensions
4.1.1 Plug connector
The mating face of the plug connector is shown in Figure 1 and its dimensions are shown in
Table 1.
NOTE 1 Slot design of alignment fingers is optional.
NOTE 2 See Figure 3 and Figure 4 for coaxial contact requirements.
NOTE 3 Dimensions in fully mated state.
Figure 1 – Plug connector
Table 1 – Dimensions of plug connector
Ref. mm
Min. Max.
a 5,00 -
b 13° 21°
c - 5,10
d 6,30 8,25
e 6,20 7,70
f 10,00 10,60
4.1.2 Receptacle connector
The mating face of the receptacle connector is shown in Figure 2 and its dimensions are shown
in Table 2.
NOTE See Figure 3 and Figure 4 for coaxial contact requirements.
Figure 2 – Receptacle connector
Table 2 – Dimensions of receptacle connector
Ref. mm
Min. Max.
a 0,25 -
b - 0,45
c 14° 22°
d 5,33 5,56
e 6,04 6,12
f 7,70 7,80
4.1.3 Coaxial pin contact
The mating face of the coaxial pin contact is shown in Figure 3 and its dimensions are shown
in Table 3.
– 8 – IEC 61169-67:2022 © IEC 2022

NOTE Slot design is optional.
Figure 3 – Coaxial pin contact
Table 3 – Dimensions of coaxial pin contact
Ref. mm
Min. Max.
a 7,09 -
b 0,35 -
c 1,82 1,88
d 1,00 1,55
4.1.4 Coaxial socket contact
The mating face of the coaxial socket contact is shown in Figure 4 and its dimensions are shown
in Table 4.
NOTE Slot design is optional.
Figure 4 – Coaxial socket contact
Table 4 – Dimensions of coaxial socket contact
Ref. mm
Min. Max.
a 0,18 0,99
b - 2,70
c 0,58 0,64
4.2 Gauges for resilient contact
4.2.1 Gauge for socket centre contact
The gauge for socket centre contact of connector is shown in Figure 5 and its dimensions are
shown in Table 5.
Figure 5 – Gauge for socket centre contact
Table 5 – Dimensions of gauge for socket centre contact
Gauge A Gauge B Gauge C
Ref.
(For sizing purpose) (For insertion purpose) (For separation purpose)
Min. Max. Min. Max. Min. Max.
D 0,623 0,628 0,623 0,628 0,592 0,597
Material: steel, polished.
Test procedure is as follows.
a) Sizing test
Gauge A shall be inserted into the socket centre contact of the connector three times with a
minimum insertion depth of 5,2 mm. This is a sizing operation.
b) Insertion test
Following the sizing operation, if specified in the detail specification, gauge B shall be axially
inserted into the socket centre contact of the connector with a minimum insertion depth of
5,2 mm. When this test is required, the insertion force shall not exceed 1,67 N.
c) Separation test
After the insertion test, gauge C shall be axially inserted into the socket centre contact of the
connector with a minimum insertion depth of 5,2 mm and then be separated. The separation
force shall not be less than 0,14 N.
4.2.2 Gauge for socket intermediate contact
The gauge for socket intermediate contact of the connector is shown in Figure 6 and its
dimensions are shown in Table 6.

– 10 – IEC 61169-67:2022 © IEC 2022

NOTE Hole design is optional.
Figure 6 – Gauge for socket intermediate contact
Table 6 – Dimensions of gauge for socket intermediate contact
Gauge A Gauge B Gauge C
Ref.
(For sizing purpose) (For insertion purpose) (For separation purpose)
Min. Max. Min. Max. Min. Max.
D
1,880 1,885 1,880 1,885 1,815 1,829
Material: steel, polished.
Test procedure is as follows.
a) Sizing test
Gauge A shall be inserted into the socket intermediate contact of the connector three times with
a minimum insertion depth of 5,7 mm. This is a sizing operation.
b) Insertion test
Following the sizing operation, if specified in the detail specification, gauge B shall be axially
inserted into the socket intermediate contact of the connector with a minimum insertion depth
of 5,7 mm. When this test is required, the insertion force shall not exceed 5,56 N.
c) Separation test
After the insertion test, gauge C shall be axially inserted into the socket intermediate contact of
the connector with minimum insertion depth of 5,7 mm and then be separated. The separation
force shall not be less than 0,56 N.
5 Quality assessment procedure
5.1 General
Subclauses 5.2 and 5.3 provide recommended ratings, performance and test conditions to be
considered when writing a detail specification (DS). They also provide an appropriate schedule
of tests with minimum levels of conformance inspection sampling, together with the pro-forma
blank detail specification (BDS) and instructions for the preparation of a detail specification.
5.2 Ratings and characteristics
The values indicated below are recommended for TRL series threaded triaxial connectors and
are given for the writer of the detail specification. They are applicable for the condition when
the connectors are fully mated.
Certain tests will usually not be required. When these tests are required, appropriate values
shall be entered in the detail specification at the discretion of the specification writer.

Rating and characteristics are given in Table 7.
Table 7 – Ratings and characteristics
Rating and characteristics IEC 61169-1: Value Remarks, deviation from
2013 standard test method
Subclause
Electrical
Nominal impedance Not required
Frequency range DC~5 MHz
Working voltage 300 V RMS
Working current 3 A
a
9.2.3
Contact resistance
a
9.2.3
Contact resistance of centre contact
– initial ≤35,0 mΩ
– after environmental tests ≤40,0 mΩ
Contact resistance of intermediate 9.2.3
a
contact
– initial ≤35,0 mΩ
– after environmental tests ≤40,0 mΩ
Contact resistance of external 9.2.3
a
contact
– initial ≤8,0 mΩ
– after environmental tests ≤12,0 mΩ
Insulation resistance in normal state 9.2.5
– between centre contact and ≥5 000 MΩ
intermediate contact
– between intermediate contact and ≥5 000 MΩ
external contact
Insulation resistance after 9.2.5
environmental test
– between centre contact and
≥100 MΩ
intermediate contact
– between intermediate contact and ≥100 MΩ
external contact
b c
9.2.6 (86 to 100) kPa, or the
Proof voltage at sea level
lower proof voltage of cable
dielectric
– between centre contact and
900 V
intermediate contact
– between intermediate contact and 900 V
external contact
b c
9.2.6 4,4 kPa approximately
Proof voltage at 4,4 kPa
equivalent to 20 km, or the
lower proof voltage of cable
dielectric
– between centre contact and 200 V
intermediate contact
– between intermediate contact and 200 V
external contact
– 12 – IEC 61169-67:2022 © IEC 2022
Rating and characteristics IEC 61169-1: Value Remarks, deviation from
2013 standard test method
Subclause
b c
9.2.6 (86 to 100) kPa, or the
Proof voltage at sea level after
lower proof voltage of cable
environmental test
dielectric
– between centre contact and 200 V
intermediate contact
– between intermediate contact and 200 V
external contact
Rise time degradation IEC 61169-1-5 <400 ps When customers require
Mechanical
Soldering 9.3.2 See DS
Contact captivation 9.3.5
– centre contact 10 N Displacement shall not
exceed 0,8 mm
– intermediate contact 45 N Displacement shall not
exceed 0,8 mm
Engagement and separation forces 9.3.6
– axial force ≤15 N
Torque
– before environmental test ≤0,57 N·m
– after environmental test ≤0,86 N·m
Strength of coupling mechanism (only 9.3.11 ≤445 N
for plug connector)
Cable retention
– cable rotation 9.3.7 See DS
– cable pulling 9.3.8 See DS
– cable bending 9.3.9 See DS
– cable torsion 9.3.10 See DS
Safety wire hole pull-out bending 9.3.12 See DS
moment
d
Bump 9.3.13
na
Vibration 9.3.3 20 g acceleration
200 m/s ,
(10 to 2 000) Hz
Shock (specified pulse) 9.3.14 50 g acceleration
500 m/s , terminal-
peak sawtooth
wave, 11 ms
Environmental
A: 40/85/21
Climatic category 9.4.2 B: 55/125/21
C: 55/155/56
Damp heat, steady state 9.4.3 See DS
Rapid change of temperature 9.4.4 See DS
d
Sealing – non-hermetic sealed 9.4.7 (100 to 110) kPa pressure
na
connectors differential
d
Sealing – hermetically sealed 9.4.8 (100 to 110) kPa pressure
na
connectors differential
d
Water immersion 9.4.9
na
Salt mist 9.4.10 96 h
Rating and characteristics IEC 61169-1: Value Remarks, deviation from
2013 standard test method
Subclause
Endurance
Mechanical endurance 9.3.15 500 operations
A: 85 °C, 1 000 h
High temperature endurance 9.4.5 B: 125 °C, 1 000 h
C: 155 °C, 1 000 h
d
Low temperature endurance 9.4.6
na
Chemical contamination
Resistance to solvents and
d
contaminating fluids 9.4.11
na
d
Sulphur dioxide test 9.4.12
na
a
Characteristics indicated are those that can be applied to basic connector. Intrinsic limitations of the cable can
diminish the performance of the assembly and reference should always be made to the actual values given in
the detail specification.
b
Voltages are RMS values of AC at 40 Hz to 60 Hz, unless otherwise specified.
c
The ratings of some cables using these connectors are lower than the values given in this specification.
d
na = not applicable.
5.3 Test schedule and inspection requirements
5.3.1 Acceptance tests
Table 8 describes the acceptance tests to be performed.
Table 8 – Acceptance tests
Assessment level M (higher) Assessment level H (lower)
IEC 61169-1:2013
Test AQL Test AQL
Subclause
IL Period IL Period
required % required %
Group A1
Visual examination 9.1.1 a II 1,0 a S3 1,5
Group B1
Outline dimensions 9.1.2 a S4 0,40 a S3 4,0
Mechanical compatibility 9.1.2.2 a II 1,0 a S3 1,5
Lot Lot
Engagement and separation 9.3.6 a S4 4,0 a S3 1,5
by by
forces
lot lot
Gauge retention force 9.3.4 ia II 1,0 ia S3 1,5
(resilient contacts)
Proof voltage 9.2.6 a II 0,40 a II 4,0
Solderability(d) 9.3.2.2 ia S3 1,5 ia S3 4,0
Insulation resistance 9.2.5 a S4 0,40 a S3 4,0
a = suggested as applicable
ia = test suggested (if technically applicable)
IL = inspection level
AQL = acceptable quality level
(d) = destructive tests – specimens shall not be returned to stock

– 14 – IEC 61169-67:2022 © IEC 2022
5.3.2 Periodic tests
Table 9 describes the periodic tests to be performed. There is no group C test for levels H
and M.
Table 9 – Periodic tests
Assessment level M (higher) Assessment level H (lower)
IEC 61169‑1:
Permitted Permitted
Number Number
Test Test
failures failures
of Period of Period
Subclause
required required
a a
specimens specimens
per group per group
3 3
Group D1(d)  6 1 3 1
years years
Solderability –
connector 9.3.2.2 ia  ia
assembly
Resistance to
9.3.2.3 ia  ia
soldering heat
3 3
Group D2(d)  6 1 3 1
years years
Contact
resistance,
centre contact
continuity,
intermediate
contact
9.2.3 a  a
continuity,
external contact
and shield
continuity
(mated cable
connectors)
Vibration 9.3.3 a  a
Damp heat,
9.4.3 a  a
steady state
3 3
b b
Group D3  0 1 0
years years
Dimensions
piece-parts and 9.1.2 a  a
materials
3 3
Group D4(d)  6 1 3 1
years years
Mechanical
9.3.15 a  a
endurance
High
temperature 9.4.5 a  a
endurance
Discharge test
9.2.8
(corona test)
Climatic
9.4 na  na
conditioning
3 3
Group D5(d)  6 1 3 1
years years
Screening
9.2.7 a  a
effectiveness
Water
9.4.9 na  na
immersion
Assessment level M (higher) Assessment level H (lower)
IEC 61169‑1:
Permitted Permitted
Number Number
Test Test
failures failures
of Period of Period
Subclause
required required
a a
specimens specimens
per group per group
3 3
Group D6(d)  6 1 3 1
years years
Contact
9.3.5 ia  ia
captivation
Rapid change of
9.4.4 na  na
temperature
Climatic
9.4.2 a  a
sequence
Group D7(d)  1 0 na
years
Salt mist 9.4.10 a
a = suggested as applicable
ia = test suggested (if technically applicable)
na = not applicable
(d) = destructive tests – specimens shall not be returned to stock
a
For Qualification Approval (QA), a total of two failures only permitted from groups D1 to D7.
b
One set of piece parts of each style and variant, unless using common piece-parts.

5.3.3 Procedures
5.3.3.1 Quality conformance inspection
This shall consist of test groups A1 and B1 on a lot-by-lot basis and test groups D1 to D7 on a
periodic tests basis.
5.3.3.2 Quality conformance and its maintenance
This shall consist of the requisite number of parts from current production after passing test
groups A1 and B1. These specimens shall successfully pass the specified periodic D tests.
6 Instructions for preparation of detail specifications (DS)
6.1 General
Detail specifications (DS) writers shall use the appropriate blank detail specification (BDS). The
following pages comprise the BDS dedicated for use with series TRL threaded triaxial
connectors. As such, it will have already entered on it information in relation to:
a) the basic specification number applicable to all the detail specifications covering connector
styles of the series covered by the sectional specification;
b) the connector series designation.
The specification writer should enter the details relating to the connector style to be covered as
indicated. The numbers in brackets in the BDS correspond to the following indications, which
shall be given.
– 16 – IEC 61169-67:2022 © IEC 2022
6.2 Identification of the component
(1) Enter the following details:
– style: the style designation of the connector including type of fixing and sealing if
applicable;
– attachment: by deletion of the inapplicable options of cable/wire given for centre and
outer conductors;
– special features and markings: as applicable;
– series designation: in bold characters/digits approximately 2,5 mm high.
(2) Enter details of assessment level and the climatic category.
(3) A reproduction of the outline drawing and details of the panel piercing (if applicable). It shall
provide the maximum envelope dimensions, also the position of the reference plane and, in
the case of a fixed connector, the position of the mounting plane, both relative to the front
face of the connector.
(4) Any maximum panel thickness limitations for fixed connectors shall be stated.
(5) Particulars of all variants covered by the DS. As appropriate, the information shall include:
– cable types (or sizes) applicable to each variant;
– alternative plated or protective finishes;
– details of alternative mounting flanges having either tapped or plain mounting holes.
6.3 Performance
(6) Performance data listing the most important characteristics of the connector in accordance
with the requirements of the relevant sectional specification. Deviations from the minimum
requirements shall be clearly indicated. Non-applicable parameters shall be marked "na".
6.4 Marking, ordering information and related matters
(7) Insert marking and ordering information as appropriate, together with details of related
documents and any invoked structural similarity.
6.5 Selection of tests, test conditions and severities
(8) "na" shall be used to indicate non-applicable tests. All tests marked "a" by the detail
specification writer shall be mandatory.
When using the normal procedure with a dedicated BDS, the letter "a" – for applicable – shall
be entered in the "test required" column against each of the tests indicated as being mandatory
in the test schedule of the relevant sectional specification. Any additional test required at the
discretion of the specification writer shall also be indicated by an "a".
The specification writer shall also indicate, when necessary, details of deviations from the
standard test methods and conditions including any relevant deviations given in the test
schedule of the sectional specification.

6.6 Blank detail specification pro-forma for TRL connectors
The following pages contain the complete BDS.
(1) Page 1 of
(2)
ELECTRONIC COMPONENT OF ASSESSED (3)
QUALITY IN ACCORDANCE WITH: (4)
GENERIC SPECIFICATION: IEC 61169-1:2013
SECTIONAL SPECIFICATION: IEC 61169-67:2022
(5) Detail specification for radio frequency triaxial connectors of assessed Series
quality
TRL
Style Special features and markings
a
Method of cable/wire attachment
Centre contact – solder/crimp
a
Intermediate contact – solder/crimp
a
External contact – solder/clamp/crimp
(6) Assessment level Characteristic impedance …Ω Climatic category …/…/…
(7) Outline and maximum dimensions Panel piercing and mounting details

(8) Variants
Variant No. Description of variant 61196 IEC Other cables
Information about manufacturers who have components qualified under the IECQ Conformity Assessment
System is available through the IECQ on-line certificate system.
a
Just fill in the applicable content.

– 18 – IEC 61169-67:2022 © IEC 2022
(9) Performance (including limiting conditions of use)
Rating and characteristics IEC 61169-1:2013 Value Remarks, deviation from
Subclause standard test method
Electrical
Nominal impedance Not required
Frequency range DC to      MHz
Working voltage V RMS
Working current A
Contact resistance 9.2.3
Contact resistance of centre
9.2.3
a
contact
– initial ≤  mΩ
– after environmental tests ≤  mΩ
Contact resistance of
9.2.3
a
intermediate contact
– initial ≤  mΩ
– after environmental tests ≤  mΩ
Contact resistance of external
9.2.3
contact a
– initial ≤  mΩ
– after environmental tests ≤  mΩ
Insulation resistance in normal
9.2.5
state
– between centre contact and
≥  MΩ
intermediate contact
– between intermediate contact
≥  MΩ
and external contact
Insulation resistance after
9.2.5
environmental tests
– between centre contact and
≥  MΩ
intermediate contact
– between intermediate contact
≥  MΩ
and external contact
(86 to 100) kPa
b c
9.2.6 Or the lower proof voltage of
Proof voltage at sea level
cable dielectric
– between centre contact and
V
intermediate contact
– between intermediate contact
V
and external contact
b c
9.2.6 .kPa (if it is not 4,4 kPa)
Proof voltage at 4,4 kPa
– between centre contact and
V
intermediate contact
– between intermediate contact
V
and external contact
(86 to 100) kPa
Proof voltage at sea level after
9.2.6 Or the lower proof voltage of
b c
environmental test
cable dielectric
– between centre contact and
V
intermediate contact
– between intermediate contact
V
and external contact
Rise time degradation IEC 61169-1-5 <    ps When customers require

Rating and characteristics IEC 61169-1:2013 Value Remarks, deviation from
Subclause standard test method
Mechanical
Soldering 9.3.2 See DS
Contact captivation 9.3.5
Displacement shall not
– centre contact  N
exceed    mm
Displacement shall not
– intermediate contact N
exceed    mm
Engagement and separation
9.3.6
forces
– axial force ≦     N
– torque
≦     N·m
– before environmental test
– after environmental test ≦     N·m
Strength of coupling mechanism
9.3.11 ≦     N
(only for plug connector)
Cable retention
– cable rotation 9.3.7 See DS
– cable pulling 9.3.8 See DS
– cable bending 9.3.9 See DS
– cable torsion 9.3.10 See DS
Safety wire hole pull-out bending
9.3.12 See DS
moment
d
Bump 9.3.13 na
Vibration 9.3.3 g acceleration
m/s , (  to  ) Hz
Shock 9.3.14 g acceleration
m/s ,  wave,  ms
Environmental
A:  / /
Climatic category 9.4.2 B:  / /
C:  / /
Damp heat, steady state 9.4.3 See DS
Rapid change of temperature 9.4.4 See DS
Sealing – non-hermetic sealed
d
9.4.7
na
connectors
Sealing – hermetically sealed
d
9.4.8
na
connectors
d
Water immersion 9.4.9
na
Salt mist 9.4.10 h Duration of spraying
Endurance
Mechanical endurance 9.3.15 operations
A:  °C，  h
High temperature endurance 9.4.5 B:  °C，  h
C:  °C，  h
d
Low temperature endurance 9.4.6 na

– 20 – IEC 61169-67:2022 © IEC 2022
Rating and characteristics IEC 61169-1:2013 Value Remarks, deviation from
Subclause standard test method
Chemical contamination
Resistance to solvents and
d
9.4.11 na
contaminating fluids
d
Sulphur dioxide test 9.4.12 na
a
Characteristics indicated are those that can be applied to basic connector. Intrinsic limitations of the cable can
diminish the performance of the assembly and reference should always be made to the actual values given in
the detail specification.
b
Voltages are RMS values of AC at 40 Hz to 60 Hz, unless otherwise specified.
c
The ratings of some cables using these connectors are lower than the values in this specification.
d
na = not applicable.
(10) Supplementary information
‒ Marking of the component: in accordance with IEC 61169-1:2013, 11.1 in the following order of
procedure
1) Identity of manufacture
2) Manufacturing date code  year /week
3) Component identification variant No./designation Identification

‒ Marking and contents of package: in accordance with IEC 61169-1:2013, 11.2
1) Information specified in IEC 61169-1:2013, 11.1 detailed above
2) Nominal characteristic impedance    Ω
3) Assessment level code letter
4) Any additional marking required
‒ Ordering information:
1) Number of the detail specification /variant code:
2) Assessment level code letter
3) Body finish (if more than one listed)
4) Any additional information or special requirements
‒ Related documents (if not included in IEC 61169-1:2013 or sectional specification):

‒ Structural similarity in accordance with IEC 61169-1:2013, 10.2.2

Relevant information on a basic style should be entered as variant 01.

___________
