IEC 60695-11-20:2015/COR1:2016
(Corrigendum)Corrigendum 1 - Fire hazard testing - Part 11-20: Test flames - 500 W flame test method
Corrigendum 1 - Fire hazard testing - Part 11-20: Test flames - 500 W flame test method
Corrigendum 1 - Essais relatifs aux risques du feu - Partie 11-20: Flammes d'essai - Méthode d'essai à la flamme de 500 W
General Information
Relations
Standards Content (Sample)
IEC 60695-11-20:2015/COR1:2016 – 1 –
IEC 2016
INTERNATIONAL ELECTROTECHNICAL COMMISSION
COMMISSION ÉLECTROTECHNIQUE INTERNATIONALE
____________
IEC 60695-11-20 IEC 60695-11-20
Edition 2.0 2015-04 Édition 2.0 2015-04
FIRE HAZARD TESTING – ESSAIS RELATIFS AUX RISQUES DU FEU –
Part 11-20: Test flames – 500 W flame test Partie 11-20: Flammes d'essai – Méthode d'essai
method à la flamme de 500 W
CO RRI G ENDU M 1
Corrections to the French version appear after the English text.
Les corrections à la version française sont données après le texte anglais.

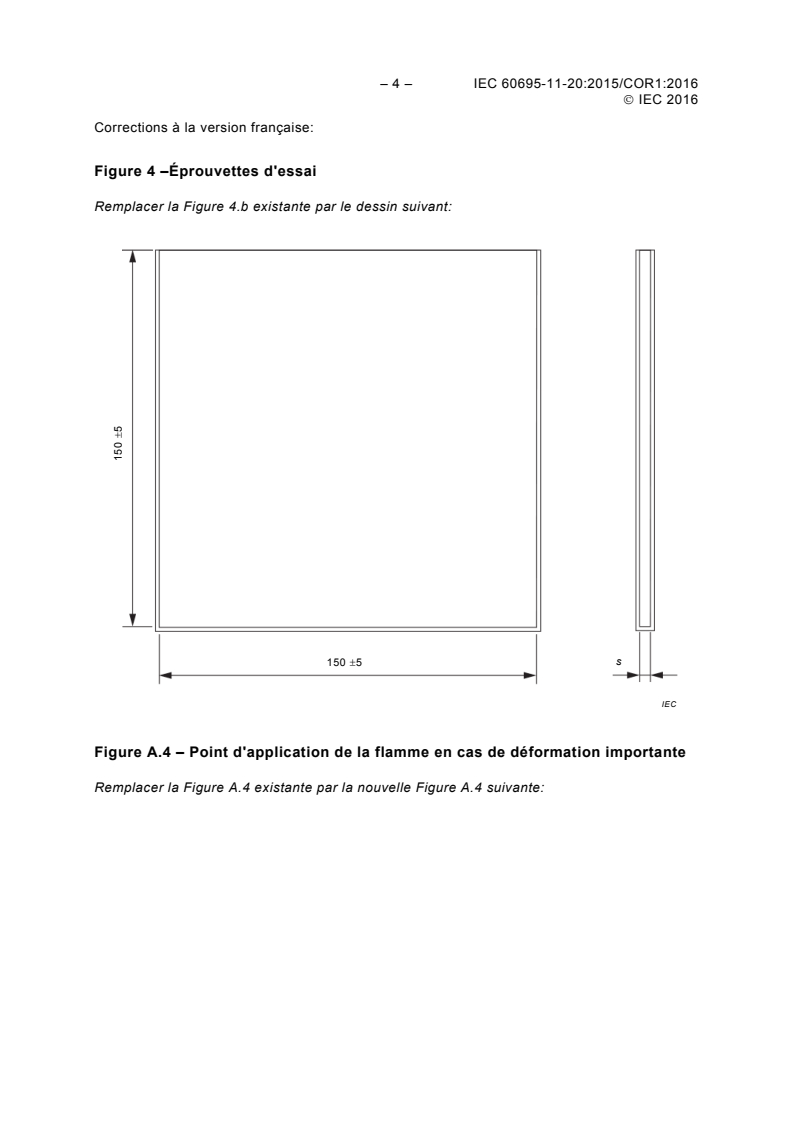

Figure 4 – Test specimens

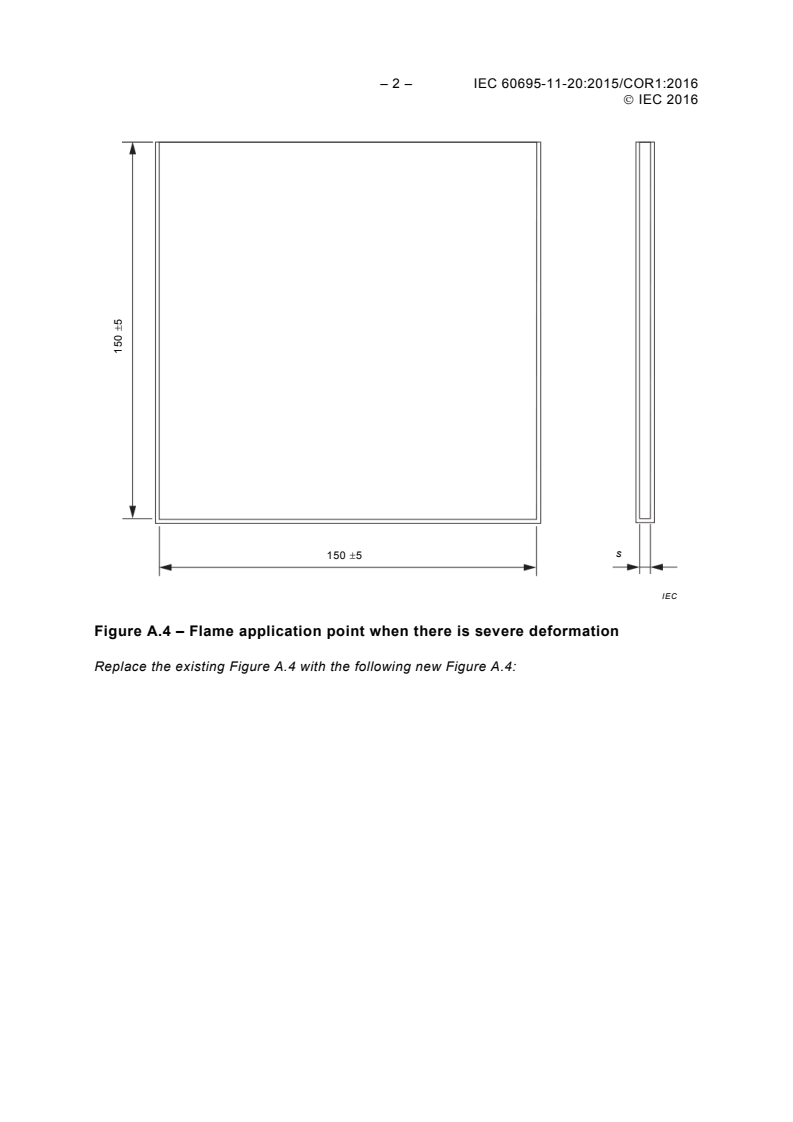

Replace the existing Figure 4.b with the following drawing:
IEC 60695-11-20:2015-04/COR1:2016-01(en-fr)
---------------------- Page: 1 ----------------------
– 2 – IEC 60695-11-20:2015/COR1:2016
IEC 2016
s
150 ±5
IEC
Figure A.4 – Flame application point when there is severe deform
...
