IEC 61237-3:1995 - Broadcast video tape recorders - Methods of measurement

Broadcast video tape recorders - Methods of measurement - Part 3: Electrical measurements for analogue component video signals

Describes the methods of measurement, test signals and procedures which may apply to characteristics of video recording/playback machines mainly intended for professional use. The contents of the corrigendum of April 1995 have been included in this copy.

Magnétoscopes de radiodiffusion - Méthodes de mesure - Partie 3: Mesures électriques pour les signaux vidéo analogiques à composantes

Décrit les méthodes de mesure, les signaux et les procédures d'essai qui peuvent s'appliquer aux caractéristiques des appareils d'enregistrements de lecture vidéo, ces appareils étant principalement destinés à une utilisation professionnelle. Le contenu du corrigendum d'avril 1995 a été pris en considération dans cet exemplaire.

General Information

Status

Published

Publication Date

31-Mar-1995

ICS

33.160.40 - Video systems

Technical Committee

TC 100 - Audio, video and multimedia systems and equipment

Drafting Committee

WG 3 - TC 100/WG 3

Current Stage

PPUB - Publication issued

Start Date

31-Jul-1994

Completion Date

15-Feb-1995

Ref Project

IEC 61237-3:1995/COR1:1995 - Corrigendum 1 - Broadcast video tape recorders - Methods of measurement - Part 3: Electrical measurements for analogue component video signals
Released:1. 04. 1995

Standard

IEC 61237-3:1995/COR1:1995 - Corrigendum 1 - Broadcast video tape recorders - Methods of measurement - Part 3: Electrical measurements for analogue component video signals Released:1. 04. 1995

English and French language

10 pages

sale 15% off

Preview

sale 15% off

Preview

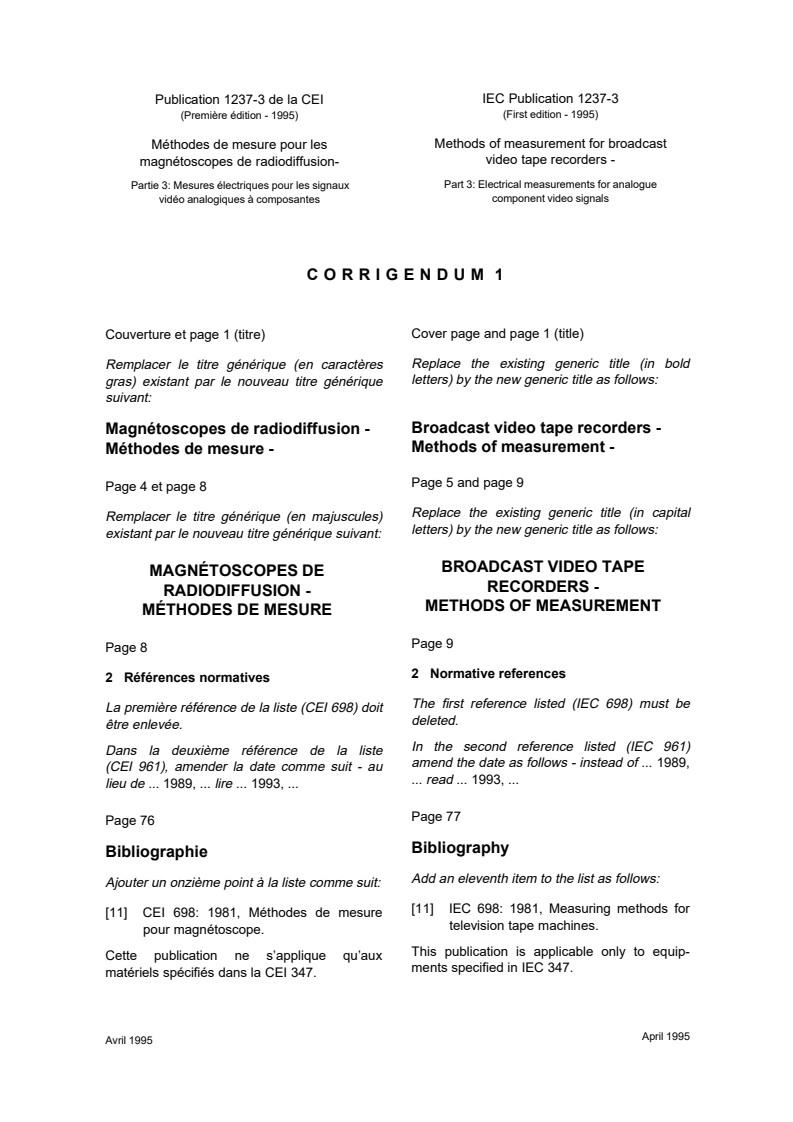

Standards Content (Sample)

IEC 61237-3:1995/COR1:1995 - C...

IEC Publication 1237-3
Publication 1237-3 de la CEI
(First edition - 1995)
(Première édition - 1995)
Methods of measurement for broadcast
Méthodes de mesure pour les
video tape recorders -
magnétoscopes de radiodiffusion-
Partie 3: Mesures électriques pour les signaux Part 3: Electrical measurements for analogue
component video signals
vidéo analogiques à composantes
C O R R I G E N D U M 1
Cover page and page 1 (title)
Couverture et page 1 (titre)
Replace the existing generic title (in bold
Remplacer le titre générique (en caractères
letters) by the new generic title as follows:
gras) existant par le nouveau titre générique
suivant:
Broadcast video tape recorders -
Magnétoscopes de radiodiffusion -
Methods of measurement -
Méthodes de mesure -
Page 5 and page 9
Page 4 et page 8
Replace the existing generic title (in capital
Remplacer le titre générique (en majuscules)
letters) by the new generic title as follows:
existant par le nouveau titre générique suivant:
BROADCAST VIDEO TAP
...
