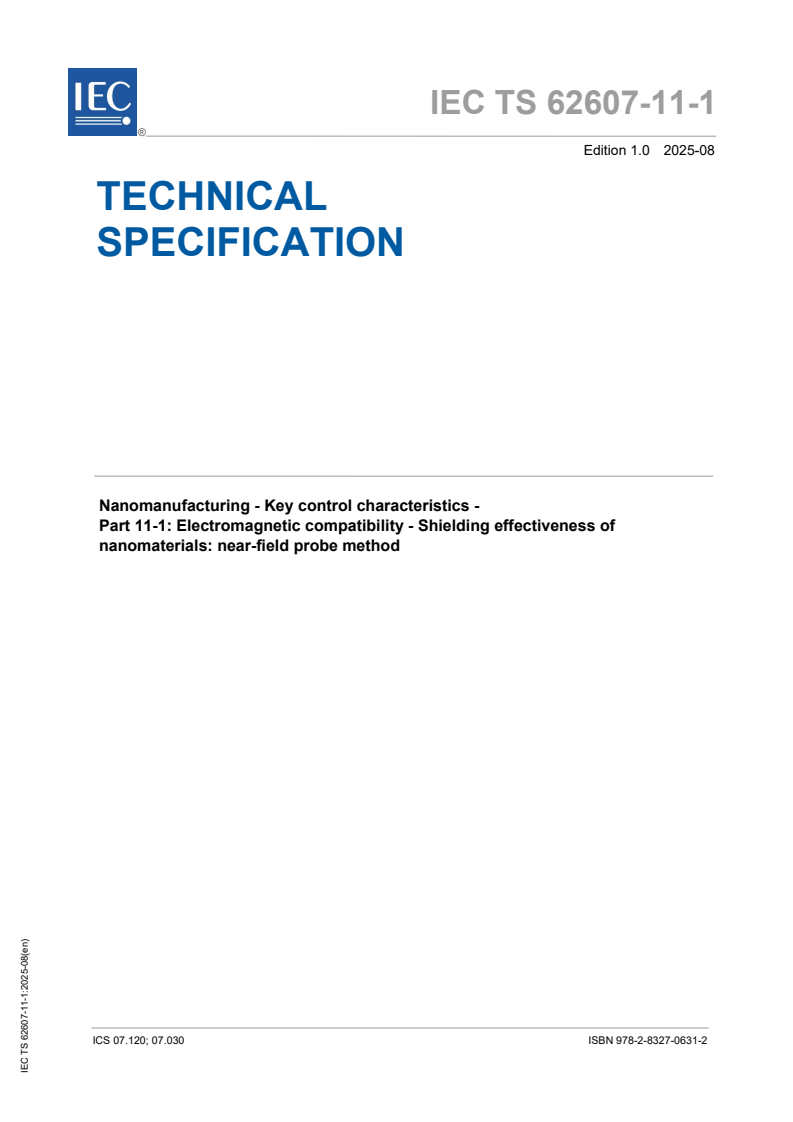

IEC TS 62607-11-1:2025

IEC TS 62607-11-1 ®
Edition 1.0 2025-08
TECHNICAL
SPECIFICATION
Nanomanufacturing - Key control characteristics -
Part 11-1: Electromagnetic compatibility - Shielding effectiveness of
nanomaterials: near-field probe method
ICS 07.120; 07.030 ISBN 978-2-8327-0631-2

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or
by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from either
IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC copyright
or have an enquiry about obtaining additional rights to this publication, please contact the address below or your local
IEC member National Committee for further information.

IEC Secretariat Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - IEC Products & Services Portal - products.iec.ch
webstore.iec.ch/advsearchform Discover our powerful search engine and read freely all the
publications previews, graphical symbols and the glossary.
The advanced search enables to find IEC publications by a
variety of criteria (reference number, text, technical With a subscription you will always have access to up to date
committee, …). It also gives information on projects, content tailored to your needs.
replaced and withdrawn publications.
Electropedia - www.electropedia.org
The world's leading online dictionary on electrotechnology,
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published containing more than 22 500 terminological entries in English
details all new publications released. Available online and and French, with equivalent terms in 25 additional languages.
once a month by email. Also known as the International Electrotechnical Vocabulary
(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc
If you wish to give us your feedback on this publication or
need further assistance, please contact the Customer
Service Centre: sales@iec.ch.
CONTENTS
FOREWORD. 2
INTRODUCTION . 4
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 General introduction . 6
4.1 Measurement principle . 6
4.2 Sample preparation method . 7
4.3 Test equipment . 8
5 Apparatus . 9
6 Procedure . 9
6.1 General . 9
6.2 Preparation of near-field probe (NFP) . 9
6.3 Operating the NFP with samples . 9
6.4 Analysing SE characteristics . 9
6.4.1 Measuring and analysing SE (shielding effectiveness) . 9
6.4.2 Report of SE . 9
7 Test report . 11
7.1 General . 11
7.2 Measurement conditions . 11
7.3 Measurement data presentation . 11
Annex A (informative) Case study 1: Measured examples of SE by test equipment in
Figure 2 using near-field scanner (NFS) . 12
Annex B (informative) Case study 2: To convert measured S-parameter to power . 14
Bibliography . 15

Figure 1 – Near-field zone: approximately within λ/2π. 7
Figure 2 – Experimental setup for near-field testing . 8
Figure 3 – E-field SE measured at point (0,0) . 10
Figure 4 – E-field SE according to measurement location . 10
Figure 5 – H-field SE measured at point (0,0) . 10
Figure 6 – H-field SE according to measurement location . 11
Figure A.1 – NFS full view . 12
Figure A.2 – Measurement specification . 12
Figure A.3 – Measurement system of NFS . 13
Figure A.4 – Equipment of fixing samples . 13

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
Nanomanufacturing -
Key control characteristics -
Part 11-1: Electromagnetic compatibility -
Shielding effectiveness of nanomaterials: near-field probe method

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) IEC draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). IEC takes no position concerning the evidence, validity or applicability of any claimed patent rights in
respect thereof. As of the date of publication of this document, IEC had not received notice of (a) patent(s), which
may be required to implement this document. However, implementers are cautioned that this may not represent
the latest information, which may be obtained from the patent database available at https://patents.iec.ch. IEC
shall not be held responsible for identifying any or all such patent rights.
IEC TS 62607-11-1 has been prepared by IEC technical committee 113: Nanotechnology for
electrotechnical products and systems. It is a Technical Specification.
The text of this Technical Specification is based on the following documents:
Draft Report on voting
113/872/DTS 113/909/RVDTS
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this Technical Specification is English.
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/publications.
A list of all parts in the IEC 62607 series, published under the general title Nanomanufacturing -
Key control characteristics, can be found on the IEC website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
– reconfirmed,
– withdrawn, or
– revised.
INTRODUCTION
Due to the characteristic electrical conductivity of nanomaterials such as carbon nanotubes
(CNTs) or graphene, development of new electromagnetic shielding materials using them has
drawn much interest in electronic and electric industries. However, the existing standard
method is not suitable for being applied to nanomaterials because of the requirement of sample
size and limited frequency range from 30 MHz to 1,5 GHz. Furthermore, it is essential to
elucidate shielding effectiveness (SE) as a function of distance between the probe and a sample
by emergence of new technologies such as wearable electronics and development of high-
integrity devices with multilayered structure.
This document specifies SE measurement of nanomaterials under the near-field condition.

1 Scope
This part of IEC 62607 provides a standardized method for measuring shielding effectiveness
on nanomaterials including carbon nanotubes (CNTs) in the near-field region. This document
provides
– recommendations for sample preparation,
– outlines of the experimental procedures to measure shielding effectiveness of CNTs in thin
films,
– methods of interpretation of results and discussion of data analysis, and
– case studies.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies.
For undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC TS 61967-3, Integrated circuits - Measurement of electromagnetic emissions - Part 3:
Measurement of radiated emissions - Surface scan method
IEC 61967-6, Integrated circuits - Measurement of electromagnetic emissions, 150 kHz to
1 GHz - Part 6: Measurement of conducted emissions - Magnetic probe method
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminology databases for use in standardization at the following
addresses:
– IEC Electropedia: available at https://www.electropedia.org/
– ISO Online browsing platform: available at https://www.iso.org/obp
3.1
electromagnetic interf
...
