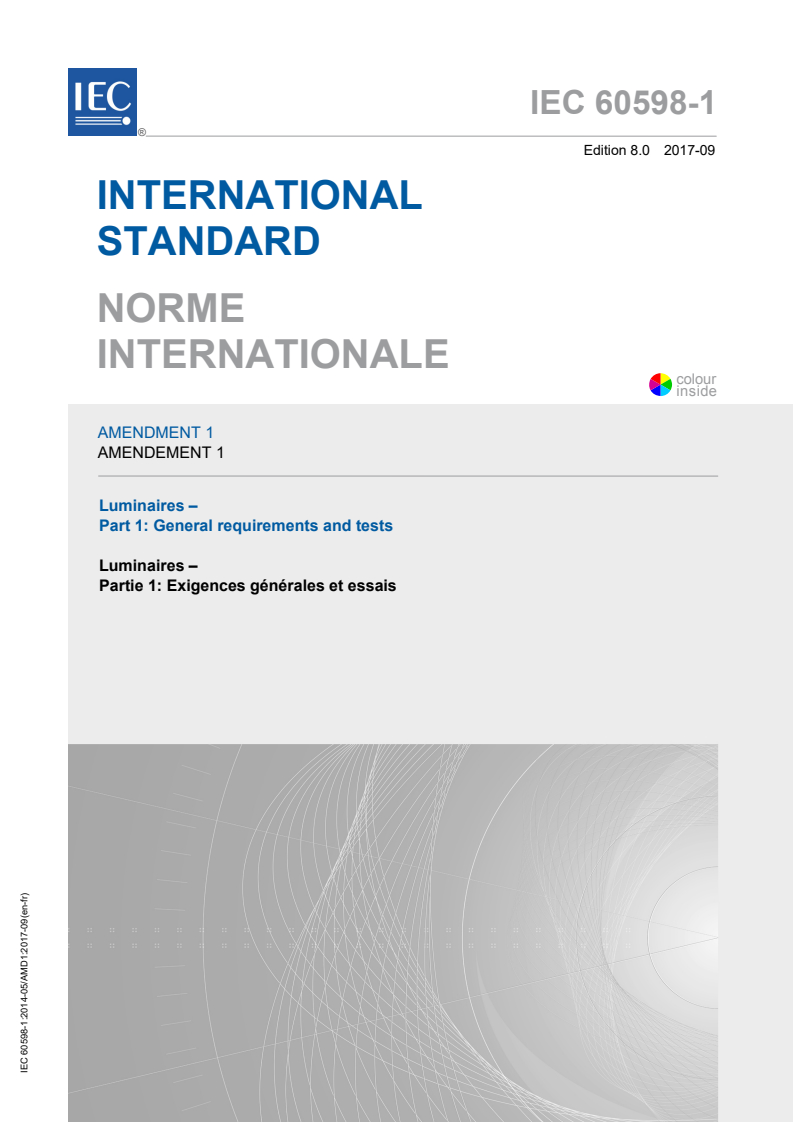

IEC 60598-1:2014/AMD1:2017

IEC 60598-1 ®
Edition 8.0 2017-09
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
A MENDMENT 1
AM ENDEMENT 1
Luminaires –
Part 1: General requirements and tests

Luminaires –
Partie 1: Exigences générales et essais

IEC 60598-1:2014-05/AMD1:2017-09(en-fr)

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing 20 000 terms and definitions in
Technical Specifications, Technical Reports and other English and French, with equivalent terms in 16 additional
documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical
iPad. Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a 65 000 electrotechnical terminology entries in English and
variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of
committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been
and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and

CISPR.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: csc@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales, électriques. Il contient 20 000 termes et définitions en anglais
Spécifications techniques, Rapports techniques et autres et en français, ainsi que les termes équivalents dans 16
documents de l'IEC. Disponible pour PC, Mac OS, tablettes langues additionnelles. Egalement appelé Vocabulaire
Android et iPad. Electrotechnique International (IEV) en ligne.

Recherche de publications IEC - www.iec.ch/searchpub Glossaire IEC - std.iec.ch/glossary
La recherche avancée permet de trouver des publications IEC 65 000 entrées terminologiques électrotechniques, en anglais
en utilisant différents critères (numéro de référence, texte, et en français, extraites des articles Termes et Définitions des
comité d’études,…). Elle donne aussi des informations sur les publications IEC parues depuis 2002. Plus certaines entrées
projets et les publications remplacées ou retirées. antérieures extraites des publications des CE 37, 77, 86 et

CISPR de l'IEC.
IEC Just Published - webstore.iec.ch/justpublished

Restez informé sur les nouvelles publications IEC. Just Service Clients - webstore.iec.ch/csc
Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur cette
Disponible en ligne et aussi une fois par mois par email. publication ou si vous avez des questions contactez-nous:
csc@iec.ch.

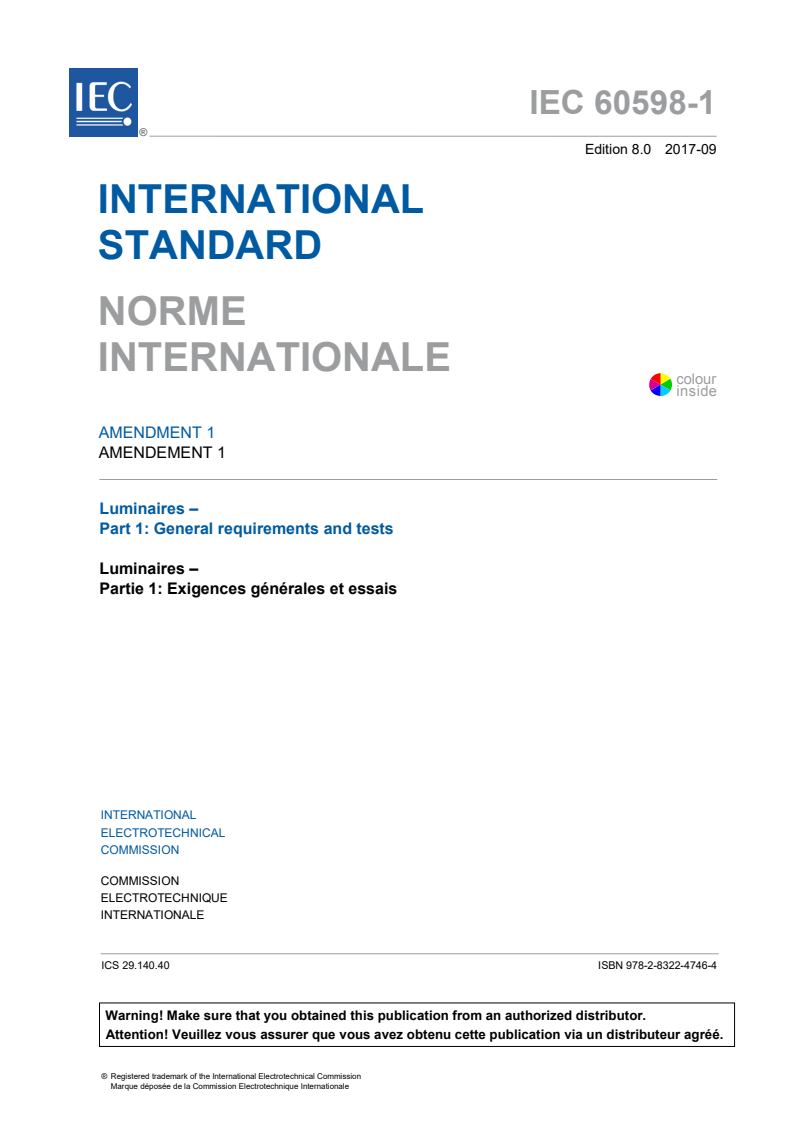

IEC 60598-1 ®
Edition 8.0 2017-09
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
A MENDMENT 1
AM ENDEMENT 1
Luminaires –
Part 1: General requirements and tests

Luminaires –
Partie 1: Exigences générales et essais

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.140.40 ISBN 978-2-8322-4746-4

– 2 – IEC 60598-1:2014/AMD1:2017
© IEC 2017

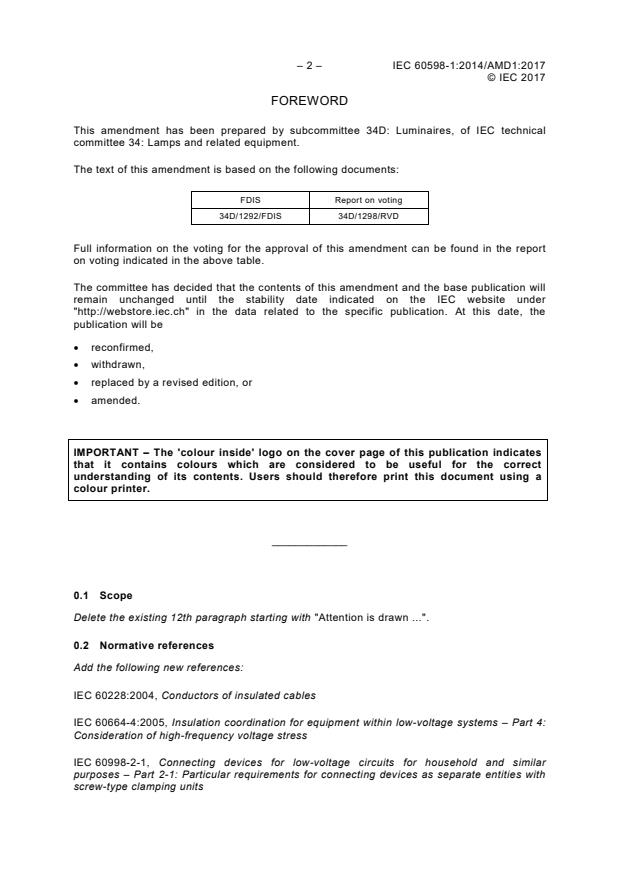

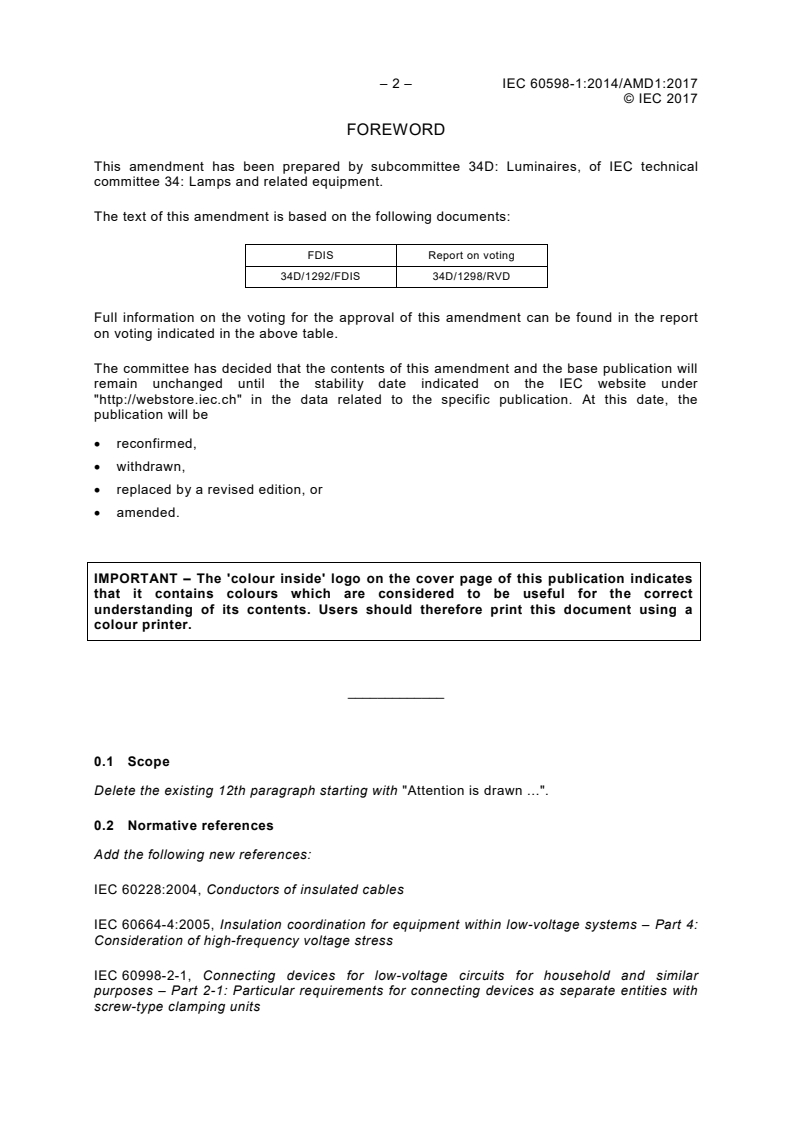

FOREWORD
This amendment has been prepared by subcommittee 34D: Luminaires, of IEC technical
committee 34: Lamps and related equipment.
The text of this amendment is based on the following documents:
FDIS Report on voting
34D/1292/FDIS 34D/1298/RVD
Full information on the voting for the approval of this amendment can be found in the report
on voting indicated in the above table.
The committee has decided that the contents of this amendment and the base publication will
remain unchanged until the stability date indicated on the IEC website under
"http://webstore.iec.ch" in the data related to the specific publication. At this date, the
publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct
understanding of its contents. Users should therefore print this document using a
colour printer.
_____________
0.1 Scope
Delete the existing 12th paragraph starting with "Attention is drawn .".
0.2 Normative references
Add the following new references:
IEC 60228:2004, Conductors of insulated cables
IEC 60664-4:2005, Insulation coordination for equipment within low-voltage systems – Part 4:
Consideration of high-frequency voltage stress
IEC 60998-2-1, Connecting devices for low-voltage circuits for household and similar
purposes – Part 2-1: Particular requirements for connecting devices as separate entities with
screw-type clamping units
© IEC 2017
IEC 60998-2-2, Connecting devices for low-voltage circuits for household and similar
purposes – Part 2-2: Particular requirements for connecting devices as separate entities with
screwless-type clamping units
0.4 General test requirements and verification
0.4.2
Delete the existing fourth paragraph starting with "In accordance with IEC guidelines ."
0.6 List of parts of IEC 60598-2
Add, after the existing Clause 0.6, a new Clause 0.7 as follows:
0.7 Information for luminaire design in light sources standards
0.7.1 In accordance with IEC guidelines, IEC standards are divided into those covering
either safety or performance.
0.7.2 In light source safety standards, “information for luminaire design” is given for the safe
operation of light sources; this shall be regarded as normative when testing luminaires to this
standard.
0.7.3 In light source performance standards, “information for luminaire design” is given for
the correct performance of light sources; this shall be regarded as informative when testing
luminaires to this standard. Testing of light source performance is not required as part of the
type test approval for luminaires.
1.2 Terms and definitions
Add, after 1.2.11, the following new entry:
1.2.11.1
rated constant input voltage
input voltage or voltages assigned by the manufacturer for luminaires not equipped with
controlgear
Note 1 to entry: The rated constant input voltage of the luminaire corresponds to the rated output voltage of the
constant voltage controlgear.
Add, after 1.2.12, the following new entry:
1.2.12.1
rated constant input current
input current or currents assigned by the manufacturer for luminaires not equipped with
controlgear
Note 1 to entry: The rated constant input current of the luminaire corresponds to the rated output current for
constant current controlgear.
Add, after 1.2.43, the following new entries:
1.2.43.1
maximum working peak output voltage

Û
out
maximum repetitive occurring peak working voltage between the output terminals or between
the output terminals and earth, during normal or abnormal operating condition and with
transients neglected
[SOURCE: IEC 61347-1:2015, 3.45]

– 4 – IEC 60598-1:2014/AMD1:2017
© IEC 2017
1.2.43.2
ignition voltage
peak voltage applied to ignite a discharge lamp
[SOURCE: IEC 61347-1:2015, 3.46]
1.2.43.3
ignition pulse voltage
peak ignition voltage with a total duration of ≤ 750 µs (summation of all pulses durations)
within 10 ms with the duration time (width) of each pulse being measured at the level of 50 %
of the maximum absolute peak value
Note 1 to entry: Ignition pulse waveforms, which are considered as ignition pulse voltage, should not contain any
dominant frequency above 30 kHz or should be usually highly damped (after 20 μs the peak voltage level should be
less than one half of the maximum peak voltage). For the assessment of the dominant frequency
IEC 60664-4:2005, Annex E should be consulted.
[SOURCE: IEC 61347-1:2015, 3.46.1]
1.2.43.4
equivalent transformed peak voltage
U
p
transformed output peak voltage, which is converted for the worst case peak voltage with its
related frequency into an ignition pulse voltage
Note 1 to entry: The value of the declared equivalent transformed output peak voltage is the essential parameter
for selecting the associated components.
Note 2 to entry: See 1.2.43.3.
[SOURCE: IEC 61347-1:2015, 3.47 , modified – notes 3 and 4 have been deleted.]
1.2.88.1
replaceable light source
In the definition, delete the words "according to IEC 60061"
Add, at the end of Clause 1.2, the following new entries:
1.2.92
connecting leads
tails
Internal wiring of luminaires intended to be connected to fixed wiring through separate
terminals which are to be enclosed inside the luminaire or connecting box
1.2.93
rated value
value of a quantity used for specification purposes, established under standard test conditions
as declared by the manufacturer or responsible vendor
[SOURCE: IEC 62504:2014, 3.33, modified – the note has been deleted.]
1.2.94
input power
electrical power consumed by the luminaire
3.2 Marking on luminaires
Table 3.1 – Marking
Add, in the second column, after marking 3.2.21, the following new markings:

© IEC 2017
f
3.2.25 Rated input constant voltage
g
3.2.26 Rated input constant current and value of U
out
Add, after table footnote "e", the following new table footnotes:
f
3.2.25 for constant voltage operation of the luminaire.
g
3.2.26 for constant current operation of the luminaire.
Insert, in the second column, between markings 3.2.7 and 3.2.9, the following new marking:
3.2.8.2 Rated input power
3.2.2
Add, at the end of 3.2.2, the following new text:
Where marking is provided in accordance with 3.2.25 or 3.2.26, additional marking of the
rated voltage is not required.
3.2.8
Replace 3.2.8 with the following new Subclause 3.2.8:
3.2.8 Luminaires shall be marked with information for the maximum rated light source power
or maximum input power according to 3.2.8.1, 3.2.8.2 and 3.2.8.3.
3.2.8.1 Luminaires for tungsten filament lamps shall be marked with the maximum rated
wattage and number of lamps.
Marking of maximum rated wattage for luminaires for tungsten filament lamps with more than
one lampholder may be in the form:
"n × MAX. W", n being the number of lampholders.
3.2.8.2 Luminaires designed for non-replaceable or non-user replaceable light sources shall
be marked with the rated input power of the luminaire.
NOTE The intention of the marking with the rated input power is to give guidance to installers. This standard does
not specify a test for the input power.
3.2.8.3 For all other luminaires, the rated wattage of the lamp or the designation as indicated
on the lamp data sheet of the type or types of lamp for which the luminaire is designed.
Where the lamp wattage alone is insufficient, the number of lamps and the type shall also be
given.
3.2.12
Replace the existing paragraph between NOTE 2 and NOTE 3 with the following new text:
Leads (tails) and terminations used for the connection to extra low voltage d.c. supplies shall
indicate their intended connection choosing one of the below mentioned combination:

– 6 – IEC 60598-1:2014/AMD1:2017
© IEC 2017
Table 3.2 – Identification of extra low voltage d.c. leads and terminations
Positive N
...
