IEC TR 62396-7:2017

IEC TR 62396-7 ®
Edition 1.0 2017-07
TECHNICAL
REPORT
Process management for avionics – Atmospheric radiation effects –
Part 7: Management of single event effects (SEE) analysis process in avionics
design
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing 20 000 terms and definitions in
Technical Specifications, Technical Reports and other English and French, with equivalent terms in 16 additional
documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical
iPad. Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a 65 000 electrotechnical terminology entries in English and
variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of
committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been
and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and

CISPR.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: csc@iec.ch.

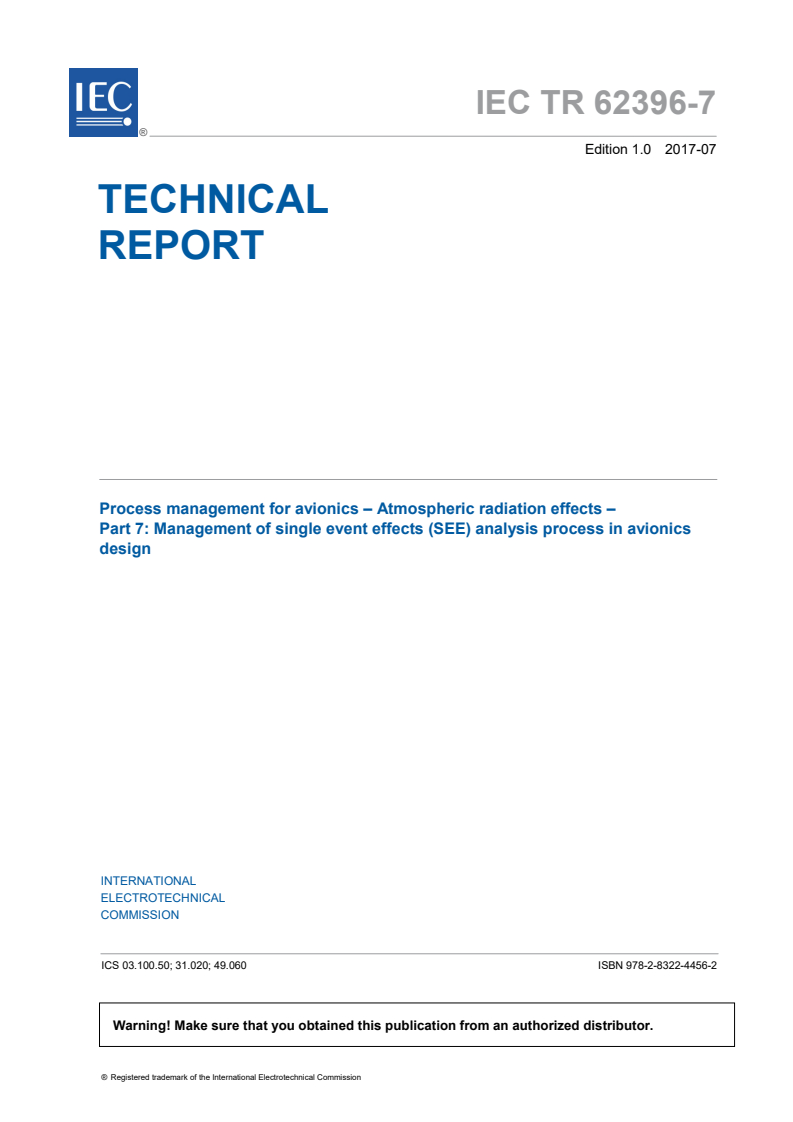

IEC TR 62396-7 ®
Edition 1.0 2017-07
TECHNICAL
REPORT
Process management for avionics – Atmospheric radiation effects –

Part 7: Management of single event effects (SEE) analysis process in avionics

design
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 03.100.50; 31.020; 49.060 ISBN 978-2-8322-4456-2

– 2 – IEC TR 62396-7:2017 © IEC 2017

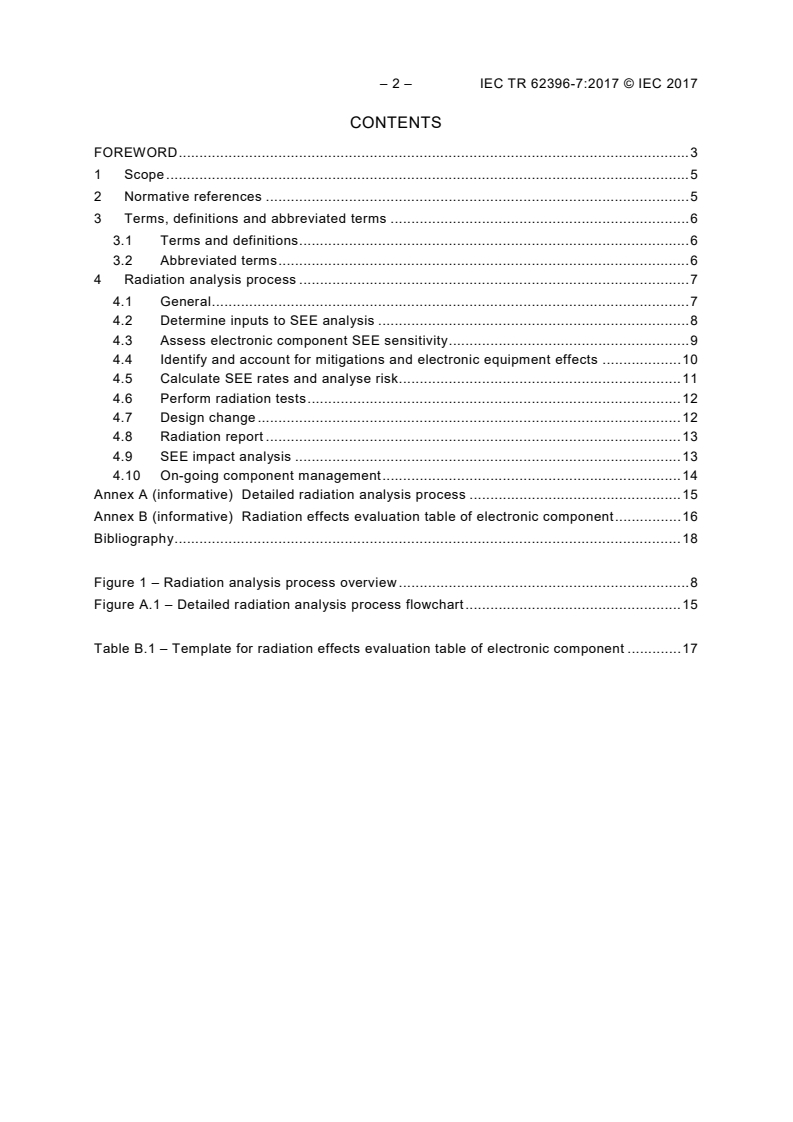

CONTENTS
FOREWORD . 3
1 Scope . 5
2 Normative references . 5
3 Terms, definitions and abbreviated terms . 6
3.1 Terms and definitions . 6
3.2 Abbreviated terms . 6
4 Radiation analysis process . 7
4.1 General . 7
4.2 Determine inputs to SEE analysis . 8
4.3 Assess electronic component SEE sensitivity . 9
4.4 Identify and account for mitigations and electronic equipment effects . 10
4.5 Calculate SEE rates and analyse risk . 11
4.6 Perform radiation tests . 12
4.7 Design change . 12
4.8 Radiation report . 13
4.9 SEE impact analysis . 13
4.10 On-going component management . 14
Annex A (informative) Detailed radiation analysis process . 15
Annex B (informative) Radiation effects evaluation table of electronic component . 16
Bibliography . 18

Figure 1 – Radiation analysis process overview . 8
Figure A.1 – Detailed radiation analysis process flowchart . 15

Table B.1 – Template for radiation effects evaluation table of electronic component . 17

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
PROCESS MANAGEMENT FOR AVIONICS –
ATMOSPHERIC RADIATION EFFECTS –

Part 7: Management of single event effects (SEE)
analysis process in avionics design

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
The main task of IEC technical committees is to prepare International Standards. However, a
technical committee may propose the publication of a technical report when it has collected
data of a different kind from that which is normally published as an International Standard, for
example "state of the art".
IEC TR 62396-7, which is a technical report, has been prepared by IEC technical committee
107: Process management for avionics.

– 4 – IEC TR 62396-7:2017 © IEC 2017
The text of this technical report is based on the following documents:
Enquiry draft Report on voting
107/300/DTR 107/304/RVDTR
Full information on the voting for the approval of this technical report can be found in the
report on voting indicated in the above table.
This document has been drafted in accordance with the ISO/IEC Directives, Part 2.
A list of all the parts in the IEC 62396 series, published under the general title Process
management for avionics – Atmospheric radiation effects, can be found on the IEC website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to
the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
A bilingual version of this publication may be issued at a later date.

IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct
understanding of its contents. Users should therefore print this document using a
colour printer.
PROCESS MANAGEMENT FOR AVIONICS –
ATMOSPHERIC RADIATION EFFECTS –

Part 7: Management of single event effects (SEE)
analysis process in avionics design

1 Scope
This part of IEC 62396, which is a technical report, describes a process to account for the
effects of atmospheric radiation on electronic equipment. Single event effects (SEE) due to
atmospheric radiation are one class of possible failure mechanisms that are addressed in the
safety and reliability analyses of electronic equipment and associated functions.
This document focuses on electronic components, electronic equipment and associated
electronic functions. System level analysis is not addressed in this document.
This document is intended to describe an approach to accounting for SEE in electronic
equipment design, design review, and it can provide aid in the aerospace certification
process. This document establishes an example process for assessing electronic components
in the atmospheric radiation environment, evaluating for mitigations/protections/utilizations,
and addressing the electronic equipment impacts of the SEE. The process is intended to
support an SEE analysis for electronic equipment.
It does not describe, in detail, methods used to mitigate the effects of SEE in the electronic
equipment design.
NOTE 1 IEC 62396-3 provides further details for this process.
NOTE 2 IEC 62396-2 provides further details for SEE testing.
This document, by itself, is not a program requirements document, i.e. it does not contain the
word “shall.” However it describes a process that can be used, for example, at the discretion
and agreement of the users, to aid in the preparation and the maintenance of an electronic
components management plan (see [1] and [7]). The output of the process described in this
document provides data as an input into the product safety and reliability analyses.
Although developed for the avionics industry, this document can be used by other industrial
sectors at their discretion.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their
content constitutes requirements of this document. For dated references, only the edition
cited applies. For undated references, the latest edition of the referenced document (including
any amendments) applies.
IEC 62396-1:2016, Process management for avionics – Atmospheric radiation effects –
Part 1: Accommodation of atmospheric radiation effects via single event effects within
avionics electronic equipment
_____________
Numbers in square brackets refer to the Bibliography.

– 6 – IEC TR 62396-7:2017 © IEC 2017
3 Terms, definitions and abbreviated terms
3.1 Terms and definitions
For the purposes of this document, the terms and definitions given in IEC 62396-1 apply.
ISO and IEC maintain terminological databases for use in standardization at the following
addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
NOTE For the purposes of the document, the term “device” can be used in place of “electronic component”.
3.2 Abbreviated terms
BIT built-in test
BoM bill of material
COTS commercial off the shelf
CRC cyclic redundancy check
E Energy
ECC error correction code
EDAC error detection and correction
FoM figure of merit
FPGA field-programmable gate array
IEEE Institute of Electrical and Electronics Engineers
I/O input/output
JEDEC JEDEC Solid State Technology Association
JESD JEDEC standard
L1/L2 level 1 / level 2 (related to microprocessor cache memories, "level 1" cache
memory being usually built onto the microprocessor chip itself, “level 2” cache
memory being usually on a separate chip or expansion card)
MBU multiple bit upset (in the same word)
MCU multiple cell upset
MTBF mean time between failure
P/SSA preliminary/system safety assessment
RAM random access memory
SDRAM synchronous dynamic random access memory
SEB single event burnout
SEE single event effect
SEFI single event functional interrupt
SEL single event latch-up
SET single event transient
SEU single event upset
SSA system safety assessment
TLB translation lookaside buffer
µP microprocessor
4 Radiation analysis process
4.1 General
Electronic components and integrated circuits have become increasingly susceptible to
atmospheric radiation causing SEE. These phenomena are the result of interaction of high
energy cosmic rays with silicon-based components. The resulting single event effects may
cause various conditions; such as data corruption. Additional types of undesirable effects may
include:
• damage to hardware;
• corrupted software residing in volatile memory;
• corrupted data in memory;
• microprocessor halts and interrupts;
• writing over critical data tables;
• unplanned events.
The industry trend is for continued decreases in electronic component feature size and
operating voltages, while the number of gates on a given device continues to increase, which
entails focusing attention on the radiation effects. As this trend continues to deep sub-micron
feature sizes, electronic component designs are achieving higher densities and lower
voltages, resulting in smaller active charge regions. In general, for decreasing feature size of
silicon based cells, the expected critical charge decreases and the sensitivity to radiation may
increase.
The radiation effects analysis example process described in this document assesses the
radiation effects susceptibility of the electronic components and the effects at the electronic
equipment level. This includes radiation effects assessment of the electronic components,
mitigation analysis, and test of electronic components and electronic equipment if needed.
This information may be utilized as input to a safety and reliability assessment of the
electronic equipment.
An overview of the radiation analysis process is provided as example. The remainder of the
document provides one way to perform a radiation analysis with 4.2 to 4.10 providing further
details based on the radiation process shown in Figure 1.

– 8 – IEC TR 62396-7:2017 © IEC 2017
START
Determine inputs to SEE
analysis
• Operational mission
• Neutron flux
• Bill of material
• Equipment architecture and
design (4.2)
Assess electronic Identify and account for
component SEE mitigations and
sensitivity equipment effects
(4.3) (4.4)
Perform radiation
Calculate SEE rates
tests
(4.5)
(4.6)
Test
Radiation report
(4.8)
Testing
Design change
No Yes
Change design
or design
Acceptable risk?
(4.7)
change?
(4.5)
(4.5)
SEE impact
analysis
(4.9)
END
IEC
Figure 1 – Radiation analysis process overview
The process starts with the operational mission and data definition (e.g. atmospheric radiation
environment, BoM…), and ends with a summary of the SEE effects data to be utilized as input
for safety and reliability assessments. An atmospheric radiation analysis plan may be included
in the planning for a new program. This analysis may be appropriate for new electronic
equipment development, electronic equipment upgrades, and electronic component
replacement programs.
Annex A provides, for information, a detailed radiation analysis process flowchart. This
diagram expands on the steps defined in Figure 1. Additional detailed descriptions of the
electronic component assessment, evaluation, electronic equipment impact analysis, and on-
going electronic component management steps are provided,
4.2 Determine inputs to SEE analysis
Inputs to the SEE analysis may include various electronic equipment and operational mission
definition, and detailed electronic equipment design information.
The atmospheric radiation definition may include the environment in which the electronic
equipment operates and the flux densities under consideration based on operational missions.
In the absence of such definition, the default levels of IEC 62396-1 are recommended.
The equipment design information may include the electronic equipment bill of materials
(BoM), schematics and electronic equipment design material. In addition, existing and
available SEE rates for known susceptible electronic components may be included.

4.3 Assess electronic component SEE sensitivity
Each electronic component on the electronic equipment BoM is assessed for its susceptibility
to SEE, and classified according to its susceptibility to the various relevant SEE types (for
example SEB, SEL, MCU, MBU, SEU, SEFI…; for more details see IEC 62396-1).
For all sensitive electronic components, cross-section data is obtained if possible. If no data
is available, conservative estimates may be utilized for this initial step. Table B.1 provides a
template for recording the components typically considered sensitive and which may result in
a SEE analysis. Notes may be added to the table to indicate the source of the cross-section
rates. This table may be used throughout the SEE analysis process, starting with the
electronic component assessment, evaluation of mitigations/protections and SEE impact
analysis.
Electronic components assessment process steps may include:
a) Classification of each electronic component as being either SEE-sensitive (identifying all
applicable SEE types) or not SEE-sensitive.
b) For the sensitive electronic components, the column “Component SEE sensitivities” of
Table B.1 is populated. Sources of data may include:
1) test data (from a source such as high energy neutron beam; see list of facilities
provided in IEC 62396-1 for example);
2) industry data;
3) in-service flight data;
4) figure of merit (FoM) calculations based on test data from other sources (proton and
heavy ion);
5) conservative estimates.
For more details related to these sources of data, one can refer to IEC 62396-1:2016,
Annex G, and IEC 62396-2.
c) For each sensitive electronic component, describe the SEE sensitivity and provide all the
SEE cross-section data for each applicable SEE type for the electronic component. Details
on calculating the SEE rates in avionics are provided in IEC 62396-1.
The cross-section data, such as test data, vendor
...
