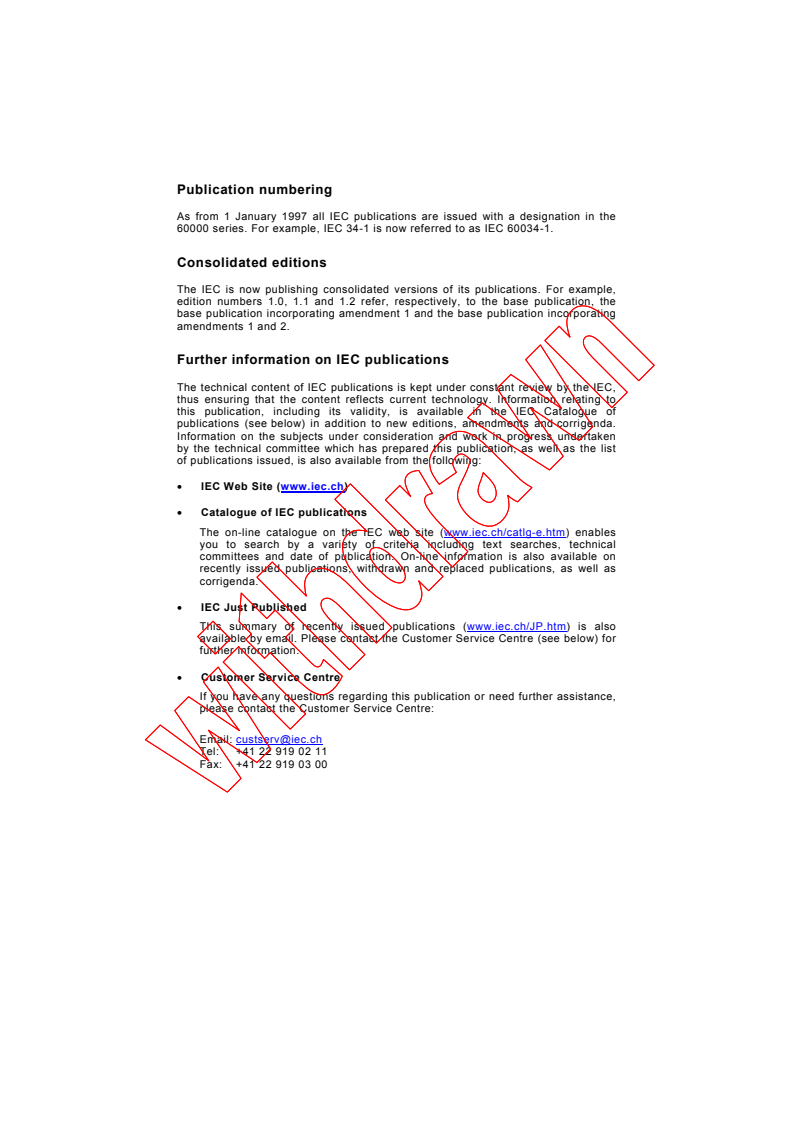

Publication numbering
As from 1 January 1997 all IEC publications are issued with a designation in the
60000 series. For example, IEC 34-1 is now referred to as IEC 60034-1.

Consolidated editions
The IEC is now publishing consolidated versions of its publications. For example,

edition numbers 1.0, 1.1 and 1.2 refer, respectively, to the base publication, the
base publication incorporating amendment 1 and the base publication incorporating
amendments 1 and 2.
Further information on IEC publications
The technical content of IEC publications is kept under constant review by the IEC,
thus ensuring that the content reflects current technology. Information relating to
this publication, including its validity, is available in the IEC Catalogue of
publications (see below) in addition to new editions, amendments and corrigenda.
Information on the subjects under consideration and work in progress undertaken
by the technical committee which has prepared this publication, as well as the list
of publications issued, is also available from the following:
• IEC Web Site (www.iec.ch)
• Catalogue of IEC publications
The on-line catalogue on the IEC web site (www.iec.ch/catlg-e.htm) enables
you to search by a variety of criteria including text searches, technical
committees and date of publication. On-line information is also available on
recently issued publications, withdrawn and replaced publications, as well as
corrigenda.
• IEC Just Published
This summary of recently issued publications (www.iec.ch/JP.htm) is also
available by email. Please contact the Customer Service Centre (see below) for
further information.
• Customer Service Centre
If you have any questions regarding this publication or need further assistance,
please contact the Customer Service Centre:
Email: custserv@iec.ch
Tel: +41 22 919 02 11
Fax: +41 22 919 03 00
INTERNATIONAL IEC
STANDARD
62026-6
First edition
2001-11
Low-voltage switchgear and controlgear –
Controller-device interfaces (CDIs) –
Part 6:
Seriplex (Serial Multiplexed Control Bus)
Appareillage à basse tension –
Interfaces appareil de commande-appareil (CDI) –
Partie 6:
Seriplex (Serial Multiplexed Control Bus)

 IEC 2001  Copyright - all rights reserved
No part of this publication may be reproduced or utilized in any form or by any means, electronic or
mechanical, including photocopying and microfilm, without permission in writing from the publisher.
International Electrotechnical Commission 3, rue de Varembé Geneva, Switzerland
Telefax: +41 22 919 0300 e-mail: inmail@iec.ch IEC web site http://www.iec.ch
Commission Electrotechnique Internationale
PRICE CODE
XC
International Electrotechnical Commission
For price, see current catalogue

– 2 – 62026-6  IEC:2001(E)

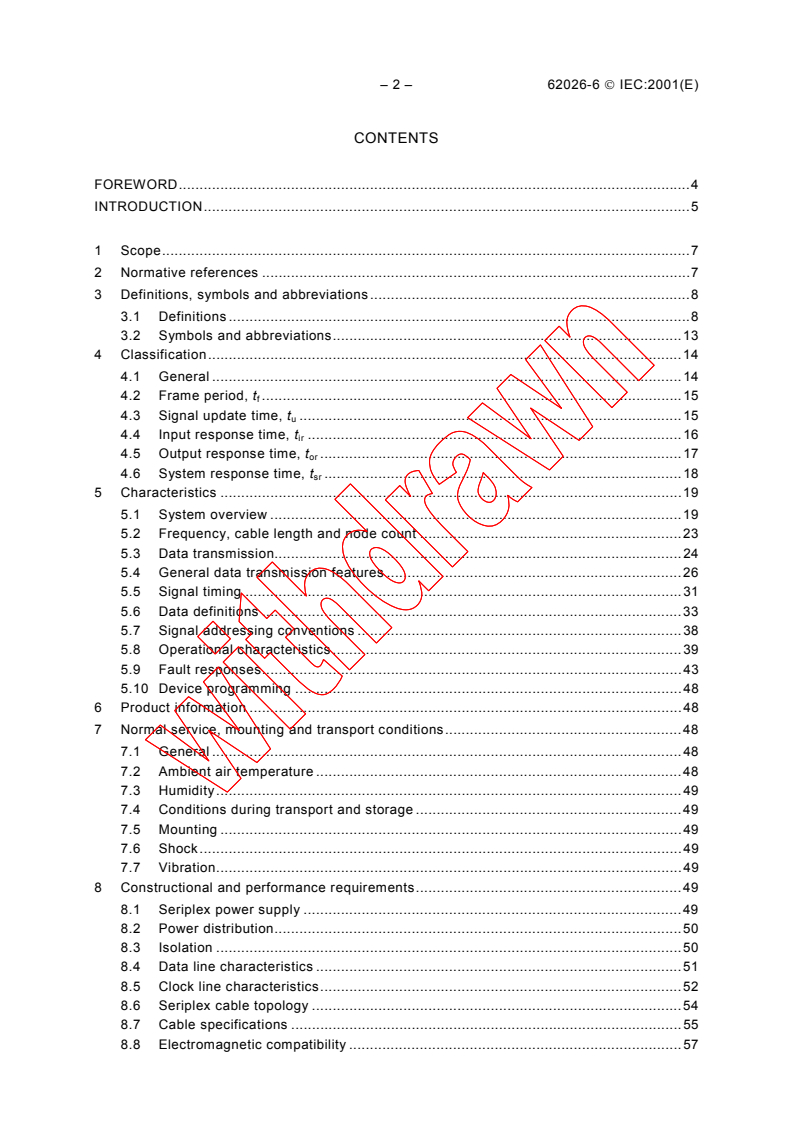

CONTENTS
FOREWORD.4

INTRODUCTION.5

1 Scope.7

2 Normative references .7

3 Definitions, symbols and abbreviations .8

3.1 Definitions .8
3.2 Symbols and abbreviations.13
4 Classification.14
4.1 General .14
4.2 Frame period, t .15
f
4.3 Signal update time, t
............................................................................................15
u
4.4 Input response time, t .16
ir
4.5 Output response time, t .17
or
4.6 System response time, t .18
sr
5 Characteristics .19
5.1 System overview .19
5.2 Frequency, cable length and node count .23
5.3 Data transmission.24
5.4 General data transmission features .26
5.5 Signal timing .31
5.6 Data definitions .33
5.7 Signal addressing conventions .38
5.8 Operational characteristics .39
5.9 Fault responses.43
5.10 Device programming .48
6 Product information .48
7 Normal service, mounting and transport conditions.48
7.1 General .48
7.2 Ambient air temperature .48

7.3 Humidity.49
7.4 Conditions during transport and storage .49
7.5 Mounting .49
7.6 Shock.49
7.7 Vibration.49
8 Constructional and performance requirements.49
8.1 Seriplex power supply .49
8.2 Power distribution.50
8.3 Isolation .50
8.4 Data line characteristics .51
8.5 Clock line characteristics.52
8.6 Seriplex cable topology .54
8.7 Cable specifications .55
8.8 Electromagnetic compatibility .57

62026-6  IEC:2001(E) – 3 –
9 Tests .59

9.1 Supply polarity .59

9.2 Power supply.59

9.3 Clock source .60

9.4 I/O device.70

9.5 Seriplex cable .81

Figure 1 − Seriplex controller-device interface system diagram .20

Figure 2 − Peer-to-peer timing diagram.21
Figure 3 − Master/slave timing diagram.22
Figure 4 − Example of address multiplexing .22
Figure 5 − Peer-to-peer transmission format .24
Figure 6 − Master/slave mode data transmission format.26
Figure 7 − Sync period diagram .28
Figure 8 − Data signal timing diagram.32
Figure 9 − Check byte formation .37
Figure 10 − Bus Fault Detection pulse .40
Figure 11 − Digital debounce .42
Figure 12 − Data line diagram .51
Figure 13 − Hysteresis .52
Figure 14 − Clock line diagram .53
Figure 15 − Preferred Seriplex topologies .54
Figure 16 − Other controller-device interface topologies .54
Figure 17 − Four-conductor Seriplex cable.56
Figure 18 − Six-conductor Seriplex cable .57
Figure 19 − Circuit for verification of clock source power consumption.60
Figure 20 − Connections for clock signal tests .61
Figure 21 − Clock signal waveform .61
Figure 22 − Test circuit for clock signal.63
Figure 23 − Waveform of clock pulse .64

Figure 24 − Transient current.64
Figure 25 − Test circuit for CDI data signal .65
Figure 26 − Waveform for CDI data signal.65
Figure 27 − Data line waveforms.67
Figure 28 − Connections for verification of data line requirements .68
Figure 29 − Waveforms for verification of data line requirements .68
Figure 30 − Connections for verification of I/O device requirements .71
Figure 31 − Connections for verification of I/O device data line capacitance (a) .71
Figure 32 − Connections for measurement of I/O device data line capacitance (b) .71
Figure 33 − Measurement of I/O device data line capacitance.72
Figure 34 − Connections for measurement of I/O device voltage drop .73

– 4 – 62026-6  IEC:2001(E)
Figure 35 − Connections for measurement of output device lower voltage threshold .73

Figure 36 − Connections for measurement of output device upper voltage threshold.74

Figure 37 − Connections for measurement of input device lower voltage threshold .76

Figure 38 − Connections for measurement of input device upper voltage threshold.76

Table 1 − Maximum available clock frequency for valid networks (single power supply) .23

Table 2 − Maximum available clock frequency for valid networks (multiple power supplies).24

Table 3 − Sync period parameters .28

Table 4 − Symbols and parameters.32
Table 5 − CDR signal address assignments .35
Table 6 − Address codes .36
Table 7 − Channel codes .37
Table 8 − I/O direction codes .37
Table 9 − Seriplex power supply requirements .49
Table 10 − Data line characteristics .51
Table 11 − Clock line characteristics.53
Table 12 − Wire size and characteristics.55
Table 13 − General Seriplex cable characteristics.55
Table 14 − Seriplex cable specifications .56

62026-6  IEC:2001(E) – 5 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION

____________
LOW-VOLTAGE SWITCHGEAR AND CONTROLGEAR –

CONTROLLER-DEVICE INTERFACES (CDIs) –

Part 6: Seriplex (Serial Multiplexed Control Bus)

FOREWORD
1) The IEC (International Electrotechnical Commission) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of the IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, the IEC publishes International Standards. Their preparation is
entrusted to technical committees; any IEC National Committee interested in the subject dealt with may
participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. The IEC collaborates closely with the International
Organization for Standardization (ISO) in accordance with conditions determined by agreement between the
two organizations.
2) The formal decisions or agreements of the IEC on technical matters express, as nearly as possible, an
international consensus of opinion on the relevant subjects since each technical committee has representation
from all interested National Committees.
3) The documents produced have the form of recommendations for international use and are published in the form
of standards, technical specifications, technical reports or guides and they are accepted by the National
Committees in that sense.
4) In order to promote international unification, IEC National Committees undertake to apply IEC International
Standards transparently to the maximum extent possible in their national and regional standards. Any
divergence between the IEC Standard and the corresponding national or regional standard shall be clearly
indicated in the latter.
5) The IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with one of its standards.
6) Attention is drawn to the possibility that some of the elements of this International Standard may be the subject
of patent rights. The IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 62026-6 has been prepared by subcommittee 17B: Low-voltage
switchgear and controlgear, of IEC technical committee 17: Switchgear and controlgear.
The text of this standard is based on the following documents:
FDIS Report on voting
17B/1162/FDIS 17B/1174/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 3.
The committee has decided that the contents of this publication will remain unchanged until
2004. At this date, the publication will be
• reconfirmed;
• withdrawn;
• replaced by a revised edition, or
• amended.
A bilingual version of this publication may be issued at a later date.

– 6 – 62026-6  IEC:2001(E)
INTRODUCTION
The general rules in IEC 62026-1 are applicable to this International Standard, where

specifically called for. All such rules, clauses and subclauses, together with tables, figures

and annexes, are identified by reference to part 1, for example 7.2.4.1 of IEC 62026-1.

Seriplex (Serial Multiplexed Control Bus) is a controller-device interface which provides a

deterministic means of exchanging simple data among control and sensing devices. All

devices are connected together by a single shielded four-conductor cable.

Any device which fully conforms to this part of IEC 62026 will be able to perform at least

elementary data exchange with other compliant devices through the Seriplex controller-device
interface.
62026-6  IEC:2001(E) – 7 –
LOW-VOLTAGE SWITCHGEAR AND CONTROLGEAR –

CONTROLLER-DEVICE INTERFACES (CDIs) –

Part 6: Seriplex (Serial Multiplexed Control Bus)

1 Scope
This part of IEC 62026 specifies an interface system between single or multiple controllers,
and control circuit devices or switching elements. The interface system uses two twisted
conductor pairs within one cable – one of these pairs provides a communication medium and
the other pair provides power to the devices. It also establishes requirements for the
interchangeability of components with such interfaces.
This standard specifies the physical and operating characteristics of the Seriplex controller-
device interface, including:
− requirements for interfaces between controllers and switching elements;
− normal service conditions for devices;
− constructional and performance requirements;
− tests to verify conformance to requirements.
These particular requirements apply in addition to the general requirements of IEC 62026-1.
2 Normative references
The following normative documents contain provisions which, through reference in this text,
constitute provisions of this part of IEC 62026. For dated references, subsequent amend-
ments to, or revisions of, any of these publications do not apply. However, parties to
agreements based on this part of IEC 62026 are encouraged to investigate the possibility of
applying the most recent editions of the normative documents indicated below. For undated
references, the latest edition of the normative document referred to applies. Members of IEC
and ISO maintain registers of currently valid International Standards.
IEC 60068-2-6:1995, Environmental testing − Part 2: Tests − Test Fc: Vibration (sinusoidal)
IEC 60068-2-27:1987, Basic environmental test procedures − Part 2: Tests – Test Ea and

guidance: Shock
IEC 60664-1:1992, Insulation coordination for equipment within low voltage systems − Part 1:
Principles, requirements, and tests
IEC 60947-1:1999, Low-voltage switchgear and controlgear − Part 1: General rules
IEC 61000-4-2:1995, Electromagnetic compatibility (EMC) − Part 4: Testing and measurement
techniques − Section 2: Electrostatic discharge immunity test. Basic EMC Publication
IEC 61000-4-3:1995, Electromagnetic compatibility (EMC) − Part 4: Testing and measurement
techniques − Section 3: Radiated, radio-frequency, electromagnetic field immunity test
IEC 61000-4-4:1995, Electromagnetic compatibility (EMC) − Part 4: Testing and measurement
techniques – Section 4: Electrical fast transient/burst immunity test. Basic EMC Publication

– 8 – 62026-6  IEC:2001(E)
IEC 61000-4-5:1995 Electromagnetic compatibility (EMC) − Part 4: Testing and measurement

techniques − Section 5: Surge immunity test

IEC 61000-4-6:1996, Electromagnetic compatibility (EMC) − Part 4: Testing and measurement

techniques − Section 6: Immunity to conducted disturbances induced by radio-frequency fields

IEC 62026-1:2000, Low-voltage switchgear and controlgear − Controller-device interfaces

(CDIs) – Part 1: General rules

CISPR 11:1997, Industrial, scientific and medical (ISM) radio-frequency equipment −

Electromagnetic disturbance characteristics − Limits and methods of measurement
3 Definitions, symbols and abbreviations
3.1 Definitions
For the purpose of this of this part of IEC 62026, clause 3 of IEC 62026-1, together with the
following additions, apply.
3.1.1
address multiplexing
means of extending the data capacity of a Seriplex controller-device interface by assigning
signals to one of 16 multiplex channels and broadcasting the multiplex channel number at the
start of each data frame
3.1.2
address sharing
practice of assigning two or more signals to the same address
NOTE In the peer-to-peer mode, all addresses used are typically shared by one input signal and one output
signal.
3.1.3
analogue input device
device which converts an external analogue signal to a numeric signal to be transmitted to the
controller-device interface as input data
3.1.4
analogue output device
device which converts a Seriplex numeric output signal to an external analogue signal

3.1.5
Bus Fault Detect (BFD) pulse
negative-going (logic high-to-low-to-high) pulse on the data line during the sync period,
produced by the clock source, and used by the clock source and I/O devices to evaluate the
condition of the Seriplex controller-device interface
3.1.6
bus halt
intentional condition in which generation of the Seriplex clock signal is suspended, so that no
data signals are transmitted through the controller-device interface, and all output devices
assume their default states
NOTE A bus halt is essentially the same as a clock loss condition; bus halt is usually used to indicate that the
condition is normal and intentionally induced by the clock source.

62026-6  IEC:2001(E) – 9 –
3.1.7
clock
Seriplex signal which is used to synchronize data exchange among connected devices

3.1.8
clock loss
condition in which the Seriplex clock signal is not operating due to a fault condition, so that no

data signals are transmitted through the controller-device interface, and all output devices

assume their default states
3.1.9, t
closs
clock loss detection period
time without a transition of the Seriplex clock signal (low-to-high or high-to-low) after which a
device detects a clock loss condition
NOTE Typically, output devices will assume their default states after the clock loss detection period has elapsed.
3.1.10
clock module
dedicated device which performs clock source functions for a Seriplex CDI operating in peer-
to-peer mode
3.1.11
clock pulse
sequence of logic level transitions on the Seriplex clock line, beginning with a positive (logic
low-to-high) transition and including a negative (high-to-low) transition
3.1.12
clock rate
repetition frequency of the Seriplex clock signal during the data-transmission portion of a data
frame
NOTE This rate is the reciprocal of the clock period.
3.1.13
clock source
Seriplex device which generates the clock signal, provides the current source for the data
line, and transmits the Bus Fault Detect pulse
NOTE Usually the clock source is incorporated within an interface to a controller, but for peer-to-peer mode
operation this may be a clock module instead.
3.1.14
control software
software which monitors Seriplex input signals and controls Seriplex output signals
NOTE This software might be C or Basic or other code within a computer, ladder logic within a PLC, or
embedded firmware within a dedicated control device. Typically this software performs controller-device interface
start/stop functions and interface card initialization as well as signal monitoring and control.
3.1.15
daisy-chain
method of connecting Seriplex devices by cable segments connected end-to-end
3.1.16
data echo
feature of Seriplex devices whereby the device receives a signal then retransmits that signal
to the controller-device interface
NOTE This feature may be used to indicate to a data-transmission device that a data signal has been properly
received by another device.
– 10 – 62026-6  IEC:2001(E)
3.1.17
data frame
sequence of clock pulses on the clock line, bounded at its beginning and end by a sync period

3.1.18
data line capacitance
capacitance of the data line to all the other conductors

3.1.19
data pass-through
interface feature used in master/slave mode, which takes controller-device interface input

signals and retransmits them as controller-device interface output signals at the same signal
addresses, without the intervention of control software
NOTE This feature mimics peer-to-peer mode operation in that input devices may directly control output devices
at the same address without control programming.
3.1.20
default state
state of Seriplex I/O device output signals under initial power-up, clock loss, and bus fault
conditions
NOTE Usually this state is the “off” or inactive state, and corresponds to an output signal value of 0.
3.1.21
digital debounce
optional feature of Seriplex devices whereby multiple identical values of a particular discrete
controller-device interface output signal are detected in successive data frames in order to
cause the Seriplex device to change the logic state of its external output signals
3.1.22
discrete signal
data signal consisting of exactly one bit of information
NOTE Such a signal may assume one of only two states or values–logic high or low, 0 or 1. Both Seriplex input
and output data signals and a device’s external input and output signals may be discrete signals.
3.1.23
drop
relatively short length of Seriplex cable which is connected to a longer "trunk" cable
NOTE Typically branch lines are 16 m or less, while trunk lines may be hundreds or thousands of metres long.
3.1.24
excess time constant
bleedover
effect which occurs when the data line cannot recharge to a high logic state within one-half
clock period after being released from a logic low state
NOTE This effect may result in signals with an intended value of 0 being incorrectly interpreted as having a
value of 1.
3.1.25
frame length
number of signal addresses transmitted within a single Seriplex data frame
3.1.26
frame period, t
f
time consumed by one data frame, that is, the elapsed time between the end of successive
sync periods during normal operation

62026-6  IEC:2001(E) – 11 –
3.1.27
host interface
electronic hardware device which allows control software running on a controller to monitor

and control I/O devices through a Seriplex controller-device interface by some means such as

a backplane interface or controller-device interface gateway

NOTE A host interface typically also provides Seriplex clock source functions.

3.1.28
input propagation delay
elapsed time between an external input signal event and that signal’s availability within a

Seriplex input device for transmission to the controller-device interface

3.1.29
input response time, t
ir
a) in peer-to-peer mode, elapsed time between an external input signal event and that
signal’s appearance on the controller-device interface communications medium
b) in master/slave mode, the elapsed time between an external input signal event and that
signal’s availability to a master’s internal logic processor
3.1.30
input signal
signal received by a Seriplex device other than a controller, and reported to the Seriplex
controller-device interface
3.1.31
I/O module
device that converts between Seriplex signals and external signals from control circuit devices
3.1.32
master
Seriplex device which executes control logic, incorporates the clock source function, has
exclusive access to input data, and is the only device which transmits output data
3.1.33
master/slave mode
mode 2
operating mode comprising a master and one or more slaves
NOTE In this mode, two clock pulses are transmitted per address – one for input data and the other for output
data.
3.1.34
multiplex channel number
integer between 0 and 15 which serves as an extension of the signal address of devices
which support address multiplexing
NOTE Each multiplexed signal is assigned to a single multiplex channel, and is transmitted through the Seriplex
controller-device interface during data frames in which the multiplex channel number broadcast by the clock source
at the beginning of the data frame matches its assigned channel number.
3.1.35
node
logically active connection to the controller-device interface
NOTE 1 Typical nodes consist of a clock source or I/O devices.
NOTE 2 Passive connections such as T-junctions are not nodes.

– 12 – 62026-6  IEC:2001(E)
3.1.36
numeric signal
group of consecutive input or output data bits which together represent a single number or

quantity
NOTE The allowable range of a numeric signal value is determined by the number of bits assigned to that signal,

typically 8, 12, or 16, and usually assigned a starting signal address which is a multiple of 16 (0, 16, 32, ., 240).

3.1.37
output propagation delay, t
op
time between a change in the logic state of an output signal within a Seriplex device and the
corresponding change in state of its external output signal

3.1.38
output response time, t
or
a) in peer-to-peer mode, time between a signal’s appearance on the controller-device
interface and the corresponding change in state of an external output signal
b) in master/slave mode, elapsed time between a signal’s assertion by the controller’s
internal logic processor (usually into an interface card’s memory) and the corresponding
change in state of an external output signal
3.1.39
output signal
signal which is received through the controller-device interface by a device other than a
controller
3.1.40
peer-to-peer mode
mode 1
operating mode in which one device can control signals to any other device directly, without
the intervention of a controller
NOTE In this mode, one clock pulse is transmitted per address, and input and output data are sampled at the
same time.
3.1.41
Seriplex device
control or sensing apparatus which is electrically connected to the controller-device interface,
including both clock sources and I/O devices
NOTE The term "device" refers collectively to the controller-device interface communications circuitry, to any
other circuitry within the device, to any mechanical and/or electromechanical actuators which interface with the
device circuitry and to the device’s physical housing and electrical connectors.
3.1.42
Seriplex power supply
device which produces the d.c. voltage applied to the controller-device interface circuitry of
Seriplex devices
NOTE Typically this power source is electrically isolated from any power sources used to activate control
devices or sensors.
3.1.43
signal address
address
integer between 0 and 255 which identifies a single bit of Seriplex input or output data

62026-6  IEC:2001(E) – 13 –
3.1.44
signal update time, t
u
time between successive transmissions of a particular signal through the Seriplex controller-

device interface
NOTE For non-multiplexed signals, the signal update time is equal to the frame period. For multiplexed signals,

the signal update time is equal to the frame period multiplied by the number of multiplex channels scanned by the
clock source.
3.1.45
slave
Seriplex device that does not generate the controller-device interface clock signal

3.1.46
sync period, t
sync
pause in the Seriplex clock signal at the end of each data frame, causing all I/O devices to
reset their address counters, and therefore synchronizing data transmission among devices
3.1.47
system response time, t
sr
elapsed time between an external input signal event and a resulting change in state of an
external output signal
NOTE It includes input response time, output response time, controller processing time and I/O device
propagation delays.
3.1.48
word
group of 16 bits of Seriplex input or output data assigned to consecutive signal addresses,
with the starting address being an integer multiple of 16 (0, 16, 32, ., 240)
3.2 Symbols and abbreviations
BFD Bus Fault Detect
CDR Complementary Data Retransmission
EUT Equipment Under Test
N
Number of multiplex channels scanned by the clock source
ch
t BFD pulse delay
bd
t
BFD pulse duration
bfd
t BFD pulse recovery time
br
t Data line charge time
ch
t Clock period
clock
t
Clock loss detection period
closs
t Data line discharge time
dis
t
End of frame delay
eof
t Frame period
f
t Host interface input propagation delay
hip
t Hold time after data sampling
hold
t
Host interface output propagation delay
hop
t Controller response time
hr
t
Input device propagation delay
ip
t Input response time
ir
– 14 – 62026-6  IEC:2001(E)
t Output device propagation delay
op
t Output response time
or
t Data off propagation delay
poff
t Data on propagation delay
pon
t Set-up time before data sampling
setup
t System response time
sr
t Signal update time
u
V High level of the square wave data signal
h
V Low level of the square wave data signal
l
4 Classification
4.1 General
Seriplex is usually applied at the lowest level in a multi-level automation hierarchy. Seriplex
concentrates on the typical requirements to connect binary elements to a controller.
Seriplex can be used as an interface physically integrated into field devices, e.g. actuators,
sensors, or other devices, allowing design of "intelligent" binary actuators, sensors or other
devices and elements. Alternatively, Seriplex may be used in separate modules, each
providing interfaces for conventional actuators, sensors or other devices and elements.
The Seriplex concept is independent of the specific field devices.
Connected devices may include:
− sensors (photoelectric switches, proximity sensors, and pushbuttons);
− actuators (valves and contactors);
− universal input/output modules;
− controllers (PLCs and personal computers);
− clock modules.
Cable topology may be of any type. Recommended topologies are daisy chain or trunk and
drop, since their performance is the most predictable and easily characterized. Each drop
length in a trunk and drop or loop system should be limited to less than 10 m.

The Seriplex cable consists of four or six individually insulated conductors surrounded by a
foil shield, and housed within a single overall insulating jacket. The conductors of the four-
core cable correspond to the power, common, clock, and data lines. In the six-core cable the
two additional conductors (I/O+ and I/O–) are located outside the shield but within the outer
jacket.
Both master/slave and peer-to-peer configurations are possible in Seriplex systems.
Clock rates may be up to 200 kHz.
Seriplex signal update time depends on the length of the data frame (from 16 to 256 addresses),
the clock rate (10 kHz to 200 kHz), and the number of multiplex channels scanned (1 to 16).

62026-6  IEC:2001(E) – 15 –
4.2 Frame period, t
f
A frame period is defined as the elapsed time between the end of successive sync periods

while a Seriplex bus system is operating normally. Within a given system, the frame period is

fixed and is determined by the designated frame length, clock rate, and sync period (t ).
sync
For clock rates up to 100 kHz, assuming the sync period is eight clock periods in duration, the

frame period can be calculated as

t = [(mode × frame length) + 8]/clock rate
f
where
mode = 1 for peer-to-peer operation;
mode = 2 for master/slave operation.
For clock rates above 100 kHz, the sync period is normally 16 clock periods in duration, so
the frame period is calculated as
t = [(mode × frame length) + 16]/clock rate
f
As the formula indicates, the frame period can be reduced either by shortening the frame
length or by increasing the clock rate.
4.3 Signal update time, t
u
Signal update time is defined as the elapsed time between successive transmissions of a
particular signal through the Seriplex CDI. The longest signal update time for any signal within
a given system also defines the time required to update all the CDI data within that system.
For non-multiplexed signals, the signal update time equals the frame period:
t = t
u f
For multiplexed signals when no priority channels are designated, the signal update time
equals the frame period times the number of multiplex channels scanned by the clock source
(N ):
ch
t = t × N
u f ch
If a multiplexed priority channel is designated, the calculations are modified as follows.

For a priority channel:
t = t × 2
u f
For non-priority channels:
t = t × 2 × (N –1)
u f ch
– 16 – 62026-6  IEC:2001(E)
4.4 Input response time, t
ir
In peer-to-peer mode, input response time is defined as the elapsed time between an external

input signal event and that signal’s appearance on the Seriplex CDI. Since the timing of the

input event need not be synchronized with the operation of the Seriplex CDI, the maximum

input response time for a given signal is primarily determined by the signal update time. The

propagation delay (t of the input device also affects the input response time, although this
ip)
factor is usually negligible compared to the signal update time:

t = t + t
ir u ip
This formula is true for both multiplexed and non-multiplexed signals.
In master/slave mode, input response time is defined as the elapsed time between an external
input signal event and that signal’s availability to a controller’s internal logic processor. In the
case of a typical backplane interface, this would be the time from the input event until new
input data is posted in the interface’s dual-port memory for use by application software.
Master/slave input response time is determined by the propagation delay (t ) of the input
ip
device, the signal update time (t ), the propagation delay (t ) of the host interface, and
u hip
whether input data is posted immediately when received or withheld until completion of bus
fault detection (BFD) checks.
The input response time formula for immediately posted data is
t = t + t + t
ir ip u hip
Since input propagation delay can usually be disregarded, and the propagation delay for
typical CPU interface cards is approximately 32 clock periods in master/slave mode, the
complete calculation for input response time is usually performed as follows:
t = [(2 × frame length + 8) × N + 32]/clock rate
ir ch
NOTE 1 For clock rates >100 kHz, the factor of 8 in the above formula changes to 16 or to some other value
specified by the interface manufacturer.
NOTE 2 For non-multiplexed signals, N = 1.
ch
If data posting is withheld until BFD checks are completed, an extra delay (t ) from the time
eof
the signal is reported on the Seriplex bus until the end of the following sync period is
introduced. This end-of-frame delay is determined by the frame length and the signal’s
address (input_addr):
t = [(2 × frame length + 8) – (2 × input_addr)]/clock rate
eof
Therefore the complete input response time formula becomes:
t = t + t + t + t
ir ip u hip eof
Under the assumptions given above, this would be calculated as
t = [(2 × frame length + 8) × N + 32 + (2 × frame length + 8) – (2 × input_addr)]/clock rate
ir ch
62026-6  IEC:2001(E) – 17 –
which can be simplified to
t = [(2 × frame length + 8) × (N + 1) + 32 – (2 × input_addr)]/clock rate
ir ch
NOTE 3 For clock rates > 100 kHz, the factor of 8 in the above formula changes to 16 or to some other value

specified by the interface manufacturer.

NOTE 4 For non-multiplexed signals, N = 1.
ch
If digital debounce is used, input response time can still be calculated by the same formula. In

this case, the selected number of data samples (2 or 3) should be substituted for the number
of multiplex channels (N ).
ch
Digital debounce and address multiplexing shall not be used simultaneously for the same
signal.
4.5 Output response time, t
or
In peer-to-peer mode, output response time is defined as the elapsed time between a signal’s
appearance on the Seriplex CDI and the corresponding change in state of an output device’s
external output signal.
Since Seriplex output devices hold output data until a valid BFD check is made before
passing the data on to the physical outputs, the primary component of peer-to-peer output
response time is the end-of-frame delay (t ) from the time the signal is reported on the
eof
Seriplex CDI until the end of the following sync period. The propagation delay (t ) of the
op
output device also affects the output response time, although this factor is usually negligible
compared to the end-of-frame delay:
t = t + t
or eof op
where
t = (frame length + 8 – output_addr)/clock rate
eof
NOTE 1 For clock rates >100 kHz, the factor of 8 in the above formula changes to 16 or to some other value
specified by the interface manufacturer.
NOTE 2 This formula applies to both multiplexed and non-multiplexed signals.
If digital debounce is used, output response time becomes:
t = t + t + (deb_lgth × t )
or eof op u
where deb_lgth is the selected debounce length for the signal; the number of identical data
samples (2 or 3) required before the corresponding output changes state.
Digital debounce and address multiplexing shall not be used simultaneously for the same
signal.
In master/slave mode, out
...
