IEC 61784-5-13:2013

IEC 61784-5-13 ®
Edition 1.0 2013-09
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Industrial communication networks – Profiles –
Part 5-13: Installation of fieldbuses – Installation profiles for CPF 13

Réseaux de communication industriels – Profils –
Partie 5-13: Installation des bus de terrain – Profils d'installation pour CPF 13

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,
please contact the address below or your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni
utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie et les
microfilms, sans l'accord écrit de la CEI ou du Comité national de la CEI du pays du demandeur.
Si vous avez des questions sur le copyright de la CEI ou si vous désirez obtenir des droits supplémentaires sur cette
publication, utilisez les coordonnées ci-après ou contactez le Comité national de la CEI de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

Useful links:
IEC publications search - www.iec.ch/searchpub Electropedia - www.electropedia.org
The advanced search enables you to find IEC publications The world's leading online dictionary of electronic and
by a variety of criteria (reference number, text, technical electrical terms containing more than 30 000 terms and
committee,…). definitions in English and French, with equivalent terms in
It also gives information on projects, replaced and additional languages. Also known as the International
withdrawn publications. Electrotechnical Vocabulary (IEV) on-line.

IEC Just Published - webstore.iec.ch/justpublished Customer Service Centre - webstore.iec.ch/csc
Stay up to date on all new IEC publications. Just Published If you wish to give us your feedback on this publication
details all new publications released. Available on-line and or need further assistance, please contact the
also once a month by email. Customer Service Centre: csc@iec.ch.

A propos de la CEI
La Commission Electrotechnique Internationale (CEI) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications CEI
Le contenu technique des publications de la CEI est constamment revu. Veuillez vous assurer que vous possédez
l’édition la plus récente, un corrigendum ou amendement peut avoir été publié.

Liens utiles:
Recherche de publications CEI - www.iec.ch/searchpub Electropedia - www.electropedia.org
La recherche avancée vous permet de trouver des Le premier dictionnaire en ligne au monde de termes
publications CEI en utilisant différents critères (numéro de électroniques et électriques. Il contient plus de 30 000
référence, texte, comité d’études,…). termes et définitions en anglais et en français, ainsi que
Elle donne aussi des informations sur les projets et les les termes équivalents dans les langues additionnelles.
publications remplacées ou retirées. Egalement appelé Vocabulaire Electrotechnique
International (VEI) en ligne.
Just Published CEI - webstore.iec.ch/justpublished
Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications de la CEI.
Just Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur
Disponible en ligne et aussi une fois par mois par email. cette publication ou si vous avez des questions
contactez-nous: csc@iec.ch.
IEC 61784-5-13 ®
Edition 1.0 2013-09
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Industrial communication networks – Profiles –

Part 5-13: Installation of fieldbuses – Installation profiles for CPF 13

Réseaux de communication industriels – Profils –

Partie 5-13: Installation des bus de terrain – Profils d'installation pour CPF 13

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX R
ICS 25.040.40; 35.100.40 ISBN 978-2-8322-1063-5

– 2 – 61784-5-13 © IEC:2013

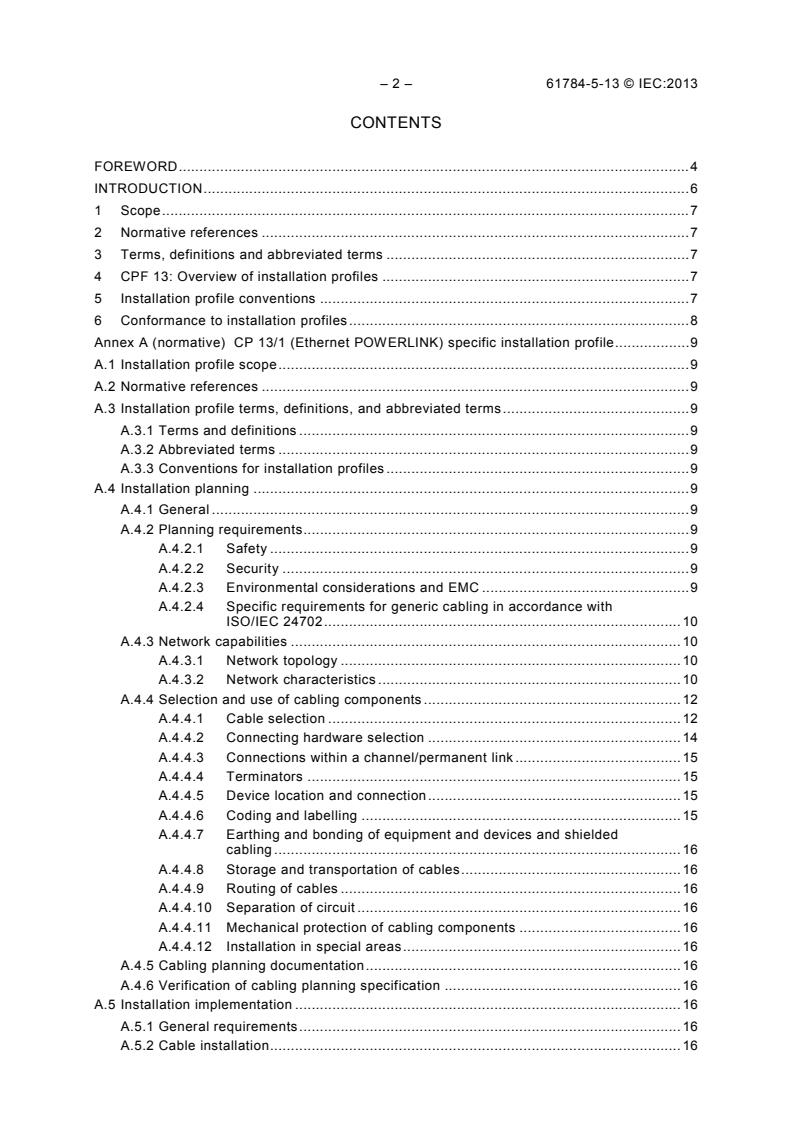

CONTENTS
FOREWORD . 4
INTRODUCTION . 6
1 Scope . 7
2 Normative references . 7
3 Terms, definitions and abbreviated terms . 7
4 CPF 13: Overview of installation profiles . 7
5 Installation profile conventions . 7
6 Conformance to installation profiles . 8
Annex A (normative) CP 13/1 (Ethernet POWERLINK) specific installation profile . 9
A.1 Installation profile scope . 9
A.2 Normative references . 9
A.3 Installation profile terms, definitions, and abbreviated terms . 9
A.3.1 Terms and definitions . 9
A.3.2 Abbreviated terms . 9
A.3.3 Conventions for installation profiles . 9
A.4 Installation planning . 9
A.4.1 General . 9
A.4.2 Planning requirements . 9
A.4.2.1 Safety . 9
A.4.2.2 Security . 9
A.4.2.3 Environmental considerations and EMC . 9
A.4.2.4 Specific requirements for generic cabling in accordance with
ISO/IEC 24702 . 10
A.4.3 Network capabilities . 10
A.4.3.1 Network topology . 10
A.4.3.2 Network characteristics . 10
A.4.4 Selection and use of cabling components . 12
A.4.4.1 Cable selection . 12
A.4.4.2 Connecting hardware selection . 14
A.4.4.3 Connections within a channel/permanent link . 15
A.4.4.4 Terminators . 15
A.4.4.5 Device location and connection . 15
A.4.4.6 Coding and labelling . 15
A.4.4.7 Earthing and bonding of equipment and devices and shielded
cabling . 16
A.4.4.8 Storage and transportation of cables . 16
A.4.4.9 Routing of cables . 16
A.4.4.10 Separation of circuit . 16
A.4.4.11 Mechanical protection of cabling components . 16
A.4.4.12 Installation in special areas . 16
A.4.5 Cabling planning documentation . 16
A.4.6 Verification of cabling planning specification . 16
A.5 Installation implementation . 16
A.5.1 General requirements . 16
A.5.2 Cable installation . 16

61784-5-13 © IEC:2013 – 3 –
A.5.3 Connector installation . 16
A.5.4 Terminator installation . 16
A.5.5 Device installation . 17
A.5.5.1 Common description . 17
A.5.5.2 Specific requirements for CPs . 17
A.5.6 Coding and labelling . 17
A.5.6.1 Common description . 17
A.5.6.2 Specific requirements for CPs . 17
A.5.7 Earthing and bonding of equipment and devices and shield cabling . 17
A.5.8 As-implemented cabling documentation . 17
A.6 Installation verification and installation acceptance test . 17
A.6.1 General . 17
A.6.2 Installation verification . 17
A.6.2.1 General . 17
A.6.2.2 Verification according to cabling planning documentation . 17
A.6.2.3 Verification of earthing and bonding . 17
A.6.2.4 Verification of shield earthing . 17
A.6.2.5 Verification of cabling system . 17
A.6.2.6 Cable selection verification . 17
A.6.2.7 Connector verification . 17
A.6.2.8 Connection verification . 18
A.6.2.9 Terminators verification . 18
A.6.2.10 Coding and labelling verification . 18
A.6.2.11 Verification report . 18
A.6.3 Installation acceptance test . 18
A.6.3.1 General . 18
A.6.3.2 Acceptance test of Ethernet-based cabling . 18
A.6.3.3 Acceptance test of non–Ethernet-based cabling . 18
A.6.3.4 Specific requirements for wireless installation . 18
A.6.3.5 Acceptance test report . 18
A.7 Installation administration . 19
A.8 Installation maintenance and installation troubleshooting . 19

Figure 1 – Standards relationships . 6

Table A.1 – Network characteristics for balanced cabling based on Ethernet . 11
Table A.2 – Network characteristics for optical fibre cabling . 11
Table A.3 – Information relevant to copper cable: fixed cables . 12
Table A.4 – Information relevant to copper cable: cords . 13
Table A.5 – Information relevant to optical fibre cables . 13
Table A.6 – Connectors for balanced cabling CPs based on Ethernet . 14
Table A.7 – Optical fibre connecting hardware . 14
Table A.8 – Relationship between FOC and fibre types (CP 13/1) . 15

– 4 – 61784-5-13 © IEC:2013
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
INDUSTRIAL COMMUNICATION NETWORKS –
PROFILES –
Part 5-13: Installation of fieldbuses –
Installation profiles for CPF 13

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 61784-5-13 has been prepared by subcommittee 65C: Industrial
networks, of IEC technical committee 65: Industrial-process measurement, control and
automation.
This standard is to be used in conjunction with IEC 61918:2013.
The text of this standard is based on the following documents:
FDIS Report on voting
65C/738/FDIS 65C/743/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.

61784-5-13 © IEC:2013 – 5 –
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
A list of all parts of IEC 61784-5 series, under the general title Industrial communication
networks – Profiles – Installation of fieldbuses, can be found on the IEC website.
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct
understanding of its contents. Users should therefore print this document using a
colour printer.
– 6 – 61784-5-13 © IEC:2013
INTRODUCTION
This International Standard is one of a series produced to facilitate the use of communication
networks in industrial control systems.
IEC 61918:2013 provides the common requirements for the installation of communication
networks in industrial control systems. This installation profile standard provides the
installation profiles of the communication profiles (CP) of a specific communication profile
family (CPF) by stating which requirements of IEC 61918 fully apply and, where necessary, by
supplementing, modifying, or replacing the other requirements (see Figure 1).
For general background on fieldbuses, their profiles, and relationship between the installation
profiles specified in this standard, see IEC 61158-1.
Each CP installation profile is specified in a separate annex of this standard. Each annex is
structured exactly as the reference standard IEC 61918 for the benefit of the persons
representing the roles in the fieldbus installation process as defined in IEC 61918 (planner,
installer, verification personnel, validation personnel, maintenance personnel, administration
personnel). By reading the installation profile in conjunction with IEC 61918, these persons
immediately know which requirements are common for the installation of all CPs and which
are modified or replaced. The conventions used to draft this standard are defined in Clause 5.
The provision of the installation profiles in one standard for each CPF (for example
IEC 61784-5-13 for CPF 13), allows readers to work with standards of a convenient size.
PLANNING
DESIGN AND
INSTALLATION
Offices
GENERIC
OFFICE PREMISES ISO/IEC 11801
Annex
CABLING
Home
HOMES ISO/IEC 15018
Annex
ISO/IEC Data centre
DATA CENTRES ISO/IEC 24764
14763-2 Annex
BETWEEN
Industrial
AUTOMATION ISO/IEC 24702
Annex
ISLANDS
BETWEEN
AUTOMATION
Installation
INDUSTRIAL PREMISES IEC 61158
IEC 61918
ISLANDS
Profiles
series
IEC 61784-5 series
and (Common
(Selection +
WITHIN
requirements)
IEC 61784-1, -2
Add/Repl/Mod)
AUTOMATION
ISLANDS
Com m on structure
APPLICATION-SPECIFIC
CABLING
Figure 1 – Standards relationships

61784-5-13 © IEC:2013 – 7 –
INDUSTRIAL COMMUNICATION NETWORKS –
PROFILES –
Part 5-13: Installation of fieldbuses –
Installation profiles for CPF 13

1 Scope
This part of IEC 61784-5 specifies the installation profiles for CPF 13 (Ethernet
POWERLINK ).
The installation profiles are specified in the annex. This annex is read in conjunction with
IEC 61918:2013.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and
are indispensable for its application. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 61918:2013, Industrial communication networks – Installation of communication networks
in industrial premises
The normative references of IEC 61918:2013, Clause 2, apply. For profile specific normative
references, see Clause A.2.
3 Terms, definitions and abbreviated terms
For the purpose of this document, the terms, definitions and abbreviated terms given in
IEC 61918:2013, Clause 3, apply. For profile specific terms, definitions and abbreviated terms
see Clause A.3.
4 CPF 13: Overview of installation profiles
CPF 13 consists of one Communication Profile as specified in IEC 61784-2.
The installation requirements for CP 13/1 (Ethernet POWERLINK) are specified in Annex A.
5 Installation profile conventions
The numbering of the clauses and subclauses in the annexes of this standard corresponds to
the numbering of IEC 61918 main clauses and subclauses.
The annex clauses and subclauses of this standard supplement, modify, or replace the
respective clauses and subclauses in IEC 61918.
___________
Ethernet POWERLINK is a trade name of Bernecker&Rainer Industrie-Elektronik Ges.m.b.H. Control of trade name use is
given to the non-profit organization EPSG. This information is given for the convenience of users of this document and does
not constitute an endorsement by IEC of the trademark holder or any of its products. Compliance to this profile does not
require use of the trade name. Use of the trade name requires permission of the trade name holder.

– 8 – 61784-5-13 © IEC:2013
Where there is no corresponding subclause of IEC 61918 in the normative annexes in this
standard, the subclause of IEC 61918 applies without modification.
The annex heading letter represents the installation profile assigned in Clause 4. The annex
heading number shall represent the corresponding numbering of IEC 61918.
EXAMPLE “Subclause A.4.4” in IEC 61784-5-13 means that CP 13/1 specifies the subclause 4.4 of IEC 61918.
All main clauses of IEC 61918 are cited and apply in full unless otherwise stated in each
normative installation profile annex.
If all subclauses of a (sub)clause are omitted, then the corresponding IEC 61918 (sub)clause
applies.
If in a (sub)clause it is written “Not applicable.”, then the corresponding
IEC 61918 (sub)clause does not apply.
If in a (sub)clause it is written “Addition:”, then the corresponding IEC 61918 (sub)clause
applies with the additions written in the profile.
If in a (sub)clause it is written “Replacement:”, then the text provided in the profile replaces
the text of the corresponding IEC 61918 (sub)clause.
NOTE A replacement can also comprise additions.
If in a (sub)clause it is written “Modification:”, then the corresponding IEC 61918 (sub)clause
applies with the modifications written in the profile.
If all (sub)clauses of a (sub)clause are omitted but in this (sub)clause it is written
× has addition:” (or “replacement:”) or “(Sub)clause × is not applicable.”, then
“(Sub)clause
(sub)clause × becomes valid as declared and all the other corresponding
IEC 61918 (sub)clauses apply.
6 Conformance to installation profiles
Each installation profile within this standard includes part of IEC 61918:2013. It may also
include defined additional specifications.
A statement of compliance to an installation profile of this standard shall be stated as either
Compliance to IEC 61784-5-13:2013 for CP 13/m or
Compliance to IEC 61784-5-13 (Ed.1.0) for CP 13/m
where the name within the angle brackets < > is optional and the angle brackets are not to be
included. The m within CP 13/m shall be replaced by the profile number 1.
NOTE The name can be the name of the profile, for example Ethernet POWERLINK.
If the name is a trade name then the permission of the trade name holder shall be required.
Product standards shall not include any conformity assessment aspects (including quality
management provisions), neither normative nor informative, other than provisions for product
testing (evaluation and examination).
___________
In accordance with ISO/IEC Directives.
The date should not be used when the edition number is used.

61784-5-13 © IEC:2013 – 9 –
Annex A
(normative)
CP 13/1 (Ethernet POWERLINK) specific installation profile

A.1 Installation profile scope
Addition:
This standard specifies the installation profile for Communication Profile CP 13/1 (Ethernet
POWERLINK). The CP 13/1 is specified in IEC 61784-2.
A.2 Normative references
Addition:
IEEE 802.3:2008, IEEE Standard for Information technology – Telecommunications and
information exchange between systems – Local and metropolitan area networks – Specific
requirements – Part 3: Carrier Sense Multiple Access with Collision Detection (CSMA/CD)
Access Method and Physical Layer Specifications
NOTE IEEE 802.3-2008 includes extensions to ISO/IEC 8802-3:2000. When a next edition of ISO/IEC 8802-3 is
available the references to IEEE 802.3-2008 will be replaced if appropriate.
A.3 Installation profile terms, definitions, and abbreviated terms
A.3.1 Terms and definitions
Subclause 3.1.60 has replacement:
repeater
as defined in IEEE 802.3:2008
A.3.2 Abbreviated terms
A.3.3 Conventions for installation profiles
Not applicable.
A.4 Installation planning
A.4.1 General
Subclause 4.1.4 is not applicable
A.4.2 Planning requirements
A.4.2.1 Safety
Subclause 4.2.1.4 is not applicable.
A.4.2.2 Security
A.4.2.3 Environmental considerations and EMC

– 10 – 61784-5-13 © IEC:2013
A.4.2.4 Specific requirements for generic cabling in accordance with ISO/IEC 24702
A.4.3 Network capabilities
A.4.3.1 Network topology
A.4.3.1.1 Common description
A.4.3.1.2 Basic physical topologies for passive networks
Not applicable.
A.4.3.1.3 Basic physical topologies for active networks
Modification:
Active ring topologies are not supported by CP 13/1.
A.4.3.1.4 Combination of basic topologies
Replacement:
Any combination of active star and linear topologies are permitted.
A.4.3.1.5 Specific requirements for CPs
Replacement:
For high performance repeaters should be used instead of switches.
A.4.3.1.6 Specific requirements for generic cabling in accordance with
ISO/IEC 24702
A.4.3.2 Network characteristics
A.4.3.2.1 General
A.4.3.2.2 Network characteristics for balanced cabling not based on Ethernet
Not applicable.
A.4.3.2.3 Network characteristics for balanced cabling based on Ethernet
Replacement:
Table A.1 provides values based on the template given in IEC 61918:2013, Table 2.

61784-5-13 © IEC:2013 – 11 –
Table A.1 – Network characteristics for balanced cabling based on Ethernet
Characteristic CP 13/1
Supported data rates (Mbit/s) 100
b
Supported channel length (m) 100
a,b
Number of connections in the channel (max.) 6
a
Patch cord length (m) 100
b
Channel class per ISO/IEC 24702 (min.) D
c
Cable category per ISO/IEC 24702 (min.)  5
Connecting HW category per ISO/IEC 24702 (min.) 5
Cable types –
a
See A.4.4.3.2.
b
For the purpose of this table the channel definitions of ISO/IEC 24702 are applicable.
c
Additional information is available in IEC 61156 series.

A.4.3.2.4 Network characteristics for optical fibre cabling
Replacement:
Table A.2 provides values based on the template given in IEC 61918:2013, Table 3.
Table A.2 – Network characteristics for optical fibre cabling
CP 13/1
Optical fibre type Description
Single mode silica Bandwith (MHz) or equivalent at λ (nm) 500 at 1 310
Minimum length (m) 0
a
Maximum length (m) 14 000
Maximum channel insertion loss/optical power 8,5
budget (dB)
Connecting HW See A.4.4.2.5
Multimode silica 600 at 1 310
Modal bandwith (MHz × km) at λ (nm)
Minimum length (m) 0
a
Maximum length (m) 2 000
Maximum channel insertion loss/optical power 4,5
budget (dB)
Connecting HW See A.4.4.2.5
POF Modal bandwith (MHz × 100 m) at λ (nm) 35 at 650
Minimum length (m) 0
a
Maximum length (m) 50
Maximum channel insertion loss/optical power 14
budget (dB)
Connecting HW See A.4.4.2.5
Hard clad silica 70 at 650
Modal bandwith (MHz × km) at λ (nm)
Minimum length (m) 0
a
Maximum length (m) 100
Maximum channel insertion loss/optical power 3
budget (dB)
Connecting HW See A.4.4.2.5
a
This value is reduced by connections, splices and bends in accordance with formula (1) in 4.4.3.4.1 of
IEC 61918:2013.
– 12 – 61784-5-13 © IEC:2013
A.4.3.2.5 Specific network characteristics
Not applicable.
A.4.3.2.6 Specific requirements for generic cabling in accordance with
ISO/IEC 24702
A.4.4 Selection and use of cabling components
A.4.4.1 Cable selection
A.4.4.1.1 Common description
A.4.4.1.2 Copper cables
A.4.4.1.2.1 Balanced cables for Ethernet based CPs
Replacement:
Table A.3 provides values based on the template given in IEC 61918:2013, Table 4.
Table A.3 – Information relevant to copper cable: fixed cables
Characteristic CP 13/1
Nominal impedance of cable (tolerance)
100 Ω ± 15 Ω
DCR of conductors
≤ 120 Ω/km
DCR of shield –
Number of conductors 4 or 8
Shielding S/FTP, SF/FTP
Colour code for conductor 4-conductor cable:
YE, WH, OG, BU
8-conductor cable:
compliant to T568B
Jacket colour requirements –
Jacket material –
Application dependent
Resistance to harsh environment (e.g. UV, oil
resist, LS0H)
Agency ratings –
Replacement: Table A.4 provides values based on the template given in IEC 61918:2013,
Table 5.
61784-5-13 © IEC:2013 – 13 –
Table A.4 – Information relevant to copper cable: cords
Characteristic CP 13/1
Nominal impedance of cable (tolerance) 100 Ω ± 15 Ω
DCR of conductors
≤ 120 Ω/km
DCR of shield –
Number of conductors 4 or 8
Length ≤ 100 m
Shielding S/FTP, SF/FTP
Colour code for conductor 4-conductor cable:
YE, WH, OG, BU
8-conductor cable:
compliant to T568B
Jacket colour requirements –
Jacket material –
Resistance to harsh environment (e.g. UV, oil Application dependent
resist, LS0H)
Agency ratings –
A.4.4.1.2.2 Copper cables for non-Ethernet-based CPs
Not applicable.
A.4.4.1.3 Cables for wireless installation
A.4.4.1.4 Optical fibre cables
Replacement:
Table A.5 provides values based on the template given in IEC 61918:2013, Table 6.
Table A.5 – Information relevant to optical fibre cables
Characteristic
9.10/125 µm 50/125 µm 62,5/125 µm 980/1 000 µm 200/230 µm step
single mode multimode multimode step index POF index hard clad
silica silica silica silica
Standard IEC 60793-2-50; IEC 60793-2-10; IEC 60793-2-10; IEC 60793-2-40; IEC 60793-2-40;
Type B1 Type A1a Type A1b Type A4a Type A3c
Attenuation per – – –
≤ 160 dB/km ≤ 10 dB/km
km (650 nm)
Attenuation per – – – – –
km (820 nm)
Attenuation per ≤ 0,5 dB/km ≤ 1,5 dB/km ≤ 1,5 dB/km – –
km (1 310 nm)
Number of optical 2 2 2 2 2
fibres
–
Jacket colour
requirements
Jacket material –
Resistance to Application dependent
harsh
environment (e.g.
UV, oil resist,
LS0H)
– 14 – 61784-5-13 © IEC:2013
A.4.4.1.5 Special purpose balanced and optical fibre cables
A.4.4.1.6 Specific requirements for CPs
Not applicable.
A.4.4.1.7 Specific requirements for generic cabling in accordance with
ISO/IEC 24702
A.4.4.2 Connecting hardware selection
A.4.4.2.1 Common description
A.4.4.2.2 Connecting hardware for balanced cabling CPs based on Ethernet
Replacement:
Table A.6 provides values based on the template given in IEC 61918:2013, Table 7.
Table A.6 – Connectors for balanced cabling CPs based on Ethernet
IEC 61076-101 IEC 61076-2-109
IEC 60603-7 series IEC 61076-3-106 IEC 61076-3-117
b b
a
M12-4 with M12-8 with
shielded unshielded Var. 1 Var. 6 Var. 14 D-coding X-coding
CP IEC 60603
13/1 -7-3 or No No No No Yes No
IEC 60603-
7-5
a
For IEC 60603-7 series, the connector selection is based on the desired channel performance.
b
Housings to protect connectors.

A.4.4.2.3 Connecting hardware for copper cabling CPs not based on Ethernet
Not applicable.
A.4.4.2.4 Connecting hardware for wireless installation
A.4.4.2.5 Connecting hardware for optical fibre cabling
Replacement:
Table A.7 provides values based on the template given in IEC 61918:2013, Table 9.
Table A.7 – Optical fibre connecting hardware

IEC 61754-2 IEC 61754-4 IEC 61754-24 IEC 61754-20 IEC 61754-22 Others
BFOC/2,5 SC SC-RJ LC F-SMA
CP 13/1 No Yes Yes Yes No No
NOTE IEC 61754 series defines the optical fibre connector mechanical interfaces; performance
specifications for optical fibre connectors terminated to specific fibre types are standardised in IEC 61753
series.
Replacement:
Table A.8 provides values based on the template given in IEC 61918:2013, Table 10.

61784-5-13 © IEC:2013 – 15 –
Table A.8 – Relationship between FOC and fibre types (CP 13/1)
Fibre type
9.10/125 µm 50/125 µm 62,5/125 µm 980/1 000 µm 200/230 µm Others
single mode multimode multimode step index step index
FOC
silica silica silica POF hard clad
silica
BFOC/2,5 No No No No No No
SC Yes Yes Yes Yes Yes No
SC-RJ Yes Yes Yes Yes Yes No
LC Yes Yes Yes No No No
F-SMA No No No No No No
A.4.4.2.6 Specific requirements for CPs
Replacement:
Crossover cables shall be used to connect devices that do not support auto-crossover. In all
other cases crossover cables should be used too.
A.4.4.2.7 Specific requirements for generic cabling in accordance with
ISO/IEC 24702
A.4.4.3 Connections within a channel/permanent link
Subclause 4.4.3.3 is not applicable.
A.4.4.4 Terminators
Not applicable.
A.4.4.5 Device location and connection
A.4.4.5.1 Common description
A.4.4.5.2 Specific requirements for CPs
Not applicable.
A.4.4.5.3 Specific requirements for wireless installation
Not applicable.
A.4.4.5.4 Specific requirements for generic cabling in accordance with
ISO/IEC 24702
A.4.4.6 Coding and labelling
A.4.4.6.1 Common description
A.4.4.6.2 Additional requirements for CPs
A.4.4.6.3 Specific requirements for CPs
Not applicable.
A.4.4.6.4 Specific requirements for generic cabling in accordance with
ISO/IEC 24702
– 16 – 61784-5-13 © IEC:2013
A.4.4.7 Earthing and bonding of equipment and devices and shielded cabling
Subclause 4.4.7.5 is not applicable.
A.4.4.8 Storage and transportation of cables
A.4.4.8.1 Common description
A.4.4.8.2 Specific requirements for CPs
Not applicable.
A.4.4.8.3 Specific requirements for generic cabling in accordance with
ISO/IEC 24702
A.4.4.9 Routing of cables
A.4.4.10 Separation of circuit
A.4.4.11 Mechanical protection of cabling components
A.4.4.11.1 Common description
A.4.4.11.2 Specific requirements for CPs
Not applicable.
A.4.4.11.3 Specific requirements for generic cabling in accordance with
ISO/IEC 24702
A.4.4.12 Installation in special areas
A.4.4.12.1 Common description
A.4.4.12.2 Specific requirements for CPs
Not applicable.
A.4.4.12.3 Specific requirements for generic cabling in accordance with
ISO/IEC 24702
A.4.5 Cabling planning documentation
A.4.6 Verification of cabling planning specification
A.5 Installation implementation
A.5.1 General requirements
A.5.2 Cable installation
Subclause 5.2.3 is not applicable
A.5.3 Connector installation
Subclause 5.3.4 is not applicable.
A.5.4 Terminator installation
Not applicable.
61784-5-13 © IEC:2013 – 17 –
A.5.5 Device installation
A.5.5.1 Common description
A.5.5.2 Specific requirements for CPs
Not applicable.
A.5.6 Coding and labelling
A.5.6.1 Common description
A.5.6.2 Specific requirements for CPs
Not applicable.
A.5.7 Earthing and bonding of equipment and devices and shield cabling
Subclause 5.7.5 is not applicable.
A.5.8 As-implemented cabling documentation
A.6 Installation verification and installation acceptance test
A.6.1 General
A.6.2 Installation verification
A.6.2.1 General
A.6.2.2 Verification according to cabling planning documentation
A.6.2.3 Verification of earthing and bonding
A.6.2.3.1 General
A.6.2.3.2 Specific requirements for earthing and bonding
Not applicable.
A.6.2.4 Verification of shield earthing
A.6.2.5 Verification of cabling system
A.6.2.6 Cable selection verification
A.6.2.6.1 Common description
A.6.2.6.2 Specific requirements for CPs
Not applicable.
A.6.2.6.3 Specific requirements for wireless installation
Not applicable.
A.6.2.7 Connector verification
A.6.2.7.1 Common description
A.6.2.7.2 Specific requirements for CPs

– 18 – 61784-5-13 © IEC:2013
Not applicable.
A.6.2.7.3 Specific requirements for wireless installation
Not applicable.
A.6.2.8 Connection verification
A.6.2.9 Terminators verification
Not applicable.
A.6.2.10 Coding and labelling verification
A.6.2.10.1 Common description
A.6.2.10.2 Specific coding and labelling verification requirements
Not applicable.
A.6.2.11 Verification report
A.6.3 Installation acceptance test
A.6.3.1 General
A.6.3.2 Acceptance test of Ethernet-based cabling
A.6.3.2.1 Validation of balanced cabling for CPs based on Ethernet
A.6.3.2.1.1 Common description
A.6.3.2.1.2 Transmission performance test parameters
A.6.3.2.1.3 Specific requirements for CPs based on Ethernet
Not applicable.
A.6.3.2.2 Validation of optical fibre cabling for CPs based on Ethernet
A.6.3.2.2.1 Common description
A.6.3.2.2.2 Specific requirements for optical fibre cabling CPs
Not applicable.
A.6.3.2.3 Specific requirements for generic cabling in accordance with
ISO/IEC 24702
A.6.3.3 Acceptance test of non–Ethernet-based cabling
Not applicable.
A.6.3.4 Specific requirements for wireless installation
Not applicable.
A.6.3.5 Acceptance test report

61784-5-13 © IEC:2013 – 19 –
A.7 Installation administration
Subclause 7.8 is not applicable.
A.8 Installation maintenance and installation troubleshooting
Subclause 8.4 is not applicable.
