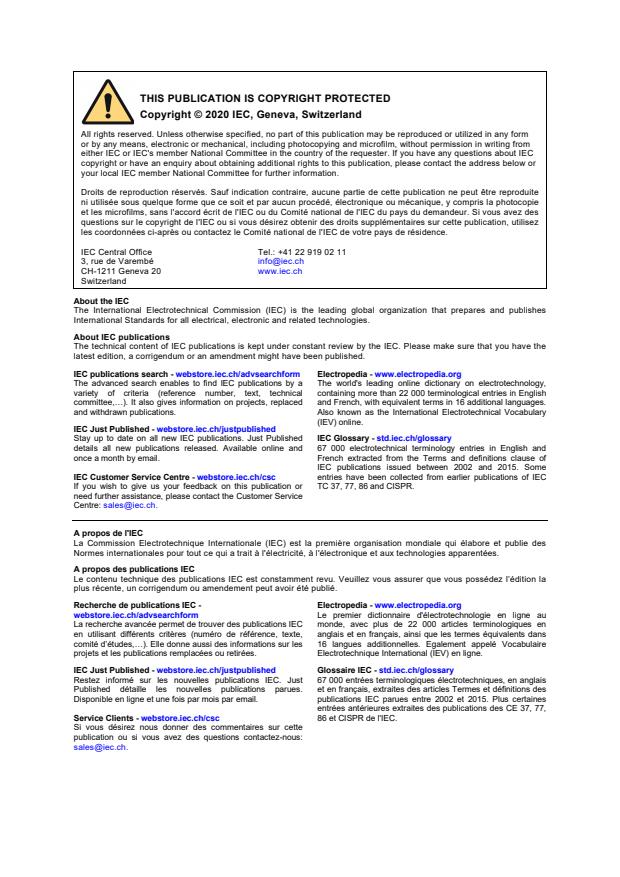

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform Electropedia - www.electropedia.org
The advanced search enables to find IEC publications by a The world's leading online dictionary on electrotechnology,
variety of criteria (reference number, text, technical containing more than 22 000 terminological entries in English
committee,…). It also gives information on projects, replaced and French, with equivalent terms in 16 additional languages.
and withdrawn publications. Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Glossary - std.iec.ch/glossary
details all new publications released. Available online and 67 000 electrotechnical terminology entries in English and
once a month by email. French extracted from the Terms and definitions clause of
IEC publications issued between 2002 and 2015. Some
IEC Customer Service Centre - webstore.iec.ch/csc entries have been collected from earlier publications of IEC
If you wish to give us your feedback on this publication or TC 37, 77, 86 and CISPR.

need further assistance, please contact the Customer Service

Centre: sales@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Recherche de publications IEC - Electropedia - www.electropedia.org
webstore.iec.ch/advsearchform Le premier dictionnaire d'électrotechnologie en ligne au
La recherche avancée permet de trouver des publications IEC monde, avec plus de 22 000 articles terminologiques en
en utilisant différents critères (numéro de référence, texte, anglais et en français, ainsi que les termes équivalents dans
comité d’études,…). Elle donne aussi des informations sur les 16 langues additionnelles. Egalement appelé Vocabulaire
projets et les publications remplacées ou retirées. Electrotechnique International (IEV) en ligne.

IEC Just Published - webstore.iec.ch/justpublished Glossaire IEC - std.iec.ch/glossary
Restez informé sur les nouvelles publications IEC. Just 67 000 entrées terminologiques électrotechniques, en anglais
Published détaille les nouvelles publications parues. et en français, extraites des articles Termes et définitions des
Disponible en ligne et une fois par mois par email. publications IEC parues entre 2002 et 2015. Plus certaines
entrées antérieures extraites des publications des CE 37, 77,
Service Clients - webstore.iec.ch/csc 86 et CISPR de l'IEC.

Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.
IEC 60400 ®
Edition 8.0 2020-02
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
A MENDMENT 1
AM ENDEMENT 1
Lampholders for tubular fluorescent lamps and starterholders

Douilles pour lampes tubulaires à fluorescence et douilles pour starters

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.140.10 ISBN 978-2-8322-7895-6

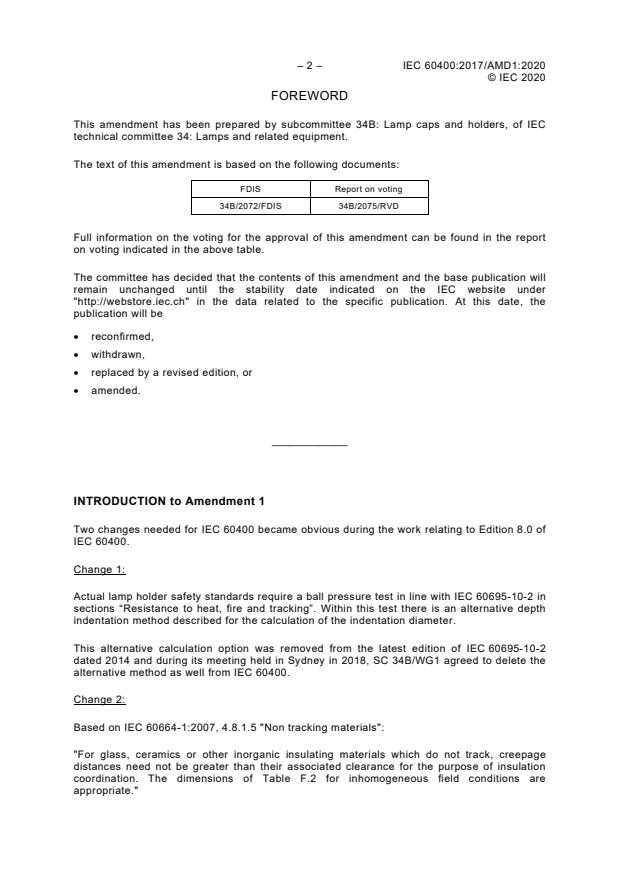

– 2 – IEC 60400:2017/AMD1:2020
© IEC 2020
FOREWORD
This amendment has been prepared by subcommittee 34B: Lamp caps and holders, of IEC
technical committee 34: Lamps and related equipment.
The text of this amendment is based on the following documents:
FDIS Report on voting
34B/2072/FDIS 34B/2075/RVD
Full information on the voting for the approval of this amendment can be found in the report
on voting indicated in the above table.
The committee has decided that the contents of this amendment and the base publication will
remain unchanged until the stability date indicated on the IEC website under
"http://webstore.iec.ch" in the data related to the specific publication. At this date, the
publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
_____________
INTRODUCTION to Amendment 1
Two changes needed for IEC 60400 became obvious during the work relating to Edition 8.0 of
IEC 60400.
Change 1:
Actual lamp holder safety standards require a ball pressure test in line with IEC 60695-10-2 in
sections “Resistance to heat, fire and tracking”. Within this test there is an alternative depth
indentation method described for the calculation of the indentation diameter.
This alternative calculation option was removed from the latest edition of IEC 60695-10-2
dated 2014 and during its meeting held in Sydney in 2018, SC 34B/WG1 agreed to delete the
alternative method as well from IEC 60400.
Change 2:
Based on IEC 60664-1:2007, 4.8.1.5 "Non tracking materials":
"For glass, ceramics or other inorganic insulating materials which do not track, creepage
distances need not be greater than their associated clearance for the purpose of insulation
coordination. The dimensions of Table F.2 for inhomogeneous field conditions are
appropriate."
© IEC 2020
This is not completely reflected in TC 34 standards as revised recently. For applications with
ELV it is of high importance whether the creepage distance shall be 0,6 mm or may be 0,2
mm in case where inorganic insulating material is used.
An informative annex for the explanation of U should give some additional information.
out
17 Creepage distances and clearances
Table 3
In the penultimate row of Table 3, insert, between the first paragraph starting with "Values for
creepage distances…" and the second paragraph starting with "In Japan…" the following new
paragraph:
For glass, ceramics or other inorganic insulating materials which do not track, creepage
distances need not be greater than their associated clearance for the purpose of insulation
coordination. The dimensions of this table are appropriate.
Add, at the end of Note 3 and before Table 4, the following new text:
Guidance for working voltages U can be found in Annex E.
out
18 Resistance to heat, fire and tracking
18.2
At the end of 18.2, delete the second sentence of the NOTE beginning with "In case of
doubt.".
Add, at the end of Annex D, the following new informative Annex E:

– 4 – IEC 60400:2017/AMD1:2020
© IEC 2020
Annex E
(informative)
Guidance on working voltages U
out
E.1 Working voltages – Relation between lampholders and controlgear
In recent years, an increasing number of controlgear used have been connected to the 250 V
mains, however, they generate an output voltage higher than the lampholder rated voltage.
According to IEC 61347-1 this higher output voltage is required to be marked as U on the
out
controlgear.
NOTE The typical application of lampholders according to this document is the 250 V mains voltage system, as
shown in the example below.
E.2 Example
E.2.1 Clearance
Lampholders having a rated voltage of 250 V for impulse withstand category II need a
clearance of 1,5 mm. The reason for this is the expected transient overvoltage of 2,5 kV.
E.2.2 Creepage distance
E.2.2.1 Voltage value
For creepage distances only r.m.s. values of the working voltages are taken into account,
provided the frequency of the voltage is less than 30 kHz.
E.2.2.2 Inorganic material that does not track
As for inorganic material, the creepage distance does not need to be longer than the
clearance of a ceramic lampholder with a rated voltage of 250 V and this lampholder can be
operated at a working voltage of maximum 1,5 kV r.m.s.
NOTE The value of 1,5 kV is based on (2 U + 1 000) V and is derived from the electric strength test.
E.2.2.3 Plastic material with a PTI ≥ 600
A voltage of 250 V needs a clearance of 1,5 mm.
A voltage of 250 V needs a creepage distance of 1,25 mm if the insulation material has
a PTI ≥ 600.
In lampholder standards, the required creepage distance can never be less than the
clearance, therefore, for a 250 V rated lampholder, the minimum creepage distance is also
1,5 mm.
For a 1,5 mm creepage distance, linear interpolation between the creepage distance for 250 V
and 500 V results in a voltage of 300 V.
The 1,5 mm clearance is associated with the maximum r.m.s. working voltage not
exceeding 300 V. Interpolation is not allowed for clearances.
Therefore, in the case of a plastic material with a PTI ≥ 600, lampholders with a rated voltage
of 250 V can be operated with a working voltage of 300 V r.m.s.

© IEC 2020
If, however, the actual creepage distance of the lampholder is even longer, then the maximum
working voltage that can be applied can be calculated by linear interpolation accordingly. In
this case information about the available minimum creepage distance of the lampholder and
its actual PTI may be provided in the manufacturer's catalogue or technical documentation.
For the calculation, Table 11.1A of IEC 60598-1:2014 and IEC 60598-1:2014/AMD1:2017 and
Table 8 of IEC 61347-1:2015, respectively, should be used.
E.2.2.4 Plastic material with a PTI < 600
In the case of a plastic material with a PTI < 600 the working voltage can only be higher than
the rated voltage if the creepage distance is longer than the required minimum value.
The calculation of the permissible working voltage can be done by linear interpolation of the
values for this material in Table 11.1A of IEC 60598-1:2014 and IEC 60598-
1:2014/AMD1:2017 and Table 8 of IEC 61347-1:2015 respectively. In this case information
about the available minimum creepage distance of the lampholder and the actual PTI should
be given in the manufacturer's catalogue or technical documentation.
E.3 Impulse withstand category
The above calculations should take into account the impulse withstand category the
lampholders are designed for.
Lampholders can be connected to a circuit with a higher impulse voltage category than the
lampholders are designed for, provided that the clearance according to the rating of the
lampholder is sufficient for the intended application according to the relevant table in the
lampholder standard for the required impulse withstand category.
If lampholders are connected to a circuit with a lower impulse withstand category than the
lampholders are designed for, the calculation of the permissible working voltage can take into
account the longer insulation distances that the actual lampholders provide.
Bibliography
Add the following new reference:
IEC 61347-1:2015, Lamp controlgear – Part 1: General and safety requirements

___________
