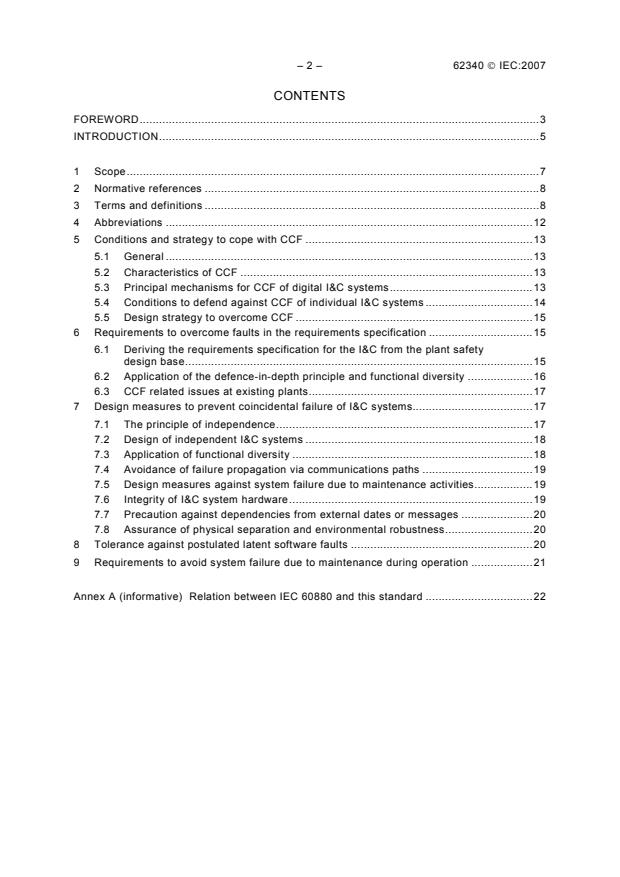

– 2 – 62340 © IEC:2007
CONTENTS
FOREWORD.3
INTRODUCTION.5

1 Scope.7
2 Normative references .8
3 Terms and definitions .8
4 Abbreviations .12
5 Conditions and strategy to cope with CCF .13
5.1 General .13
5.2 Characteristics of CCF .13
5.3 Principal mechanisms for CCF of digital I&C systems.13
5.4 Conditions to defend against CCF of individual I&C systems .14
5.5 Design strategy to overcome CCF .15
6 Requirements to overcome faults in the requirements specification .15
6.1 Deriving the requirements specification for the I&C from the plant safety
design base.15
6.2 Application of the defence-in-depth principle and functional diversity .16
6.3 CCF related issues at existing plants.17
7 Design measures to prevent coincidental failure of I&C systems.17
7.1 The principle of independence.17
7.2 Design of independent I&C systems .18
7.3 Application of functional diversity .18
7.4 Avoidance of failure propagation via communications paths .19
7.5 Design measures against system failure due to maintenance activities.19
7.6 Integrity of I&C system hardware.19
7.7 Precaution against dependencies from external dates or messages .20
7.8 Assurance of physical separation and environmental robustness.20
8 Tolerance against postulated latent software faults .20
9 Requirements to avoid system failure due to maintenance during operation .21

Annex A (informative) Relation between IEC 60880 and this standard .

62340 © IEC:2007 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
NUCLEAR POWER PLANTS –
INSTRUMENTATION AND CONTROL
SYSTEMS IMPORTANT TO SAFETY –
REQUIREMENTS FOR COPING WITH
COMMON CAUSE FAILURE (CCF)
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with an IEC Publication.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 62340 has been prepared by subcommittee 45A: Instrumentation
and control of nuclear facilities, of IEC technical committee 45: Nuclear instrumentation.
The text of this standard is based on the following documents:
FDIS Report on voting
45A/668/FDIS 45A/676/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

– 4 – 62340 © IEC:2007
The committee has decided that the contents of this publication will remain unchanged until
the maintenance result date indicated on the IEC web site under "http://webstore.iec.ch" in
the data related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
62340 © IEC:2007 – 5 –
INTRODUCTION
a) Background, main issues and organisation of this Standard
In order to achieve a high safety level, redundancy is applied as one of the key features for
designing instrumentation and control systems (I&C systems) important to safety. Since a
Common Cause Failure (CCF) could compromise the effectiveness of redundancy, it is
essential to take adequate measures against it. The nuclear industry has pioneered systems
design and engineering to address CCF. Over the last thirty years it has implemented and
reached consensus on a number of practices to handle and overcome CCF.
The intention of this standard is to address the whole scope of aspects to overcome Common
Cause Failures (CCFs) and to provide an overview of the relevant requirements for I&C
systems that are used to perform functions important to safety (according to IEC 61226) in
nuclear power plants.
b) Situation of the current Standard in the structure of the IEC SC 45A standard series
IEC 62340 is a second level IEC SC 45A document tackling the issue of CCF.
This international standard supplements IEC 61513 and related standards with requirements
to reduce and overcome the possibility of CCF of I&C functions of category A. The
requirements given by this standard are applicable to category A (IEC 61226) functions if their
failure would be unacceptable with respect to the plant safety design.
For more details on the structure of the IEC SC 45A standard series, see item d) of this
introduction.
c) Recommendations and limitations regarding the application of this Standard
This standard applies to I&C systems important to safety of new NP
...
