1 Scope
Replace the first sentence with the following new sentence:
This part of IEC 63171 covers shielded and unshielded free and fixed multimedia connectors
(MMC) for data transmission with frequencies up to 3 000 MHz for shielded and up to 600 MHz
for unshielded connectors, both with current-carrying capacity with up to 8 ways.
4.1.3.1 Shielded and unshielded fixed connector – MMC 1P
Replace existing Figure 3 with the following new Figure 3:
IEC 63171-4:2022-09/COR1:2023-08(en)
– 2 – IEC 63171-4:2022/COR1:2023
IEC 2023

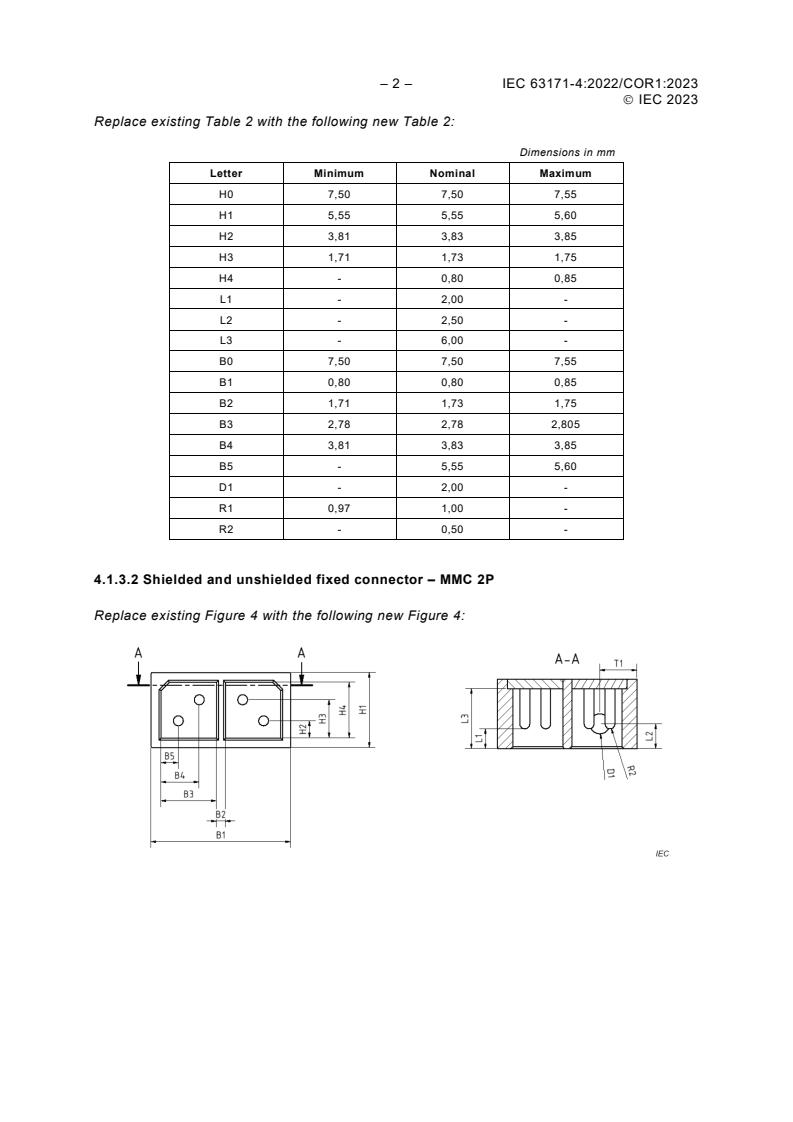

Replace existing Table 2 with the following new Table 2:
...
