IEC 60384-4-1:2007
(Main)Fixed capacitors for use in electronic equipment - Part 4-1: Blank detail specification - Fixed aluminium electrolytic capacitors with non-solid electrolyte - Assessment level EZ
Fixed capacitors for use in electronic equipment - Part 4-1: Blank detail specification - Fixed aluminium electrolytic capacitors with non-solid electrolyte - Assessment level EZ
IEC 60384-4-1:2007 is a blank detail specification and is a supplementary document to the sectional specification and contains requirements for style and layout and minimum content of detail specifications. Detail specifications not complying with these requirements may not be considered as being in accordance with IEC specifications nor shall they be so described. This third edition cancels and replaces the second edition published in 2000 and constitutes a minor revision related to tables, figures and references. This bilingual version, published in 2008, corresponds to the English version.
Condensateurs fixes utilisés dans les équipements électroniques - Partie 4-1: Spécification particulière cadre - Condensateurs fixes électrolytiques à l'aluminium, à électrolyte non solide - Niveau d'assurance EZ
La CEI 60384-4-1:2007 est une spécification particulière cadre et est un document annexe à la spécification intermédiaire qui contient des exigences pour le modèle, la disposition et le contenu minimum des spécifications particulières. Les spécifications particulières qui ne satisfont pas aux exigences peuvent ne pas être considérées comme conformes aux spécifications de la CEI et ne doivent pas être décrites comme telles. Cette troisième édition annule et remplace la deuxième édition publiée en 2000. Elle constitue une révision mineure des tableaux, valeurs et références. La présente version bilingue, publiée en 2008, correspond à la version anglaise.
General Information
Relations
Buy Standard
Standards Content (Sample)
INTERNATIONAL IEC
STANDARD 60384-4-1
QC 300301
Third edition
2007-03
Fixed capacitors for use in electronic equipment –
Part 4-1:
Blank detail specification –
Fixed aluminium electrolytic
capacitors with non-solid electrolyte –
Assessment level EZ
Reference number

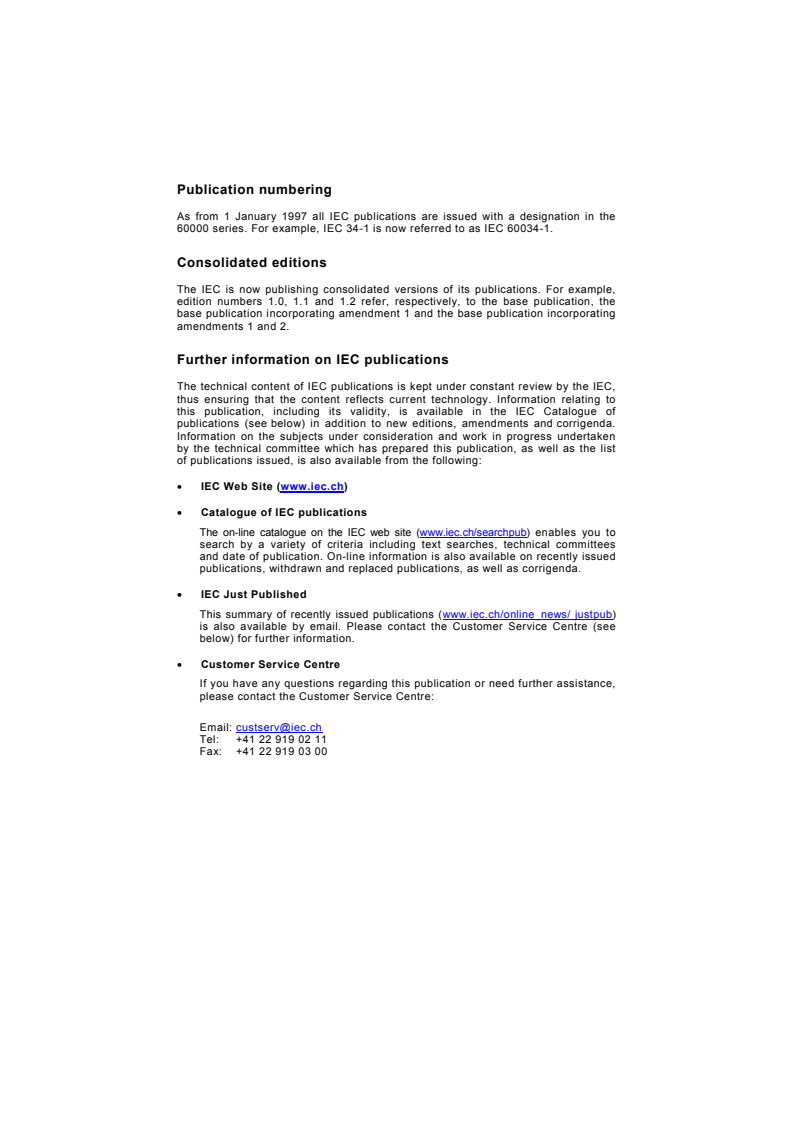

Publication numbering
As from 1 January 1997 all IEC publications are issued with a designation in the
60000 series. For example, IEC 34-1 is now referred to as IEC 60034-1.
Consolidated editions
The IEC is now publishing consolidated versions of its publications. For example,
edition numbers 1.0, 1.1 and 1.2 refer, respectively, to the base publication, the
base publication incorporating amendment 1 and the base publication incorporating
amendments 1 and 2.
Further information on IEC publications
The technical content of IEC publications is kept under constant review by the IEC,
thus ensuring that the content reflects current technology. Information relating to
this publication, including its validity, is available in the IEC Catalogue of
publications (see below) in addition to new editions, amendments and corrigenda.
Information on the subjects under consideration and work in progress undertaken
by the technical committee which has prepared this publication, as well as the list
of publications issued, is also available from the following:
• IEC Web Site (www.iec.ch)
• Catalogue of IEC publications
The on-line catalogue on the IEC web site (www.iec.ch/searchpub) enables you to
search by a variety of criteria including text searches, technical committees
and date of publication. On-line information is also available on recently issued
publications, withdrawn and replaced publications, as well as corrigenda.
• IEC Just Published
This summary of recently issued publications (www.iec.ch/online_news/ justpub)
is also available by email. Please contact the Customer Service Centre (see
below) for further information.
• Customer Service Centre
If you have any questions regarding this publication or need further assistance,
please contact the Customer Service Centre:
Email: custserv@iec.ch
Tel: +41 22 919 02 11
Fax: +41 22 919 03 00
INTERNATIONAL IEC
STANDARD 60384-4-1
QC 300301
Third edition
2007-03
Fixed capacitors for use in electronic equipment –
Part 4-1:
Blank detail specification –
Fixed aluminium electrolytic
capacitors with non-solid electrolyte –
Assessment level EZ
© IEC 2007 ⎯ Copyright - all rights reserved
No part of this publication may be reproduced or utilized in any form or by any means, electronic or
mechanical, including photocopying and microfilm, without permission in writing from the publisher.
International Electrotechnical Commission, 3, rue de Varembé, PO Box 131, CH-1211 Geneva 20, Switzerland
Telephone: +41 22 919 02 11 Telefax: +41 22 919 03 00 E-mail: inmail@iec.ch Web: www.iec.ch
PRICE CODE
Commission Electrotechnique Internationale P
International Electrotechnical Commission
МеждународнаяЭлектротехническаяКомиссия
For price, see current catalogue
– 2 – 60384-4-1 © IEC:2007(E)

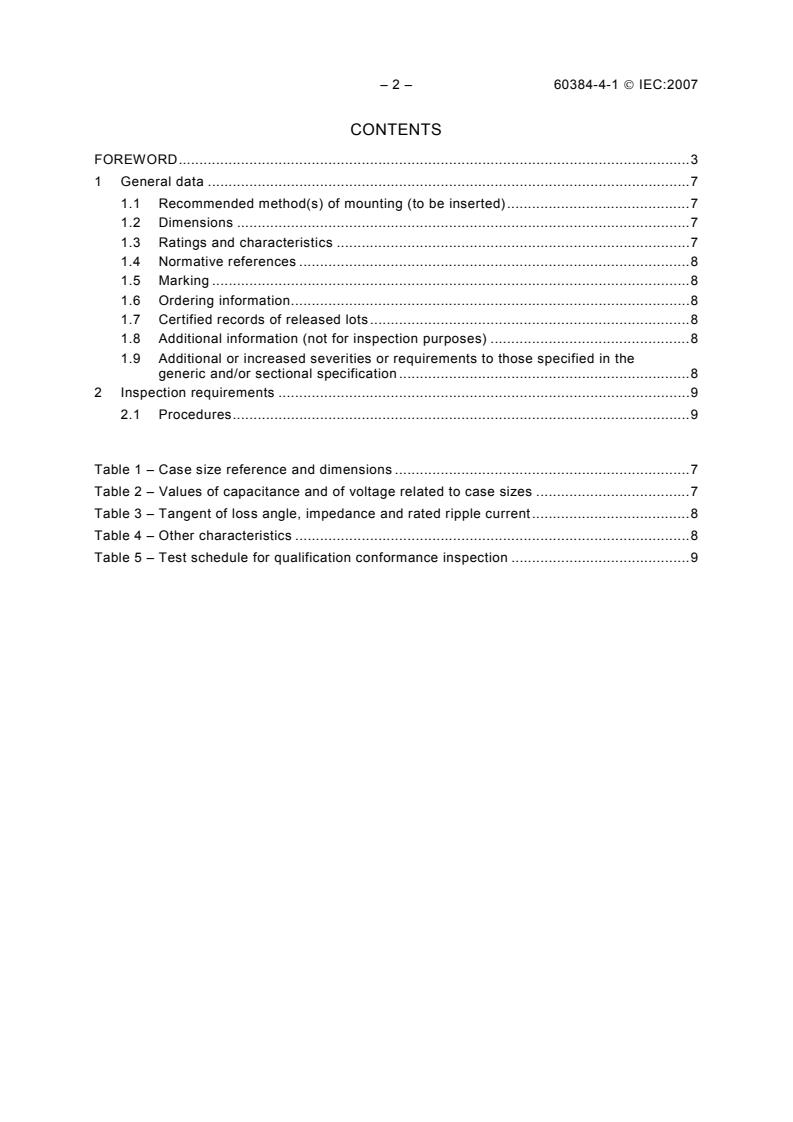

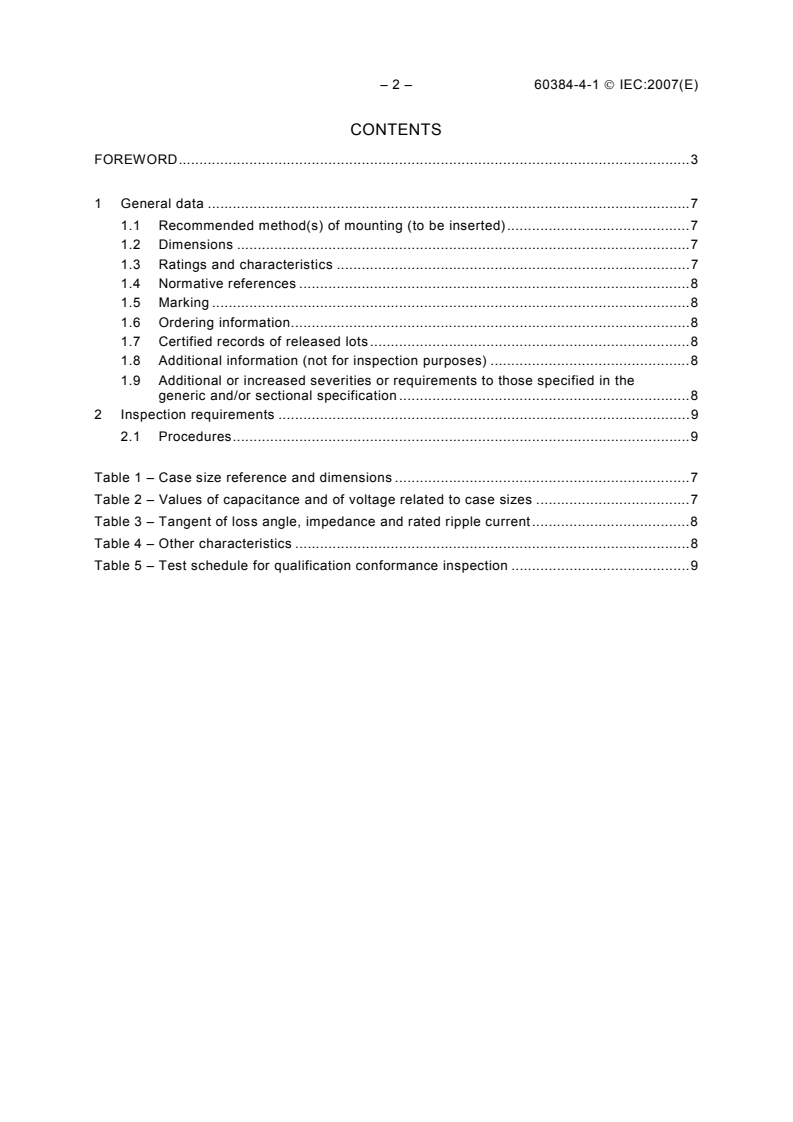

CONTENTS
FOREWORD.3
1 General data .7
1.1 Recommended method(s) of mounting (to be inserted).7
1.2 Dimensions .7
1.3 Ratings and characteristics .7
1.4 Normative references .8
1.5 Marking .8
1.6 Ordering information.8
1.7 Certified records of released lots.8
1.8 Additional information (not for inspection purposes) .8
1.9 Additional or increased severities or requirements to those specified in the
generic and/or sectional specification .8
2 Inspection requirements .9
2.1 Procedures.9
Table 1 – Case size reference and dimensions .7
Table 2 – Values of capacitance and of voltage related to case sizes .7
Table 3 – Tangent of loss angle, impedance and rated ripple current.8
Table 4 – Other characteristics .8
Table 5 – Test schedule for qualification conformance inspection .9
60384-4-1 © IEC:2007(E) – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
FIXED CAPACITORS FOR USE IN ELECTRONIC EQUIPMENT –
Part 4-1: Blank detail specification –
Fixed aluminium electrolytic capacitors with non-solid electrolyte –
Assessment level EZ
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with an IEC Publication.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 60384-4-1 has been prepared by IEC technical committee 40:
Capacitors and resistors for electronic equipment.
This third edition cancels and replaces the second edition published in 2000 and constitutes a
minor revision related to tables, figures and references.
The text of this standard is based on the following documents:
CDV Report on voting
40/1762/CDV 40/1820/RVC
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
– 4 – 60384-4-1 © IEC:2007(E)
The QC number that appears on the front cover of this publication is the specification number
in the IEC Quality Assessment System for Electronic Components (IECQ).
The list of all parts of the IEC 60384 series, under the general title Fixed capacitors for use in
electronic equipment, can be found on the IEC website.
The committee has decided that the contents of this publication will remain unchanged until
the maintenance result date indicated on the IEC web site under "http://webstore.iec.ch" in
the data related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
A bilingual version of this publication may be issued at a later date.
60384-4-1 © IEC:2007(E) – 5 –
FIXED CAPACITORS FOR USE IN ELECTRONIC EQUIPMENT –
Part 4-1: Blank detail specification –
Fixed aluminium electrolytic capacitors with non-solid electrolyte –
Assessment level EZ
Blank detail specification
A blank detail specification is a supplementary document to the sectional specification and
contains requirements for style and layout and minimum content of detail specifications. Detail
specifications not complying with these requirements may not be considered as being in
accordance with IEC specifications nor shall they be so described.
In the preparation of detail specifications, the contents of 1.4 of the sectional specification
shall be taken into account.
The numbers between brackets on the first page correspond to the following information
which shall be inserted in the position indicated.
Identification of the detail specification
[1] The International Electrotechnical Commission or the National Standards Organization
under whose authority the detail specification is drafted.
[2] The IEC or National Standards number of the detail specification, data of issue and any
further information required by the national system.
[3] The number and issue number of the IEC or national generic specification.
[4] The IEC number of the blank detail specification.
Identification of the capacitor
[5] A short description of the type of capacitor.
[6] Information on typical construction (when applicable).
NOTE When the capacitor is not designed for use in printed board applications, this is clearly stated in the
detail specification in this position.
[7] Outline drawing with main dimensions which are of importance for interchangeability
and/or reference to the national or international documents for outlines. Alternatively, this
drawing may be given in an annex to the detail specification.
[8] Application or group of applications covered and/or assessment level.
NOTE The assessment level(s) to be used in a detail specification are selected from 3.5.4 of the sectional
specification. This implies that one blank detail specification may be used in combination with several
assessment levels, provided the grouping of the tests does not change.
[9] Reference data on the most important properties, to allow comparison between the
various capacitor types.
– 6 – 60384-4-1 © IEC:2007(E)
[1] IEC 60384-4-1-XXX [2]
QC 300301-XXX
ELECTRONIC COMPONENTS OF ASSESSED IEC 60384-4-1 [4]
QUALITY IN ACCORDANCE WITH:
QC 300301
IEC 60384-1
FIXED ALUMINIUM ELECTROLYTIC [5]
IEC 60384-4
CAPACITORS WITH
NON-SOLID ELECTROLYTE
[3]
Outline drawing: (see Table 1)
(. angle projection)
[7]
[6]
(Other shapes are permitted within Assessment level(s): EZ [8]
the dimensions given.)
Performance grade:
Information on the availability of components qualified to this
detail specification is given in the IEC QC 001005.
[9]
60384-4-1 © IEC:2007(E) – 7 –
1 General data
1.1 Recommended method(s) of mounting (to be inserted)
See 1.4.2 of IEC 60384-4.
1.2 Dimensions
Table 1 – Case size reference and dimensions
Dimensions
mm
Case size reference
∅ L H d .
NOTE 1 When there is no case size reference, Table 1 may be omitted and the dimensions given in Table 2,
which then becomes Table 1.
NOTE 2 The dimensions are given as maximum dimensions or as nominal dimensions with a tolerance.
1.3 Ratings and characteristics
Capacitance range (see Table 2)
Tolerance on rated capacitance
Rated voltage (see Table 2)
Category voltage (if applicable) (see Table 2)
Climatic category
Rated temperature
Rated ripple current (see Table 3)
Tangent of loss angle (see Table 3)
NOTE Instead of the tangent of loss angle (tan δ), the equivalent series resistance ESR may be specified in
accordance with 4.3.3.2d) of IEC 60384-4.
Leakage current
Impedance (if applicable) (see Table 3)
Reverse voltage (if required)
Insulation resistance (if applicable)
Table 2 – Values of capacitance and of voltage related to case sizes
Rated voltage
a
Category voltage
Case size Cas
...
IEC 60384-4-1
Edition 3.0 2007-03
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
QC 300301
Fixed capacitors for use in electronic equipment –
Part 4-1: Blank detail specification – Fixed aluminium electrolytic capacitors with
non-solid electrolyte – Assessment level EZ
Condensateurs fixes utilisés dans les équipements électroniques –
Partie 4-1: Spécification particulière cadre – Condensateurs fixes électrolytiques
à l’aluminium, à électrolyte non solide – Niveau d’assurance EZ
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by
any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from either IEC or
IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,
please contact the address below or your local IEC member National Committee for further information.
Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de la CEI ou du Comité national de la CEI du pays du demandeur.
Si vous avez des questions sur le copyright de la CEI ou si vous désirez obtenir des droits supplémentaires sur cette
publication, utilisez les coordonnées ci-après ou contactez le Comité national de la CEI de votre pays de résidence.
IEC Central Office
3, rue de Varembé
CH-1211 Geneva 20
Switzerland
Email: inmail@iec.ch
Web: www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.
About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
ƒ Catalogue of IEC publications: www.iec.ch/searchpub
The IEC on-line Catalogue enables you to search by a variety of criteria (reference number, text, technical committee,…).
It also gives information on projects, withdrawn and replaced publications.
ƒ IEC Just Published: www.iec.ch/online_news/justpub
Stay up to date on all new IEC publications. Just Published details twice a month all new publications released. Available
on-line and also by email.
ƒ Electropedia: www.electropedia.org
The world's leading online dictionary of electronic and electrical terms containing more than 20 000 terms and definitions
in English and French, with equivalent terms in additional languages. Also known as the International Electrotechnical
Vocabulary online.
ƒ Customer Service Centre: www.iec.ch/webstore/custserv
If you wish to give us your feedback on this publication or need further assistance, please visit the Customer Service
Centre FAQ or contact us:
Email: csc@iec.ch
Tel.: +41 22 919 02 11
Fax: +41 22 919 03 00
A propos de la CEI
La Commission Electrotechnique Internationale (CEI) est la première organisation mondiale qui élabore et publie des
normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.
A propos des publications CEI
Le contenu technique des publications de la CEI est constamment revu. Veuillez vous assurer que vous possédez
l’édition la plus récente, un corrigendum ou amendement peut avoir été publié.
ƒ Catalogue des publications de la CEI: www.iec.ch/searchpub/cur_fut-f.htm
Le Catalogue en-ligne de la CEI vous permet d’effectuer des recherches en utilisant différents critères (numéro de référence,
texte, comité d’études,…). Il donne aussi des informations sur les projets et les publications retirées ou remplacées.
ƒ Just Published CEI: www.iec.ch/online_news/justpub
Restez informé sur les nouvelles publications de la CEI. Just Published détaille deux fois par mois les nouvelles
publications parues. Disponible en-ligne et aussi par email.
ƒ Electropedia: www.electropedia.org
Le premier dictionnaire en ligne au monde de termes électroniques et électriques. Il contient plus de 20 000 termes et
définitions en anglais et en français, ainsi que les termes équivalents dans les langues additionnelles. Egalement appelé
Vocabulaire Electrotechnique International en ligne.
ƒ Service Clients: www.iec.ch/webstore/custserv/custserv_entry-f.htm
Si vous désirez nous donner des commentaires sur cette publication ou si vous avez des questions, visitez le FAQ du
Service clients ou contactez-nous:
Email: csc@iec.ch
Tél.: +41 22 919 02 11
Fax: +41 22 919 03 00
IEC 60384-4-1
Edition 3.0 2007-03
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
QC 300301
Fixed capacitors for use in electronic equipment –
Part 4-1: Blank detail specification – Fixed aluminium electrolytic capacitors
with non-solid electrolyte – Assessment level EZ
Condensateurs fixes utilisés dans les équipements électroniques –
Partie 4-1: Spécification particulière cadre – Condensateurs fixes électrolytiques
à l’aluminium, à électrolyte non solide – Niveau d’assurance EZ
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
Q
CODE PRIX
ICS 31.060.50 ISBN 2-8318-9903-6
– 2 – 60384-4-1 © IEC:2007
CONTENTS
FOREWORD.3
1 General data .7
1.1 Recommended method(s) of mounting (to be inserted).7
1.2 Dimensions .7
1.3 Ratings and characteristics .7
1.4 Normative references .8
1.5 Marking .8
1.6 Ordering information.8
1.7 Certified records of released lots.8
1.8 Additional information (not for inspection purposes) .8
1.9 Additional or increased severities or requirements to those specified in the
generic and/or sectional specification .8
2 Inspection requirements .9
2.1 Procedures.9
Table 1 – Case size reference and dimensions .7
Table 2 – Values of capacitance and of voltage related to case sizes .7
Table 3 – Tangent of loss angle, impedance and rated ripple current.8
Table 4 – Other characteristics .8
Table 5 – Test schedule for qualification conformance inspection .9
60384-4-1 © IEC:2007 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
FIXED CAPACITORS FOR USE IN ELECTRONIC EQUIPMENT –
Part 4-1: Blank detail specification –
Fixed aluminium electrolytic capacitors with non-solid electrolyte –
Assessment level EZ
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with an IEC Publication.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 60384-4-1 has been prepared by IEC technical committee 40:
Capacitors and resistors for electronic equipment.
This third edition cancels and replaces the second edition published in 2000 and constitutes a
minor revision related to tables, figures and references.
This bilingual version, published in 2008, corresponds to the English version.
– 4 – 60384-4-1 © IEC:2007
The text of this standard is based on the following documents:
CDV Report on voting
40/1762/CDV 40/1820/RVC
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
The French version of this standard has not been voted upon.
The QC number that appears on the front cover of this publication is the specification number
in the IEC Quality Assessment System for Electronic Components (IECQ).
The list of all parts of the IEC 60384 series, under the general title Fixed capacitors for use in
electronic equipment, can be found on the IEC website.
The committee has decided that the contents of this publication will remain unchanged until
the maintenance result date indicated on the IEC web site under "http://webstore.iec.ch" in
the data related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
60384-4-1 © IEC:2007 – 5 –
FIXED CAPACITORS FOR USE IN ELECTRONIC EQUIPMENT –
Part 4-1: Blank detail specification –
Fixed aluminium electrolytic capacitors with non-solid electrolyte –
Assessment level EZ
Blank detail specification
A blank detail specification is a supplementary document to the sectional specification and
contains requirements for style and layout and minimum content of detail specifications. Detail
specifications not complying with these requirements may not be considered as being in
accordance with IEC specifications nor shall they be so described.
In the preparation of detail specifications, the contents of 1.4 of the sectional specification
shall be taken into account.
The numbers between brackets on the first page correspond to the following information
which shall be inserted in the position indicated.
Identification of the detail specification
[1] The International Electrotechnical Commission or the National Standards Organization
under whose authority the detail specification is drafted.
[2] The IEC or National Standards number of the detail specification, data of issue and any
further information required by the national system.
[3] The number and issue number of the IEC or national generic specification.
[4] The IEC number of the blank detail specification.
Identification of the capacitor
[5] A short description of the type of capacitor.
[6] Information on typical construction (when applicable).
NOTE When the capacitor is not designed for use in printed board applications, this is clearly stated in the
detail specification in this position.
[7] Outline drawing with main dimensions which are of importance for interchangeability
and/or reference to the national or internation
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
