IEC 62841-2-7:2024
(Main)Electric motor-operated hand-held tools, transportable tools and lawn and garden machinery - Safety - Part 2-7: Particular requirements for hand-held spray guns
Electric motor-operated hand-held tools, transportable tools and lawn and garden machinery - Safety - Part 2-7: Particular requirements for hand-held spray guns
IEC 62841-2-7:2024 deals with the safety of electric motor-operated hand-held spray guns for non-flammable materials. The rated voltage is not more than 250 V for single-phase a.c. or d.c. tools, and 480 V for three-phase a.c. tools. The rated input is not more than 3 700 W. The limits for the applicability of this standard for battery tools are given in K.1 and L.1. This standard deals with the hazards presented by tools which are encountered by all persons in the normal use and reasonably foreseeable misuse of the tools. Hand-held electric tools, which can be mounted on a support or working stand for use as fixed tools without any alteration of the tool itself, are within the scope of this standard and such combination of a hand-held tool and a support is considered to be a transportable tool and thus covered by the relevant Part 3. This Part 2-7 is to be used in conjunction with the first edition of IEC 62841-1:2014. The attention of National Committees is drawn to the fact that equipment manufacturers and testing organizations may need a transitional period following publication of a new, amended or revised IEC publication in which to make products in accordance with the new requirements and to equip themselves for conducting new or revised tests. It is the recommendation of the committee that the content of this publication be adopted for implementation nationally not earlier than 36 months from the date of publication.
Outils électroportatifs à moteur, outils portables et machines pour jardins et pelouses - Sécurité - Partie 2-7 : Exigences particulières pour les pistolets de pulvérisation portatifs
L'IEC 62841-2-7:2024 s'applique aux pistolets de pulvérisation portatifs utilisés avec des matériaux non inflammables. La tension assignée est inférieure à 250 V pour les outils à courant monophasé alternatif ou continu, et inférieure à 480 V pour les outils à courant alternatif triphasé. La tension assignée est inférieure à 3 700 W. Les limites d'application de la présente Norme aux outils fonctionnant sur batterie sont indiquées en K.1 et L.1. La présente Norme traite des dangers présentés par les outils, encourus par tous les individus dans l'utilisation normale et dans l'utilisation impropre raisonnablement prévisible de ces outils. Les outils comportant des éléments chauffants électriques entrent dans le domaine d'application de la présente Norme. Les outils électroportatifs, qui peuvent être montés sur un support de travail pour être utilisés comme outils installés à poste fixe sans aucune modification de l'outil lui-même, sont compris dans le domaine d'application de la présente Norme et la combinaison d'un outil portatif et d'un support est considérée comme un outil portable, donc couvert par la Partie 3 applicable. Cette Partie 2-7 doit être utilisé conjointement avec l'IEC 62841-1:2014. L'attention des Comités nationaux est attirée sur le fait que les fabricants d'appareils et les organismes d'essai peuvent avoir besoin d'une période transitoire après la publication d'une nouvelle publication IEC, ou d'une publication amendée ou révisée, pour fabriquer des produits conformes aux nouvelles exigences et pour adapter leurs équipements aux nouveaux essais ou aux essais révisés. Le comité recommande que le contenu de cette publication soit adopté pour application nationale au plus tôt 36 mois après la date de publication.
General Information
Standards Content (Sample)
IEC 62841-2-7 ®
Edition 1.0 2024-05
EXTENDED VERSION
INTERNATIONAL
STANDARD
colour
inside
This extended version of IEC 62841-2-7:2024 includes the content of the references made to
IEC 62841-1:2014
Electric motor-operated hand-held tools, transportable tools and lawn and
garden machinery – Safety –
Part 2-7: Particular requirements for hand-held spray guns
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.
IEC Secretariat Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.
About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.
IEC publications search - webstore.iec.ch/advsearchform IEC Products & Services Portal - products.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews, graphical symbols and the glossary.
committee, …). It also gives information on projects, replaced With a subscription you will always have access to up to date
and withdrawn publications. content tailored to your needs.
IEC Just Published - webstore.iec.ch/justpublished
Electropedia - www.electropedia.org
Stay up to date on all new IEC publications. Just Published
The world's leading online dictionary on electrotechnology,
details all new publications released. Available online and once
containing more than 22 500 terminological entries in English
a month by email.
and French, with equivalent terms in 25 additional languages.
Also known as the International Electrotechnical Vocabulary
IEC Customer Service Centre - webstore.iec.ch/csc
(IEV) online.
If you wish to give us your feedback on this publication or need
further assistance, please contact the Customer Service
Centre: sales@iec.ch.
IEC 62841-2-7 ®
Edition 1.0 2024-05
EXTENDED VERSION
INTERNATIONAL
STANDARD
colour
inside
This extended version of IEC 62841-2-7:2024 includes the content of the references made to
IEC 62841-1:2014
Electric motor-operated hand-held tools, transportable tools and lawn and
garden machinery – Safety –
Part 2-7: Particular requirements for hand-held spray guns
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 25.140.20 ISBN 978-2-8322-8932-7

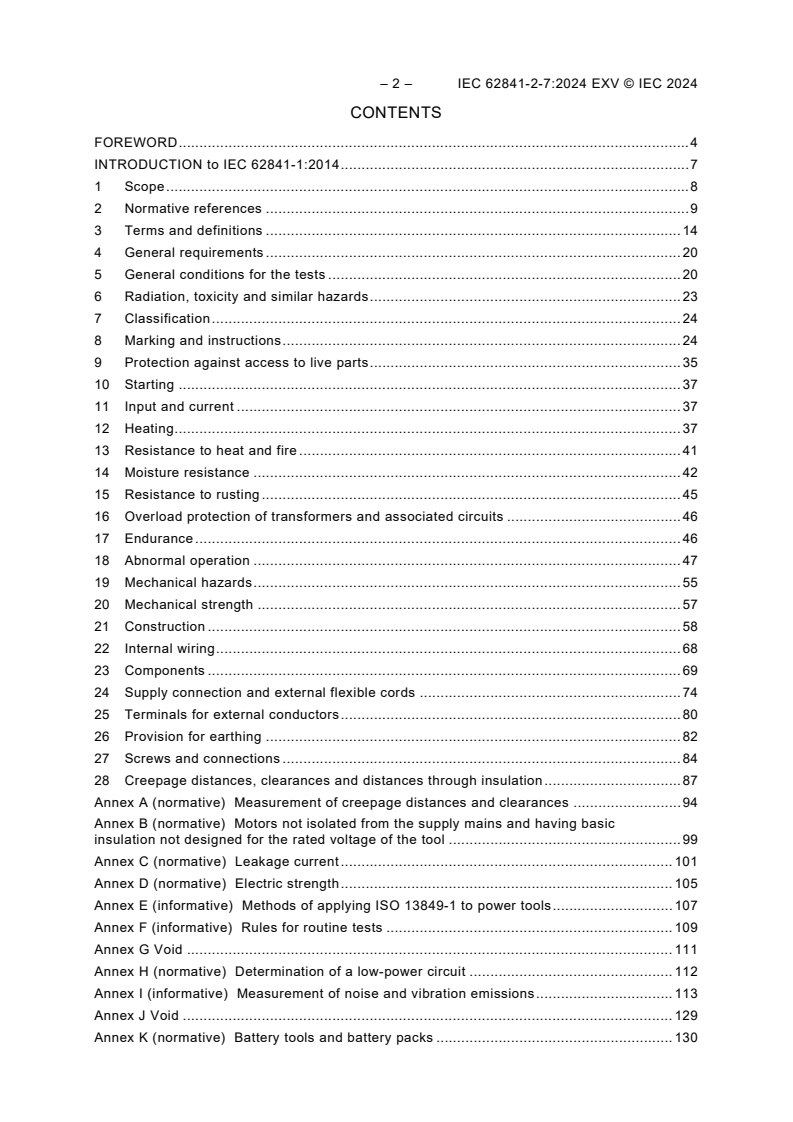

– 2 – IEC 62841-2-7:2024 EXV © IEC 2024
CONTENTS
FOREWORD . 4
INTRODUCTION to IEC 62841-1:2014 . 7
1 Scope . 8
2 Normative references . 9
3 Terms and definitions . 14
4 General requirements . 20
5 General conditions for the tests . 20
6 Radiation, toxicity and similar hazards . 23
7 Classification . 24
8 Marking and instructions . 24
9 Protection against access to live parts . 35
10 Starting . 37
11 Input and current . 37
12 Heating . 37
13 Resistance to heat and fire . 41
14 Moisture resistance . 42
15 Resistance to rusting . 45
16 Overload protection of transformers and associated circuits . 46
17 Endurance . 46
18 Abnormal operation . 47
19 Mechanical hazards . 55
20 Mechanical strength . 57
21 Construction . 58
22 Internal wiring . 68
23 Components . 69
24 Supply connection and external flexible cords . 74
25 Terminals for external conductors . 80
26 Provision for earthing . 82
27 Screws and connections . 84
28 Creepage distances, clearances and distances through insulation . 87
Annex A (normative) Measurement of creepage distances and clearances . 94
Annex B (normative) Motors not isolated from the supply mains and having basic
insulation not designed for the rated voltage of the tool . 99
Annex C (normative) Leakage current . 101
Annex D (normative) Electric strength . 105
Annex E (informative) Methods of applying ISO 13849-1 to power tools . 107
Annex F (informative) Rules for routine tests . 109
Annex G Void . 111
Annex H (normative) Determination of a low-power circuit . 112
Annex I (informative) Measurement of noise and vibration emissions . 113
Annex J Void . 129
Annex K (normative) Battery tools and battery packs . 130
Annex L (normative) Battery tools and battery packs provided with mains connection
or non-isolated sources. 150
Bibliography . 169
Figure 1 – Test fingernail . 91
Figure 2 – Flexing test apparatus . 92
Figure 3 – Overload test of a class II armature . 93
Figure A.1 – Clearance gap for parallel sided and V-shaped groove . 95
Figure A.2 – Clearance gap for rib and uncemented joint with groove . 96
Figure A.3 – Clearance gap for uncemented joint and diverging-sided groove . 97
Figure A.4 – Clearance gap between wall and screw . 98
Figure B.1 – Simulation of fault conditions . 100
Figure C.1 – Diagram for leakage current measurement for single-phase connection
and three-phase tools suitable for single-phase supply . 103
Figure C.2 – Diagram for leakage current measurement for three-phase connection . 104
Figure C.3 – Circuit of the leakage current meter . 104
Figure H.1 – Example of an electronic circuit with low-power points . 112
Figure I.101 – Position of transducer for spray guns . 121
Figure I.1 – Test bench . 126
Figure I.2 – Positions of a hand-held power tool and microphones for the
hemispherical / cylindrical measurement surface . 127
Figure I.3 – Microphone positions on a cubic measurement surface . 127
Figure I.4 – Directions of vibration measurement . 128
Figure K.1 – Measurement of clearances . 149
Figure L.1 – Measurement of clearances . 168
Table 1 – Maximum normal temperature rises (1 of 2) . 39
Table 2 – Maximum outside surface temperature rises . 41
Table 3 – Maximum winding temperature . 48
Table 4 – Required performance levels . 53
Table 5 – Impact energies. 57
Table 6 – Test torques . 58
Table 7 – Switch trigger force . 63
Table 8 – Minimum cross-sectional area and AWG sizes of supply cords . 75
Table 9 – Pull and torque value . 78
Table 10 – Quick-connect terminals for earthing conductors . 82
Table 11 – Torque for testing screws and nuts . 85
Table 12 – Minimum creepage distances and clearances . 88
Table D.1 – Test voltages . 105
Table F.1 – Test voltages for the electric strength test . 110
Table I.101 – Operating conditions for spray guns . 124
Table K.1 – Minimum creepage distances and clearances between parts of opposite
polarity . 148
Table L.1 – Minimum creepage distances and clearances between parts of opposite
polarity . 167
– 4 – IEC 62841-2-7:2024 EXV © IEC 2024
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
ELECTRIC MOTOR-OPERATED HAND-HELD TOOLS, TRANSPORTABLE
TOOLS AND LAWN AND GARDEN MACHINERY –
SAFETY –
Part 2-7: Particular requirements for hand-held spray guns
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) IEC draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). IEC takes no position concerning the evidence, validity or applicability of any claimed patent rights in
respect thereof. As of the date of publication of this document, IEC had not received notice of (a) patent(s),
which may be required to implement this document. However, implementers are cautioned that this may not
represent the latest information, which may be obtained from the patent database available at
https://patents.iec.ch. IEC shall not be held responsible for identifying any or all such patent rights.
This extended version (EXV) of the official IEC Standard provides the user with the
comprehensive content of the Standard.
made to IEC 62841-1:2014.
The specific content of IEC 62841-2-7:2024 is displayed on a blue background.
IEC 62841-2-7 has been prepared by IEC technical committee 116: Safety of motor-operated
electric tools. It is an International Standard.
The text of this International Standard is based on the following documents:
Draft Report on voting
116/740/FDIS 116/762/RVD
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this International Standard is English.
This document is to be used in conjunction with IEC 62841-1:2014.
This document supplements or modifies the corresponding clauses in IEC 62841-1, so as to
convert it into the IEC Standard: Particular requirements for hand-held spray guns.
Where a particular subclause of IEC 62841-1 is not mentioned in this document, that
subclause applies as far as reasonable. Where this document states "addition", "modification"
or "replacement", the relevant text in IEC 62841-1 is to be adapted accordingly.
The following print types are used:
– requirements: in roman type;
– test specifications: in italic type;
– terms defined in Clause 3: in bold type
– notes: in small roman type.
Subclauses, notes, tables and figures which are additional to those in IEC 62841-1 are
numbered starting from 101.
Subclauses, notes, tables and figures in Annex K and Annex L which are additional to those
in the main body of this document are numbered starting from 301.
A list of all parts of the IEC 62841 series, under the general title: Electric motor-operated
hand-held tools, transportable tools and lawn and garden machinery – Safety, can be found
on the IEC website.
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement,
available at www.iec.ch/members_experts/refdocs. The main document types developed by
IEC are described in greater detail at www.iec.ch/standardsdev/publications.
– 6 – IEC 62841-2-7:2024 EXV © IEC 2024
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
• reconfirmed,
• withdrawn, or
• revised.
NOTE The attention of National Committees is drawn to the fact that equipment manufacturers and testing
organizations may need a transitional period following publication of a new, amended or revised IEC publication in
which to make products in accordance with the new requirements and to equip themselves for conducting new or
revised tests.
It is the recommendation of the committee that the content of this publication be adopted for implementation
nationally not earlier than 36 months from the date of publication.
IMPORTANT – The "colour inside" logo on the cover page of this document indicates
that it contains colours which are considered to be useful for the correct
understanding of its contents. Users should therefore print this document using a
colour printer.
INTRODUCTION to IEC 62841-1:2014
Individual countries may wish to consider the application of this Part 1 of IEC 62841, so far as
is reasonable, to tools not mentioned in an individual part of IEC 62841-2, IEC 62841-3 or
IEC 62841-4 and to tools designed on new principles.
Examples of standards dealing with non-safety aspects of hand-held tools, transportable
tools and lawn and garden machinery are
– standards dealing with EMC aspects;
– standards dealing with environmental aspects.
– 8 – IEC 62841-2-7:2024 EXV © IEC 2024
ELECTRIC MOTOR-OPERATED HAND-HELD TOOLS, TRANSPORTABLE
TOOLS AND LAWN AND GARDEN MACHINERY –
SAFETY –
Part 2-7: Particular requirements for hand-held spray guns
1 Scope
This International Standard deals with the safety of electric motor-operated or magnetically
driven:
– hand-held tools (IEC 62841-2);
– transportable tools (IEC 62841-3);
– lawn and garden machinery (IEC 62841-4).
The above listed categories are hereinafter referred to as “tools” or “machines”.
The rated voltage is not more than 250 V for single-phase a.c. or d.c. tools, and 480 V for
three-phase a.c. tools. The rated input is not more than 3 700 W.
The limits for the applicability of this standard for battery tools are given in K.1 and L.1.
This standard deals with the hazards presented by tools which are encountered by all persons
in the normal use and reasonably foreseeable misuse of the tools.
Tools with electric heating elements are within the scope of this standard.
Requirements for motors not isolated from the supply, and having basic insulation not
designed for the rated voltage of the tools, are given in Annex B. Requirements for
rechargeable battery-powered motor-operated or magnetically driven tools and the battery
packs for such tools are given in Annex K. Requirements for such tools that are also operated
and/or charged directly from the mains or a non-isolated source are given in Annex L.
Hand-held electric tools, which can be mounted on a support or working stand for use as fixed
tools without any alteration of the tool itself, are within the scope of this standard and such
combination of a hand-held tool and a support is considered to be a transportable tool and
thus covered by the relevant Part 3.
This standard does not apply to:
– tools intended to be used in the presence of explosive atmosphere (dust, vapour or gas);
– tools used for preparing and processing food;
– tools for medical purposes;
NOTE 1 IEC 60601 series covers a variety of tools for medical purposes.
– tools intended to be used with cosmetics or pharmaceutical products;
– heating tools;
NOTE 2 IEC 60335-2-45 covers a variety of heating tools.
– electric motor-operated household and similar electrical appliances;
NOTE 3 IEC 60335 series covers a variety of electric motor-operated household and similar electrical appliances.
– electrical equipment for industrial machine-tools;
NOTE 4 IEC 60204 series deals with electrical safety of machinery.
– small low voltage transformer operated bench tools intended for model making, e.g. the
making of radio controlled model aircraft or cars, etc.
NOTE 5 In the United States of America, the following conditions apply:
This standard deals with tools used in non-hazardous locations in accordance with the National Electrical Code,
NFPA 70.
NOTE 6 In Canada, the following conditions apply:
This standard deals with tools used in non-hazardous locations in accordance with the Canadian Electric Code,
Part 1, CSA C22.1, and General Requirements – Canadian Electrical Code, Part II, CAN/CSA-C22.2 No. 0.
This document applies to hand-held spray guns for non-flammable materials.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and
are indispensable for its application. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 60061, Lamp caps and holders together with gauges for the control of interchangeability
and safety, available at http://std.iec.ch/iec60061
IEC 60065:2001, Audio, video and similar electronic apparatus – Safety requirements
Amendment 2:2010
Amendment 1:2005
IEC 60068-2-75:1997, Environmental testing – Part 2-75: Tests – Test Eh: Hammer tests
IEC/TR 60083, Plugs and socket-outlets for domestic and similar general use standardized in
member countries of IEC
IEC 60085:2007, Electrical insulation – Thermal evaluation and designation
IEC 60127 (all parts), Miniature fuses
IEC 60227 (all parts), Polyvinyl chloride insulated cables of rated voltages up to and including
450/750 V
IEC 60238, Edison screw lampholders
IEC 60245 (all parts), Rubber insulated cables – Rated voltages up to and including
450/750 V
IEC 60252-1, AC motor capacitors – Part 1: General – Performance, testing and rating –
Safety requirements – Guidance for installation and operation
IEC 60320 (all parts), Appliance couplers for household and similar general purposes
IEC 60320-1, Appliance couplers for household and similar general purposes – Part 1:
General requirements
_________
There exists a consolidated version (Edition 7.2:2011) which includes IEC 60065:2001 and its Amendment 1
(2005) and Amendment 2 (2010).
– 10 – IEC 62841-2-7:2024 EXV © IEC 2024
IEC 60335-1:2010, Household and similar electrical appliances – Safety – Part 1: General
requirements
IEC 60384-14, Fixed capacitors for use in electronic equipment – Part 14: Sectional
specification – Fixed capacitors for electromagnetic interference suppression and connection
to the supply mains
IEC 60417, Graphical symbols for use on equipment, available at http://www.graphical-
symbols.info/graphical-symbols/equipment/db1.nsf/$enHome?OpenForm
IEC 60529:1989, Degrees of protection provided by enclosures (IP Code)
Amendment 1:1999
Amendment 2:2013
IEC 60664-1, Insulation coordination for equipment within low-voltage systems – Part 1:
Principles, requirements and tests
IEC 60695-2-11:2000, Fire hazard testing – Part 2-11: Glowing/hot-wire based test methods –
Glow-wire flammability test method for end-products
IEC 60695-2-13:2010, Fire hazard testing – Part 2-13: Glowing/hot-wire based test methods –
Glow-wire ignition temperature (GWIT) test method for materials
IEC 60695-10-2:2003, Fire hazard testing – Part 10-2: Abnormal heat – Ball pressure test
IEC 60695-11-10:2013, Fire hazard testing – Part 11-10: Test flames – 50 W horizontal and
vertical flame test methods
IEC 60730-1:2010, Automatic electrical controls for household and similar use – Part 1:
General requirements
IEC 60825-1:2007, Safety of laser products – Part 1: Equipment classification and
requirements
IEC 60884 (all parts), Plugs and socket-outlets for household and similar purposes
IEC 60906-1, IEC system of plugs and socket-outlets for household and similar purposes –
Part 1: Plugs and socket-outlets 16 A 250 V a.c.
IEC 60990:1999, Methods of measurement of touch current and protective conductor current
IEC 60998-2-1, Connecting devices for low-voltage circuits for household and similar
purposes – Part 2-1: Particular requirements for connecting devices as separate entities with
screw-type clamping units
IEC 60998-2-2, Connecting devices for low-voltage circuits for household and similar
purposes – Part 2-2: Particular requirements for connecting devices as separate entities with
screwless-type clamping units
IEC 60999-1:1999, Connecting devices – Electrical copper conductors – Safety requirements
for screw-type and screwless-type clamping units – Part 1: General requirements and
2 2
particular requirements for clamping units for conductors from 0,2 mm up to 35 mm
(included)
_________
There exists a consolidated version (Edition 2.2:2013) which includes IEC 60529:1989 and its Amendment 1
(1999) and Amendment 2 (2013).
IEC 61000-4-2:2008, Electromagnetic compatibility (EMC) – Part 4-2: Testing and
measurement techniques – Electrostatic discharge immunity test
IEC 61000-4-3:2006, Electromagnetic compatibility (EMC) – Part 4-3: Testing and
measurement techniques – Radiated, radio-frequency, electromagnetic field immunity test
Amendment 1:2007
Amendment 2:2010
IEC 61000-4-4:2012, Electromagnetic compatibility (EMC) – Part 4-4: Testing and
measurement techniques – Electrical fast transient/burst immunity test
IEC 61000-4-5:2005, Electromagnetic compatibility (EMC) – Part 4-5: Testing and
measurement techniques – Surge immunity test
IEC 61000-4-6:2008, Electromagnetic compatibility (EMC) – Part 4-6: Testing and
measurement techniques – Immunity to conducted disturbances, induced by radio-frequency
fields
IEC 61000-4-11:2004, Electromagnetic compatibility (EMC) – Part 4-11: Testing and
measurement techniques – Voltage dips, short interruptions and voltage variations immunity
tests
IEC 61032:1997, Protection of persons and equipment by enclosures – Probes for verification
IEC 61056-1, General purpose lead-acid batteries (valve-regulated types) – Part 1: General
requirements, functional characteristics – Methods of test
IEC 61058-1:2000, Switches for appliances – Part 1: General requirements
Amendment 1:2001
Amendment 2:2007
IEC 61210, Connecting devices – Flat quick-connect terminations for electrical copper
conductors – Safety requirements
IEC 61540:1997, Electrical accessories – Portable residual current devices without integral
overcurrent protection for household and similar use (PRCDs)
Amendment 1:1998
IEC 61558-1, Safety of power transformers, power supplies, reactors and similar products –
Part 1: General requirements and tests
IEC 61558-2-4, Safety of transformers, reactors, power supply units and similar products for
supply voltages up to 1 100 V – Part 2-4: Particular requirements and tests for isolating
transformers and power supply units incorporating isolating transformers
IEC 61558-2-6, Safety of transformers, reactors, power supply units and similar products for
supply voltages up to 1 100 V – Part 2-6: Particular requirements and tests for safety isolating
transformers and power supply units incorporating safety isolating transformers
_________
There exists a consolidated version (Edition 3.2:2010) which includes IEC 61000-4-3:2006 and its Amendment
1 (2007) and Amendment 2 (2010).
There exists a consolidated version (Edition 3.2:2008) which includes IEC 61058-1:2000 and its Amendment 1
(2001) and Amendment 2 (2007).
There exists a consolidated version (Edition 1.1:1999) which includes IEC 61540:1997 and its Amendment 1
(2001).
– 12 – IEC 62841-2-7:2024 EXV © IEC 2024
IEC 61558-2-16, Safety of transformers, reactors, power supply units and similar products for
supply voltages up to 1 100 V – Part 2-16: Particular requirements and tests for switch mode
power supply units and transformers for switch mode power supply units
IEC 61951-1, Secondary cells and batteries containing alkaline or other non-acid electrolytes
– Portable sealed rechargeable single cells – Part 1: Nickel-cadmium
IEC 61951-2, Secondary cells and batteries containing alkaline or other non-acid electrolytes
– Portable sealed rechargeable single cells – Part 2: Nickel-metal hydride
IEC 61960, Secondary cells and batteries containing alkaline or other non-acid electrolytes –
Secondary lithium cells and batteries for portable applications
IEC 61984, Connectors – Safety requirements and tests
IEC 62133, Secondary cells and batteries containing alkaline or other non-acid electrolytes –
Safety requirements for portable sealed secondary cells, and for batteries made from them,
for use in portable applications
IEC 62233, Measurement methods for electromagnetic fields of household appliances and
similar apparatus with regard to human exposure
IEC 62471, Photobiological safety of lamps and lamp systems
IEC/TR 62471-2:2009, Photobiological safety of lamps and lamp systems – Part 2: Guidance
on manufacturing requirements relating to non-laser optical radiation safety
IEC 62841-1:2014, Electric motor-operated hand-held tools, transportable tools and lawn and
garden machinery – Safety – Part 1: General requirements
ISO 1463, Metallic and oxide coatings – Measurement of coating thickness – Microscopical
method
ISO 2178, Non-magnetic coatings on magnetic substrates – Measurement of coating
thickness – Magnetic method
ISO 2768-1, General tolerances – Part 1: Tolerances for linear and angular dimensions
without individual tolerance indications
ISO 3744, Acoustics – Determination of sound power levels and sound energy levels of noise
sources using sound pressure – Engineering methods for an essentially free field over a
reflecting plane
ISO 3864-2, Graphical symbols – Safety colours and safety signs – Part 2: Design principles
for product safety labels
ISO 3864-3, Graphical symbols – Safety colours and safety signs – Part 3: Design principles
for graphical symbols for use in safety signs
ISO 4871:1996, Acoustics – Declaration and verification of noise emission values of
machinery and equipment
ISO 5347 (all parts), Methods for the calibration of vibration and shock pick-ups
ISO 5349-1, Mechanical vibration – Measurement and evaluation of human exposure to hand-
transmitted vibration – Part 1: General requirements
ISO 5349-2, Mechanical vibration – Measurement and evaluation of human exposure to hand-
transmitted vibration – Part 2: Practical guidance for measurement in the workplace
ISO 7000:2012, Graphical symbols for use on equipment – Index and synopsis
ISO 7010, Graphical symbols – Safety colours and safety signs – Registered safety signs
ISO 7574-4, Acoustics – Statistical methods for determining and verifying stated noise
emission values of machinery and equipment – Part 4: Methods for stated values for batches
of machines
ISO 8041, Human response to vibration – Measuring instrumentation
ISO 9772:2012, Cellular plastics – Determination of horizontal burning characteristics of small
specimens subjected to a small flame
ISO 11201, Acoustics – Noise emitted by machinery and equipment – Determination of
emission sound pressure levels at a work station and at other specified positions in an
essentially free field over a reflecting plane with negligible environmental corrections
ISO 11203, Acoustics – Noise emitted by machinery and equipment – Determination of
emission sound pressure levels at a work station and at other specified positions from the
sound power level
ISO 12100, Safety of machinery – General principles for design – Risk assessment and risk
reduction
ISO 13849-1, Safety of machinery – Safety-related parts of control systems – Part 1: General
principles for design
ISO 13850, Safety of machinery – Emergency stop – Principles for design
ISO/TR 11690-3, Acoustics – Recommended practice for the design of low-noise workplaces
containing machinery – Part 3: Sound propagation and noise prediction in workrooms
ISO 16063-1, Methods for the calibration of vibration and shock transducers – Part 1: Basic
concepts
EN 12096, Mechanical vibration – Declaration and verification of vibration emission values
ASTM B 258, Standard specification for standard nominal diameters and cross-sectional
areas of AWG sizes of solid round wires used as electrical conductors
UL 969, Standard for marking and labeling systems
NOTE 1 In the United States of America, the following normative reference applies:
US, Code of Federal Regulations (CFR) Title 21, Food and Drugs.
NOTE 2 In Canada, the following normative reference applies:
C.R.C., c. 1370, Radiation Emitting Devices Regulations
NOTE 3 In Europe (EN 62841-1), the following normative references apply:
CR 1030-1, Hand-arm vibration – Guidelines for vibration hazards reduction – Part 1: Engineering methods by
design of machinery
EN ISO 11688-1, Acoustics – Recommended practice for the design of low-noise machinery and equipment –
Part 1: Planning (ISO/TR 11688-1)
– 14 – IEC 62841-2-7:2024 EXV © IEC 2024
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
Where the terms voltage and current are used, they imply the r.m.s. values, unless otherwise
specified.
Where in this standard the expressions “with the aid of a tool”, “without the aid of a tool”, and
“requires the use of a tool”, are used, the word “tool” means a hand tool, for example a
screwdriver, which may be used to operate a screw or other fixing means.
3.1
accessible part
conductive part or surface of insulating materials that can be touched by means of the test
probe B of IEC 61032:1997
3.2
accessory
device that is attached only to the output mechanism of the tool
3.3
adjustable guard
guard which is adjustable as a whole or which incorporates adjustable part(s). For manually
adjustable guards, the adjustment remains fixed during a particular operation
3.4
all-pole disconnection
disconnection of all supply conductors except the protective earthing (grounding) conductor
by a single initiating action
3.5
attachment
device attached to the housing or other component of the tool and which may or may not be
attached to the output mechanism and does not modify the normal use of the tool within the
scope of this standard
3.6
basic insulation
insulation applied to live parts to provide protection against electric shock. Insulation applied
to live parts not intended to provide electric shock protection is considered to be insulation
for functional purposes, such as magnet wire insulation
3.7
battery
assembly of one or more cells intended to provide electrical current to the tool
3.8
class I tool
tool in which protection against electric shock does not rely on basic, double or reinforced
insulation only, but which includes an additional safety precaution in that conductive
accessible parts are connected to the protective earthing conductor in the fixed wiring of the
installation in such a way that conductive accessible parts cannot become live in the event of
a failure of the basic insulation
Note 1 to entry: Also considered as class I tools are tools with double insulation and/or reinforced insulation
throughout, but also having an earthing terminal or earthing contact.
3.9
class II tool
tool in which protection against electric shock does not rely on basic insulation only, but in
which additional safety precautions, such as double insulation or reinforced insulation, are
provided, there being no provision for protective earthing or reliance upon installation
conditions
3.10
class III tool
tool in which protection against electric shock relies on supply at safety extra-low voltage,
and in which voltages higher than those of safety extra-low voltages are not generated
3.11
class II construction
part of a tool for which protection against electric shock relies upon double insulation or
reinforced insulation
3.12
class III construction
part of a tool for which protection against electric shock relies upon safety extra-low voltage,
and in which voltages higher than those of safety extra-low voltages are not generated
3.13
clearance
shortest distance between two conductive parts, or between a conductive part and the outer
surface of the enclosure, considered as though metal foil were pressed into contact with
accessible surfaces of insulating material, measured through air
Note 1 to entry: Examples of clearances are given in Annex A.
3.14
control device
device used by the user to adjust and/or regulate an electrical or mechanical function of the
tool
3.15
creepage distance
shortest path between two conductive parts, or between a conductive part and the outer
surface of the enclosure, considered as though metal foil were pressed into contact with
accessible surfaces of insulating material, measured along the surface of the insulating
material
Note 1 to entry: Examples of creepage distances are given in Annex A.
3.16
detachable part
part which can be removed or opened without the aid of a tool, or a part which is removed in
accordance with the instruction for use, except externally accessible brush caps, even if
removal requires the use of a tool
Note 1 to entry: A non-detachable part is covered by the requirements of 21.22.
3.17
double insulation
insulation system comprising both basic insulation and supplementary insulation
3.18
electronic circuit
circuit incorporating at least one electronic component
– 16 – IEC 62841-2-7:2024 EXV © IEC 2024
3.19
electronic component
part in which conduction is achieved principally by electrons moving through a vacuum, gas or
semiconductor, with the exclusion of neon indicators
Note 1 to entry: Examples of electronic components are diodes, transistors, triacs and monolithic integrated
circuits. Resistors, capacitors and inductors are not considered electronic components.
3.20
explosion
failure that occurs, when an enclosure opens violently and major components are forcibly
expelled in a manner that could result in injury
3.21
extra-low voltage
voltage supplied from a source within the tool and, which, when the tool is supplied at rated
voltage, does not exceed 50 V between conductors and between conductors and earth
3.22
fixed guard
guard affixed in such a manner (e.g. by screws, nuts, welding) that it can only be opened or
removed with the use of tools or by destruction of the affixing means
3.23
guard
physical barrier, designed as part of the tool, to provide protection
3.24
hand-held tool
tool intended to do mechanical work, with or without provisions for mounting on a support, and
so designed that the motor and the machine form an assembly which can easily be brought to
the place of operation, and which is either held or supported by hand or suspended during
operation
Note 1 to entry: Hand-held tools include tools provided with a flexible shaft, the motor being either fixed or
portable.
3.25
inherent operating cycle
repetitive operation of a tool designed in such a way that the complete cycle duration cannot
be altered by the operator
3.26
interconnection cord
external flexible cord provided for electrical connections between two parts of a tool
3.27
lawn and garden machinery
tool for garden maintenance
3.28
liquid system
system that employs water or a water-based liquid from an external or integral supply that is
used to perform the intended function of the tool
3.29
live part
any
...
IEC 62841-2-7 ®
Edition 1.0 2024-04
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Electric motor-operated hand-held tools, transportable tools and lawn and
garden machinery – Safety –
Part 2-7: Particular requirements for hand-held spray guns
Outils électroportatifs à moteur, outils portables et machines pour jardins et
pelouses – Sécurité –
Partie 2-7 : Exigences particulières pour les pistolets de pulvérisation portatifs
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.
Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni
utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie et
les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.
IEC Secretariat Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.
About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.
IEC publications search - webstore.iec.ch/advsearchform IEC Products & Services Portal - products.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews, graphical symbols and the glossary.
committee, …). It also gives information on projects, replaced With a subscription you will always have access to up to date
and withdrawn publications. content tailored to your needs.
IEC Just Published - webstore.iec.ch/justpublished
Electropedia - www.electropedia.org
Stay up to date on all new IEC publications. Just Published
The world's leading online dictionary on electrotechnology,
details all new publications released. Available online and once
containing more than 22 500 terminological entries in English
a month by email.
and French, with equivalent terms in 25 additional languages.
Also known as the International Electrotechnical Vocabulary
IEC Customer Service Centre - webstore.iec.ch/csc
(IEV) online.
If you wish to give us your feedback on this publication or need
further assistance, please contact the Customer Service
Centre: sales@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.
A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.
Recherche de publications IEC - IEC Products & Services Portal - products.iec.ch
webstore.iec.ch/advsearchform Découvrez notre puissant moteur de recherche et consultez
La recherche avancée permet de trouver des publications IEC gratuitement tous les aperçus des publications, symboles
en utilisant différents critères (numéro de référence, texte, graphiques et le glossaire. Avec un abonnement, vous aurez
comité d’études, …). Elle donne aussi des informations sur les toujours accès à un contenu à jour adapté à vos besoins.
projets et les publications remplacées ou retirées.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
Le premier dictionnaire d'électrotechnologie en ligne au monde,
Restez informé sur les nouvelles publications IEC. Just
avec plus de 22 500 articles terminologiques en anglais et en
Published détaille les nouvelles publications parues.
français, ainsi que les termes équivalents dans 25 langues
Disponible en ligne et une fois par mois par email.
additionnelles. Egalement appelé Vocabulaire
Electrotechnique International (IEV) en ligne.
Service Clients - webstore.iec.ch/csc
Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.
IEC 62841-2-7 ®
Edition 1.0 2024-04
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Electric motor-operated hand-held tools, transportable tools and lawn and
garden machinery – Safety –
Part 2-7: Particular requirements for hand-held spray guns
Outils électroportatifs à moteur, outils portables et machines pour jardins et
pelouses – Sécurité –
Partie 2-7 : Exigences particulières pour les pistolets de pulvérisation portatifs
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 25.140.20 ISBN 978-2-8322-8824-5
– 2 – IEC 62841-2-7:2024 © IEC 2024
CONTENTS
FOREWORD . 3
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 General requirements . 5
5 General conditions for the tests . 6
6 Radiation, toxicity and similar hazards . 6
7 Classification . 6
8 Marking and instructions . 6
9 Protection against access to live parts . 7
10 Starting . 7
11 Input and current . 7
12 Heating . 7
13 Resistance to heat and fire . 8
14 Moisture resistance . 8
15 Resistance to rusting . 8
16 Overload protection of transformers and associated circuits . 8
17 Endurance . 8
18 Abnormal operation . 9
19 Mechanical hazards . 9
20 Mechanical strength . 9
21 Construction . 10
22 Internal wiring . 10
23 Components . 10
24 Supply connection and external flexible cords . 10
25 Terminals for external conductors . 10
26 Provision for earthing . 10
27 Screws and connections . 10
28 Creepage distances, clearances and distances through insulation . 11
Annexes . 12
Annex I (informative) Measurement of noise and vibration emissions . 12
Annex K (normative) Battery tools and battery packs . 15
Annex L (normative) Battery tools and battery packs provided with mains connection
or non-isolated sources . 17
Bibliography . 18
Figure I.101 – Position of transducer for spray guns . 13
Table 4 – Required performance levels . 9
Table I.101 – Operating conditions for spray guns . 13
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
ELECTRIC MOTOR-OPERATED HAND-HELD TOOLS, TRANSPORTABLE
TOOLS AND LAWN AND GARDEN MACHINERY –
SAFETY –
Part 2-7: Particular requirements for hand-held spray guns
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) IEC draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). IEC takes no position concerning the evidence, validity or applicability of any claimed patent rights in
respect thereof. As of the date of publication of this document, IEC had not received notice of (a) patent(s), which
may be required to implement this document. However, implementers are cautioned that this may not represent
the latest information, which may be obtained from the patent database available at https://patents.iec.ch. IEC
shall not be held responsible for identifying any or all such patent rights.
IEC 62841-2-7 has been prepared by IEC technical committee 116: Safety of motor-operated
electric tools. It is an International Standard.
The text of this International Standard is based on the following documents:
Draft Report on voting
116/740/FDIS 116/762/RVD
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
– 4 – IEC 62841-2-7:2024 © IEC 2024
The language used for the development of this International Standard is English.
This document is to be used in conjunction with IEC 62841-1:2014.
This document supplements or modifies the corresponding clauses in IEC 62841-1, so as to
convert it into the IEC Standard: Particular requirements for hand-held spray guns.
Where a particular subclause of IEC 62841-1 is not mentioned in this document, that subclause
applies as far as reasonable. Where this document states "addition", "modification" or
"replacement", the relevant text in IEC 62841-1 is to be adapted accordingly.
The following print types are used:
– requirements: in roman type;
– test specifications: in italic type;
– terms defined in Clause 3: in bold type
– notes: in small roman type.
Subclauses, notes, tables and figures which are additional to those in IEC 62841-1 are
numbered starting from 101.
Subclauses, notes, tables and figures in Annex K and Annex L which are additional to those in
the main body of this document are numbered starting from 301.
A list of all parts of the IEC 62841 series, under the general title: Electric motor-operated hand-
held tools, transportable tools and lawn and garden machinery – Safety, can be found on the
IEC website.
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/standardsdev/publications.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
• reconfirmed,
• withdrawn, or
• revised.
NOTE The attention of National Committees is drawn to the fact that equipment manufacturers and testing
organizations may need a transitional period following publication of a new, amended or revised IEC publication in
which to make products in accordance with the new requirements and to equip themselves for conducting new or
revised tests.
It is the recommendation of the committee that the content of this publication be adopted for implementation nationally
not earlier than 36 months from the date of publication.
IMPORTANT – The "colour inside" logo on the cover page of this document indicates
that it contains colours which are considered to be useful for the correct understanding
of its contents. Users should therefore print this document using a colour printer.
ELECTRIC MOTOR-OPERATED HAND-HELD TOOLS, TRANSPORTABLE
TOOLS AND LAWN AND GARDEN MACHINERY –
SAFETY –
Part 2-7: Particular requirements for hand-held spray guns
1 Scope
IEC 62841-1:2014, Clause 1 is applicable, except as follows:
Addition:
This document applies to hand-held spray guns for non-flammable materials.
2 Normative references
IEC 62841-1:2014, Clause 2 is applicable, except as follows:
Addition:
IEC 62841-1:2014, Electric motor-operated hand-held tools, transportable tools and lawn and
garden machinery – Safety – Part 1: General requirements
3 Terms and definitions
IEC 62841-1:2014, Clause 3 is applicable, except as follows:
Addition:
3.101
non-flammable material
material having a flash-point above 55 °C
3.102
spray gun
tool incorporating the motor in a hand-held unit with an unpressurized material container
intended for the mechanical spraying of liquid, paste or powdery substances
4 General requirements
IEC 62841-1:2014, Clause 4 is applicable.
– 6 – IEC 62841-2-7:2024 © IEC 2024
5 General conditions for the tests
IEC 62841-1:2014, Clause 5 is applicable, except as follows:
5.7.3 Replacement:
For tests that require a value for rated current and with spray guns where there is no marked
rated current, the value of the rated current is determined by measuring the current of the
spray gun when operated and loaded as specified in 12.2 and 12.2.1.
5.17 Addition:
The mass of a spray gun includes the heaviest nozzle and the heaviest material container in
accordance with 8.14.2 a) 101), but does not include any material to be sprayed.
6 Radiation, toxicity and similar hazards
IEC 62841-1:2014, Clause 6 is applicable.
7 Classification
IEC 62841-1:2014, Clause 7 is applicable.
8 Marking and instructions
IEC 62841-1:2014, Clause 8 is applicable, except as follows:
8.14.1 Replacement of the second paragraph:
As the term "power tool" or "tool" is not appropriate for spray guns, for these products an
appropriate term such as "sprayer" or "paint sprayer" may be used.
8.14.1.1 General power tool safety warnings
Modification:
For spray guns,
– Items 3) d), 3) g), and 4) f) may be omitted; and
– item 4) a) may be modified as follows:
Use the correct sprayer for your application. The correct sprayer will do the job better
and safer at the rate for which it was designed.
8.14.2 a) Addition:
101) Information on recommended nozzles and material containers to be used with the spray
gun;
102) Instruction not to use spray guns for spraying flammable materials;
103) Warning to be aware of any hazards presented by the material being sprayed and
instruction to consult the markings on the container or the information supplied by the
manufacturer of the material to be sprayed.
8.14.2 b) Addition:
101) Instruction to use appropriate personal protective equipment, such as a respirator.
8.14.2 c) Addition:
101) Instruction not to clean spray guns with flammable solvents.
9 Protection against access to live parts
IEC 62841-1:2014, Clause 9 is applicable.
10 Starting
IEC 62841-1:2014, Clause 10 is applicable.
11 Input and current
Replacement:
The rated input or rated current shall be at least the measured power input or current under
load.
Compliance is checked by measuring the power input or current of the spray gun when
operated and loaded as specified in 12.2 and 12.2.1 If the spray gun is only marked with rated
input, the current of the spray gun should also be measured and recorded for the test condition
of 5.7.3.
12 Heating
IEC 62841-1:2014, Clause 12 is applicable, except as follows:
12.2 Replacement:
For spray guns with one or more rated voltages: The spray gun is operated at each rated
voltage, under the load conditions specified in 12.2.1.
The temperatures are measured at the most unfavourable of the two voltage settings. The
temperatures that are measured by means of thermocouples are taken while the spray gun is
operating.
For spray guns with a rated voltage range: The spray gun is operated
– at the lower limit of the rated voltage range; and
– at the upper limit of the rated voltage range.
The temperatures are measured at the most unfavourable of the two voltage settings. The
temperature rises are measured at the end of the last "on" period.
– 8 – IEC 62841-2-7:2024 © IEC 2024
12.2.1 Replacement:
The spray gun is fitted with the smallest nozzle recommended by the manufacturer in
accordance with 8.14.2 a) 101). The spray gun is operated through continuous cycles spraying
for 1 h or until temperatures stabilise, whichever is achieved first. Each cycle consists of
spraying water, paint or hydraulic fluid until the volume of the largest recommended material
container in accordance with 8.14.2 a) 101) is empty followed by a maximum 1 min "off" period
in order to refill the material container before the test is continued. The combination of controls,
if any, is adjusted so as to achieve maximum input during the periods of operation. At the
manufacturer's option, the spray gun may also be operated continuously until thermal
stabilisation.
13 Resistance to heat and fire
IEC 62841-1:2014, Clause 13 is applicable.
14 Moisture resistance
IEC 62841-1:2014, Clause 14 is applicable.
15 Resistance to rusting
IEC 62841-1:2014, Clause 15 is applicable.
16 Overload protection of transformers and associated circuits
IEC 62841-1:2014, Clause 16 is applicable.
17 Endurance
IEC 62841-1:2014, Clause 17 is applicable, except as follows:
17.2 Replacement:
The spray gun is fitted with the smallest nozzle recommended by the manufacturer in
accordance with 8.14.2 a) 101). The spray gun is operated for 12 h of operation at a voltage
equal to 1,1 times the highest rated voltage or 1,1 times the upper limit of the rated voltage
range, and then for 12 h at a supply voltage equal to 0,9 times the lowest rated voltage or
0,9 times the lower limit of the rated voltage range. The spray gun is operated through
continuous cycles spraying. Each cycle consists of spraying water, paint or hydraulic fluid until
the volume of the largest recommended container in accordance with 8.14.2 a) 101) is empty
followed by a 5 min "off" period. The combination of controls, if any, is adjusted so as to achieve
maximum input during the periods of operation.
The spray gun may be switched on and off by means of a switch other than that incorporated
in the spray gun.
During this test, if applicable, replacement of the carbon brushes is allowed, and the spray gun
is oiled and greased as in normal use.
If the temperature rise of any part of the spray gun exceeds the temperature rise determined
during the test of 12.1, forced cooling or rest periods are applied, the rest periods being
excluded from the specified operating time.
During these tests, overload protection devices shall not operate.
18 Abnormal operation
IEC 62841-1:2014, Clause 18 is applicable, except as follows:
18.8.1 Replacement of Table 4:
Table 4 – Required performance levels
Type and purpose of SCF Minimum performance level (PL)
Power switch – prevent unwanted switch-on a
Power switch – provide desired switch-off a
Any electronic control to pass the test of 18.3 a
Prevent exceeding thermal limits as in 18.4 and 18.5.3 a
Prevent self-resetting as required in 23.3 a
19 Mechanical hazards
IEC 62841-1:2014, Clause 19 is applicable, except as follows:
19.6 This subclause of IEC 62841-1:2014 is not applicable.
19.101 Spray guns that operate at 10 bar or greater shall be guarded at the nozzle to prevent
inadvertent contact with the orifice.
The nozzle guard shall
– ensure an axial distance between body tissue and discharge point of the nozzle of at least
8 mm when the spray gun operates between 10 bar and 50 bar;
– ensure an axial distance between body tissue and discharge point of the nozzle of at least
25 mm when the spray gun operates at 50 bar or greater;
– be an integral part of the equipment necessary for operation; and
– have a minimum radial distance.
Compliance is checked by inspection and by measurement.
20 Mechanical strength
IEC 62841-1:2014, Clause 20 is applicable, except as follows:
20.1 Addition:
A breakage of the container is disregarded.
20.5 This subclause of IEC 62841-1:2014 is not applicable.
– 10 – IEC 62841-2-7:2024 © IEC 2024
21 Construction
IEC 62841-1:2014, Clause 21 is applicable, except as follows:
21.15 Replacement:
Spray guns shall be so constructed that, in any position of the gun, their electrical insulation
cannot be affected by liquids which might leak from containers, hoses, couplings and the like.
Compliance is checked by inspection.
21.30 This subclause of IEC 62841-1:2014 is not applicable.
21.35 Dust collection
This subclause of IEC 62841-1:2014 is not applicable.
22 Internal wiring
IEC 62841-1:2014, Clause 22 is applicable.
23 Components
IEC 62841-1:2014, Clause 23 is applicable, except as follows:
23.1.10 Addition:
For spray guns, reed-switches are allowed as power switches.
23.3 Replacement of the first paragraph:
Protection devices or circuits shall be of the non-self-resetting type unless the tool is equipped
with a momentary power switch with no provision for being locked in the "on" position.
24 Supply connection and external flexible cords
IEC 62841-1:2014, Clause 24 is applicable.
25 Terminals for external conductors
IEC 62841-1:2014, Clause 25 is applicable.
26 Provision for earthing
IEC 62841-1:2014, Clause 26 is applicable.
27 Screws and connections
IEC 62841-1:2014, Clause 27 is applicable.
28 Creepage distances, clearances and distances through insulation
IEC 62841-1:2014, Clause 28 is applicable, except as follows:
28.1 Addition:
The values specified in Table 12 do not apply to reed-switches.
– 12 – IEC 62841-2-7:2024 © IEC 2024
Annexes
The annexes of IEC 62841-1:2014 are applicable except as follows.
Annex I
(informative)
Measurement of noise and vibration emissions
NOTE In Europe (EN IEC 62841-2-7), Annex I is normative.
I.2 Noise test code (grade 2)
IEC 62841-1:2014, Clause I.2 is applicable, except as follows:
I.2.4 Installation and mounting conditions of the power tools during noise tests
Addition:
Spray guns are suspended in such a way as to correspond to normal use, with the axis of the
spray nozzle oriented in a horizontal direction.
I.2.5 Operating conditions
Addition:
The temperature requirements of IEC 62841-1:2014, 5.6 are not applicable.
Spray guns are tested with the material container filled to 50 % capacity at the beginning of
the test.
Spray guns are tested whilst spraying water, paint or hydraulic fluid.
I.3 Vibration
IEC 62841-1:2014, Clause I.3 is applicable, except as follows:
I.3.3.2 Location of measurement
Addition:
Figure I.101 shows the position for spray guns.
Figure I.101 – Position of transducer for spray guns
I.3.5.1 General
Addition:
For battery operated spray guns, the tests are conducted with the lightest battery in
accordance with IEC 62841-1:2014, K.8.14.2 e) 2) that has sufficient capacity to empty the
largest recommended material container integral to the spray gun in accordance with
8.14.2 a) 101).
I.3.5.3 Operating conditions
Addition:
Spray guns are tested observing the conditions specified in Table I.101.
Table I.101 – Operating conditions for spray guns
Orientation Spray guns are tested with the material container filled to 50 % capacity at the
beginning of the test.
Spray guns are tested whilst spraying water, paint or hydraulic fluid.
The spray gun container shall be orientated up or down depending on the type of spray
gun.
Grip force Hold the spray gun with normal gripping force, avoiding excessive gripping force.
Test cycle One test cycle is given when the spray gun is switched on for more than 10 s and then
switched off again.
The measurement is conducted during 10 s within this period.
NOTE 1 It is be noted that even small differences in operating conditions can affect the vibration intensity.
NOTE 2 The vibrations of the spray gun can be influenced by the operator, in particular the grip force has a
considerable influence when the spray gun is very light.
– 14 – IEC 62841-2-7:2024 © IEC 2024
I.3.6.2 Declaration of the vibration total value
Addition:
The vibration total value a of the handle and the uncertainty K shall be declared.
h
Annex K
(normative)
Battery tools and battery packs
All clauses of the main body of this document apply unless otherwise specified in this annex. If
a clause/subclause is stated in this annex, its requirements replace the requirements of the
main body of this document unless otherwise specified. Subclauses, notes, tables and figures
which are additional to those in the main body of this document are numbered starting from
301.
K.11 Input and current
Clause 11 of this document is not applicable.
K.12.1 Battery spray guns and battery packs shall not attain excessive temperatures.
Compliance is checked by determining the temperature rise of the various parts under the
following conditions:
The spray gun is fitted with the smallest nozzle and the largest material container
recommended by the manufacturer in accordance with 8.14.2 a) 101). The combination of
controls, if any, is adjusted so as to achieve maximum input during the periods of operation.
The spray gun is operated through continuous cycles until maximum temperature is reached
or the spray gun no longer operates due to the battery being discharged. Each cycle consists
of spraying water, paint or hydraulic fluid until the material container is empty followed by a
maximum 1 min "off" period in order to refill the material container before the test is continued.
At the manufacturer's option, the spray gun may also be operated continuously until the battery
becomes discharged.
During the test, protective devices shall not operate. The temperature rises shall not exceed
the values shown in Table 2.
K.12.2 Subclause 12.2 of this document is not applicable.
K.12.2.1 Subclause 12.2.1 of this document is not applicable.
K.17.2 Subclause 17.2 of this document is not applicable.
K.21.15 Subclause 21.15 of this document is not applicable.
NOTE 301 In Europe (EN IEC 62841-2-7), the following additional subclause applies:
K.21.18.Z101 Isolation and disabling device
Tools with an integral battery shall be equipped
– with an isolation device to prevent the risk of injury from mechanical hazards during servicing or user
maintenance; or
– with a disabling device that prevents unintentional starting of the tool.
An isolation device shall
– provide disconnection of at least one pole of the battery from the serviceable region of the tool;
– be equipped with an unambiguous indication of the state of the disconnection device which corresponds to
each position of its manual control (actuator);
– be provided with protection against accidental reconnection.
– 16 – IEC 62841-2-7:2024 © IEC 2024
NOTE 1 Examples of methods to achieve this disconnection include removable jumpers, integral batteries
that can be disconnected for servicing or user maintenance, or an electromechanical power switch with a direct
mechanical link between the actuator and the contact.
NOTE 2 The risk of accidental reconnection for a power switch is addressed by the requirement of 21.18.1.2.
The other examples in Note 1 achieve this by the necessary actions for reconnection.
A disabling device may be achieved by any of the following:
– a self-restoring or non-self-restoring lock-off device where two separate and dissimilar actions are necessary
before the motor is switched on (e.g. a power switch which has to be pushed in before it can be moved
laterally to close the contacts to start the motor). It shall not be possible to achieve these two actions with
a single grasping motion or a straight-line motion;
– a removable disabling device provided with the tool where it shall not be possible for the tool to be operated
when either applied or removed.
Compliance is checked by inspection and by manual test.
K.23.1.10 IEC 62841-1:2014, K.23.1.10 is applicable, except as follows:
Addition:
For spray guns, reed-switches are allowed as power switches.
K.28.1 IEC 62841-1:2014, K.28.1 is applicable, except as follows:
Addition:
The values specified in Table K.1 do not apply to reed-switches.
Annex L
(normative)
Battery tools and battery packs provided with mains connection
or non-isolated sources
All clauses of the main body of this document apply unless otherwise specified in this annex. If
a clause/subclause is stated in this annex, its requirements replace the requirements of the
main body of this document unless otherwise specified. Subclauses, notes, tables and figures
which are additional to those in the main body of this document are numbered starting from
301.
NOTE 301 In Europe (EN IEC 62841-2-7), the following additional subclause applies:
L.21.18.Z101 Isolation and disabling device
Tools with an integral battery shall be equipped
– with an isolation device to prevent the risk of injury from mechanical hazards during servicing or user
maintenance; or
– with a disabling device that prevents unintentional starting of the tool.
An isolation device shall
– provide disconnection of at least one pole of the battery from the serviceable region of the tool;
– be equipped with an unambiguous indication of the state of the disconnection device which corresponds to
each position of its manual control (actuator);
– be provided with protection against accidental reconnection.
NOTE 1 Examples of methods to achieve this disconnection include removable jumpers, integral batteries
that can be disconnected for servicing or user maintenance, or an electromechanical power switch with a direct
mechanical link between the actuator and the contact.
NOTE 2 The risk of accidental reconnection for a power switch is addressed by the requirement of 21.18.1.2.
The other examples in Note 1 achieve this by the necessary actions for reconnection.
A disabling device may be achieved by any of the following:
– a self-restoring or non-self-restoring lock-off device where two separate and dissimilar actions are necessary
before the motor is switched on (e.g. a power switch which has to be pushed in before it can be moved
laterally to close the contacts to start the motor). It shall not be possible to achieve these two actions with
a single grasping motion or a straight-line motion;
– a removable disabling device provided with the tool where it shall not be possible for the tool to be operated
when either applied or removed.
Compliance is checked by inspection and by manual test.
L.23.1.10 IEC 62841-1:2014, L.23.1.10 is applicable, except as follows:
Addition:
For spray guns, reed-switches are allowed as power switches.
L.28.1 IEC 62841-1:2014, L.28.1 is applicable, except as follows:
Addition:
The values specified in Table 12 do not apply to reed-switches.
– 18 – IEC 62841-2-7:2024 © IEC 2024
Bibliography
The bibliography of IEC 62841-1:2014 is applicable.
___________
– 20 – IEC 62841-2-7:2024 © IEC 2024
SOMMAIRE
AVANT-PROPOS . 21
1 Domaine d'application . 24
2 Références normatives . 24
3 Termes et définitions . 24
4 Exigences générales . 24
5 Conditions générales d'essai . 25
6 Rayonnement, toxicité et dangers analogues . 25
7 Classification . 25
8 Marquage et indications . 25
9 Protection contre l'accès aux parties actives. 26
10 Démarrage . 26
11 Puissance et courant . 26
12 Échauffements. 26
13 Résistance à la chaleur et au feu . 27
14 Résistance à l'humidité . 27
15 Protection contre la rouille . 27
16 Protection contre la surcharge des transformateurs et des circuits associés . 27
17 Endurance . 27
18 Fonctionnement anormal . 28
19 Dangers mécaniques . 28
20 Résistance mécanique . 29
21 Construction . 29
22 Conducteurs internes. 29
23 Composants . 29
24 Raccordement au réseau et câbles souples extérieurs . 29
25 Bornes pour conducteurs externes . 30
26 Dispositions de mise à la terre . 30
27 Vis et connexions . 30
28 Lignes de fuite, distances d'isolement et distances à travers l'isolation . 30
Annexes . 31
Annexe I (informative) Mesure des émissions acoustique et de vibration . 31
Annexe K (normative) Outils fonctionnant sur batteries et blocs de batteries . 34
Annexe L (normative) Outils fonctionnant sur batteries et blocs de batteries équipés
d'une connexion avec le réseau ou avec des sources non isolées. 36
Bibliographie . 37
Figure I.101 – Position du transducteur pour les pistolets de pulvérisation . 32
Tableau 4 – Niveaux de performance exigés . 28
Tableau I.101 – Conditions de fonctionnement pour les pistolets de pulvérisation . 33
COMMISSION ÉLECTROTECHNIQUE INTERNATIONALE
____________
OUTILS ÉLECTROPORTATIFS À MOTEUR, OUTILS PORTABLES
ET MACHINES POUR JARDINS ET PELOUSES –
SÉCURITÉ –
Partie 2-7: Exigences particulières pour les pistolets
de pulvérisation portatifs
AVANT-PROPOS
1) La Commission Électrotechnique Internationale (IEC) est une organisation mondiale de normalisation composée
de l'ensemble des comités électrotechniques nationaux (Comités nationaux de l'IEC). L'IEC a pour objet de
favoriser la coopération internationale pour toutes les questions de normalisation dans les domaines de
l'électricité et de l'électronique. À cet effet, l'IEC – entre autres activités – publie des Normes internationales,
des Spécifications techniques, des Rapports techniques, des Spécifications accessibles au public (PAS) et des
Guides (ci-après dénommés "Publication(s) de l'IEC"). Leur élaboration est confiée à des comités d'études, aux
travaux desquels tout Comité national intéressé par le sujet traité peut participer. Les organisations
internationales, gouvernementales et non gouvernementales, en liaison avec l'IEC, participent également aux
travaux. L'IEC collabore étroitement avec l'Organisation Internationale de Normalisation (ISO), selon des
conditions fixées par accord entre les deux organisations.
2) Les décisions ou accords officiels de l'IEC concernant les questions techniques r
...
