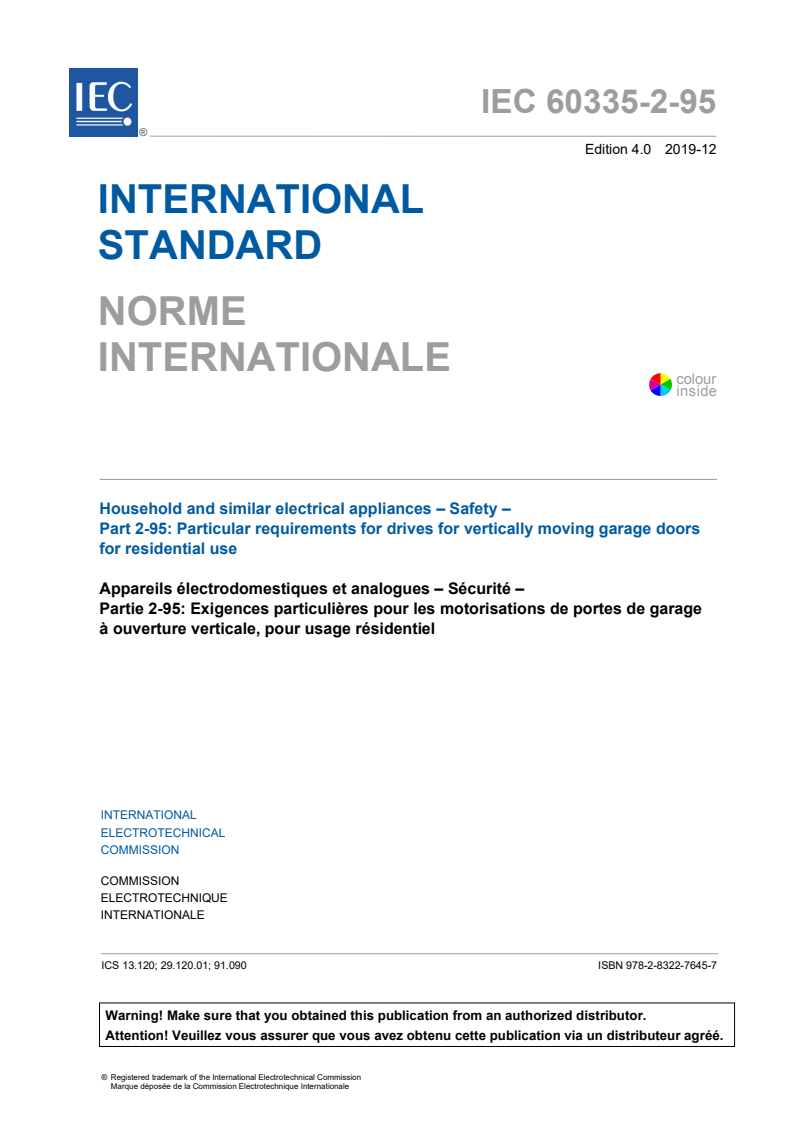

IEC 60335-2-95:2019

IEC 60335-2-95 ®
Edition 4.0 2019-12
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Household and similar electrical appliances – Safety –
Part 2-95: Particular requirements for drives for vertically moving garage doors
for residential use
Appareils électrodomestiques et analogues – Sécurité –
Partie 2-95: Exigences particulières pour les motorisations de portes de garage
à ouverture verticale, pour usage résidentiel

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform Electropedia - www.electropedia.org
The advanced search enables to find IEC publications by a The world's leading online dictionary on electrotechnology,
variety of criteria (reference number, text, technical containing more than 22 000 terminological entries in English
committee,…). It also gives information on projects, replaced and French, with equivalent terms in 16 additional languages.
and withdrawn publications. Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Glossary - std.iec.ch/glossary
details all new publications released. Available online and 67 000 electrotechnical terminology entries in English and
once a month by email. French extracted from the Terms and Definitions clause of
IEC publications issued since 2002. Some entries have been
IEC Customer Service Centre - webstore.iec.ch/csc collected from earlier publications of IEC TC 37, 77, 86 and
If you wish to give us your feedback on this publication or CISPR.

need further assistance, please contact the Customer Service

Centre: sales@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Recherche de publications IEC - Electropedia - www.electropedia.org
webstore.iec.ch/advsearchform Le premier dictionnaire d'électrotechnologie en ligne au
La recherche avancée permet de trouver des publications IEC monde, avec plus de 22 000 articles terminologiques en
en utilisant différents critères (numéro de référence, texte, anglais et en français, ainsi que les termes équivalents dans
comité d’études,…). Elle donne aussi des informations sur les 16 langues additionnelles. Egalement appelé Vocabulaire
projets et les publications remplacées ou retirées. Electrotechnique International (IEV) en ligne.

IEC Just Published - webstore.iec.ch/justpublished Glossaire IEC - std.iec.ch/glossary
Restez informé sur les nouvelles publications IEC. Just 67 000 entrées terminologiques électrotechniques, en anglais
Published détaille les nouvelles publications parues. et en français, extraites des articles Termes et Définitions des
Disponible en ligne et une fois par mois par email. publications IEC parues depuis 2002. Plus certaines entrées
antérieures extraites des publications des CE 37, 77, 86 et
Service Clients - webstore.iec.ch/csc CISPR de l'IEC.

Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.
IEC 60335-2-95 ®
Edition 4.0 2019-12
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Household and similar electrical appliances – Safety –

Part 2-95: Particular requirements for drives for vertically moving garage doors

for residential use
Appareils électrodomestiques et analogues – Sécurité –

Partie 2-95: Exigences particulières pour les motorisations de portes de garage

à ouverture verticale, pour usage résidentiel

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 13.120; 29.120.01; 91.090 ISBN 978-2-8322-7645-7

– 2 – IEC 60335-2-95:2019 © IEC 2019

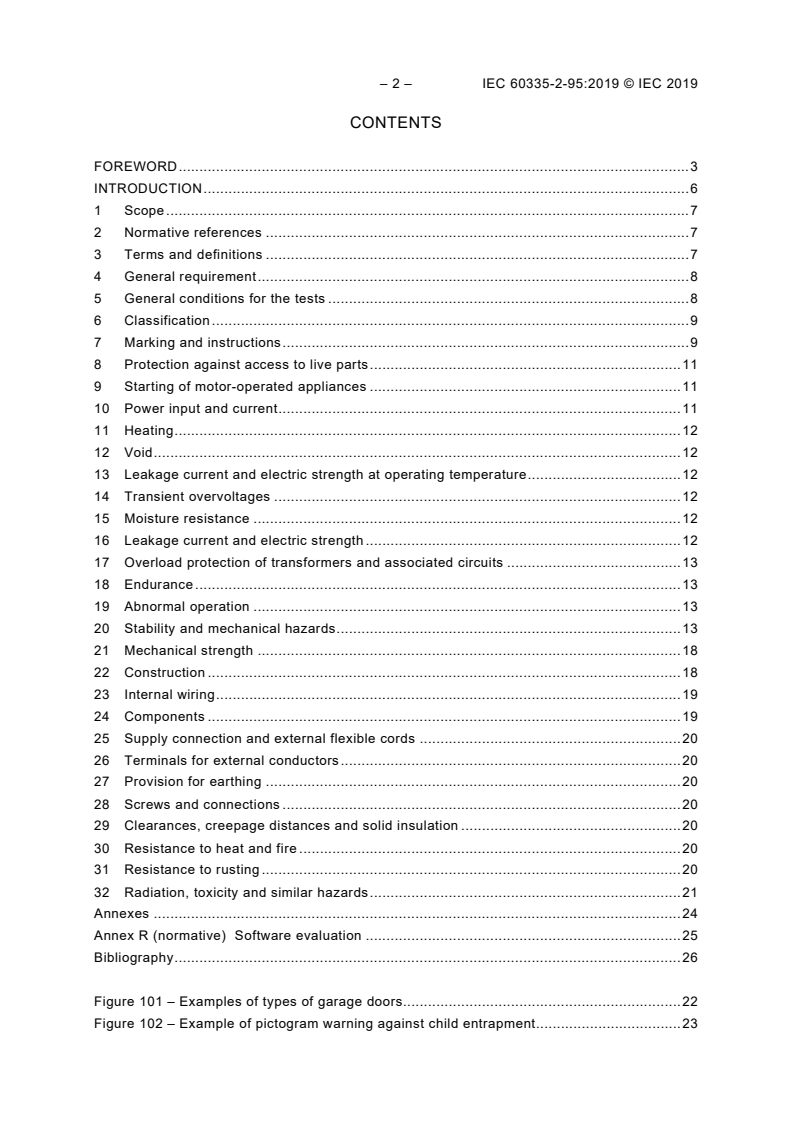

CONTENTS
FOREWORD . 3
INTRODUCTION . 6
1 Scope . 7
2 Normative references . 7
3 Terms and definitions . 7
4 General requirement . 8
5 General conditions for the tests . 8
6 Classification . 9
7 Marking and instructions . 9
8 Protection against access to live parts . 11
9 Starting of motor-operated appliances . 11
10 Power input and current . 11
11 Heating . 12
12 Void . 12
13 Leakage current and electric strength at operating temperature . 12
14 Transient overvoltages . 12
15 Moisture resistance . 12
16 Leakage current and electric strength . 12
17 Overload protection of transformers and associated circuits . 13
18 Endurance . 13
19 Abnormal operation . 13
20 Stability and mechanical hazards . 13
21 Mechanical strength . 18
22 Construction . 18
23 Internal wiring . 19
24 Components . 19
25 Supply connection and external flexible cords . 20
26 Terminals for external conductors . 20
27 Provision for earthing . 20
28 Screws and connections . 20
29 Clearances, creepage distances and solid insulation . 20
30 Resistance to heat and fire . 20
31 Resistance to rusting . 20
32 Radiation, toxicity and similar hazards . 21
Annexes . 24
Annex R (normative) Software evaluation . 25
Bibliography . 26

Figure 101 – Examples of types of garage doors. 22
Figure 102 – Example of pictogram warning against child entrapment . 23

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
HOUSEHOLD AND SIMILAR ELECTRICAL APPLIANCES –
SAFETY –
Part 2-95: Particular requirements for drives for vertically
moving garage doors for residential use

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 60335-2-95 has been prepared by IEC technical committee 61:
Safety of household and similar electrical appliances.
This fourth edition cancels and replaces the third edition published in 2011, Amendment 1:
2015 and Amendment 2:2017. This edition constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
a) the text has been aligned with edition 5.2 of Part 1;
b) reference to IEC 60335-2-97 and IEC 60335-2-103 has been revised to correctly state
their titles (Clause 1);
– 4 – IEC 60335-2-95:2019 © IEC 2019
c) specific instruction statements have been revised to separate them from information to be
provided (7.12);
d) the compliance criteria for the tests of 19.11.2 and 19.11.3 has been modified (19.13);
e) the tests for class III appliances and parts of class III constructions have been modified
(25.8, 25.15).
The text of this International Standard is based on the following documents:
FDIS Report on voting
61/5937/FDIS 61/5946/RVD
Full information on the voting for the approval of this International Standard can be found in
the report on voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
A list of all parts of the IEC 60335 series, under the general title: Household and similar
electrical appliances – Safety, can be found on the IEC website.
This part 2 is to be used in conjunction with the latest edition of IEC 60335-1 and its
amendments. It was established on the basis of the fifth edition (2010) of that standard.
NOTE 1 When “Part 1” is mentioned in this standard, it refers to IEC 60335-1.
This part 2 supplements or modifies the corresponding clauses in IEC 60335-1, so as to
convert that publication into the IEC standard: Safety requirements for drives for vertically
moving garage doors for residential use.
When a particular subclause of Part 1 is not mentioned in this part 2, that subclause applies
as far as is reasonable. When this standard states “addition”, “modification” or “replacement”,
the relevant text in Part 1 is to be adapted accordingly.
NOTE 2 The following numbering system is used:
– subclauses, tables and figures that are numbered starting from 101 are additional to those in Part 1;
– unless notes are in a new subclause or involve notes in Part 1, they are numbered starting from 101, including
those in a replaced clause or subclause;
– additional annexes are lettered AA, BB, etc.
NOTE 3 The following print types are used:
– requirements: in roman type;
– test specifications: in italic type;
– notes: in small roman type.
Words in bold in the text are defined in Clause 3. When a definition concerns an adjective, the adjective and the
associated noun are also in bold.
The committee has decided that the contents of the base publication and its amendments will
remain unchanged until the stability date indicated on the IEC web site under
"http://webstore.iec.ch" in the data related to the specific publication. At this date, the
publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
NOTE 4 The attention of National Committees is drawn to the fact that equipment manufacturers and testing
organizations may need a transitional period following publication of a new, amended or revised IEC publication in
which to make products in accordance with the new requirements and to equip themselves for conducting new or
revised tests.
It is the recommendation of the committee that the content of this publication be adopted for implementation
nationally not earlier than 12 months or later than 36 months from the date of publication.
The following differences exist in the countries indicated below.
– 6.1: Class 0I appliances are allowed (Japan).
– 7.1: Additional markings are required (USA).
– 7.12.1: Additional warnings and instructions are required (USA).
– 11.7: The test conditions are different (USA).
– 19.9: A running overload test is carried out (USA).
– 20.101: The test is not carried out (USA).

IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct
understanding of its contents. Users should therefore print this document using a
colour printer.
– 6 – IEC 60335-2-95:2019 © IEC 2019
INTRODUCTION
It has been assumed in the drafting of this International Standard that the execution of its
provisions is entrusted to appropriately qualified and experienced persons.
This standard recognizes the internationally accepted level of protection against hazards such
as electrical, mechanical, thermal, fire and radiation of appliances when operated as in
normal use taking into account the manufacturer's instructions. It also covers abnormal
situations that can be expected in practice and takes into account the way in which
electromagnetic phenomena can affect the safe operation of appliances.
This standard takes into account the requirements of IEC 60364 as far as possible so that
there is compatibility with the wiring rules when the appliance is connected to the supply
mains. However, national wiring rules may differ.
If an appliance within the scope of this standard also incorporates functions that are covered
by another part 2 of IEC 60335, the relevant part 2 is applied to each function separately, as
far as is reasonable. If applicable, the influence of one function on the other is taken into
account.
When a part 2 standard does not include additional requirements to cover hazards dealt with
in Part 1, Part 1 applies.
NOTE 1 This means that the technical committees responsible for the part 2 standards have determined that it is
not necessary to specify particular requirements for the appliance in question over and above the general
requirements.
This standard is a product family standard dealing with the safety of appliances and takes
precedence over horizontal and generic standards covering the same subject.
NOTE 2 Horizontal and generic standards covering a hazard are not applicable since they have been taken into
consideration when developing the general and particular requirements for the IEC 60335 series of standards. For
example, in the case of temperature requirements for surfaces on many appliances, generic standards, such as
ISO 13732-1 for hot surfaces, are not applicable in addition to Part 1 or part 2 standards.
An appliance that complies with the text of this standard will not necessarily be considered to
comply with the safety principles of the standard if, when examined and tested, it is found to
have other features that impair the level of safety covered by these requirements.
An appliance employing materials or having forms of construction differing from those detailed
in the requirements of this standard may be examined and tested according to the intent of
the requirements and, if found to be substantially equivalent, may be considered to comply
with the standard.
HOUSEHOLD AND SIMILAR ELECTRICAL APPLIANCES –
SAFETY –
Part 2-95: Particular requirements for drives for vertically
moving garage doors for residential use

1 Scope
This clause of Part 1 is replaced by the following.
This part of IEC 60335 deals with the safety of electric drives for garage doors for residential
use that open and close in a vertical direction, the rated voltage of the drives being not more
than 250 V for single-phase appliances and 480 V for other appliances. It also covers the
hazards associated with the movement of these electrically driven garage doors.
NOTE 101 Examples of garage doors are shown in Figure 101.
NOTE 102 The drive can be supplied with a garage door.
NOTE 103 This standard also applies to entrapment protection devices for use with drives. It does not cover
hazards related to the mechanisms of the door itself.
As far as is practicable, this standard deals with the common hazards presented by
appliances that are encountered by all persons in and around the home. However, in general,
it does not take into account playing with the appliance by young children, but recognizes that
children may be in the vicinity of the garage door.
NOTE 104 Attention is drawn to the fact that in many countries additional requirements are specified by the
national authorities responsible for the protection of labour and similar authorities.
NOTE 105 This standard does not apply to drives
– for shutters, awnings, blinds and similar equipment (IEC 60335-2-97);
– for gates, doors and windows (IEC 60335-2-103);
– for commercial and industrial purposes;
– intended to be used in locations where special conditions prevail, such as the presence of a corrosive or
explosive atmosphere (dust, vapour or gas).
2 Normative references
This clause of Part 1 is applicable except as follows.
Addition:
IEC 60068-2-52:2017, Environmental testing – Part 2-52: Tests – Test Kb: Salt mist, cyclic
(sodium chloride solution)
3 Terms and definitions
This clause of Part 1 is applicable except as follows.

– 8 – IEC 60335-2-95:2019 © IEC 2019
3.1 Definitions relating to physical characteristics
3.1.9 Replacement:
normal operation
operation of the drive under the following conditions:
Drives supplied without a door are operated with their rated load.
Drives supplied with a door are operated with the door installed in accordance with the
instructions.
3.1.101
rated load
force or torque assigned to the drive by the manufacturer
3.5 Definitions relating to types of appliances
3.5.101
drive
motor and other components that control the movement of the door
Note 1 to entry: Examples of components are gears, controls, brakes and entrapment protection systems.
3.5.102
automatic drive
drive that operates the door in at least one direction without intentional activation by the user
3.7 Definitions relating to safety components
3.7.101
biased-off switch
switch that automatically returns to the off position when its actuating member is released
3.7.102
entrapment protection system
part of the drive that protects against trapping which could result in the human body being
squeezed or crushed by the door
Note 1 to entry: Trapping in the garage is covered by the manual release of 20.109.
Note 2 to entry: An entrapment protection system may be incorporated in the motor assembly or may be
installed separately. It may consist of one or more devices, such as pressure sensitive edges, passive infrared,
active light sensing devices or a biased-off switch.
4 General requirement
This clause of Part 1 is applicable.
5 General conditions for the tests
This clause of Part 1 is applicable except as follows.
5.2 Addition:
When a test has to be carried out with a door, the door specified for installation with the drive
that gives the most unfavourable conditions for the test is used. An artificial load may be used
to simulate the door for some of the tests. The drive is adjusted in accordance with the
instructions.
5.5 Addition:
Wicket doors are kept closed during the tests.
6 Classification
This clause of Part 1 is applicable except as follows.
6.1 Modification:
Drives shall be class I, class II or class III.
6.2 Addition:
Drives intended to be exposed to outdoor conditions shall be at least IPX4.
7 Marking and instructions
This clause of Part 1 is applicable except as follows.
7.1 Modification:
Drives shall be marked with the rated power input.
Addition:
Drives supplied without a door shall be marked with the rated load in N or in Nm.
7.12 Addition:
The instructions shall state the substance of the following:
WARNING: Important safety instructions. It is important for the safety of persons to
follow all instructions. Save these instructions.
The instructions shall include the substance of the following:
– do not allow children to play with door controls. Keep remote controls away from children;
– watch the moving door and keep people away until the door is completely opened or
closed (not necessary for automatic drives);
– take care when operating the manual release since an open door may fall rapidly due to
weak or broken springs, or being out of balance;
– frequently examine the installation, in particular check cables, springs and mountings for
signs of wear, damage or imbalance. Do not use if repair or adjustment is needed since a
fault in the installation or an incorrectly balanced door may cause injury;
– each month check that the drive reverses when the door contacts a 40 mm high object
placed on the floor. Adjust if necessary and recheck since an incorrect adjustment may
present a hazard;
– disconnect the supply when cleaning or carrying out other maintenance.
The instructions shall include the following information:
– details on how to use the manual release;
– information concerning the adjustment of the door and drive (when applicable).

– 10 – IEC 60335-2-95:2019 © IEC 2019
Instructions for automatic drives shall state the substance of the following:
WARNING: Automatic door – The door may operate unexpectedly, therefore do not
allow anything to stay in the path of the door.
7.12.1 Addition:
The installation instructions shall state the substance of the following:
WARNING: Important safety instructions. Follow all instructions since incorrect
installation can lead to severe injury.
The installation instructions shall include details for the installation of the drive and its
associated components.
For drives supplied without a door, the installation instructions shall indicate the type, size
and mass of doors for which the drive is intended to be used.
The installation instructions shall include the substance of the following:
– before installing the drive, remove all unnecessary ropes or chains and disable any
equipment, such as locks, not needed for powered operation;
– before installing the drive, check that the door is in good mechanical condition, correctly
balanced and opens and closes properly;
– install the actuating member for the manual release at a height less than 1,8 m;
– install any fixed control at a height of at least 1,5 m and within sight of the door but away
from moving parts;
NOTE 101 It is not required to specify a minimum height for key-operated switches.
– permanently fix the labels warning against entrapment in a prominent place or near any
fixed controls;
– permanently fix the label concerning the manual release adjacent to its actuating member;
– after installation, ensure that the mechanism is properly adjusted and that the drive
reverses when the door contacts a 40 mm high object placed on the floor.
– the drive must not be used with a door incorporating a wicket door (unless the drive
cannot be operated with the wicket door open);
– after installation, ensure that parts of the door do not extend over public footpaths or
roads.
The instructions shall include necessary information for the safe handling of a drive weighing
more than 20 kg. This information shall describe how to use the handling means, such as
hooks and ropes.
7.15 Addition:
The markings shall also be provided with the instructions. In addition, the marking relevant to
name, trademark or identification mark, of the manufacturer or responsible vendor and the
model or type reference can also be retrieved from a label, such as a matrix barcode, visible
on the appliance after installation.
7.101 Drives shall be supplied with a label suitable for permanent fixing. For automatic
drives, the label shall state the substance of the following:
WARNING: Automatic drive – Keep away from the area of the door since it may operate
unexpectedly.
For other drives, the label shall include a warning sign having a height of at least 60 mm. The
label shall also include the substance of the following:
WARNING: Keep children away when the door is moving.
NOTE An example of a suitable warning sign is shown in Figure 102.
Compliance is checked by inspection and measurement.
7.102 Drives that use contact sensing as an entrapment protection system shall be
supplied with a label that states the substance of the following:
WARNING: Risk of entrapment – Regularly check and, if necessary, adjust to ensure
that, when the door contacts a 40 mm high object placed on the floor, the
door reverses or the object can be freed.
Compliance is checked by inspection.
7.103 Drives shall be supplied with a label suitable for permanent fixing that describes how
to use the manual release.
Compliance is checked by inspection.
7.104 If the drive is intended to be installed by the user, the packaging shall indicate the
type of door, including its size and mass, that the drive is intended to operate and, if
applicable, that the drive
– is intended to be installed at least 2,5 m above the floor or other access level;
– can be used with doors having openings greater than 50 mm in diameter;
– is intended for automatic operation.
Compliance is checked by inspection.
8 Protection against access to live parts
This clause of Part 1 is applicable except as follows.
8.2 Modification:
Basic insulation and parts separated from live parts by basic insulation may be touched
during adjustment, if a tool is needed to gain access to the adjustment means.
9 Starting of motor-operated appliances
This clause of Part 1 is not applicable.
10 Power input and current
This clause of Part 1 is applicable except as follows.
10.1 Modification:
Instead of determining the mean value, the maximum value of power input is determined, the
effect of inrush currents being ignored.

– 12 – IEC 60335-2-95:2019 © IEC 2019
10.2 Modification:
Instead of determining the mean value, the maximum value of the current is determined,
inrush currents being ignored.
11 Heating
This clause of Part 1 is applicable except as follows.
11.7 Replacement:
Drives for continuous operation are operated for consecutive cycles until steady conditions
are established.
Automatic drives are operated without rest periods for 3 cycles based on the maximum size
of door the drive is intended to operate or 4 min, whichever is longer.
Other drives are operated as follows:
– drives supplied without a door are operated without rest periods for a minimum of 2 min
unless the rated operating time is longer;
– drives supplied with a door are operated without rest periods for 3 cycles.
12 Void
13 Leakage current and electric strength at operating temperature
This clause of Part 1 is applicable.
14 Transient overvoltages
This clause of Part 1 is applicable.
15 Moisture resistance
This clause of Part 1 is applicable except as follows.
15.1.1 Addition:
Parts of drives intended to be exposed to outdoor conditions are subjected to the tests
specified for IPX4 appliances.
15.1.2 Addition:
IPX4 tubular drives are installed in a tube that is open at both ends and has the largest
diameter specified in the instructions. The tube has a length twice that of the motor and is
mounted on a support as in normal use. The support is rotated at a speed of 1 r/min.
16 Leakage current and electric strength
This clause of Part 1 is applicable.

17 Overload protection of transformers and associated circuits
This clause of Part 1 is applicable.
18 Endurance
This clause of Part 1 is not applicable.
19 Abnormal operation
This clause of Part 1 is applicable except as follows.
19.1 Addition:
Drives are also subjected to the test of 19.101.
19.9 Not applicable.
19.10 Addition:
For drives having a manual release, the test is repeated with the drive released.
The test is carried out for one cycle of operation if this is longer than 1 min.
19.13 Addition:
If for the tests in 19.11.2 and 19.11.3, the drive can be operated when any of the fault
conditions are simulated, the tests of 20.101 to 20.106 are carried out, the drive, however,
being supplied at rated voltage.
After each test it shall stop with the driven part in a safe position after a maximum of one
cycle of operation, or if the drive can still be operated normally it shall comply with the
requirements of 20.101 to 20.104.
19.101 Drives, other than those for continuous operation, are supplied at rated voltage and
operated continuously under normal operation.
20 Stability and mechanical hazards
This clause of Part 1 is applicable except as follows.
20.2 Addition:
Moving parts of drives intended to be installed at a height of at least 2,5 m above the ground
are considered to be positioned so that adequate protection is provided.
Addition:
Chains moving at less than 0,2 m/s are not considered to be dangerous moving parts.
20.101 Drives shall prevent doors from closing unexpectedly during normal use.
Compliance is checked by the following test.

– 14 – IEC 60335-2-95:2019 © IEC 2019
The drive is supplied at rated voltage but is not operated. It is loaded with 1,2 times the
rated load applied for 30 min. If the drive is supplied with a door, the load is applied to the
door and is equal to the highest force exerted by it. The highest force is determined with the
door in the most unfavourable position, the drive not being energized. Automatic operation of
automatic drives is rendered inoperative.
There shall be no movement except for removal of any play in the system.
The test is repeated with the drive supplied at 0,85 times rated voltage and with the supply
disconnected.
20.102 Drives controlled by a biased-off switch shall stop when the actuating member of
the switch is released.
Compliance is checked by the following test.
The drive is installed with a door and supplied at the most unfavourable voltage between
0,94 times and 1,06 times the rated voltage. It is operated to close the door. When the
actuating member of the switch is released,
– if the closing force exerted by the door does not exceeds 150 N, as measured in 20.104.1,
the bottom edge of the door shall stop;
– if the closing force exerted by the door exceeds 150 N, as measured in 20.104.1, the
bottom edge of the door shall stop before it has travelled more than 50 mm vertically.
The test is repeated during the opening movement of the door.
20.103 Drives incorporating an entrapment protection system with sensing devices which
prevent the door coming into contact with an obstacle shall not cause injury resulting from a
moving door.
Compliance is checked by the following test.
The drive is installed with a door, the force exerted by the drive is set at the maximum value
according to the instructions and the drive is supplied at the most unfavourable voltage
between 0,94 times and 1,06 times the rated voltage.
An obstacle having dimensions of approximately 80 mm × 300 mm and a height of 100 mm is
placed on the ground and centrally along its 300 mm length across the door opening. The
drive is operated to close the door from heights of 100 mm, 1 000 mm and the fully open
position of the door. The door shall not move or only move in the opening direction.
NOTE The obstacle is normally made of rough wood and painted white but other materials and colors can be used
to simulate the most unfavourable conditions.
The obstacle is positioned centrally in the door opening and is then raised in increments up to
300 mm from the height of the door, but not higher than 2,5 m. At each increment, the drive is
operated to close the door. The door shall stop within 50 mm or reverse its movement without
contacting the obstacle.
A cylindrical obstacle, having a diameter of 50 mm and a length of 850 mm, is suspended
centrally in the door opening. It is suspended vertically with the upper end at a height of
900 mm above the ground.
The drive is operated to close the door and the cylinder is swung across the door opening
from an angle of 45°. The entrapment protection system shall cause the door to reverse its
movement.
The test is repeated from the fully open position with the obstacle positioned at 100 mm from
each end of the door opening in turn.
During the tests, any biased-off switch is held closed.
20.104 Drives incorporating an entrapment protection system with sensing devices which
rely on the door contacting an obstacle shall not cause injury resulting from a moving door.
Compliance is checked by the test of 20.104.1. If the drive is an automatic drive, or a drive
that operates the driven part in at least one direction by a command that can be initiated via
a telecommunication or communication network, and for drives with a closing force exceeding
400 N, compliance is also checked by the test of 20.104.2 for a closing movement.
The drive is installed with a door, the force exerted by the drive is set at the maximum value
according to the instructions and the drive is supplied at the most unfavorable voltage
between 0,94 times and 1,06 times the rated voltage.
During the tests, any biased-off switch is held closed.
20.104.1 Any non-contact entrapment protection system is rendered inoperative.
The drive is operated to close the door from the fully open position and the entrapment
protection system shall limit the vertical component of the average closing force to
– 150 N during the first 5 s after the force has exceeded 25 N and
– 25 N thereafter;
or
– 400 N during the first 0,75 s after the force has exceeded 150 N,
– 150 N during a further period of 4,25 s and
– 25 N thereafter;
or
– 800 N during the first 2 s after the force has exceeded 150 N for doors that do not swing
outward,
– 600 N during the first 2 s after the force has exceeded 150 N for doors that swing outward,
– 150 N during a further period of 3 s and
– 25 N thereafter.
The force is measured by means of an instrument that incorporates a rigid plate having a
diameter of 80 mm and a spring having a ratio of 500 N/mm ± 50 N/mm. The spring acts on a
sensing element that is connected to an amplifier having a rise and fall time not exceeding
5 ms. The measuring instrument shall be accurate to within 5 %.
The force is measured on the bottom edge of the door at the following heights above the
ground:
– 50 mm;
– 300 mm;
– 500 mm;
– 2 500 mm, or 300 mm below the maximum opening height of the door if this is less than
2 800 mm.
At each height, the force is measured at the following locations:

– 16 – IEC 60335-2-95:2019 © IEC 2019
– in the centre of the bottom edge of the door;
– 200 mm from each end of the bottom edge of the door.
The test is carried out three times and the arithmetic average closing force is calculated for
each location.
NOTE The door can reverse its movement after contacting the obstacle.
20.104.2 An obstacle having dimensions of approximately 80 mm × 300 mm and a height of
100 mm is placed on the ground and centrally along its 300 mm length across the door
opening. The drive is operated to close the door from heights of 100 mm, 1 000 mm and the
fully open position of the door. The door shall not move or only move in the opening direction.
The test is repeated from the fully open position with the obstacle positioned at 100 mm from
each end of the door opening in turn.
A cylindrical obstacle, having a diameter of 50 mm and a length of 850 mm, is suspended
centrally in the door opening. It is suspended vertically with the upper end at a height of
900 mm above the ground.
The drive is operated to close the door and the cylinder is swung across the door opening
from an angle of 45°. The entrapment protection system shall cause the door to reverse its
movement.
20.105 Drives shall prevent entrapment in the opening direction.
Compliance is checked by the following test.
The force exerted by the drive is set at the maximum value according to the instructions. A
test piece having dimensions of approximately 200 mm × 300 mm, a height of 700 mm and a
mass of 20 kg ± 0,5 kg is fixed centrally to the outside of the door, with the 300 mm edge
adjacent to the bottom edge of the door.
The drive is supplied at the most unfavorable voltage between 0,94 times and 1,06 times the
rated voltage and operated to open the door. The movement of the door shall stop before the
test piece comes into contact with the lintel.
20.106 Entrapment protection systems shall provide an adequate level of protection in the
event of a failure within the system installation wiring.
Compliance is checked by the following test, unless the entrapment protection system is a
biased-off switch.
The drive is installed with a door and supplied at rated voltage. The drive is operated to
close the door. During the movement, a short circuit or open circuit is simulated in the system
installation wiring.
Unless the entrapment protection system continues to operate normally, the door shall stop
...
