IEC 60598-2-13:2006+AMD1:2011 CSV

IEC 60598-2-13 ®
Edition 1.1 2012-02
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Luminaires –
Part 2-13: Particular requirements – Ground recessed luminaires

Luminaires –
Partie 2-13: Règles particulières – Luminaires encastrés dans le sol

IEC 60598-2-13:2006+A1:2011
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,
please contact the address below or your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni
utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie et les
microfilms, sans l'accord écrit de la CEI ou du Comité national de la CEI du pays du demandeur.
Si vous avez des questions sur le copyright de la CEI ou si vous désirez obtenir des droits supplémentaires sur cette
publication, utilisez les coordonnées ci-après ou contactez le Comité national de la CEI de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

Useful links:
IEC publications search - www.iec.ch/searchpub Electropedia - www.electropedia.org
The advanced search enables you to find IEC publications The world's leading online dictionary of electronic and
by a variety of criteria (reference number, text, technical electrical terms containing more than 30 000 terms and
committee,…). definitions in English and French, with equivalent terms in
It also gives information on projects, replaced and additional languages. Also known as the International
withdrawn publications. Electrotechnical Vocabulary (IEV) on-line.

IEC Just Published - webstore.iec.ch/justpublished Customer Service Centre - webstore.iec.ch/csc
Stay up to date on all new IEC publications. Just Published If you wish to give us your feedback on this publication
details all new publications released. Available on-line and or need further assistance, please contact the
also once a month by email. Customer Service Centre: csc@iec.ch.

A propos de la CEI
La Commission Electrotechnique Internationale (CEI) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications CEI
Le contenu technique des publications de la CEI est constamment revu. Veuillez vous assurer que vous possédez
l’édition la plus récente, un corrigendum ou amendement peut avoir été publié.

Liens utiles:
Recherche de publications CEI - www.iec.ch/searchpub Electropedia - www.electropedia.org
La recherche avancée vous permet de trouver des Le premier dictionnaire en ligne au monde de termes
publications CEI en utilisant différents critères (numéro de électroniques et électriques. Il contient plus de 30 000
référence, texte, comité d’études,…). termes et définitions en anglais et en français, ainsi que
Elle donne aussi des informations sur les projets et les les termes équivalents dans les langues additionnelles.
publications remplacées ou retirées. Egalement appelé Vocabulaire Electrotechnique
International (VEI) en ligne.
Just Published CEI - webstore.iec.ch/justpublished
Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications de la CEI.
Just Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur
Disponible en ligne et aussi une fois par mois par email. cette publication ou si vous avez des questions
contactez-nous: csc@iec.ch.
IEC 60598-2-13 ®
Edition 1.1 2012-02
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Luminaires –
Part 2-13: Particular requirements – Ground recessed luminaires

Luminaires –
Partie 2-13: Règles particulières – Luminaires encastrés dans le sol

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX CD
ICS 29.140.40 ISBN 978-2-88912-883-9

– 2 – 60598-2-13  IEC:2006+A1:2011

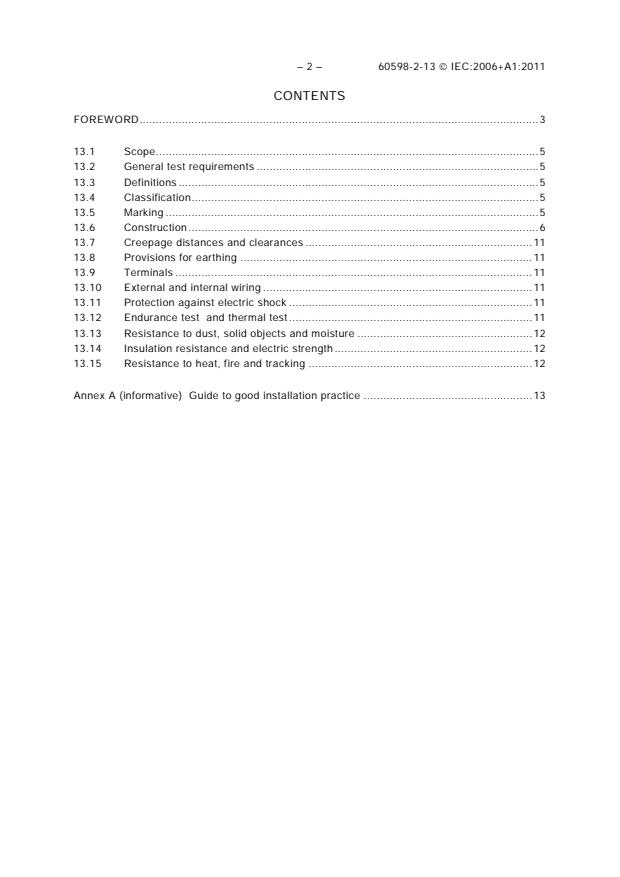

CONTENTS
FOREWORD . 3

13.1 Scope . 5
13.2 General test requirements . 5
13.3 Definitions . 5
13.4 Classification . 5
13.5 Marking . 5
13.6 Construction . 6
13.7 Creepage distances and clearances . 11
13.8 Provisions for earthing . 11
13.9 Terminals . 11
13.10 External and internal wiring . 11
13.11 Protection against electric shock . 11
13.12 Endurance test and thermal test . 11
13.13 Resistance to dust, solid objects and moisture . 12
13.14 Insulation resistance and electric strength . 12
13.15 Resistance to heat, fire and tracking . 12

Annex A (informative) Guide to good installation practice . 13

60598-2-13  IEC:2006+A1:2011 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
LUMINAIRES –
Part 2-13: Particular requirements –
Ground recessed luminaires
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.

This consolidated version of IEC 60598-2-13 consists of the first edition (2006)
[documents 34D/856/FDIS and 34D/860/RVD] and its amendment 1 (2011) [documents
34D/1009/CDV and 34D/1041/RVC]. It bears the edition number 1.1.
The technical content is therefore identical to the base edition and its amendment and
has been prepared for user convenience. A vertical line in the margin shows where the
base publication has been modified by amendment 1. Additions and deletions are
displayed in red, with deletions being struck through.

– 4 – 60598-2-13  IEC:2006+A1:2011
International Standard IEC 60598-2-13 has been prepared by subcommittee 34D: Luminaires,
of IEC technical committee 34:Lamps and related equipment.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
This publication is intended to be read in conjunction with IEC 60598-1: Luminaires − Part 1:
General requirements and tests. It was established on the basis of the sixth edition of that
standard.
Part 2 of IEC 60598 consists of the following parts under the general title Luminaires –
Part 2: Particular requirements:
Part 2-1: Fixed general purpose luminaires
Part 2-2: Recessed luminaires
Part 2-3: Luminaires for road and street lighting
Part 2-4: Portable general purpose luminaires
Part 2-5: Floodlights
Part 2-6: Luminaires with built-in transformers for filament lamps
Part 2-7: Portable luminaires for garden use
Part 2-8: Handlamps
Part 2-9: Photo and film luminaires (non-professional)
Part 2-10: Portable luminaires for children
Part 2-11: Aquarium luminaires
Part 2-13: Ground recessed luminaires
Part 2-17: Luminaires for stage lighting, television and film studios (outdoor and indoor)
Part 2-18: Luminaires for swimming pools and similar applications
Part 2-19: Air-handling luminaires (safety requirements)
Part 2-20: Lighting chains
Part 2-22: Luminaires for emergency lighting
Part 2-23: Extra low voltage lighting systems for filament lamps
Part 2-24: Luminaires with limited surface temperatures
Part 2-25: Luminaires for use in clinical areas of hospitals and health care buildings
The committee has decided that the contents of the base publication and its amendments will
remain unchanged until the stability date indicated on the IEC web site under
"http://webstore.iec.ch" in the data related to the specific publication. At this date, the
publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IMPORTANT – The “colour inside” logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct understanding
of its contents. Users should therefore print this publication using a colour printer.
___________
Other parts are under consideration.

60598-2-13  IEC:2006+A1:2011 – 5 –
LUMINAIRES –
Part 2-13: Particular requirements –
Ground recessed luminaires
13.1 Scope
This Part 2 of IEC 60598 specifies requirements for ground recessed luminaires incorporating
electric light sources for operation from supply voltages up to 1 000 V, for indoor or outdoor
use, e.g. in gardens, yards, carriageways, parking lots, cycleways, footways, pedestrian
areas, swimming pools areas outside zones for SELV, nurseries and similar applications.
This part does not cover ground recessed luminaires for motorised roads and for airfields
.
already specified in IEC 61827
13.1.1 Normative references
The references of Section 0 of IEC 60598-1 apply.
13.2 General test requirements
The provisions of Section 0 of IEC 60598-1 apply.
13.3 Definitions
The definitions of Section 1 of IEC 60598-1 apply together with the following:
13.3.1
ground recessed luminaire
luminaire suitable to be installed in the ground, having the supply connections and electrical
components located below ground level
13.3.2
rated maximum surface temperature
T
the highest temperature on the accessible outer surface, under normal operating conditions
according to 13.12
13.4 Classification
Luminaires shall be classified in accordance with Section 2 of IEC 60598-1.
13.5 Marking
The provisions of Section 3 of IEC 60598-1 apply together with the requirements of 13.5.1 to
13.5.3
13.5.1 Rated load in N, according to 13.6.1 (in the manufacturer’s instructions).
___________
IEC 61827: Electrical installation and beaconing of aerodromes – Characteristics of inset and elevated
luminaires used in aerodromes.

– 6 – 60598-2-13  IEC:2006+A1:2011
13.5.2 Rated maximum surface temperature T in °C; T marking to be given on the luminaire
according to second column (B) of Table 3.1 of IEC 60598-1 and/or in the manufacturer’s
instructions and catalogues.
13.5.3 Information, in the manufacturer’s instructions, concerning the external connecting
box, if necessary.
Compliance is checked by inspection.
13.6 Construction
The provisions of Section 4 of IEC 60598-1apply together with the requirements of 13.6.1 to
13.6.5
NOTE More samples could be necessary to perform all the tests, some of them possibly being destroyed.
13.6.1 Resistance to static load
Luminaires shall withstand the minimum static load according to the manufacturer’s
instructions.
Compliance is checked by the following test:
The sample is mounted as in normal use, in accordance with the manufacturer’s
instructions.The test load, to be maintained with a tolerance of ±3 %, shall be applied to the
top side of the luminaire by a cylindrical rubber punch having the following characteristics:
– diameter = 50 mm, or luminaire diameter D (see Figure 1) if smaller than 50 mm;
– hardness “shore A“ = 65 ± 5;
– thickness ≅ 50 mm
The test load, to be maintained with a tolerance of ± 3 %, shall be applied to the top side of
the luminaire by a cylindrical steel punch equipped with a sheet of rubber in contact to the
luminaire.
The punch shall have a diameter of 50 mm, or luminaire diameter D (see Figure 1) if smaller
than 50 mm.
The thickness of the steel punch shall be 50 mm.
The rubber shall have the following characteristics:
– hardness “shore A“(the hardness measured with the durometer type A) = 65 ± 5;
– thickness = 10 mm.
It shall be set in such a way that, during the test, the vertical axis is perpendicular and
coincides with the geometrical centre of the translucent cover (see Figure 2).
The load shall then be applied uniformly by the rubber punch, at a rate not greater than
5 000 N/min. The maximum load shall be applied for 1 min.
After the test the sample shall comply with the conformity requirements of IEC 60598-1,
Subclause 4.13.1 (i.e.: as applied following the mechanical impact test).

60598-2-13  IEC:2006+A1:2011 – 7 –

Luminaire
3 mm
α = 35°
max
H
Vertex
D IEC  1022/06
Figure 1 – Basic dimensions quoted in Annex A

∅50 mm
≅50 mm
Rubber punch
Luminaire
Testing support Testing support
D IEC  1023/06
– 8 – 60598-2-13  IEC:2006+A1:2011

∅50 mm
Steel punch
Sheet of rubber
Luminaire
Testing support Testing support
D
IEC  2583/11
Figure 2 – Static load test apparatus

10 mm ≅50 mm
60598-2-13  IEC:2006+A1:2011 – 9 –
13.6.2 Resistance to torque and shear loads
Luminaires designed to be used in areas where motor vehicles may circulate, carriageways,
parking areas, etc. (see items 3 and 4 in Table A.1) shall withstand the forces exerted by a
turning, braking or accelerating tire.
Compliance is checked by the tests of 13.6.2.1 and 13.6.2.2
13.6.2.1 Torque test
Parts of luminaire that may be subjected to rotational force shall have adequate mechanical
strength. The joints between these parts shall be subject to a 50 N torque force for one
minute (see Figure 3). Each joint shall be tested separatly.
After the test, the sample shall comply with the conformity requirements of IEC 60598-1,
Subclause 4.13.1 (i.e. as applied following mechanical impact test)
NOTE The test is intended to check both the components fixing and the luminaire to ground fixing.

50 N
1 m
Push force applied to bar = 50 N/60 s (example)
IEC  1024/06
Figure 3 – Illustration of torque test

– 10 – 60598-2-13  IEC:2006+A1:2011
13.6.2.2 Shear load test
With the same test arrangement of 13.6.2.1, a pull force of 5 kN shall be applied to the same
parts progressively for not less than 5 s but not more than 10 s and released lengthwise to the
end of the bar for 20 times (see Figure 4) in the direction of the carraigeway centreline
intended for the installation of the luminaire, if any.
After the test the sample shall comply with the conformity requirements of IEC 60598-1,
Subclause 4.13.1 (i.e. as applied following mechanical impact test).

5 kN
A) Glass
B) Ring
C) Main part
D) Ground
Pull force applied to bar = 5 kN/20 times
IEC  1025/06
Figure 4 – Illustration of shear load test
13.6.3 Resistance to thermal shock
Glass covers shall be resistant to the effect of thermal shock.
Compliance is checked by the following test:
The luminaire and glass cover shall be preconditioned by the thermal endurance test given in
13.12 of this standard.
The luminaire shall be positioned such that as far as possible its cover glass is horizontal and
facing upwards. The luminaire is operated until the maximum glass cover temperature
measured during thermal test is attained. The luminaire is then switched off and disconnected
from the electrical supply. Immediately following the electrical disconnection, 1 litre of iced
water (maximum 5°C) shall be poured from a height of approximately 1 m onto the glass
cover. The time taken to pour the water shall not exceed 5 s.
NOTE This test can result in violent shattering of glass. Appropriate safety precautions should be taken to protect
persons performing this test and the surrounding environment. For example: wear protective clothing and face
visor, erect screens around the test luminaire to protect surrounding area and test personnel, use a long handle
flask to pour water from distance.
Compliance is checked by visual inspection and the glass shall not be broken.

60598-2-13  IEC:2006+A1:2011 – 11 –
13.6.4 Edges
All accessible edges shall be rounded to not less than 1,5 mm radius or equivalent
chamfering.
Surfaces of the top assembly shall be smooth and free from burrs, flashes and the like.
Compliance is checked by inspection.
13.6.5 Mechanical strength
The provisions of 4.13 of IEC 60598-1 apply with a new impact energy of 5 Nm.
13.7 Creepage distances and clearances
The provisions of Section 11 of IEC 60598-1 apply.
13.8 Provisions for earthing
The provisions of Section 7 of IEC 60598-1 apply
13.9 Terminals
The provisions of Sections 14 and 15 of IEC 60598-1 apply.
NOTE In Denmark it is only allowed to bury flexible cables in the ground in temporary installations and
construction site installations.
13.10 External and internal wiring
The provisions of Section 5 of IEC 60598-1 apply together with the following:
For outdoor use, the cables for the connection to the supply, when provided by the luminaire
manufacturer, shall be at least equal to the mechanical and electrical characteristics of the
following types:
– 60245 IEC 57 or 60245 IEC 66: rubber insulated flexible cables with circular conductors
and rated voltage not exceeding 750V.
– other rubber sheathed cables 450/750 V according to regional Wiring Rules (e.g. H07RN8-
F, etc.)
Compliance is checked by inspection and by fitting the proper cable into the luminaire.
13.11 Protection against electric shock
The provisions of Section 8 of IEC 60598-1 apply.
13.12 Endurance test and thermal test
The provisions of Section 12 and Annex D of IEC 60598-1 apply together with the following:
Ground recessed luminaires shall be subjected to the relevant tests of 12.4, 12.5, 12.6 and
12.7 of IEC 60598-1 after the test(s) of 9.2 but before the test(s) of 9.3 of Section 9 of
IEC 60598-1 specified in 13.13

– 12 – 60598-2-13  IEC:2006+A1:2011
For the tests of 12.3, 12.4, 12.5, 12.6 and 12.7 of IEC 60598-1, the luminaire is mounted in
normal operating position and supplied according to IEC 60598-1 in a test recess base,
according to Annex D of IEC 60598-1 for all applications; or for limited applications in
accordance with the manufacturer’s instructions.
For the tests of 12.4 and 12.5 the following applies:
If the light emitting surface is covered by a metal ribbing or grid, the temperature
measurements shall be made on the translucent parts, if accessible to standard test finger; if
not, on the external covering part.
By measurement, the temperatures of translucent covers and accessible metal parts shall not
exceed the marked value according to 13.5.2
13.13 Resistance to dust, solid objects and moisture
The provisions of Section 9 of IEC 60598-1 apply, together with the following:
The order of the tests specified in Section 9 of IEC 60598-1 shall be replaced by the order
given in 13.12
Luminaires shall meet at least both IP65 and IP67 requirements.
The tests shall be made with the luminaire in free air or mounted in accordance with the
manufacturer’s instructions.
For IP X5, the luminaire shall be placed on jet test apparatus complete with the mounting
accessories (e.g. outer casing) or following the manufacturer’s instructions, according to 9.2.6
of IEC 60598-1,
For IPX7, the luminaire shall be mounted as in normal use and operated until the maximum
glass cover temperature measured during the thermal test is attained; then the luminaire shall
be switched off and immediately immersed in water, according to 9.2.8 of IEC 60598-1. This
test is not required if the manufacturer gives the clear indication that the luminaire is to be
mounted in conjunction with drainage, then the luminaire has only to meet IP65,
For IP6X, the luminaire shall be placed in the dust chamber with the mounting accessories
and the cable in place according to 9.2.2 of IEC 60598-1m
NOTE Facilities intended to prevent excessive internal pressure are allowed, provided that the luminaire has
complied with the IP67 test.
Compliance is checked by inspection.
13.14 Insulation resistance and electric strength
The provisions of Section 10 of IEC 60598-1 apply.
13.15 Resistance to heat, fire and tracking
The provisions of Section 13 of IEC 60598-1 apply.

60598-2-13  IEC:2006+A1:2011 – 13 –
Annex A
(informative)
Guide to good installation practice

This guide is intended to advise lighting system designers on specific luminaire applications,
particularly regarding temperature limits, dimensions and resistance to static loads.
For all the choices regarding the modes of installation, preference has to be given to the
National Wiring Rules.
Table A.1 –Speci
...
