NORME CEI
INTERNATIONALE IEC
60264-5-1
INTERNATIONAL
STANDARD
AMENDEMENT 1
AMENDMENT 1
2003-08
Amendement 1
Conditionnement des fils de bobinage –
Partie 5-1:
Bobines de livraison à fût de forme cylindrique
avec les joues coniques –
Dimensions de base
Amendment 1
Packaging of winding wires –
Part 5-1:
Cylindrical barrelled delivery spools
with conical flanges–
Basic dimensions
IEC 2003 Droits de reproduction réservés Copyright - all rights reserved
International Electrotechnical Commission, 3, rue de Varembé, PO Box 131, CH-1211 Geneva 20, Switzerland
Telephone: +41 22 919 02 11 Telefax: +41 22 919 03 00 E-mail: inmail@iec.ch Web: www.iec.ch
CODE PRIX
C
Commission Electrotechnique Internationale
PRICE CODE
International Electrotechnical Commission
Международная Электротехническая Комиссия
Pour prix, voir catalogue en vigueur
For price, see current catalogue
– 2 – 60264-5-1 Amend. 1 CEI:2003
AVANT-PROPOS
Le présent amendement a été établi par le comité d'études 55 de la CEI: Fils de bobinage.
Le texte de cet amendement est issu des documents suivants:
FDIS Rapport de vote
55/838/FDIS 55/864/RVD
Le rapport de vote indiqué dans le tableau ci-dessus donne toute information sur le vote ayant
abouti à l'approbation de cet amendement.
Le comité a décidé que le contenu de la publication de base et de ses amendements ne sera
pas modifié avant 2007. A cette date, la publication sera
• reconduite;
• supprimée;
• remplacée par une édition révisée, ou
• amendée.
_____________
Page 6

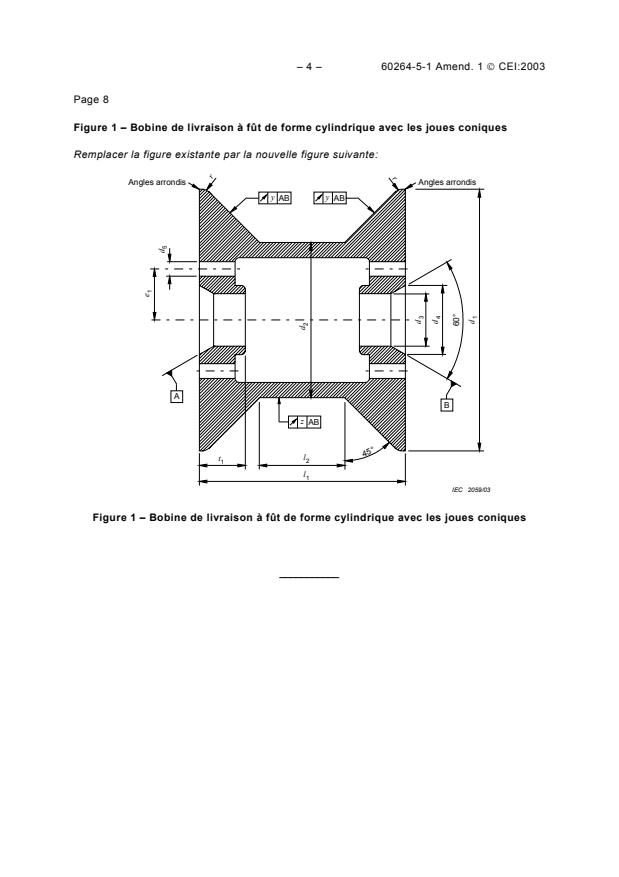

Tableau 1 – Dimensions
Remplacer le tableau existant par le nouveau tableau suivant:
Dimensions
mm
Type de
bobine d l t
3 2 1
d d d d l e yz
1 2 4 5 1 1
min
Nominale Tolérance Nominale Tolérance
100 100 56 16 +0,20 - 7 100 49 +0,5 22 20 0,2 0,2
125 125 71 16 +0,20 24 7 125 65 +0,6 25 20 0,3 0,2
160 160 90 22 +0,20 34 13 160 85 +0,7 28 32 0,3 0,2
200 200 112 22 +0,20 34 13 200 106 +0,8 32 32 0,4 0,25
250 250 140 22 +0,20 34 13 250 133 +0,8 36 32 0,5 0,3
60264-5-1 Amend. 1 IEC:2003 – 3 –
FOREWOR
...
