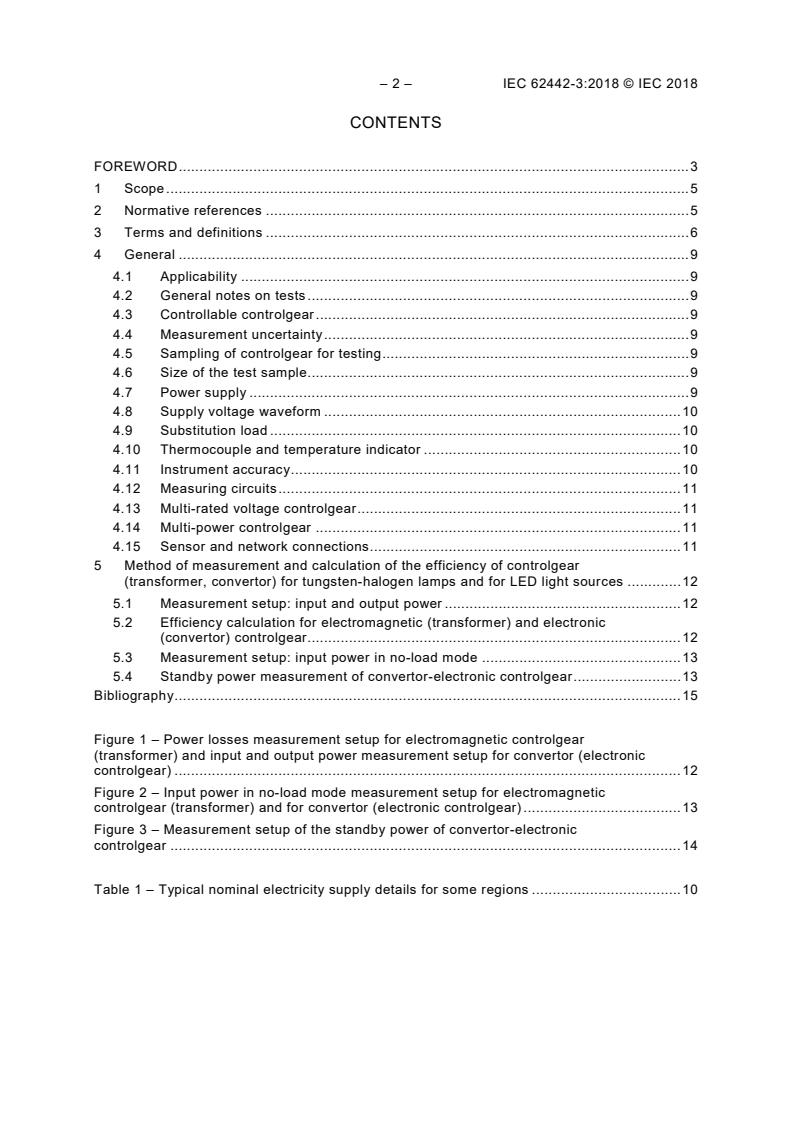

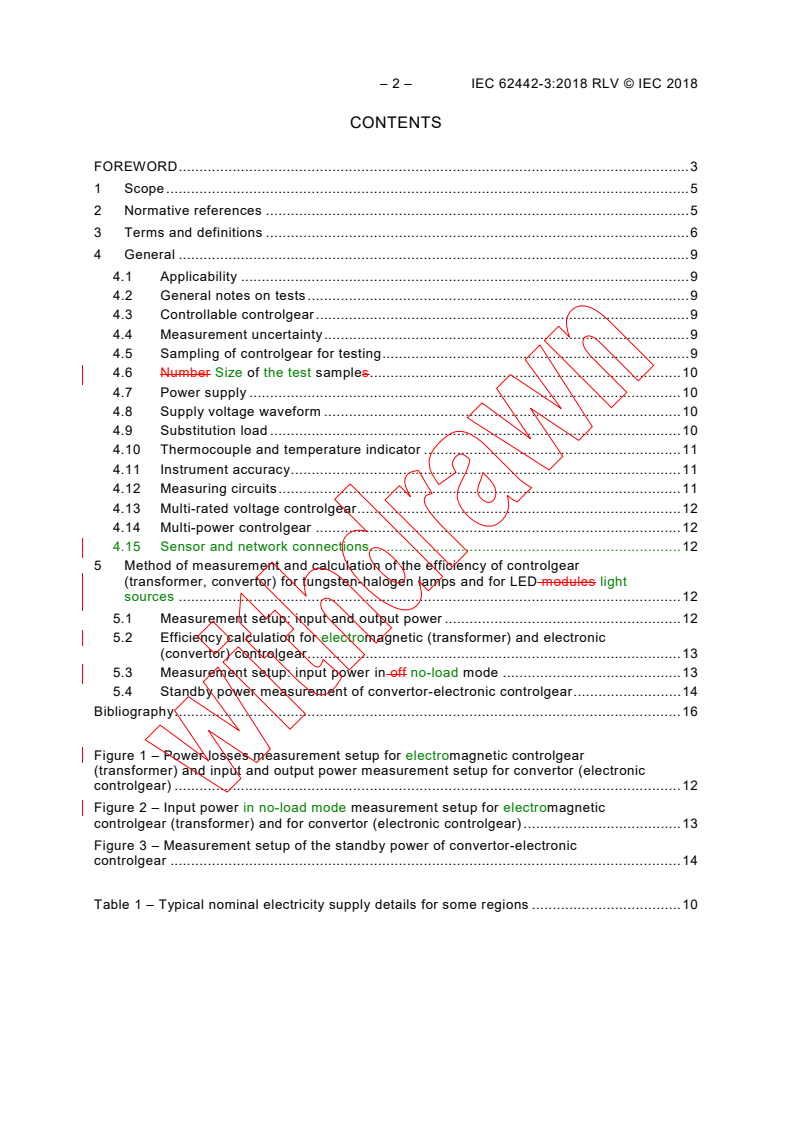

CONTENTS
FOREWORD . 3
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 6
4 General . 9
4.1 Applicability . 9
4.2 General notes on tests . 9
4.3 Controllable controlgear . 9
4.4 Measurement uncertainty . 9
4.5 Sampling of controlgear for testing . 9
4.6 Size of the test sample. 9
4.7 Power supply . 9
4.8 Supply voltage waveform . 10
4.9 Substitution load . 10
4.10 Thermocouple and temperature indicator . 10
4.11 Instrument accuracy . 10
4.12 Measuring circuits . 11
4.13 Multi-rated voltage controlgear . 11
4.14 Multi-power controlgear . 11
4.15 Sensor and network connections . 11
5 Method of measurement and calculation of the efficiency of controlgear
(transformer, convertor) for tungsten-halogen lamps and for LED light sources . 12
5.1 Measurement setup: input and output power . 12
5.2 Efficiency calculation for electromagnetic (transformer) and electronic
(convertor) controlgear. 12
5.3 Measurement setup: input power in no-load mode . 13
5.4 Standby power measurement of convertor-electronic controlgear . 13
Bibliography . 15

Figure 1 – Power losses measurement setup for electromagnetic controlgear
(transformer) and input and output power measurement setup for convertor (electronic
controlgear) . 12
Figure 2 – Input power in no-load mode measurement setup for electromagnetic
controlgear (transformer) and for convertor (electronic controlgear) . 13
Figure 3 – Measurement setup of the standby power of convertor-electronic
controlgear . 14

Table 1 – Typical nominal electricity supply details for some regions . 10

EC 62442-3:2018 © IEC 2018 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
ENERGY PERFORMANCE OF LAMP CONTROLGEAR –

Part 3: Controlgear for tungsten-halogen lamps and LED light sources –
Method of measurement to determine the efficiency of controlgear

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 62442-3 has been prepared by subcommittee 34C: Auxiliaries for
lamps, of IEC technical committee 34: Lamps and related equipment.
This second edition cancels and replaces the first edition published in 2014. This edition
constitutes a technical revision and has been harmonized with IEC 62442-1 and IEC 62442-2.
The text of this International Standard is based on the following documents:
CDV Report on voting
34C/1344/CDV 34C/1378/RVC
Full information on the voting for the approval of this International Standard can be found in
the report on voting indicated in the above table.

– 4 – IEC 62442-3:2018 © IEC 2018
This document has been drafted in accordance with the ISO/IEC Directives, Part 2.
A list of all parts in the IEC 62442 series, published under the general title Energy
performance of lamp controlgear, can be found on the IEC website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to
the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
EC 62442-3:2018 © IEC 2018 – 5 –
ENERGY PERFORMANCE OF LAMP CONTROLGEAR –

Part 3: Controlgear for tungsten-halogen lamps and LED light sources –
Method of measurement to determine the efficiency of controlgear

1 Scope
This part of IEC 62442 defines a measurement method for the power losses of
electromagnetic transformers as well as the power losses and the standby power of electronic
convertors for tungsten-halogen lamps and for LED light source(s).
It is applicable for controlgear that are designed for use on DC supplies up to 1 000 V and/or
AC supplies up to 1 000 V at 50 Hz or 60 Hz.
A calculation method of the efficiency of the mentioned controlgear for tungsten-halogen
lamps and LED light source(s) is also defined.
This document applies to electrical controlgear-lamp circuits comprised solely of the
controlgear and of the lamp(s) (LED light sources).
For multipurpose power supplies only the lighting part will be considered.
NOTE Requirements for testing individual controlgear during production are not included.
This document specifies the measurement method for the total input power, the standby
power and the calculation method of the controlgear efficiency for all controlgear sold for
domestic and normal commercial purposes operating with tungsten-halogen lamps and LED
light source(s). The term "LED light sources" includes LED modules and LED lamps.
This document does not apply to:
– controlgear which form an integral part of lamps (LED light sources);
– controlgear circuits with capacitors connected in series;
– controllable electromagnetic controlgear.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their
content constitutes requirements of this document. For dated references, only the edition
cited applies. For undated references, the latest edition of the referenced document (including
any amendments) applies.
IEC 61047:2004, DC or AC supplied electronic step-down convertors for filament lamps –
Performance requirements
IEC 61347-1:2015, Lamp controlgear – Part 1: General and safety requirements
IEC 61347-2-2, Lamp controlgear – Part 2-2: Particular requirements for DC or AC supplied
electronic step-down convertors for filament lamps
IEC 61347-2-13, Lamp controlgear – Part 2-13: Particular requirements for DC or AC supplied
electronic controlgear for LED modules

– 6 – IEC 62442-3:2018 © IEC 2018
IEC 61558-1, Safety of transformers, reactors, power supply units and combinations thereof –
Part 1: General requirements and tests
IEC 61558-2-6, Safety of transformers, reactors, power supply units and similar products for
supply voltages up to 1 100 V – Part 2-6: Particular requirements and tests for safety isolating
transformers and power supply units incorporating safety isolating transformers
IEC 62301:2011, Household electrical appliances – Measurement of standby power
IEC Guide 115:2007, Application of uncertainty of measurement to conformity assessment
activities in the electrotechnical sector
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminological databases for use in standardization at the following
addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
3.1
nominal value
suitable approximate quantity value used to designate or identify a component, device or
equipment
[SOURCE: IEC 62442-1:2018, 3.1]
3.2
rated value
quantity value for specified operating conditions of a component, device or equipment
Note 1 to entry: The value and conditions are specified in the relevant standard or assigned by the manufacturer
or responsible vendor.
[SOURCE: IEC 62442-1:2018, 3.3, modified – Note 2 has been deleted.]
3.3
controlgear
one or more components between supply and one or more lamps (LED light source(s)) which
may serve to transform the supply voltage, limit the current of the lamp(s) (LED light
source(s)) to the required value, the correct power factor or reduce radio interference
[SOURCE: IEC 62442-1:2018, 3.4 modified – “provide starting voltage and preheating
current, prevent cold starting” has been deleted and "(LED light source(s))" has been added.]
3.4
electromagnetic controlgear
magnetic controlgear
controlgear which, by means of inductance, or a combination of inductance and capacitance,
serves mainly to limit the current of lamp(s) (LED light source(s)) to the required value and
operates the lamp(s) at the same frequency as the supply frequency
[SOURCE: IEC 62442-1:2018, 3.5, modified – "(LED light source(s))" has been added.]

EC 62442-3:2018 © IEC 2018 – 7 –
3.5
electromagnetic transformer
magnetic transformer
transformer
electromagnetic controlgear which transform the supply voltage to operate lamp(s) (LED light
source(s)) with the same frequency as the supply frequency at the lamps (light sources) rated
voltage
3.6
electronic controlgear
AC and/or DC supplied electronic circuit including
stabilizing elements for operating one or more filament lamp(s) or one or more LED light
sources
3.7
electronic step-down convertor
convertor
unit inserted between the supply and one or more tungsten-halogen or other filament lamps
which serves to supply the lamp(s) with its (their) rated voltage, generally at high frequency
Note 1 to entry: The unit may consist of one or more separate components and may include means for dimming,
correcting the power factor and suppressing radio interference.
[SOURCE: IEC 61347-2-2:2011, 3.1, modified – Additional information has been transferred
to a note to entry.]
3.8
controlgear for LED light sources

3.8.1
electronic controlgear for LED light sources
convertor
unit inserted between the supply and one or more LED light sources which serves to supply
the LED light source(s) with its (their) rated voltage or rated current
Note 1 to entry: The unit may consist of one or more separate components and may include means for dimming,
correcting the power factor and suppressing radio interference, and further control functions
Note 2 to entry: The controlgear consists of a power supply and a control unit.
Note 3 to entry: The controlgear may be partly or totally integrated in the LED module.
Note 4 to entry: When there is no risk of confusion, as in a LED standard for example, “controlgear” may also be
used. Both terms “controlgear” or “control gear” are acceptable.
[SOURCE: IEC 61347-2-13:2014, 3.1, modified – “LED modules” has been replaced with
“LED light sources” and Note 4 has been added.]
3.8.2
power supply of the controlgear
electronic device, being part of the controlgear, capable of controlling current, voltage or
power within design limits and containing no additional LED control capabilities
Note 1 to entry: For LEDsi modules, the power supply of the controlgear is separate from the LED module on a
distant location.
Note 2 to entry: The energy source of a power supply can be either a battery or the electrical supply system.

– 8 – IEC 62442-3:2018 © IEC 2018
3.8.3
control unit of the controlgear
electronic device, being part of the controlgear, responsible for controlling the electrical
energy to the LED light sources as well as colour mixing, response to depreciating luminous
flux and further performance features
Note 1 to entry: In LEDsi modules, the control unit of the controlgear is on board the LED module and separate
from the power supply of the controlgear.
3.9
controlgear-light source circuit
electrical circuit, or part thereof, normally built in a luminaire, consisting of the controlgear
and light source(s)
[SOURCE: IEC 62442-1:2018, 3.8, modified – "lamp" has been replaced with "light source".]
3.10
standby power
average power consumption of a controlgear when subjected to standby mode
Note 1 to entry: Power supplied by controlgear to sensors, network connections and other auxiliaries is not
included in the standby power.
Note 2 to entry: Standby power is expressed in W.
3.11
standby mode
mode of the controlgear, in which the light source is switched off by a control signal, while the
controlgear remains connected to the mains supply not including failed lamp(s) or light
source(s)
Note 1 to entry: Failed light source(s) could lead to incorrect measurements.
3.12
no-load mode
mode relevant for those controlgear which are permanently connected to the mains, where the
lamp(s) or light source(s) are switched off via a switch on the output circuit of the controlgear
3.13
total input power
total power consumed by the controlgear-lamp (light source) circuit measured at rated input
voltage
[SOURCE: IEC 62442-1:2018, 3.13, modified – "supplied to" has been replaced with
"consumed by", "(light source)" has been added and the note has been deleted.]
3.14
controlgear efficiency
η
CG
ratio of the output power to lamp(s) (light source)
and the input power of the controlgear
Note 1 to entry: Detailed measurement method and conditions are given in Clause 5.
Note 2 to entry: Loads from sensors, network connections or other auxiliaries are disconnected or, if not possible,
otherwise, eliminated from the result.

EC 62442-3:2018 © IEC 2018 – 9 –
4 General
4.1 Applicability
The measurement and calculation methods in this document shall only be used for magnetic
transformers which conform to IEC 61558-1 and IEC 61558-2-6 or for electronic convertors
which conform to IEC 61347-2-2 or for electronic controlgear for LED modules which
conforms to IEC 61347-2-13.
4.2 General notes on tests
The measurement conditions specified in IEC 61347-1:2015, Clauses H.1, H.2, H.4, H.8 and
H.11 shall be applied; unless otherwise specified in this document. The device under test
(DUT) shall be placed according to IEC 61347-1:2015, Figure H.1.
An AC or DC voltage source shall be used to provide input voltage to the DUT. During the
tests, the supply voltage and the frequency shall be maintained constant within ± 0,5 % during
the warm-up period. However, during the actual measurement, the voltage shall be adjusted
to within ± 0,2 % of the specified testing value.
The input voltage source should be capable of delivering at least three times the input power
of the DUT.
4.3 Controllable controlgear
In the case of controllable controlgear the test shall be carried out with the maximum output
power.
In case a controlgear has multiple channels, each channel shall be set at the same power
level. The sum of the power per channel shall be equal to the maximum allowed output power
of the controlgear.
Requirements relevant for the efficiency during the dimming condition of controllable
controlgear are under consideration.
4.4 Measurement uncertainty
Measurement uncertainty shall be managed in accordance with the accuracy method in
IEC Guide 115:2007, 4.4.3.
4.5 Sampling of controlgear for testing
The requirements and tolerances specified in this document are based on the testing of a type
test sample submitted by the manufacturer for that purpose. This sample should consist of
units having characteristics typical of the manufacturer’s production and be as close to the
production centre point values as possible.
4.6 Size of the test sample
Tests are carried out with one test specimen.
4.7 Power supply
Where the test voltage and frequency are not defined by national or regional requirements,
the controlgear manufacturer shall declare the nominal voltage(s) at which the given
efficiency is valid.
Test voltage(s) and test frequency(ies) shall be the nominal voltage and the nominal
frequency of the country for which the measurement is being determined (refer to Table 1).

– 10 – IEC 62442-3:2018 © IEC 2018
Table 1 – Typical nominal electricity supply details for some regions
a
Country / Region Nominal voltage and frequency
Europe 230 V; 50 Hz
North America 120 V, 277 V; 60 Hz
b
Japan 100 V, 200 V; 50/60 Hz
China 220 V; 50 Hz
Australia and New Zealand 230 V; 50 Hz
a
Values are for single phase only. Some single phase supply voltages can be double the nominal voltage
above (centre transformer tap). The voltage between two phases of a three-phase system is 1,73 times
single phase values. (e.g. 400 V for Europe).
b
50 Hz is applicable for the Eastern part and 60 Hz for the Western part.

4.8 Supply voltage waveform
The total harmonic content of the supply voltage when supplying the DUT shall not exceed
3 %; harmonic content is defined as the root-mean-square (RMS) summation of the individual
components using the fundament as 100 %.
The ratio of peak value to RMS value of the test voltage (i.e. crest factor) shall be between
1,34 and 1,49.
4.9 Substitution load
To give reproducible measurement results, a resistor R shall be used as a replacement for
load
the lamp(s) (light source(s)). R is determined from the rated output power and the rated
load
output voltage or rated output current of the controlgear.
shall be within 1% of the calculated resistance.
During the test, R
load
For electronic controlgear for LED light sources, a pure resistive load may cause malfunction
of the DUT. In these cases a combination of diodes and variable resistor equivalent to the
LED light source shall be used, to ensure the maximum rated output current at the rated
output voltage.
NOTE When a special starting procedure is used to allow the constant current controlgear to function properly,
the method with the equivalent resistor can be used.
In the case of controlgear with an output frequency higher than 70 Hz for tungsten-halogen
lamps, the load shall always be a lamp as indicated in IEC 61047:2004, 4.2.
The measurement setup circuit for constant power controlgear shall also be used in a suitable
way with the current defined in the data sheets of the lamp(s) (LED light source(s)).
4.10 Thermocouple and temperature indicator
The resolution of the temperature indicator shall be at least 0,1 °C, when used with the
appropriate thermocouple.
4.11 Instrument accuracy
For electromagnetic transformers, calibrated and traceable AC power meters, power
analysers or digital power meters shall be used. For measurement uncertainty and traceability
see ISO/IEC Guide 98-3:2008 and IEC Guide 115.

EC 62442-3:2018 © IEC 2018 – 11 –
For electronic step-down convertors, all output power measurements shall be made with a
calibrated and traceable wideband power analyser or digital power meter.
The power measuring instrument shall be capable of measuring DC and AC 10 Hz to 2 000 Hz
components.
For measurements made under the scope of this document, measurement instruments with
the following minimum accuracies shall be used.
a) For frequencies up to and including 1 kHz:
– voltage: 0,5 %
– current: 0,5 %
– power: 1,0 %
– frequency: 0,1 %
b) For frequencies above 1 kHz:
– voltage: 1,0 %
– current: 1,0 %
– power: 2,0 %
The power consumption shall be measured by applying the procedure of IEC 62301:2011, 5.3
excluding 5.3.4.
Stability of the measurement values (V, A or W) is given if the data does not deviate from
more than 1 % in a time frame of 15 min. If any of these values vary with time, the power is
determined as the arithmetic mean value over a sufficient period.
Measurement shall be done in such a way that the line losses are limited (for example with a
four wire measurement system).
4.12 Measuring circuits
When the controlgear has supplementary connections to the output circuit or sensors (e.g. to
detect fault or temperatures for example to ensure a safe function of the controlgear), all
these sensors and circuits shall be connected as in normal use; sensors or networks which
are not involved in power conversion shall be disconnected (see 4.15).
4.13 Multi-rated voltage controlgear
If a controlgear is designed for more than one rated voltage, the controlgear manufacturer
shall declare the rated voltage(s) at which the given efficiency and the standby power are
valid.
4.14 Multi-power controlgear
If a controlgear is designed for more than one output power, the test shall be carried out with
the maximum output power.
4.15 Sensor and network connections
For the measurement of all kinds of controlgear power (also standby) the power consumed by
all circuits (internal or external) which are not involved in power conversion for the controlgear
operation (e.g. communication devices, external sensors, auxiliary load, battery charging
circuits) shall be excluded from the measurements. If the auxiliary cannot be disconnected, its
effect shall be otherwise eliminated from the result.
NOTE Power consumed by circuits necessary for the proper operation of power conversion is considered in the
measurement (e.g. cooling fan, signalling lighting).

– 12 – IEC 62442-3:2018 © IEC 2018
5 Method of measurement and calculation of the efficiency of controlgear
(transformer, convertor) for tungsten-halogen lamps and for LED light
sources
5.1 Measurement setup: input and output power
Figure 1 shows the setup for the measurement of the power losses of electromagnetic
controlgear and the input and output power of convertor-electronic controlgear.
U, I, P
U, I, P
DUT
Supply
R
load
voltage
IEC
Key
DUT device under test
U voltage
I current
P power
R substitution load
load
Figure 1 – Power losses measurement setup for electromagnetic controlgear
(transformer) and input and output power measurement setup
for convertor (electronic controlgear)
The information regarding the substitution load is given under 4.9. The measurements are
carried out with power meters connected to measure the total input power into and the output
power (lamp (light source) power) of the DUT.
The value of the total input power P is recorded when a steady state has been reached
tot.meas
(temperature of the DUT).
The supply voltage for the measurement according to Figure 1 is defined in 4.7 and 4.13.
The measurement sequence is as follows:
1) Connect the DUT according to Figure 1.
2) Switch on the mains voltage.
3) Await the thermal equilibrium.
4) Measure the input and the output power.
The total input power P of a DUT is measured on one DUT.
tot meas
P is the measured total input power into the DUT (in W);
tot meas
P is the measured output power of the DUT (lamp (light source) power-power on the
Lamp
substitution resistor) in the test circuit (in W).
In the case of multi output controlgear, P is the sum of all the power measured in each
Lamp
channel.
5.2 Efficiency calculation for electromagnetic (transformer) and electronic
(convertor) controlgear
For the calculation of the efficiency of a DUT (η ), Equation (1) should be used:
CG
EC 62442-3:2018 © IEC 2018 – 13 –
P
light source
h = (1)
CG
P
tot meas
5.3 Measurement setup: input power in no-load mode
Figure 2 shows the setup for the measurement of the input power losses in no-load mode for
electromagnetic controlgear and for a convertor (electronic controlgear).
U, I, P
DUT
Supply
voltage
IEC
Key
DUT device under test
U voltage
I current
P power
Figure 2 – Input power in no-load mode measurement setup for electromagnetic
controlgear (transformer) and for convertor (electronic controlgear)
The substitution load is disconnected from the DUT-open output circuit (see Figure 2). The
measurements are carried out with a power meter connected to measure the total input power
into the DUT. Measurement of power shall be current correct (i.e. measurement in the DUT
path).
The value of the total input power in no-load mode P is recorded when a steady
tot meas no-load
state has been reached (temperature of the DUT).
The supply voltage for the measurement according to Figure 2 is defined in 4.7 and 4.13.
The measurement sequence is as follows:
1) Connect the DUT according to Figure 2.
2) Switch on the mains voltage.
3) Await the thermal equilibrium.
4) Measure the input power.
The measured total input power in no-load mode P of a DUT is measured on
tot meas no-load
one DUT.
P is the measured total input power into the DUT (in W) in no-load mode.
tot meas no-load
5.4 Standby power measurement of convertor-electronic controlgear
Figure 3 shows the measurement setup of the standby power of convertor-electronic
controlgear.
– 14 – IEC 62442-3:2018 © IEC 2018
Interface port
U, I, P
DUT
Supply
voltage
R
load
IEC
Key
DUT device under test
U voltage
I current
P power
R substitution load
load
Figure 3 – Measurement setup of the standby power
of convertor-electronic controlgear
Information regarding the substitution load is given under 4.9.
The measurements are carried out with a power meter connected to measure the total input
power into the convertor-electronic controlgear. Measurement of power shall be current
correct (i.e. measurement in the DUT path).
The value of the standby power P (total input power) is recorded when a steady state
CGstandby
has been reached (temperature of the convertor-electronic controlgear).
The supply voltage for the measurement according to Figure 3 is defined in 4.7 and 4.13.
The measurement sequence is as follows:
1) Connect the DUT according to Figure 3.
2) Switch on the mains voltage.
3) Set the controlgear via the interface port (for example “digital addressable lighting
interface”) to the standby mode.
4) Await the thermal equilibrium.
5) Measure the standby power (total input power).
The standby power P (total input power) of a convertor-controlgear is measured with
CGstandby
one electronic lamp controlgear.

EC 62442-3:2018 © IEC 2018 – 15 –
Bibliography
IEC 60357, Tungsten halogen lamps (non-vehicle) – Performance specifications
IEC 62384, DC or AC supplied electronic control gear for LED modules – Performance
requirements
IEC 62442-1:2018, Energy performance of lamp controlgear – Part 1: Controlgear for
fluorescent lamps – Method of measurement to determine the total input power of controlgear
circuits and the efficiency of the controlgear
IEC 62442-2, Energy performance of lamp controlgear – Part 2: Controlgear for high intensity
discharge lamps (excluding fluorescent lamps) – Method of measurement to determine the
efficiency of the controlgear
ISO/IEC Guide 98-3:2008, Uncertainty of measurement – Part 3: Guide to the expression of
uncertainty in measurement (GUM:1995)

___________
– 16 – IEC 62442-3:2018 © IEC 2018
SOMMAIRE
AVANT-PROPOS . 17
1 Domaine d'application . 19
2 Références normatives . 19
3 Termes et définitions . 20
4 Généralités . 23
4.1 Applicabilité . 23
4.2 Généralités sur les essais . 23
4.3 Appareillage commandable . 23
4.4 Incertitude de mesure . 23
4.5 Echantillonnage des appareillages pour les essais . 24
4.6 Nombre d'échantillons d'essai . 24
4.7 Alimentation . 24
4.8 Forme d'onde de la tension d'alimentation . 24
4.9 Charge de substitution . 24
4.10 Thermocouple et indicateur de température . 25
4.11 Précision des appareils . 25
4.12 Circuits de mesure . 26
4.13 Appareillage à tensions assignées multiples . 26
4.14 Appareillage à puissances multiples . 26
4.15 Capteur et raccordements au réseau . 26
5 Méthode de mesure et calcul du rendement des appareillages (transformateur,
convertisseur) pour les lampes tungstène-halogène et pour les sources
lumineuses à LED . 26
5.1 Montage de mesure: puissance d'entrée et de sortie . 26
5.2 Calcul du rendement pour les appareillages électromagnétiques
(transformateur) et électroniques (convertisseur) . 27
5.3 Montage de mesure: puissance d'entrée en mode à vide . 28
5.4 Mesure de la puissance de veille d'un convertisseur-appareillage
électronique . 28
Bibliographie . 30

Figure 1 – Montage pour la mesure des pertes de puissance d'un appareillage
électromagnétique (transformateur) et pour la mesure de la puissance d'entrée et de
sortie d'un convertisseur (appareillage électronique) . 27
Figure 2 – Montage pour la mesure de la puissance d'entrée en mode à vide d'un
appareillage électromagnétique (transformateur) et d'un convertisseur (appareillage
électronique) . 28
Figure 3 – Montage pour la mesure de la puissance de veille d'un convertisseur-
appareillage électronique . 29

Tableau 1 – Détails relatifs à l'alimentation en électricité nominale type pour certaines
régions . 24

COMMISSION ÉLECTROTECHNIQUE INTERNATIONALE
____________
PERFORMANCE ÉNERGÉTIQUE DES APPAREILLAGES DE LAMPES –

Partie 3: Appareillage de lampes tungstène-halogène
et sources lumineuses à LED – Méthode de mesure
pour la détermination du rendement des appareillages

AVANT-PROPOS
1) La Commission Electrotechnique Internationale (IEC) est une organisation mondiale de normalisation
composée de l'ensemble des comités électrotechniques nationaux (Comités nationaux de l’IEC). L’IEC a pour
objet de favoriser la coopération internationale pour toutes les questions de normalisation dans les domaines
de l'électricité et de l'électronique. A cet effet, l’IEC – entre autres activités – publie des Normes
internationales, des Spécifications techniques, des Rapports techniques, des Spécifications accessibles au
public (PAS) et des Guides (ci-après dénommés "Publication(s) de l’IEC"). Leur élaboration est confiée à
...
