IEC TS 63209-1:2021

IEC TS 63209-1 ®
Edition 1.0 2021-04

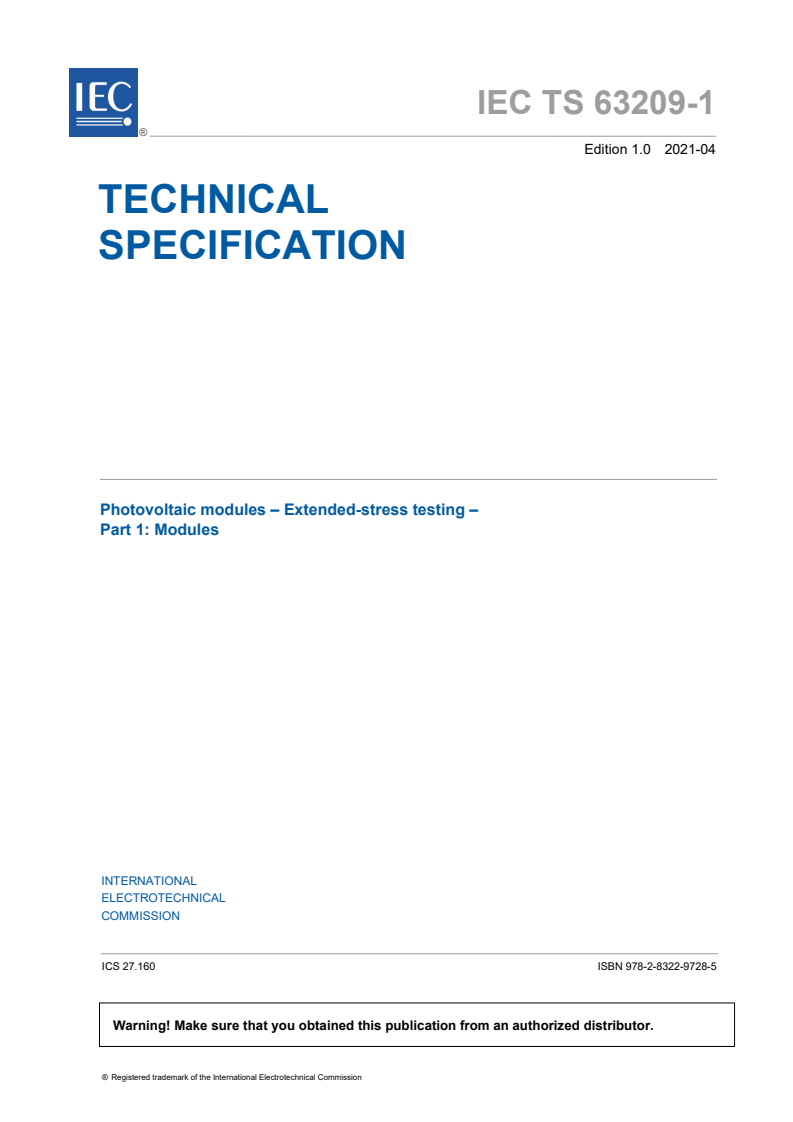

TECHNICAL
SPECIFICATION
Photovoltaic modules – Extended-stress testing –
Part 1: Modules
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform IEC online collection - oc.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews. With a subscription you will always
committee, …). It also gives information on projects, replaced have access to up to date content tailored to your needs.
and withdrawn publications.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
The world's leading online dictionary on electrotechnology,
Stay up to date on all new IEC publications. Just Published
containing more than 22 000 terminological entries in English
details all new publications released. Available online and
and French, with equivalent terms in 18 additional languages.
once a month by email.
Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc

If you wish to give us your feedback on this publication or
need further assistance, please contact the Customer Service
Centre: sales@iec.ch.
IEC TS 63209-1 ®
Edition 1.0 2021-04
TECHNICAL
SPECIFICATION
Photovoltaic modules – Extended-stress testing –

Part 1: Modules
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 27.160 ISBN 978-2-8322-9728-5

– 2 – IEC TS 63209-1:2021 © IEC 2021

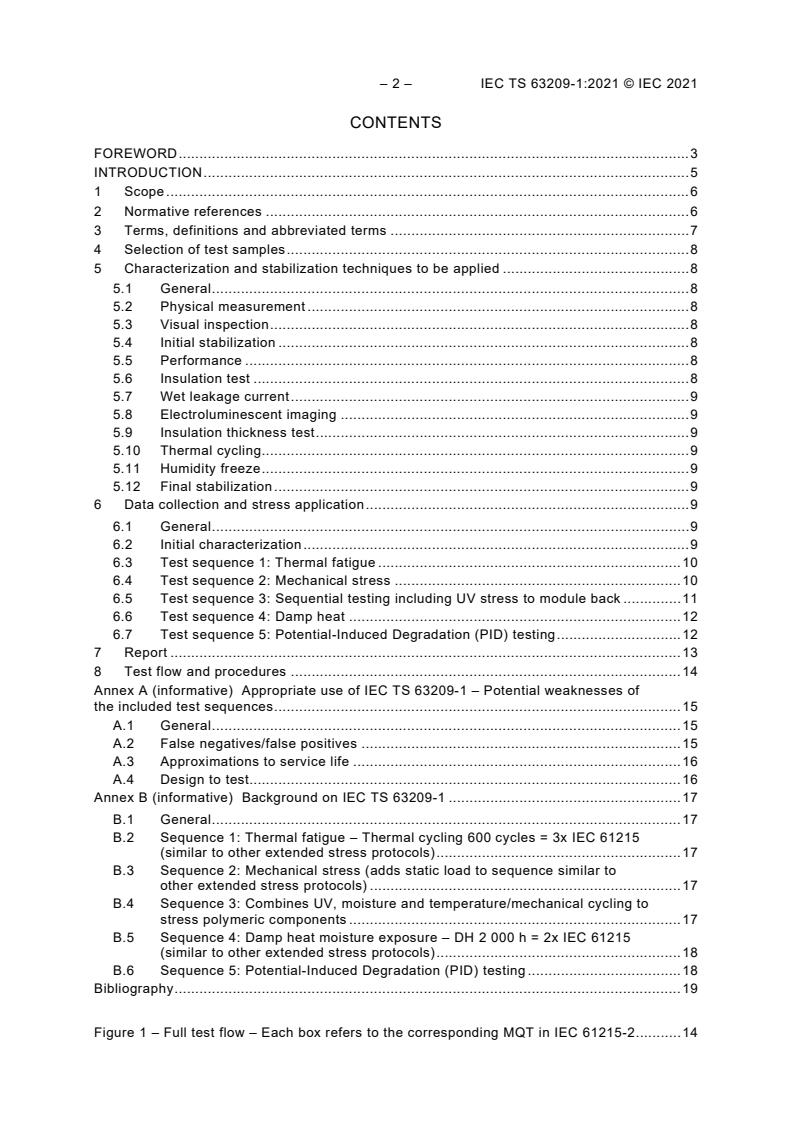

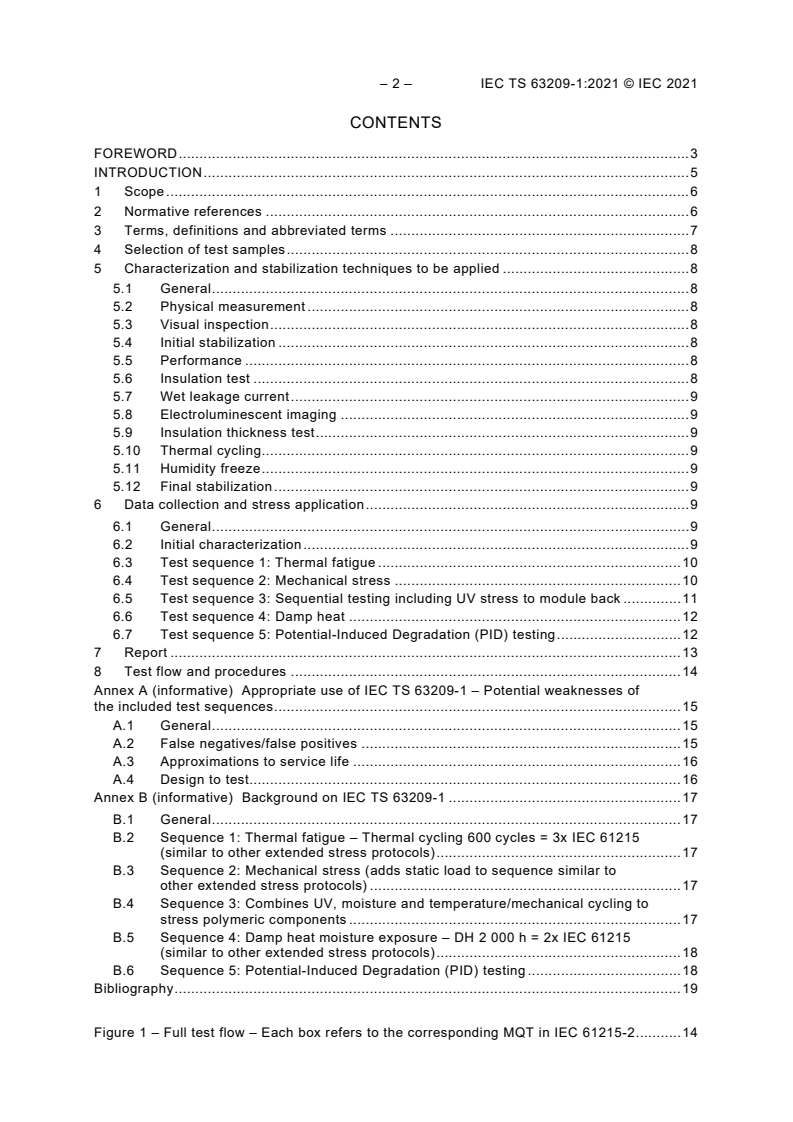

CONTENTS
FOREWORD . 3
INTRODUCTION . 5
1 Scope . 6
2 Normative references . 6
3 Terms, definitions and abbreviated terms . 7
4 Selection of test samples . 8
5 Characterization and stabilization techniques to be applied . 8
5.1 General . 8
5.2 Physical measurement . 8
5.3 Visual inspection . 8
5.4 Initial stabilization . 8
5.5 Performance . 8
5.6 Insulation test . 8
5.7 Wet leakage current . 9
5.8 Electroluminescent imaging . 9
5.9 Insulation thickness test . 9
5.10 Thermal cycling. 9
5.11 Humidity freeze . 9
5.12 Final stabilization . 9
6 Data collection and stress application . 9
6.1 General . 9
6.2 Initial characterization . 9
6.3 Test sequence 1: Thermal fatigue . 10
6.4 Test sequence 2: Mechanical stress . 10
6.5 Test sequence 3: Sequential testing including UV stress to module back . 11
6.6 Test sequence 4: Damp heat . 12
6.7 Test sequence 5: Potential-Induced Degradation (PID) testing . 12
7 Report . 13
8 Test flow and procedures . 14
Annex A (informative) Appropriate use of IEC TS 63209-1 – Potential weaknesses of
the included test sequences . 15
A.1 General . 15
A.2 False negatives/false positives . 15
A.3 Approximations to service life . 16
A.4 Design to test. 16
Annex B (informative) Background on IEC TS 63209-1 . 17
B.1 General . 17
B.2 Sequence 1: Thermal fatigue – Thermal cycling 600 cycles = 3x IEC 61215
(similar to other extended stress protocols) . 17
B.3 Sequence 2: Mechanical stress (adds static load to sequence similar to
other extended stress protocols) . 17
B.4 Sequence 3: Combines UV, moisture and temperature/mechanical cycling to
stress polymeric components . 17
B.5 Sequence 4: Damp heat moisture exposure – DH 2 000 h = 2x IEC 61215
(similar to other extended stress protocols) . 18
B.6 Sequence 5: Potential-Induced Degradation (PID) testing . 18
Bibliography . 19

Figure 1 – Full test flow – Each box refers to the corresponding MQT in IEC 61215-2 . 14

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
PHOTOVOLTAIC MODULES – EXTENDED-STRESS TESTING –

Part 1: Modules
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent
rights. IEC shall not be held responsible for identifying any or all such patent rights.
IEC TS 63209-1 has been prepared by IEC technical committee 82: Solar photovoltaic energy
systems. It is a Technical Specification.
The text of this Technical Specification is based on the following documents:
DTS Report on voting
82/1820/DTS 82/1873/RVDTS
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
A list of all parts in the IEC 63209 series, published under the general title Photovoltaic modules
– Extended-stress testing, can be found on the IEC website.
The language used for the development of this Technical Specification is English.

– 4 – IEC TS 63209-1:2021 © IEC 2021
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/standardsdev/publications.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to
the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
INTRODUCTION
Existing qualification test standards such as IEC 61215 standard series have been very useful
for identifying module designs that avoid most early field failures, but are not intended or able
to demonstrate long term performance in all locations within the scope of those documents. In
order to assess the risk of product failure it has become industry practice for the different
stakeholders to require results of test protocols beyond baseline type approval and safety tests
according to the IEC 61215 standard series and IEC 61730 standard series. These extended
stress test protocols primarily contain aforementioned baseline tests in different sequences
and/or increased test duration or number of cycles. They originate from the various experiences
made by third parties such as test institutes/ independent engineering firms/ owners engineers
and aim to cause aging that would be seen after long term use of PV modules, or apply a “test
to failure” approach, aimed to identify weaknesses rather than to replicate field performance.
They do not provide detailed reliability or durability predictions/estimates, but have been usef
...
