IEC 62561-3:2023

IEC 62561-3 ®
Edition 3.0 2023-07
REDLINE VERSION
INTERNATIONAL
STANDARD
colour
inside
Lightning protection system components (LPSC) –
Part 3: Requirements for isolating spark gaps (ISGs)

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

IEC Secretariat Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform IEC Products & Services Portal - products.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews. With a subscription you will always have
committee, …). It also gives information on projects, replaced access to up to date content tailored to your needs.
and withdrawn publications.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
The world's leading online dictionary on electrotechnology,
Stay up to date on all new IEC publications. Just Published
containing more than 22 300 terminological entries in English
details all new publications released. Available online and once
and French, with equivalent terms in 19 additional languages.
a month by email.
Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc

If you wish to give us your feedback on this publication or need
further assistance, please contact the Customer Service
Centre: sales@iec.ch.
IEC 62561-3 ®
Edition 3.0 2023-07
REDLINE VERSION
INTERNATIONAL
STANDARD
colour
inside
Lightning protection system components (LPSC) –
Part 3: Requirements for isolating spark gaps (ISGs)
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 91.120.40 ISBN 978-2-8322-7216-9

– 2 – IEC 62561-3:2023 RLV © IEC 2023

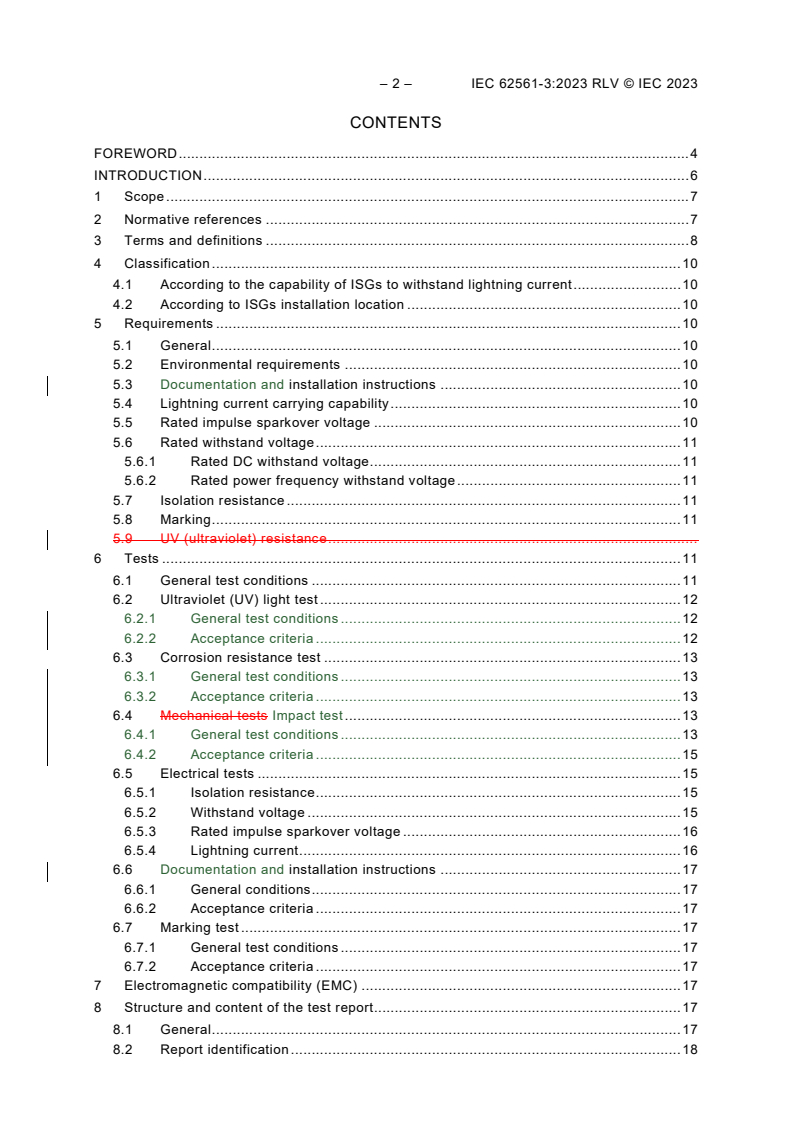

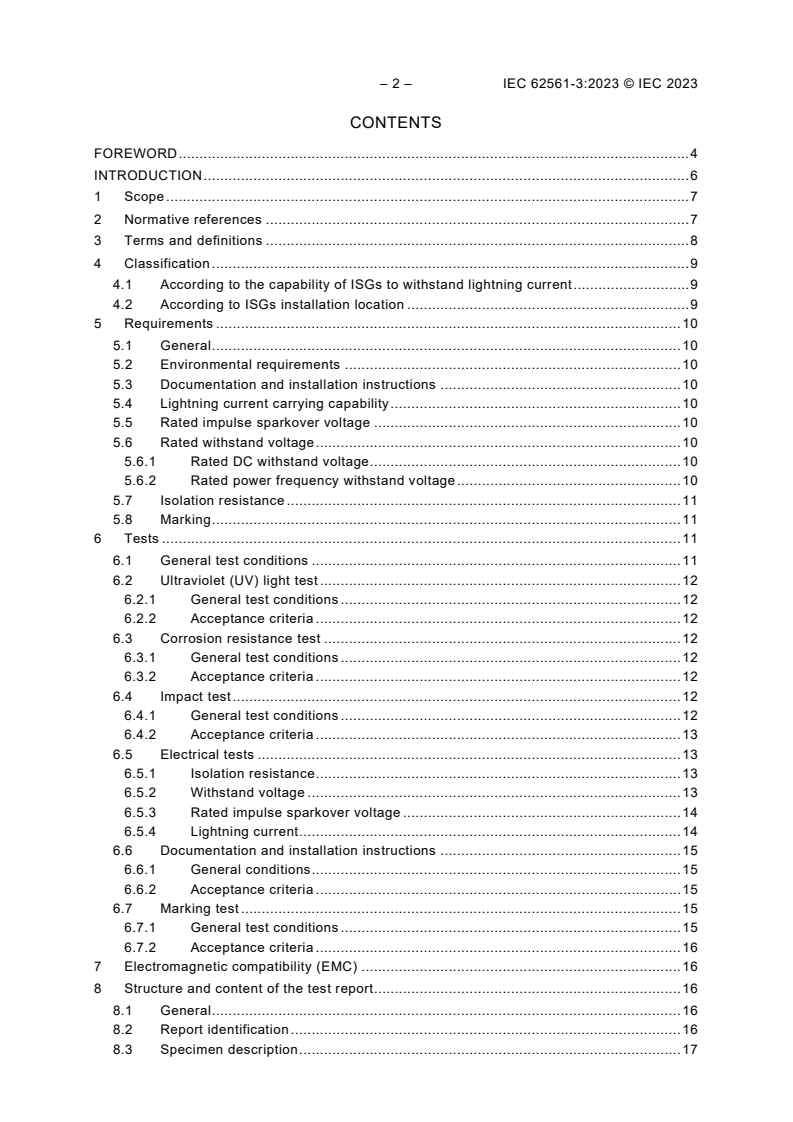

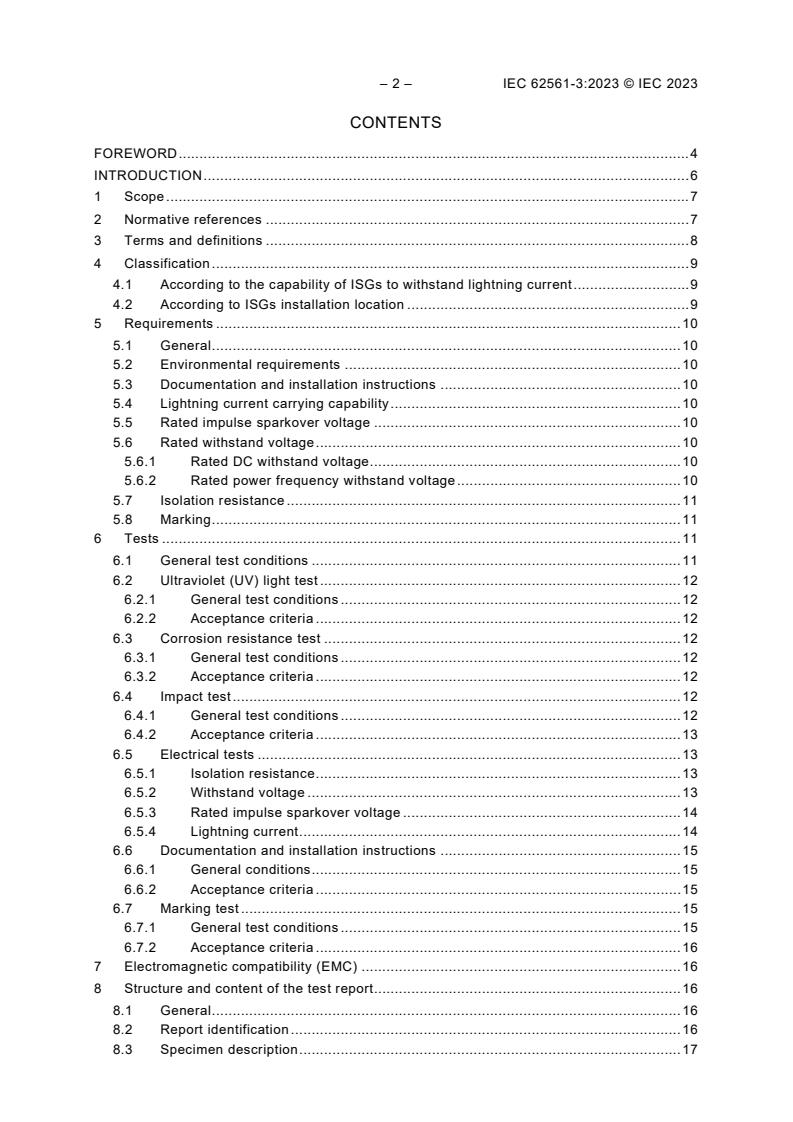

CONTENTS
FOREWORD . 4
INTRODUCTION . 6
1 Scope . 7
2 Normative references . 7
3 Terms and definitions . 8
4 Classification . 10
4.1 According to the capability of ISGs to withstand lightning current . 10
4.2 According to ISGs installation location . 10
5 Requirements . 10
5.1 General . 10
5.2 Environmental requirements . 10
5.3 Documentation and installation instructions . 10
5.4 Lightning current carrying capability . 10
5.5 Rated impulse sparkover voltage . 10
5.6 Rated withstand voltage . 11
5.6.1 Rated DC withstand voltage . 11
5.6.2 Rated power frequency withstand voltage . 11
5.7 Isolation resistance . 11
5.8 Marking . 11
5.9 UV (ultraviolet) resistance .
6 Tests . 11
6.1 General test conditions . 11
6.2 Ultraviolet (UV) light test . 12
6.2.1 General test conditions . 12
6.2.2 Acceptance criteria . 12
6.3 Corrosion resistance test . 13
6.3.1 General test conditions . 13
6.3.2 Acceptance criteria . 13
6.4 Mechanical tests Impact test . 13
6.4.1 General test conditions . 13
6.4.2 Acceptance criteria . 15
6.5 Electrical tests . 15
6.5.1 Isolation resistance . 15
6.5.2 Withstand voltage . 15
6.5.3 Rated impulse sparkover voltage . 16
6.5.4 Lightning current . 16
6.6 Documentation and installation instructions . 17
6.6.1 General conditions . 17
6.6.2 Acceptance criteria . 17
6.7 Marking test . 17
6.7.1 General test conditions . 17
6.7.2 Acceptance criteria . 17
7 Electromagnetic compatibility (EMC) . 17
8 Structure and content of the test report . 17
8.1 General . 17
8.2 Report identification . 18

8.3 Specimen description . 18
8.4 Standards and references . 18
8.5 Test procedure . 19
8.6 Testing equipment description . 19
8.7 Measuring instruments description . 19
8.8 Results and parameters recorded . 19
8.9 Statement of pass/ or fail . 19
Annex A (normative) Flowchart of tests for testing ISGs . 20
Annex B (normative) Environmental test for isolating spark gaps Resistance to
corrosion tests for ISGs . 23
B.1 General . 23
B.2 Salt mist treatment . 23
B.3 Humid sulphurous atmosphere treatment . 23
B.4 Ammonia atmosphere treatment. 23
Annex C (normative) Environmental test for outdoor isolating spark gaps – Resistance
to ultraviolet light . 24
C.1 General . 24
C.2 Test . 24
C.3 First alternative test to C.2 . 24
C.4 Second alternative test to C.2 . 24
Annex D (normative) Applicability of previous tests . 25
Bibliography . 26

Figure 1 – Pendulum hammer test apparatus .
Figure A.1 – Flowchart of the sequence of tests for ISGs . 22

a
Table 1 – Lightning impulse current (I ) parameters . 16
imp
Table D.1 – Differences in the requirements for ISGs complying with IEC 62561-3:2017 . 25

– 4 – IEC 62561-3:2023 RLV © IEC 2023
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
LIGHTNING PROTECTION SYSTEM COMPONENTS (LPSC) –

Part 3: Requirements for isolating spark gaps (ISGs)

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent
rights. IEC shall not be held responsible for identifying any or all such patent rights.
This redline version of the official IEC Standard allows the user to identify the changes
made to the previous edition IEC 62561-3:2017. A vertical bar appears in the margin
wherever a change has been made. Additions are in green text, deletions are in
strikethrough red text.
IEC 62561-3 has been prepared by IEC technical committee 81: Lightning protection. It is an
International Standard.
This third edition cancels and replaces the second edition, published in 2017. This edition
constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous
edition.
a) alignment with the latest edition of ISO 22479 relating to humid sulphurous atmosphere
treatment;
b) addition of a new normative Annex D for the applicability of previous tests.
The text of this International Standard is based on the following documents:
Draft Report on voting
81/727/FDIS 81/729/RVD
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this International Standard is English.
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/publications.
A list of all parts in the IEC 62561 series, published under the general title Lightning protection
system components (LPSC), can be found on the IEC website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IMPORTANT – The "colour inside" logo on the cover page of this document indicates that it
contains colours which are considered to be useful for the correct understanding of its
contents. Users should therefore print this document using a colour printer.

– 6 – IEC 62561-3:2023 RLV © IEC 2023
INTRODUCTION
This part of IEC 62561 deals with the requirements and tests for lightning protection system
components (LPSC), specifically isolating spark gaps (ISGs) used for the installation of a
lightning protection system (LPS) designed and implemented according to the IEC 62305
series.
LIGHTNING PROTECTION SYSTEM COMPONENTS (LPSC) –

Part 3: Requirements for isolating spark gaps (ISGs)

1 Scope
This part of IEC 62561 specifies the requirements and tests for isolating spark gaps (ISGs) for
lightning protection systems.
ISGs can be used to indirectly bond a lightning protection system to other nearby metalwork
where a direct bond is not permissible for functional reasons.
Typical applications include the connection to
• earth-termination systems of power installations,
• earth-termination systems of telecommunication systems,
• auxiliary earth electrodes of voltage-operated, earth fault circuit breakers,
• rail earth electrodes of power and DC railways,
• measuring earth electrodes for laboratories,
• installations with cathodic protection and stray current systems,
• service entry masts for low-voltage overhead cables,
• bypassing insulated flanges and insulated couplings of pipelines.
This does not cover applications where follow currents occur.
NOTE Lightning protection system components (LPSC) can also be suitable for use in hazardous conditions such
as fire and explosive atmosphere. Due regard will be taken of the extra requirements necessary for the components
to be installed in such conditions.
Applications where follow currents occur are not included.
Extra requirements for the components can be necessary for LSCs intended for use in
hazardous atmospheres.
NOTE 1 In CENELEC member countries, testing requirements of components for explosive atmospheres are
specified in CLC/TS 50703-2.
NOTE 2 Testing of components for an explosive atmosphere (as defined in the IEC 60079-10 series) is not covered
by this document.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies.
For undated references, the latest edition of the referenced document (including any
amendments) applies.
– 8 – IEC 62561-3:2023 RLV © IEC 2023
IEC 60068-2-52:19962017, Environmental testing – Part 2-52: Tests – Test Kb: Salt mist, cyclic
(sodium chloride solution)
IEC 60068-2-75:19972014, Environmental testing – Part 2-75: Tests – Test Eh: Hammer tests
IEC 62305-1:2010, Protection against lightning – Part 1: General principles
IEC 62561-1, Lightning protection system components (LPSC) – Part 1: Requirements for
connection components
ISO 4892-2:20062013, Plastics – Methods of exposure to laboratory light sources – Part 2:
Xenon-arc lamps
ISO 4892-3:20062016, Plastics – Methods of exposure to laboratory light sources – Part 3:
Fluorescent UV lamps
ISO 4892-4:2013, Plastics – Methods of exposure to laboratory light sources – Part 4: Open-
flame carbon-arc lamps
ISO 6957:1988, Copper alloys – Ammonia test for stress corrosion resistance
ISO 6988:1985, Metallic and other non-organic coatings – Sulphur dioxide test with general
condensation of moisture
ISO 22479:2019, Corrosion of metals and alloys – Sulphur dioxide test in a humid atmosphere
(fixed gas method)
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminology databases for use in standardization at the following
addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
3.1
ISG
isolating spark gap
component with discharge distance for isolating electrically conductive installation sections
Note 1 to entry: In the event of a lightning strike, the isolated sections are temporarily connected conductively as
the result of response to the discharge.
_____________
1 nd rd
2 edition (1996). A 3 edition IEC 60068-2-52: Environmental testing – Part 2-52: Tests – Test Kb: Salt mist,
cyclic (sodium chloride solution) is under preparation. Stage at the time of publication:
IEC PRVC 60068-2-52:2017.
2 st st nd
1 edition (1997). This 1 edition was replaced in 2014 by a 2 edition IEC 60068-2-75:2014, Environmental
testing – Part 2-75: Tests – Test Eh: Hammer tests.
3 nd nd rd
2 edition (2006). This 2 edition was replaced in 2013 by a 3 edition ISO 4892-2:2013, Plastics – Methods of
exposure to laboratory light sources – Part 2: Xenon-arc lamps.
4 nd nd rd
2 edition (2006). This 2 edition was replaced in 2016 by a 3 edition: ISO 4892-3: 2016, Plastics – Methods
of exposure to laboratory light sources – Part 3: Fluorescent UV lamps.

3.2
sparkover voltage
maximum voltage value before disruptive discharge between the electrodes of the ISG
3.3
withstand voltage
value of the test voltage to be applied under specified conditions in a withstand test, during
which a specified number of disruptive discharges is tolerated
3.4
power frequency withstand voltage
RMS value of a sinusoidal power frequency voltage that the ISG can withstand
3.5
DC withstand voltage
value of a DC voltage that the ISG can withstand
3.6
rated withstand voltage
value of a withstand voltage declared by the manufacturer to characterize the isolating
behaviour of an ISG
3.7
U
W AC
rated power frequency withstand voltage
value of a power frequency withstand voltage declared by the manufacturer to characterize the
isolating behaviour of an ISG
3.8
U
W DC
rated DC withstand voltage
value of a DC withstand voltage declared by the manufacturer to characterize the isolating
behaviour of an ISG
3.9
impulse sparkover voltage
impulse voltage of the waveshape 1,2/50 to classify the sparkover behaviour of the ISG
3.10
U
imp
rated impulse sparkover voltage
manufacturer’s declaration of the ISG sparkover voltage
3.11
isolation resistance
ohmic resistance of the ISG between the active parts
3.12
I
imp
lightning impulse current
impulse current that classifies an ISG
Note 1 to entry: Five parameters are to shall be considered: the peak value, the charge, the duration, the specific
energy and the rate of rise of the impulse current.

– 10 – IEC 62561-3:2023 RLV © IEC 2023
4 Classification
4.1 According to the capability of ISGs to withstand lightning current
The following classes apply, in accordance with Table 1:
a) class H for heavy duty;
b) class N for normal duty;
c) class 1L for light duty;
d) class 2L for light duty;
e) class 3L for light duty.
4.2 According to ISGs installation location
The following classes apply:
a) indoor installation;
b) outdoor installation.
5 Requirements
5.1 General
ISGs shall be designed in such a manner that when they are installed in accordance with the
manufacturer’s instructions, their performance shall be reliable, stable and safe to persons and
surrounding equipment.
5.2 Environmental requirements
ISGs shall be designed in such a way that they operate satisfactorily under the environmental
conditions given by the normal service conditions. Outdoor ISGs shall be contained in a weather
shield of glass-glazed ceramic, or other acceptable material, that is resistant to ultraviolet (UV)
light, corrosion and erosion.
Compliance is checked by testing, in accordance with 6.2 and 6.3.
5.3 Documentation and installation instructions
The manufacturer of the ISG shall provide adequate instructions in their literature to ensure that
the installer of the ISG can select and install the ISG in a suitable and safe manner.
Compliance is checked by review, in accordance with 6.6.
5.4 Lightning current carrying capability
ISGs shall have sufficient lightning current carrying capability.
Compliance is checked in accordance with 6.5.4 following the manufacturer’s declaration for
the class of the ISG in accordance with Clause 4.
5.5 Rated impulse sparkover voltage
The ISG shall always spark over at the rated impulse sparkover voltage during the tests.
ISGs may can experience some variation of sparkover characteristics before and after the
lightning current test. This shall be included in the rated impulse sparkover voltage defined by
the manufacturer.
Compliance is checked in accordance with 6.5.3.
5.6 Rated withstand voltage
5.6.1 Rated DC withstand voltage
The ISG shall never spark over at the rated DC withstand voltage or lower voltage during the
tests even after performing the lightning current test.
Compliance is checked in accordance with 6.5.2.3.
5.6.2 Rated power frequency withstand voltage
The ISG shall never spark over at the rated power frequency withstand voltage or lower voltage
during the tests even after performing the lightning current test.
Compliance is checked in accordance with 6.5.2.2.
5.7 Isolation resistance
Before and after the lightning current test, the isolation resistance shall be higher equal to or
greater than 500 kΩ and after the lightning current test isolation resistance shall not be lower
than 500 kΩ.
Compliance is checked in accordance with 6.5.1.
5.8 Marking
All products complying with this document shall be marked at least with the following:
a) manufacturer’s or responsible vendor’s name or trade mark or identifying symbol;
b) part number;
c) the classification in accordance with Clause 4.
If the marking in accordance with b) is not practical it may be given on the smallest packaging
unit. The marking shall be durable and legible.
Compliance is checked in accordance with 6.7.
NOTE Marking can be applied for example by moulding, pressing, engraving, printing adhesive labels or water slide
transfers.
5.9 UV (ultraviolet) resistance
ISG housings for outdoor installation shall be made of UV resistant material.
Compliance is checked by tests as per 6.2.
6 Tests
6.1 General test conditions
The tests in accordance with this document are type tests and performed in a sequence
according to Annex A.
These tests are of such a nature that, after they have been performed, they need not be
repeated it is not necessary to repeat them unless changes are made to the materials, design

– 12 – IEC 62561-3:2023 RLV © IEC 2023
or type of manufacturing process, which might can change the performance characteristics of
the product, see Annex D.
a) The tests are carried out with the specimens assembled and installed as in normal use
according to the manufacturer's or supplier's instructions, unless otherwise specified.
b) Three specimens are subjected to the tests and the requirements are satisfied if all the
tests are met, unless otherwise specified.
c) If only one of the specimens does not satisfy a test due to an assembly or a
manufacturing fault, that test and any preceding one which may can have influenced the
results of the test shall be repeated and also the tests which follow shall be carried out
in the required sequence on another full set of specimens, all of which shall comply with
the requirements.
d) If the ISG has an integral connection component part in its design, it shall be subjected
to the testing regime of IEC 62561-1 using the appropriate lightning current given in
Table 1 of this document.
The applicant, when submitting a set of specimens, may can also submit an additional set of
specimens which may can be necessary should one specimen fail. The testing laboratory will
then, without further request, test the additional set of specimens and will reject the sets only if
a further failure occurs. If the additional set of specimens is not submitted at the same time, the
failure of one specimen will entail rejection.
Prior to the testing of the ISG and clamp assembly, suitable protection measures should be
employed to ensure that the housing is not exposed to the conditioning treatment.
For products already tested according to this part of IEC 62561, the applicability of previous
tests according to Annex D can be applied.
For new components, complete type tests and samples according to Clause 6 are required.
6.2 Ultraviolet (UV) light test
6.2.1 General test conditions
This test is necessary for ISGs designed to be installed outdoors or in specific environments.
The typical UV effects are covered by the test according to Annex C.
ISG housings for outdoor applications shall withstand UV light effects.
One set of three new specimens shall be assembled and mounted rigidly on an insulating plate
(e.g. brick, polytetrafluoroethylene (PTFE)) in accordance with the manufacturer’s installation
instructions.
The specimens shall be subjected to an environmental test consisting of an ultraviolet light test
as specified in Annex C.
6.2.2 Acceptance criteria
The specimens are deemed to have passed this part of the test if there are no signs of
disintegration and no such as cracks, flaking or pitting visible to normal or corrected vision.
Ensure that the surface of the mounting plate is suitable to resist UV radiation.

6.3 Corrosion resistance test
6.3.1 General test conditions
This test is necessary for ISGs having metallic parts designed to be installed outdoors or in
specific environments.
The typical corrosion outdoor environment is covered by the test specified in Annex B.
The specimens used in and complying with the test in 6.2, shall be subjected to corrosion tests
in accordance with Annex B.
6.3.2 Acceptance criteria
After the parts have been dried during 10 min in a drying oven at a temperature of
100 °C ± 5 °C, they shall not present any trace of rust on surfaces.
Traces of rust on the edges or a yellowish stain removed by rubbing are not taken into account.
White rust, patina and other surface oxidations are not considered as corrosive deterioration.
6.4 Mechanical tests Impact test
6.4.1 General test conditions
All specimens complying with 6.2 and 6.3 shall be stressed three times by mechanical impacts.
The impacts are carried out on the accessible parts of the ISG, which may can be mechanically
stressed accidentally.
The specimens are assembled under their normal operating conditions specified in the
manufacturer’s documentation.
The ISG is mounted on a pendulum hammer test apparatus according to IEC 60068-2-75:1997,
Clause 4, as shown in Figure 1. The striking element material shall be polyamide as per
IEC 60068-2-75:1997, Table 1, and its mass shall be 200 g as per IEC 60068-2-75:1997, Table
2.
– 14 – IEC 62561-3:2023 RLV © IEC 2023
Dimensions in millimetres
IEC
Key
1 pendulum
2 frame
3 height of fall
4 specimen
5 mounting fixture
Figure 1 – Pendulum hammer test apparatus
The hammer shall fall from a height of 200 mm so that one impact on each side is applied, as
far as possible perpendicular to the length of the arrangement. The drop height is the vertical
distance between the position of the point of control, when the pendulum is released, and the
position of this point at the time of the impact.
Each arrangement of specimen shall be mounted on an impact test apparatus as described in
IEC 60068-2-75:2014, Clause 4 and shown in IEC 60068-2-75:2014, Figure D.1. The impact
test apparatus shall be mounted on a solid wall or structure providing sufficient support for the
test apparatus.
The hammer shall deliver an impact of 0,35 J (see IEC 60068-2-75:2014, Table 2) perpendicular
to the length of the arrangement.
The point of control is located on the surface of the striking part where the line passing through
the point of intersection of the axes of the steel tube of the pendulum and the part of striking,
perpendicular to the plane crossing the two axes, comes into contact with the surface.

The impacts are not applied to the connectors.
NOTE In theory, the centre of gravity of the striking part should be is the point of control. As, in practice, it is difficult
to determine the centre of gravity, the point of control has been chosen as described above.
6.4.2 Acceptance criteria
After the test, the ISG shall show no cracks or similar damage visible to normal or corrected
vision without magnification and shall not present damage which can potentially affect its later
use.
6.5 Electrical tests
6.5.1 Isolation resistance
The test is conducted with a DC voltage of 0,5 times the rated DC withstand voltage up to a
maximum of but not more than 500 V.
The resistance shall be measured after 30 s of applying the test voltage.
The specimen is deemed to have passed the test if the resistance is equal to or greater than
500 kΩ.
6.5.2 Withstand voltage
6.5.2.1 General
The rated withstand voltages shall be tested according to the value declared by the
manufacturer in accordance with 5.3.
6.5.2.2 Power frequency withstand voltage
6.5.2.2.1 General test conditions
The rated power frequency withstand voltage is tested by applying an AC voltage at the
terminals of the ISG. The voltage is increased continuously at a rate of 100 V/s with a nominal
frequency of 50 Hz or 60 Hz until the RMS value as declared by the manufacturer is reached
and this is maintained for a time of 60 s ± 1 s.
The prospective short-circuit current of the source may can be limited to a minimum value of
5 mA RMS.
6.5.2.2.2 Acceptance criteria
The specimens are deemed to have passed the test if during the application of the test voltage
the ISG does not spark over, or and conducts a leakage current exceeding < 1 mA RMS.
6.5.2.3 DC withstand voltage
6.5.2.3.1 General test conditions
The rated DC withstand voltage shall be tested by applying a DC voltage at the terminals of the
ISG. The voltage shall be increased continuously at a rate of 100 V/s until the value as declared
by the manufacturer is reached and this is maintained for a time of 60 s ± 1 s.
The prospective short circuit current of the source may can be limited to a minimum value of
5 mA.
– 16 – IEC 62561-3:2023 RLV © IEC 2023
6.5.2.3.2 Acceptance criteria
The specimens are deemed to have passed the test if during the application of the test voltage
the ISG does not spark over, or and conducts a leakage current exceeding < 1 mA.
6.5.3 Rated impulse sparkover voltage
6.5.3.1 General test conditions
An impulse voltage of 1,2/50 μs with a peak value of the declared impulse sparkover voltage
shall be applied at the terminals of the ISG. The test is performed with five surges of positive
and five surges of negative polarity and the ISG has to shall spark over at each test impulse.
6.5.3.2 Acceptance criteria
The specimens are deemed to have passed the test if they have operated at each test impulse
and no signs of cracks or punctures appear on the enclosures.
6.5.4 Lightning current
6.5.4.1 General test conditions
After 6.5.3 and the conditioning according to Annex B, the specimens shall be pre-stressed with
a test current of 0,5 I , followed by a second test current of I after the ISG has cooled
imp imp
down close approximately to ambient temperature.
The impulse discharge current passing through the device under test is defined by the crest
value I , the charge Q and the specific energy W/R. The impulse current shall show no reversal
imp
and reach I within 50 µs. The transfer of the charge Q shall occur within 5 ms and the specific
imp
energy W/R shall be dissipated within 5 ms.
All the parameters are given in Table 1 and have been derived from IEC 62305-1:2010, Table 3.
After the current test, the tests according to 6.5.1, 6.5.2 and 6.5.3 shall be carried out.
a
Table 1 – Lightning impulse current (I ) parameters
imp
I Q W/R
imp
+20 +45
(peak value)
ISG
As % kJ/Ω %
−10 −10
classification
kA ± 10 %
within 5 ms within 5 ms
within 50 µs
H 100 50 2 500
N 50 25 625
1L 25 12,5 156
2L 10 5 25
3L 5 2,5 6,25
a rd
The parameters are derived from the 3 edition of IEC 62305-1 which is under
preparation shall be selected from IEC 62305-1.

NOTE When a lightning current flows in an arc, a shock wave is produced. The severity of the shock is dependent
upon the peak current and the rate of rise of the current. The shorter the rise time, the greater the severity. In general,
the acoustic shock wave can cause damage to the surrounding components, such as the enclosure of the ISG.

6.5.4.2 Acceptance criteria
The specimens are deemed to have passed the test if no signs of cracks or punctures appear
on the enclosures.
After the current test, the tests according to 6.5.1, 6.5.2 and 6.5.3 shall be carried out.
6.6 Documentation and installation instructions
6.6.1 General conditions
The content of the installation instructions is checked in accordance with its completeness by
review.
6.6.2 Acceptance criteria
Installation instructions are deemed to have passed the test be acceptable if they contain at
least the following:
a) classification according to 4.1 and lightning current capability (I );
imp
b) rated withstand voltage;
c) rated power frequency withstand voltage (U );
W AC
d) rated DC withstand voltage (U );
W DC
e) assembly instructions with installation location according to 4.2 (if crucial to the
function);
f) appropriate connection components for the installation if not part of the ISG.
6.7 Marking test
6.7.1 General test conditions
The marking is checked by inspection and by rubbing it by hand for 15 s with a piece of cloth
soaked with water and again for 15 s with a piece of cloth soaked with white spirit/ or mineral
spirit.
Marking made by moulding, pressing or engraving is not subjected to this test.
6.7.2 Acceptance criteria
The specimen is deemed to have passed the test if the marking remains legible.
7 Electromagnetic compatibility (EMC)
Products covered by this document are, in normal use, passive with respect to electromagnetic
influences (emission and immunity).
8 Structure and content of the test report
8.1 General
The purpose of this Clause 8 is to provide general requirements for laboratory test reports. It is
intended to promote clear, complete reporting procedures for laboratories submitting test
reports.
The results of each test carried out by the testing laboratory shall be reported accurately,
clearly, unambiguously and objectively, in accordance with any instructions in the test methods.

– 18 – IEC 62561-3:2023 RLV © IEC 2023
The results shall be reported in a test report and shall include all the information necessary for
the interpretation of the test results and all information required by the method used.
Particular care and attention shall be paid to the arrangement of the report, especially with
regard to presentation of the test data and ease of assimilation by the reader. The report shall
be arranged and presented in such a way that it is easily assimilated by the reader, especially
with regards to presentation of the test data. The format shall be carefully and specifically
designed for each type of test carried out, but the headings shall be standardized as indicated
below.
The structure of each report shall include at least the information specified given in 8.2 to 8.9.
8.2 Report identification
The following information shall be included in the report
a) a title or subject of the report;
b) name and email address or telephone number of the test laboratory;
c) name, address and telephone number of the sub-test laboratory where the test was carried
out if different from the company which has been assigned to perform the test;
d) unique identification number (or serial number) of the test report;
e) name and address of the vendor;
f) Report shall be paginated report and indication of the total number of pages indicated on
each page, including appendices or annexes;
g) date of issue of the report;
h) date(s) of performance of test(s);
i) signature and title, or an equivalent identification of the person(s) authorized to sign by for
the testing laboratory for the content of the report;
j) signature and title of person(s) conducting the test(s);
k) declaration, in order to avoid misuse, as follows: "This type test report shall not be
reproduced other than in full, except with the prior written approval of the issuing testing
laboratory. This type test report only covers the samples submitted for test and does not
produce evidence of the quality for series production."
8.3 Specimen description
a) sample description identification;
b) detailed description and unambiguous identification of either the test sample and/or test
assembly or both for example part number, type, classification, material, dimensions;
c) characterization and condition of either the test sample and/or test assembly or both;
d) sampling procedure, where relevant;
e) date of receipt of test samples items;
f) photographs, drawings or any other visual documentation, if available.
8.4 Standards and references
a) identification of the test standard used and the date of issue of the standard;
b) Reference to this document may only be made if the full set of tests is performed and
reported, except where the deviations are clearly justified in 8.5 b).
cb) other relevant documentation with the documentation date.
