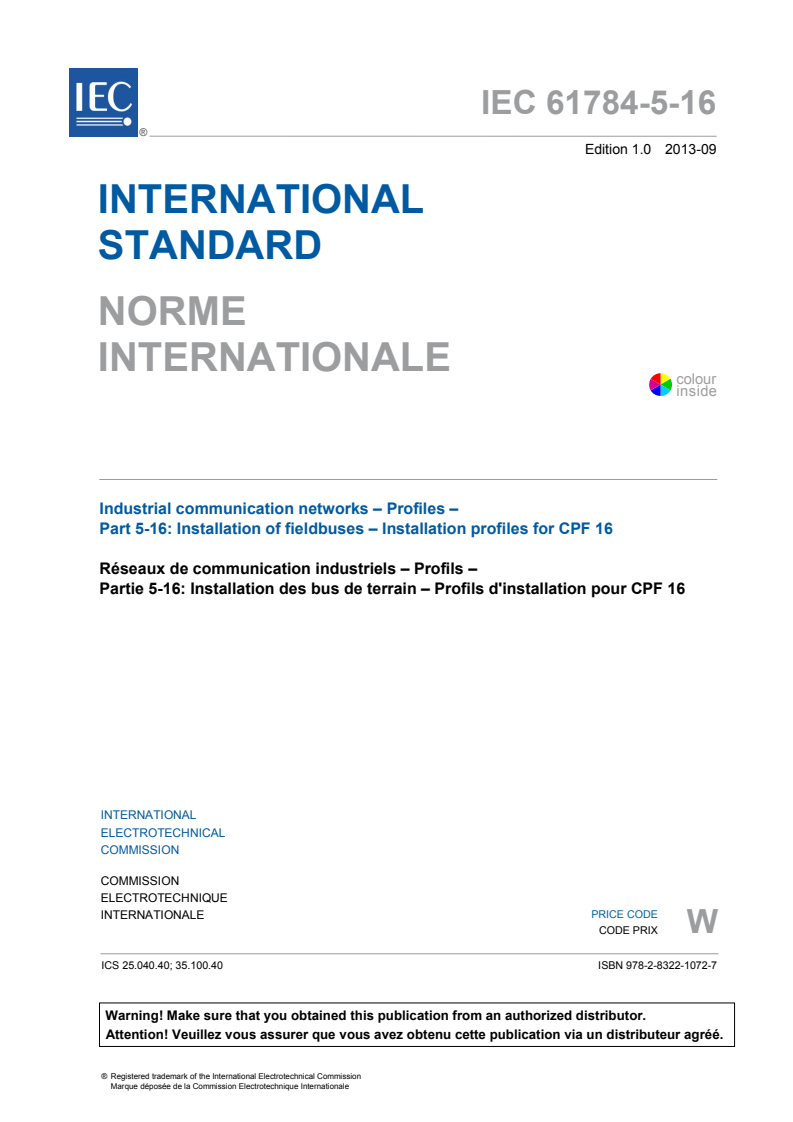

IEC 61784-5-16:2013

IEC 61784-5-16 ®
Edition 1.0 2013-09
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Industrial communication networks – Profiles –
Part 5-16: Installation of fieldbuses – Installation profiles for CPF 16

Réseaux de communication industriels – Profils –
Partie 5-16: Installation des bus de terrain – Profils d'installation pour CPF 16

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,
please contact the address below or your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni
utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie et les
microfilms, sans l'accord écrit de la CEI ou du Comité national de la CEI du pays du demandeur.
Si vous avez des questions sur le copyright de la CEI ou si vous désirez obtenir des droits supplémentaires sur cette
publication, utilisez les coordonnées ci-après ou contactez le Comité national de la CEI de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

Useful links:
IEC publications search - www.iec.ch/searchpub Electropedia - www.electropedia.org
The advanced search enables you to find IEC publications The world's leading online dictionary of electronic and
by a variety of criteria (reference number, text, technical electrical terms containing more than 30 000 terms and
committee,…). definitions in English and French, with equivalent terms in
It also gives information on projects, replaced and additional languages. Also known as the International
withdrawn publications. Electrotechnical Vocabulary (IEV) on-line.

IEC Just Published - webstore.iec.ch/justpublished Customer Service Centre - webstore.iec.ch/csc
Stay up to date on all new IEC publications. Just Published If you wish to give us your feedback on this publication
details all new publications released. Available on-line and or need further assistance, please contact the
also once a month by email. Customer Service Centre: csc@iec.ch.

A propos de la CEI
La Commission Electrotechnique Internationale (CEI) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications CEI
Le contenu technique des publications de la CEI est constamment revu. Veuillez vous assurer que vous possédez
l’édition la plus récente, un corrigendum ou amendement peut avoir été publié.

Liens utiles:
Recherche de publications CEI - www.iec.ch/searchpub Electropedia - www.electropedia.org
La recherche avancée vous permet de trouver des Le premier dictionnaire en ligne au monde de termes
publications CEI en utilisant différents critères (numéro de électroniques et électriques. Il contient plus de 30 000
référence, texte, comité d’études,…). termes et définitions en anglais et en français, ainsi que
Elle donne aussi des informations sur les projets et les les termes équivalents dans les langues additionnelles.
publications remplacées ou retirées. Egalement appelé Vocabulaire Electrotechnique
International (VEI) en ligne.
Just Published CEI - webstore.iec.ch/justpublished
Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications de la CEI.
Just Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur
Disponible en ligne et aussi une fois par mois par email. cette publication ou si vous avez des questions
contactez-nous: csc@iec.ch.
IEC 61784-5-16 ®
Edition 1.0 2013-09
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Industrial communication networks – Profiles –

Part 5-16: Installation of fieldbuses – Installation profiles for CPF 16

Réseaux de communication industriels – Profils –

Partie 5-16: Installation des bus de terrain – Profils d'installation pour CPF 16

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX W
ICS 25.040.40; 35.100.40 ISBN 978-2-8322-1072-7

– 2 – 61784-5-16 © IEC:2013

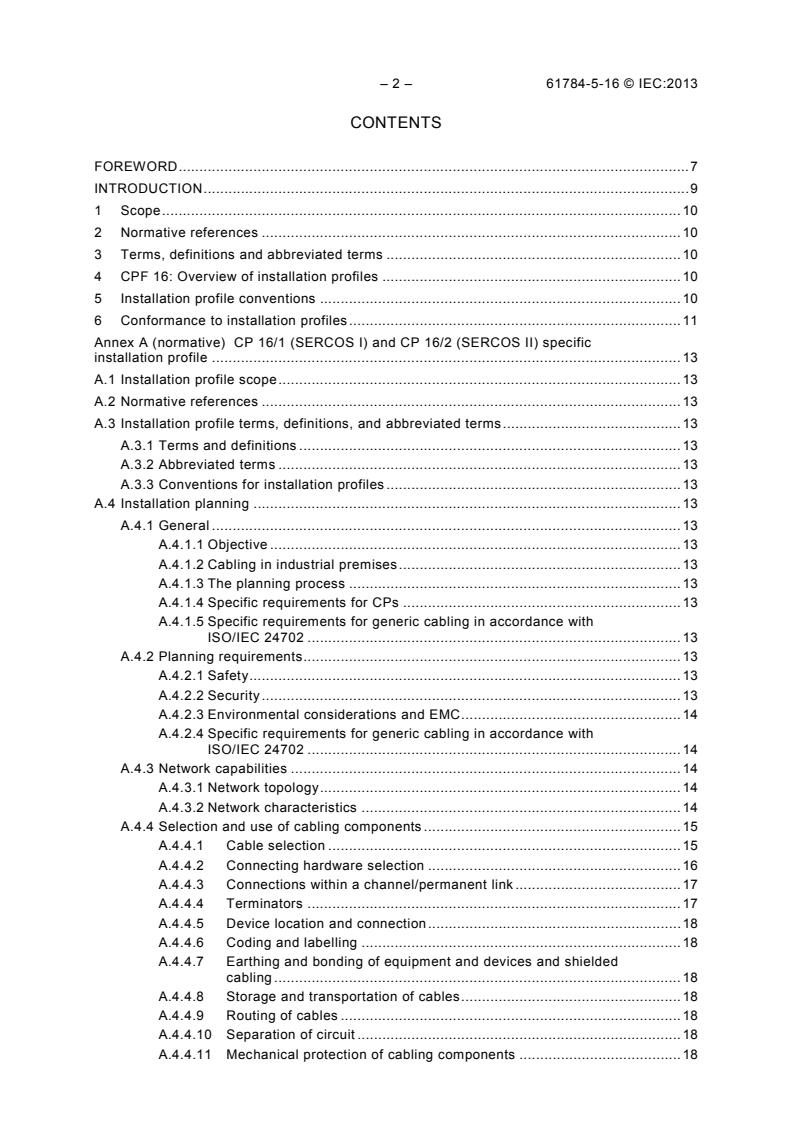

CONTENTS
FOREWORD . 7
INTRODUCTION . 9
1 Scope . 10
2 Normative references . 10
3 Terms, definitions and abbreviated terms . 10
4 CPF 16: Overview of installation profiles . 10
5 Installation profile conventions . 10
6 Conformance to installation profiles . 11
Annex A (normative) CP 16/1 (SERCOS I) and CP 16/2 (SERCOS II) specific
installation profile . 13
A.1 Installation profile scope . 13
A.2 Normative references . 13
A.3 Installation profile terms, definitions, and abbreviated terms . 13
A.3.1 Terms and definitions . 13
A.3.2 Abbreviated terms . 13
A.3.3 Conventions for installation profiles . 13
A.4 Installation planning . 13
A.4.1 General . 13
A.4.1.1 Objective . 13
A.4.1.2 Cabling in industrial premises . 13
A.4.1.3 The planning process . 13
A.4.1.4 Specific requirements for CPs . 13
A.4.1.5 Specific requirements for generic cabling in accordance with
ISO/IEC 24702 . 13
A.4.2 Planning requirements . 13
A.4.2.1 Safety . 13
A.4.2.2 Security . 13
A.4.2.3 Environmental considerations and EMC . 14
A.4.2.4 Specific requirements for generic cabling in accordance with
ISO/IEC 24702 . 14
A.4.3 Network capabilities . 14
A.4.3.1 Network topology . 14
A.4.3.2 Network characteristics . 14
A.4.4 Selection and use of cabling components . 15
A.4.4.1 Cable selection . 15
A.4.4.2 Connecting hardware selection . 16
A.4.4.3 Connections within a channel/permanent link . 17
A.4.4.4 Terminators . 17
A.4.4.5 Device location and connection . 18
A.4.4.6 Coding and labelling . 18
A.4.4.7 Earthing and bonding of equipment and devices and shielded
cabling . 18
A.4.4.8 Storage and transportation of cables . 18
A.4.4.9 Routing of cables . 18
A.4.4.10 Separation of circuit . 18
A.4.4.11 Mechanical protection of cabling components . 18

61784-5-16 © IEC:2013 – 3 –
A.4.4.12 Installation in special areas . 18
A.4.5 Cabling planning documentation . 19
A.4.6 Verification of cabling planning specification . 19
A.5 Installation implementation . 19
A.5.1 General requirements . 19
A.5.2 Cable installation . 19
A.5.2.1 General requirements for all cabling types . 19
A.5.2.2 Installation and routing . 20
A.5.3 Connector installation . 20
A.5.3.1 Common description . 20
A.5.3.2 Shielded connectors . 20
A.5.3.3 Unshielded connectors . 20
A.5.3.4 Specific requirements for CPs . 20
A.5.3.5 Specific requirements for wireless installation . 20
A.5.4 Terminator installation . 20
A.5.5 Device installation . 20
A.5.6 Coding and labelling . 20
A.5.7 Earthing and bonding of equipment and devices and shield cabling . 20
A.5.8 As-implemented cabling documentation . 20
A.6 Installation verification and installation acceptance test . 20
A.6.1 General . 20
A.6.2 Installation verification . 20
A.6.2.1 General . 20
A.6.2.2 Verification according to cabling planning documentation . 20
A.6.2.3 Verification of earthing and bonding . 21
A.6.2.4 Verification of shield earthing . 21
A.6.2.5 Verification of cabling system . 21
A.6.2.6 Cable selection verification . 21
A.6.2.7 Connector verification . 21
A.6.2.8 Connection verification . 21
A.6.2.9 Terminators verification . 21
A.6.2.10 Coding and labelling verification . 21
A.6.2.11 Verification report . 21
A.6.3 Installation acceptance test . 21
A.6.3.1 General . 22
A.6.3.2 Acceptance test of Ethernet-based cabling . 22
A.6.3.3 Acceptance test of non-Ethernet-based cabling . 22
A.6.3.4 Specific requirements for wireless installation . 22
A.6.3.5 Acceptance test report . 22
A.7 Installation administration . 22
A.7.1 General . 22
A.7.2 Fields covered by the administration . 22
A.7.3 Basic principles for the administration system . 22
A.7.4 Working procedures . 22
A.7.5 Device location labelling . 22
A.7.6 Component cabling labelling . 22
A.7.7 Documentation . 22
A.7.8 Specific requirements for administration . 22
A.8 Installation maintenance and installation troubleshooting . 22

– 4 – 61784-5-16 © IEC:2013
A.8.1 General . 22
A.8.2 Maintenance . 22
A.8.3 Troubleshooting . 22
A.8.4 Specific requirements for maintenance and troubleshooting . 22
Annex B (normative) CP 16/3 (SERCOS III) specific installation profile . 23
B.1 Installation profile scope . 23
B.2 Normative references . 23
B.3 Installation profile terms, definitions, and abbreviated terms . 23
B.3.1 Terms and definitions . 23
B.3.2 Abbreviated terms . 23
B.3.3 Conventions for installation profiles . 23
B.4 Installation planning . 23
B.4.1 General . 23
B.4.1.1 Objective . 23
B.4.1.2 Cabling in industrial premises . 23
B.4.1.3 The planning process . 23
B.4.1.4 Specific requirements for CPs . 23
B.4.1.5 Specific requirements for generic cabling in accordance with
ISO/IEC 24702 . 23
B.4.2 Planning requirements . 23
B.4.2.1 Safety . 23
B.4.2.2 Security . 23
B.4.2.3 Environmental considerations and EMC . 24
B.4.2.4 Specific requirements for generic cabling in accordance with
ISO/IEC 24702 . 24
B.4.3 Network capabilities . 24
B.4.3.1 Network topology . 24
B.4.3.2 Network characteristics . 24
B.4.4 Selection and use of cabling components . 26
B.4.4.1 Cable selection . 26
B.4.4.2 Connecting hardware selection . 30
B.4.4.3 Connections within a channel/permanent link . 31
B.4.4.4 Terminators . 32
B.4.4.5 Device location and connection . 32
B.4.4.6 Coding and labelling . 32
B.4.4.7 Earthing and bonding of equipment and devices and shielded
cabling . 33
B.4.4.8 Storage and transportation of cables . 33
B.4.4.9 Routing of cables . 33
B.4.4.10 Separation of circuit . 33
B.4.4.11 Mechanical protection of cabling components . 33
B.4.4.12 Installation in special areas . 33
B.4.5 Cabling planning documentation . 33
B.4.6 Verification of cabling planning specification . 33
B.5 Installation implementation . 33
B.5.1 General requirements . 33
B.5.2 Cable installation . 33
B.5.2.1 General requirements for all cabling types . 33
B.5.2.2 Installation and routing . 35

61784-5-16 © IEC:2013 – 5 –
B.5.2.3 Specific requirements for CPs . 35
B.5.2.4 Specific requirements for wireless installation . 35
B.5.2.5 Specific requirements for generic cabling in accordance with
ISO/IEC 24702 . 35
B.5.3 Connector installation . 35
B.5.4 Terminator installation . 35
B.5.5 Device installation . 35
B.5.6 Coding and labelling . 35
B.5.7 Earthing and bonding of equipment and devices and shield cabling . 35
B.5.8 As-implemented cabling documentation . 35
B.6 Installation verification and installation acceptance test . 35
B.6.1 General . 35
B.6.2 Installation verification . 35
B.6.3 Installation acceptance test . 35
B.7 Installation administration . 35
B.7.1 General . 35
B.7.2 Fields covered by the administration . 35
B.7.3 Basic principles for the administration system . 35
B.7.4 Working procedures . 35
B.7.5 Device location labelling . 36
B.7.6 Component cabling labelling . 36
B.7.7 Documentation . 36
B.7.8 Specific requirements for administration . 36
B.8 Installation maintenance and installation troubleshooting . 36
B.8.1 General . 36
B.8.2 Maintenance . 36
B.8.3 Troubleshooting . 36
B.8.4 Specific requirements for maintenance and troubleshooting . 36
Bibliography . 37

Figure 1 – Standards relationships . 9

Table A.1 – Network characteristics for optical fibre cabling . 15
Table A.2 – Information relevant to optical fibre cables . 16
Table A.3 – Optical fibre connecting hardware . 16
Table A.4 –Relationship between FOC and fibre types (CP 16/1 and CP 16/2) . 17
Table A.5 – Parameters for POF optical fibre cables . 19
Table A.6 – Parameters for hard clad silica optical fibre cables . 19
Table B.1 – Network characteristics for balanced cabling based on Ethernet . 25
Table B.2 – Network characteristics for optical fibre cabling . 26
Table B.3 – Information relevant to copper cable: CP 16/3 Type A (fixed cables) . 27
Table B.4 – Information relevant to copper cable: CP 16/3 Type B (flexible cables) . 28
Table B.5 – Information relevant to copper cable: CP 16/3 Type C (special cables) . 29
Table B.6 – Information relevant to optical fibre cables . 30
Table B.7 – Connectors for balanced cabling CPs based on Ethernet . 30
Table B.8 – Optical fibre connecting hardware . 31
Table B.9 –Relationship between FOC and fibre types (CP 16/3) . 31

– 6 – 61784-5-16 © IEC:2013
Table B.10 – Parameters for balanced cables . 33
Table B.11 – Parameters for silica optical fibre cables . 34
Table B.12 – Parameters for POF optical fibre cables . 34
Table B.13 – Parameters for hard clad silica optical fibre cables . 34

61784-5-16 © IEC:2013 – 7 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
INDUSTRIAL COMMUNICATION NETWORKS –
PROFILES –
Part 5-16: Installation of fieldbuses –
Installation profiles for CPF 16

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 61784-5-16 has been prepared by subcommittee 65C: Industrial
networks, of IEC technical committee 65: Industrial-process measurement, control and
automation.
This standard is to be used in conjunction with IEC 61918:2013.
The text of this standard is based on the following documents:
FDIS Report on voting
65C/738/FDIS 65C/743/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.

– 8 – 61784-5-16 © IEC:2013
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
A list of all parts of IEC 61784-5 series, under the general title Industrial communication
networks – Profiles – Installation of fieldbuses, can be found on the IEC website.
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct
understanding of its contents. Users should therefore print this document using a
colour printer.
61784-5-16 © IEC:2013 – 9 –
INTRODUCTION
This International Standard is one of a series produced to facilitate the use of communication
networks in industrial control systems.
IEC 61918:2013 provides the common requirements for the installation of communication
networks in industrial control systems. This installation profile standard provides the
installation profiles of the communication profiles (CP) of a specific communication profile
family (CPF) by stating which requirements of IEC 61918 fully apply and, where necessary, by
supplementing, modifying, or replacing the other requirements (see Figure 1).
For general background on fieldbuses, their profiles, and relationship between the installation
profiles specified in this standard, see IEC 61158-1.
Each CP installation profile is specified in a separate annex of this standard. Each annex is
structured exactly as the reference standard IEC 61918 for the benefit of the persons
representing the roles in the fieldbus installation process as defined in IEC 61918 (planner,
installer, verification personnel, validation personnel, maintenance personnel, administration
personnel). By reading the installation profile in conjunction with IEC 61918, these persons
immediately know which requirements are common for the installation of all CPs and which
are modified or replaced. The conventions used to draft this standard are defined in Clause 5.
The provision of the installation profiles in one standard for each CPF (for example
IEC 61784-5-16 for CPF 16), allows readers to work with standards of a convenient size.
PLANNING
DESIGN AND
INSTALLATION
Offices
GENERIC
OFFICE PREMISES ISO/IEC 11801
Annex
CABLING
Home
HOMES ISO/IEC 15018
Annex
ISO/IEC Data centre
DATA CENTRES ISO/IEC 24764
14763-2 Annex
BETWEEN
Industrial
AUTOMATION ISO/IEC 24702
Annex
ISLANDS
BETWEEN
AUTOMATION
Installation
INDUSTRIAL PREMISES IEC 61158
IEC 61918
ISLANDS
Profiles
series
IEC 61784-5 series
and (Common
(Selection +
WITHIN
requirements)
IEC 61784-1, -2
Add/Repl/Mod)
AUTOMATION
ISLANDS
Com m on structure
APPLICATION-SPECIFIC
CABLING
Figure 1 – Standards relationships

– 10 – 61784-5-16 © IEC:2013
INDUSTRIAL COMMUNICATION NETWORKS –
PROFILES –
Part 5-16: Installation of fieldbuses –
Installation profiles for CPF 16

1 Scope
This part of IEC 61784-5 specifies the installation profiles for CPF 16 (SERCOS ).
The installation profiles are specified in the annexes. These annexes are read in conjunction
with IEC 61918:2013.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and
are indispensable for its application. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 61918:2013, Industrial communication networks – Installation of communication networks
in industrial premises
The normative references of IEC 61918:2013, Clause 2, apply.
3 Terms, definitions and abbreviated terms
For the purposes of this document, the terms, definitions and abbreviated terms given in
IEC 61918:2013, Clause 3, apply.
4 CPF 16: Overview of installation profiles
CPF 16 consists of three Communication Profiles as specified in IEC 61784-1 and
IEC 61784-2.
The installation requirements for CP 16/1 (SERCOS I) and CP 16/2 (SERCOS II) are specified
in Annex A.
The installation requirements for CP 16/3 (SERCOS III) are specified in Annex B.
5 Installation profile conventions
The numbering of the clauses and subclauses in the annexes of this standard corresponds to
the numbering of IEC 61918 main clauses and subclauses.
___________
SERCOS is a trade name of SERCOS International. This information is given for the convenience of users of this document
and does not constitute an endorsement by IEC of the trade mark holder or any of its products. Use of the trade name
requires permission of the trade name holder.

61784-5-16 © IEC:2013 – 11 –
The annex clauses and subclauses of this standard supplement, modify, or replace the
respective clauses and subclauses in IEC 61918.
Where there is no corresponding subclause of IEC 61918 in the normative annexes in this
standard, the subclause of IEC 61918 applies without modification.
The annex heading letter represents the installation profile assigned in Clause 4. The annex
heading number shall represent the corresponding numbering of IEC 61918.
EXAMPLE “Subclause A.4.4” in IEC 61784-5-16 means that CP 16/2 specifies the subclause 4.4 of IEC 61918.
All main clauses of IEC 61918 are cited and apply in full unless otherwise stated in each
normative installation profile annex.
If all subclauses of a (sub)clause are omitted, then the corresponding IEC 61918 (sub)clause
applies.
If in a (sub)clause it is written “Not applicable.”, then the corresponding
IEC 61918 (sub)clause does not apply.
If in a (sub)clause it is written “Addition:”, then the corresponding IEC 61918 (sub)clause
applies with the additions written in the profile.
If in a (sub)clause it is written “Replacement:”, then the text provided in the profile replaces
the text of the corresponding IEC 61918 (sub)clause.
NOTE A replacement can also comprise additions.
If in a (sub)clause it is written “Modification:”, then the corresponding IEC 61918 (sub)clause
applies with the modifications written in the profile.
If all (sub)clauses of a (sub)clause are omitted but in this (sub)clause it is written
“(Sub)clause x has addition:” (or “replacement:”) or “(Sub)clause x is not applicable.”, then
(sub)clause x becomes valid as declared and all the other corresponding
IEC 61918 (sub)clauses apply.
6 Conformance to installation profiles
Each installation profile within this standard includes part of IEC 61918:2013. It may also
include defined additional specifications.
A statement of compliance to an installation profile of this standard shall be stated as either
Compliance to IEC 61784-5-16:2013 for CP 16/m or
Compliance to IEC 61784-5-16 (Ed.1.0) for CP 16/m
where the name within the angle brackets < > is optional and the angle brackets are not to be
included. The m within CP 16/m shall be replaced by the profile number 1 to 3.
NOTE The name can be the name of the profile, for example SERCOS II or SERCOS III.
If the name is a trade name then the permission of the trade name holder shall be required.
___________
In accordance with ISO/IEC Directives.
The date should not be used when the edition number is used.

– 12 – 61784-5-16 © IEC:2013
Product standards shall not include any conformity assessment aspects (including quality
management provisions), neither normative nor informative, other than provisions for product
testing (evaluation and examination).

61784-5-16 © IEC:2013 – 13 –
Annex A
(normative)
CP 16/1 (SERCOS I) and CP 16/2 (SERCOS II) specific installation profile

A.1 Installation profile scope
Addition:
This standard specifies the installation profile for Communication Profile CP 16/1 (SERCOS I)
and CP 16/2 (SERCOS II). CP 16/1 and CP 16/2 are specified in IEC 61784-1.
A.2 Normative references
A.3 Installation profile terms, definitions, and abbreviated terms
A.3.1 Terms and definitions
A.3.2 Abbreviated terms
A.3.3 Conventions for installation profiles
Not applicable.
A.4 Installation planning
A.4.1 General
A.4.1.1 Objective
A.4.1.2 Cabling in industrial premises
A.4.1.3 The planning process
A.4.1.4 Specific requirements for CPs
Not applicable.
A.4.1.5 Specific requirements for generic cabling in accordance with ISO/IEC 24702
A.4.2 Planning requirements
A.4.2.1 Safety
A.4.2.1.1 General
A.4.2.1.2 Electric safety
A.4.2.1.3 Functional safety
A.4.2.1.4 Intrinsic safety
Not applicable.
A.4.2.1.5 Safety of optical fibre communication systems
A.4.2.2 Security
– 14 – 61784-5-16 © IEC:2013
A.4.2.3 Environmental considerations and EMC
A.4.2.3.1 Description methodology
A.4.2.3.2 Use of the described environment to produce a bill of material
A.4.2.4 Specific requirements for generic cabling in accordance with ISO/IEC 24702
A.4.3 Network capabilities
A.4.3.1 Network topology
A.4.3.1.1 Common description
A.4.3.1.2 Basic physical topologies for passive networks
A.4.3.1.3 Basic physical topologies for active networks
A.4.3.1.4 Combination of basic topologies
A.4.3.1.5 Specific requirements for CPs
Not applicable.
A.4.3.1.6 Specific requirements for generic cabling in accordance with
ISO/IEC 24702
A.4.3.2 Network characteristics
A.4.3.2.1 General
A.4.3.2.2 Network characteristics for balanced cabling not based on Ethernet
Not applicable.
A.4.3.2.3 Network characteristics for balanced cabling based on Ethernet
Not applicable.
A.4.3.2.4 Network characteristics for optical fibre cabling
Replacement:
Table A.1 provides values based on the template given in IEC 61918:2013, Table 3.

61784-5-16 © IEC:2013 – 15 –
Table A.1 – Network characteristics for optical fibre cabling
CP 16/1 (SERCOS I) and CP 16/2 (SERCOS II)
Optical fibre type Description
POF 5 at 650
Modal bandwidth (MHz × 100 m) at λ (nm)
Minimum length (m) 0
a
Maximum length (m) 70
Maximum channel insertion loss/optical –
power budget (dB)
Connecting hardware see
A.4.4.2.5
Hard clad silica Modal bandwidth (MHz × 1 km) at λ (nm) 10 at 650
Minimum length (m) 0
a
Maximum length (m) 400
Maximum channel insertion loss/optical 4
power budget (dB)
Connector hardware see
A.4.4.2.5
a
This value is reduced by connections, splices and bends in accordance with
formula (1) in 4.4.3.4.1 of IEC 61918:2013.

A.4.3.2.5 Specific network characteristics
Not applicable.
A.4.3.2.6 Specific requirements for generic cabling in accordance with
ISO/IEC 24702
A.4.4 Selection and use of cabling components
A.4.4.1 Cable selection
A.4.4.1.1 Common description
The second paragraph is not applicable.
A.4.4.1.2 Copper cables
A.4.4.1.2.1 Balanced cables for Ethernet-based CPs
Not applicable.
A.4.4.1.2.2 Copper cables for non-Ethernet-based CPs
Not applicable.
A.4.4.1.3 Cables for wireless installation
A.4.4.1.4 Optical fibre cables
Replacement:
Table A.2 provides values based on the template given in IEC 61918:2013, Table 6.

– 16 – 61784-5-16 © IEC:2013
Table A.2 – Information relevant to optical fibre cables
Characteristic 980/1 000 µm step index 200/230 µm step index hard clad
POF silica
Standard IEC 60793-2 IEC 60793-2
Attenuation per km at 650 nm (in dB/km)
≤ 160 ≤ 10
Number of optical fibres 1 1
Jacket colour requirements Red (RAL 3020) Red (RAL 3020)
(recommended) (recommended)
Jacket material No requirement. Application dependent.
Resistance to harsh environment (e.g. UV, oil No requirement. Application dependent.
resist, LS0H)
A.4.4.1.5 Special purpose balanced and optical fibre cables
Not applicable.
A.4.4.1.6 Specific requirements for CPs
Not applicable.
A.4.4.1.7 Specific requirements for generic cabling in accordance with
IS
...
