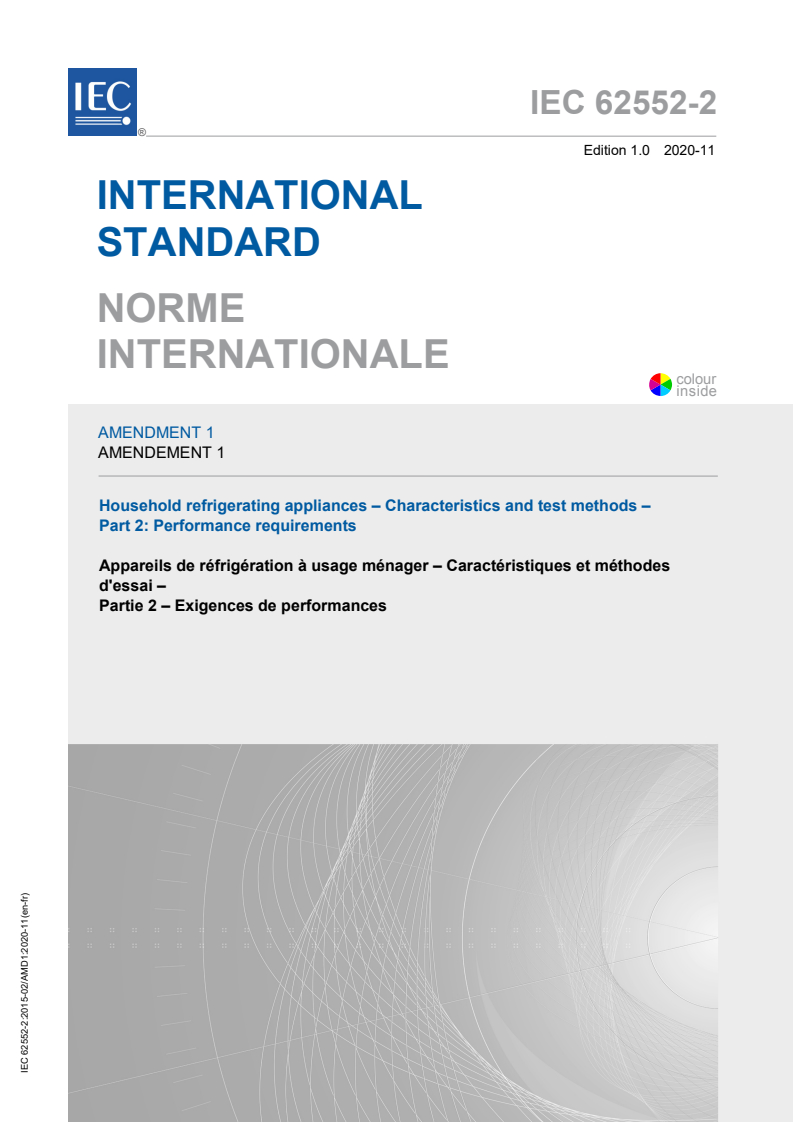

IEC 62552-2:2015/AMD1:2020

IEC 62552-2 ®
Edition 1.0 2020-11
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
A MENDMENT 1
AM ENDEMENT 1
Household refrigerating appliances – Characteristics and test methods –
Part 2: Performance requirements

Appareils de réfrigération à usage ménager – Caractéristiques et méthodes
d'essai –
Partie 2 – Exigences de performances

IEC 62552-2:2015-02/AMD1:2020-11(en-fr)

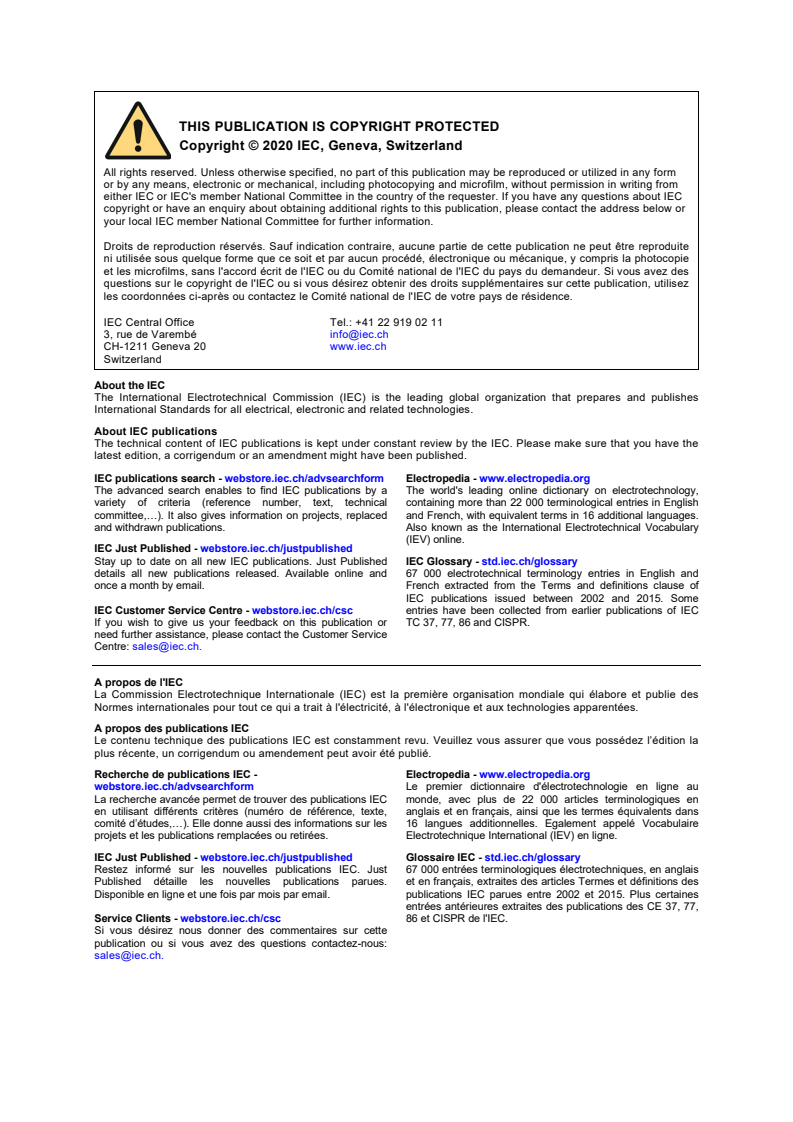

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform Electropedia - www.electropedia.org
The advanced search enables to find IEC publications by a The world's leading online dictionary on electrotechnology,
variety of criteria (reference number, text, technical containing more than 22 000 terminological entries in English
committee,…). It also gives information on projects, replaced and French, with equivalent terms in 16 additional languages.
and withdrawn publications. Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Glossary - std.iec.ch/glossary
details all new publications released. Available online and 67 000 electrotechnical terminology entries in English and
once a month by email. French extracted from the Terms and definitions clause of
IEC publications issued between 2002 and 2015. Some
IEC Customer Service Centre - webstore.iec.ch/csc entries have been collected from earlier publications of IEC
If you wish to give us your feedback on this publication or TC 37, 77, 86 and CISPR.

need further assistance, please contact the Customer Service

Centre: sales@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Recherche de publications IEC - Electropedia - www.electropedia.org
webstore.iec.ch/advsearchform Le premier dictionnaire d'électrotechnologie en ligne au
La recherche avancée permet de trouver des publications IEC monde, avec plus de 22 000 articles terminologiques en
en utilisant différents critères (numéro de référence, texte, anglais et en français, ainsi que les termes équivalents dans
comité d’études,…). Elle donne aussi des informations sur les 16 langues additionnelles. Egalement appelé Vocabulaire
projets et les publications remplacées ou retirées. Electrotechnique International (IEV) en ligne.

IEC Just Published - webstore.iec.ch/justpublished Glossaire IEC - std.iec.ch/glossary
Restez informé sur les nouvelles publications IEC. Just 67 000 entrées terminologiques électrotechniques, en anglais
Published détaille les nouvelles publications parues. et en français, extraites des articles Termes et définitions des
Disponible en ligne et une fois par mois par email. publications IEC parues entre 2002 et 2015. Plus certaines
entrées antérieures extraites des publications des CE 37, 77,
Service Clients - webstore.iec.ch/csc 86 et CISPR de l'IEC.

Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.

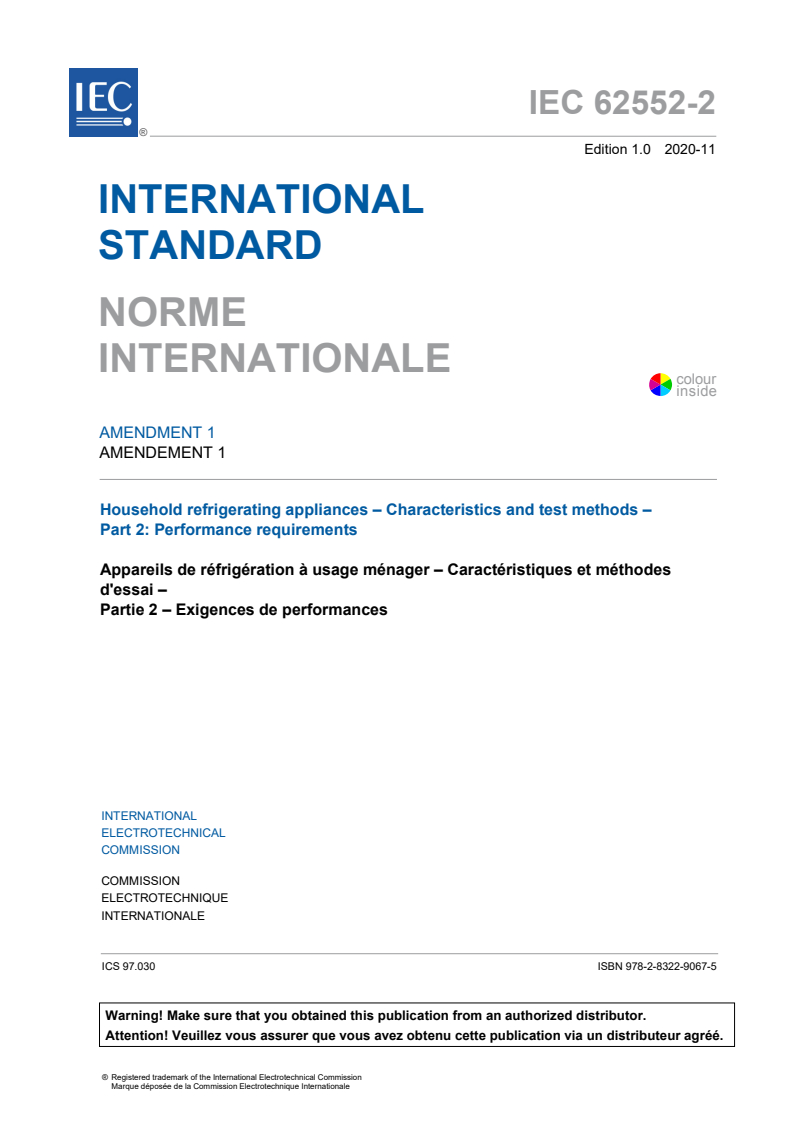

IEC 62552-2 ®
Edition 1.0 2020-11
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
A MENDMENT 1
AM ENDEMENT 1
Household refrigerating appliances – Characteristics and test methods –

Part 2: Performance requirements

Appareils de réfrigération à usage ménager – Caractéristiques et méthodes

d'essai –
Partie 2 – Exigences de performances

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 97.030 ISBN 978-2-8322-9067-5

– 2 – IEC 62552-2:2015/AMD1:2020
© IEC 2020

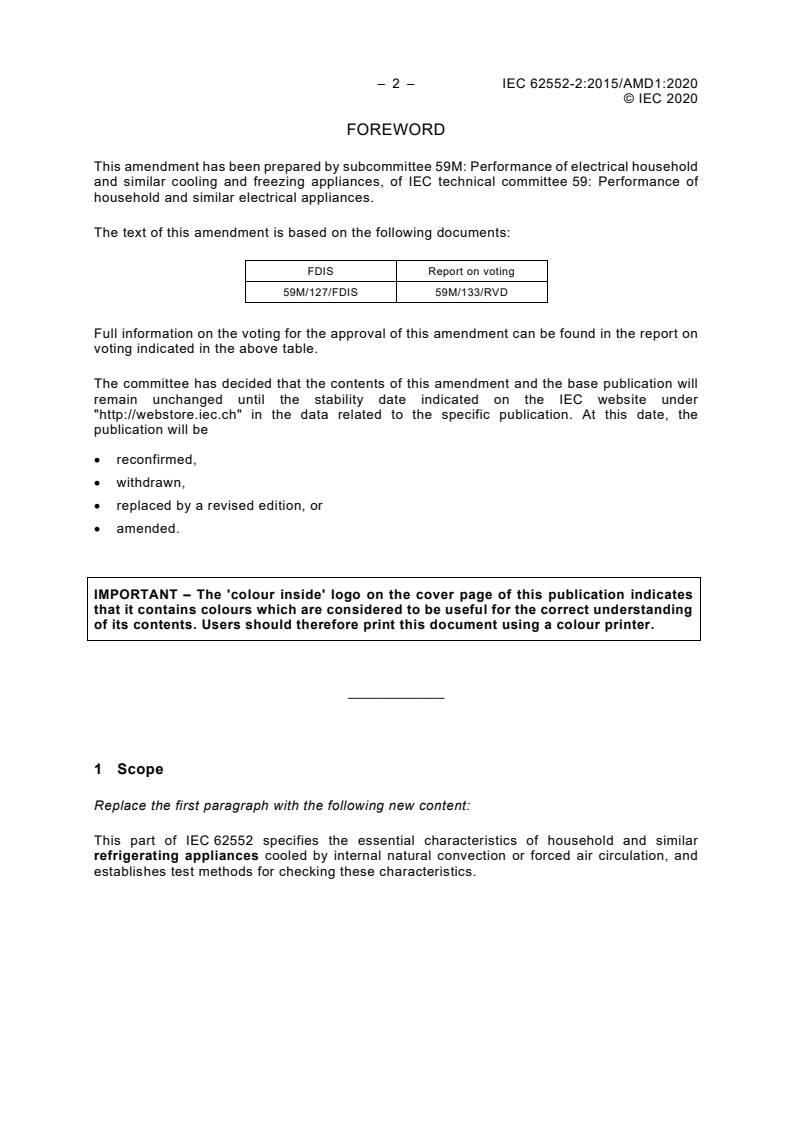

FOREWORD
This amendment has been prepared by subcommittee 59M: Performance of electrical household
and similar cooling and freezing appliances, of IEC technical committee 59: Performance of
household and similar electrical appliances.
The text of this amendment is based on the following documents:
FDIS Report on voting
59M/127/FDIS 59M/133/RVD
Full information on the voting for the approval of this amendment can be found in the report on
voting indicated in the above table.
The committee has decided that the contents of this amendment and the base publication will
remain unchanged until the stability date indicated on the IEC website under
"http://webstore.iec.ch" in the data related to the specific publication. At this date, the
publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct understanding
of its contents. Users should therefore print this document using a colour printer.

_____________
1 Scope
Replace the first paragraph with the following new content:
This part of IEC 62552 specifies the essential characteristics of household and similar
refrigerating appliances cooled by internal natural convection or forced air circulation, and
establishes test methods for checking these characteristics.

© IEC 2020
Table 1 – Test summary
Replace Table 1 with the following new table:
Table 1 – Performance test summary
Clause / Ambient Pantry Fresh Chill Zero star 1 and 3 and 4 Temperature
Annex and cellar food 2 star star requirements
and Test after test has
started
Clause 6 Various Packages No Type b No 1 star: Type a To hold initial
Storage values
Other: Type a
or b
Initial temp Mean Instant Mean Max
Clause 7 25 °C Packages No Type b No No No For test load
Cooling
final only
Initial temp Table 2 +4 °C ± Table 2 Maximum/ Average/
capacity
minimum minimum
0,5 K
Clause 8 25 °C Packages M-packages only Type b No Type a Yes excursion
Freezing and final
Type b
capacity
Initial temp Table 2 Not Maximum/minimum
measured
Clause 9 25 °C Packages No No
Auto
Initial temp As for Table 2 Maximum/minimum
ice-making
Annex A Max Packages No Final only
Pull-down
Initial temp Maximum temperature according climate class rating
Annex C 25 °C Packages No Type b No Type a For –18 °C
compartments
Temp rise
Initial temp Not specified –18 °C
only
Annex D 25 °C for Packages No To hold initial
Condensa- SN and N values
Initial temp
≤ energy test temperatures as in Table 1 in IEC 62552-3:2015
tion 32 °C for
ST and T
NOTE 1 For definitions of symbols, see 3.7 in IEC 62552-1:2015.
NOTE 2 In the event of any discrepancy between data in this table and the individual test procedures, the test
procedures take precedence.
NOTE 3 Wine storage test parameters are specified in Annex B.

Table 2 – Compartment temperatures
Replace the content of footnote b with the following new content:
During a defrost and recovery period, these storage temperatures of frost-free refrigerating appliances are
permitted to rise by no more than 3 K with respect to the storage temperature during period S (see 6.4). The
storage temperature is defined as the maximum temperature of any M-package during a given time period (see
Figure 3)
– 4 – IEC 62552-2:2015/AMD1:2020
© IEC 2020
6.1 Objective
Replace the last paragraph with the following new content:
To meet these test requirements, there shall be, for any ambient temperature between and
including the minimum and maximum ambient temperatures defined by the rated climate class,
at least one control setting at which all compartments meet the specified internal
temperatures. The control(s) however, may be adjusted for testing at different ambient
temperatures.
6.2 Preparation of refrigerating appliance
th
paragraph with the following new content:
Replace the 6
The unloaded refrigerating appliance should be set up and operated until it has reached
equilibrium at, or close to, the temperatures specified in Table 2.
Thermal storage devices shall be placed in the dedicated positions in the respective
compartments, in accordance with the manufacturer's instructions, and shall be independent
of the location of the test packages. Instructions for loose placement of thermal storage devices
in the appliance do not define dedicated positions.
NOTE An instruction without specific indication of location or placement of the thermal storage devices is an
example of loose placement.
If dedicated positions are absent, the thermal storage devices shall be removed from the
compartment.
6.3.1 Unfrozen compartments (except chill compartment and wine storage
compartment)
st
Replace the 1 paragraph with the following new content:
For determining the storage temperatures of these compartments, air temperature sensors
shall be located in accordance with D.2.2 of IEC 62552-1:2015/AMD1:2020.
6.3.2 Chill compartments
Replace 6.3.2 with the following new content:
6.3.2 Chill compartments
6.3.2.1 General
All test packages and M-packages shall be as specified in Clause C.2 b) of IEC 62552-1:2015.
For determining the storage temperature of any chill compartment, the storage load shall be
in accordance with 6.3.2.2.
The temperatures of the chill compartment T are the instantaneous temperatures of each
cci
M-package in that compartment. The temperatures and conditions specified in Table 2 shall
apply.
All test packages and M-packages shall be positioned or suspended so that their largest
surface is horizontal. They may be positioned directly on the floor of the compartment or
drawer, but shall always be at least 25 mm away from all walls and ceilings and from the other

© IEC 2020
packages of the test load. The test packages and M-packages shall be positioned as far as
possible in the corners of the compartment and at two vertical levels:
a) bottom level, which is the lowest horizontal surface intended for storage;
b) top level, where the packages have 25 mm clearance from the compartment ceiling.
Supports can be used to position the packages.
Loading of packages shall be in the following order:
1) front left corner of the bottom level;
2) back right corner of the top level;
3) front right corner of the top level;
4) left back corner of the bottom level;
5) front left corner of the top level;
6) back right corner of the bottom level;
7) front right corner of the bottom level;
8) left back corner of the top level;
9) centre of the bottom level;
10) centre of the top level.
Loading shall start using M-packages, up to the amount specified in Table 3. After the last
M-package, normal test packages shall be loaded until the total number of packages is
reached.
If a package cannot be placed in accordance with the required order, its position shall be
skipped, and the number of packages shall be reduced. The number of M-packages shall not
be reduced.
In the case of a compartment with special subdivisions (shelves, etc.) that are part of the
design, if the dimensions are too small to allow the horizontal positioning of the M-packages, it
is permissible to position them vertically.
If the dimensions are too small to accommodate an M-package (for example in door shelves), a
special support shall be used to position the M-package next to the shelf and as close as
possible to the door liner.
6.3.2.2 Chill compartment storage load
The compartment shall be loaded with the number of packages specified in Table 3.

– 6 – IEC 62552-2:2015/AMD1:2020
© IEC 2020
Table 3 – Chill compartment storage load

Volume, V, of chill compartment Total number of packages M-packages
(l)
V < 10 2 2
10 ≤ V < 20 3 2
20 ≤ V < 30 4 2
30 ≤ V < 40 5 3
40 ≤ V < 50 6 3
50 ≤ V < 60 7 4
60 ≤ V < 70 8 4
70 ≤ V < 80 9 5
V ≥ 80 10 5
6.3.3.3.1 General
Replace the last paragraph of item c) with the following:
Surfaces intended for storage with ribs, depressions, slight inclinations, etc. are treated as
horizontal surfaces. If necessary, packers may be used to stabilise stacks (see Figure 5).
NOTE Inclinations of less than 15 mm per 100 mm, which are equal to the width or length of a test package, are
considered slight inclinations.

Figure 5 – Package placement illustration for non flat surfaces

© IEC 2020
Table 4 – Requirements for periods S and E
Replace Table 4 with the following:
Table 4 – Requirements for periods S and E
Are there
With more than one defrost With only one defrost
temperature Without defrost
Item control cycles starting control cycle starting
control control cycles
within a 24 h test within a 24 h test
cycles?
No Each period shall be at least 3 h long
Length of
periods S
Each period shall consist of the same integral number of temperature control
Yes
and E
cycles totalling not less than 3 h.
No
Location of Any convenient Period S ends just before a defrost and recovery period
period S time begins.
Yes
Period E ends at least 24 h
Period E ends just before the
Period E ends at after period S begins and
first defrost and recovery
No least 24 h after before the beginning of the
period that begins after 24 h
period S begins next defrost and recovery
after the start of period S
period
Period E ends
Location of
with the Period E ends with the Period E ends with the
period E
conclusion of a conclusion of the last conclusion of a temperature
temperature temperature control cycle control cycle that is in
Yes control cycle completed before the first progress at least 24 h after
that is in progress defrost and recovery period period S begins and before
at least 24 h after that begins after 24 h after the the beginning of the next
the beginning of
start of period S defrost and recovery period
period S
Figure 3 – Storage test sequence
Replace Figure 3 and its title with the following:

Figure 3 – Storage test sequence illustration

– 8 – IEC 62552-2:2015/AMD1:2020
© IEC 2020
7.2.2 Installation
Replace the sixth paragraph with the following new content:
Before the test load is added, all compartments shall be empty. Their temperatures shall be
determined as specified in Annex D of IEC 62552-1:2015 and IEC 62552-1:2015/AMD1:2020.
7.2.4 Arrangement of shelves
Replace the first paragraph with the following new content:
If adjustable, a shelf shall be positioned at each of three levels so that the centres of
M-packages placed directly on the shelves (or bottom of the baskets etc.) have the smallest
possible vertical distance to the temperature measurement points TMP , TMP and TMP as
1 2 3
specified in Annex D of IEC 62552-1:2015 and IEC 62552-1:2015/AMD1:2020.
Replace the third paragraph with the following new content:
If no appropriate position can be found for 3 levels in refrigerating appliances with little height
[e.g. box evaporators as shown in a) of Figure D.3 of IEC 62552-1:2015/AMD1:2020] only
levels TMP and TMP shall be used for testing.
1 2
8 Freezing capacity test
Replace Clause 8 with the following new content:
8 Freezing capacity test
8.1 Objective
The purpose of this test is to measure the freezing capacity of freezer compartment(s) by
adding warm test packages (the light load) into the compartment. If the freezing capacity is
greater than, or equal to, the specified minimum capacity (see 8.4.3), the compartment(s) may
be rated as a four-star compartment(s).
8.2 Method overview
Apart from space for the light load, ballast packages are loaded into the frozen
compartment(s) as for the storage test (Clause 6). The refrigerating appliance is operated
until temperatures are stable and in compliance with Table 2. Then a load of packages at
+25 °C is added. This is the so-called light load representing a food load to be processed. The
time to freeze this load to −18 °C is measured. When this can be achieved in no more than 24 h
and other maximum temperature-excursion conditions are met, a four-star compartment
rating may be claimed
NOTE Because the frozen compartment loading is largely the same as for the storage test, there can be an
advantage in doing these tests consecutively.
8.3 Set-up procedure
8.3.1 Ambient temperature
The ambient temperature shall be 25 °C (see A.3.2.3 of IEC 62552-1:2015).

© IEC 2020
8.3.2 Preparation of the refrigerating appliance
8.3.2.1 General
The refrigerating appliance shall be installed in accordance with Annex B of
IEC 62552-1:2015.
If the configuration of the refrigerating appliance can be changed by the user, the
configuration with the greatest volume at the lowest temperatures shall be used for this test.
Refrigerating appliances with anti-condensation heater(s) which are permanently on during
normal use shall be tested with the heater(s) operating.
Anti-condensation heaters which can be manually controlled by the user shall be switched on
and, if adjustable, they shall be set at their maximum heating rate.
Anti-condensation heaters which are automatically controlled shall be allowed to operate
normally.
Thermal storage devices shall be placed in the dedicated positions in the respective
compartments, in accordance with the manufacturer's instructions, and shall be independent
of the location of the test packages. Instructions for loose placement of thermal storage devices
in the appliance do not define dedicated positions.
NOTE Instructions without specific indication of location or placement of the thermal storage devices is an example
of loose placement.
If dedicated positions are absent, the thermal storage devices shall be removed from the
compartment.
The unloaded refrigerating appliance should be set up and operated until it has reached
equilibrium at, or close to, the temperatures specified in Table 2.
8.3.2.2 Measurement of temperature of chill compartment and all compartments
operating above 0 °C
During the test, the chill compartment temperature is not measured, but it shall be loaded with
test packages as for the storage temperature measurement (see 6.3.2). For determining the
storage temperature of the compartments normally operating above 0 °C, measurement
points shall be as per Annex D of IEC 62552-1:2015 and IEC 62552-1:2015/AMD1:2020, but
with M-packages used instead of cylinders.
8.3.3 Loading of refrigerating appliance
8.3.3.1 Frozen compartment(s) – ballast load
8.3.3.1.1 General
Apart from space for the light load in the appropriate −18 °C compartment(s), ballast
packages are brought to the approximate compartment temperatures and loaded into the
frozen compartment(s), as for the storage test (Clause 6).
A load stack can be comprised of one or more load packages.
In the −18 °C compartment(s), ballast load may be removed to accommodate the light load.
Light load positioning shall take into account the instructions regarding the location to be used
for freezing. If no instructions are given, the packages shall be placed such that they are likely
to be frozen as rapidly as possible.

– 10 – IEC 62552-2:2015/AMD1:2020
© IEC 2020
Furthermore, the following constraints shall be fulfilled:
a) the minimum number of stacks shall be removed;
b) the height of a light load stack shall be 2 packages, with the following exceptions:
1) if the light load is to be composed of an odd number of packages, then one light load
stack of 1 package is allowed;
2) if the ballast load to be removed only exists out of stacks of 1 package, then it is
allowed to replace these by light load stacks of 1 package;
3) if the ballast load stack to be removed contains 6 or more packages, then it shall be
replaced with a light load stack of half the number of packages in the ballast load
stack (rounded down).
c) the minimum ballast load is 1 M-package;
d) light load packages shall be placed flat;
e) light load positioning shall take into account the instructions regarding the location to be
used for freezing. If no instructions are given, the packages shall be placed such that they
are likely to be frozen as rapidly as possible;
f) light load packages shall be separated by at least 15 mm from ballast load packages. The
use of spacers between adjacent stacks of packages is permitted, but other spacing
methods are not (see 6.3.3.2).
8.3.3.1.2 M-package placement in the ballast load to accommodate the light load
The M-packages in the ballast load shall be placed in the same manner as for the storage test,
apart from in any locations that are disrupted by the need to leave space for the light load. In
that case, the M-packages shall be placed in the nearest equivalent position to that specified
for the storage test and the new positions recorded. If there are stacks of ballast load
packages beside the light load, an M-package shall also replace the top test package in at
least one of those stacks on each side of the light load. If there is ballast load above the light
load, an M-package shall replace a test package in the centre of the layer immediately above
the light load. If there is ballast load below the light load, an M-package may replace a test
package in the centre of the layer immediately below the light load.
8.3.3.2 Refrigerating appliances with separate three-star compartment
If a refrigerating appliance has a separate three-star compartment with its own external
access door or lid, and the instructions recommend that, before freezing, frozen food already in
storage be placed in that compartment while leaving space in the freezer compartment to
receive the load for freezing (i.e. the three-star compartment is to be regarded as an
extension of the freezer compartment), a freezing time claim based upon this method of use
is permissible, provided that:
a) when tested according to this method of use, the claimed freezing time is confirmed and
the temperature requirements for the other compartments (see 8.5 a) to g)), if applicable,
are fulfilled during the freezing capacity test, and
b) the light load used in the freezer compartment is at least equivalent to 3,5 kg/100 l of the
combined volumes of the freezer compartment and three-star compartment.
8.4 Test procedure
8.4.1 Starting conditions
After all relevant control devices have been adjusted as required, the loaded refrigerating
appliance is left to run until stable operating conditions are reached.
After stable operating conditions have been attained, internal temperature(s) shall be in
accordance with Table 2, except that the starting temperature of any compartment(s) with no
lower temperature limit(s) specified in that table shall be no more than 2 K below the target
temperature.
© IEC 2020
In the case of a refrigerating appliance where the compartment temperatures cannot be
adjusted independently, if such a setting is not possible, the non-complying compartments
below the bottom limit shall be set to be as warm as possible.
The temperature indication succession from left to right in Table 2 also indicates the order of
precedence in the case of several temperature possibilities.
In some circumstances, it might be unnecessary to carry out the stabilisation specified here
before the stabilisation specified in 8.4.2.
8.4.2 Setting of control devices
If the refrigerating appliance is provided with means for a pre-freezing (fast-freezing or
quick-freezing) operation, after stable operating conditions in accordance with 8.4.1 have
been attained, the refrigerating appliance shall be set in operation in the pre-freezing
condition according to the instructions. The procedure specified in 8.4.3 shall then be carried
out.
If there are no special instructions for pre-freezing, the procedure described in 8.4.3 shall be
carried out after the refrigerating appliance has reached stable operating conditions in
accordance with the temperature requirements of 8.4.1.
8.4.3 Freezing of the light load
After the conditions specified in 8.4.2 have been attained, the light load shall be introduced.
For models with defrost control cycles, the light load should be added when stability has
been regained and temperature criteria met after a defrost and recovery period. This test
should not overlap a defrost and recovery period. When stability has been achieved prior to
the introduction of the light load, apart from as in 8.4.2, changes of setting of manually
adjustable controls are no longer permitted.
The light load shall be 3,5 kg/100 l of the total volume of all compartments operating at
−18 °C (three and four stars). The calculated load shall be rounded up to the nearest 0,5 kg,
except that in no case shall it be less than 2,0 kg.
The light load is made from packages which have previously been brought to a temperature of
+25 °C ± 1 K.
M-packages shall be uniformly distributed throughout the light load with at least one as close
as practicable to its geometric centre. The number of M-packages to apply is given in Table 5.
Table 5 – M-Packages in the light load
Light load [kg] Number of M-packages inside the light load
2 2
2,5 or 3 3
3,5 or 4 4
4,5 or 5 5
> 5 6
8.4.4 Intermediate test data to be recorded
The temperatures of the M-packages in the ballast load and in the light load shall be recorded,
together with those of the M-packages in the other compartment(s), if any. This shall be done
until the arithmetic mean of the instantaneous temperatures of all the M-packages in the light

– 12 – IEC 62552-2:2015/AMD1:2020
© IEC 2020
load reaches ≤ −18 °C and all other criteria in 8.5 are satisfied. The time necessary for
reaching this condition shall be recorded as the freezing time.
If, during the test, an M-package exhibits a supercooling effect, the test is invalid and shall be
repeated, possibly with a replaced M-package.
Supercooling, also known as undercooling, is the process of lowering the temperature of a
liquid below its freezing point without it becoming a solid. It can be observed during the test as
a rapid increase of the temperature in an M-package. If the increase is more than 3 K, the test
shall be considered invalid.
8.5 Criteria to achieve a four-star compartment rating
A compartment achieves a four-star rating if the arithmetic mean of the instantaneous
temperatures of all the M-packages in the light load reaches ≤ −18 °C in no more than 24 h
and:
a) unless a defrost and recovery period overlaps the test, the maximum temperature of any
M-packages of the ballast load remains ≤ −15 °C and at the end of the test the maximum
temperature of the warmest M-package of the ballast load is ≤ −18 °C;
b) if a defrost and recovery period does overlap the test, the maximum temperature of any
M-packages of the ballast load remains ≤ −12 °C during the defrost and recovery period
and at the end of the test the maximum temperature of the warmest M-package of the
ballast load is ≤ −18 °C;
c) the maximum temperature of the warmest M-package in any separate three-star
compartment not used for ballast in accordance with 8.3.3.2 remains ≤ −18 °C (plus the
allowed excursions during any defrost and recovery period as specified in Table 2);
d) the maximum temperature of the warmest M-package in any two-star section or two-star
compartment remains ≤ −12 °C (plus the allowed excursions during a defrost and
recovery period as specified in Table 2);
e) the maximum temperature of the warmest M-package in any one-star compartment
remains ≤ −6 °C;
of the fresh food compartment
f) the instantaneous compartment average temperature T
a
during the test does not exceed +7 °C, with T , T , T each remaining between −1 °C and
1 2 3
+10 °C;
g) the instantaneous temperatures T , T , T as appropriate of the cellar compartment do
c1 c2 c3
not drop below 0 °C.
8.6 Data to be recorded
a) the mass, in kg, of the ballast load;
b) the mass, in kg, of the light load;
c) the freezing time, in h, of the light load;
d) the volume of the relevant compartments;
e) the warmest temperature measured in the M-packages in the ballast load stored during the
light-load freezing capacity test, together with the warmest temperature measured in the
M-packages in any three-star compartment, two-star section or compartment and in
any one-star compartment and the duration of the temperature deviation above −18 °C
(or −12 °C as appropriate) and the duration of any defrost control cycle (see Table 2);
f) the highest and lowest values of T , T , T and T , T , T , if applicable;
1 2 3 c1 c2 c3
g) the settings of all temperature control devices, including timer(s), if any;
h) a diagram of the storage plan for the refrigerating appliance showing the location of the
M-packages and the location of the warmest M-package(s) for both the ballast load and
the light load;
i) if the refrigerating appliance is fitted with a device intended to set the refrigeration of the
freezer compartment into continuous operation when freezing and then to revert to

© IEC 2020
thermostatic operation automatically, the time which elapsed before it reverted to normal
thermostatically controlled operation;
j) whether the time to freeze the light load is achieved in no more than 24 h;
12 M
l
k) the specific freezing capacity (x) in [kg / 12 h] =
Δt
f
where
M is the light load, expressed in kg;
l
Δt is the freezing time, expressed in h.
f
9.2.2 Preparation of refrigerating appliance
nd
Replace the 2 paragraph with the following:
All compartments shall be empty. Their average air temperatures shall be determined as
specified in Annex D of IEC 62552-1:2015 and IEC 62552-1:2015/AMD1:2020.
A.1 General
Add the following text at the end of the paragraph:
This test is to be applied at the maximum ambient temperature in accordance with the climate
class specified.
A.2 Method overview
Replace the existing content with the following new content:
The pull-down part of the test begins when the whole refrigerating appliance, including the
inside, is in thermal equilibrium with the test room. The refrigerating appliance is then switched
on and run to determine the time taken to meet pull-down temperature(s) as specified in
Table A.1.
A.3.1 Test room ambient temperature
Replace the existing content with the following new content:
The temperature of the test room shall be set at the required ambient temperature throughout
the temperature stabilization period and for the duration of the test. It shall be maintained at
the required ambient temperature minus 0,5 K or warmer, except when verifying a supplier's
claimed performance, when it shall be maintained at the required ambient temperature ±
0,5 K.
A.3.4 User-adjustable features
Replace the first paragraph with the following:
User-adjustable features such as baffles, temperature controls and special short-term
controls (that are automatically terminated) shall be set to obtain an optimum result. If available,
controls shall be set in accordance with the manufacturer's instructions.

– 14 – IEC 62552-2:2015/AMD1:2020
© IEC 2020
A.3.6 Determination of compartment temperature
Replace the existing content with the following new content:
Air temperature sensors shall be located in all compartments as specified in Annex D of
IEC 62552-1:2015 and IEC 62552-1:2015/AMD1:2020, except for zero star compartments,
where no temperature measurements are required.
A.4.2 Heat soak
Replace the existing content with the following new content:
With the test room ambient at the required ambient temperature, and the refrigerating
appliance switched off, open all doors, drawers and lids on the refrigerating appliance and let it
stand to allow the whole refrigerating appliance to reach the ambient temperature.
NOTE Experience suggests that at least six hours with the refrigerating appliance's door(s) open in the test room
is usually required to meet the equilibrium requirements below.
Close the doors but do not switch the refrigerating appliance on. The refrigerating appliance
has reached the required starting condition for a pull-down test when, over a period of 30 min,
either of the following applies:
a) the average compartment temperature in each compartment does not vary by more than
0,3 °C;
or
b)
– for a test to determine the performance of a refrigerating appliance, the average
compartment temperature in each compartment does not fall below the required
ambient temperature;
– for a test to verify claimed performance, the average temperature of each compartment
does not rise above the required ambient temperature.
A.6 Data to be recorded
Replace the content of item c) with the following new content:
c) Where applicable, any alternative positions for air temperature sensors (all in accordance
with Annex D of IEC 62552-1:2015 and IEC 62552-1:2015/AMD1:2020).

B.1 Objective
Replace the existing content with the following new content:
The purpose of this test is to check compliance with the requirements of this standard at each
of the ambient temperatures (see A.3.2.3 in IEC 62552-1:2015 and
IEC 62552-1:2015/AMD1:2020 for the appropriate climate class).

© IEC 2020
B.2 Storage temperature requirements
Replace the content of NOTE 2 with the following new content:
NOTE 2 An example of a defrost control cycle for a frost-free refrigerator-freezer is given in Figure 1 of
IEC 62552-1:2015/AMD1:2020.
B.6 Data to be recorded
Delete item e)
C.3 Test period and measurements
Replace the existing content with the following new content:
The power supply to the refrigerating appliance shall be switched off once stable operating
conditions have been achieved. For automatic-defrosting refrigerating appliances, this shall
be during the stable part of the defrost control cycle.
The times shall be noted when the warmest of the M-packages in any three-star or four-star
compartment reaches −18 °C and when the warmest of the M-packages in any of these
compartments reaches −9 °C.
NOTE The warmest M-package to reach −18 °C might not be same package as the warmest M-package reaching
−9 °C.
D.2.3 Preparation of refrigerating appliance
Replace the second paragraph with the following new content:
Compartment average air temperatures shall be determined as specified in Annex D of
IEC 62552-1:2015 and IEC 62552-1:2015/AMD1:2020, and, throughout the test, average
compartment air temperatures shall be at or below the target temperatures for an energy test
in Table 1 in IEC 62552-3:2015.
___________
– 16 – IEC 62552-2:2015/AMD1:2020
© IEC 2020
AVANT-PROPOS
Le présent amendement a été établi par le sous-comité 59M: Aptitude à la fonction des
appareils électrodomestiques de refroidissement et analogues et appareils de réfrigération, du
comité d'études 59 de l'IEC: Aptitude à la fonction des appareils électrodomestiques et
analogues.
Le texte de cet amendement est issu des documents suivants:
FDIS Rapport de vote
59M/127/FDIS 59M/133/RVD
Le rapport de vote indiqué dans le tableau ci-dessus donne toute information sur le vote ayant
abouti à l'approbation de cet amendement.
La version française de l’amendement n’a pas été soumise au vote.
Le comité a décidé que le contenu de cet amendement et de la publication de base ne sera pas
modifié avant la date de stabilité indiquée sur le site web de l'IEC sous "http://webstore.iec.ch"
dans les données relatives à la publication recherchée. A cette date, la publication sera
• reconduite,
• supprimée,
• remplacée par une édition révisée, ou
• amendée.
IMPORTANT – Le logo "colour inside" qui se trouve sur la page de couverture de cette
publication indique qu'elle contient des couleurs qui sont considérées comme utiles à
une bonne compréhension de son contenu. Les utilisateurs devraient, par conséquent,
imprimer cette publication en utilisant une imprimante couleur.

_____________
1 Domaine d'application
Remplacer le premier alinéa par le nouveau contenu suivant:
La présente partie de l'IEC 62552 spécifie les caractéristiques essentielles des appareils de
réfrigération à usage ménager et analogues, refroidis par convection naturelle interne ou par
circulation d'air forcé, et établit les méthodes d'essai pour la vérification de ces caractéristiques.

© IEC 2020
Tableau 1 – Récapitulatif des essais
Remplacer le Tableau 1 par le nouveau tableau suivant:
Tableau 1 – Récapitulatif des essais d'aptitude
Article/ Annexe Conditions Garde- Denrées Conservation Zéro 1 et 2 3 et 4 Exigences
et essai ambiantes manger fraîches des denrées étoile étoiles étoiles de
et cave hautement température
périssables après le
début de
l'essai
Article 6 Diverses Paquets Non Type b Non 1 étoile: type a Pour
Entreposage conserver les
Autre: type a
valeurs
ou b
initiales
Température Moyenne Instantanée Moyenne Maximale
initiale
Article 7 25 °C Paquets Non Type b Non Non Non Pour la
Capacité de charge
Température Maximale/ Moyenne/
Tableau 2 +4 °C ± Tableau 2
refroidissement d'essai finale
initiale 0,5 K minimale minimale
uniquement
Article 8 25 °C Paquets Paquets-M Type b Non Type a Oui –
Pouvoir de uniquement variation et
congélation finale
Type b
Température Tableau 2 Non mesurée Maximale/minimale
initiale
Article 9 25 °C Paquets Non Non
Production de
Température Voir Tableau 2 Maximale/minimale
glace
initiale
automatique
Annexe A Mise Maximale Paquets Non Finale
en régime uniquement
Température Température maximale selon les caractéristiques de la classe
initiale climatique
Annexe C 25 °C Paquets Non Type b Non Type a Pour les
Echauffement compartime
Température Non spécifiée –18 °C
nts à –18 °C
initiale
uniquement
Annexe D 25 °C pour Paquets Non Pour
Condensation SN et N conserver les
Température
≤ températures d'essai d'énergie conformément au Tableau 1 de
32 °C pour valeurs
initiale
l'IEC 62552-3:2015
ST et T initiales
NOTE 1 Pour les définitions des symboles, se référer au 3.7 de l'IEC 62552-1:2015.
NOTE 2 En cas de divergence entre les données de ce tableau et les différentes procédures d'essai, ces dernières prévalent.
NOTE 3 Les paramètres d'essai d'entreposage du vin sont spécifiés à l'Annexe B.

Tableau 2 – Températures de compartiment
Remplacer le contenu de la note de bas de tableau b par le nouveau contenu suivant:
Pendant une période de dégivrage et de reprise, il est admis que ces températures de stockage des appareils de
réfrigération sans givre augmentent de 3 K au maximum par rapport à la température de stockage au cours de la
période S (voir 6.4). La température de stockage est définie comme étant la température maximale d'un paquet-M
au cours d'une période donnée (voir Figure 3).

– 18 – IEC 62552-2:2015/AMD1:2020
© IEC 2020
6.1 Objectif
Remplacer le dernier alinéa par le nouveau contenu suivant:
Pour satisfaire à ces exigences d'essai, et pour chaque température ambiante comprise entre
les températures ambiantes minimale et maximale (incluses) définies par la classe climatique
assignée, il doit exister au moins un réglage pour lequel tous les compartiments respectent les
températures internes spécifiées. Toutefois, la ou les commandes peuvent être réglées pour
des essais à différentes températures ambiantes.

6.2 Préparation de l'appareil de réfrigération
e
alinéa par le nouveau contenu suivant:
Remplacer le 6
Il convient de régler et de faire fonctionner l'appareil de réfrigération non chargé jusqu'à ce
qu'il atteigne l'équilibre aux températures spécifiées dans le Tableau 2, ou à proximité de ces
températures.
Les dispositifs de stockage thermique doivent être placés dans les emplacements dédiés situés
dans les différents compartiments, conformément aux instructions du fabricant, et doivent être
indépendants de l'emplacement des paquets d'essai. Les instructions relatives au placement
libre des dispositifs de stockage thermique dans l'appareil ne définissent pas les emplacements
dédiés.
NOTE Une instruction sans indication précise de l'emplacement ou du placement des dispositifs de stockage
thermique est un exemple de placement libre.
Si aucun emplacement dédié n'existe, ces dispositifs doivent être retirés du compartiment.
6.3.1 Compartiments non congelés (à l'exception du compartiment pour conservation
des denrées hautement périssables et du compartiment de stockage du vin)
er
Remplacer le 1 alinéa par le nouveau contenu suivant:
Pour déterminer les températures de stockage de ces compartiments, des capteurs de
température de l'air doivent être placés conformément à D.2.2 de
l'IEC 62552-1:2015/AMD1:2020.
6.3.2 Compartiments pour conservation des denrées hautement périssables
Remplacer 6.3.2 par le nouveau contenu suivant:
6.3.2 Compartiments pour conservation des denrées hautement périssables
6.3.2.1 Généralités
Tous les paquets d'essai et paquets-M doivent être conformes aux spécifications du C.2 b) de
l'IEC 62552-1:2015.
Pour déterminer la température de stockage d'un compartiment pour conservation des
denrées hautement périssables, le plan de chargement doit être conforme au 6.3.2.2.
Les températures du compartiment pour conservation des denrées hautement périssables
T correspondent aux températures instantanées de chaque paquet-M de ce compartiment.
cci
Les températures et co
...
