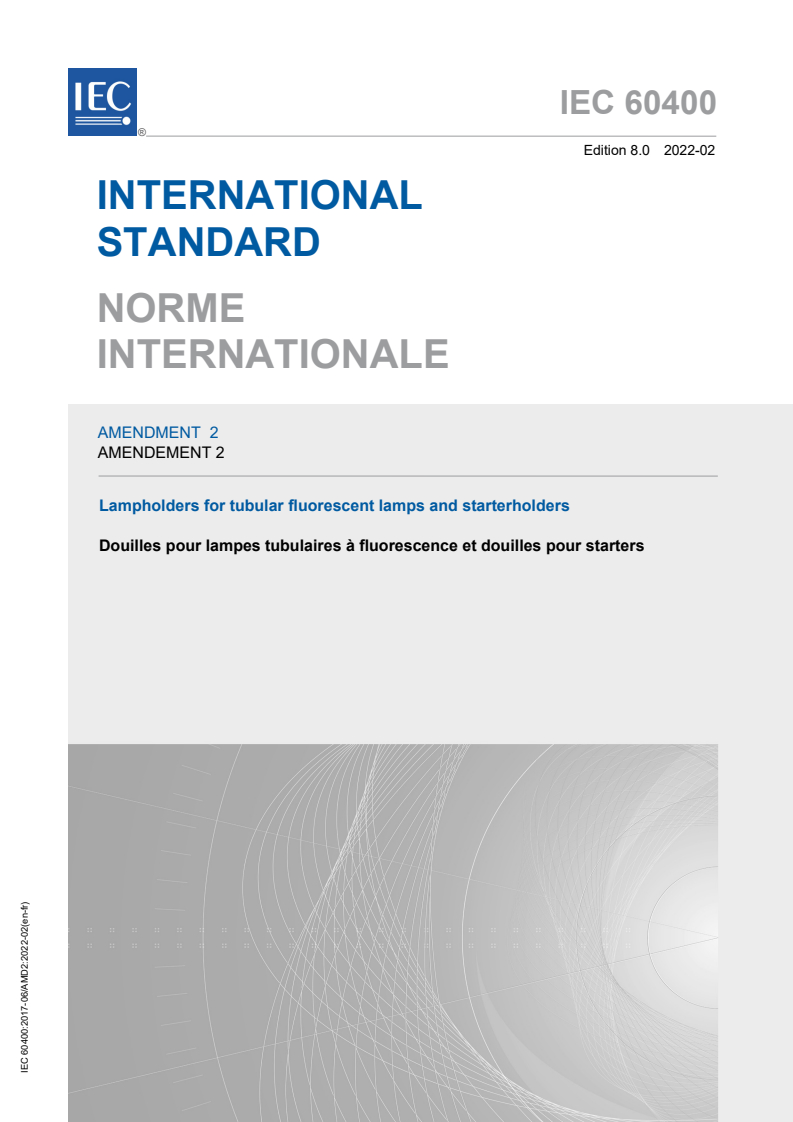

IEC 60400:2017/AMD2:2022

IEC 60400 ®
Edition 8.0 2022-02
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
AMENDMENT 2
AMENDEMENT 2
Lampholders for tubular fluorescent lamps and starterholders

Douilles pour lampes tubulaires à fluorescence et douilles pour starters

IEC 60400:2017-06/AMD2:2022-02(en-fr)

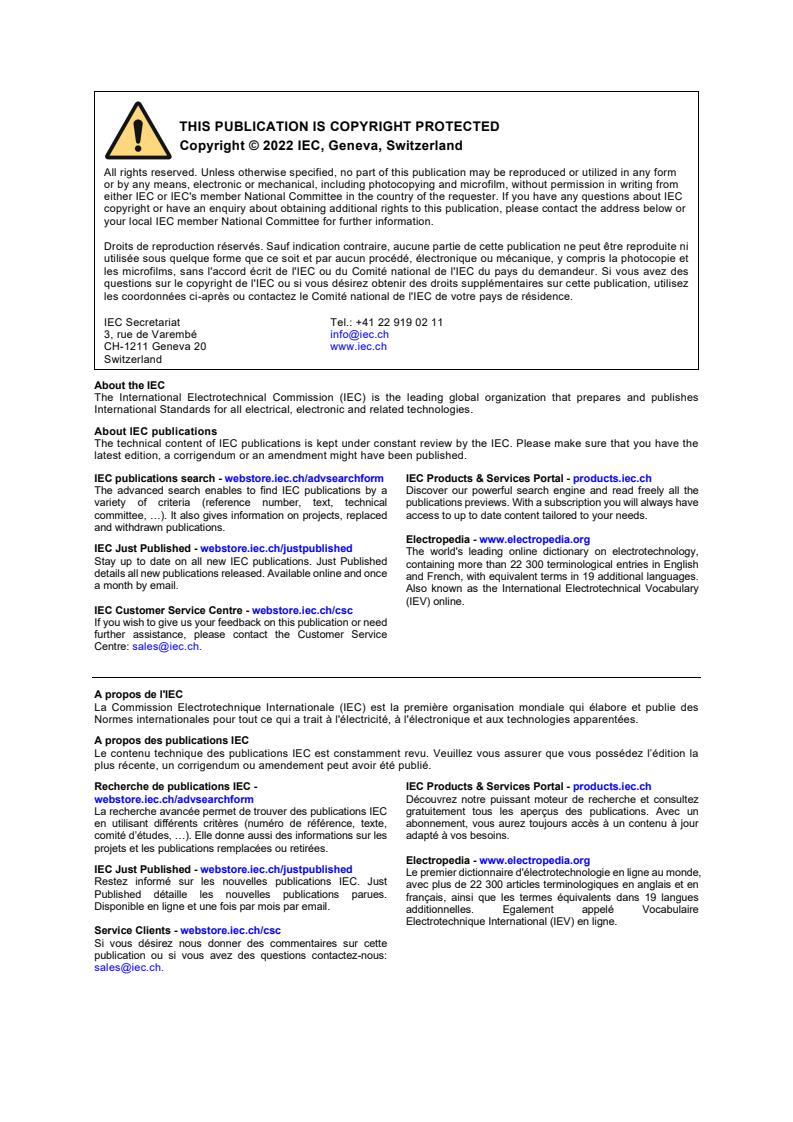

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni
utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie et
les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Secretariat Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform IEC Products & Services Portal - products.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews. With a subscription you will always have
committee, …). It also gives information on projects, replaced access to up to date content tailored to your needs.
and withdrawn publications.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
The world's leading online dictionary on electrotechnology,
Stay up to date on all new IEC publications. Just Published
containing more than 22 300 terminological entries in English
details all new publications released. Available online and once
and French, with equivalent terms in 19 additional languages.
a month by email.
Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc
If you wish to give us your feedback on this publication or need
further assistance, please contact the Customer Service
Centre: sales@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Recherche de publications IEC - IEC Products & Services Portal - products.iec.ch
webstore.iec.ch/advsearchform Découvrez notre puissant moteur de recherche et consultez
La recherche avancée permet de trouver des publications IEC gratuitement tous les aperçus des publications. Avec un
en utilisant différents critères (numéro de référence, texte, abonnement, vous aurez toujours accès à un contenu à jour
comité d’études, …). Elle donne aussi des informations sur les adapté à vos besoins.
projets et les publications remplacées ou retirées.

Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
Le premier dictionnaire d'électrotechnologie en ligne au monde,
Restez informé sur les nouvelles publications IEC. Just
avec plus de 22 300 articles terminologiques en anglais et en
Published détaille les nouvelles publications parues.
français, ainsi que les termes équivalents dans 19 langues
Disponible en ligne et une fois par mois par email.
additionnelles. Egalement appelé Vocabulaire

Electrotechnique International (IEV) en ligne.
Service Clients - webstore.iec.ch/csc
Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.
IEC 60400 ®
Edition 8.0 2022-02
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
A MENDMENT 2
AM ENDEMENT 2
Lampholders for tubular fluorescent lamps and starterholders

Douilles pour lampes tubulaires à fluorescence et douilles pour starters

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.140.10 ISBN 978-2-8322-1074-0

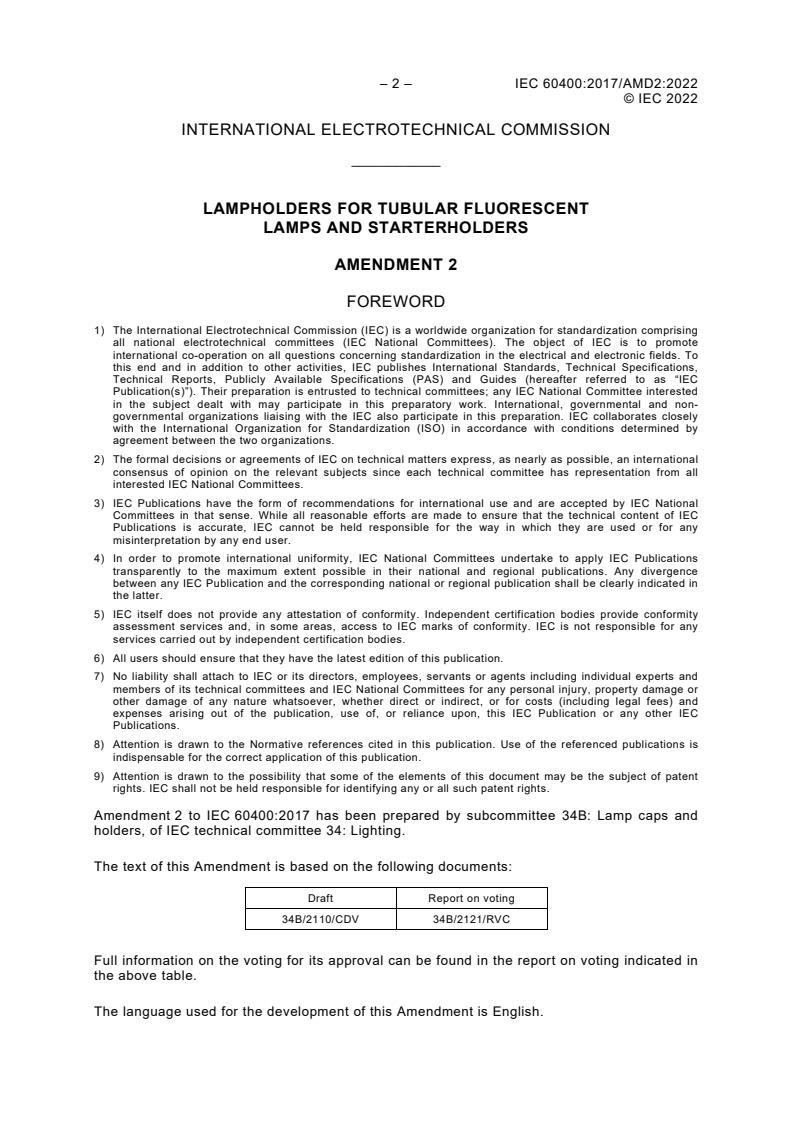

– 2 – IEC 60400:2017/AMD2:2022
© IEC 2022
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
LAMPHOLDERS FOR TUBULAR FLUORESCENT
LAMPS AND STARTERHOLDERS
AMENDMENT 2
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. IEC shall not be held responsible for identifying any or all such patent rights.
Amendment 2 to IEC 60400:2017 has been prepared by subcommittee 34B: Lamp caps and
holders, of IEC technical committee 34: Lighting.
The text of this Amendment is based on the following documents:
Draft Report on voting
34B/2110/CDV 34B/2121/RVC
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this Amendment is English.

© IEC 2022
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement,
available at www.iec.ch/members_experts/refdocs. The main document types developed by
IEC are described in greater detail at www.iec.ch/standardsdev/publications/.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
– 4 – IEC 60400:2017/AMD2:2022
© IEC 2022
INTRODUCTION to Amendment 2
Lampholders specified in this standard are used not only for fluorescent lamps but also now
for retrofit LED lamps. LED lamp designers, as well as lampholder designers, refer to this
standard. However, it may lead to a misread of the original intention of the relaxation in
Clause 17, which indicates that creepage distances or clearances between lamp contacts can
be reduced.
The purpose of this amendment is to make the relaxation provision clear and to avoid
misreading, i.e.
• the relaxation provision has been moved from the end of Clause 17 to the footnotes in
Table 3,
and
• an explanatory note for this relaxation has been added to Table 3.

___________
17 Creepage distances and clearances
Table 3
In Table 3, modified by Amendment 1, add, in the first row, list item 1, a new footnote "d".
Renumber the existing NOTE as NOTE 1 and add a new NOTE 2 , as follows:

© IEC 2022
Table 3 – Minimum distances for AC sinusoidal voltages up to 30 kHz –
Impulse withstand category II
Distances Rated voltage
mm V
50 150 250 500
Basic insulation
d
1 Distances between live parts of different polarity , and
2 Between live parts and external metal parts, mounting surfaces, loose
metal cover, if any, the outer surface of parts of insulating material
a
which are permanently fixed to the holder , including screws or
devices for fixing covers or fixing the holder to its support:
– Creepage distances
b
insulation PTI ≥ 600 0,6 0,8 1,5 3
b
PTI < 600 1,2 1,6 2,5 5
c
– Clearances 0,2 0,5 1,5 3
Reinforced Insulation
Between live parts and external metal parts, mounting surfaces, loose
metal cover, if any, the outer surface of parts of insulating material which
a
are permanently fixed to the holder , including screws or devices for
fixing covers or fixing the holder to its support:
– Creepage distances
b
insulation PTI ≥ 600 – 1,6 3 5,5
b
PTI < 600 – 3,2 5 10
c
– Clearances 0,4 1,6 3 5,5
Values for creepage distances can be found for intermediate values of rated voltages by linear interpolation
between tabulated values. No values are specified for rated voltages below 25 V AC and 60 V DC ripple free as
the voltage test of 13.3 is considered sufficient. Creepage distances shall not be less than the required minimum
clearance.
For glass, ceramics or other inorganic insulating materials which do not track, creepage distances need not be
greater than their associated clearance for the purpose of insulation coordination. The dimensions of this table
are appropriate.
In Japan, the values given in this table are not applicable. Japan requires larger values than the values given in
this table.
NOTE 1 Information on standard ratings for specific holder types is given in Clause 6.
NOTE 2 For lampholders which are not suitable to be connected directly across the mains, it is expected that
the working voltage between contacts of a lampholder which are connected to the single fluorescent lamp
filament, is much lower than the rated voltage. Consequently, the creepage distance or clearance between the
lamp contacts can be reduced.
a
The distances between live contacts and the lampholder face (reference plane) shall, however, be in
accordance with the relevant standard sheets of IEC 60061-2.
The distances for starter holders shall be in accordance with Figures 10a and 10b.
b
PTI (proof tracking index) in accordance with IEC 60112:2003 and IEC 60112:2003/AMD1:2009.
– In the case of creepage distances to parts not energized or not intended to be earthed, where no tracking
can occur, the values specified for material with PTI ≥ 600 apply for all materials (in spite of the real
PTI).
– For creepage distances subjected to working voltages of less than 60 s duration, the values specified for
material with PTI ≥ 600 apply for all materials.
– For creepage distances not liable to contamination by dust or moisture, the values specified for material
with PTI ≥ 600 apply for all materials (independently of the real PTI).
– For creepage distances, the equivalent DC voltage is equal to the r.m.s. value of the sinusoidal AC
voltage.
c
For clearances, the equivalent DC voltage is equal to the peak of the AC voltage.
d
For lampholders which are not suitable to be connected directly across the mains the creepage distance or
clearance between the lamp contacts can be reduc
...
