IEC 61196-1-318:2008

IEC 61196-1-318
Edition 1.0 2008-02
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Coaxial communication cables –
Part 1-318: Mechanical test methods – Heat performance tests

Câbles coaxiaux de communication –
Partie 1-318: Méthodes d’essais mécaniques – Essais de comportement à la
chaleur
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by
any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from either IEC or
IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,
please contact the address below or your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de la CEI ou du Comité national de la CEI du pays du demandeur.
Si vous avez des questions sur le copyright de la CEI ou si vous désirez obtenir des droits supplémentaires sur cette
publication, utilisez les coordonnées ci-après ou contactez le Comité national de la CEI de votre pays de résidence.

IEC Central Office
3, rue de Varembé
CH-1211 Geneva 20
Switzerland
Email: inmail@iec.ch
Web: www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
ƒ Catalogue of IEC publications: www.iec.ch/searchpub
The IEC on-line Catalogue enables you to search by a variety of criteria (reference number, text, technical committee,…).
It also gives information on projects, withdrawn and replaced publications.
ƒ IEC Just Published: www.iec.ch/online_news/justpub
Stay up to date on all new IEC publications. Just Published details twice a month all new publications released. Available
on-line and also by email.
ƒ Electropedia: www.electropedia.org
The world's leading online dictionary of electronic and electrical terms containing more than 20 000 terms and definitions
in English and French, with equivalent terms in additional languages. Also known as the International Electrotechnical
Vocabulary online.
ƒ Customer Service Centre: www.iec.ch/webstore/custserv
If you wish to give us your feedback on this publication or need further assistance, please visit the Customer Service
Centre FAQ or contact us:
Email: csc@iec.ch
Tel.: +41 22 919 02 11
Fax: +41 22 919 03 00
A propos de la CEI
La Commission Electrotechnique Internationale (CEI) est la première organisation mondiale qui élabore et publie des
normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications CEI
Le contenu technique des publications de la CEI est constamment revu. Veuillez vous assurer que vous possédez
l’édition la plus récente, un corrigendum ou amendement peut avoir été publié.
ƒ Catalogue des publications de la CEI: www.iec.ch/searchpub/cur_fut-f.htm
Le Catalogue en-ligne de la CEI vous permet d’effectuer des recherches en utilisant différents critères (numéro de référence,
texte, comité d’études,…). Il donne aussi des informations sur les projets et les publications retirées ou remplacées.
ƒ Just Published CEI: www.iec.ch/online_news/justpub
Restez informé sur les nouvelles publications de la CEI. Just Published détaille deux fois par mois les nouvelles
publications parues. Disponible en-ligne et aussi par email.
ƒ Electropedia: www.electropedia.org
Le premier dictionnaire en ligne au monde de termes électroniques et électriques. Il contient plus de 20 000 termes et
définitions en anglais et en français, ainsi que les termes équivalents dans les langues additionnelles. Egalement appelé
Vocabulaire Electrotechnique International en ligne.
ƒ Service Clients: www.iec.ch/webstore/custserv/custserv_entry-f.htm
Si vous désirez nous donner des commentaires sur cette publication ou si vous avez des questions, visitez le FAQ du
Service clients ou contactez-nous:
Email: csc@iec.ch
Tél.: +41 22 919 02 11
Fax: +41 22 919 03 00
IEC 61196-1-318
Edition 1.0 2008-02
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Coaxial communication cables –
Part 1-318: Mechanical test methods – Heat performance tests

Câbles coaxiaux de communication –
Partie 1-318: Méthodes d’essais mécaniques – Essais de comportement à la
chaleur
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
J
CODE PRIX
ICS 33.120.10 ISBN 2-8318-9582-0

– 2 – 61196-1-318 © IEC:2008

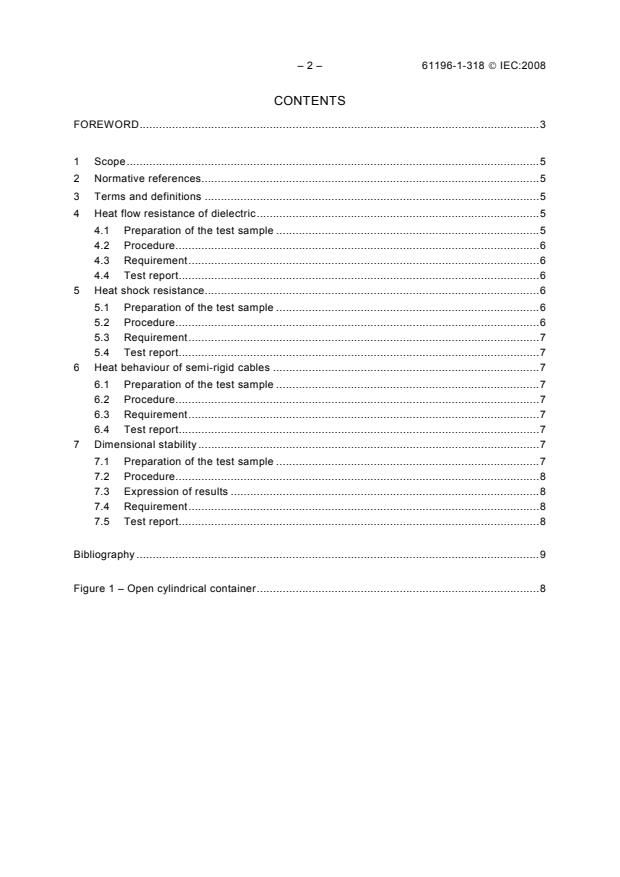

CONTENTS
FOREWORD.3

1 Scope.5
2 Normative references.5
3 Terms and definitions .5
4 Heat flow resistance of dielectric.5
4.1 Preparation of the test sample .5
4.2 Procedure.6
4.3 Requirement.6
4.4 Test report.6
5 Heat shock resistance.6
5.1 Preparation of the test sample .6
5.2 Procedure.6
5.3 Requirement.7
5.4 Test report.7
6 Heat behaviour of semi-rigid cables .7
6.1 Preparation of the test sample .7
6.2 Procedure.7
6.3 Requirement.7
6.4 Test report.7
7 Dimensional stability .7
7.1 Preparation of the test sample .7
7.2 Procedure.8
7.3 Expression of results .8
7.4 Requirement.8
7.5 Test report.8

Bibliography .9

Figure 1 – Open cylindrical container.8

61196-1-318 © IEC:2008 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
COAXIAL COMMUNICATION CABLES –

Part 1-318: Mechanical test methods –
Heat performance tests
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with an IEC Publication.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 61196-1-318 has been prepared by subcommittee 46A: Coaxial
cables, of IEC technical committee 46: Cables, wires, waveguides, R.F. connectors, R.F. and
microwave passive components and accessories.
The text of this standard is based on the following documents:
FDIS Report on voting
46A/874/FDIS 46A/891/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

– 4 – 61196-1-318 © IEC:2008
A list of all the parts in the IEC 61196 series, under the general title Coaxial communication
cables, can be found on the IEC website.
The committee has decided that the contents of this publication will remain unchanged until the
maintenance result date indicated on the IEC web site under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed;
• withdrawn;
• replaced by a revised edition, or
• amended.
61196-1-318 © IEC:2008 – 5 –
COAXIAL COMMUNICATION CABLES –

Part 1-318: Mechanical test methods –
Heat performance tests
1 Scope
This part of IEC 61196 applies to coaxial communication cables. It specifies several test
methods for determining:
• heat flow resistance of dielectric: the resistance of the dielectric to the mechanical
distortion induced by radial stress imposed by the inner conductor at high temperatures;
• resistance to heat exposure (formerly “heat shock resistance“): the resistance of the
dielectric or the sheath to high temperatures;
• heat behaviour of semi-rigid cables: the ability of the cable construction of semi-rigid
cables to withstand the expansion of the dielectric at high temperature;
• dimensional stability: the displacement of the cable elements with respect to each other
in order to demonstrate the suitability of a cable for use with connectors.
2 Normative references
The following referenced documents are indispensable for the application of this document. For
dated references, only the edition cited applies. For undated references, the latest edition of
the referenced document (including any amendments) applies.
IEC 61196-1, Coaxial communication cables – Part 1: Generic specification – General,
definitions and requirements
IEC 60068-2-2, Environmental testing – Part 2-2: Tests – Tests B: Dry heat
3 Terms and definitions
For the purposes of this document the definitions given in IEC 61196-1 apply.
4 Heat flow resistance of dielectric
4.1 Preparation of the test sample
A sample shall be cut from the finished cable which shall have a length of at least 30 times the
overall diameter of the cable.
A weight, as indicated in the relevant cable specification, shall be attached to the inner
conductor at each end of the test sample.

– 6 – 61196-1-318 © IEC:2008
4.2 Procedure
The test sample shall be bent symmetrically over a horizontal mandrel the dimensions of which
are equal to the minimum bend radius as specified in the relevant cable specification and with
the weights hanging freely from the inner conductor at each end of the test sample. The test
sample shall be heated in accordance with IEC 60068-2-2, test Bb, to the temperature
indicated in the relevant cable specification for at least 8 h.
At the end of the period the weights shall be removed and the test sample shall be allowed to
cool without further bending for 1 h under standard atmospheric conditions for testing. The test
sample shall be stripped down and the movement of the inner conductor from the centre of the
cable shall be measured.
4.3 Requirement
The inner conductor shall not be displaced from the centre by a distance greater than 15 % of
the nominal diameter of the dielectric.
4.4 Test report
The test report shall give the test conditions:
– length of the cable under test (m),
– weight at each end of the sample (kg),
– diameter of the mandrel (mm),
– temperature of the heating (°C),
– duration of the exposure to temperature (h),
and record the result of the examination according to 4.2 of this document.
5 Heat shock resistance
5.1 Preparation of the test sample
A sample shall be cut from the finished cable which shall have a length at least 150 times the
overall diameter of the cable if it is less than 12,5 mm and 120 times the overall diameter of the
cable if it is 12,5 mm or greater.
The test sample shall be coiled to a diameter not less than 30 times the nominal overall
diameter of the cable.
5.2 Procedure
The test sample shall be heated for 7 days in accordance with IEC 60068-2-2, test Bb, at a
temperature indicated in the relevant cable specification.
At the end of the heating period the test sample shall be removed from the oven and allowed to
cool down for 1 h at room temperature, (20 ± 5) °C. Then the whole length of the test sample
shall be wrapped around a mandrel the dimensions of which are equal to the minimum bend
radius as specified in the relevant cable specification and than unwrapped. The cycle shall be
repeated 10 times in a period of 5 min.
The test sample shall be stripped down and examined with normal vision or corrected vision
without magnification.
61196-1-318 © IEC:2008 – 7 –
5.3 Requirement
There shall be no sign of mechanical damage to either the dielectric or the sheath.
5.4 Test report
The test report shall give the test conditions:
– length of the cable under test (m),
– diameter of coiling during heating (mm),
– temperature of the heating (°C),
and record the result of the examination according to 5.2 of this document.
6 Heat behaviour of semi-rigid cables
6.1 Preparation of the test sample
The test sample shall be between 300 mm and 350 mm long. The ends of the test sample shall
be closed by crushing to prevent the dielectric from coming out of the tube outer conductor.
6.2 Procedure
The test sample shall be placed for 1 h in an oven maintained at the temperature indicated in
the relevant cable specification. The test sample shall be allowed to cool to room temperature.
The test sample shall be examined with normal vision or corrected vision without magnification.
6.3 Requirement
Neither cracks nor longitudinal splits shall be visible in the outer conductor. Nor shall the
dielectric core protrude from the ends of the test sample.
6.4 Test report
The test report shall give the test conditions:
– temperature of the heating (°C),
– length of the cable under test (mm),
and record the result of the examination according to 6.2 of this document.
7 Dimensional stability
7.1 Preparat
...
