IEC 61196-1-313:2009(E) applies to coaxial communication cables. It specifies the test method to determine the adhesion of the dielectric to inner conductor and of the sheath to outer conductor of coaxial cables.
General Information
- Status
- Published
- Publication Date
- 10-Feb-2009
- Technical Committee
- SC 46A - Coaxial cables
- Drafting Committee
- WG 3 - TC 46/SC 46A/WG 3
- Current Stage
- PPUB - Publication issued
- Start Date
- 11-Feb-2009
- Completion Date
- 15-Feb-2009
Relations
- Effective Date
- 10-Feb-2026
Overview
IEC 61196-1-313:2009 is an international standard developed by the International Electrotechnical Commission (IEC) that specifies mechanical test methods for coaxial communication cables. This part of the IEC 61196 series focuses on assessing the adhesion of the dielectric to the inner conductor and the adhesion of the sheath to the outer conductor in coaxial cables. Proper adhesion is critical for ensuring cable durability, signal integrity, and reliability in communication systems.
The standard provides a well-defined test procedure to measure the tensile strength required to separate these layers, helping manufacturers verify product quality and compliance with international requirements.
Key Topics
Scope and Applicability
IEC 61196-1-313:2009 applies exclusively to coaxial communication cables and addresses mechanical adhesion testing relevant to these constructions.Test Specimen Preparation
At least two test specimens, separated by a minimum of 300 mm from finished cable length, are prepared by precise stripping to expose the inner conductor, dielectric, outer conductor, and sheath without damaging the adhesion interfaces.Test Procedure
The test applies tensile force steadily at a controlled rate (not exceeding 100 mm/min) using a tensile testing machine. The force is applied to either the dielectric-inner conductor interface or the sheath-outer conductor interface until complete separation occurs. This avoids jerking motions that might skew results.Measurement and Results Expression
Adhesion is indicated by the highest tensile force recorded during testing. Results are typically reported as the median adhesion value for the tested samples.Specifications and Reporting
Relevant cable specifications determine required adhesion values and test parameters such as temperature and specimen length. Detailed test reports must include these parameters along with pass/fail criteria to document compliance.
Applications
IEC 61196-1-313 is essential for manufacturers, quality control engineers, and testing laboratories involved in the design, production, and certification of coaxial communication cables used in:
Telecommunication networks
Ensuring mechanical stability of cable layers assures long-term transmission quality.Broadcasting infrastructure
Reliable adhesion minimizes signal losses due to mechanical stresses.Data transmission systems
Resistance to dielectric and sheath delamination supports consistent performance.Aerospace and defense communications
High-reliability applications benefit from stringent mechanical adhesion tests.
Using this standard helps address common failure modes such as dielectric separation and sheath peeling, enabling cable producers to optimize formulations, materials, and manufacturing processes.
Related Standards
IEC 61196-1: Generic specification for coaxial communication cables
Provides foundational terminology, definitions, and general requirements that support the mechanical tests outlined in IEC 61196-1-313.Other parts of IEC 61196 series
Cover electrical, environmental, and mechanical performance criteria including RF performance, insulation resistance, and durability tests.ISO/IEC Directives, Part 2
Guide the drafting and maintenance of international standards ensuring consistency and best practices in standardization.
Adherence to IEC 61196-1-313:2009 standards facilitates international uniformity in coaxial cable quality assessment, promoting product interoperability and customer confidence across global markets. For engineers and quality professionals involved in coaxial cable testing, this standard offers practical, reliable methods to quantitatively evaluate dielectric and sheath adhesion essential for cable integrity.
Get Certified
Connect with accredited certification bodies for this standard
TL 9000 QuEST Forum
Telecommunications quality management system.
ANCE
Mexican certification and testing association.
Intertek Slovenia
Intertek testing, inspection, and certification services in Slovenia.
Sponsored listings
Frequently Asked Questions
IEC 61196-1-313:2009 is a standard published by the International Electrotechnical Commission (IEC). Its full title is "Coaxial communication cables - Part 1-313: Mechanical test methods - Adhesion of dielectric and sheath". This standard covers: IEC 61196-1-313:2009(E) applies to coaxial communication cables. It specifies the test method to determine the adhesion of the dielectric to inner conductor and of the sheath to outer conductor of coaxial cables.
IEC 61196-1-313:2009(E) applies to coaxial communication cables. It specifies the test method to determine the adhesion of the dielectric to inner conductor and of the sheath to outer conductor of coaxial cables.
IEC 61196-1-313:2009 is classified under the following ICS (International Classification for Standards) categories: 33.120.10 - Coaxial cables. Waveguides. The ICS classification helps identify the subject area and facilitates finding related standards.
IEC 61196-1-313:2009 has the following relationships with other standards: It is inter standard links to EN 61196-10:2016. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
IEC 61196-1-313:2009 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)

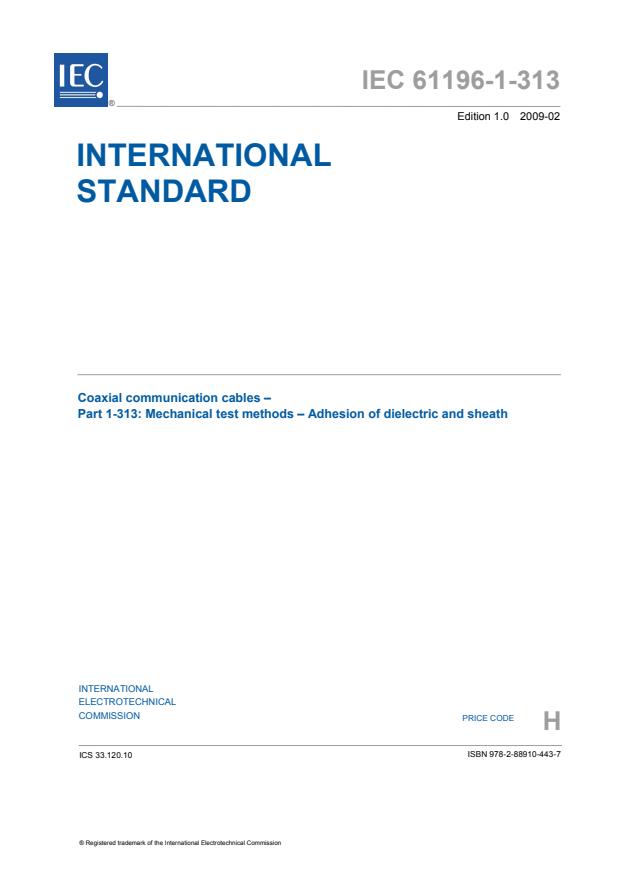

IEC 61196-1-313 ®
Edition 1.0 2009-02
INTERNATIONAL
STANDARD
Coaxial communication cables –
Part 1-313: Mechanical test methods – Adhesion of dielectric and sheath
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,
please contact the address below or your local IEC member National Committee for further information.
IEC Central Office
3, rue de Varembé
CH-1211 Geneva 20
Switzerland
Email: inmail@iec.ch
Web: www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.
About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
ƒ Catalogue of IEC publications: www.iec.ch/searchpub
The IEC on-line Catalogue enables you to search by a variety of criteria (reference number, text, technical committee,…).
It also gives information on projects, withdrawn and replaced publications.
ƒ IEC Just Published: www.iec.ch/online_news/justpub
Stay up to date on all new IEC publications. Just Published details twice a month all new publications released. Available
on-line and also by email.
ƒ Electropedia: www.electropedia.org
The world's leading online dictionary of electronic and electrical terms containing more than 20 000 terms and definitions
in English and French, with equivalent terms in additional languages. Also known as the International Electrotechnical
Vocabulary online.
ƒ Customer Service Centre: www.iec.ch/webstore/custserv
If you wish to give us your feedback on this publication or need further assistance, please visit the Customer Service
Centre FAQ or contact us:
Email: csc@iec.ch
Tel.: +41 22 919 02 11
Fax: +41 22 919 03 00
IEC 61196-1-313 ®
Edition 1.0 2009-02
INTERNATIONAL
STANDARD
Coaxial communication cables –
Part 1-313: Mechanical test methods – Adhesion of dielectric and sheath
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
PRICE CODE
H
ICS 33.120.10 ISBN 978-2-88910-443-7
– 2 – 61196-1-313 © IEC:2009(E)

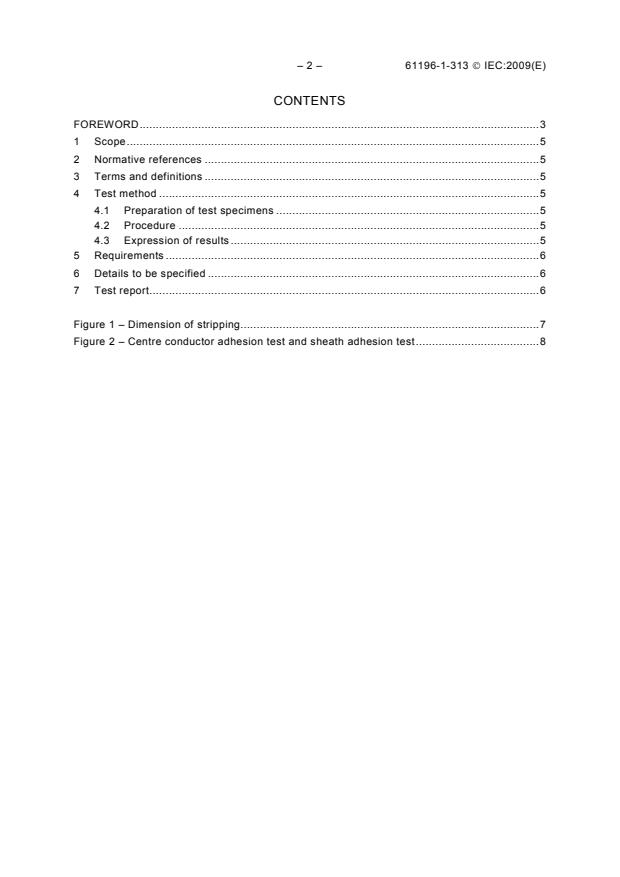

CONTENTS
