Coaxial communication cables - Part 1-124: Electrical test methods - Test for coupling loss of radiating cable

IEC 61196-1-124:2022 defines the test method to determine the coupling loss of radiating coaxial communication cables that are intended for use in wireless communication systems such as tunnels, railways, highways, subways, elevators and other confined areas in which conventional antenna transmission is not satisfactory or even impossible.

Câbles coaxiaux de communication - Partie 1-124: Méthodes d’essai électrique - Essai de perte de couplage des câbles rayonnants

IEC 61196-1-124:2022 définit la méthode d’essai à appliquer pour déterminer la perte de couplage des câbles rayonnants coaxiaux de communication destinés à être utilisés dans les systèmes de communication sans fil tels que les tunnels, les réseaux ferrés, les autoroutes, les ascenseurs et d’autres milieux confinés dans lesquels la transmission conventionnelle par antenne n’est pas satisfaisante, voire est impossible.

General Information

Status
Published
Publication Date
11-Aug-2022
Technical Committee
Drafting Committee
Current Stage
PPUB - Publication issued
Start Date
12-Aug-2022
Completion Date
09-Sep-2022
Ref Project
Standard
IEC 61196-1-124:2022 - Coaxial communication cables - Part 1-124: Electrical test methods - Test for coupling loss of radiating cable
English and French language
20 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (Sample)


IEC 61196-1-124 ®
Edition 1.0 2022-08
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Coaxial communication cables –
Part 1-124: Electrical test methods – Test for coupling loss of radiating cable

Câbles coaxiaux de communication –
Partie 1-124: Méthodes d’essai électrique – Essai de perte de couplage des
câbles rayonnants

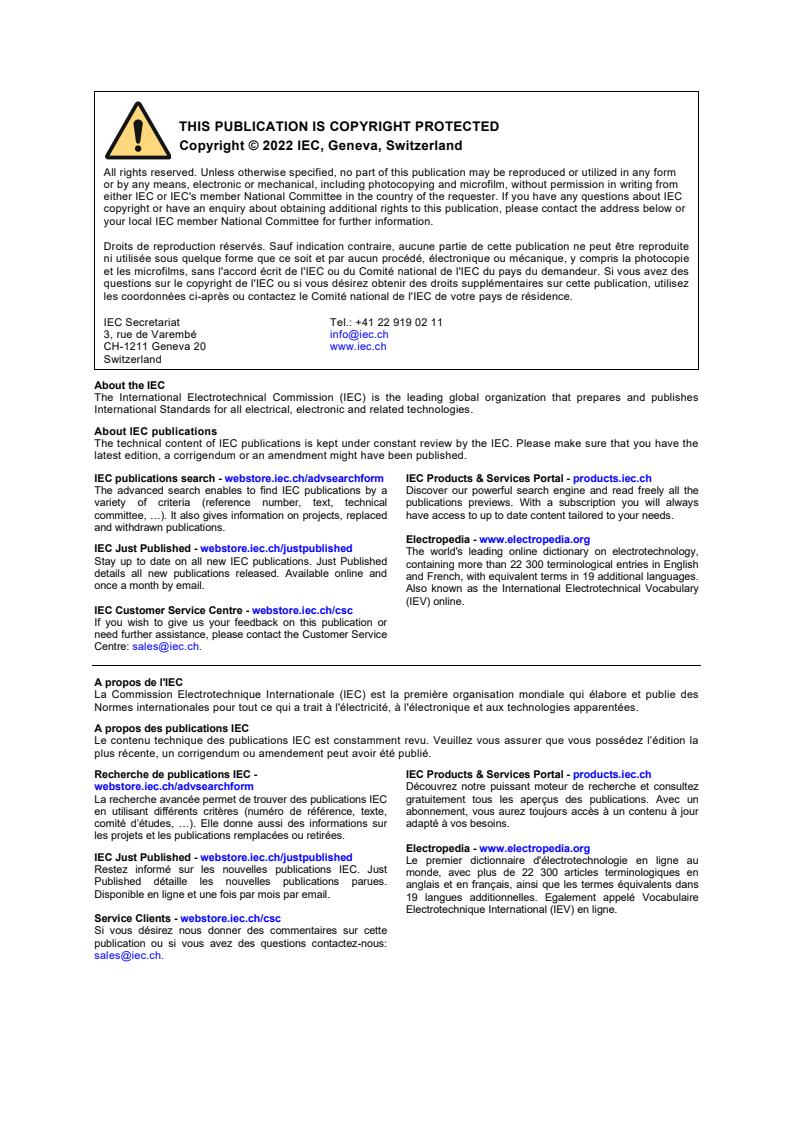

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Secretariat Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform IEC Products & Services Portal - products.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews. With a subscription you will always
committee, …). It also gives information on projects, replaced have access to up to date content tailored to your needs.
and withdrawn publications.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
The world's leading online dictionary on electrotechnology,
Stay up to date on all new IEC publications. Just Published
containing more than 22 300 terminological entries in English
details all new publications released. Available online and
and French, with equivalent terms in 19 additional languages.
once a month by email.
Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc
If you wish to give us your feedback on this publication or
need further assistance, please contact the Customer Service
Centre: sales@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Recherche de publications IEC - IEC Products & Services Portal - products.iec.ch
webstore.iec.ch/advsearchform Découvrez notre puissant moteur de recherche et consultez
La recherche avancée permet de trouver des publications IEC gratuitement tous les aperçus des publications. Avec un
en utilisant différents critères (numéro de référence, texte, abonnement, vous aurez toujours accès à un contenu à jour
comité d’études, …). Elle donne aussi des informations sur adapté à vos besoins.
les projets et les publications remplacées ou retirées.

Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
Le premier dictionnaire d'électrotechnologie en ligne au
Restez informé sur les nouvelles publications IEC. Just
monde, avec plus de 22 300 articles terminologiques en
Published détaille les nouvelles publications parues.
anglais et en français, ainsi que les termes équivalents dans
Disponible en ligne et une fois par mois par email.
19 langues additionnelles. Egalement appelé Vocabulaire

Electrotechnique International (IEV) en ligne.
Service Clients - webstore.iec.ch/csc

Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.
IEC 61196-1-124 ®
Edition 1.0 2022-08
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Coaxial communication cables –

Part 1-124: Electrical test methods – Test for coupling loss of radiating cable

Câbles coaxiaux de communication –

Partie 1-124: Méthodes d’essai électrique – Essai de perte de couplage des

câbles rayonnants
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 33.120.10 ISBN 978-2-8322-5223-9

– 2 – IEC 61196-1-124:2022 © IEC 2022

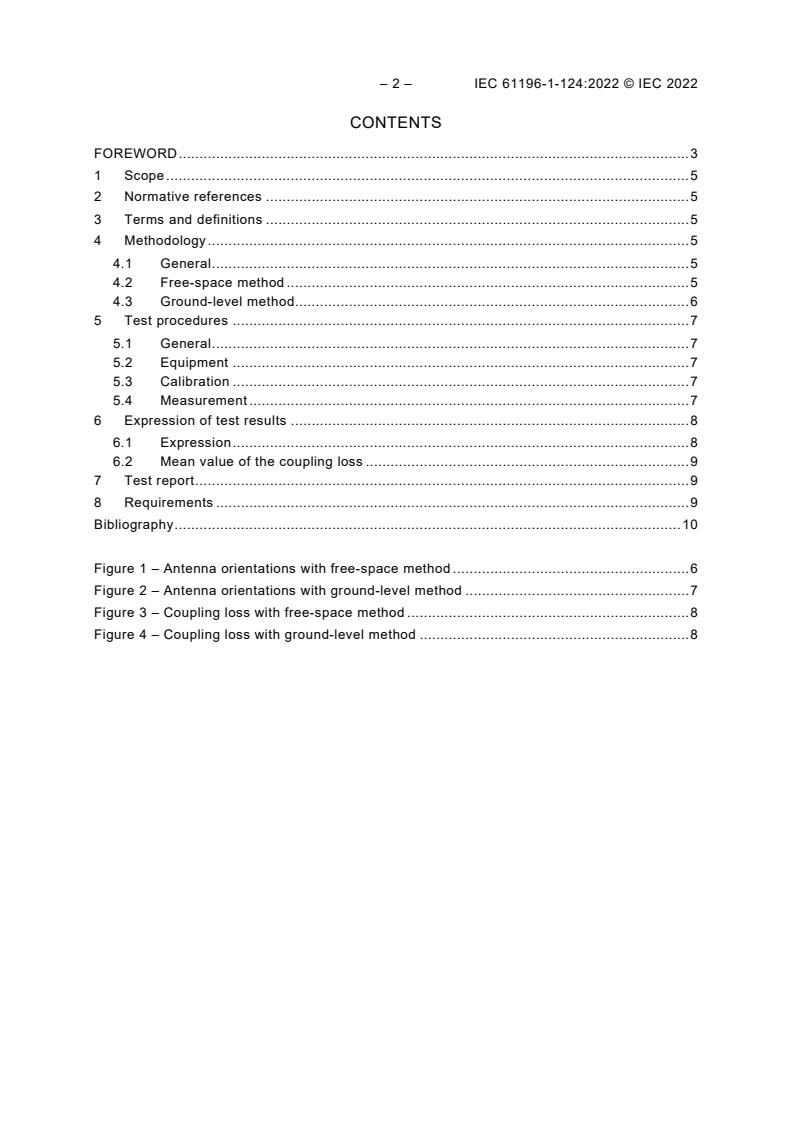

CONTENTS
FOREWORD . 3
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 Methodology . 5
4.1 General . 5
4.2 Free-space method . 5
4.3 Ground-level method. 6
5 Test procedures . 7
5.1 General . 7
5.2 Equipment . 7
5.3 Calibration . 7
5.4 Measurement . 7
6 Expression of test results . 8
6.1 Expression . 8
6.2 Mean value of the coupling loss . 9
7 Test report . 9
8 Requirements . 9
Bibliography . 10

Figure 1 – Antenna orientations with free-space method . 6
Figure 2 – Antenna orientations with ground-level method . 7
Figure 3 – Coupling loss with free-space method . 8
Figure 4 – Coupling loss with ground-level method . 8

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
COAXIAL COMMUNICATION CABLES –

Part 1-124: Electrical test methods –
Test for coupling loss of radiating cable

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent
rights. IEC shall not be held responsible for identifying any or all such patent rights.
IEC 61196-1-124 has been prepared by subcommittee 46A: Coaxial cables, of IEC technical
committee 46: Cables, wires, waveguides, RF connectors, RF and microwave passive
components and accessories. It is an International Standard.
The text of this International Standard is based on the following documents:
Draft Report on voting
46A/1578/FDIS 46A/1587/RVD
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this International Standard is English.

– 4 – IEC 61196-1-124:2022 © IEC 2022
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/standardsdev/publications.
A list of all parts of the IEC 61196 series, under the general title: Coaxial communication cables,
can be found on the IEC website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
COAXIAL COMMUNICATION CABLES –

Part 1-124: Electrical test methods –
Test for coupling loss of radiating cable

1 Scope
This part of IEC 61196 defines the test method to determine the coupling loss of radiating
coaxial communication cables that are intended for use in wireless communication systems
such as tunnels, railways, highways, subways, elevators and other confined areas in which
conventional antenna transmission is not satisfactory or even impossible.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies.
For undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 61196-1, Coaxial communication cables − Part 1: Generic specification − General,
definitions and requirements
IEC 61196-4, Coaxial communication cables − Part 4: Sectional specification for radiating
cables
3 Terms and definitions
For the purposes of this document, the terms and definitions given in IEC 61196-1 and
IEC 61196-4 apply.
ISO and IEC maintain terminological databases for use in standardization at the following
addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
4 Methodology
4.1 General
The measurements of coupling loss for radiating cables can be carried out by one of the two
methods, where the free-space method shall be the arbitration method if there is an argument:
– free-space method;
– ground-level method.
4.2 Free-space method
The arrangement of the cable is given in Figure 1. The cable is laid on non-metallic posts at a
height of 1,5 m to 2 m.
– 6 – IEC 61196-1-124:2022 © IEC 2022
The cable shall be at least 10 λ, where λ is the cable wavelength of the measuring frequency,
but not shorter than 50 m or 10 λ; the larger value is applicable.
The antenna is put on a trolley and moved parallel to the cable. The height of the antenna
centre should be the same as that of the cable and its horizontal distance from the cable should
be about 2 m (additional distance can be added in the detail specification). Preferably, a half-
wavelength dipole shall be used. Type and gain of antenna used should be stated in the test
report.
No other metallic parts than the cable and the antenna should be included within a cylinder of
2 m (min.) in diameter surrounding the axis of the cable and the centre of the antenna.
The spatial orientation of the antenna should be as specified in the detail specification.
For basic antenna orientations for a dipole, see Figure 1.

Key
1 cable
2 radial
3 orthogonal
4 parallel
Figure 1 – Antenna orientations with free-space method
4.3 Ground-level method
The arrangement of the cable is given in Figure 2. The cable is laid on non-metallic spacers
which gives the cable a distance from the concrete floor of 10 cm to 12 cm.
The cable shall be at least 10 λ, where λ is the cable wavelength of the measuring frequency,
but not shorter than 50 m or 10 λ; the larger value is applicable.
The antenna is fixed to a trolley and moved along the cable, the centre of the antenna positioned
vertically above the cable at a distance of about 2 m (additional distance may be added in the
detail specification). Preferably, a half-wavelength dipole shall be used. Type and gain of
antenna used should be stated in the test report.
The spatial orientation of the antenna shall be as specified in the detail specification.
For basic antenna orientations for a dipole, see Figure 2.

Key
1 cable
2 radial
3 orthogonal
4 parallel
Figure 2 – Antenna orientations with ground-level method
5 Test procedures
5.1 General
The ratio of the power P transmitted into the radiating cable at one point to the power P
t r
received by a half-wavelength dipole antenna located at a distance from the radiating cable at
the same point (see Formula (1)) can be defined by the following formula:
 
P
t
L 10⋅log
(1)
 
c
P
 r
where
L is the coupling loss, expressed in dB;
c
P is the transmission power in the radiating cable at one point, expressed in dBm;
t
is the receiving power of the half-wavelength dipole antenna at a distance from the
P
r
radiating cable at the same point, expressed in dBm.
5.2 Equipment
The following equipment can be used:
– a signal generator;
– a spectrum analyser (receiver);
– a vector network analyser.
5.3 Calibration
Connect the signal generator directly to the spectrum analyser with a short reach test lead. The
difference of power level between the signal generator and the spectrum analyser at every
specific frequency should be recorded as N prior to the measurement.
e
5.4 Measurement
Adjust the signal generator frequency and output power level. Feed the signal to port A of the
cable.
=
– 8 – IEC 61196-1-124:2022 © IEC 2022
Record the power level received by the antenna as a function of the distance of the antenna
from the input port A of the cable by a spectrum analyser.
The test setup for free-space and ground-level method are given as Figure 3 and Figure 4,
respectively.
There should be sufficient local resolution for the measurement to be valid. Therefore,
10 measurements per half-wavelength should be made to calculate the coupling loss for
reception probabilities up to 95 %. To calculate higher reception probabilities, a sampling rate
of 20 measurements per half-wavelength should be made. If there is an argument, the total
number of measurements shall not be less than 1 000.

Figure 3 – Coupling loss with free-space method

Figure 4 – Coupling loss with ground-level method
6 Expression of test results
6.1 Expression
The coupling loss can be computed as:

L ()z N−Nz()− (α⋅+z) G
(2)
c er
where
G is the gain of the antenna, expressed in dBd;
L (z) is the level of local coupling loss from the input end (z) of cable, expressed in dB;
c
N is the power level at the cable input, expressed in dBm;
e
N is the power level at the antenna, expressed in dBm;
r
α is the attenuation constant, expressed in dB/100 m;
z is the distance from cable input to the antenna, expressed in 100 m.
=
NOTE The test for attenuation constant of radiating cable is specified in IEC 61196-1-123.
Cable with periodic structures of radiating apertures create an RF field with a main lobe
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.

Loading comments...
