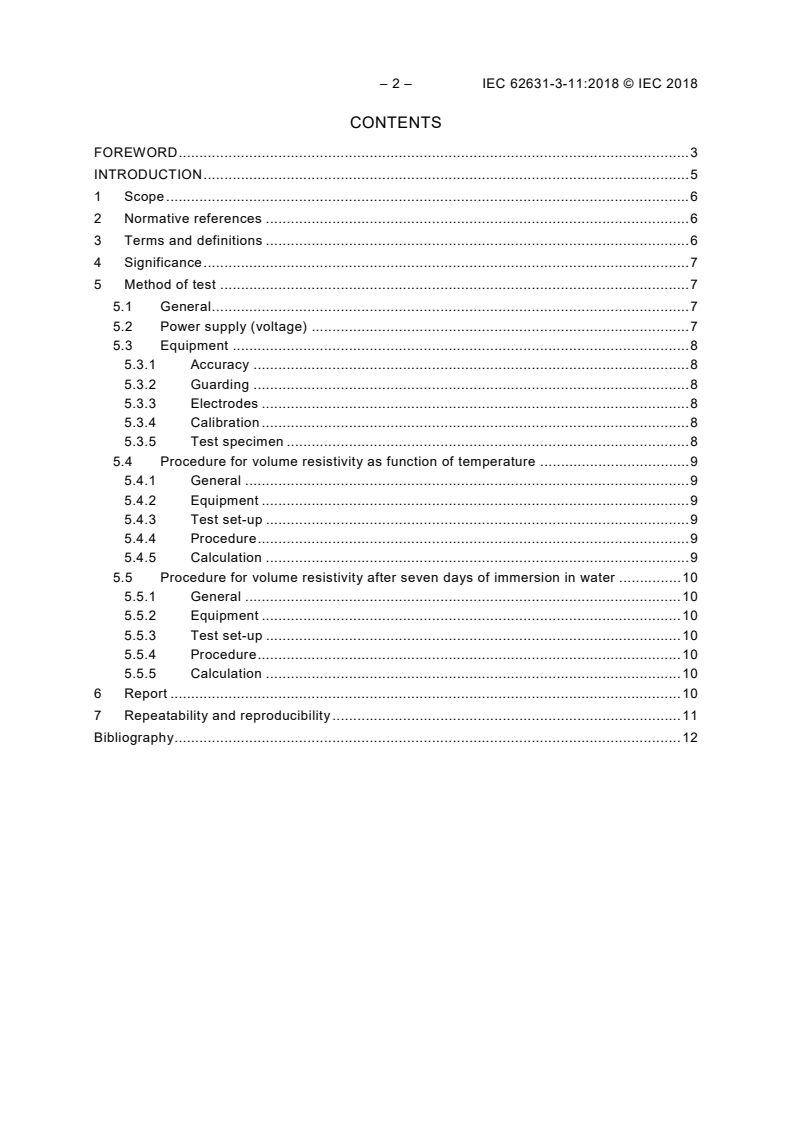

CONTENTS
FOREWORD . 3
INTRODUCTION . 5
1 Scope . 6
2 Normative references . 6
3 Terms and definitions . 6
4 Significance . 7
5 Method of test . 7
5.1 General . 7
5.2 Power supply (voltage) . 7
5.3 Equipment . 8
5.3.1 Accuracy . 8
5.3.2 Guarding . 8
5.3.3 Electrodes . 8
5.3.4 Calibration . 8
5.3.5 Test specimen . 8
5.4 Procedure for volume resistivity as function of temperature . 9
5.4.1 General . 9
5.4.2 Equipment . 9
5.4.3 Test set-up . 9
5.4.4 Procedure . 9
5.4.5 Calculation . 9
5.5 Procedure for volume resistivity after seven days of immersion in water . 10
5.5.1 General . 10
5.5.2 Equipment . 10
5.5.3 Test set-up . 10
5.5.4 Procedure . 10
5.5.5 Calculation . 10
6 Report . 10
7 Repeatability and reproducibility . 11
Bibliography . 12

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
DIELECTRIC AND RESISTIVE PROPERTIES
OF SOLID INSULATING MATERIALS –

Part 3-11: Determination of resistive properties (DC methods) –
Volume resistance and volume resistivity – Method for
impregnation and coating materials

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and
non-governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates
closely with the International Organization for Standardization (ISO) in accordance with conditions determined
by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 62631-3-11 has been prepared by IEC technical committee 112:
Evaluation and qualification of electrical insulating materials and systems.
The text of this standard is based on the following documents:
FDIS Report on voting
112/409/FDIS 112/415/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
A list of all parts in the IEC 62631 series, published under the general title Dielectric and
resistive properties of solid insulating materials, can be found on the IEC website.

– 4 – IEC 62631-3-11:2018 © IEC 2018
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC website under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
INTRODUCTION
Many segments of the electrotechnical industry need volume resistance and volume resistivity
data of solid insulating materials. This part of IEC 62631 is focused on the method for
impregnation and coating materials. Clear guidelines are important to give the user of this
document a uniform approach to sample preparation and test procedures.

– 6 – IEC 62631-3-11:2018 © IEC 2018
DIELECTRIC AND RESISTIVE PROPERTIES
OF SOLID INSULATING MATERIALS –

Part 3-11: Determination of resistive properties (DC methods) –
Volume resistance and volume resistivity – Method for
impregnation and coating materials

1 Scope
This part of IEC 62631 covers a method of test for the determination of volume resistance and
volume resistivity of electrical insulation materials by applying DC voltage. It covers the
materials described in IEC 60455-3-5, IEC 60464-3-1, IEC 60464-3-2 and similar products.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their
content constitutes requirements of this document. For dated references, only the edition
cited applies. For undated references, the latest edition of the referenced document (including
any amendments) applies.
IEC 62631-3-1, Dielectric and resistive properties of solid insulating materials – Part 3-1:
Determination of resistive properties (DC methods) – Volume resistance and volume
resistivity – General method
ISO 1514, Paints and varnishes – Standard panels for testing
ISO 2808, Paints and varnishes – Determination of film thickness
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminological databases for use in standardization at the following
addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
3.1
volume resistance
part of the insulation resistance which is due to conduction through the volume
Note 1 to entry: Volume resistance is expressed in Ω.
3.2
volume resistivity
volume resistance of a material related to its volume
Note 1 to entry: Volume resistivity is expressed in Ωm.
Note 2 to entry: For insulating materials the volume resistivity is usually determined by means of measuring
electrodes arranged on a sheet of the material.

Note 3 to entry: According to IEC 60050-121:1998, 121-12-03, “conductivity” is defined as “scalar or tensor
quantity the product of which by the electric field strength in a medium is equal to the electric current density” and
according to IEC 60050-121:1998, 121-12-04 “resistivity” is the "inverse of the conductivity when this inverse
exists”. Measured in this way, the volume resistivity is an average of the resistivity over possible heterogeneities in
the volume incorporated in the measurement; it includes the effect of possible polarization phenomena at the level
of the electrodes.
3.3
stray current
leakage current in the earth or in metallic structures buried in the ground and resulting from
their intended or unintended earthing
4 Significance
The materials applicable to this test are used to impregnate or coat coils made from
enamelled copper or aluminium wire to fix the coils, protect them from humidity, dirt and other
environmental influence. The main field applications are electric motors, transformers and
similar appliances.
Additional electrical insulation is desirable but not essential. In many cases mechanical
support, thermal and chemical resistance are more important. In particular, the changes in
resistivity with regard to temperature and/or humidity are of great importance and need to be
known when designing a motor for operation conditions.
When a direct voltage is applied between electrodes in contact with a specimen, the current
through it decreases asymptotically towards a steady-state value. The decrease of current
with time may be due to dielectric polarisation and the sweep of mobile ions to the electrodes.
For materials having volume resistivity less than about 10 Ωm the steady state is generally
reached within 1 min and the resistance is determined after this time of electrification. For
materials with higher volume resistivity the current may continue decreasing for several
minutes, hours, days or even weeks. However, the results are taken after 1 min.
NOTE For very high electric field strengths different behaviour can occur.
5 Method of test
5.1 General
The method described in this document is used for impregnation and coating materials. For
other specific types of materials other documents or the general method described in
IEC 62631-3-1 may be more suitable.
For an impregnation or coating material the absolute value of volume resistance or resistivity
is of minor interest. More important is the change of this value as a function of temperature or
after immersion into water.
5.2 Power supply (voltage)
A source of very steady direct voltage is required. This may be provided either by batteries or
by rectified and stabilized power supply. The degree of stability required is such that the
change in current due to any change in voltage is negligible compared with the current to be
measured.
-5
NOTE The ripple of the voltage source is important. A typical value for 100 V is < 5 × 10 peak to peak.
If not otherwise stipulated, a voltage of 500 V is to be used. Other test voltages may be 10 V,
100 V or 1 000 V.
– 8 – IEC 62631-3-11:2018 © IEC 2018
5.3 Equipment
5.3.1 Accuracy
Any suitable equipment may be used. The measuring device should be capable of
determining the unknown resistance with an overall accuracy of at least:
• ±10 % for resistances below 10 Ω
10 14
• ±20 % for resistances between 10 Ω and 10 Ω
• ±50 % for values higher than 10 Ω
5.3.2 Guarding
For routine measurements, especially in production control to determine the specified
minimum values, guarding is not necessary. This allows smaller and simplified specimens.
If the exact absolute value is of interest, or the value is above 10 Ω, or in case of doubt,
then guarding is recommended. Further information related to guarding can be found in
IEC 62631-3-1.
5.3.3 Electrodes
For simple measurements a permanent electrode (e.g. conductive silver paint) may be used.
In case of measurements before and after a treatment (e.g. immersion into water) a
removable electrode shall be used. Further information related to electrodes can be found in
IEC 62631-3-1.
5.3.4 Calibration
The equipment shall be calibrated in the magnitude of the volume resistance measured.
NOTE Calibration resistors in the range up to 100 TΩ are commercially available.
5.3.5 Test specimen
Unless otherwise specified, a steel panel according to ISO 1514 but of a thickness of (0,125 ±
0,025) mm, a length of at least 100 mm and a width at least 60 mm shall be used. The
preparation and cleaning of the panel shall be in accordance with the measures proposed in
ISO 1514.
Unless otherwise specified, the steel panel shall be immersed in the resin or varnish in a
vertical position and at a speed sufficiently low to prevent voids of air adhering to the surface
of the panel. The panel shall be kept in the resin or varnish for at least 5 min and shall then
be removed from the varnish at a uniform speed of not more than 5 mm/s.
The specimen shall then be drained for 10 min to 15 min and dried and/or cured in
accordance with the agreed schedule. It shall be drained in a vertical position. For drying
and/or curing, the oven applied shall be specially designed for drying painted or varnished
parts, which may have large surfaces and substantial amounts of solvent evaporation. Drying
and curing temperature conditions shall comply with the requirements of the product
datasheet.
For varnishes the coating process shall be repeated by dipping, draining and drying and/or
curing the panel in the reverse direction. For resins a single coating is sufficient.
The thickness of the coating after drying and/or curing shall be determined by one of the
procedures specified in ISO 2808. The coating on the steel panel shall be between 0,04 mm
and 0,10 mm on either side of the panel.

NOTE Increasing the speed by which the panel is removed from the resin or varnish increases the thickness of
the coating; reducing the speed reduces the thickness of the coating. It also can be necessary to reduce the
viscosity of varnishes using the recommended thinner.
5.4 Procedure for volume resistivity as function of temperature
5.4.1 General
The following procedure describes an established method. Any other method in line with the
general requirements may be used.
5.4.2 Equipment
The following equipment shall be used:
• any suitable tera-ohmmeter with an accuracy of ±10 %;
• metal cylinder to be used as voltage electrode (top electrode) of at least 40 mm diameter
and having a mass to provide a pressure of about 0,015 MPa;
• conductive silver paint.
5.4.3 Test set-up
Three specimens shall be tested. The thickness of the coating shall be measured at five
points at least within the test area before application of the electrodes. Conductive silver paint
is applied on the test area and dried according to the paint manufacturer's recommendations.
The steel panel shall be placed on a flat solid surface in an oven. The steel panel itself is
grounded and used as an electrode.
The metal cylinder is placed on the test area on top of the silver paint and used as the other
electrode.
5.4.4 Procedure
The volume resistivity at room temperature is measured in accordance with IEC 62631-3-1
using an electrification of 1 min and a voltage not higher than 500 V.
The oven is turned on and adjusted to the first temperature. After the temperature has
stabilized the measurement of the volume resistivity is repeated and recorded along with the
temperature.
The necessary time for temperature stabilization is for example influenced by the construction
and tolerances of the oven, the electrode arrangement specimen and other technical details.
However care should be taken that the specimen has stabilized. The time characteristics of
the individual oven should be determined or extrapolated from experience.
The oven is set to the second temperature and the process is repeated until the maximum
temperature is reached. The maximum temperature shall be at least the thermal class
temperature.
5.4.5 Calculation
The calculation of the volume resistivity shall be in accordance with IEC 62631-3-1. A graph
using a logarithmic scale of the volume resistivity versus temperature has been found useful.

– 10 – IEC 62631-3-11:2018 © IEC 2018
5.5 Procedure for volume resistivity after seven days of immersion in water
5.5.1 General
The following procedure describes an established method. Any other method in line with the
general requirements may be used.
5.5.2 Equipment
The following equipment shall be used:
• any suitable tera-ohmmeter with an accuracy of ±10 %;
• metal cylinder to be used as voltage electrode (top electrode) of at least 40 mm diameter
and having a mass to provide a pressure of about 0,015 MPa;
• a disc of conductive rubber with the same diameter as the top electrode.
5.5.3 Test set-up
Three specimens shall be tested. The thickness of the coating shall be measured at
five points at least within the test area before application of the electrodes. The disc made
from conductive rubber is placed on the test area.
The steel panel shall be placed on a flat solid surface. The steel panel itself is grounded and
used as an electrode.
The metal cylinder is placed on the disc of conductive rubber and used as the other electrode.
5.5.4 Procedure
The initial value of volume resistivity at room temperature is measured in accordance with
IEC 62631-3-1 using an electrification of 1 min and a voltage not higher than 500 V.
After this initial measurement the steel panel is immersed into demineralized water of
(23 ± 2) °C for (168 ± 1) h (seven days). Sufficient water shall be used, so that the specimen
does not dry out.
After immersion in water the test set-up shall be made immediately after removing the
specimen from the water and blotting it between filter papers to remove excessive water. The
resistance measurement shall be taken (15 ± 1) min after the test set-up is made.
The volume resistivity is measured again in accordance with IEC 62631-3-1 us
...
