IEC 60424-3:2015

IEC 60424-3 ®
Edition 2.0 2015-10
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Ferrite cores – Guidelines on the limits of surface irregularities –
Part 3: ETD-cores, EER-cores, EC-cores and E-cores

Noyaux ferrites – Lignes directrices relatives aux limites des irrégularités de
surface –
Partie 3: Noyaux ETD, EER, EC et E

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie

et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des

questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing more than 30 000 terms and
Technical Specifications, Technical Reports and other definitions in English and French, with equivalent terms in 15
documents. Available for PC, Mac OS, Android Tablets and additional languages. Also known as the International
iPad. Electrotechnical Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a More than 60 000 electrotechnical terminology entries in
variety of criteria (reference number, text, technical English and French extracted from the Terms and Definitions
committee,…). It also gives information on projects, replaced clause of IEC publications issued since 2002. Some entries
and withdrawn publications. have been collected from earlier publications of IEC TC 37,

77, 86 and CISPR.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: csc@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient plus de 30 000 termes et définitions en
Spécifications techniques, Rapports techniques et autres
anglais et en français, ainsi que les termes équivalents dans
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
15 langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.

Recherche de publications IEC - www.iec.ch/searchpub
Glossaire IEC - std.iec.ch/glossary
Plus de 60 000 entrées terminologiques électrotechniques, en
La recherche avancée permet de trouver des publications IEC
en utilisant différents critères (numéro de référence, texte, anglais et en français, extraites des articles Termes et
comité d’études,…). Elle donne aussi des informations sur les Définitions des publications IEC parues depuis 2002. Plus
projets et les publications remplacées ou retirées. certaines entrées antérieures extraites des publications des

CE 37, 77, 86 et CISPR de l'IEC.
IEC Just Published - webstore.iec.ch/justpublished

Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications IEC. Just
Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur cette
Disponible en ligne et aussi une fois par mois par email. publication ou si vous avez des questions contactez-nous:
csc@iec.ch.
IEC 60424-3 ®
Edition 2.0 2015-10
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Ferrite cores – Guidelines on the limits of surface irregularities –

Part 3: ETD-cores, EER-cores, EC-cores and E-cores

Noyaux ferrites – Lignes directrices relatives aux limites des irrégularités de

surface –
Partie 3: Noyaux ETD, EER, EC et E

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.100.10 ISBN 978-2-8322-2936-1

– 2 – IEC 60424-3:2015 © IEC 2015

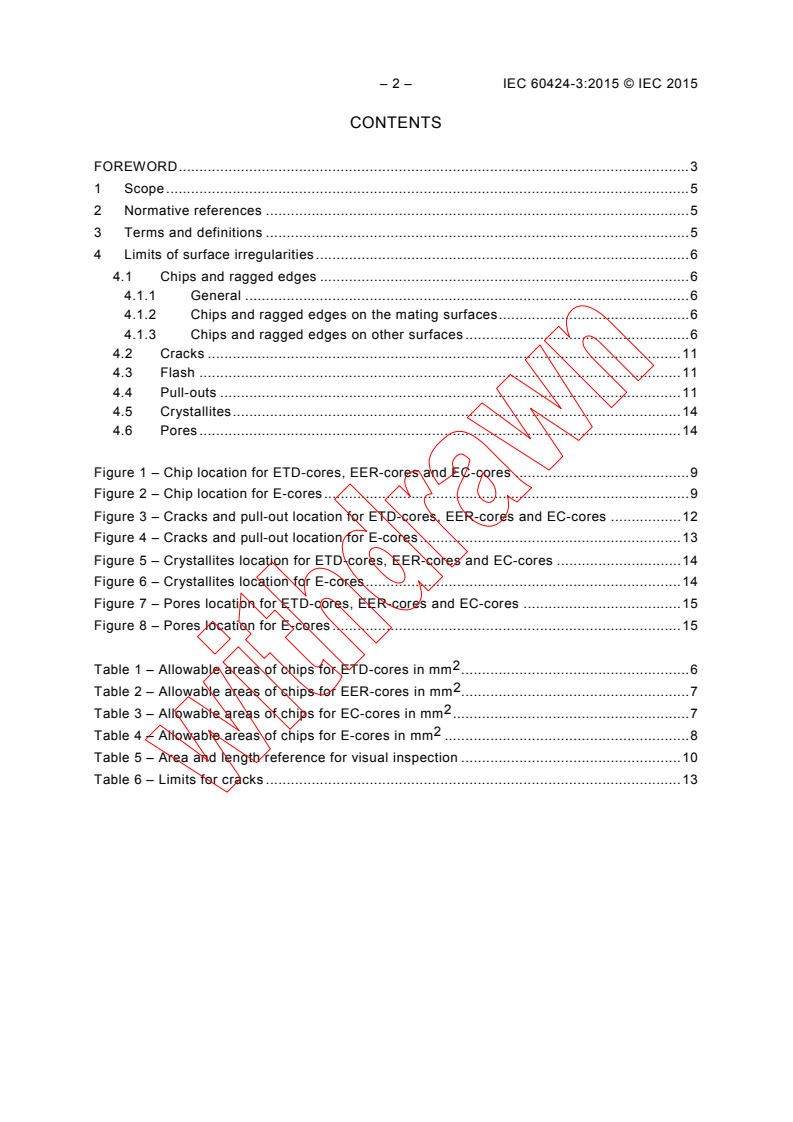

CONTENTS
FOREWORD . 3

1 Scope . 5

2 Normative references . 5

3 Terms and definitions . 5

4 Limits of surface irregularities . 6

4.1 Chips and ragged edges . 6

4.1.1 General . 6
4.1.2 Chips and ragged edges on the mating surfaces . 6
4.1.3 Chips and ragged edges on other surfaces . 6
4.2 Cracks . 11
4.3 Flash . 11
4.4 Pull-outs . 11
4.5 Crystallites . 14
4.6 Pores . 14

Figure 1 – Chip location for ETD-cores, EER-cores and EC-cores . 9
Figure 2 – Chip location for E-cores . 9
Figure 3 – Cracks and pull-out location for ETD-cores, EER-cores and EC-cores . 12
Figure 4 – Cracks and pull-out location for E-cores . 13
Figure 5 – Crystallites location for ETD-cores, EER-cores and EC-cores . 14
Figure 6 – Crystallites location for E-cores . 14
Figure 7 – Pores location for ETD-cores, EER-cores and EC-cores . 15
Figure 8 – Pores location for E-cores . 15

Table 1 – Allowable areas of chips for ETD-cores in mm . 6
Table 2 – Allowable areas of chips for EER-cores in mm . 7
Table 3 – Allowable areas of chips for EC-cores in mm . 7
Table 4 – Allowable areas of chips for E-cores in mm . 8
Table 5 – Area and length reference for visual inspection . 10
Table 6 – Limits for cracks . 13

INTERNATIONAL ELECTROTECHNICAL COMMISSION

____________
FERRITE CORES – GUIDELINES ON
THE LIMITS OF SURFACE IRREGULARITIES –

Part 3: ETD-cores, EER-cores, EC-cores and E-cores

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.

International Standard IEC 60424-3 has been prepared IEC technical committee 51: Magnetic
components and ferrite materials.
This second edition cancels and replaces the first edition published in 1999. This edition
constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
a) addition of allowable areas of chips for EC-cores in Table 3,
b) addition of crystallites in 4.5 and pores in 4.6.

– 4 – IEC 60424-3:2015 © IEC 2015

The text of this standard is based on the following documents:

FDIS Report on voting
51/1099/FDIS 51/1114/RVD
Full information on the voting for the approval of this standard can be found in the report on

voting indicated in the above table.

This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

A list of all parts in the IEC 60424 series, published under the general title Ferrite cores –
Guidelines on the limits of surface irregularities, can be found on the IEC website.
Future standards in this series will carry the new general title as cited above. Titles of existing
standards in this series will be updated at the time of the next edition.
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC website under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
FERRITE CORES – GUIDELINES ON
THE LIMITS OF SURFACE IRREGULARITIES –

Part 3: ETD-cores, EER-cores, EC-cores and E-cores

1 Scope
This part of IEC 60424 gives guidelines on allowable limits of surface irregularities applicable
to ETD-cores, EER-cores, EC-cores and E-cores in accordance with the relevant general
specification.
This standard is a specification useful in the negotiations between ferrite core manufacturers
and customers about surface irregularities.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and
are indispensable for its application. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 60424-1 , Ferrite cores – Guidelines on the limits of surface irregularities – Part 1:
General specification
IEC 60647, Dimensions for magnetic oxide cores intended for use in power supplies (EC-
cores)
IEC 61185, Ferrite cores (ETD-cores) intended for use in power supply applications –
Dimensions
IEC 62317-7, Ferrite cores – Dimensions – Part 7: EER-cores
IEC 62317-8, Ferrite cores – Dimensions – Part 8: E-cores
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.1
pore
hole left on the surface of cores after sintering and surface finishing
3.2
crystallite
grain of abnormal size distinguishable on the surface, often with sparkling facets
—————————
To be published.
– 6 – IEC 60424-3:2015 © IEC 2015

4 Limits of surface irregularities

4.1 Chips and ragged edges
4.1.1 General
Chips and ragged edges are defined in IEC 60424-1.

4.1.2 Chips and ragged edges on the mating surfaces

The areas of the chips located on the mating surfaces (chip1 and chip1′ irregularities of
Figures 1 and 2) shall not exceed the following limits:
– the cumulative area of the chips shall be less than 6 % of the mating surface (whether
gapped or ungapped) of the centre leg;
– the total length of the ragged edges shall be less than 25 % of the perimeter of the
relevant surface.
4.1.3 Chips and ragged edges on other surfaces
The allowable areas of chips are doubled as compared to the limits for the mating surface
(see Table 1 for ETD-cores, Table 2 for EER-cores, Table 3 for EC-cores and Table 4 for E-
cores).
The rule for ragged edges is the same as for the mating surface.
The allowable areas of chips for a given core are summarized in Tables 1, 2, 3 and 4.
The core sizes given in Tables 1 and 2 correspond to the cores defined in IEC 61185,
IEC 62317-7, IEC 60647 and IEC 62317-8.
Table 1 – Allowable areas of chips for ETD-cores in mm
Core size Mating surfaces Other surfaces
ETD19
< 2,5 < 5
ETD24
< 3,5 < 7
ETD29 < 4 < 8
ETD34
< 6 < 12,5
ETD39 < 8 < 15
ETD44
< 10 < 20
ETD49 < 12,5 < 25
ETD54
< 17,5 < 35
ETD59
< 25 < 45
Table 2 – Allowable areas of chips for EER-cores in mm

Core size Mating surfaces Other surfaces

EER25,5
< 2,5 < 5
EER28 < 4 < 8
EER28L < 4 < 8
EER35 < 6 < 12,5
EER39 < 7 < 15
EER40 < 8 < 15
EER42 < 10 < 20
EER49
< 12.5 < 25
Table 3 – Allowable areas of chips for EC-cores in mm
Core size Mating surfaces Other surfaces
EC35
< 4 < 8
EC41 < 6 < 12,5
EC52
< 8 < 15
EC70 < 12,5 < 25
EC90
< 25 < 50
EC120 < 25 < 50
– 8 – IEC 60424-3:2015 © IEC 2015

Table 4 – Allowable areas of chips for E-cores in mm

Core size Mating surfaces Other surfaces

E5,3/2
< 0,5 < 0,5
E6,3/2 < 0,5 < 0,5
E8/2
< 0,5 < 1
E8,3/4 < 0,5 < 1
E8,8/2
< 0,5 < 1
E10/3
< 1 < 1,5
E10,2/5
< 1 < 1,5
E13/4
< 1 < 2
E13/6
< 1 < 2
E16/4,8
< 1,5 < 3
E16/5 < 1,5 < 3
E19/5
< 1,5 < 3
E19,3/4,8 < 1,5 < 3
E20/6
< 2 < 4
E25/7 < 4 < 7
E25,4/6
< 2,5 < 5
E25,4/6,3
< 2,5 < 5
E30/11 < 7 < 14
E32/9
< 5 < 10
E33/13 < 7 < 14
E34,6/9
< 6 < 10
E35/10 < 6 < 12,5
E40/11
< 6 < 12,5
E41/13 < 10 < 20
E42/15
< 12,5 < 25
E42/20
< 15 < 30
E47/16
< 15 < 30
E50/15
< 12,5 < 25
E55/21 < 20 < 40
E55/25
< 25 < 50
E60/16 < 15 < 30
E65/27
< 30 < 60
Mating surfaces
Chip1'
Chip2
Chip1
Ragged
edges
IEC
Figure 1 – Chip location for ETD-cores, EER-cores and EC-cores
Chip1'
Mating surfaces
Chip2
Chip1
Ragged
edges
IEC
Figure 2 – Chip location for E-cores
The area and length reference for visual inspection is given in Table 5.

– 10 – IEC 60424-3:2015 © IEC 2015

Table 5 – Area and length reference for visual inspection

IEC
4.2 Cracks
Cracks are defined in IEC 60424-1.

The limits for cracks at various locations shown in Figures 3 or 4 are given in Table 6.

4.3 Flash
Flash is defined in IEC 60424-1.

There shall be no flash extending from the core into the wire-slot.

4.4 Pull-outs
Pull-outs are defined in IEC 60424-1.
For ETD-cores, EER-cores and EC-cores the cumulative area of pull-outs of the core shall be
less than 25 % of the total area of bottom surfaces.
For E-cores the cumulative area of pull-outs of the core shall be less than 25 % of the total
area of a side surface.
– 12 – IEC 60424-3:2015 © IEC 2015

H
S1”
S1
S1’
S3”
S3
S2
S7
S2”
S2’
Example of flash
S5
T
S5’
S5” Pull-out
S4'
S3'
S4’’’
S4’’
S4
W
S6
S6’
IEC
Figure 3 – Cracks and pull-out location for ETD-cores, EER-cores and EC-cores
