IEC

IEC 63171-5:2022

(Main)

Connectors for electrical and electronic equipment - Part 5: Detail specification for 2-way M8 and M12 circular connectors, shielded or unshielded, free and fixed - Mechanical mating information, pin assignment and additional requirements for Type 5

Connectors for electrical and electronic equipment - Part 5: Detail specification for 2-way M8 and M12 circular connectors, shielded or unshielded, free and fixed - Mechanical mating information, pin assignment and additional requirements for Type 5

IEC 63171-5:2022 refers to International Standards for test and measurement, environmental testing as well as solderless connections. This part of IEC 63171 describes 2-way shielded or unshielded circular connectors with IP65/IP67 M8 or M12 locking, typically used for balanced single-pair data transmission with frequencies up to 600 MHz and with current-carrying capacity up to 4 A, for use in areas with harsh environmental conditions. These connectors consist of fixed and free connectors, either rewirable or non-rewirable. Male connectors have square cross-section contacts.
The content of the corrigendum 1 (2024-11) has been included in this copy.

Connecteurs pour équipements électriques et électroniques - Partie 5: Spécification particulière pour les connecteurs circulaires M8 et M12 à 2 pôles, à fiches et embases écrantées ou non écrantées: informations d’accouplement mécanique, affectation des broches et exigences supplémentaires pour le type 5

L'IEC 63171-5:2022 fait référence aux Normes internationales pour les essais et les mesures, les essais environnementaux ainsi que les connexions sans soudure. Cette partie de l'IEC 63171 décrit les connecteurs circulaires blindés ou non blindés à 2 voies avec verrouillage IP65/IP67 M8 ou M12, généralement utilisés pour la transmission de données équilibrée à une seule paire avec des fréquences allant jusqu’à 600 MHz et avec une capacité de charge de courant allant jusqu’à 4 A, pour une utilisation dans des zones où les conditions environnementales sont difficiles. Ces connecteurs sont constitués de connecteurs fixes et libres, réengrenables ou non réenfrables. Les connecteurs mâles ont des contacts de section transversale carrée.
Le contenu du corrigendum 1 (2024-11) a été pris en considération dans cet exemplaire

General Information

Status
Published
Publication Date
14-Sep-2022
ICS
31.220.10 - Plug-and-socket devices. Connectors
Technical Committee
SC 48B - Electrical connectors
Drafting Committee
PT 63171 - TC 48/SC 48B/PT 63171
Current Stage
PPUB - Publication issued
Start Date
16-Sep-2022
Completion Date
15-Sep-2022
Ref Project

Relations

Corrected By
IEC 63171-5:2022/COR1:2024 - Corrigendum 1 - Connectors for electrical and electronic equipment - Part 5: Detail specification for 2-way M8 and M12 circular connectors, shielded or unshielded, free and fixed - Mechanical mating information, pin assignment and additional requirements for Type 5
Effective Date
23-Feb-2024

Buy Standard

IEC 63171-5:2022 - Connectors for electrical and electronic equipment - Part 5: Detail specification for 2-way M8 and M12 circular connectors, shielded or unshielded, free and fixed - Mechanical mating information, pin assignment and additional requirements for Type 5 Released:9/15/2022IEC 63171-5:2022 - Connectors for electrical and electronic equipment - Part 5: Detail specification for 2-way M8 and M12 circular connectors, shielded or unshielded, free and fixed - Mechanical mating information, pin assignment and additional requirements for Type 5 Released:9/15/2022
PreviousNext
Standard
IEC 63171-5:2022 - Connectors for electrical and electronic equipment - Part 5: Detail specification for 2-way M8 and M12 circular connectors, shielded or unshielded, free and fixed - Mechanical mating information, pin assignment and additional requirements for Type 5 Released:9/15/2022
English and French language
65 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (Sample)


IEC 63171-5 ®
Edition 1.0 2022-09
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Connectors for electrical and electronic equipment –
Part 5: Detail specification for 2-way M8 and M12 circular connectors, shielded
or unshielded, free and fixed – Mechanical mating information, pin assignment
and additional requirements for Type 5

Connecteurs pour équipements électriques et ėlectroniques –
Partie 5: Spécification particulière pour les connecteurs circulaires M8 et M12 à
2 pôles, à fiches et embases écrantées ou non écrantées – Informations
d’accouplement mécanique, affectation des broches et exigences
supplémentaires pour le type 5

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni
utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie et
les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Secretariat Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform IEC Products & Services Portal - products.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews. With a subscription you will always have
committee, …). It also gives information on projects, replaced access to up to date content tailored to your needs.
and withdrawn publications.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
The world's leading online dictionary on electrotechnology,
Stay up to date on all new IEC publications. Just Published
containing more than 22 300 terminological entries in English
details all new publications released. Available online and once
and French, with equivalent terms in 19 additional languages.
a month by email.
Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc
If you wish to give us your feedback on this publication or need
further assistance, please contact the Customer Service
Centre: sales@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Recherche de publications IEC - Découvrez notre puissant moteur de recherche et consultez
webstore.iec.ch/advsearchform gratuitement tous les aperçus des publications. Avec un
La recherche avancée permet de trouver des publications IEC abonnement, vous aurez toujours accès à un contenu à jour
en utilisant différents critères (numéro de référence, texte, adapté à vos besoins.
comité d’études, …). Elle donne aussi des informations sur les
projets et les publications remplacées ou retirées. Electropedia - www.electropedia.org

Le premier dictionnaire d'électrotechnologie en ligne au monde,
IEC Just Published - webstore.iec.ch/justpublished
avec plus de 22 300 articles terminologiques en anglais et en
Restez informé sur les nouvelles publications IEC. Just
français, ainsi que les termes équivalents dans 19 langues
Published détaille les nouvelles publications parues.
additionnelles. Egalement appelé Vocabulaire
Disponible en ligne et une fois par mois par email.
Electrotechnique International (IEV) en ligne.

Service Clients - webstore.iec.ch/csc
Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.
IEC Products & Services Portal - products.iec.ch

IEC 63171-5 ®
Edition 1.0 2022-08
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Connectors for electrical and electronic equipment –

Part 5: Detail specification for 2-way M8 and M12 circular connectors, shielded

or unshielded, free and fixed – Mechanical mating information, pin assignment

and additional requirements for Type 5

Connecteurs pour équipements électriques et ėlectroniques –

Partie 5: Spécification particulière pour les connecteurs circulaires M8 et M12 à

2 pôles, à fiches et embases écrantées ou non écrantées – Informations

d’accouplement mécanique, affectation des broches et exigences

supplémentaires pour le type 5

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 31.220.10 ISBN 978-2-8322-5609-1

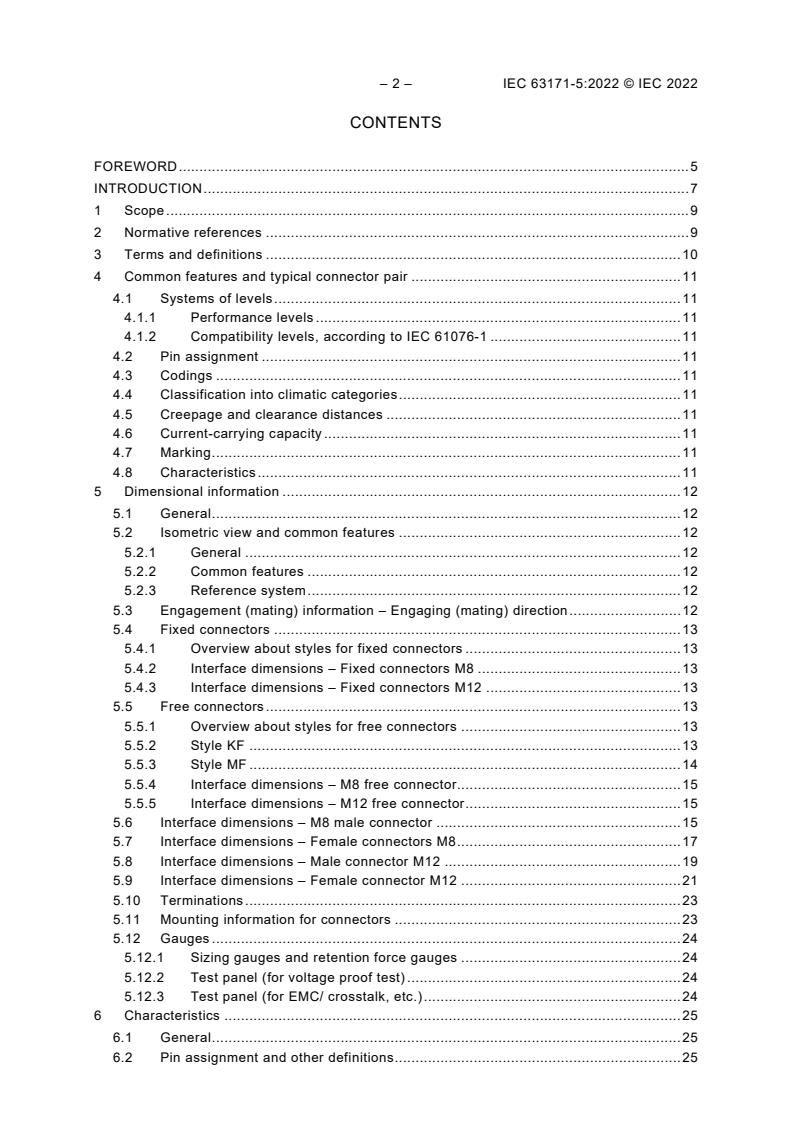

– 2 – IEC 63171-5:2022 © IEC 2022
CONTENTS
FOREWORD . 5
INTRODUCTION . 7
1 Scope . 9
2 Normative references . 9
3 Terms and definitions . 10
4 Common features and typical connector pair . 11
4.1 Systems of levels . 11
4.1.1 Performance levels . 11
4.1.2 Compatibility levels, according to IEC 61076-1 . 11
4.2 Pin assignment . 11
4.3 Codings . 11
4.4 Classification into climatic categories . 11
4.5 Creepage and clearance distances . 11
4.6 Current-carrying capacity . 11
4.7 Marking . 11
4.8 Characteristics . 11
5 Dimensional information . 12
5.1 General . 12
5.2 Isometric view and common features . 12
5.2.1 General . 12
5.2.2 Common features . 12
5.2.3 Reference system . 12
5.3 Engagement (mating) information – Engaging (mating) direction . 12
5.4 Fixed connectors . 13
5.4.1 Overview about styles for fixed connectors . 13
5.4.2 Interface dimensions – Fixed connectors M8 . 13
5.4.3 Interface dimensions – Fixed connectors M12 . 13
5.5 Free connectors . 13
5.5.1 Overview about styles for free connectors . 13
5.5.2 Style KF . 13
5.5.3 Style MF . 14
5.5.4 Interface dimensions – M8 free connector. 15
5.5.5 Interface dimensions – M12 free connector . 15
5.6 Interface dimensions – M8 male connector . 15
5.7 Interface dimensions – Female connectors M8 . 17
5.8 Interface dimensions – Male connector M12 . 19
5.9 Interface dimensions – Female connector M12 . 21
5.10 Terminations . 23
5.11 Mounting information for connectors . 23
5.12 Gauges . 24
5.12.1 Sizing gauges and retention force gauges . 24
5.12.2 Test panel (for voltage proof test) . 24
5.12.3 Test panel (for EMC/ crosstalk, etc.) . 24
6 Characteristics . 25
6.1 General . 25
6.2 Pin assignment and other definitions . 25

6.3 Classification into climatic categories . 25
6.4 Electrical characteristics . 25
6.4.1 Creepage and clearance distances . 25
6.4.2 Voltage proof . 25
6.4.3 Current-temperature derating . 25
6.4.4 Initial contact resistance – interface only (separable fixed and free
contact) . 26
6.4.5 Input to output DC resistance . 26
6.4.6 Input to output DC resistance unbalanced. 26
6.4.7 Initial insulation resistance . 26
6.5 Transmission characteristics . 26
6.5.1 General . 26
6.5.2 Insertion loss . 26
6.5.3 Return loss . 26
6.5.4 Propagation delay . 26
6.5.5 Transverse conversion loss . 26
6.5.6 Transverse conversion transfer loss . 26
6.5.7 Transfer impedance (shielded only) . 26
6.5.8 Coupling attenuation . 26
6.5.9 Power sum alien (exogenous) NEXT . 27
6.5.10 Power sum alien (exogenous) FEXT . 27
6.6 Mechanical characteristics . 27
6.6.1 Mechanical operation .
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.

This May Also Interest You

IEC
IEC 63171-5:2022/COR1:2024(Corrigendum)
Corrigendum 1 - Connectors for electrical and electronic equipment - Part 5: Detail specification for 2-way M8 and M12 circular connectors, shielded or unshielded, free and fixed - Mechanical mating information, pin assignment and additional requirements for Type 5
  • Standard
    2 pages
    English and French language
    sale 15% off
IEC
IEC 60512-28-100:2024(Main)
Connectors for electrical and electronic equipment - Tests and measurements - Part 28-100: Signal integrity tests up to 2 000 MHz - Tests 28a to 28g

IEC 60512-28-100:2024 specifies the test methods for signal integrity and transmission performance for connectors specified in respective parts of IEC 60603-7, IEC61076-1, IEC 61076-2, IEC 61076-3 and IEC 63171 series of standards for connecting hardware applications from 0,1 MHz up to 2 000 MHz, with reference to this document.
Note: This document is also suitable for testing signal integrity and transmission performance of connectors up to a lower value of maximum frequency; however, the test methodology specified in the detail specification for any given connector remains the reference conformance test for that connector.
The list of connector series of standards does not preclude referencing this document in other connector manufacturer’s specifications or published standards.
Test procedures provided herein are:
- insertion loss, test 28a;
- return loss, test 28b;
- near-end crosstalk (NEXT) test 28c;
- far-end crosstalk (FEXT), test 28d;
- transverse conversion loss (TCL), test 28f;
- transverse conversion transfer loss (TCTL), test 28g.
Other test procedures referenced herein are:
- shield transfer impedance (ZT), see IEC 60512‑26‑100, test 26e.
- coupling attenuation (aC), see IEC 62153-4-7 and IEC 62153‑4‑12.
- low frequency coupling attenuation (aCLF) see IEC 62153-4-7 and IEC 62153-4-15
This edition includes the following significant technical changes with respect to the previous edition:
-The frequency range has been modified to start at 0,1 MHz instead of 1 MHz, to include single-pair connectors.
-All tables and requirements have been revised down to 0,1 MHz, and partially improved to reduce the impact of the test fixture.
-Formulae to calculate the S-parameters from single-ended parameters have been added.
-A note was added for those parameters which are not applicable to single-pair connectors.

  • Standard
    97 pages
    English and French language
    sale 15% off
IEC
IEC 63171-1:2024(Main)
Connectors for electrical and electronic equipment - Part 1: Detail specification for 2-way, shielded or unshielded, free and fixed connectors - Mechanical mating information, pin assignment and additional requirements for Type 1 (copper LC style)

IEC 63171-1:2024 is part of the IEC 63171 series which is a set of International Standards covering shielded or unshielded free and fixed connectors for balanced single-pair data transmission with current carrying capacity.
IEC 63171 is the general requirements and tests part (general specifications) of the whole series. Subsequent parts, such as this Part 1, are product detail specifications of the series IEC 63171 and do not duplicate information given in IEC 63171, but list only additional requirements. Each subsequent part is identified by a type of connector covered with the same number identifying the part. Some parts can describe more embodiments, with different connectors geometries (rectangular, circular), sharing the core element and the relevant features.
This part of IEC 63171 covers two-way, shielded or unshielded, free and fixed connectors known as Type 1, for balanced single-pair data transmission with frequencies up to 600 MHz and with current carrying capacity up to 2,0 A at 60 °C.
It specifies the common dimensions, and provides the mechanical, electrical, signal integrity, and environmental characteristics, the reliability specifications and corresponding tests for these connectors.
For the complete specifications regarding a connector of this series, both the general specification and the relevant detail specification are therefore required.
For the qualification of a connector of this series, both the general specification and the relevant detail specification shall be met.
This second edition cancels and replaces the first edition published in 2020. This edition constitutes a technical revision and includes the following significant technical changes with respect to the previous edition:
* Information on obtaining a license agreement was updated.
* Connector characteristics and test requirements were aligned with IEC 63171:2021 where applicable.
* Added requirements for Polarizing method (5.6.4) and Dynamic stress (5.6.5) to align with IEC 63171:2021.
* Added test group BP - Moisture (6.7.3.4) to align with IEC 63171:2021.

  • Standard
    21 pages
    English language
    sale 15% off
IEC
IEC 60352-9:2024(Main)
Solderless connections - Part 9: Ultrasonically welded connections - General requirements, test methods and practical guidance

IEC 60352-9:2024 provides guidelines for welding and testing of ultrasonically welded connections and includes requirements, tests and practical guidance information.
Ultrasonic welding is a form of cold friction welding that is becoming increasingly popular in many industries. This type of welding uses ultrasonic vibration to join materials together, creating a bond that is both strong and reliable. Ultrasonic welding has been identified as a process in ISO 4063-41 by the International Organization for Standardization (ISO).
The process of ultrasonic welding relies on high frequency ultrasound waves being used to create frictional heat at the connection point. High temperature is not required for this special method of welding, making it one of the most cost-effective ways to join two materials together.
It also requires fewer steps than traditional methods, meaning it can be completed quickly and with minimal resources.
Ultrasonic welding has been around for decades but only recently has become more widely utilized due to advances in technology and its availability at lower cost. It can be used on many different materials including plastics, rubbers, metals, textiles, and composites. Due to its precision and strong bonds it creates, it has become extremely popular in manufacturing processes such as automotive industry, electronics industry, furniture production and even medical device production.
This document covers ultrasonically welded connections made with stranded or flexible wires (class 2, 5 or 6 per IEC 60228) of copper or copper alloy, as well as of aluminium or aluminium alloy. These welded metal-to-metal connections shall employ wires with cross-sectional area of 0,08 mm2 to 160 mm2 and shall not exceed a total cross-sectional area, in case of wire bundle, of 200 mm2. For aluminium or aluminium alloy wires, the minimum required cross-sectional area is 2,5 mm2.
Additionally, information on materials, data from industrial experience and test procedures are included to ensure electrically stable connections under prescribed environmental conditions.
Lastly, this document aims to achieve comparable results when using ultrasonic welding equipment with similar performance and specifications as specified by the termination manufacturer.

  • Standard
    138 pages
    English and French language
    sale 15% off
IEC
IEC 61076-8-105:2023(Main)
Connectors for electrical and electronic equipment - Product requirements - Part 8-105: Power connectors – Detail specification for 2-pole snap locking rectangular power connectors with plastic housing for 63 A rated current and 400 V rated voltage

IEC 61076-8-105:2023 applies to free and fixed 2-pole snap locking rectangular power connectors with plastic housing with rated current 63 A and rated voltage up to 400 V. It includes overall dimensions, interface dimensions, technical characteristics, performance requirements, test methods.

  • Standard
    59 pages
    English and French language
    sale 15% off
IEC
IEC 63171-4:2022/COR1:2023(Corrigendum)
Corrigendum 1 - Connectors for electrical and electronic equipment - Part 4: Detail specification for shielded or unshielded, free and fixed connectors with up to 8 ways for balanced single-pair data transmission with current carrying capacity - Mechanical mating information, pin assignment and additional requirements for Type 4
  • Standard
    3 pages
    English language
    sale 15% off
IEC
IEC 61076-3-106:2023(Main)
Connectors for electrical and electronic equipment - Product requirements - Part 3-106: Rectangular connectors - Detail specification for protective housings for use with 8-way shielded and unshielded connectors for industrial environments incorporating the IEC 60603-7 series interface

IEC 61076-3-106:2023 constitutes a detail product specification for 8-way connectors for data transmission with frequencies up to 600 MHz.
It covers protective housings for upgrading existing 8-way shielded and unshielded connectors utilizing the interface described in the IEC 60603-7 series to IP65/IP67 rating according to IEC 60529, for use in industrial environments.
The housings cover a variety of different locking mechanisms according to this document and a variety of different mounting configurations and termination types which are detailed in the IEC 60603-7 series.
Common mating configurations for all variants are defined in IEC 60603-7. The mating dimensions for the housings under Clause 3 allow the mating conditions under IEC 60603-7 to be fulfilled.
The fully assembled variants (connectors) described in this document incorporate fully compliant IEC 60603-7 series fixed and free connectors.

  • Standard
    74 pages
    English and French language
    sale 15% off
IEC
IEC 63171-7:2023(Main)
Connectors for electrical and electronic equipment - Part 7: Detail specification for up to 7 ways including PE or FE (data/power) and shield pin, free and fixed circular connectors for balanced single-pair data transmission with current-carrying capacity - Mechanical mating information, pin assignment and additional requirements for type 7

IEC 63171-7:2023 covers shielded free and fixed circular connectors with 4 ways up to 7 ways for power and data transmission and specifies the common dimensions, mechanical, electrical and transmission characteristics and environmental requirements as well as test specifications respectively.
The connectors described in this document are either equipped with an M12 screw-locking mechanism (styles with M12 in the name) or a quick-locking push-pull mechanism with a size derived from that (styles with P12 in the name) or both mechanisms combined (styles with C12 in the name). For the sake of simplicity, the connectors' size is denoted as "size 12" in this document.
This document provides multiple mating interfaces each of which is associated with a coding preventing the mating of incompatible male and female connectors. These codings are referred to as "Type x", where "x" is represented by a Roman numeral.
For all codings, two ways and the additional shield pin, which is intended to be connected to the cable screen, support differential data transmission with frequencies up to 600 MHz by meeting the requirements of Category B, as defined in IEC 63171.

  • Standard
    33 pages
    English language
    sale 15% off
IEC
IEC 61076-2-115:2023(Main)
Connectors for electrical and electronic equipment - Product requirements - Part 2-115: Circular connectors - Detail specification for 12-pole shielded connectors with 2 A rated current and IP65/IP67 metal housing with push-pull locking

IEC 61076-2-115:2023 describes free and fixed 12P shielded circular connectors with 2 A rated current, rated voltage up to and including 50 V AC/DC, IP65/IP67 metal housing with push-pull locking (hereinafter referred to as a connectors) for use in electrical and electronic equipment. It includes overall dimensions, interface dimensions, technical characteristics, performance requirements and test methods.

  • Standard
    68 pages
    English and French language
    sale 15% off
IEC
IEC 61076-8-109:2023(Main)
Connectors for electrical and electronic equipment - Product requirements - Part 8-109: Power connectors - Detail specification for 2P 130 A, 1 000 V plus 2P 5 A 50 V rectangular housing shielded connectors with IP65/IP68 degree of protection when mated and locked, and IPXXB when unmated

IEC 61076-8-109:2023 describes free and fixed rectangular connectors with:
- 2P power plus 2P signal contacts;
- plastic housing with locking lever and four possible codings;
- 130 A rated current, 1 000 V DC rated voltage on the power section;
- 5 A rated current, 50 V DC rated voltage on the signal section;
- individual shielding around each power contact with relevant shielding termination;
- IP65/IP68 degree of protection when mated and locked and IPXXB on both plug, and receptacle parts when unmated;
- hereinafter referred to as a connector, for use in electrical and electronic equipment, including overall dimensions, interface dimensions, technical characteristics, performance requirements and test methods.

  • Standard
    75 pages
    English and French language
    sale 15% off
