IEC 62148-15:2014

IEC 62148-15 ®
Edition 2.0 2014-05
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Fibre optic active components and devices – Package and interface standards –
Part 15: Discrete vertical cavity surface emitting laser packages

Composants et dispositifs actifs à fibres optiques – Normes de boîtier et
d’interface –
Partie 15: Boîtiers individuels pour laser à cavité verticale émettant par
la surface
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing more than 30 000 terms and
Technical Specifications, Technical Reports and other definitions in English and French, with equivalent terms in 14
documents. Available for PC, Mac OS, Android Tablets and additional languages. Also known as the International
iPad. Electrotechnical Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a More than 55 000 electrotechnical terminology entries in
variety of criteria (reference number, text, technical English and French extracted from the Terms and Definitions
committee,…). It also gives information on projects, replaced clause of IEC publications issued since 2002. Some entries
and withdrawn publications. have been collected from earlier publications of IEC TC 37,

77, 86 and CISPR.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: csc@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient plus de 30 000 termes et définitions en
Spécifications techniques, Rapports techniques et autres
anglais et en français, ainsi que les termes équivalents dans
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
14 langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.

Recherche de publications IEC - www.iec.ch/searchpub
Glossaire IEC - std.iec.ch/glossary
Plus de 55 000 entrées terminologiques électrotechniques, en
La recherche avancée permet de trouver des publications IEC
en utilisant différents critères (numéro de référence, texte, anglais et en français, extraites des articles Termes et
comité d’études,…). Elle donne aussi des informations sur les Définitions des publications IEC parues depuis 2002. Plus
projets et les publications remplacées ou retirées. certaines entrées antérieures extraites des publications des

CE 37, 77, 86 et CISPR de l'IEC.
IEC Just Published - webstore.iec.ch/justpublished

Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications IEC. Just
Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur cette
Disponible en ligne et aussi une fois par mois par email. publication ou si vous avez des questions contactez-nous:
csc@iec.ch.
IEC 62148-15 ®
Edition 2.0 2014-05
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Fibre optic active components and devices – Package and interface standards –

Part 15: Discrete vertical cavity surface emitting laser packages

Composants et dispositifs actifs à fibres optiques – Normes de boîtier et

d’interface –
Partie 15: Boîtiers individuels pour laser à cavité verticale émettant par

la surface
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX S
ICS 33.180.20 ISBN 978-2-8322-1602-6

– 2 – IEC 62148-15:2014 © IEC 2014

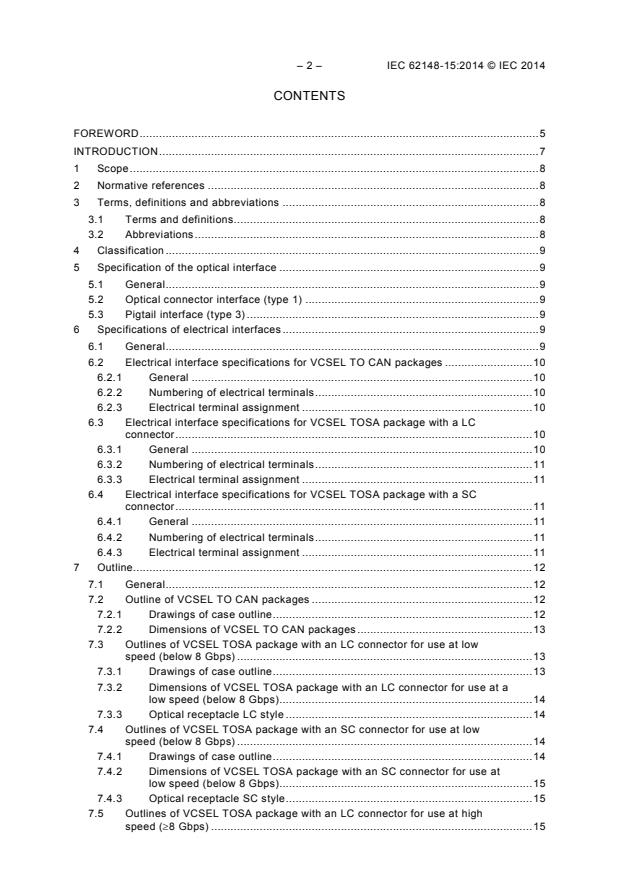

CONTENTS
FOREWORD . 5
INTRODUCTION . 7
1 Scope . 8
2 Normative references . 8
3 Terms, definitions and abbreviations . 8
3.1 Terms and definitions . 8
3.2 Abbreviations . 8
4 Classification . 9
5 Specification of the optical interface . 9
5.1 General . 9
5.2 Optical connector interface (type 1) . 9
5.3 Pigtail interface (type 3) . 9
6 Specifications of electrical interfaces . 9
6.1 General . 9
6.2 Electrical interface specifications for VCSEL TO CAN packages . 10
6.2.1 General . 10
6.2.2 Numbering of electrical terminals . 10
6.2.3 Electrical terminal assignment . 10
6.3 Electrical interface specifications for VCSEL TOSA package with a LC
connector . 10
6.3.1 General . 10
6.3.2 Numbering of electrical terminals . 11
6.3.3 Electrical terminal assignment . 11
6.4 Electrical interface specifications for VCSEL TOSA package with a SC
connector . 11
6.4.1 General . 11
6.4.2 Numbering of electrical terminals . 11
6.4.3 Electrical terminal assignment . 11
7 Outline. 12
7.1 General . 12
7.2 Outline of VCSEL TO CAN packages . 12
7.2.1 Drawings of case outline . 12
7.2.2 Dimensions of VCSEL TO CAN packages . 13
7.3 Outlines of VCSEL TOSA package with an LC connector for use at low
speed (below 8 Gbps) . 13
7.3.1 Drawings of case outline . 13
7.3.2 Dimensions of VCSEL TOSA package with an LC connector for use at a
low speed (below 8 Gbps). 14
7.3.3 Optical receptacle LC style . 14
7.4 Outlines of VCSEL TOSA package with an SC connector for use at low
speed (below 8 Gbps) . 14
7.4.1 Drawings of case outline . 14
7.4.2 Dimensions of VCSEL TOSA package with an SC connector for use at
low speed (below 8 Gbps). 15
7.4.3 Optical receptacle SC style . 15
7.5 Outlines of VCSEL TOSA package with an LC connector for use at high
speed (≥8 Gbps) . 15

7.5.1 Drawings of case outline . 15
7.5.2 Dimensions of VCSEL TOSA package with an LC connector for use at
high speed (≥8 Gbps) . 16
7.6 Outlines of VCSEL TOSA package with an SC connector for use at high
speed (≥8 Gbps) . 17
7.6.1 Drawings of case outline . 17
7.6.2 Dimensions of VCSEL TOSA package with an SC connector for use at
high speed (≥ 8 Gbps) . 18
7.7 Electrical terminals of high-speed (≥8 Gbps) VCSEL TOSA packages for
both cases with LC and SC connectors . 19
7.7.1 Pin out terminals . 19
7.7.2 Pad terminals . 20
7.8 Outlines of VCSEL pigtail package . 20
7.8.1 Drawings of case outline . 20
7.8.2 Dimensions of VCSEL pigtail package . 21
7.8.3 Optical connectors . 21
Bibliography . 22

Figure 1 – Electrical terminal numbering assignments of 3-pin and 4-pin type TO CAN
packages with optional colour code C for pin configuration . 10
Figure 2 – Electrical terminal numbering assignments of 3-pin and 4-pin type TOSA
packages with LC connector and with optional colour code C. 11
Figure 3 – Electrical terminal numbering assignments of 3-pin and 4-pin type TOSA
packages with SC connector and with optional colour code C . 11
Figure 4 – Schematic diagrams and pin-out of VCSEL TO CANs with flat window, with
ball lens, and with tilted window with optional colour code C on the bottom . 12
Figure 5 – Schematic diagram of VCSEL TOSA package with LC connector and with
optional colour code C on the bottom for use at low speed (below 8 Gbps) . 13
Figure 6 – Schematic diagram of VCSEL TOSA package with SC connector and with
optional colour code C on the bottom for use at low speed (below 8 Gbps) . 15
Figure 7 – Schematic diagram of VCSEL TOSA package with LC connector and with
optional colour code C for pin-type notation for use at high speed (>8 Gbps) . 16
Figure 8 – Schematic diagram of VCSEL TOSA package with SC connector and with
optional colour code C for pin-type notation for use at high speed (≥8 Gbps) . 18
Figure 9 – Schematic diagram and pin-out of VCSEL pigtail package with optional
colour code C . 21

Table 1 – Pin-function definitions of 4-pin type VCSEL TO CAN packages . 10
Table 2 – Pin-function definitions of 3-pin type VCSEL TO CAN packages . 10
Table 3 – Dimension of VCSEL TO CANs with flat window, ball lens and tilted window . 13
Table 4 – Dimensions of VCSEL TOSA package with LC connector for use at low
speed (below 8 Gbps) . 14
Table 5 – Dimension of VCSEL TOSA package with SC connector for use at low speed
(below 8 Gbps) . 15
Table 6 – Dimension of VCSEL TOSA package with LC connector for use at high
speed (≥8 Gbps) . 16
Table 7 – Dimension of VCSEL TOSA package with SC connector for use at high
speed (≥8 Gbps) . 19
Table 8 – Pin out terminals of VCSEL TOSA package with LC and SC connectors for

use at high speed (≥8 Gbps) . 20

– 4 – IEC 62148-15:2014 © IEC 2014
Table 9 – Pad terminals of VCSEL TOSA package with LC and SC connectors and with
flexible printed circuit board for use at high speed (≥8 Gbps) . 20
Table 10 – Dimensions of VCSEL pigtail package . 21

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
FIBRE OPTIC ACTIVE COMPONENTS AND DEVICES –
PACKAGE AND INTERFACE STANDARDS –

Part 15: Discrete vertical cavity surface emitting laser packages

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 62148-15 has been prepared by subcommittee 86C: Fibre optic
systems and active devices, of IEC technical committee 86: Fibre optics.
This second edition cancels and replaces the first edition published in 2009 and constitutes a
technical revision.
The significant technical changes with respect to the previous edition are as follows:
– to include a type-A pin configuration in the 4-pin type VCSEL TO CAN packages;
– to introduce new package standards for high-speed (8 Gbps and 10 Gbps) VCSEL TOSA
packages with LC and SC connectors;
– to suggest optional colour codes for various pin configurations; and
– to delete the requirement of the minimum dimension for the outer diameters of the TO
CAN packages in order to accommodate recent mini-TO CAN packages.

– 6 – IEC 62148-15:2014 © IEC 2014
The text of this standard is based on the following documents:
CDV Report on voting
86C/1131/CDV 86C/1228/RVC
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
A list of all parts of the IEC 62148 series, published under the general title Fibre optic active
components and devices – Package and interface standards, can be found on the IEC
website.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
A list of all parts of the IEC 62148 series, published under the general title Fibre optic active
components and devices – Package and interface standards, can be found on the IEC
website.
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
INTRODUCTION
Fibre optic laser devices are used to convert electrical signals into optical signals. This
standard covers the physical dimension and interface for the discrete vertical cavity surface
emitting laser (VCSEL) packages.

– 8 – IEC 62148-15:2014 © IEC 2014
FIBRE OPTIC ACTIVE COMPONENTS AND DEVICES –
PACKAGE AND INTERFACE STANDARDS –

Part 15: Discrete vertical cavity surface emitting laser packages

1 Scope
This part of IEC 62148 covers the physical dimension and interface specifications for the
discrete vertical cavity surface emitting laser (VCSEL) devices in optical telecommunication
and optical data transmission applications.
The intent of this standard is to adequately specify the physical requirements of VCSEL
devices that will enable mechanical interchangeability of laser devices or transmitters
complying with this standard both at the printed circuit wiring board and for any panel-
mounting requirement.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and
are indispensable for its application. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 60793-2 (all parts), Optical fibres – Part 2: Product specifications
IEC 60874 (all parts), Fibre optic interconnecting devices and passive components –
Connectors for optical fibres and cables
IEC 61754-4-1, Fibre optic connector interfaces – Part 4-1: Type SC connector family –
Simplified receptacle SC-PC connector interfaces
IEC 61754-20, Fibre optic interconnecting devices and passive components – Fibre optic
connector interfaces – Part 20: Type LC connector family
IEC 62148-1, Fibre optic active components and devices – Package and interface standards –
Part 1: General and guidance
ITU-T Recommendation G.652, Characteristics of a single-mode optical fibre and cable
3 Terms, definitions and abbreviations
For the purpose of this document, the following terms, definitions and abbreviations apply.
3.1 Terms and definitions
3.1.1
pigtail package
package type of photonic devices which has a length of fibre attachment for both optical input
and output ports
3.2 Abbreviations
VCSEL vertical cavity surface emitting laser

PD photodiode
TOSA transmitter optical subassembly
TO transistor outline
CAN airtight sealed metal container (IEC 60747-1)
4 Classification
This part of IEC 62148, which gives the physical dimension and interface specifications for
the discrete vertical cavity surface emitting laser devices, specifies the interface of types 1
and 3 modules with direct solderable type electrical terminals.
Fibre optic transceiver modules are classified into five types of forms according to the
combination of mating types of electrical and optical interfaces. Details are described in
IEC 62148-1. The five types are as follows:
Type 1: fibre optic connector interface with direct solderable type electrical terminals.
Type 2: fibre optic connector interface with plug-in type electrical terminals.
Type 3: fibre optic pigtail interface with direct solderable type electrical terminals.
Type 4: fibre optic pigtail interface with plug-in type electrical terminals.
Type 5: modules are not classified into type 1 – type 4. (A typical example is a module that
has both electrical connectors and non-connector type terminals as an electrical
interface, such as a coaxial connector for signal and lead terminals for the power
supply.)
5 Specification of the optical interface
5.1 General
The intent of this standard is to adequately specify the physical requirements of a VCSEL
device that will enable mechanical interchangeability of laser devices or transmitters to this
specification both at the printed circuit board and for any panel mounting requirement.
5.2 Optical connector interface (type 1)
This standard applies to the LC and SC optical connector interfaces. Detailed dimensions of
the optical receptacle are specified in IEC 61754-20 and IEC 61754-4-1.
5.3 Pigtail interface (type 3)
All optical fibres defined in the IEC 60793-2 series and ITU-T Recommendation G.652 are
applicable.
All optical connectors defined in the IEC 60874 series are applicable, if a pigtail has to be
terminated with an optical connector.
6 Specifications of electrical interfaces
6.1 General
Specifications for the electrical interface of VCSEL TO CAN, TOSA and VCSEL pigtail
packages are described as follows.

– 10 – IEC 62148-15:2014 © IEC 2014
6.2 Electrical interface specifications for VCSEL TO CAN packages
6.2.1 General
The electrical interface in this standard defines only the basic functionality of each pin.
6.2.2 Numbering of electrical terminals
Pin numbering assignments are shown in Figure 1.
1 1
C C
2 4
3 3
IEC  1659/14
NOTE The electrical terminals as viewed from the bottom of the package module with pins underneath
Figure 1 – Electrical terminal numbering assignments of 3-pin and 4-pin type
TO CAN packages with optional colour code C for pin configuration
6.2.3 Electrical terminal assignment
Table 1 – Pin-function definitions of 4-pin type VCSEL TO CAN packages
Pin number Function (VCSEL with a monitor photodiode)
Common cathode Common anode Float (type K) Float (type A)
1 VCSEL anode VCSEL cathode VCSEL anode VCSEL cathode
VCSEL cathode/PD VCSEL anode/PD
2 VCSEL cathode VCSEL anode
anode cathode
3 PD cathode PD anode PD cathode PD cathode
4 Ground/case (option) Ground/case (option) PD anode/case PD anode/case
Optional colour
Blue Red Green Black
code (C)
Table 2 – Pin-function definitions of 3-pin type VCSEL TO CAN packages
Function (VCSEL with a monitor photodiode)
Pin number
Common anode Common cathode
1 VCSEL cathode VCSEL anode
2 VCSEL anode/PD cathode VCSEL cathode/PD anode
3 PD anode PD cathode
Optional colour code (C) Red Blue

6.3 Electrical interface specifications for VCSEL TOSA package with a LC connector
6.3.1 General
The electrical interface in this standard defines only the basic functionality of each pin.

6.3.2 Numbering of electrical terminals
Pin numbering assignments are shown in Figure 2.
1 2 1 2
C C
3 4 3
IEC  1660/14
NOTE The electrical terminals as viewed from the bottom of the package module with pins underneath
Figure 2 – Electrical terminal numbering assignments of 3-pin and 4-pin type
TOSA packages with LC connector and with optional colour code C
6.3.3 Electrical terminal assignment
The pin-function definitions of the 3-pin and 4-pin type VCSEL TOSA packages with a LC
connector are the same as those of the VCSEL TO CAN packages as specified in Tables 1
and 2.
6.4 Electrical interface specifications for VCSEL TOSA package with a SC connector
6.4.1 General
The electrical interface in this standard defines only the basic functionality of each pin.
6.4.2 Numbering of electrical terminals
Pin numbering assignments are shown in Figure 3.
1 1
C C
2 4 2
3 3
IEC  1661/14
NOTE The electrical terminals as viewed from the bottom of the package module with pins underneath
Figure 3 – Electrical terminal numbering assignments of 3-pin and 4-pin type TOSA
packages with SC connector and with optional colour code C
6.4.3 Electrical terminal assignment
The pin-function definitions of the 3-pin and 4-pin type VCSEL TOSA packages with a SC
connector are the same as those of the VCSEL TO CAN packages as specified in Tables 1
and 2.
– 12 – IEC 62148-15:2014 © IEC 2014
7 Outline
7.1 General
The outline, dimensions and electrical interface of VCSEL TO CAN, TOSA and VCSEL pigtail
packages are described as follows.
7.2 Outline of VCSEL TO CAN packages
7.2.1 Drawings of case outline
Case outline drawings of VCSEL TO CAN packages are shown in Figure 4.
A
A
l
l
A
K
K
Øb Øb
2 2
IEC  1662/14
IEC  1663/14
Figure 4a – Outside drawing of TO CAN Figure 4b – Outside drawing of TO CAN
with flat window with ball lens
l
B
α
Øb
IEC  1664/14
Figure 4c – Outside drawing of TO CAN with tilted window
β β
1 1
C C
3 Øc
Øa Øa
Øc
IEC  1665/14 IEC  1666/14
Figure 4d – 3-pin type TO CAN Figure 4e – 4-pin type TO CAN
pin configuration pin configuration
Figure 4 – Schematic diagrams and pin-out of VCSEL TO CANs with flat window,
with ball lens, and with tilted window with optional colour code C on the bottom
ØD
ØD
ØD
ØD
ØD
ØD
7.2.2 Dimensions of VCSEL TO CAN packages
Dimensions of VCSEL TO CANs are specified in Table 3.
Table 3 – Dimension of VCSEL TO CANs with flat window, ball lens and tilted window
Dimensions
mm
Reference Notes
Minimum Maximum
φ D 5,84
φ D 3,54 4,95
A 2,65 3,75 TO 46
A 3,40 3,85
Only for ball lens types
A
4,10 4,70
B 3,30 4,27 Tilted window type only
K – 1,0
l
12,0 14,5
φ b 0,40 0,50
α 14 30 Degree (tilted window type only)
89 91
β
φ a 2,50 2,60 Degree
φ c 0,4 1,3
7.3 Outlines of VCSEL TOSA package with an LC connector for use at low speed
(below 8 Gbps)
7.3.1 Drawings of case outline
Case outline drawings of VCSEL TOSA packages are shown in Figure 5.
g
Optical plane
a
Section A-A
ØD
A
b
C
c
m
Øc A
Øa l
d
IEC  1667/14
Figure 5 – Schematic diagram of VCSEL TOSA package with LC connector and
with optional colour code C on the bottom for use at low speed (below 8 Gbps)
h
i
j
k
– 14 – IEC 62148-15:2014 © IEC 2014
7.3.2 Dimensions of VCSEL TOSA package with an LC connector for use at a low
speed (below 8 Gbps)
The dimensions of the low speed (<8 Gbps) VCSEL TOSA package with an LC connector are
specified in Table 4.
Table 4 – Dimensions of VCSEL TOSA package with
LC connector for use at low speed (below 8 Gbps)
Dimensions
mm
Reference Notes
Minimum Maximum
a 1,24 1,30
b 3,33 3,43
c
3,99 4,09
d 7,24
g 5,87 6,01
h
6,12 6,34
6,55 6,65
φ D
φ a 2,50 2,60
φ c 0,4 1,3
i 2,44 2,60 Pedestal diameter
j 2,89 2,95
k
5,03 5,13
l 12,5 14,5
m 4,12 4,22
7.3.3 Optical receptacle LC style
Refer to IEC 61754-20.
7.4 Outlines of VCSEL TOSA package with an SC connector for use at low speed
(below 8 Gbps)
7.4.1 Drawings of case outline
Case outline drawings of VCSEL TOSA packages are shown in Figure 6.

Optical plane
a
c
ØD
d
l
b Section A-A
A
C
Øa
f
Øc
A
IEC  1668/14
Figure 6 – Schematic diagram of VCSEL TOSA package with SC connector and
with optional colour code C on the bottom for use at low speed (below 8 Gbps)
7.4.2 Dimensions of VCSEL TOSA package with an SC connector for use at low
speed (below 8 Gbps)
The dimensions of the low speed (<8 Gbps) VCSEL TOSA package with an SC connector are
specified in Table 5.
Table 5 – Dimension of VCSEL TOSA package with SC connector for use
at low speed (below 8 Gbps)
Dimensions
mm
Reference Notes
Minimum Maximum
a 5,30 8,56
b
6,25 6,61
c 6,68 8,05
d 1,30
f
0,1 0,57 25° chamfer
g 4,39 4,79
h 6,2 6,30
φ D 7,30 8,10
φ a 2,50 2,60
φ c 0,4 1,3
l
12,0 14,5
7.4.3 Optical receptacle SC style
Refer to IEC 61754-4-1.
7.5 Outlines of VCSEL TOSA package with an LC connector for use at high speed (≥8
Gbps)
7.5.1 Drawings of case outline
Case outline drawings of VCSEL TOSA packages with LC connector are shown in Figure 7.

g
h
– 16 – IEC 62148-15:2014 © IEC 2014
β
ØD
e
α
Øc
C
Øa
h
IEC  1669/14
Figure 7 – Schematic diagram of VCSEL TOSA package with LC connector and with
optional colour code C for pin-type notation for use at high speed (>8 Gbps)
7.5.2 Dimensions of VCSEL TOSA package with an LC connector for use at high
speed (≥8 Gbps)
The dimensions of the high speed (>8 Gbps) VCSEL TOSA package with an LC connector are
specified in Table 6.
Table 6 – Dimension of VCSEL TOSA package with LC connector for use
at high speed (≥8 Gbps)
Dimensions
mm
Reference Notes
Minimum Maximum
a
1,24 1,30
b 3,29 3,48
c 3,99 4,09
d 6,79 7,52
g 5,89 5,99
h 5,89 5,99
φ D 6,26 6,65
2,50 2,59
φ a
φ c 0,20 0,30
i  Pedestal diameter
j 2,88 2,95
k 5,00 5,12
l 1,2
m
4,12 5,10
y 0,20
z 0,7
α 55° 59° Angle
β 80° 84° Angle
e 1,35 1,45
L 13,80 14,26
q
1,95 2,34
R 0,45 0,55
s 0,85 1,01
g
Dimensions
mm
Reference Notes
Minimum Maximum
t 0,25 0,51
u 0,63 0,99
v 0,74 0,84
w 0,39 0,50
x 0,35 0,45
y
4,79 4,89
φ f 0,35 3 and 2 holes
7.6 Outlines of VCSEL TOSA package with an SC connector for use at high speed
(≥8 Gbps)
7.6.1 Drawings of case outline
Case outline drawings of VCSEL TOSA packages with SC connector are shown in Figure 8.

– 18 – IEC 62148-15:2014 © IEC 2014
h
g
f
Optical plane
Ground plane
Signal plane
L
q
ØD
s
Øf
R1
P6
P5
P4
C
P3
P2
P1
t
Øa
u
IEC  1670/14
β
ØD
e
α
Øc
C
h
Øa
IEC  1671/14
Figure 8 – Schematic diagram of VCSEL TOSA package with SC connector and with
optional colour code C for pin-type notation for use at high speed (≥8 Gbps)
7.6.2 Dimensions of VCSEL TOSA package with an SC connector for use at high
speed (≥ 8 Gbps)
The dimensions of the high speed (≥8 Gbps) VCSEL TOSA package with an SC connector are
specified in Table 7.
a
c
d
l2
b
y2
v x
w z
y1
Table 7 – Dimension of VCSEL TOSA package with SC connector
for use at high speed (≥8 Gbps)
Dimensions
mm
Reference Notes
Minimum Maximum
a 5,0 5,64
b 6,41
c 6,45 8,05
d 1,02 1,14
f  25° chamfer
g 4,59 4,74
h
6,18 6,30
7,21 8,05
φ D
φ a 2,50 2,59
φ c 0,40 0,50
l 0,85 1,05
y 0,11 0,16
z
0,46 0,56
Angle
α 55° 59°
Angle
β 80° 84°
e 1,35 1,45
L
14,35 15,05
q 1,95 2,34
R 0,45 0,55
s 0,85 1,01
t 0,25 0,51
u 0,63 0,99
v 0,74 0,84
w 0,39 0,50
x 0,35 0,45
y 4,79 4,89
φ f 0,35 3 and 2 holes
7.7 Electrical terminals of high-speed (≥8 Gbps) VCSEL TOSA packages for both
cases with LC and SC connectors
7.7.1 Pin out terminals
Pin out terminals of VCSEL TOSA packages with LC and SC connectors are shown in Table 8.

– 20 – IEC 62148-15:2014 © IEC 2014
Table 8 – Pin out terminals of VCSEL TOSA package
with LC and SC connectors for use at high speed (≥8 Gbps)
Pin number Function (A-type) Function (K-type)
1 VCSEL anode VCSEL cathode
2 PD cathode PD cathode
3 PD anode PD anode
4 VCSEL cathode VCSEL anode
5 Case/ground Case/ground
Optional colour code (C) Yellow Violet

7.7.2 Pad terminals
Pad terminals of VCSEL TOSA packages with LC and SC connectors and with a flexible
printed circuit board are shown in Table 9.
Table 9 – Pad terminals of VCSEL TOSA package with LC and SC connectors
and with flexible printed circuit board for use at high speed (≥8 Gbps)
PAD number Function (A-type) Function (K-type)
1 PD cathode PD cathode
2 Case/ground Case/ground
3 VCSEL anode VCSEL cathode
4 VCSEL cathode VCSEL anode
5 Case/ground Case/ground
6 PD anode PD anode
Optional colour code (C) Yellow Violet

7.8 Outlines of VCSEL pigtail package
7.8.1 Drawings of case outline
Case outline drawings of VCSEL pigtail packages are shown in Figure 9.

Øβ
Øa
C
b
g
a c
IEC  1672/14
Figure 9 – Schematic diagram and pin-out of VCSEL pigtail package
with optional colour code C
7.8.2 Dimensions of VCSEL pigtail package
The dimensions of the VCSEL pigtail package are specified in Table 10.
Table 10 – Dimensions of VCSEL pigtail package
Dimensions
mm
Reference Notes
Minimum Maximum
2,5 2,6 Diameter
φ a
2,2 2,6 Diameter
φ β
a 26,3 26,7
b 3,3 4,2
c 12,0 14,5
d 7,8 8,2
e 12,5 12,9
f 16,8 17,2
g 7,8 8,2
7.8.3 Optical connectors
Refer to IEC 61754-4-1 and IEC 61754-20.
d
e
f
– 22 – IEC 62148-15:2014 © IEC 2014
Bibliography
IEC 60130 (all parts), Connectors for frequencies below 3 MHz
IEC 60191 (all parts), Mechanical standardization of semiconductor devices
IEC 60603 (all parts), Connectors for electronic equipment
IEC 60747-1, Semiconductor devices – Part 1: General
IEC 60794 (all parts), Optical fibre cables
IEC 60825 (all parts), Safety of laser products
IEC 61076 (all parts), Connectors for electronic equipment – Product requirements
IEC 61280 (all parts), Fibre optic communication subsystem test procedures
IEC 61281-1, Fibre optic communication subsystems – Part 1: Generic specification
IEC 61754 (all parts), Fibre optic interconnecting devices and passive components – Fibre
optic connector interfaces
IEC 62007-1, Semiconductor optoelectronic devices for fibre optic system applications –
Part 1: Specification template for essential ratings and characteristics
IEC 62007-2, Semiconductor optoelectronic devices for fibre optic system applications –
Part 2: Measuring methods
IEC 62149-2, Fibre optic active components and devices – Performance standards – Part 2:
850 nm discrete vertical cavity surface emitting laser devices
ISO 1101, Geometrical product specifications (GPS) – Geometrical tolerancing – Tolerances
of form, orientation, location and run-out

_____________
