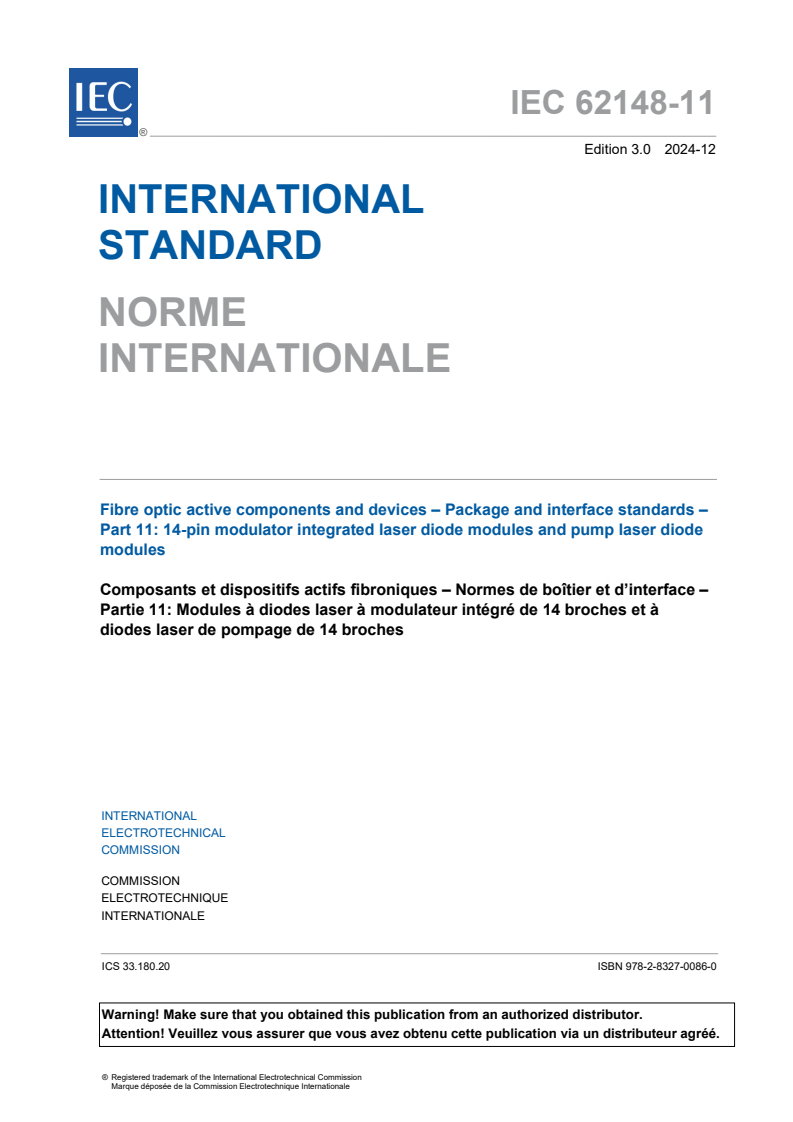

IEC 62148-11 ®
Edition 3.0 2024-12
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Fibre optic active components and devices – Package and interface standards –

Part 11: 14-pin modulator integrated laser diode modules and pump laser diode

modules
Composants et dispositifs actifs fibroniques – Normes de boîtier et d’interface –

Partie 11: Modules à diodes laser à modulateur intégré de 14 broches et à

diodes laser de pompage de 14 broches

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 33.180.20  ISBN 978-2-8327-0086-0

– 2 – IEC 62148-11:2024 © IEC 2024

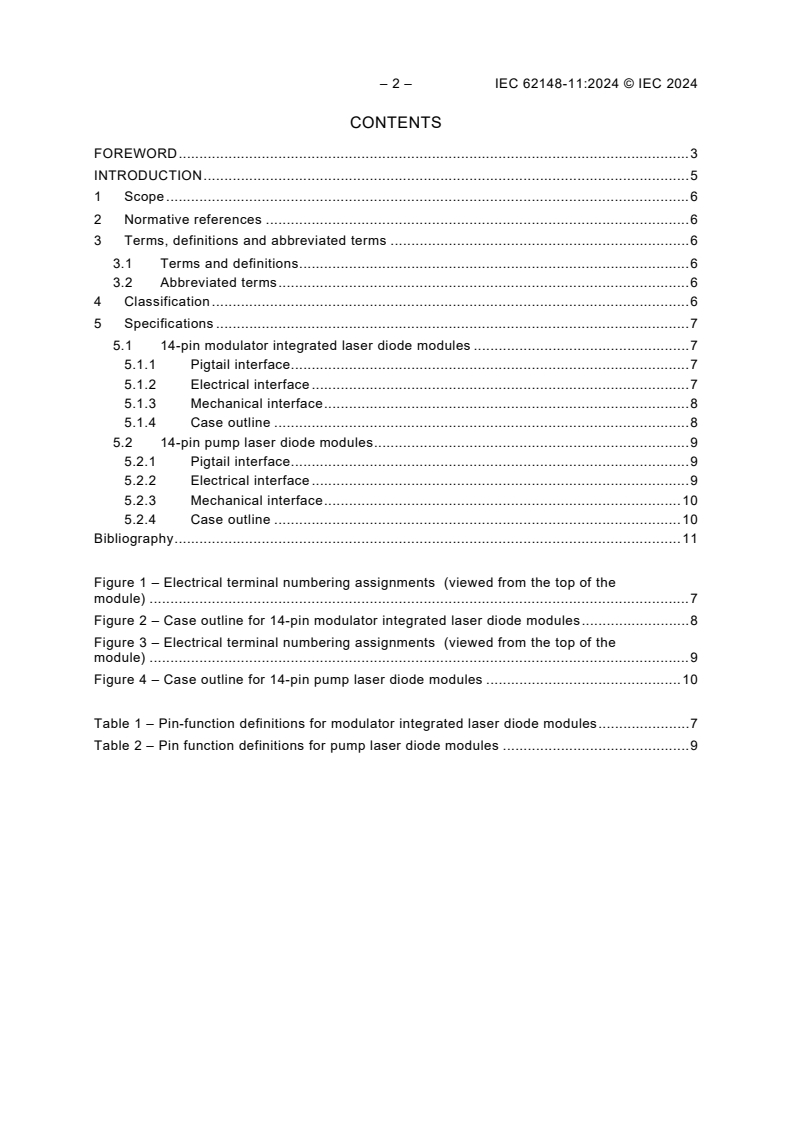

CONTENTS
FOREWORD . 3
INTRODUCTION . 5
1 Scope . 6
2 Normative references . 6
3 Terms, definitions and abbreviated terms . 6
3.1 Terms and definitions . 6
3.2 Abbreviated terms . 6
4 Classification . 6
5 Specifications . 7
5.1 14-pin modulator integrated laser diode modules . 7
5.1.1 Pigtail interface . 7
5.1.2 Electrical interface . 7
5.1.3 Mechanical interface . 8
5.1.4 Case outline . 8
5.2 14-pin pump laser diode modules . 9
5.2.1 Pigtail interface . 9
5.2.2 Electrical interface . 9
5.2.3 Mechanical interface . 10
5.2.4 Case outline . 10
Bibliography . 11

Figure 1 – Electrical terminal numbering assignments (viewed from the top of the
module) . 7
Figure 2 – Case outline for 14-pin modulator integrated laser diode modules . 8
Figure 3 – Electrical terminal numbering assignments (viewed from the top of the
module) . 9
Figure 4 – Case outline for 14-pin pump laser diode modules . 10

Table 1 – Pin-function definitions for modulator integrated laser diode modules . 7
Table 2 – Pin function definitions for pump laser diode modules . 9

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
FIBRE OPTIC ACTIVE COMPONENTS AND DEVICES –
PACKAGE AND INTERFACE STANDARDS –

Part 11: 14-pin modulator integrated laser diode modules and
pump laser diode modules
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as "IEC Publication(s)"). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) IEC draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). IEC takes no position concerning the evidence, validity or applicability of any claimed patent rights in
respect thereof. As of the date of publication of this document, IEC had not received notice of (a) patent(s), which
may be required to implement this document. However, implementers are cautioned that this may not represent
the latest information, which may be obtained from the patent database available at https://patents.iec.ch. IEC
shall not be held responsible for identifying any or all such patent rights.
IEC 62148-11 has been prepared by subcommittee 86C: Fibre optic systems and active devices,
of IEC technical committee 86: Fibre optics. It is an International Standard.
This third edition cancels and replaces the second edition published in 2009. This edition
constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
a) change of the document title to better reflect the type of modules covered by this document;
b) separation of the electrical and mechanical interface specifications for modulator integrated
laser diode modules and for pump laser diode modules into independent subclauses;

– 4 – IEC 62148-11:2024 © IEC 2024
c) updates of the dimensions specified in Figure 4 to reflect the latest market situation;
d) removal of former subclause 6.3 ("Drawings of footprint").
The text of this International Standard is based on the following documents:
Draft Report on voting
86C/1925/CDV 86C/1948/RVC
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this International Standard is English.
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/publications.
A list of all parts of the IEC 62148 series, published under the general title Fibre optic active
components and devices – Package and interface standards, can be found on the IEC website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
• reconfirmed,
• withdrawn, or
• revised.
INTRODUCTION
Modulator integrated laser diode modules are used to convert electrical signals into optical
signals. Pump laser diode modules are used to supply optical pump power in rare earth doped
optical fibre amplifiers and Raman amplifiers. This document covers the physical interface for
modulator integrated laser diode modules and pump laser diode modules. These modules are
designed as pigtailed 14-pin packages with a thermo-electric cooler.

– 6 – IEC 62148-11:2024 © IEC 2024
FIBRE OPTIC ACTIVE COMPONENTS AND DEVICES –
PACKAGE AND INTERFACE STANDARDS –

Part 11: 14-pin modulator integrated laser diode modules and
pump laser diode modules
1 Scope
This part of IEC 62148 covers physical interface specifications for 14-pin modulator integrated
laser diode transmitter modules and for 14-pin pump laser diode modules.
This document specifies the physical requirements of modulator integrated laser diode modules
and pump laser diode modules to enable mechanical interchangeability of modules complying
with this document, both at the printed circuit board level and with respect to panel mounting
requirements.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies.
For undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 61754 (all parts), Fibre optic interconnecting devices and passive components – Fibre optic
connector interfaces
IEC 62148-1, Fibre optic active components and devices – Package and interface standards –
Part 1: General and guidance
3 Terms, definitions and abbreviated terms
3.1 Terms and definitions
For the purposes of this document, the terms and definitions given in IEC 62148-1 apply.
ISO and IEC maintain terminology databases for use in standardization at the following
addresses:
• IEC Electropedia: available at https://www.electropedia.org/
• ISO Online browsing platform: available at https://www.iso.org/obp
3.2 Abbreviated terms
PD photodiode
TEC thermo-electric cooler
4 Classification
The modulator integrated laser diode modules described in this document are classified as
Type 3 according to the definitions of IEC 62148-1. There is no corresponding classification for
the pump laser diode modules described in this document.

5 Specifications
5.1 14-pin modulator integrated laser diode modules
5.1.1 Pigtail interface
The optical fibre used in the pigtail should be one of the fibre types specified in IEC 60793-2-50.
If a pigtail is to be terminated with an optical connector, the connector shall be one of the optical
connectors specified in the IEC 61754 series.
5.1.2 Electrical interface
The electrical interface in this document defines only the basic functionality of each pin. Pin
numbering assignments are shown in Figure 1 (electrical terminals viewed from the top of the
module).
Figure 1 – Electrical terminal numbering assignments
(viewed from the top of the module)
The basic functionalities of the 14 pins of the modulator integrated laser diode module are
defined in Table 1.
Table 1 – Pin-function definitions for modulator integrated laser diode modules
Pin number Symbol Functional description
a
Thermistor-1
a
2 Thermistor-2
LD
3 Laser diode anode
A
PD
4 Monitor PD anode
A
PD
5 Monitor PD cathode
K
TEC
6 Thermo-electric cooler anode
A
TEC
7 Thermo-electric cooler cathode
K
8 Case ground
9 Case ground
10 Not connected or case ground
11 Laser and modulator ground
12 Modulator anode RF data input
13 Laser and modulator ground
14 Not connected or case ground
a
Resistance between these two terminals indicates the case temperature.

– 8 – IEC 62148-11:2024 © IEC 2024
5.1.3 Mechanical interface
The modulator integrated laser diode module should be mounted according to the
recommendations or specifications provided by the module's manufacturer or supplier. When a
heatsink is required to operate the module, the mounting conditions for attaching the heatsink
should be specified (e.g. required screws and tightening torque).
5.1.4 Case outline
The case outline and corresponding dimensions for the modulator integrated laser diode module
are shown in Figure 2.
Dimensions
Remarks
References mm
Minimum Maximum
A 8,9 Basic dimension
B 26,0 Basic dimension
C 2,54 Pitch of the 7 pins on both sides
D 6,7 The minimum dimension should be specified by
the manufacturer or supplier
E 10,0 The minimum dimension should be specified by
the manufacturer or supplier
F 12,9 15,5
G 4,6 5,8
H 2,5 2,8 Diameter
J 5,2 5,6
K 0,3 0,7
M 29,2 30,2
N 12,3 12,9
P  Minimum and maximum dimensions should be
specified by the manufacturer or supplier
R 1,5 2,2
S 1,4 2,3
Figure 2 – Case outline for 14-pin modulator integrated laser diode modules

5.2 14-pin pump laser diode modules
5.2.1 Pigtail interface
The optical fibre used in the pigtail should be one of the fibre types specified in IEC 60793-2-50.
If a pigtail is to be terminated with an optical connector, the connector shall be one of the optical
connectors specified in the IEC 61754 series.
5.2.2 Electrical interface
The electrical interface specifications in this document define only the basic functionality of
each pin. Pin numbering assignments for pump laser diode modules are shown in Figure 3
(the electrical terminals are viewed from the top of the module).

Figure 3 – Electrical terminal numbering assignments
(viewed from the top of the module)
The basic functionalities of the 14 pins of the pump laser diode module are defined in Table 2.
Table 2 – Pin function definiti
...
