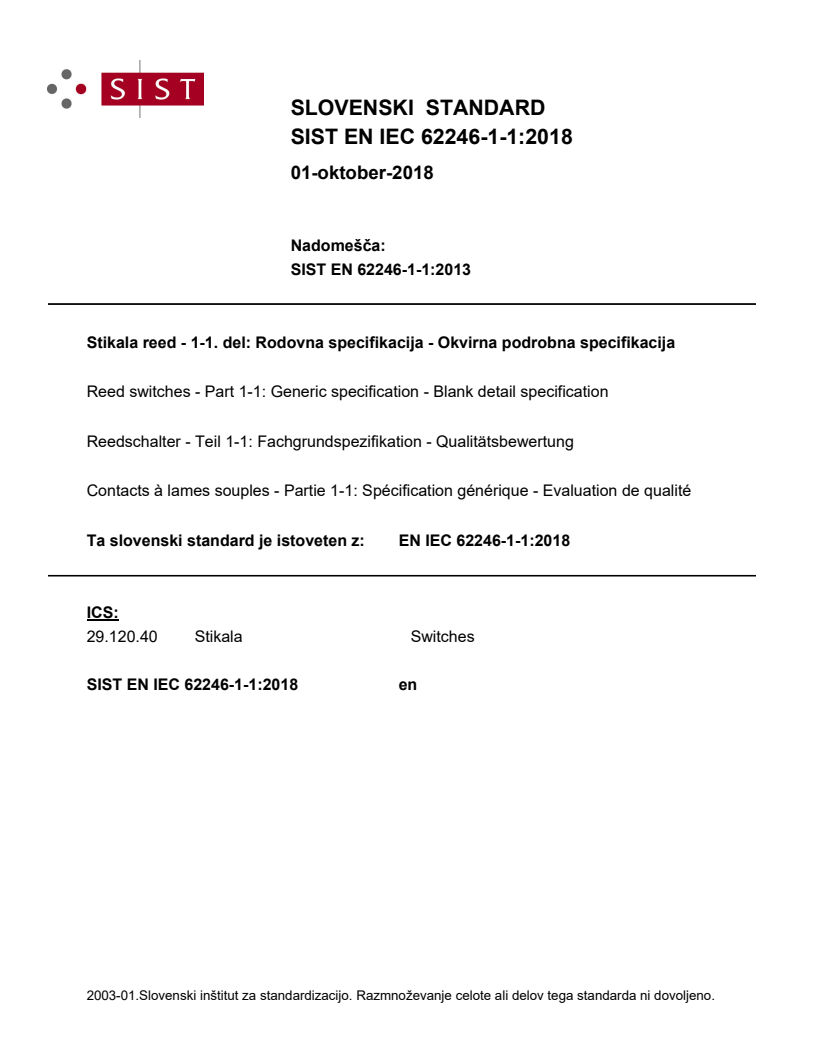

EN IEC 62246-1-1:2018

SLOVENSKI STANDARD
01-oktober-2018
1DGRPHãþD
SIST EN 62246-1-1:2013
Stikala reed - 1-1. del: Rodovna specifikacija - Okvirna podrobna specifikacija
Reed switches - Part 1-1: Generic specification - Blank detail specification
Reedschalter - Teil 1-1: Fachgrundspezifikation - Qualitätsbewertung
Contacts à lames souples - Partie 1-1: Spécification générique - Evaluation de qualité
Ta slovenski standard je istoveten z: EN IEC 62246-1-1:2018
ICS:
29.120.40 Stikala Switches
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

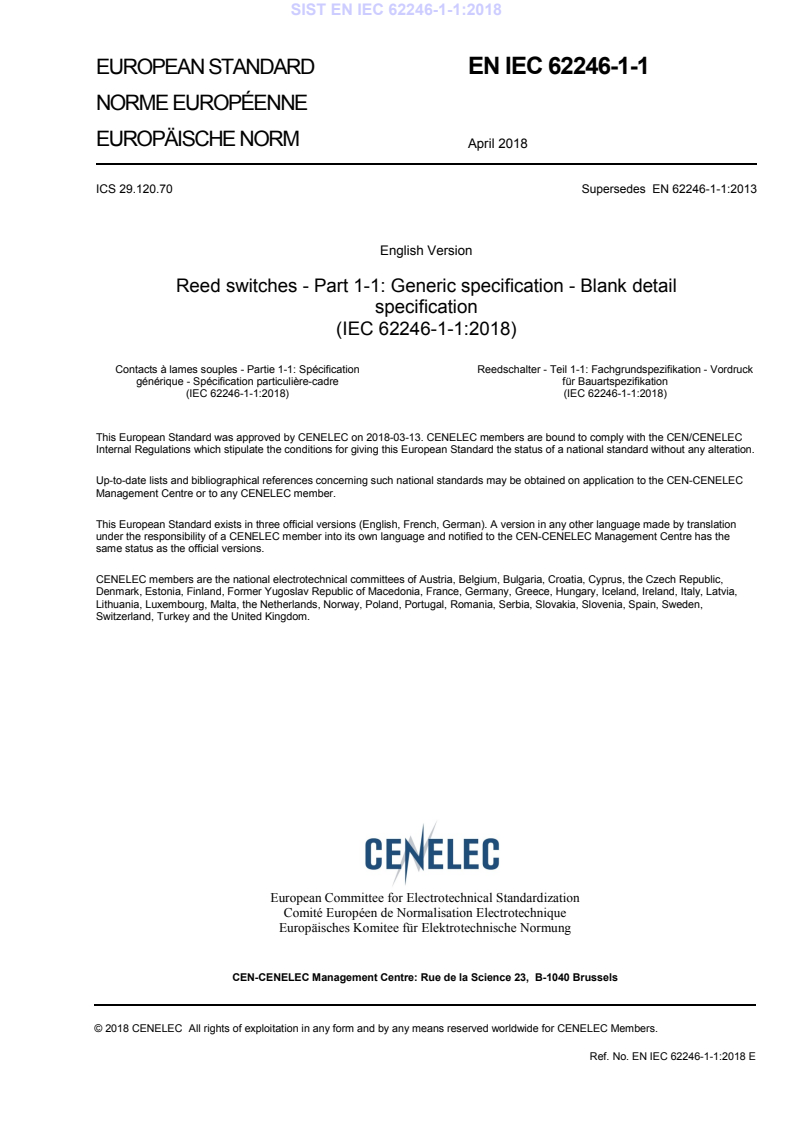

EUROPEAN STANDARD EN IEC 62246-1-1

NORME EUROPÉENNE
EUROPÄISCHE NORM
April 2018
ICS 29.120.70 Supersedes EN 62246-1-1:2013
English Version
Reed switches - Part 1-1: Generic specification - Blank detail
specification
(IEC 62246-1-1:2018)
Contacts à lames souples - Partie 1-1: Spécification Reedschalter - Teil 1-1: Fachgrundspezifikation - Vordruck
générique - Spécification particulière-cadre für Bauartspezifikation
(IEC 62246-1-1:2018) (IEC 62246-1-1:2018)
This European Standard was approved by CENELEC on 2018-03-13. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden,
Switzerland, Turkey and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2018 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 62246-1-1:2018 E

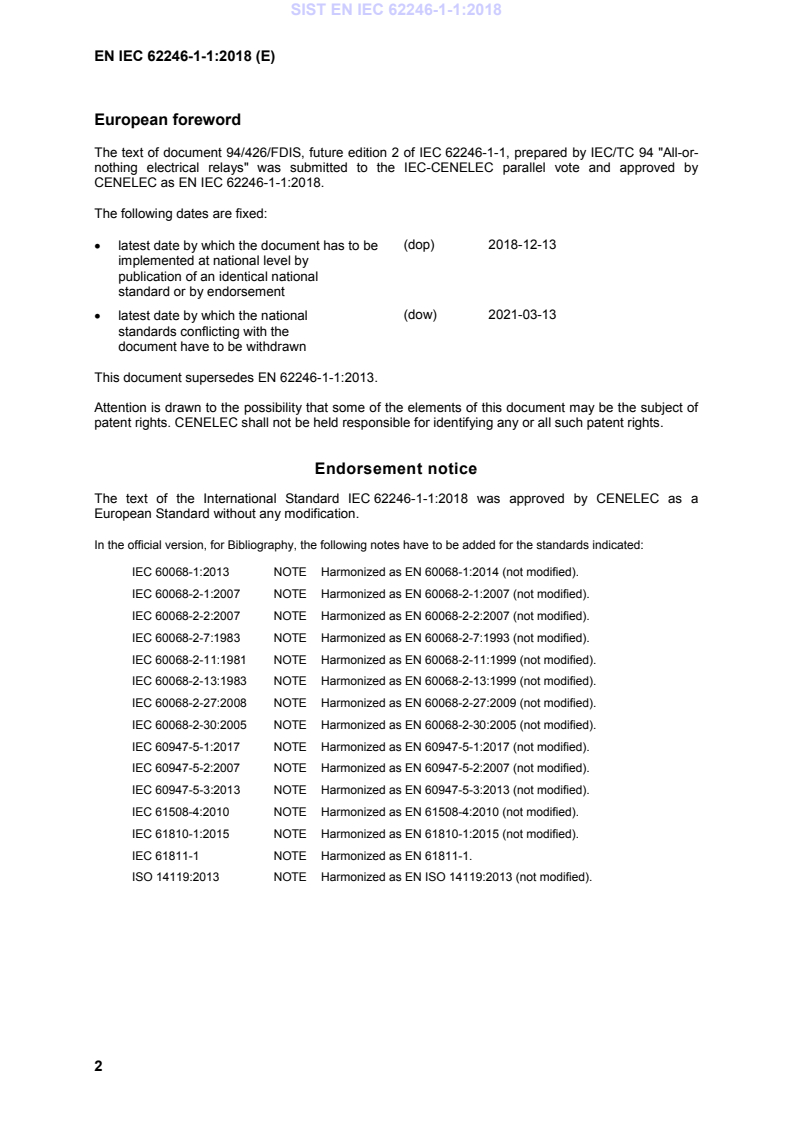

European foreword
The text of document 94/426/FDIS, future edition 2 of IEC 62246-1-1, prepared by IEC/TC 94 "All-or-
nothing electrical relays" was submitted to the IEC-CENELEC parallel vote and approved by
CENELEC as EN IEC 62246-1-1:2018.

The following dates are fixed:
• latest date by which the document has to be (dop) 2018-12-13
implemented at national level by
publication of an identical national
standard or by endorsement
(dow) 2021-03-13
• latest date by which the national
standards conflicting with the
document have to be withdrawn
This document supersedes EN 62246-1-1:2013.

Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.

Endorsement notice
The text of the International Standard IEC 62246-1-1:2018 was approved by CENELEC as a
European Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standards indicated:

IEC 60068-1:2013 NOTE Harmonized as EN 60068-1:2014 (not modified).
IEC 60068-2-1:2007 NOTE Harmonized as EN 60068-2-1:2007 (not modified).
IEC 60068-2-2:2007 NOTE Harmonized as EN 60068-2-2:2007 (not modified).
IEC 60068-2-7:1983 NOTE Harmonized as EN 60068-2-7:1993 (not modified).
IEC 60068-2-11:1981 NOTE Harmonized as EN 60068-2-11:1999 (not modified).
IEC 60068-2-13:1983 NOTE Harmonized as EN 60068-2-13:1999 (not modified).
IEC 60068-2-27:2008 NOTE Harmonized as EN 60068-2-27:2009 (not modified).
IEC 60068-2-30:2005 NOTE Harmonized as EN 60068-2-30:2005 (not modified).
IEC 60947-5-1:2017 NOTE Harmonized as EN 60947-5-1:2017 (not modified).
IEC 60947-5-2:2007 NOTE Harmonized as EN 60947-5-2:2007 (not modified).
IEC 60947-5-3:2013 NOTE Harmonized as EN 60947-5-3:2013 (not modified).
IEC 61508-4:2010 NOTE Harmonized as EN 61508-4:2010 (not modified).
IEC 61810-1:2015 NOTE Harmonized as EN 61810-1:2015 (not modified).
IEC 61811-1 NOTE Harmonized as EN 61811-1.
ISO 14119:2013 NOTE Harmonized as EN ISO 14119:2013 (not modified).
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications

The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments)
applies.
NOTE 1  Where an International Publication has been modified by common modifications, indicated by (mod), the relevant
EN/HD applies.
NOTE 2  Up-to-date information on the latest versions of the European Standards listed in this annex is available here:
www.cenelec.eu.
Publication Year Title EN/HD Year
IEC 60068-2-6 2007 Environmental testing -- Part 2-6: Tests - EN 60068-2-6 2008
Test Fc: Vibration (sinusoidal)
IEC 60068-2-11 1981 Basic environmental testing procedures - EN 60068-2-11 1999
Part 2-11: Tests - Test Ka: Salt mist
IEC 60068-2-14 2009 Environmental testing -- Part 2-14: Tests - EN 60068-2-14 2009
Test N: Change of temperature
IEC 60068-2-17 1994 Basic environmental testing procedures - EN 60068-2-17 1994
Part 2-17: Tests - Test Q: Sealing
IEC 60068-2-20 2008 Environmental testing -- Part 2-20: Tests - EN 60068-2-20 2008
Test T: Test methods for solderability and
resistance to soldering heat of devices with
leads
IEC 60068-2-21 2006 Environmental testing -- Part 2-21: Tests - EN 60068-2-21 2006
Test U: Robustness of terminations and
integral mounting devices
IEC 60068-2-78 2012 Environmental testing -- Part 2-78: Tests - EN 60068-2-78 2013
Test Cab: Damp heat, steady state
IEC 60127-2 2014 Miniature fuses - Part 2: Cartridge fuse- EN 60127-2 2014
links
IEC 61373 2010 Railway applications - Rolling stock EN 61373 2010
equipment - Shock and vibration tests
IEC 61810-2 2017 Electromechanical elementary relays - Part EN 61810-2 2017
2: Reliability
IEC 61810-2-1 2017 Electromechanical elementary relays - Part EN 61810-2-1 2017
2-1: Reliability - Procedure for the
verification of B10 values
IEC 62246-1 2015 Reed switches -- Part 1: Generic EN 62246-1 2015
specification
ISO 2859-1 1999 Sampling procedures for inspection by - -
attributes -- Part 1: Sampling schemes
indexed by acceptance quality limit (AQL)
for lot-by-lot inspection
IEC 62246-1-1 ®
Edition 2.0 2018-02
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Reed switches –
Part 1-1: Generic specification – Blank detail specification

Contacts à lames souples –
Partie 1-1: Spécification générique – Spécification particulière-cadre

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.120.70 ISBN 978-2-8322-5337-3

– 2 – IEC 62246-1-1:2018 © IEC 2018

CONTENTS
FOREWORD . 4
INTRODUCTION . 6
1 Scope . 7
2 Normative references . 7
3 Terms and definitions . 8
3.1 reed switch types . 8
3.2 tests . 8
3.3 inspection . 9
3.4 safety and failure modes . 9
4 Test schedules . 10
4.1 General . 10
4.2 Order of tests . 10
4.3 Test groups and subgroups . 10
4.4 Type test . 10
4.5 Quality conformance inspection . 10
4.6 Formation of inspection lots . 10
4.7 Periodic test . 11
4.8 Periodic test intervals between tests . 11
4.9 Standard conditions for testing . 11
4.10 Mounting of test specimens during the test . 11
4.11 General conditions for testing . 11
5 Characteristic values of the reed switches . 37
5.1 Contact data . 37
5.1.1 Failure criteria . 37
5.1.2 Static contact-circuit resistance . 41
5.1.3 Mechanical endurance . 42
5.1.4 Final dielectric test . 42
5.2 Environmental data . 42
5.3 Reliability – Failure rate data . 42
6 Marking and documentation . 42
6.1 General . 42
6.2 Marking of the reed switch . 43
6.3 Marking of the packaging . 43
6.4 Coded date of manufacturer . 43
7 Preparation of blank detail and detail specification . 43
Annex A (normative) Mounting in a standard coil . 45
Annex B (normative) Variants . 46
Annex C (informative) Typical applications . 47
Annex D (informative) Examples of blank detail and detail specifications . 48
D.1 Key to front page . 48
D.2 Examples of blank detail specifications . 49
D.2.1 Blank detail specification (1) . 49
D.2.2 Blank detail specification (2) . 50
D.2.3 Blank detail specification (3) . 51
D.2.4 Blank detail specification (4) . 52

IEC 62246-1-1:2018 © IEC 2018 – 3 –
D.2.5 Blank detail specification (5) . 53
D.2.6 Blank detail specification (6) . 54
D.2.7 Blank detail specification (7) . 55
D.2.8 Blank detail specification (8) . 56
D.2.9 Blank detail specification (9) . 57
D.2.10 Blank detail specification (10) . 58
D.2.11 Blank detail specification (11) . 59
D.2.12 Blank detail specification (12) . 60
Bibliography . 61

Figure A.1 – Switch direction and position in a standard coil . 45

Table 1 – Test procedure of quality assessment . 12
Table 2 – Sampling and test schedule of type test (1 of 5) . 14
Table 3 – Sampling and test schedule of type test (grouping) . 27
Table 4 – Quality conformance inspection (1 of 7). 29
Table 5 – Variant A of reed switches (1 of 2). 37
Table 6 – Variant A of heavy-duty reed switches (1 of 2). 39
Table 7 – Variant B of heavy-duty reed switches . 41
Table 8 – Environmental data for reed switches . 42
Table 9 – Reliability data for reed switches . 42

– 4 – IEC 62246-1-1:2018 © IEC 2018
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
REED SWITCHES –
Part 1-1: Generic specification – Blank detail specification

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 62246-1-1 has been prepared by IEC technical committee 94: All-
or-nothing electrical relays.
This second edition cancels and replaces the first edition published in 2013. This edition
constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous
editions:
a) update of the scope, references and terms and definitions;
b) inclusion of guidelines for the preparation of blank detail and detail specifications;
c) update of characteristics values including functional ratings for safety;
d) update of the quality conformance inspection procedures;
e) update of typical applications.

IEC 62246-1-1:2018 © IEC 2018 – 5 –
The text of this International Standard is based on the following documents:
FDIS Report on voting
94/426/FDIS 94/427/RVD
Full information on the voting for the approval of this International Standard can be found in
the report on voting indicated in the above table.
This document has been drafted in accordance with the ISO/IEC Directives, Part 2.
This document is to be used in conjunction with IEC 62246-1:2015.
A list of all parts in the IEC 62246 series, published under the general title Reed switches, can
be found on the IEC website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to
the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct
understanding of its contents. Users should therefore print this document using a
colour printer.
– 6 – IEC 62246-1-1:2018 © IEC 2018
INTRODUCTION
Reed switches which are in mass production and which are widely used, in practice could be
classified by the following characteristics:
a) Size:
• Normal or standard reed switches with a tube more than 50 mm in length and more
than 5 mm in diameter;
• Sub-miniature reed switches with a tube more than 20 mm and up to 50 mm in length
and up to 5 mm in diameter;
• Miniature reed switches with a tube more than 10 mm and up to 20 mm in length and
more than 2 mm and up to 5 mm in diameter;
• Micro-miniature reed switches with a tube up to 10 mm in length and up to 2 mm in
diameter.
b) Type of switching of electric circuit:
• Closing or normally open – A type or NO;
• Opening or normally closed – B type or NC;
• Changeover – C type or CO.
c) Withstand voltage level:
• Low-voltage (up to 1 000 V);
• High-voltage (more than 1 000 V).
d) Switches power:
• Low-power (up to 60 W or 60 VA);
• Power (100 W to 1 000 W or 100 VA to 1 000 VA);
• High-power (more than 1 000 W or 1 000 VA).
e) Types of electric contacts:
• The tube is filled with dry air, gas mixture, vacuumized, or high pressurized.
Based on the general provisions of IEC 62246-1:2015, this document selects and specifies
blank detail and detail specifications including safety contact ratings and test procedures for
reed switches where enhanced requirements for the verification of quality assessment
specification apply.
This document describes sampling and test schedules for qualification approval procedures,
quality conformance inspection, formation of inspection lots and intervals between tests.
NOTE All type of reed switches exclude mercury reed switches.

IEC 62246-1-1:2018 © IEC 2018 – 7 –
REED SWITCHES –
Part 1-1: Generic specification – Blank detail specification

1 Scope
This part of IEC 62246 which is a blank detail specification defines requirements and tests for
reed switches for use in general and industrial applications.
This document is intended to be used in conjunction with IEC 62246-1:2015 and specific
products standards applying as switching elements.
This document selects from IEC 62246-1:2015 and from other sources the appropriate test
procedures to be used in detail specifications derived from this specification.
Reed switch types are specified depending on characteristic values including functional
ratings for safety and tests.
NOTE Mercury wetted reed switches are not covered by this document due to their possible environmental impact.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their
content constitutes requirements of this document. For dated references, only the edition
cited applies. For undated references, the latest edition of the referenced document (including
any amendments) applies.
IEC 60068-2-6:2007, Environmental testing – Part 2-6: Tests – Test Fc: Vibration (sinusoidal)
IEC 60068-2-11:1981, Basic environmental testing procedures – Part 2-11: Tests – Test Ka:
Salt mist
IEC 60068-2-14:2009, Environmental testing – Part 2-14: Tests – Test N: Change of
temperature
IEC 60068-2-17:1994, Environmental testing – Part 2-17: Tests – Test Q: Sealing
IEC 60068-2-20:2008, Environmental testing – Part 2-20: Tests – Test T: Test methods for
solderability and resistance to soldering heat of devices with leads
IEC 60068-2-21:2006, Environmental testing – Part 2-21: Tests – Test U: Robustness of
terminations and integral mounting devices
IEC 60068-2-78:2012, Environmental testing – Part 2-78: Tests – Test Cab: Damp heat,
steady state
IEC 60127-2:2014, Miniature fuses – Part 2: Cartridge fuse-links
IEC 61373:2010, Railway applications – Rolling stock equipment – Shock and vibration tests
IEC 61810-2:2017, Electromechanical elementary relays – Part 2: Reliability

– 8 – IEC 62246-1-1:2018 © IEC 2018
IEC 61810-2-1:2017, Electromechanical elementary relays – Part 2-1: Reliability – Procedure
for the verification of B values
IEC 62246-1:2015, Reed switches – Part 1: Generic specification
ISO 2859-1:1999, Sampling procedures for inspection by attributes – Part 1: Sampling
schemes indexed by acceptance quality limit (AQL) for lot-by-lot inspection
3 Terms and definitions
The terms and definitions given in IEC 62246-1:2015 and the following, apply.
ISO and IEC maintain terminological databases for use in standardization at the following
addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
3.1 reed switch types
3.1.1
type
products having similar design features and nominal dimensions manufactured by the same
techniques and falling within a range of ratings specified by the manufacturer
Note 1 to entry: Mounting accessories are ignored, provided they have no significant effect on the test results.
3.1.2
variant
variation within a type having specific characteristics
3.1.3
reed switch
assembly containing contact blades, partly or completely made of magnetic material,
hermetically sealed in an envelope and controlled by means of an externally generated
magnetic field (e.g. an energizing quantity applied to a coil)
3.1.4
high voltage vacuum reed switch
reed switch, in which ability to switch high voltages is achieved by a high vacuum within the
hermetically sealed envelope
3.1.5
heavy-duty reed switch
reed switch, in which greater switching capacity is achieved
Note 1 to entry: Blades having additional contact tips or a contact tip and spring which separate the magnetic
path and electric path are typical examples of techniques to increase switching capacity.
3.2 tests
3.2.1
type test
test of one or more reed switches made to a certain design to show that the design meets
certain specifications
3.2.2
routine test
conformity test made on each reed switch during or after manufacture

IEC 62246-1-1:2018 © IEC 2018 – 9 –
3.2.3
lot-by-lot test
test carried out periodically on a sample of reed switches drawn from running production at
least once a month
3.2.4
periodic test
test carried out periodically on a sample of reed switches drawn from running production at
least once a year and every two years
Note 1 to entry: The results from periodic tests are used to verify that the level of technical performance is
maintained.
Note 2 to entry: Sub-groups intervals between tests A0, A4 and B1, C1 and C4 are specified in 4.8.
3.3 inspection
3.3.1
inspection
process of measuring, examining, testing, or otherwise comparing the unit of product with the
specified requirements
3.3.2
IL
inspection level
specification of lower limits for lot-by-lot test
Note 1 to entry: See ISO 2859-1:1999, Clause 9.
3.3.3
AQL
acceptance quality limit
maximum percent of defects that can be tolerance as a risk, stated for purposes of sampling
inspection
Note 1 to entry: Sample inspection with associated risk tolerance is employed only where all units of product
within an inspection lot is expected to completely comply with specification requirements.
3.4 safety and failure modes
3.4.1
B value
, the time (in number of cycles) by which 10 % of the population will have
point estimate of B
failed
Note 1 to entry: When B values are specified in the detail specifications, the electrical endurance test should
measure all failures according to IEC 61810-2.
Note 2 to entry: See Clause A.3 of IEC 61810-2:2017.
3.4.2
B value
10D
number of cycles until 10 % of the components fail dangerously
Note 1 to entry: B values are calculated according to IEC 61810-2-1.
10D
3.4.3
dangerous failure
failure of an element and/or subsystem and/or system that plays a part in implementing the
safety function that decreases the probability that the safety function operates correctly when
required
– 10 – IEC 62246-1-1:2018 © IEC 2018
[SOURCE: IEC 61508-4:2010, 3.6.7, modified – item a) has been deleted.]
4 Test schedules
4.1 General
Test procedures of quality assessment are specified in Table 1 which is referenced in the
corresponding subclauses of IEC 62246-1.
4.2 Order of tests
Quality conformance inspection is divided into two parts: that carried out lot-by-lot, on which
the release of the individual lots is based, and that carried out on a periodic basis, which
contains the time-consuming and more expensive tests.
When several tests are subsequently to be carried out on any one specimen or number of
specimens, the following order shall apply, unless otherwise specified in the detail
specification:
a) a 100 % test with
b) tests in groups.
4.3 Test groups and subgroups
For the 100 % test subgroup, a reed switch shall be rejected when it fails any test. For
detection purposes, a contact can be considered closed when the voltage drop across it is
less than one half of its open-circuit value. Conditions of test shall be specified in the detail
specification.
4.4 Type test
• Sampling and test schedule are specified in Tables 2 and 3.
• The tests specified and their order is mandatory.
• Tests stated in Tables 2 and 3 are mandatory for the variants except when otherwise
specified.
4.5 Quality conformance inspection
An initial conformity test has to be passed and then confirmed by routine tests, lot-by-lot tests
and periodic tests.
Quality conformance inspection contains the tests stated in Table 4:
• Group A: routine tests;
• Groups A and B: lot-by-lot tests;
• Group C: periodic tests.
Unless otherwise stated in this document, all tests of Table 4 are mandatory.
Where a subgroup contains cumulative tests, the order of the tests is mandatory. Specimens
that have been subjected to tests denoted as destructive (D) shall not be released for delivery.
Specimens that have been subjected to tests denoted as non-destructive (ND) are permitted
to be released for delivery.
4.6 Formation of inspection lots
The basis for the determination of sample size for the quality conformance inspection is the
reed switch quantity produced during one month.

IEC 62246-1-1:2018 © IEC 2018 – 11 –
4.7 Periodic test
The periodic test shall be performed in regular intervals as specified by the manufacturer, as
a minimum with the rated operating current I only.
e
For each periodic test, the evaluated B10 value shall be at least 80 % of the B10 value
obtained from the conformity test.
Fixed sample sizes for group C inspection shall be taken from a lot (or lots) which has (have)
passed groups A and B inspection during or at the end of the specified reference period.
4.8 Periodic test intervals between tests
• Subgroup A0: at shipment.
• Subgroups A4 and B1: manufacturer specifies the intervals.
• Subgroups C1: at least once a year.
• Subgroup C4: at least once every two years.
4.9 Standard conditions for testing
If not otherwise stated, all tests shall be performed under standard conditions for testing
according to 6.3 of IEC 62246-1:2015.
4.10 Mounting of test specimens during the test
The following requirement shall apply for shock and vibration tests.
The reed switch shall be mounted by its normal mounting method to the test fixture, where
inherent resonances have been minimized so as not to invalidate the test.
4.11 General conditions for testing
Unless otherwise stated, the test coil number and when applicable its polarity specified in
Table 5 shall be used for all tests. Unless otherwise stated in this document, the polarity shall
be as specified by the manufacturer.

– 12 – IEC 62246-1-1:2018 © IEC 2018
Table 1 – Test procedure of quality assessment
Test for
Quality conformance inspection Qualification approval
qualification
(inspection level / sampling quantities) (Sample size / acceptable number of failures during test)
approval
Group A B C  Gr. 1 Gr. 2 Gr.3 Gr. 4 Gr. 5 Gr. 6 Gr. 7 Gr. 8 Gr. 9 Gr. 10 Gr. 11 Gr. 12 Gr. 13 Gr. 14

Sub-group A0 A4 B1 C1 C4
Test interval Routine test Type test At mass
production
Lot-by-lot tests  First article
inspection
Frequency (time) At 1/M 1/M 1/Y 1/2Y
shipment
Type test    Sample size
Routine test 100 %   170 switches
min.
Sampling inspection IL: S4 IL: S3
Periodic tests  Yes Yes
1. Visual inspection Yes Yes   170 switches 170/0
(6.4)
2. Functional operation Yes Yes
(6.5)
3. Contact resistance Yes Yes
(6.7)
4. Dielectric test (6.8) Yes Yes
5. Operating times Yes Yes
(6.10)
6. Sealing (6.21) Yes Yes
7. Remanence test (6.6)    18 switches  6/0
8. Insulation resistance     6/0
(6.9)
9. Contact sticking     6/0
(6.11)
10. Robustness of  6  18 switches  6/0
terminals (6.12)
11. Soldering (6.13)  5   6/0
12. Climatic sequence  6   6/0
(6.14)
13. Damp heat, steady    18 switches   6/0
state (6.15)
14. Rapid change of      6/0
temperature (6.16)
Test number in Table 2
IEC 62246-1-1:2018 © IEC 2018 – 13 –
Test for
Quality conformance inspection Qualification approval
qualification
(inspection level / sampling quantities) (Sample size / acceptable number of failures during test)
approval
15. Salt mist (6.17)      6/0
16. Vibration – functional,  6  24 switches   12/0
survival (6.18)
17. Shock – functional,   6    12/0
survival (6.19)
18. Electrical endurance  5  10 switches    10/10
(6.22)
19. Mechanical   20 20 switches    20/1
endurance (6.23)
20. Maximum cycling    6 switches     6/0
frequency (6.24)
21. Contact reliability test  S3  20 switches     20/0
(6.28)
A1. Vibration – functional    6 switches      6/0
(IEC 61373: 2010)
A2. Shock (IEC 61373:    6 switches      6/0
2010)
A3. Making and breaking    3 switches      3/0
capacity（6.26)
A4. Conditional short-   3 switches       3/0
circuit current test
(6.27)
A5. Temperature rise    3 switches       3/0
(6.29)
A6. Making current   6 6 switches       6/0
capacity test (6.30)
A7. Breaking current   6 6 switches       6/0
capacity test (6.31)
B1. Surge withstand test   3 3 switches        3/0
(6.25)
NOTE 1 Applicable test number in Table 2, A1 to A7: Variant A of heavy-duty reed switches only, B1: Variant B of heavy-duty reed switches only.
NOTE 2 The inside number on the end of test number in Table 1 – Quality conformance inspection indicates the subclause number according to IEC 62246-1: 2015.

– 14 – IEC 62246-1-1:2018 © IEC 2018
Table 2 – Sampling and test schedule of type test (1 of 5)
Test Test Test conditions according to Sample Acceptable Performance
no. IEC 62246-1:2015 size number of requirements
failures
1 Visual inspection Subclause 6.4 170 0 According to Table 4
and check of
Marking as specified in
dimensions (ND)
6.1
2 Functional tests Subclause 6.5, Procedure 1
(ND)
Application points and standard test According to Table 5
coil number:
Must-operate value: According to Table 4
Saturate value: 150 % of must-
operate must-release value:
Contact failure-to-make and failure-
to-break by monitoring a current,
typically 10 mA at 24 V DC max.
3 Contact circuit Subclause 6.7 Initial value according to
resistance (ND) Table 4
Application points: terminals of
closed contacts
According to Table 5
Standard test coil number:
Test coil voltage: 150 % of must-
operate
Test voltage max. :6 V DC or 6 V AC
Test current max.: 1 A
4 Dielectric test (ND) Subclause 6.8
Application points and test voltage: According to Table 4
Duration of test: 1 min Maximum leakage
current:
NOTE A shorter test with a higher
voltage can be stated in the detail 0,5 mA
specification.
5 Operating times Subclause 6.10
(ND)
Application points and standard test According to Table 5
coil number:
Test coil voltage: 150 % of must-
operate
Operate time: According to Table 4
Release time:
Operate bounce time:
Contact failure-to-make and failure-
to-break by monitoring a current,
typically 10 mA at 24 V DC max.
6 Sealing (ND) Subclause 6.21
Application points and standard test According to Table 5
coil number:
Arc time during test for heavy-duty According to Table 8
reed switches
Test coil voltage: 150 % of must-
operate
Test voltage: 100 V DC to 110 V DC
Test current: 0,5 A to 0,55 A
Total number of operations required:
IEC 62246-1-1:2018 © IEC 2018 – 15 –
Test Test Test conditions according to Sample Acceptable Performance
no. IEC 62246-1:2015 size number of requirements
failures
Leak test for reed switches and high
voltage vacuum reed switch.
7 Remanence tests Subclause 6.6 6 0
(ND)
Application points and standard test  According to Table 5
coil number:
Saturate value: 150 % of must- Remanence value: Max.
operate 10 %
Just-operate value 1
Saturate value (reverse polarity):
150 % of must-operate
Just-operate value 2
8 Insulation test Subclause 6.9 6 0
(ND)
Application points and test voltage:  According to Table 4

9 Contact sticking Subclause 6.11.1, Procedure 1 6 0
(ND)
According to Table 5
Application points and standard test
Thermal sticking
coil number:
Upper category temperature:
150 °C for heavy-duty reed switches
Permitted value:
max.10 %
125 °C for reed switches
Saturate value: 150 % of must-
operate
Magnetostrictive According to Table 5
sticking Test period:  min 24 h

Max. permitted value:
Subclause 6.11.2
Zero failure-to-break
Application points and standard test

coil number:
Pulsing rate: 10 cycles per second According to Table 4
Limits for the peak-to-peak value of
the pulse: 200 % and 100 % of must-
operate
Number of test cycles:  5
Min. contact circuit resistance
defining failure-to-break:
10 Robustness of Subclause 6.12 (in accordance with 6 0 According to Table 4
terminals (D) IEC 60068-2-21)
No breaking or
loosening of terminals
Procedure: test Ua1 – tensile
Final measurements:
Test 1 – visual inspection  No cracks or other
deterioration
Test 2 – functional tests  According to Table 4
Test 6 – sealing  According to Table 8

– 16 – IEC 62246-1-1:2018 © IEC 2018
Test Test Test conditions according to Sample Acceptable Performance
no. IEC 62246-1:2015 size number of requirements
failures
11 Soldering (D) Subclause 6.13 (in accordance with 6 0 When inspected with a
IEC 60068-2-20, test Ta, method 1) magnifying lens, the
dipped surface shall be
Temperature:  (250 ± 5) °C
95 % covered with new
solder coating, the
Duration:  (2 ± 0,5) s
remaining 5 % may
contain only small
Application point: 5 mm from the
pinholes
glass-to-metal seals
Subclause 6.13 (in accordance with
IEC 60068-2-20, test Ta, method 2)
Temperature:  (350 ± 5) °C
Duration:  (3 ± 0,5) s
Application point: 5 mm from the
glass-to-metal seals
Final measurements:
Test 1 – visual test  No cracks or other
deterioration
Test 2 – functional tests  According to Table 4
Test 6 – sealing According to Table 8
12 Climatic sequence Subclause 6.14 6 0
(D)
Dry heat, 6.14.2 of IEC 62246-1:
Application points and standard test  According to Table 5
coil number:
Temperature:  Value according to
Table 8
200 °C for heavy-duty reed switches
125 °C for reed switches and high
voltage vacuum reed switch
Duration:  16 h
Recovery:  4 h
During the last 2 h of dry heat
exposure: monitoring of contact-
circuit resistance
Number of cycles per s: 2
Duty factor:  1:1
Test contact voltage: max. 6 V DC or
AC
Test contact current: max. 1 A
Before the end of dry heat exposure:
Test 2 – functional tests
Damp heat cyclic, 6.14.2 of
IEC 62246-1: 2015, one cycle
Temperature  55 °C
Recovery:  4 h
Cold, 6.14.2 of IEC 62246-1:2015  Value according to
Table 8
Temperature:
– 50 °C for heavy-duty reed switches
– 40 °C for reed switches and high
voltage vacuum reed switch
IEC 62246-1-1:2018 © IEC 2018 – 17 –
Test Test Test conditions according to Sample Acceptable Performance
no. IEC 62246-1:2015 size number of requirements
failures
Duration:  2 h
Before the end of cold exposure:
Test 2 – functional tests
Damp heat cyclic, 6.14.2 of
IEC 62246-1: 2015, one cycle
Temperature:  55 °C
Recovery:  4 h
Final measurements:
Test 4 – dielectric test  According to Table 4
Test 2 – functional tests  According to Table 4
Test 3 – contact-circuit resistance  According to Table 4
Test 1 – visual inspection  No cracks or other
deterioration
Test 6 – sealing test  According to Table 8
13 Damp heat, steady Subclause 6.15 (in accordance with 6 0
state (D) IEC 60068-2-78: 2012)
Temperature:  40 °C
Humidity:  95 % RH
Conditioning time: 10 days
Final measurements:
Test 4 – dielectric test  According to Table 4
Test 2 – functional tests  According to Table 4
Test 3 – contact circuit resistance  According to Table 4
Test 1 – visual inspection  According to Table 4
Test 6 – sealing test  No cracks or other
deterioration
Test 11 – solderability  According to Table 8
14 Rapid change of Subclause 6.16 (in accordance with 6 0
temperature (D) IEC 60068-2-14)
Low temperature: – 50 °C
High temperature:  100 °C
Exposure time: 20 min
Transition time: 1 min
Number of cycles:  10
Final measurements:
Test 4 – dielectric test  According to Table 4
Test 2 – functional tests  According to Table 4
Test 3 – contact-circuit resistance
...
