EN 62271-102:2002

SLOVENSKI STANDARD
01-september-2002
1DGRPHãþD
SIST EN 60129:1995
SIST EN 60129:1995/A2:2001
SIST EN 61129:1995
SIST EN 61129:1995/A1:2001
SIST EN 61259:1995
High-voltage switchgear and controlgear - Part 102: High-voltage alternating
current disconnectors and earthing switches
High-voltage switchgear and controlgear -- Part 102: Alternating current disconnectors
and earthing switches
Hochspannungs-Schaltgeräte -- Teil 102: Wechselstrom-Trennschalter und -
Erdungsschalter
Appareillage à haute tension -- Partie 102: Sectionneurs et sectionneurs de terre à
courant alternatif
Ta slovenski standard je istoveten z: EN 62271-102:2002
ICS:
29.130.10 Visokonapetostne stikalne in High voltage switchgear and
krmilne naprave controlgear
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD EN 62271-102
NORME EUROPÉENNE
EUROPÄISCHE NORM July 2002
ICS 29.130.10;29.130.99 Supersedes EN 60129:1994 + A1:1994 + A2:1996;
EN 61129:1994 + A1:1995 and
EN 61259:1994
English version
High-voltage switchgear and controlgear
Part 102: High-voltage alternating current
disconnectors and earthing switches
(IEC 62271-102:2001 + corrigendum 2002)
Appareillage à haute tension Hochspannungs-Schaltgeräte
Partie 102: Sectionneurs et sectionneurs Teil 102: Hochspannungs-Wechselstrom-
de terre à courant alternatif haute tension Trennschalter und -Erdungsschalter
(CEI 62271-102:2001 (IEC 62271-102:2001
+ corrigendum 2002) + Corrigendum 2002)
This European Standard was approved by CENELEC on 2002-03-05. CENELEC members are bound to
comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and
notified to the Central Secretariat has the same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Czech Republic,
Denmark, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Luxembourg, Malta,
Netherlands, Norway, Portugal, Slovakia, Spain, Sweden, Switzerland and United Kingdom.
CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
Central Secretariat: rue de Stassart 35, B - 1050 Brussels
© 2002 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 62271-102:2002 E

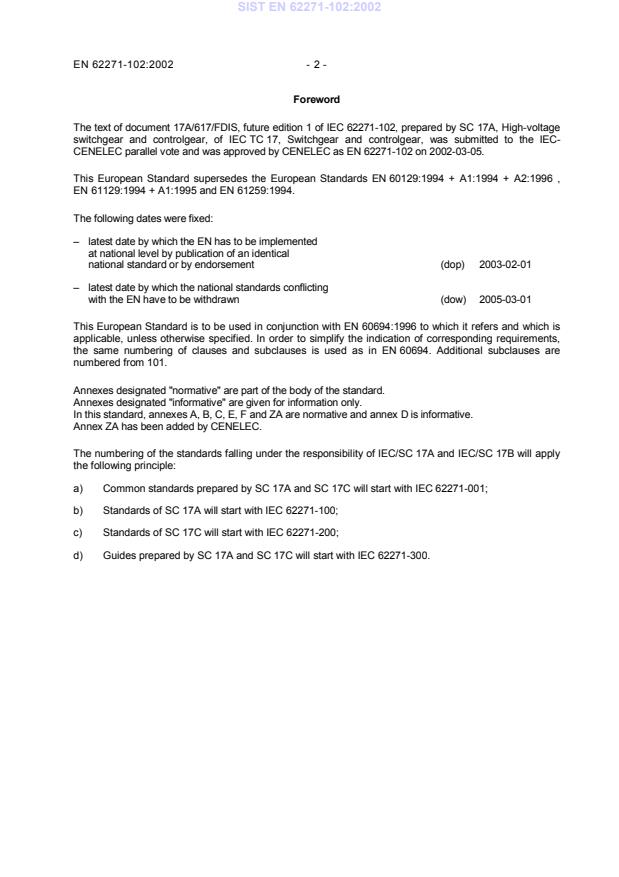

Foreword
The text of document 17A/617/FDIS, future edition 1 of IEC 62271-102, prepared by SC 17A, High-voltage
switchgear and controlgear, of IEC TC 17, Switchgear and controlgear, was submitted to the IEC-
CENELEC parallel vote and was approved by CENELEC as EN 62271-102 on 2002-03-05.
This European Standard supersedes the European Standards EN 60129:1994 + A1:1994 + A2:1996 ,
EN 61129:1994 + A1:1995 and EN 61259:1994.
The following dates were fixed:
– latest date by which the EN has to be implemented
at national level by publication of an identical
national standard or by endorsement (dop) 2003-02-01
– latest date by which the national standards conflicting
with the EN have to be withdrawn (dow) 2005-03-01
This European Standard is to be used in conjunction with EN 60694:1996 to which it refers and which is
applicable, unless otherwise specified. In order to simplify the indication of corresponding requirements,
the same numbering of clauses and subclauses is used as in EN 60694. Additional subclauses are
numbered from 101.
Annexes designated "normative" are part of the body of the standard.
Annexes designated "informative" are given for information only.
In this standard, annexes A, B, C, E, F and ZA are normative and annex D is informative.
Annex ZA has been added by CENELEC.
The numbering of the standards falling under the responsibility of IEC/SC 17A and IEC/SC 17B will apply
the following principle:
a) Common standards prepared by SC 17A and SC 17C will start with IEC 62271-001;
b) Standards of SC 17A will start with IEC 62271-100;
c) Standards of SC 17C will start with IEC 62271-200;
d) Guides prepared by SC 17A and SC 17C will start with IEC 62271-300.

- 3 - EN 62271-102:2002
The following table provides an overview of the relationship between the old and the new numbering of
standards falling under the responsibility of CLC/TC 17A and CLC/TC 17C.
High-voltage switchgear and controlgear –
IEC 62271/ Number of previous
EN 62271 standard, if any
Part Orignal title IEC EN/HD
1 Common specifications 60694; EN 60694;
60517 EN 60517
100 High-voltage alternating circuit-breakers 60056 HD 348, mod.
101 Synthetic testing of high-voltage alternating current circuit-breakers 60427 EN 60427
102 Alternating current disconnectors and earthing switches 60129 EN 60129
103 Switches for rated voltages above1 kV and less than 52 kV 60265-1 EN 60265-1
104 High-voltage switches for rated voltages of 52 kV and above 60265-2 EN 60265-2
105 High-voltage alternating current switch-fuse combinations 60420 EN 60420
106 High-voltage alternating current contactors and contactor-based motor-starters 60470 EN 60470
107 High-voltage alternating current switchgear-fuse combinations New --
108 Switchgear having combined functions New --
200 A.C.-metal enclosed switchgear and controlgear for rated voltages above 1 kV and 60298 EN 60298
up to and including 52 kV
201 A.C.-insulation -enclosed switchgear and controlgear for rated voltages above 1 kV 60466 --
and up to and including 38 kV
202 High-voltage/low-voltage prefabricated substations 61330 EN 61330
203 Gas-insulated metal-enclosed switchgear for rated voltages of 72,5 kV and above
60517; EN 60517;
61259 EN 61259
204 Rigid high-voltage gas-insulated transmission lines for rated voltages of 72,5 kV 61640 --
and above
300 Guide for seismic qualification of high-voltage alternating current circuit-breakers 61166 EN 61166
301 High-voltage alternating current circuit-breakers - Inductive load switching 61233 --
302 High-voltage alternating current circuit-breakers - Guide for short-circuit and 61633 --
switching test procedures for metal-enclosed and dead tank circuit-breakers
303 61634 --
High-voltage switchgear and controlgear - Use and handling of sulphur
hexafluoride (SF ) in high-voltage switchgear and controlgear
304 Additional requirements for enclosed switchgear and controlgear from 1 kV to 60932 --
72,5 kV to be used in severe climatic conditions
305 Cable connections for gas-insulated metal-enclosed switchgear for rated voltages 60859 --
of 72,5 kV and above - Fluid-filled and extruded insulation cables - Fluid-filled and
dry type cable-terminations
306 61639 --
Direct connection between power transformers and gas-insulated metal-enclosed
switchgear for rated voltages of 72,5 kV and above
307 High-voltage switchgear and controlgear - The use of electronic and associated 62063 --
technologies in auxiliary equipment of switchgear and controlgear
308 High-voltage alternating current circuit-breakers - Guide for asymmetrical short- 62215 --
circuit breaking test duty T100a
__________
Endorsement notice
The text of the International Standard IEC 62271-102:2001 and its corrigendum April 2002 was approved by
CENELEC as a European Standard without any modification.
__________
- 5 - EN 62271-102:2002
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
This European Standard incorporates by dated or undated reference, provisions from other publications.
These normative references are cited at the appropriate places in the text and the publications are listed
hereafter. For dated references, subsequent amendments to or revisions of any of these publications
apply to this European Standard only when incorporated in it by amendment or revision. For undated
references the latest edition of the publication referred to applies (including amendments).
NOTE When an international publication has been modified by common modifications, indicated by (mod), the relevant EN/HD
applies.
Publication Year Title EN/HD Year
IEC 60137 1995 Insulated bushings for alternating EN 60137 1996
voltages above 1 kV
IEC 60265-1 1998 High-voltage switches EN 60265-1 1998
Part 1: Switches for rated voltages
above 1 kV and less than 52 kV
IEC 60265-2 1988 Part 2: High-voltage switches for rated EN 60265-2 1993
+ corr. February 1990 voltages of 52 kV and above
1)
IEC 60298 1990 A.C. metal-enclosed switchgear and EN 60298 1996
controlgear for rated voltages above + A11 1999
1 kV and up to and including 52 kV
IEC 60466 1987 A.C. insulation-enclosed switchgear and--
controlgear for rated voltages above
1 kV and up to and including 38 kV
2)
IEC 60517 1990 Gas-insulated metal-enclosed EN 60517 1996
switchgear for rated voltages of 72,5 kV + A11 1999
and above
IEC 60694 1996 Common specifications for high-voltage EN 60694 1996
switchgear and controlgear standards + corr. May 1999
IEC 60865-1 1993 Short-circuit currents – Calculation of--
effects
Part 1: Definitions and calculation
methods
ISO 2768-1 1989 General tolerances EN 22768-1 1993
Part 1: Tolerances for linear and
angular dimensions without individual
tolerance indications
1)
EN 60298 includes corrigendum April 1995 and A1:1994 to IEC 60298:1990.
2)
EN 60517 includes corrigendum April 1995 and A1:1994 to IEC 60517:1990.

NORME CEI
INTERNATIONALE IEC
62271-102
INTERNATIONAL
Première édition
STANDARD
First edition
2001-12
Appareillage à haute tension –
Partie 102:
Sectionneurs et sectionneurs de terre
à courant alternatif
High-voltage switchgear and controlgear –
Part 102:
Alternating current disconnectors
and earthing switches
 IEC 2003 Droits de reproduction réservés  Copyright - all rights reserved
Aucune partie de cette publication ne peut être reproduite ni No part of this publication may be reproduced or utilized in any
utilisée sous quelque forme que ce soit et par aucun procédé, form or by any means, electronic or mechanical, including
électronique ou mécanique, y compris la photocopie et les photocopying and microfilm, without permission in writing from
microfilms, sans l'accord écrit de l'éditeur. the publisher.
International Electrotechnical Commission, 3, rue de Varembé, PO Box 131, CH-1211 Geneva 20, Switzerland
Telephone: +41 22 919 02 11 Telefax: +41 22 919 03 00 E-mail: inmail@iec.ch  Web: www.iec.ch
CODE PRIX
XD
Commission Electrotechnique Internationale PRICE CODE
International Electrotechnical Commission
Международная Электротехническая Комиссия
Pour prix, voir catalogue en vigueur
For price, see current catalogue

62271-102 © IEC:2003 – 3 –
CONTENTS
FOREWORD .13
1 General .21
1.1 Scope .21
1.2 Normative references.21
2 Normal and special service conditions .23
3 Definitions .23
3.1 General terms .23
3.2 Assemblies of switchgear and controlgear.23
3.3 Parts of assemblies.23
3.4 Switching devices .23
3.5 Parts of switching devices.27
3.6 Operation.29
3.7 Characteristic quantities.31
4 Ratings .35
4.1 Rated voltage (U ).37
r
4.2 Rated insulation level.37
4.3 Rated frequency (f ) .37
r
4.4 Rated normal current and temperature rise .37
4.5 Rated short-time withstand current (I ).37
k
4.6 Rated peak withstand current (I ).39
p
4.7 Rated duration of short-circuit (t ) .39
k
4.8 Rated supply voltage of closing and opening devices and of auxiliary and
control circuits (U ) .39
a
4.9 Rated supply frequency of closing and opening devices and of auxiliary
circuits .39
4.10 Rated pressure of compressed gas supply for insulation and/or operation.39
4.101 Rated short-circuit making current.39
4.102 Rated contact zone .39
4.103 Rated mechanical terminal load .41
4.104 Rated values of the bus-transfer current switching capability of
disconnectors .43
4.105 Rated values of the induced current switching capability of earthing
switches.45
4.106 Rated values of mechanical endurance for disconnectors and earthing
switches.45
4.107 Rated values of electrical endurance for earthing switches .45
5 Design and construction .45
5.1 Requirements for liquids in disconnectors and earthing switches .45
5.2 Requirements for gases in disconnectors and earthing switches .45
5.3 Earthing of disconnectors and earthing switches .45
5.4 Auxiliary and control equipment .47
5.5 Dependent power operation .47
5.6 Stored energy operation.47
5.7 Independent manual operation.47

62271-102 © IEC:2003 – 5 –
5.8 Operation of releases.47
5.9 Low- and high-pressure interlocking and monitoring devices .47
5.10 Nameplates.47
5.11 Interlocking devices .49
5.12 Position indication.49
5.13 Degree of protection by enclosures .49
5.14 Creepage distances .51
5.15 Gas and vacuum tightness .51
5.16 Liquid tightness.51
5.17 Flammability .51
5.18 Electromagnetic compatibility (EMC).51
5.101 Special requirements for earthing switches .51
5.102 Requirements in respect of the isolating distance of disconnectors .51
5.103 Mechanical strength.53
5.104 Operation of disconnectors and earthing switches– Position of the movable
contact system and its indicating and signalling devices .53
5.105 Maximum force required for manual operation.55
5.106 Dimensional tolerances.55
6 Type tests.57
6.1 General.57
6.2 Dielectric tests .59
6.3 Radio interference voltage (riv) test .63
6.4 Measurement of the resistance of circuits .63
6.5 Temperature-rise tests .63
6.6 Short-time withstand current and peak withstand current tests .63
6.7 Verification of the protection .69
6.8 Tightness tests.69
6.9 Electromagnetic compatibility tests (EMC) .69
6.101 Test to prove the short-circuit making performance of earthing switches .69
6.102 Operating and mechanical endurance tests.71
6.103 Operation under severe ice conditions .79
6.104 Operation at the temperature limits .83
6.105 Test to verify the proper functioning of the position indicating device .85
6.106 Bus-transfer current switching tests .85
6.107 Induced current switching tests .85
6.108 Bus-charging switching tests.85
7 Routine tests .85
7.1 Dielectric test on the main circuit .85
7.2 Dielectric test on auxiliary and control circuits.87
7.3 Measurement of the resistance of the main circuit.87
7.4 Tightness test .87
7.5 Design and visual checks.87
7.101 Mechanical operating tests.87

62271-102 © IEC:2003 – 7 –
8 Guide to the selection of disconnectors and earthing switches.89
8.101 General.89
8.102 Selection of rated values for normal service conditions .89
9 Information to be given with enquiries, tenders and orders.95
9.101 Information to be given with enquiries and orders .95
9.102 Information to be given with tenders.99
10 Rules for transport, storage, installation, operation and maintenance.101
10.1 Conditions during transport, storage and installation .101
10.2 Installation .101
10.3 Operation.101
10.4 Maintenance .103
11 Safety.103
11.1 Electrical aspects.103
11.2 Mechanical aspects.103
11.3 Thermal aspects .103
11.4 Operation aspects.103
Annex A (normative) Design and testing of position indicating devices .117
A.1 General.117
A.2 Normal and special service conditions .117
A.3 Definitions.117
A.4 Ratings .119
A.5 Design and construction.119
A.6 Type tests .119
A.7 Routine tests.125
Annex B (normative) Bus-transfer current switching by disconnectors .127
B.1 General.127
B.2 Normal and special service conditions .127
B.3 Definitions.127
B.4 Ratings .129
B.5 Design and construction.129
B.6 Type tests .131
Annex C (normative) Induced current switching by earthing switches .141
C.1 General.141
C.2 Normal and special service conditions .141
C.3 Definitions.141
C.4 Ratings .143
C.5 Design and construction.145
C.6 Type tests .147
Annex D (informative) Test voltage for the most disadvantageous dielectric position
of an earthing switch during operation (temporary approach) .161

62271-102 © IEC:2003 – 9 –
Annex E (normative) Special requirements for disconnectors and earthing switches
used in gas-insulated and/or metal-enclosed switchgear .163
E.1 General.163
E.2 Normal and special service conditions .163
E.3 Definitions.163
E.4 Ratings .165
E.5 Design and construction.165
E.6 Type tests .167
E.7 Routine tests.169
E.8 Guide to the selection of disconnectors and earthing switches .171
E.9 Information to be given with enquiries, tenders and orders.171
E.10 Rules for transport, storage, installation, operation and maintenance.171
Annex F (normative) Gas-insulated metal-enclosed switchgear for rated voltages 72,5 kV
and above – Requirements for switching of bus-charging currents by disconnectors .173
F.1 General.173
F.2 Normal and special service conditions .173
F.3 Definitions.173
F.6 Type tests .175
Figure 1 – Fixed contact parallel to support.103
Figure 2 – Fixed contact (as indicated in figure 8) perpendicular to support .105
Figure 3 – Three-phase test arrangement for disconnectors and earthing switches with
rated voltages below 52 kV .105
Figure 4 – Single-phase test arrangement for disconnectors with a horizontal isolating
distance and for earthing switches with rated voltage of 52 kV and above .107
Figure 5 – Single-phase test arrangement for divided support disconnectors (earthing
switches) with a vertical isolating distance with rated voltages of 52 kV and above to
be used with flexible conductors.109
Figure 6 – Single-phase test arrangement for divided support disconnectors (earthing
switches) with a vertical isolating distance with rated voltages of 52 kV and above to
be used with rigid conductors .111
Figure 7 – Example of the application of rated mechanical terminal loads to a two-
column disconnector .113
Figure 8 – Example of the application of rated mechanical terminal loads to a
pantograph disconnector .115
Figure A.1 – Position indicating device.125
Figure B.1 – Test circuits for bus-transfer current making and breaking tests .139
Figure C.1 – Test circuit for electromagnetically induced current making and breaking
tests.157
Figure C.2 – Test circuits for electrostatically induced current making and breaking tests .159
Figure F.1 – Test circuit for test duty 1.179
Figure F.2 – Typical voltage waveform (Including VFT and FT components).181
Figure F.3 – Test circuit for test duty 2.183
Figure F.4 –Test circuit for test duty 3 .183

62271-102 © IEC:2003 – 11 –
Table 1 – Recommended contact zones for "fixed" contacts supported by flexible
conductors .41
Table 2 – Recommended contact zones for "fixed" contacts supported by rigid
conductors .41
Table 3 – Recommended static mechanical terminal loads .43
Table 3a – Classification of disconnectors for mechanical endurance.45
Table 4 – Nameplate information.49
Table 5 – Power frequency 1 min withstand voltages .61
Table 6 – Power frequency voltage tests .87
Table B.1 – Rated bus-transfer voltages for disconnectors.129
Table C.1 – Standardized values of rated induced currents and voltages for earthing
switches.145
Table C.2 – Standardized values of recovery voltages for electromagnetically induced
current breaking tests .151
Table C.3 – Test circuit capacitances (C values) for electrostatically induced current
making and breaking tests.153
Table F.1 – Test voltages for making and breaking tests .177
Table F.2 – Specified bus-charging currents .185
Table F.3 – Specified number of tests .185

62271-102 © IEC:2003 – 13 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
HIGH-VOLTAGE SWITCHGEAR AND CONTROLGEAR –
Part 102: Alternating current disconnectors
and earthing switches
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, and Guides (hereafter referred to as “IEC Publication(s)”). Their preparation is entrusted to
technical committees; any IEC National Committee interested in the subject dealt with may participate in this
preparatory work. International, governmental and non-governmental organizations liaising with the IEC also
participate in this preparation. IEC collaborates closely with the International Organization for Standardization
(ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with an IEC Publication.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 62271-102 has been prepared by subcommittee 17A: High-voltage
switchgear and controlgear, of IEC technical committee 17: Switchgear and controlgear.
This first edition cancels and replaces the third edition of IEC 60129 published in 1984,
amendment 1 (1992) and amendment 2 (1996) and constitutes a technical revision. In
addition, it replaces IEC 61128, IEC 61129 and IEC 61259, which are hereby withdrawn and
cancelled. A reference table is provided at the end of this foreword.
This bilingual version (2003-08) replaces the English version.
The text of this standard is based on the following documents:
FDIS Report on voting
17A/617/FDIS 17A/619/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.

62271-102 © IEC:2003 – 15 –
This publication has been drafted in accordance with the ISO/IEC Directives, Part 3.
Annexes A, B, C, E and F form an integral part of this standard.
Annex D is for information only.
This standard should be read in conjunction with IEC 60694, second edition, published in
1996, to which it refers and which is applicable, unless otherwise specified. In order to
simplify the indication of corresponding requirements, the same numbering of clauses and
subclauses is used as in IEC 60694. Additional subclauses are numbered from 101.
The committee has decided that the contents of this publication will remain unchanged until
the maintenance result date indicated on the IEC web site under "http://webstore.iec.ch" in
the data related to the specific publication. At this date, the publication will be
• reconfirmed;
• withdrawn;
• replaced by a revised edition, or
• amended.
The contents of the corrigenda of April 2002, May 2003 and February 2005 have been included
in this copy.
62271-102 © IEC:2003 – 17 –
COMMON NUMBERING OF IEC 62271 PUBLICATIONS FALLING UNDER
THE RESPONSIBILITY OF SUBCOMMITTEES SC 17A AND SC 17C
In accordance with the decision taken at the joint SC 17A/SC 17C meeting in Frankfurt, June
1998 (item 20.7 of 17A/535/RM), a common numbering system has been established for the
publications falling under the responsibility of SC 17A and SC 17C. IEC 62271 – High-voltage
switchgear and controlgear is the publication number and main title element for the common
publications.
The numbering of these publications will apply the following principle.
a) Common standards prepared by SC 17A and SC 17C will start with IEC 62271-1.
b) Standards of SC 17A will start with IEC 62271-100.
c) Standards of SC 17C will start with number IEC 62271-200.
d) Publications prepared by SC 17A and SC 17C will start with number IEC 62271-300.
The table below relates the new numbers to the old numbers. The parts numbered (xxx) will
be given a final number pending the decision to publish the revised publication as standard or
technical report.
62271-102 © IEC:2003 – 19 –
Common numbering of IEC 62271 publications falling under the responsibility
of subcommittees SC 17A and SC 17C
IEC 62271 HIGH-VOLTAGE SWITCHGEAR AND CONTROLGEAR – Old IEC number,
series if any
Part New title
1 Common specifications IEC 60694
2 Seismic qualification for rated voltages of 72,5 kV and above -
100 High-voltage alternating current circuit-breakers IEC 60056
101 Synthetic testing IEC 60427
102 High-voltage alternating current disconnectors and earthing switches IEC 60129
103 Switches for rated voltages above 1 kV and less than 52 kV IEC 60265-1
104 Switches for rated voltages of 52 kV and above IEC 60265-2
105 Alternating current switch-fuse combinations IEC 60420
106 Alternating current contactors and contactor-based motor-starters IEC 60470
107 Alternating current switchgear-fuse combinations -
108 Switchgear having combined functions -
109 Series capacitor by-pass switches -
200 AC metal-enclosed switchgear and controlgear for rated voltages above 1 kV IEC 60298
and up to and including 52 kV
201 Insulation-enclosed switchgear and controlgear for rated voltages up to and IEC 60466
including 52 kV
202 High-voltage/low-voltage prefabricated substations IEC 61330
203 Gas-insulated metal-enclosed switchgear for rated voltages above 52 kV IEC 60517
204 High-voltage gas-insulated transmission lines for rated voltages of 72,5 kV and IEC 61640
above
(300) Guide for seismic qualification of high-voltage alternating current circuit- IEC 61166
breakers
(301) Guide for inductive load switching IEC 61233
(302) Guide for short-circuit and switching test procedures for metal-enclosed and IEC 61633
dead tank circuit-breakers
(303) Use and handling of sulphur hexafluoride (SF ) in high-voltage switchgear and IEC 61634
controlgear
(304) Additional requirements for enclosed switchgear and controlgear from 1 kV to IEC 60932
72,5 kV to be used in severe climatic conditions
(305) Cable connections for gas-insulated metal-enclosed switchgear for rated IEC 60859
voltages above 52 kV
(306) Direct connection between power transformers and gas-insulated metal- IEC 61639
enclosed switchgear for rated voltages above 52 kV
(307) Use of electronic and associated technologies in auxiliary equipment of IEC 62063
switchgear and controlgear
308 Guide for asymmetrical short-circuit breaking test duty T100a –
309 TRV parameters for high-voltage switchgear and controlgear for rated voltages -
above 1 kV and less than 100 kV
310 Electrical endurance testing for circuit-breakers rated 72,5 kV and above -

62271-102 © IEC:2003 – 21 –
HIGH-VOLTAGE SWITCHGEAR AND CONTROLGEAR –
Part 102: Alternating current disconnectors and earthing switches
1 General
1.1 Scope
This part of IEC 62271 applies to alternating current disconnectors and earthing switches,
designed for indoor and outdoor enclosed and open terminal installations for voltages above
1 000 V and for service frequencies up to and including 60 Hz.
It also applies to the operating devices of these disconnectors and earthing switches and their
auxiliary equipment.
Additional requirements for disconnectors and earthing switches in enclosed switchgear and
controlgear are given in IEC 60298, IEC 60466 and IEC 60517.
NOTE Disconnectors in which the fuse forms an integral part are not covered by this standard.
1.2 Normative references
Subclause 1.2 of IEC 60694 is applicable with the following additions:
IEC 60137:1995, Insulating bushings for alternating voltages above 1 000 V
IEC 60265-1:1998, High-voltage switches – Part 1: Switches for rated voltages above 1 kV
and less than 52 kV
IEC 60265-2:1988, High-voltage switches – Part 2: High-voltage switches for rated voltages of
52 kV and above
IEC 60298:1990, A.C. metal-enclosed switchgear and controlgear for rated voltages above
1 kV and up to and including 52 kV
IEC 60466:1987, A.C. insulation-enclosed switchgear and controlgear for rated voltages
above 1 kV and up to and including 38 kV
IEC 60517:1990, Gas-insulated metal-enclosed switchgear for rated voltages of 72,5 kV and
above
IEC 60694:1996, Common specifications for high-voltage switchgear and controlgear
standards
IEC 60865-1:1993, Short-circuit currents – Calculation of effects – Part 1: Definitions and
calculation methods
ISO 2768-1:1989, General tolerances – Part 1: Tolerances for linear and angular dimensions
without individual tolerance indications

62271-102 © IEC:2003 – 23 –
2 Normal and special service conditions
Clause 2 of IEC 60694 is applicable.
3 Definitions
Clause 3 of IEC 60694 is applicable with the following additions:
This clause covers required definitions, most of them by reference to IEC 60050(151),
IEC 60050(441) and IEC 60050(604).
3.1 General terms
3.1.101
indoor switchgear and controlgear
[IEV 441-11-04]
3.1.10
...
