EN 61158-5-19:2012

SLOVENSKI STANDARD
01-september-2012
1DGRPHãþD
SIST EN 61158-5-19:2008
Industrijska komunikacijska omrežja - Specifikacije za procesno vodilo - 5-19. del:
Definicija opravil na aplikacijskem nivoju - Elementi tipa 19 (IEC 61158-5-19:2010
Industrial communication networks - Fieldbus specifications - Part 5-19: Application layer
service definition - Type 19 elements (IEC 61158-5-19:2010)
Industrielle Kommunikationsnetze - Feldbusse - Teil 5-19: Dienstfestlegungen des
Application Layer (Anwendungsschicht) - Typ 19-Elemente (IEC 61158-5-19:2010
Réseaux de communication industriels - Spécifications des bus de terrain - Partie 5-19:
Définition des services des couches d'application - Eléments de type 19 (CEI 61158-5-
19:2010
Ta slovenski standard je istoveten z: EN 61158-5-19:2012
ICS:
25.040.40 Merjenje in krmiljenje Industrial process
industrijskih postopkov measurement and control
35.100.70 Uporabniški sloj Application layer
35.110 Omreževanje Networking
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN 61158-5-19
NORME EUROPÉENNE
June 2012
EUROPÄISCHE NORM
ICS 25.040.40; 35.100.70; 35.110 Supersedes EN 61158-5-19:2008

English version
Industrial communication networks -
Fieldbus specifications -
Part 5-19: Application layer service definition -
Type 19 elements
(IEC 61158-5-19:2010)
Réseaux de communication industriels -  Industrielle Kommunikationsnetze -
Spécifications des bus de terrain - Feldbusse -
Partie 5-19: Définition des services des Teil 5-19: Dienstfestlegungen des
couches d'application - Application Layer (Anwendungsschicht) -
Eléments de type 19 Typ 19-Elemente
(CEI 61158-5-19:2010) (IEC 61158-5-19:2010)

This European Standard was approved by CENELEC on 2012-03-28. CENELEC members are bound to comply
with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard
the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the CEN-CENELEC Management Centre or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and notified
to the CEN-CENELEC Management Centre has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus,
the Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy,
Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia,
Spain, Sweden, Switzerland, Turkey and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Management Centre: Avenue Marnix 17, B - 1000 Brussels

© 2012 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 61158-5-19:2012 E

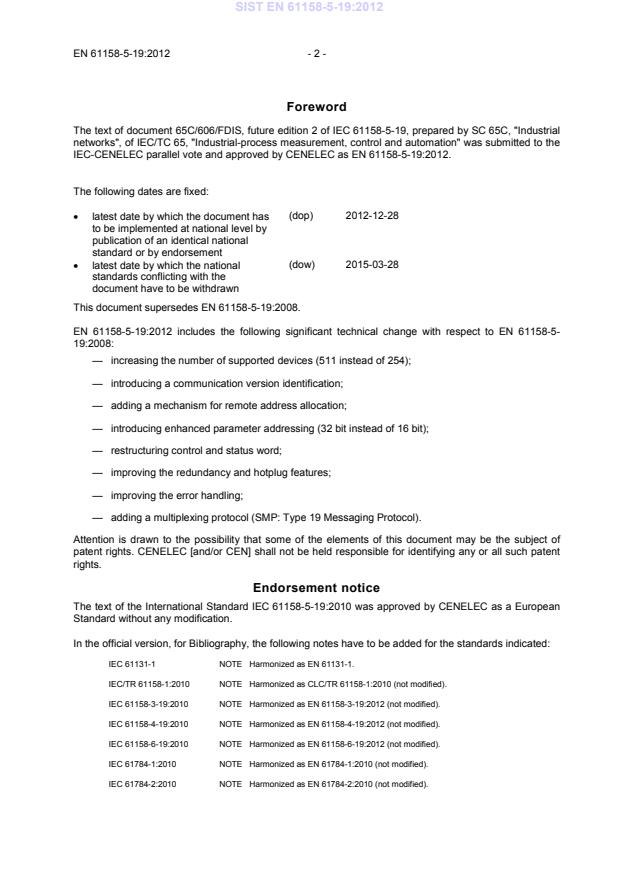

Foreword
The text of document 65C/606/FDIS, future edition 2 of IEC 61158-5-19, prepared by SC 65C, "Industrial
networks", of IEC/TC 65, "Industrial-process measurement, control and automation" was submitted to the
IEC-CENELEC parallel vote and approved by CENELEC as EN 61158-5-19:2012.

The following dates are fixed:
(dop) 2012-12-28
• latest date by which the document has
to be implemented at national level by
publication of an identical national
standard or by endorsement
• latest date by which the national (dow) 2015-03-28

standards conflicting with the
document have to be withdrawn
This document supersedes EN 61158-5-19:2008.
19:2008:
— increasing the number of supported devices (511 instead of 254);
— introducing a communication version identification;
— adding a mechanism for remote address allocation;
— introducing enhanced parameter addressing (32 bit instead of 16 bit);
— restructuring control and status word;
— improving the redundancy and hotplug features;
— improving the error handling;
— adding a multiplexing protocol (SMP: Type 19 Messaging Protocol).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such patent
rights.
Endorsement notice
The text of the International Standard IEC 61158-5-19:2010 was approved by CENELEC as a European
Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standards indicated:
IEC 61131-1 NOTE  Harmonized as EN 61131-1.
IEC/TR 61158-1:2010 NOTE  Harmonized as CLC/TR 61158-1:2010 (not modified).
IEC 61158-3-19:2010 NOTE  Harmonized as EN 61158-3-19:2012 (not modified).
IEC 61158-4-19:2010 NOTE  Harmonized as EN 61158-4-19:2012 (not modified).
IEC 61158-6-19:2010 NOTE  Harmonized as EN 61158-6-19:2012 (not modified).
IEC 61784-1:2010 NOTE  Harmonized as EN 61784-1:2010 (not modified).
IEC 61784-2:2010 NOTE  Harmonized as EN 61784-2:2010 (not modified).

- 3 - EN 61158-5-19:2012
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications

The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.

NOTE  When an international publication has been modified by common modifications, indicated by (mod), the relevant EN/HD
applies.
Publication Year Title EN/HD Year

IEC 60559 - Binary floating-point arithmetic for HD 592 S1 -
microprocessor systems
IEC 61131-3 - Programmable controllers - EN 61131-3 -
Part 3: Programming languages
IEC 61158-3-16 2007 Industrial communication networks - Fieldbus EN 61158-3-16 2008
specifications -
Part 3-16: Data-link layer service definition -
Type 16 elements
ISO/IEC 7498-1 - Information technology - Open Systems - -
Interconnection - Basic Reference Model:
The Basic Model
ISO/IEC 8822 - Information technology - Open Systems - -
Interconnection - Presentation service
definition
ISO/IEC 8824 - Information technology - Open Systems - -
Interconnection - Specification of Abstract
Syntax Notation One (ASN.1)
ISO/IEC 9545 - Information technology - Open Systems - -
Interconnection - Application Layer structure

ISO/IEC 10646-1 - Information technology - Universal Multiple-- -
Octet Coded Character Set (UCS) -
Part 1: Architecture and Basic Multilingual
Plane
ISO/IEC 10731 - Information technology - Open Systems - -
Interconnection - Basic reference model -
Conventions for the definition of OSI services

IEC 61158-5-19 ®
Edition 2.0 2010-08
INTERNATIONAL
STANDARD
Industrial communication networks – Fieldbus specifications –
Part 5-19: Application layer service definition – Type 19 elements

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
PRICE CODE
V
ICS 25.04.40; 35.100.70; 35.110 ISBN 978-2-88912-112-0
– 2 – 61158-5-19 © IEC:2010(E)
CONTENTS
FOREWORD.4
INTRODUCTION.6
1 Scope.7
1.1 Overview .7
1.2 Specifications.8
1.3 Conformance.8
2 Normative references .8
3 Terms, definitions, abbreviations, symbols and conventions .9
3.1 ISO/IEC 7498-1 terms .9
3.2 ISO/IEC 8822 terms .9
3.3 ISO/IEC 9545 terms .9
3.4 ISO/IEC 8824 terms .9
3.5 Fieldbus application-layer specific definitions .9
3.6 Abbreviations and symbols.11
3.7 Conventions .11
4 Concepts .14
5 Data type ASE.14
5.1 Bitstring types .15
5.2 Unsigned types .15
5.3 Integer types .16
5.4 Floating Point types.17
5.5 Structure types .17
6 Communication model specification.17
6.1 Concepts.17
6.2 ASEs.18
6.3 ARs .30
6.4 Summary of AR classes .31
6.5 Permitted FAL services by AREP role.32

Bibliography.33

Table 1 – Read service parameters.19
Table 2 – Write service parameters.20
Table 3 – Read service parameters.22
Table 4 – Write service parameters.22
Table 5 – Notify service parameters.23
Table 6 – Get network status service parameters.24
Table 7 – Get device status service parameters.25
Table 8 – Network status change report service parameters .25
Table 9 – Station status change report service parameters .26
Table 10 – Set device status service parameters .26
Table 11 – Enable RTC service parameters .27
Table 12 – Enable hotplug service parameters.28
Table 13 – Notify RTC service parameters.29

61158-5-19 © IEC:2010(E) – 3 –
Table 14 – Disable RTC service parameters .29
Table 15 – AREP (SVC) class summary.31
Table 16 – AREP (RTC-MS) class summary .31
Table 17 – AREP (RTC-CC) class summary.32
Table 18 – FAL services by AR type .32

– 4 – 61158-5-19 © IEC:2010(E)
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
INDUSTRIAL COMMUNICATION NETWORKS –
FIELDBUS SPECIFICATIONS –
Part 5-19: Application layer service definition –
Type 19 elements
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
NOTE 1 Use of some of the associated protocol types is restricted by their intellectual-property-right holders. In
all cases, the commitment to limited release of intellectual-property-rights made by the holders of those rights
permits a particular data-link layer protocol type to be used with physical layer and application layer protocols in
type combinations as specified explicitly in the profile parts. Use of the various protocol types in other
combinations may require permission of their respective intellectual-property-right holders.
International Standard IEC 61158-5-19 has been prepared by subcommittee 65C: Industrial
networks, of IEC technical committee 65: Industrial-process measurement, control and
automation.
This second edition cancels and replaces the first edition published in 2007. This edition
constitutes a technical revision.
The main changes with respect to the previous edition are listed below:
• increasing the number of supported devices (511 instead of 254);

61158-5-19 © IEC:2010(E) – 5 –
• introducing a communication version identification;
• adding a mechanism for remote address allocation;
• introducing enhanced parameter addressing (32 bit instead of 16 bit);
• restructuring control and status word;
• improving the redundancy and hotplug features;
• improving the error handling;
• adding a multiplexing protocol (SMP: Type 19 Messaging Protocol).
The text of this standard is based on the following documents:
FDIS Report on voting
65C/606/FDIS 65C/620/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with ISO/IEC Directives, Part 2.
A list of all parts of the IEC 61158 series, published under the general title Industrial
communication networks – Fieldbus specifications, can be found on the IEC web site.
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed;
• withdrawn;
• replaced by a revised edition, or
• amended.
NOTE 2 The revision of this standard will be synchronized with the other parts of the IEC 61158 series.

– 6 – 61158-5-19 © IEC:2010(E)
INTRODUCTION
This part of IEC 61158 is one of a series produced to facilitate the interconnection of
automation system components. It is related to other standards in the set as defined by the
“three-layer” fieldbus reference model described in IEC/TR 61158-1.
The application service is provided by the application protocol making use of the services
available from the data-link or other immediately lower layer. This standard defines the
application service characteristics that fieldbus applications and/or system management may
exploit.
Throughout the set of fieldbus standards, the term “service” refers to the abstract capability
provided by one layer of the OSI Basic Reference Model to the layer immediately above.
Thus, the application layer service defined in this standard is a conceptual architectural
service, independent of administrative and implementation divisions.

61158-5-19 © IEC:2010(E) – 7 –
INDUSTRIAL COMMUNICATION NETWORKS –
FIELDBUS SPECIFICATIONS –
Part 5-19: Application layer service definition –
Type 19 elements
1 Scope
1.1 Overview
The fieldbus application layer (FAL) provides user programs with a means to access the
fieldbus communication environment. In this respect, the FAL can be viewed as a “window
between corresponding application programs.”
This standard provides common elements for basic time-critical and non-time-critical
messaging communications between application programs in an automation environment and
material specific to Type 19 fieldbus. The term “time-critical” is used to represent the
presence of a time-window, within which one or more specified actions are required to be
completed with some defined level of certainty. Failure to complete specified actions within
the time window risks failure of the applications requesting the actions, with attendant risk to
equipment, plant and possibly human life.
This standard defines in an abstract way the externally visible service provided by the fieldbus
application layer in terms of
a) an abstract model for defining application resources (objects) capable of being
manipulated by users via the use of the FAL service,
b) the primitive actions and events of the service;
c) the parameters associated with each primitive action and event, and the form which they
take; and
d) the interrelationship between these actions and events, and their valid sequences.
The purpose of this standard is to define the services provided to
a) the FAL user at the boundary between the user and the application layer of the fieldbus
reference model, and
b) Systems Management at the boundary between the application layer and Systems
Management of the fieldbus reference model.
This standard specifies the structure and services of the fieldbus application layer, in
conformance with the OSI Basic Reference Model (ISO/IEC 7498) and the OSI application
layer structure (ISO/IEC 9545).
FAL services and protocols are provided by FAL application-entities (AE) contained within the
application processes. The FAL AE is composed of a set of object-oriented application service
elements (ASEs) and a layer management entity (LME) that manages the AE. The ASEs
provide communication services that operate on a set of related application process object
(APO) classes. One of the FAL ASEs is a management ASE that provides a common set of
services for the management of the instances of FAL classes.
Although these services specify, from the perspective of applications, how request and
responses are issued and delivered, they do not include a specification of what the requesting
and responding applications are to do with them. That is, the behavioral aspects of the
applications are not specified; only a definition of what requests and responses they can

– 8 – 61158-5-19 © IEC:2010(E)
send/receive is specified. This permits greater flexibility to the FAL users in standardizing
such object behavior. In addition to these services, some supporting services are also defined
in this standard to provide access to the FAL to control certain aspects of its operation.
1.2 Specifications
The principal objective of this standard is to specify the characteristics of conceptual
application layer services suitable for time-critical communications, and thus supplement the
OSI Basic Reference Model in guiding the development of application layer protocols for time-
critical communications.
A secondary objective is to provide migration paths from previously-existing industrial
communications protocols. It is this latter objective which gives rise to the diversity of services
standardized as the various Types of IEC 61158, and the corresponding protocols
standardized in subparts of IEC 61158-6.
This specification may be used as the basis for formal application programming interfaces.
Nevertheless, it is not a formal programming interface, and any such interface will need to
address implementation issues not covered by this specification, including
a) the sizes and octet ordering of various multi-octet service parameters, and
b) the correlation of paired request and confirm, or indication and response, primitives.
1.3 Conformance
This standard does not specify individual implementations or products, nor does it constrain
the implementations of application layer entities within industrial automation systems.
There is no conformance of equipment to this application layer service definition standard.
Instead, conformance is achieved through implementation of conforming application layer
protocols that fulfill the application layer services as defined in this standard.
2 Normative references
The following referenced documents are indispensable for the application of this document.
For dated references, only the edition cited applies. For undated references, the latest edition
of the referenced document (including any amendments) applies.
IEC 60559, Binary floating-point arithmetic for microprocessor systems
IEC 61131-3, Programmable controllers – Part 3: Programming languages
IEC 61158-3-16:2007, Industrial communication networks – Fieldbus specifications – Part 3-
16: Data-link layer service definition – Type 16 elements
ISO/IEC 7498-1, Information technology – Open Systems Interconnection – Basic Reference
Model: The Basic Model
ISO/IEC 8822, Information technology – Open Systems Interconnection – Presentation
service definition
ISO/IEC 8824, Information Technology – Open Systems Interconnection – Specification of
Abstract Syntax Notation One (ASN.1)
ISO/IEC 9545, Information technology – Open Systems Interconnection – Application Layer
structure
61158-5-19 © IEC:2010(E) – 9 –
ISO/IEC 10646-1, Information technology – Universal Multiple-Octet Coded Character Set
(UCS) – Architecture and Basic Multilingual Plane
ISO/IEC 10731, Information technology – Open Systems Interconnection – Basic Reference
Model – Conventions for the definition of OSI services
3 Terms, definitions, abbreviations, symbols and conventions
For the purposes of this document, the following terms as defined in these publications apply:
3.1 ISO/IEC 7498-1 terms
a) application entity
b) application process
c) application protocol data unit
d) application service element
e) application entity invocation
f) application process invocation
g) application transaction
h) real open system
i) transfer syntax
3.2 ISO/IEC 8822 terms
a) abstract syntax
b) presentation context
3.3 ISO/IEC 9545 terms
a) application-association
b) application-context
c) application context name
d) application-entity-invocation
e) application-entity-type
f) application-process-invocation
g) application-process-type
h) application-service-element
i) application control service element
3.4 ISO/IEC 8824 terms
a) object identifier
b) type
3.5 Fieldbus application-layer specific definitions
3.5.1
coded character set; code
set of unambiguous rules that establish a character set and one-to-one relationship between
the characters of the set and their representation by one or more bit combinations
3.5.2
cross communication
direct data transfer between slave devices (without active involvement of master)

– 10 – 61158-5-19 © IEC:2010(E)
3.5.3
cycle time
duration of a communication cycle
3.5.4
cyclic data
part of a telegram, which does not change its meaning during cyclic operation of the network
3.5.5
device
a slave in the communication network, (e.g., a power drive system as defined in the
IEC 61800 standard family, I/O stations as defined in the IEC 61131 standard family).
3.5.6
device status
four adjacent octets inside the acknowledge telegram containing status information for each
device
3.5.7
element
part of IDNs – each IDN has 7 elements, whereas each one has a specific meaning (e.g.,
number, name, data)
3.5.8
hot plug
possibility to open the communication network and insert or remove slaves while the network
is still in real-time operation
3.5.9
identification number
designation of operating data under which a data block is preserved with its attribute, name,
unit, minimum and maximum input values, and the data
3.5.10
loopback
mode by which a device passes on a received telegram to the same port and to the other port,
either changed or unchanged
3.5.11
master
node, which assigns the other nodes (i.e., slaves) the right to transmit
3.5.12
physical layer
first layer of the ISO-OSI reference model
3.5.13
protocol
convention about the data formats, time sequences, and error correction in the data exchange
of communication systems
3.5.14
service channel
SVC
non real-time transmission of information upon master request during RT channel

61158-5-19 © IEC:2010(E) – 11 –
3.5.15
slave
node, which is assigned the right to transmit by the master
3.5.16
station
node
3.5.17
topology
physical network architecture with respect to the connection between the stations of the
communication system
3.6 Abbreviations and symbols
AHS Service transport handshake of the device (acknowledge HS)
AP Application Process
APO Application Object
AR Application Relationship
AREP Application Relationship End Point
ASE Application Service Element
CC-data Cross Communication
Cnf Confirmation
DA Destination address
DAT Duration of acknowledge telegram
FAL Fieldbus Application Layer
ID Identification Number
IDN Identification Number
Ind Indication
MS Master Slave
NRC Non Real Time Channel
Req Request
Rsp Response
RTC Real Time Channel
RTE Real Time Ethernet
3.7 Conventions
3.7.1 Overview
The FAL is defined as a set of object-oriented ASEs. Each ASE is specified in a separate
subclause. Each ASE specification is composed of two parts, its class specification, and its
service specification.
The class specification defines the attributes of the class. The attributes are accessible from
instances of the class using the Object Management ASE services specified in Clause 5 of
this standard. The service specification defines the services that are provided by the ASE.
3.7.2 General conventions
This standard uses the descriptive conventions given in ISO/IEC 10731.

– 12 – 61158-5-19 © IEC:2010(E)
3.7.3 Conventions for class definitions
Class definitions are described using templates. Each template consists of a list of attributes
for the class. The general form of the template is shown below:
FAL ASE: ASE Name
CLASS:  Class name
CLASS ID: #
PARENT CLASS: Parent class name
ATTRIBUTES:
1 (o) Key Attribute: numeric identifier
2 (o) Key Attribute: name
3 (m) Attribute: attribute name(values)
4 (m) Attribute: attribute name(values)
4.1 (s) Attribute: attribute name(values)
4.2 (s) Attribute: attribute name(values)
4.3 (s) Attribute: attribute name(values)
5. (c) Constraint: constraint expression
5.1 (m) Attribute: attribute name(values)
5.2 (o) Attribute: attribute name(values)
6 (m) Attribute: attribute name(values)
6.1 (s) Attribute: attribute name(values)
6.2 (s) Attribute: attribute name(values)
SERVICES:
1 (o) OpsService: service name
2. (c) Constraint: constraint expression
2.1 (o) OpsService: service name
3 (m) MgtService: service name

(1) The "FAL ASE:" entry is the name of the FAL ASE that provides the services for the class
being specified.
(2) The "CLASS:" entry is the name of the class being specified. All objects defined using this
template will be an instance of this class. The class may be specified by this standard, or
by a user of this standard.
(3) The "CLASS ID:" entry is a number that identifies the class being specified. This number is
unique within the FAL ASE that will provide the services for this class. When qualified by
the identity of its FAL ASE, it unambiguously identifies the class within the scope of the
FAL. The value "NULL" indicates that the class cannot be instantiated. Class IDs between
1 and 255 are reserved by this standard to identify standardized classes. They have been
assigned to maintain compatibility with existing national standards. CLASS IDs between
256 and 2048 are allocated for identifying user defined classes.
(4) The "PARENT CLASS:" entry is the name of the parent class for the class being specified.
All attributes defined for the parent class and inherited by it are inherited for the class
being defined, and therefore do not have to be redefined in the template for this class.
NOTE The parent-class "TOP" indicates that the class being defined is an initial class definition. The parent class
TOP is used as a starting point from which all other classes are defined. The use of TOP is reserved for classes
defined by this standard.
(5) The "ATTRIBUTES" label indicate that the following entries are attributes defined for the
class.
a) Each of the attribute entries contains a line number in column 1, a mandatory (m) /
optional (o) / conditional (c) / selector (s) indicator in column 2, an attribute type label
in column 3, a name or a conditional expression in column 4, and optionally a list of
enumerated values in column 5. In the column following the list of values, the default
value for the attribute may be specified.

61158-5-19 © IEC:2010(E) – 13 –
b) Objects are normally identified by a numeric identifier or by an object name, or by
both. In the class templates, these key attributes are defined under the key attribute.
c) The line number defines the sequence and the level of nesting of the line. Each
nesting level is identified by period. Nesting is used to specify
i) fields of a structured attribute (4.1, 4.2, 4.3),
ii) attributes conditional on a constraint statement (5). Attributes may be mandatory
(5.1) or optional (5.2) if the constraint is true. Not all optional attributes require
constraint statements as does the attribute defined in (5.2).
iii) the selection fields of a choice type attribute (6.1 and 6.2).
(6) The "SERVICES" label indicates that the following entries are services defined for the
class.
a) An (m) in column 2 indicates that the service is mandatory for the class, while an (o)
indicates that it is optional. A (c) in this column indicates that the service is conditional.
When all services defined for a class are defined as optional, at least one has to be
selected when an instance of the class is defined.
b) The label "OpsService" designates an operational service (1).
c) The label "MgtService" designates an management service (2).
d) The line number defines the sequence and the level of nesting of the line. Each
nesting level is identified by period. Nesting within the list of services is used to specify
services conditional on a constraint statement.
3.7.4 Conventions for service definitions
3.7.4.1 General
The service model, service primitives, and time-sequence diagrams used are entirely abstract
descriptions; they do not represent a specification for implementation.
3.7.4.2 Service parameters
Service primitives are used to represent service user/service provider interactions
(ISO/IEC 10731). They convey parameters which indicate information available in the
user/provider interaction. In any particular interface, not all parameters need be explicitly
stated.
The service specifications of this standard uses a tabular format to describe the component
parameters of the ASE service primitives. The parameters which apply to each group of
service primitives are set out in tables. Each table consists of up to five columns for the
1) Parameter name,
2) request primitive,
3) indication primitive,
4) response primitive, and
5) confirm primitive.
One parameter (or component of it) is listed in each row of each table. Under the appropriate
service primitive columns, a code is used to specify the type of usage of the parameter on the
primitive specified in the column:
M parameter is mandatory for the primitive
U parameter is a User option, and may or may not be provided depending on dynamic
usage of the service user. When not provided, a default value for the parameter is
assumed.
C parameter is conditional upon other parameters or upon the environment of the service
user.
– 14 – 61158-5-19 © IEC:2010(E)
— (blank) parameter is never present.
S parameter is a selected item.
Some entries are further qualified by items in brackets. These may be
a) a parameter-specific constraint:
“(=)” indicates that the parameter is semantically equivalent to the parameter in the
service primitive to its immediate left in the table.
b) an indication that some note applies to the entry:
“(n)” indicates that the following note "n" contains additional information pertaining to
the parameter and its use.
3.7.4.3 Service procedures
The procedures are defined in terms of
• the interactions between application entities through the exchange of fieldbus Application
Protocol Data Units, and
• the interactions between an application layer service provider and an application layer
service user in the same system through the invocation of application layer service
primitives.
These procedures are applicable to instances of communication between systems which
support time-constrained communications services within the fieldbus application layer.
4 Concepts
The common concepts and templates used to describe the application layer service in this
standard are detailed in IEC/TR 61158-1, Clause 9.
5 Data type ASE
Data types as specified in IEC/TR 61158-1, Clause 9 is applied with the following restrictions:
Only nesting level of 1 is supported.
Only the following basic data types are supported:
BitString8
BitString16
BitString32
BitString64
Unsigned16
Unsigned32
Unsigned64
Integer16
Integer32
Integer64
VisibleString1
Float32
Float64
61158-5-19 © IEC:2010(E) – 15 –
5.1 Bitstring types
5.1.1 BitString8
CLASS:  Data type
ATTRIBUTES:
1 Data type Numeric Identifier = 22
2 Data type Name = Bitstring8
3 Format = FIXED LENGTH
5.1 Octet Length = 1
This type contains 1 element of type BitString.
5.1.2 BitString16
CLASS:  Data type
ATTRIBUTES:
1 Data type Numeric Identifier = 23
2 Data type Name = Bitstring16
3 Format = FIXED LENGTH
5.1 Octet Length = 2
This type is a BitString16 and has a length of two octets.
5.1.3 BitString32
CLASS:  Data type
ATTRIBUTES:
1 Data type Numeric Identifier = 24
2 Data type Name = Bitstring32
3 Format = FIXED LENGTH
5.1 Octet Length = 4
This type is a BitString16 and has a length of four octets.
5.1.4 BitString64
CLASS:  Data type
ATTRIBUTES:
1 Data type Numeric Identifier = 57
2 Data type Name = Bitstring64
3 Format = FIXED LENGTH
5.1 Octet Length = 8
This type is a BitString16 and has a length of eight octets.
5.2 Unsigned types
5.2.1 Unsigned16
CLASS:  Data type
ATTRIBUTES:
1 Data type Numeric Identifier = 6
2 Data type Name = Unsigned16
3 Format = FIXED LENGTH
4.1 Octet Length = 2
This type is a binary number. The most significant bit of the most significant octet is always
used as the most significant bit of the binary number; no sign bit is included. This unsigned
type has a length of two octets.

– 16 – 61158-5-19 © IEC:2010(E)
5.2.2 Unsigned32
CLASS:  Data type
ATTRIBUTES:
1 Data type Numeric Identifier = 7
2 Data type Name = Unsigned32
3 Format = FIXED LENGTH
4.1 Octet Length = 4
This type is a binary number. The most significant bit of the most significant octet is always
used as the most significant bit of the binary number; no sign bit is included. This unsigned
type has a length of four octets.
5.2.3 Unsigned64
CLASS:  Data type
ATTRIBUTES:
1 Data type Numeric Identifier = 56
2 Data type Name = Unsigned64
3 Format = FIXED LENGTH
4.1 Octet Length = 8
This type is a binary number. The most significant bit of the most significant octet is always
used as the most significant bit of the binary number; no sign bit is included. This unsigned
type has a length of eight octets.
5.3 Integer types
5.3.1 Integer16
CLASS:  Data type
ATTRIBUTES:
1 Data type Numeric Identifier = 3
2 Data type Name = Integer16
3 Format = FIXED LENGTH
4.1 Octet Length = 2
This integer type is a two’s complement binary number with a length of two octets.
5.3.2 Integer32
CLASS:  Data type
ATTRIBUTES:
1 Data type Numeric Identifier = 4
2 Data type Name = Integer32
3 Format = FIXED LENGTH
4.1 Octet Length = 4
This integer type is a two’s complement binary number with a length of four octets.
5.3.3 Integer64
CLASS:  Data type
ATTRIBUTES:
1 Data type Numeric Identifier = 55
2 Data type Name = Integer64
3 Format = FIXED LENGTH
4.1 Octet Length = 8
This integer type is a two’s complement binary number with a length of eight octets.

61158-5-19 © IEC:2010(E) – 17 –
5.4 Floating Point types
5.4.1 Float32
CLASS:  Data type
ATTRIBUTES:
1 Data type Numeric Identifier = 8
2 Data type Name = Float32
4 Format = FIXED LENGTH
4.1 Octet Length = 4
This type has a length of four octets. The format for Float32 is that defined by IEC 60559 as
single precision.
5.4.2 Float64
CLASS:  Data type
ATTRIBUTES:
1 Data type Numeric Identifier = 15
2 Data type Name = Float64
3 Format = FIXED LENGTH
4.1 Octet Length = 8
This type has a length of eight octets. The format for Float64 is that defined by IEC 60559 as
double precision.
5.5 Structure types
5.5.1 STRING2
CLASS:  Data type
ATTRIBUTES:
1 Data type Numeric Identifier = not used
2 Data type Name = STRING2
3 Format = STRUCTURE
5.1 Number of Fields = 2
5.2.1 Field Name = Charcount_Element
5.2.2  Field Data type = UINT
5.3.1  Field Name = String2contents_Element
5.3.2  Field Data type = OctetString
This IEC 61131-3 data type extension is composed of two elements. Charcount_Element
gives the current number of characters in the String2contents_Element (one UINT per
character). Characters are as specified in ISO 10646.
6 Communication model specification
6.1 Concepts
6.1.1 Communication mechanisms
Two communication mechanisms are supported by devices within the network:
⎯ cyclic transmission of data in a high efficient manner using a publisher subscriber
model,
⎯ non cyclic transmission of data using a client server communication model.
AREPs, which act as push publisher or push subscriber, are used for cyclic transmission.
AREPs, which act as a client or server, are used for non cyclic data transmission.

– 18 – 61158-5-19 © IEC:2010(E)
6.1.2 IDN concept
The application data which is transmitted cyclically and non cyclically b
...
