EN 61076-3-104:2006

SLOVENSKI STANDARD
01-februar-2008
1DGRPHãþD
SIST EN 61076-3-104:2004
Konektorji za elektronsko opremo - Zahteve za izdelek - 3-104. del: Podrobna
specifikacija za 8-redne, zaslonjene proste in pritrjene konektorje za prenos
podatkov s frekvencami do 1000 MHz (IEC 61076-3-104:2006)
Connectors for electronic equipment - Product requirements - Part 3-104: Detail
specification for 8-way, shielded free and fixed connectors for data transmissions with
frequencies up to 1 000 MHz (IEC 61076-3-104:2006)
Steckverbinder für elektronische Einrichtungen - Produktanforderungen - Teil 3-104:
Bauartspezifikation für geschirmte freie und feste Steckverbinder, 8 polig, für
Datenübertragungen bis 1000 MHz (IEC 61076-3-104:2006)
Connecteurs pour équipements électroniques - Exigences de produit - Partie 3-104:
Spécification particuliere pour connecteurs blindés a 8 voies,socle et fiche, pour
transmissions de données, pour fréquences jusqu'a 1000 MHz (IEC 61076-3-104:2006)
Ta slovenski standard je istoveten z: EN 61076-3-104:2006
ICS:
31.220.10
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN 61076-3-104
NORME EUROPÉENNE
November 2006
EUROPÄISCHE NORM
ICS 31.220.10 Supersedes EN 61076-3-104:2003

English version
Connectors for electronic equipment -
Product requirements
Part 3-104: Detail specification for 8-way, shielded free
and fixed connectors for data transmissions
with frequencies up to 1 000 MHz
(IEC 61076-3-104:2006)
Connecteurs pour équipements Steckverbinder für elektronische
électroniques - Einrichtungen -
Exigences de produit Produktanforderungen
Partie 3-104: Spécification particulière Teil 3-104: Bauartspezifikation
pour connecteurs blindés a 8 voies , für geschirmte freie und
socle et fiche, pour transmissions feste Steckverbinder, 8polig,
de données, pour fréquences für Datenübertragungen
jusqu'à 1000 MHz bis 1000 MHz
(CEI 61076-3-104:2006) (IEC 61076-3-104:2006)

This European Standard was approved by CENELEC on 2006-10-01. CENELEC members are bound to comply
with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard
the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and notified
to the Central Secretariat has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Cyprus, the Czech
Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain,
Sweden, Switzerland and the United Kingdom.
CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Central Secretariat: rue de Stassart 35, B - 1050 Brussels

© 2006 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 61076-3-104:2006 E

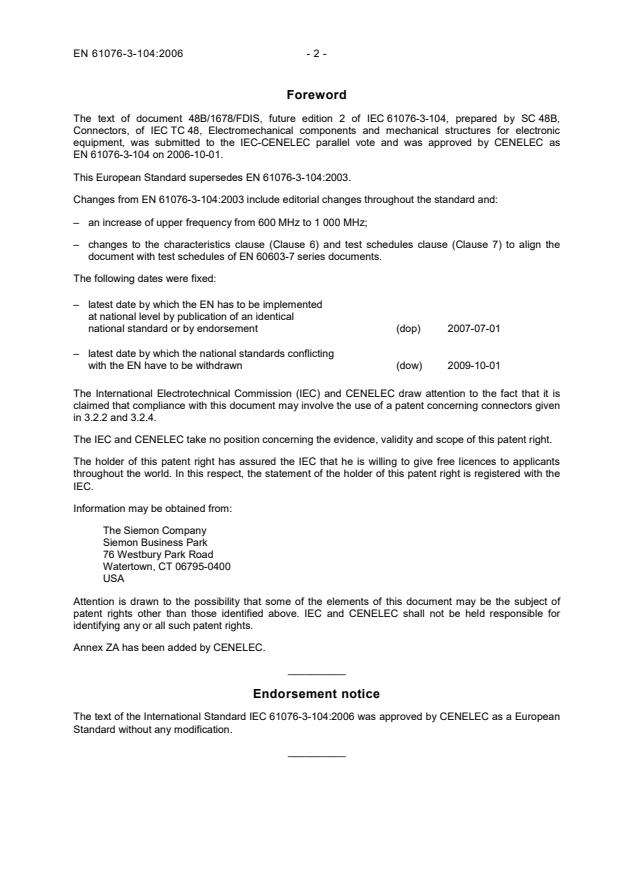

Foreword
The text of document 48B/1678/FDIS, future edition 2 of IEC 61076-3-104, prepared by SC 48B,
Connectors, of IEC TC 48, Electromechanical components and mechanical structures for electronic
equipment, was submitted to the IEC-CENELEC parallel vote and was approved by CENELEC as
EN 61076-3-104 on 2006-10-01.
This European Standard supersedes EN 61076-3-104:2003.
Changes from EN 61076-3-104:2003 include editorial changes throughout the standard and:
– an increase of upper frequency from 600 MHz to 1 000 MHz;
– changes to the characteristics clause (Clause 6) and test schedules clause (Clause 7) to align the
document with test schedules of EN 60603-7 series documents.
The following dates were fixed:
– latest date by which the EN has to be implemented
at national level by publication of an identical
national standard or by endorsement (dop) 2007-07-01
– latest date by which the national standards conflicting
with the EN have to be withdrawn (dow) 2009-10-01
The International Electrotechnical Commission (IEC) and CENELEC draw attention to the fact that it is
claimed that compliance with this document may involve the use of a patent concerning connectors given
in 3.2.2 and 3.2.4.
The IEC and CENELEC take no position concerning the evidence, validity and scope of this patent right.
The holder of this patent right has assured the IEC that he is willing to give free licences to applicants
throughout the world. In this respect, the statement of the holder of this patent right is registered with the
IEC.
Information may be obtained from:
The Siemon Company
Siemon Business Park
76 Westbury Park Road
Watertown, CT 06795-0400
USA
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights other than those identified above. IEC and CENELEC shall not be held responsible for
identifying any or all such patent rights.
Annex ZA has been added by CENELEC.
__________
Endorsement notice
The text of the International Standard IEC 61076-3-104:2006 was approved by CENELEC as a European
Standard without any modification.
__________
- 3 - EN 61076-3-104:2006
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications

The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.

NOTE  When an international publication has been modified by common modifications, indicated by (mod), the relevant EN/HD
applies.
Publication Year Title EN/HD Year

1)
IEC 60050-581 - International Electrotechnical Vocabulary - -
(IEV)
Chapter 581: Electromechanical components
for electronic equipment
1) 2)
IEC 60068-1 - Environmental testing EN 60068-1 1994
Part 1: General and guidance
1) 2)
IEC 60068-2-6 - Environmental testing EN 60068-2-6 1995
Part 2: Tests - Test Fc: Vibration (sinusoidal)

1)
IEC 60169-16 - Radio-frequency connectors - -
Part 16: R.F. coaxial connectors with inner
diameter of outer conductor 7 mm (0,276 in)
with screw coupling - Characteristic
impedance 50 ohms (75 ohms) (Type N)

IEC 60352 Series Solderless connections EN 60352 Series

IEC 60512 Series Connectors for electronic equipment - EN 60512 Series
Tests and measurements
1) 2)
IEC 60512-1-100 - Connectors for electronic equipment - EN 60512-1-100 2006
Tests and measurements
Part 1-100: General - Applicable publications

1) 2)
IEC 60603-7 - Connectors for frequencies below 3 MHz EN 60603-7 1997
for use with printed boards
Part 7: Detail specification for connectors,
8-way, including fixed and free connectors
with common mating features, with assessed
quality
IEC 61076-1 2006 Connectors for electronic equipment - EN 61076-1 2006
Product requirements
Part 1: Generic specification
1)
IEC 61156-2 - Milticore and symmetrical pair/quad cables - -
for digital communications
Part 2: Horizontal floor wiring - Sectional
specification
1)
Undated reference.
2)
Valid edition at date of issue.

Publication Year Title EN/HD Year
1)
IEC 61156-3 - Multicore and symmetrical pair/quad cables - -
for digital communications
Part 3: Work area wiring - Sectional
specification
1)
IEC 61156-4 - Multicore and symmetrical pair/quad cables - -
for digital communications
Part 4: Riser cables - Sectinal specification

1)
IEC 61156-5 - Multicore and symmetrical pair/quad cables - -
for digital communications
Part 5: Symmetrical pair/quad cables with
transmission characteristics up to 600 MHz -
Horizontal floor wiring - Sectional
specification
IEC 61196 Series Coaxial communication cables - -

1)
ISO/IEC 11801 - Information technology - Generic cabling for - -
customer premises
1)
- - Communication cables - Specifications for EN 50289-1-14 -
test methods
Part 1-14: Electrical test methods - Coupling
attenuation or screening attenuation of
connecting hardware
1) 2)
ISO 1302 - Geometrical Product Specifications (GPS) - EN ISO 1302 2002
Indication of surface texture in technical
product documentation
1)
ITU-T G.117 - Transmission aspects of unbalance about - -
earth
1)
ITU-T O.9 - Measuring arrangements to assess the - -
degree of unbalance about earth

INTERNATIONAL IEC
STANDARD 61076-3-104
Second edition
2006-07
Connectors for electronic equipment –
Product requirements –
Part 3-104:
Detail specification for 8-way, shielded free
and fixed connectors for data transmissions
with frequencies up to 1 000 MHz
 IEC 2006  Copyright - all rights reserved
No part of this publication may be reproduced or utilized in any form or by any means, electronic or
mechanical, including photocopying and microfilm, without permission in writing from the publisher.
International Electrotechnical Commission, 3, rue de Varembé, PO Box 131, CH-1211 Geneva 20, Switzerland
Telephone: +41 22 919 02 11 Telefax: +41 22 919 03 00 E-mail: inmail@iec.ch Web: www.iec.ch
PRICE CODE
Commission Electrotechnique Internationale XC
International Electrotechnical Commission
МеждународнаяЭлектротехническаяКомиссия
For price, see current catalogue

– 2 – 61076-3-104  IEC:2006(E)
CONTENTS
FOREWORD.5

1 General .7
1.1 Scope.7
1.2 Normative references .7
2 Technical information .8
2.1 Terminology .8
2.2 Groups of related connectors .9
2.3 Interchangeability level.9
2.4 IEC type designation .9
3 Isometric views and common features .10
3.1 General .10
3.2 Isometric views .11
4 Terminations .26
4.1 General .26
4.2 Referenced termination types .26
4.3 Accessories.27
4.4 Mounting information for fixed connectors .27
4.5 Mounting information for free connectors.27
5 Gauges .27
5.1 General .27
5.2 Fixed connector (outlet) gauges .28
5.3 Free connector (plug) gauges.31
5.4 Test panels .35
6 Characteristics .35
6.1 General .35
6.2 Pin and pair grouping assignment .35
6.3 Classification into climatic categories .36
6.4 Electrical characteristics.37
6.5 Transmission characteristics .39
6.6 Mechanical.41
7 Qualification approval test schedule .42
7.1 General .42
7.2 Test procedures and measuring methods .42
7.3 Preconditioning .42
7.4 Wiring and Mounting of Specimens.43
7.5 Contact resistance measurement arrangement procedure .43
7.6 Arrangement for dynamic stress tests (test phase CP1).44
7.7 Test schedules .44
8 Quality assessment procedures.51

Annex A (normative) Gauging requirements .52
Annex B (normative) Locking device mechanical operation.53
Annex C (normative) Plug and outlet interoperability qualification .54

Annex D (normative) General requirements for the measurement set-up .56

61076-3-104  IEC:2006(E) – 3 –
Annex E (normative) Insertion loss .61
Annex F (normative) Return loss .63
Annex G (normative) Near end cross talk (NEXT) .65
Annex H (normative) Far end cross talk (FEXT).68
Annex I (normative) Transfer impedance .71
Annex J (normative) Transverse Conversion Loss (TCL) and Transverse Conversion
Transfer Loss (TCTL) .78
Annex K (normative) Termination of balun .81

Figure 1 – Isometric view of cable and PCB fixed connectors.11
Figure 2 – Isometric view of 4, 2 and 1 pair free connectors.11
Figure 3 – Variant 01 drawing 1 .12
Figure 4 – Variant 01 drawing 2 .14
Figure 5 – Variant 02 drawing .15
Figure 6 – Variant 03 drawing 1 .16
Figure 7 – Variant 03 drawing 2 .18
Figure 8 – Variant 03 drawing 3 .19
Figure 9 – Variant 04 drawing 1 .20
Figure 10 – Variant 04 drawing 2 .21
Figure 11 – Variant 05 drawing 1 .22
Figure 12 – Variant 05 drawing 2 .24
Figure 13 – Variant 05 drawing 3 .25
Figure 14 – Fixed connector location "Go" gauge.28
Figure 15 – Fixed connector location "No-Go" gauge .28
Figure 16 – Fixed connector size "Go" gauge.29
Figure 17 – Fixed connector size "No-Go" gauge .30
Figure 18 – Free connector location "Go" gauge .31
Figure 19 – Free connector location "No-Go" gauge .31
Figure 20 – Free connector size "Go" gauge .32
Figure 21 – Free connector size "No-Go" gauge .33
Figure 22 – Fixed connector panel .35
Figure 23 – Isometric views fixed connector.36
Figure 24 – Isometric views free connector 4 pair .36
Figure 25 – Connector de-rating curve .38
Figure 26 – Arrangement for contact resiestance test .43
Figure 27 – Arrangement for dynamic stress .44
Figure C.1 – Precision test fixtures (covers).54
Figure D.1 – 180° hybrid used as a balun .57
Figure D.2 – Calibration of reference loads.58
Figure D.3 – Resistor load .59
Figure D.4 – Definition of reference planes .60
Figure E.1 – Calibration .61
Figure E.2 – Measuring set-up .62

– 4 – 61076-3-104  IEC:2006(E)
Figure G.1 – NEXT measurement differential mode only terminations .65
Figure G.2 – NEXT measurement differential and common mode terminations.66
Figure H.1 – FEXT measurement differential mode only terminations.68
Figure H.2 – FEXT measurement differential and common mode terminations .69
Figure I.1 – Preparation of test specimen.72
Figure I.2 – Triaxial test set-up .73
Figure I.3 – Impedance matching for R < 50 Ω .74
Figure I.4 – Impedance matching for R > 50 Ω .75
Figure J.1 – TCL measurement.78
Figure J.2 – TCTL measurement.79
Figure K.1 – Balanced attenuator for balun centre tap grounded.81
Figure K.2 – Balanced attenuator for balun centre tap open.81

Table 1 – Variant 01 drawing 1 dimensions.13
Table 2 – Variant 01 drawing 2 dimensions.14
Table 3 – Variant 02 drawing dimensions.15
Table 4 – Variant 03 drawing 1 dimensions.17
Table 5 – Variant 03 drawing 2 dimensions.18
Table 6 – Variant 03 drawing 3 dimensions.19
Table 7 – Variant 04 drawing 1 dimensions.21
Table 8 – Variant 04 drawing 2 dimensions.22
Table 9 – Variant 05 drawing 1 dimensions.23
Table 10 – Variant 05 drawing 2 dimensions .24
Table 11 – Variant 05 drawing 3 dimensions .25
Table 12 – Fixed connector (outlet) gauge dimensions.30
Table 13 – Free connector (plug) gauge dimensions .34
Table 14 – Fixed connector panel dimensions.35
Table 15 – Climatic categories – selected values.37
Table 16 – Creepage and clearance distances.37
Table 17 – Test group P .45
Table 18 – Test group AP .46
Table 19 – Test group BP .48
Table 20 – Test group CP .49
Table 21 – Test group DP .49
Table 22 – Test Group EP .50
Table 23 – Test Group FP.51
Table D.1 – Test balun performance characteristics.57
Table F.1 – Uncertainty band of return loss measurement at frequencies below
100 MHz .64

61076-3-104  IEC:2006(E) – 5 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
___________
CONNECTORS FOR ELECTRONIC EQUIPMENT –
PRODUCT REQUIREMENTS –
Part 3-104: Detail specification for 8-way, shielded free and fixed
connectors for data transmissions with frequencies up to 1 000 MHz

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with an IEC Publication.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
The International Electrotechnical Commission (IEC) draws attention to the fact that it is claimed that compliance
with this document may involve the use of a patent concerning connectors given in 3.2.2 and 3.2.4.
The IEC takes no position concerning the evidence, validity and scope of this patent right.
The holder of this patent right has assured the IEC that he is willing to give free licences with applicants throughout
the world. In this respect, the statement of the holder of this patent right is registered with the IEC
Information may be obtained from:
The Siemon Company
Siemon Business Park
76 Westbury Park Road
Watertown, CT 06795-0400
USA
Attention is drawn to the possibility that some of the elements of this International Standard may be the subject of
patent rights other than those identified above. IEC shall not be held responsible for identifying any or all such
patent rights.
International Standard IEC 61076-3-104 has been prepared by sub-committee 48B:
Connectors, of IEC technical committee 48: Electromechanical components and mechanical
structures for electronic equipment.

– 6 – 61076-3-104  IEC:2006(E)
This second edition of IEC 61076-3-104 cancels and replaces the first edition, published in
2003, and constitutes a technical revision.
Changes from the first edition of this standard (2003) include editorial changes throughout the
standard and:
1) an increase of upper frequency from 600 MHz to 1 000 MHz;
2) changes to the characteristics clause (Clause 6) and test schedules clause (Clause 7) to
align the document with test schedules of IEC 60603-7 series documents.
The text of this standard is based on the following documents:
FDIS Report on voting
48B/1678/FDIS 48B/1702/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
A list of all parts of the IEC 61076 series, under the general title Connectors for electronic
equipment – Product requirements, can be found on the IEC website.
The committee has decided that the contents of this publication will remain unchanged until
the maintenance result date indicated on the IEC web site under "http://webstore.iec.ch" in
the data related to the specific publication. At this date, the publication will be
• reconfirmed;
• withdrawn;
• replaced by a revised edition, or
• amended.
A bilingual version of this publication may be issued at a later date.

61076-3-104  IEC:2006(E) – 7 –
CONNECTORS FOR ELECTRONIC EQUIPMENT –
PRODUCT REQUIREMENTS –
Part 3-104: Detail specification for 8-way, shielded free and fixed
connectors for data transmissions with frequencies up to 1000 MHz

1 General
1.1 Scope
This part of IEC 61076 establishes uniform specifications, type testing requirements and
quality assessment procedures for 8-way, shielded free and fixed connectors for data
transmissions with frequencies up to 1 000 MHz, and intended to be used within cabling for
information and communications technology, home entertainment and multimedia. It contains
a choice of all test methods and sequences, severity and preferred values for dimensions and
characteristics.
1.2 Normative references
The following referenced documents are indispensable for the application of this document.
For dated references, only the edition cited applies. For undated references, the latest edition
of the referenced document (including any amendments) applies.
IEC 60050-581, International Electrotechnical Vocabulary. Electromechanical components for
electronic equipment
IEC 60068-1, Environmental testing – Part 1: General and guidance
IEC 60068-2-6, Environmental testing – Part 2: Tests – Test Fc: Vibration (sinusoidal)
IEC 60169-16, Radio-frequency connectors. Part 16: R.F. coaxial connectors with inner
diameter of outer conductor 7 mm (0.276 in) with screw coupling – Characteristic impedance
50 ohms (75 ohms) (Type N)
IEC 60352 (all parts), Solderless connections
IEC 60512 (all parts), Connectors for electronic equipment – Tests and measurements
IEC 60512-1-100, Connectors for electronic equipment – Tests and measurements – Part 1-
100: General – Applicable publications
IEC 60603-7, Connectors for frequencies below 3 MHz for use with printed boards – Part 7:
Detail specification for connectors, 8-way, including fixed and free connectors with common
mating features, with assessed quality
IEC 61076-1:2006, Connectors for electronic equipment – Product requirements – Part 1:
Generic specifications
IEC 61156-2, Multicore and symmetrical pair/quad cables for digital communications – Part 2:
Horizontal floor wiring – Sectional specification
IEC 61156-3, Multicore and symmetrical pair/quad cables for digital communications – Part 3:
Work area wiring – Sectional specification

– 8 – 61076-3-104  IEC:2006(E)
IEC 61156-4, Multicore and symmetrical pair/quad cables for digital communications – Part 4:
Riser cables – Sectional specification
IEC 61156-5, Multicore and symmetrical pair/quad cables for digital communications – Part 5:
Symmetrical pair/quad cables with transmission characteristics up to 600 MHz – Horizontal
floor wiring – Sectional specification
IEC 61196, Coaxial communication cables
ISO/IEC 11801, Information technology – Generic cabling for customer premises
EN 50289-1-14, Communication cables – Specifications for test methods – Part 1-14:
Electrical test methods – Coupling attenuation or screening attenuation of connecting
hardware
ISO 1302, Geometrical Product Specifications (GPS) – Indication of surface texture in
technical product documentation
ITU-T G.117, Transmission aspects of unbalance about earth
ITU-T O.9, Measuring arrangements to assess the degree of unbalance about earth
2 Technical information
This detail specification covers connectors intended for use in cabling for information and
communications technology, home entertainment and multimedia.
2.1 Terminology
2.1.1 General
The terminology used in and applicable to this specification is stated in 2.1 of IEC 61076-1.
Some applicable terms are also covered in IEC 60512-1. (For definitions of terms used, refer
to IEC 60050-581.)
2.1.2 Transmission performance categories
In this IEC standard, the term “category”, when used in reference to transmission
performance, refers to those categories defined by ISO/IEC 11801:2002.
2.1.3 Interchangeability level
2.1.3.1 General
These connectors interchangeabey insofar as the intermateability and interoperability
requirements herein are ensured for mated connectors when individual connector halves are
from different sources.
2.1.3.2 Intermateability
Intermateability is ensured by applying the “Go” and “No-Go” gauge requirements herein, and
adherence to dimensional requirements herein.
2.1.3.3 Interoperability
Interoperability of different IEC 61076-3-104 connectors is assured by compliance with all
transmission requirements when the connector is mated with the respective “test” connector
as described in Annex C.
61076-3-104  IEC:2006(E) – 9 –
2.2 Groups of related connectors
Groups of connectors within a subfamily having common features. Typical examples are same
type and range but different style. A group of related connectors is covered by a single detail
specification.
Type: Connectors within a particular subfamily such as a multicontact connector with one,
two or four pairs.
Range: The housing (shell) sizes and contacts arrangements within a type. For example, a
housing containing one, two or four pairs.
Style: A particular connector within a type, for example fixed panel, PCB or free
connector.
Variant: Variations within a type, style or range.
2.3 Interchangeability level
These connectors shall be fully interchangeable and intermateable. The mechanical and
electrical characteristics shall be met whatever the source of the connector is. Elements of
connecting hardware, e.g. plugs, sockets that terminate more than one cable are permitted.
The plug/socket interface may be constructed so as to permit the use of multiple modules e.g.
2 × 2 pairs or 4 × 1 pair plugs mated directly with a single 4 pairs socket.
2.4 IEC type designation
Connectors, connector bodies and connectors with pre-inserted contacts according to this
detail specification shall be designated by the following system.
Connectors conforming to this standard shall be identified by the following indications and in
the order given:
The letters “IEC”.
The number denoting this detail specification.
The number of the detail specification (without dashes), being nine characters (e.g.
IEC 610763104-B08S-C101-2 Shielded connector, fixed version B, having 8 female contacts,
solder termination, solid wire, gold, cable outlet, 250 operations)).

– 10 – 61076-3-104  IEC:2006(E)

IEC 61076 - 3 - 104 L N N N
L N N L L N
Reference to this
detail specification
Number denoting
performance level (PL)
750 operations
Letters denoting connector
2 500 operations
type
Fr ee Version A
Number denoting variant
01 Cable outlet
Fixed Version B
02 PCB outlet
03 Four pair plug
04 Two pair plug
05 1 pair plug
Number of contacts
Number denoting contact finish
1 Gold, gold - alloy
2 Palla dium/nickel
Letter denoting type of contact

Female F
Male M
Letter denoting type of conductor

accommodation, or cable
Letter denoting type of termination
A Tinsel wire
Screw terminal A
B Stranded wire
Crimp C
C Solid wire
Insulation displacement D
D Tinsel or stranded wire
Insulation piercing P
E Stranded or solid wire
Solder S
F Tinsel, stranded or solid wire
Compliant pin T
X Customer specific req. for cables
Z
No terminations
Note: “L” stands for letter
“N” stands for number
3 Isometric views and common features
3.1 General
Original dimensions are in millimetres except where noted.

61076-3-104  IEC:2006(E) – 11 –
3.2 Isometric views
3.2.1 General
IEC  1348/06
Figure 1 – Isometric view of cable and PCB fixed connectors

IEC  1349/06
Figure 2 – Isometric view of 4, 2 and 1 pair free connectors

– 12 – 61076-3-104  IEC:2006(E)
3.2.2 Fixed connector variant 01 (cable outlet) drawings
Third angle projection
See view A
View B
See view B
See view C
View C
Section U-U
IEC  1350/06
Figure 3 – Variant 01 drawing 1

61076-3-104  IEC:2006(E) – 13 –
Table 1 – Variant 01 drawing 1 dimensions
Dimensions in millimetres
Nominal Maximum Minimum
AX 1,91 1,98 1,83
BC 14,48 14,61 14,35
BD 2,39 2,54 2,24
BE 19,05 19,20 18,90
BF 1,78 1,85 1,70
BG 1,65 1,88 1,42
BH 2,03 2,18 1,88
BJ 2,26 2,34 2,18
BK
70° 73° 67°
BL 63° 66° 60°
BM 11,73 11,79 11,68
BN 10,92 11,00 10,85
BP 6,60 6,68 6,53
BR 0,66 0,71 0,61
BS 20° 23° 17°
BT 4,55 4,80 4,29
BU 10,07 1,12 1,02
BW 1,78 1,85 1,70
BX 0,79 0,99 0,69
BZ 5,21 5,41 5,00
CA 2,31 2,59 2,03
CB 0,57 0,75 0,39
CC 1,61 1,66 1,56
CD 4,24 4,29 4,19
CE
7° 8° 6°
CF 0,56 0,58 0,53
CG 0,51 0,58 0,43
CH 1,52 1,65 1,40
CJ
23° 24° 18°
CK 2,16 2,46 1,85
CL 1,19 1,24 1,14
– 14 – 61076-3-104  IEC:2006(E)

Section Z-Z View Z-Z
Section Y-Y
IEC  1351/06
Section V-V
Figure 4 – Variant 01 drawing 2
Table 2 – Variant 01 drawing 2 dimensions
Dimensions in millimetres
Nominal Maximum Minimum
CK 2,21 2,34 2,08
CL 1,78
CM 7,11
CN 12,45 12,57 12,32
CP 0,76 0,84 0,69
CR 13,21 13,26 13,16
CS 6,10 6,15 6,05
CT 5,33 5,38 5,28
CU 5,49 5,51 5,46
CV 12,60 12,65 12,55
CW 13,36 13,41 13,31
CX 13,21 13,26 13,16
CY 6,10 6,15 6,05
CZ 5,49 5,51 5,46
CQ 11,73 11,79 11,68
CO 10,92 11,00 10,85
61076-3-104  IEC:2006(E) – 15 –
3.2.3 Fixed connector variant 02, Printed Circuit Board (PCB) outlet drawing
Third angle projection
IEC  1352/06
Figure 5 – Variant 02 drawing
Table 3 – Variant 02 drawing dimensions
Dimensions in millimetres
Nominal Maximum Minimum
A 14,48 14,55 14,40
B 15,75 15,88 15,62
C 20,78 20,85 20,70
D 13,72 13,84 13,59
E 5,84 5,97 5,72
F 6,63 6,73 6,53
G 8,46 8,53 8,38
NOTE See Figure 3 and 4 for internal dimensions.

– 16 – 61076-3-104  IEC:2006(E)
3.2.4 Free connector (plug) dimensions
3.2.4.1 Free connector variant 03 (4-pair plug) drawings
Third angle projection
See view A See view A
See view B
Center of
Projection method: third angle
View B
Scale : 4×
IEC  1353/06
Figure 6 – Variant 03 drawing 1

61076-3-104  IEC:2006(E) – 17 –
Table 4 – Variant 03 drawing 1 dimensions
Dimensions in millimetres
Nominal Maximum Minimum
a
D 0,81 0,86 0,76
F 14,73 14,88 14,58
K 1,78
L 7,11
P 14,22 14,35 14,10
W 4,06 4,11 4,01
X 10,49 10,67 10,31
Y 11,68 11,86 11,51
Z 0,61 0,64 0,58
AA 0,46 0,48 0,43
AB 11,18 11,48 10,87
AC 45° 46° 44°
AD 1,70 1,75 1,65
AF 12,12 12,32 12,07
AG 0,64 0,71 0,56
AH 0,53 0,58 0,48
a
Dimension D is the same as ES in Figure 10 and GS in Figure 13.

– 18 – 61076-3-104  IEC:2006(E)

View A
IEC  1354/06
Section S-S
Figure 7 – Variant 03 drawing 2
Table 5 – Variant 03 drawing 2 dimensions
Dimensions in millimetres
Nominal Maximum Minimum
B 5,99 6,05 5,94
C
60° 62° 58°
G 11,68 11,81 11,56
H 2,67 2,74 2,59
J 2,26 2,39 2,13
N 4,70 4,80 4,60
DN
15° 18° 12°
DP 9,12 9,45 8,79
DR
45° 46° 44°
DS
45° 46° 44°
DT 0,64 0,76 0,51
DU 0,64 0,71 0,56
DV 2,54 2,67 2,41
DW 0,64 0,76
DX 3,25 3,48 3,02
DY
7° 8° 6°
DZ 30° 31° 29°
EA R 0,51 R 0,66 R 0,38
EB 7,98
EC 1,14 1,27 1,02
61076-3-104  IEC:2006(E) – 19 –

Section T-T Section W-W
IEC  1355/06
Figure 8 – Variant 03 drawing 3
Table 6 – Variant 03 drawing 3 dimensions
Dimensions in millimetres
Nominal Maximum Minimum
A 13,11 13,16 13,06
E 0,81 0,86 0,76
M 5,41 5,46 5,36
S 1,14 1,22 1,07
T 0,76 0,84 0,69
U 4,27 4,60 3,94
V 0,53 0,58 0,48
AV 6,20 6,25 6,15
AZ R 2,03 R 2,11 R 1,96
BA 2,34 2,41 2,26
BB 1,37 1,55 1,19
– 20 – 61076-3-104  IEC:2006(E)
3.2.4.2 Free connector variant 04 (2-pair plug) drawings
Third angle projection
IEC  1356/06
Figure 9 – Variant 04 drawing 1

61076-3-104  IEC:2006(E) – 21 –
Table 7 – Variant 04 drawing 1 dimensions
Dimensions in millimetres
Nominal Maximum Minimum
DA 7,01 7,14 6,88
DB 11,18 11,48 10,87
DC 14,73 14,88 14,58
DD 5,08 5,21 4,95
DE 1,78 1,88 1,68
DF R 0,38 R 0,46 R 0,30
DG 10,49 10,67 10,31
DH 11,68 11,86 11,51
DJ 5,99 6,05 5,94
DK 60° 62° 58°
DL 6,20 6,25 6,15
DM 0,25 0,30 0,20
Section Z-Z
Section V-V
IEC  1357/06
Figure 10 – Variant 04 drawing 2

– 22 – 61076-3-104  IEC:2006(E)
Table 8 – Variant 04 drawing 2 dimensions
Dimensions in millimetres
Nominal Maximum Minimum
EE 0,81 0,86 0,76
EF 0,76 0,84 0,69
EG 4,06 4,11 4,01
EH 0,53 0,58 0,48
EJ 5,41 5,46 5,36
EK 2,34 2,41 2,26
EL 5,64 5,69 5,61
EM 5,23 5,28 5,16
EN 1,14 1,22 1,07
EP 1,37 1,55 1,19
ER 4,27 4,60 3,94
a
ES 0,81 0,86 0,76
ET 45°X0,25 46°X0,38 44°X0,13
EU R 2,03 R2,11 R1,96
a
Dimension ES is the same as D in Figure 6 and GS in Figure 13

3.2.4.3 Free connector variant 05 (1-pair plug) drawings
T
...
