EUROPEAN STANDARD
EN 61010-2-030
NORME EUROPÉENNE
October 2010
EUROPÄISCHE NORM
ICS 19.080; 71.040.10
English version
Safety requirements for electrical equipment for measurement, control,
and laboratory use -
Part 2-030: Particular requirements for testing and measuring circuits
(IEC 61010-2-030:2010)
Règles de sécurité pour appareils Sicherheitsbestimmungen für elektrische
électriques de mesurage, de régulation et Mess-, Steuer-, Regel- und Laborgeräte -
de laboratoire - Teil 2-030: Besondere Bestimmungen für
Partie 2-030: Exigences particulières pour Prüf- und Messkreise
les circuits de test et de mesure (IEC 61010-2-030:2010)
(CEI 61010-2-030:2010)
This European Standard was approved by CENELEC on 2010-10-01. CENELEC members are bound to comply
with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard
the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and notified
to the Central Secretariat has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus,
the Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy,
Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia,
Spain, Sweden, Switzerland and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Management Centre: Avenue Marnix 17, B - 1000 Brussels

© 2010 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 61010-2-030:2010 E

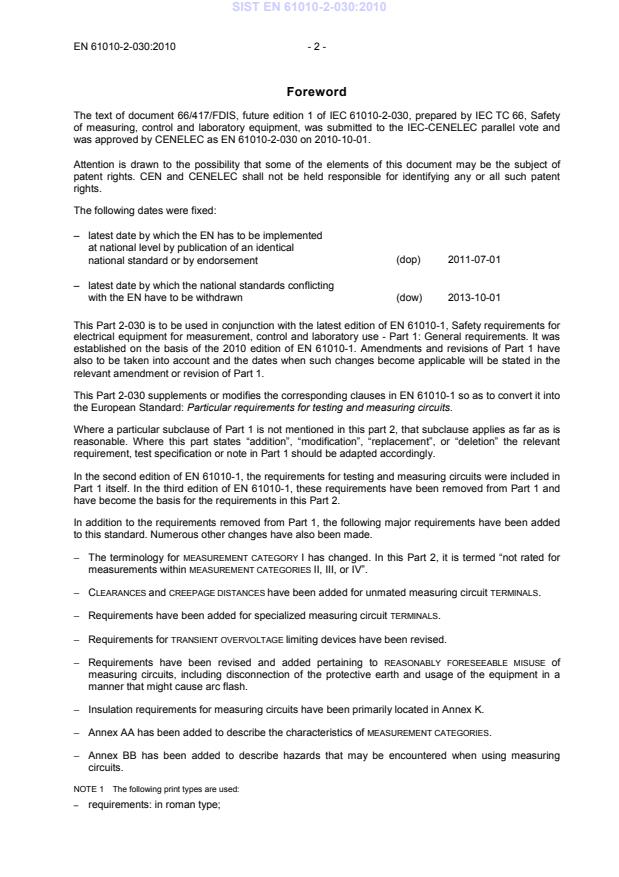

Foreword
The text of document 66/417/FDIS, future edition 1 of IEC 61010-2-030, prepared by IEC TC 66, Safety
of measuring, control and laboratory equipment, was submitted to the IEC-CENELEC parallel vote and
was approved by CENELEC as EN 61010-2-030 on 2010-10-01.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN and CENELEC shall not be held responsible for identifying any or all such patent
rights.
The following dates were fixed:
– latest date by which the EN has to be implemented
at national level by publication of an identical
(dop) 2011-07-01
national standard or by endorsement
– latest date by which the national standards conflicting
(dow) 2013-10-01
with the EN have to be withdrawn
This Part 2-030 is to be used in conjunction with the latest edition of EN 61010-1, Safety requirements for
electrical equipment for measurement, control and laboratory use - Part 1: General requirements. It was
established on the basis of the 2010 edition of EN 61010-1. Amendments and revisions of Part 1 have
also to be taken into account and the dates when such changes become applicable will be stated in the
relevant amendment or revision of Part 1.
This Part 2-030 supplements or modifies the corresponding clauses in EN 61010-1 so as to convert it into
the European Standard: Particular requirements for testing and measuring circuits.
Where a particular subclause of Part 1 is not mentioned in this part 2, that subclause applies as far as is
reasonable. Where this part states “addition”, “modification”, “replacement”, or “deletion” the relevant
requirement, test specification or note in Part 1 should be adapted accordingly.
In the second edition of EN 61010-1, the requirements for testing and measuring circuits were included in
Part 1 itself. In the third edition of EN 61010-1, these requirements have been removed from Part 1 and
have become the basis for the requirements in this Part 2.
In addition to the requirements removed from Part 1, the following major requirements have been added
to this standard. Numerous other changes have also been made.
− The terminology for MEASUREMENT CATEGORY I has changed. In this Part 2, it is termed “not rated for
measurements within MEASUREMENT CATEGORIES II, III, or IV”.
− CLEARANCES and CREEPAGE DISTANCES have been added for unmated measuring circuit TERMINALS.
− Requirements have been added for specialized measuring circuit TERMINALS.
− Requirements for TRANSIENT OVERVOLTAGE limiting devices have been revised.
− Requirements have been revised and added pertaining to REASONABLY FORESEEABLE MISUSE of
measuring circuits, including disconnection of the protective earth and usage of the equipment in a
manner that might cause arc flash.
− Insulation requirements for measuring circuits have been primarily located in Annex K.
− Annex AA has been added to describe the characteristics of MEASUREMENT CATEGORIES.
− Annex BB has been added to describe hazards that may be encountered when using measuring
circuits.
NOTE 1 The following print types are used:
– requirements: in roman type;

- 3 - EN 61010-2-030:2010
– conformity and test: in italic type;
– NOTES: in small roman type;
– terms used throughout this standard which have been defined in Clause 3: SMALL ROMAN CAPITALS;
NOTE 2 Subclauses, figures, tables and notes which are additional to those in Part 1 are numbered starting from 101. Additional
Annexes are numbered AA and BB.
Annex ZA of Part 1 is applicable.
__________
Endorsement notice
The text of the International Standard IEC 61010-2-030:2010 was approved by CENELEC as a European
Standard without any modification.
__________
Bibliography
Add the following reference to the Bibliography of Part 1:
EN 41003:1999
IEC 61010-2-032 NOTE Harmonized as EN 61010-2-032

IEC 61010-2-030 ®
Edition 1.0 2010-06
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Safety requirements for electrical equipment for measurement, control, and
laboratory use –
Part 2-030: Particular requirements for testing and measuring circuits

Règles de sécurité pour appareils électriques de mesurage, de régulation et
de laboratoire –
Partie 2-030: Exigences particulières pour les circuits de test et de mesure

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
V
CODE PRIX
ICS 19.080; 71.040.10 ISBN 978-2-88910-988-3
– 2 – 61010-2-030 © IEC:2010
CONTENTS
FOREWORD.4
1 Scope and object .7
2 Normative references.7
3 Terms and definitions .7
4 Tests .8
5 Marking and documentation .8
6 Protection against electric shock.9
7 Protection against mechanical HAZARDS .12
8 Resistance to mechanical stresses .12
9 Protection against the spread of fire .12
10 Equipment temperature limits and resistance to heat .12
11 Protection against HAZARDS from fluids .12
12 Protection against radiation, including laser sources, and against sonic and
ultrasonic pressure .12
13 Protection against liberated gases and substances, explosion and implosion.12
14 Components and subassemblies.12
15 Protection by interlocks .13
16 HAZARDS resulting from application .13
17 RISK assessment.13
101 Measuring circuits.13
Annexes .18
Annex K (normative) Insulation requirements not covered by 6.7 .18
Annex L (informative) Index of defined terms .24
Annex AA (normative) Measurement categories.25
Annex BB (informative) Hazards pertaining to measurements performed in certain
environments .28
Bibliography.31

Figure AA.1 – Example to identify the locations of measuring circuits .26

Table 101 – CLEARANCES and CREEPAGE DISTANCES for measuring circuit TERMINALS
with HAZARDOUS LIVE conductive parts .11
Table 102 – Impulse withstand voltages.13
Table K.101 – CLEARANCES for MEASUREMENT CATEGORIES II, III and IV .19
Table K.102 – Test voltages for testing electric strength of solid insulation in
measuring circuits of MEASUREMENT CATEGORY II .20
Table K.103 – Test voltages for solid insulation in measuring circuits of
MEASUREMENT CATEGORY III .20
Table K.104 – Test voltages for testing electric strength of solid insulation in
measuring circuits of MEASUREMENT CATEGORY IV .20
Table K.105 – Test voltages for testing long term stress of solid insulation in
measuring circuits.21
Table K.106 – Maximum TRANSIENT OVERVOLTAGES .23

61010-2-030 © IEC:2010 – 3 –
Table AA.1 – Characteristics of MEASUREMENT CATEGORIES .27

– 4 – 61010-2-030 © IEC:2010
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
SAFETY REQUIREMENTS FOR ELECTRICAL EQUIPMENT
FOR MEASUREMENT, CONTROL, AND LABORATORY USE –

Part 2-030: Particular requirements for testing and measuring circuits

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization
comprising all national electrotechnical committees (IEC National Committees). The object of IEC is to
promote international co-operation on all questions concerning standardization in the electrical and
electronic fields. To this end and in addition to other activities, IEC publishes International Standards,
Technical Specifications, Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter
referred to as “IEC Publication(s)”). Their preparation is entrusted to technical committees; any IEC National
Committee interested in the subject dealt with may participate in this preparatory work. International,
governmental and non-governmental organizations liaising with the IEC also participate in this preparation.
IEC collaborates closely with the International Organization for Standardization (ISO) in accordance with
conditions determined by agreement betw
...
