EN 140401-804:2011/AC:2011
(Corrigendum)Detail Specification: Fixed low power film high stability SMD resistors - Rectangular - Stability classes 0,1; 0,25
Detail Specification: Fixed low power film high stability SMD resistors - Rectangular - Stability classes 0,1; 0,25
Replaced by AC:2012 (PR=23922)
Bauartspezifikation: SMD Schicht-Festwiderstände niedriger Belastbarkeit mit hoher Stabilität - Rechteckig - Stabilitätsklassen 0,1; 0,25
Spécification particulière: Résistances fixes à couche de haute stabilité et à faible dissipation CMS - Rectangulaires - Catégories de stabilité 0,1; 0,25
Podrobna specifikacija: Zelo stabilni fiksni plastni upori majhnih moči za površinsko montažo (SMD) - Pravokotni - Razreda stabilnosti 0,1 in 0,25
Različni parametri tega sestavnega dela so natančno opisani v tej specifikaciji. Nedoločeni parametri se lahko razlikujejo med sestavnimi deli. Naslednje kombinacije temperaturnega koeficienta in tolerance nazivne upornosti se uporabljajo za odobritev kvalifikacije v skladu s točko 2.2.1 ter prevzemno kontrolo v skladu s točko 2.3. Uporabljajo se vrednosti upornosti serije E v skladu s standardom IEC 60063. Dovoljena je kvalifikacija vrednosti upornosti pod ali nad določenimi vrednostmi, če izpolnjujejo zahteve najbližjega razreda stabilnosti.
General Information
- Status
- Withdrawn
- Publication Date
- 10-Nov-2011
- Technical Committee
- CLC/TC 40XB - CLC/TC 40XB
- Current Stage
- 9960 - Withdrawal effective - Withdrawal
- Start Date
- 10-Feb-2012
- Completion Date
- 10-Feb-2012
Relations
- Effective Date
- 29-Jan-2023
- Effective Date
- 29-Jan-2023
Frequently Asked Questions
EN 140401-804:2011/AC:2011 is a corrigendum published by CLC. Its full title is "Detail Specification: Fixed low power film high stability SMD resistors - Rectangular - Stability classes 0,1; 0,25". This standard covers: Replaced by AC:2012 (PR=23922)
Replaced by AC:2012 (PR=23922)
EN 140401-804:2011/AC:2011 is classified under the following ICS (International Classification for Standards) categories: 31.040.10 - Fixed resistors. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 140401-804:2011/AC:2011 has the following relationships with other standards: It is inter standard links to EN 140401-804:2011/AC:2012, EN 140401-804:2011. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 140401-804:2011/AC:2011 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Bauartspezifikation: SMD Schicht-Festwiderstände niedriger Belastbarkeit mit hoher Stabilität - Rechteckig - Stabilitätsklassen 0,1; 0,25Spécification particulière: Résistances fixes à couche de haute stabilité et à faible dissipation CMS - Rectangulaires - Catégories de stabilité 0,1; 0,25Detail Specification: Fixed low power film high stability SMD resistors - Rectangular - Stability classes 0,1; 0,2531.040.10Fiksni uporFixed resistorsICS:Ta slovenski standard je istoveten z:EN 140401-804:2011/AC:2011SIST EN 140401-804:2011/AC:2012en01-marec-2012SIST EN 140401-804:2011/AC:2012SLOVENSKI
STANDARD
Corrigendum to EN 140401-804:2011 English version ___________ Header block In 2nd row, left field, replace the reference to EN 60115-1:201X by: EN 60115-1:2011. In 2nd row, right field, replace the issue date (month) 201X by: June 2011. Clause 1.3.1 In 2nd paragraph, 2nd line, replace the resistance value 500 kΩ by: 499 kΩ. Table 3a For style RR1608M, tolerance ±1 %, temperature coefficient ±25 ppm/K, stability class 0,25, replace the upper resistance range limit 500 kΩ by: 499 kΩ. Table 3b For style RR1608M, tolerance ±1 %, temperature coefficient ±25 ppm/K, stability class 0,25, replace the upper resistance range limit 500 kΩ by: 499 kΩ. Table 4 Replace the table title by: Table 4 – Temperature coefficients and limits of resistance change Table 7a In three column headers, replace the reference to EN 60115-1:201X by: EN 60115-1:2011. SIST EN 140401-804:2011/AC:2012

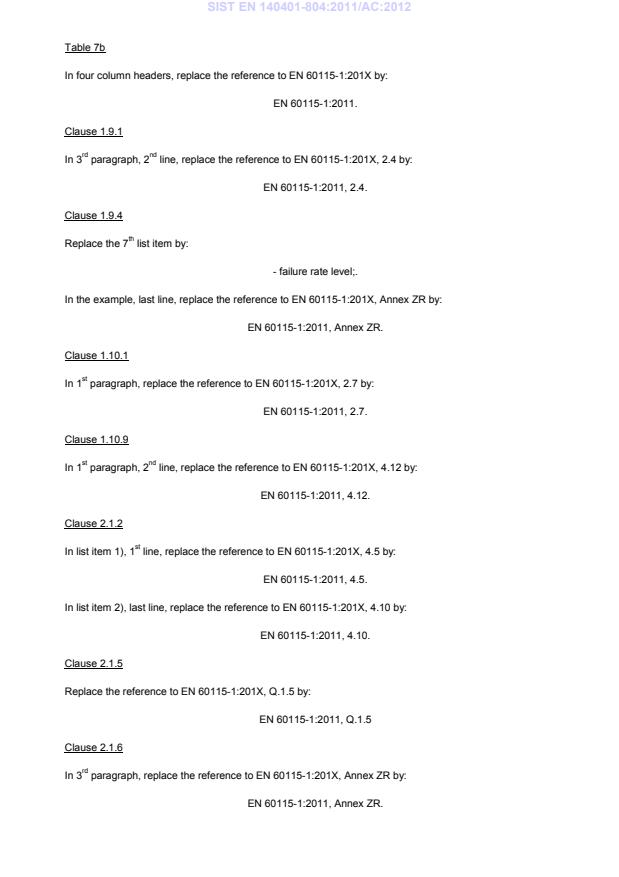

Table 7b In four column headers, replace the reference to EN 60115-1:201X by: EN 60115-1:2011. Clause 1.9.1 In 3rd paragraph, 2nd line, replace the reference to
...
