Plasma display panels - Part 2-1: Measuring methods - Optical

Determines the measuring methods for characterizing the performance of colour plasma display modules in the following areas: 4 % window luminance; luminance uniformity; dark-room contrast ratio; white chromaticity and chromatic uniformity; colour gamut in the centre box.

Plasmabildschirme - Teil 2-1: Messverfahren - Optisch

Panneaux d'affichage à plasma - Partie 2-1: Méthodes de mesure - Optiques

Définit les méthodes de mesure de caractérisation de la performance des modules d'affichage couleur à plasma dans les domaines suivants: Luminance d'une zone d'essai de 4 % de surface d'écran; uniformité de luminance; rapport de contraste en chambre noire; chromaticité du blanc et uniformité chromatique; étendue chromatique dans la zone d'essai centrale.

Prikazalniki s plazmo – 2-1. del: Merilne metode – Optične (IEC 61988-2-1:2002)

General Information

Status
Withdrawn
Publication Date
17-Dec-2002
Withdrawal Date
31-Oct-2005
Drafting Committee
Parallel Committee
Current Stage
9960 - Withdrawal effective - Withdrawal
Start Date
28-Feb-2015
Completion Date
28-Feb-2015

Relations

Buy Standard

Standard
EN 61988-2-1:2005
English language
16 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)


SLOVENSKI SIST EN 61988-2-1:2005

STANDARD
december 2005
Prikazalniki s plazmo – 2-1. del: Merilne metode – Optične (IEC 61988-2-
1:2002)
Plasma display panels – Part 2-1: Measuring methods – Optical (IEC 61988-2-
1:2002)
ICS 31.120 Referenčna številka
©  Standard je založil in izdal Slovenski inštitut za standardizacijo. Razmnoževanje ali kopiranje celote ali delov tega dokumenta ni dovoljeno

EUROPEAN STANDARD EN 61988-2-1
NORME EUROPÉENNE
EUROPÄISCHE NORM December 2002

ICS 31.260
English version
Plasma display panels
Part 2-1: Measuring methods - Optical
(IEC 61988-2-1:2002)
Panneaux d'affichage à plasma Plasmabildschirme
Partie 2-1: Méthodes de mesure - Teil 2-1: Messverfahren -
Optiques Optisch
(CEI 61988-2-1:2002) (IEC 61988-2-1:2002)

This European Standard was approved by CENELEC on 2002-11-01. CENELEC members are bound to
comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and
notified to the Central Secretariat has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Czech Republic,
Denmark, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Luxembourg, Malta,
Netherlands, Norway, Portugal, Slovakia, Spain, Sweden, Switzerland and United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Central Secretariat: rue de Stassart 35, B - 1050 Brussels

© 2002 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.

Ref. No. EN 61988-2-1:2002 E

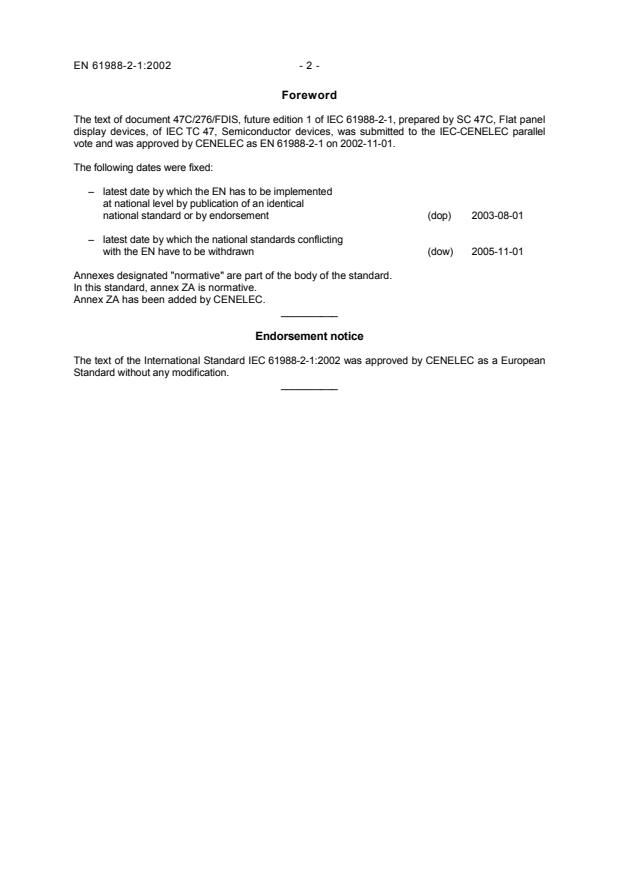

Foreword
The text of document 47C/276/FDIS, future edition 1 of IEC 61988-2-1, prepared by SC 47C, Flat panel
display devices, of IEC TC 47, Semiconductor devices, was submitted to the IEC-CENELEC parallel
vote and was approved by CENELEC as EN 61988-2-1 on 2002-11-01.

The following dates were fixed:

– latest date by which the EN has to be implemented
at national level by publication of an identical
national standard or by endorsement (dop) 2003-08-01

– latest date by which the national standards conflicting
with the EN have to be withdrawn (dow) 2005-11-01

Annexes designated "normative" are part of the body of the standard.
In this standard, annex ZA is normative.
Annex ZA has been added by CENELEC.
__________
Endorsement notice
The text of the International Standard IEC 61988-2-1:2002 was approved by CENELEC as a European
Standard without any modification.
__________
- 3 - EN 61988-2-1:2002
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
This European Standard incorporates by dated or undated reference, provisions from other
publications. These normative references are cited at the appropriate places in the text and the
publications are listed hereafter. For dated references, subsequent amendments to or revisions of any
of these publications apply to this European Standard only when incorporated in it by amendment or
revision. For undated references the latest edition of the publication referred to applies (including
amendments).
NOTE When an international publication has been modified by common modifications, indicated by (mod), the relevant
EN/HD applies.
Publication Year Title EN/HD Year
1) 1)
IEC 61988-1 - Plasma display panels EN 61988-1 -
Part 1: Terminology and letter symbols

2) 3)
IEC 60068-1 - Environmental testing EN 60068-1 1994
Part 1: General and guidance
2) 3)
IEC 60107-1 - Methods of measurement on receivers EN 60107-1 1997
for television broadcast transmissions
Part 1: General considerations -
Measurements at radio and video
frequencies
CIE 15.2 1986 Colorimetry - -
1)
At draft stage.
2)
Undated reference.
3)
Valid edition at date of issue.

NORME CEI
INTERNATIONALE IEC
61988-2-1
INTERNATIONAL
Première édition
STANDARD
First edition
2002-10
Panneaux d’affichage à plasma –
Partie 2-1:
Méthodes de mesure – Optiques
Plasma display panels –
Part 2-1:
Measuring methods – Optical
 IEC 2002 Droits de reproduction réservés  Copyright - all rights reserved
Aucune partie de cette publication ne peut être reproduite ni No part of this publication may be reproduced or utilized in any
utilisée sous quelque forme que ce soit et par aucun procédé, form or by any means, electronic or mechanical, including
électronique ou mécanique, y compris la photocopie et les photocopying and microfilm, without permission in writing from
microfilms, sans l'accord écrit de l'éditeur. the publisher.
International Electrotechnical Commission, 3, rue de Varembé, PO Box 131, CH-1211 Geneva 20, Switzerland
Telephone: +41 22 919 02 11 Telefax: +41 22 919 03 00 E-mail: inmail@iec.ch  Web: www.iec.ch
CODE PRIX
M
Commission Electrotechnique Internationale PRICE CODE
International Electrotechnical Commission
Международная Электротехническая Комиссия
Pour prix, voir catalogue en vigueur
For price, see current catalogue

61988-2-1  IEC:2002 – 3 –
CONTENTS
FOREWORD . 5
1 Scope . 9
2 Normative references. 9
3 Definitions . 9
4 Structure of measuring equipment . 9
5 Standard measuring conditions.11
5.1 Environmental conditions.11
5.2 Lighting conditions.11
5.3 Set-up conditions.11
6 Measuring methods .13
6.1 Measuring method of 4 % window luminance .13
6.2 Measuring method of luminance uniformity .15
6.3 Measuring method of dark-room contrast ratio .19
6.4 Measuring methods of white chromaticity and chromatic uniformity.21
6.5 Measuring method of colour gamut in the centre box .23
Figure 1 – Layout diagram (side view).13
Figure 2 – 4 % window luminance measuring pattern .15
Figure 3 – Measuring points .17
Figure 4 – Minimum luminance measuring pattern.21
Figure 5 – Example of the colour gamut .25
Table 1 – Example of luminance uniformity.17
Table 2 – Example of chromaticity measurement.23

61988-2-1  IEC:2002 – 5 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
––––––––––––
PLASMA DISPLAY PANELS –
Part 2-1: Measuring methods – Optical
FOREWORD
1) The IEC (International Electrotechnical Commission) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of the IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, the IEC publishes International Standards. Their preparation is
entrusted to technical committees; any IEC National Committee interested in the subject dealt with may
participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. The IEC collaborates closely with the International
Organization for Standardization (ISO) in accordance with conditions determined by agreement between the
two organizations.
2) The formal decisions or agreements of the IEC on technical matters express, as nearly as possible, an
international consensus of opinion on the relevant subjects since each technical committee has representation
from all interested National Committees.
3) The documents produced have the form of recommendations for international use and are published in the form
of standards, technical specifications, technical reports or guides and they are accepted by the National
Committees in that sense.
4) In order to promote international unification, IEC National Committees undertake to apply IEC International
Standards transparently to the maximum extent possible in their national and regional standards. Any
divergence between the IEC Standard and the corresponding national or regional standard shall be clearly
indicated in the latter.
5) The IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with one of its standards.
6) Attention is drawn to the possibility that some of the elements of this International Standard may be the subject
of patent rights. The IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 61988-2-1 has been prepared by subcommittee 47C: Flat panel
display devices, of IEC technical committee 47: Semiconductor devices.
The text of this standard is based on the following documents:
FDIS Report on voting
47C/276/FDIS 47C/280/RVD
Full information on the voting for the approval on this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 3.
IEC 61988 will consist of the following parts, under the general title Plasma display panels:
Part 1: Terminology and letter symbols;
Part 2-1: Measuring methods – Optical;
Part 2-2: Measuring methods – Optoelectrical;
Part 3: Guidelines of mechanical interface;
Part 4: Environmental, endurance and mechanical test methods.

61988-2-1  IEC:2002 – 7 –
The committee has decided that the contents of this publication will remain unchanged
until 2009. At this date, the publication will be
• reconfirmed;
• withdrawn;
• replaced by a revised edition, or
• amended.
61988-2-1  IEC:2002 – 9 –
PLASMA DISPLAY PANELS –
Part 2-1: Measuring methods – Optical
1 Scope
This part of IEC 61988 determines the measuring methods for characterizing the performance
of colour plasma display modules in the following areas:
a) 4 % window luminance;
b) luminance uniformity;
c) dark-room contrast ratio;
d) white chromaticity and chromatic uniformity;
e) colour gamut in the centre box.
2 Normative references
The following referenced documents are indispensable for the application of this document.
For dated references, only the edition cited applies. For undated references, the latest edition
of the referenced document (including any amendments) applies.
IEC 61988-1, Plasma display panels – Part 1: Terminology and letter symbols
IEC 60068-1, Environmental testing – Part 1: General and guidance
IEC 60107-1, Methods of measurement on receivers for television broadcast transmissions –
Part 1: General considerations – Measurements at radio and video frequencies
CIE 15.2:1986, Colorimetry, 2nd Edition (ISBN 3 900 734 00 3)
3 Definitions
For the purposes of this part of IEC 61988, most of the definitions used comply with
IEC 61988-1, IEC 60068-1 and IEC 60107-1.
4 Structure of measuring equipment
The system diagrams and/or operating conditions of the measuring equipment shall comply
with the structure specified in each item.
———————
To be published.
61988-2-1  IEC:2002 – 11 –
5 Standard measuring conditions
5.1 Environmental conditions
Measurements shall be carried out after sufficient warm-up time under the standard
environmental conditions, e.g. at a temperature of 25 °C ± 3 °C, a relative humidity of 25 % to
85 % and pressure of 86 kPa to 106 kPa. When different environmental conditions are used, it
shall be noted on the report.
The warm-up time shall be longer than 30 min with an input signal set at 15 % gray level on
full screen without gamma correction.
When a different warm-up time is used, it shall be noted on the report.
5.2 Lighting conditions
5.2.1 Dark-room conditions
Illuminance shall be less than 1 lux anywhere on the screen of the colour plasma display
module. When this illuminance significantly affects the measurement of the black level, the
background subtraction method shall be used. When a different illuminance or the background
subtraction method is used, it shall be noted on the report.
5.3 Set-up conditions
Standard set-up conditions are given below. Each condition shall be noted on the
specification form whenever any measurement is carried out under conditions that differ from
the standard set-up conditions.
5.3.1 Adjustment of colour plasma display modules
For contrast adjustable colour plasma display modules, set the maximum contrast under the
standard me
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
