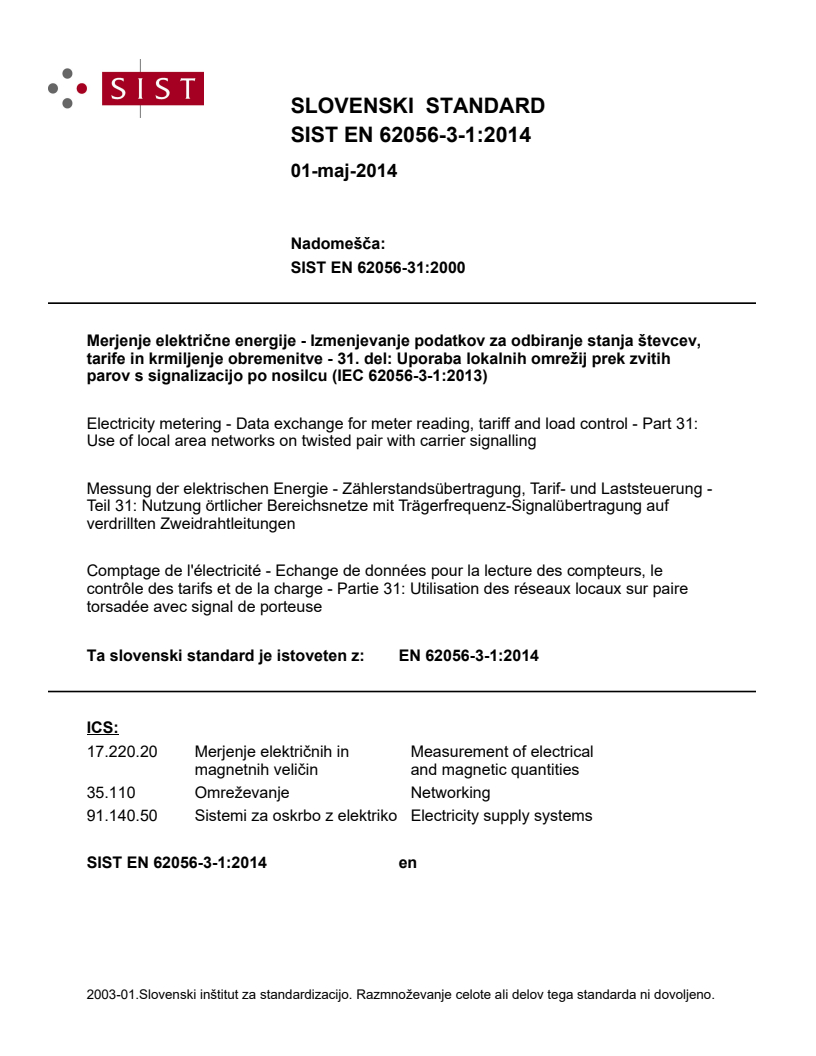

EN 62056-3-1:2014

SLOVENSKI STANDARD
01-maj-2014
Nadomešča:
SIST EN 62056-31:2000
Merjenje električne energije - Izmenjevanje podatkov za odbiranje stanja števcev,
tarife in krmiljenje obremenitve - 31. del: Uporaba lokalnih omrežij prek zvitih
parov s signalizacijo po nosilcu (IEC 62056-3-1:2013)
Electricity metering - Data exchange for meter reading, tariff and load control - Part 31:
Use of local area networks on twisted pair with carrier signalling
Messung der elektrischen Energie - Zählerstandsübertragung, Tarif- und Laststeuerung -
Teil 31: Nutzung örtlicher Bereichsnetze mit Trägerfrequenz-Signalübertragung auf
verdrillten Zweidrahtleitungen
Comptage de l'électricité - Echange de données pour la lecture des compteurs, le
contrôle des tarifs et de la charge - Partie 31: Utilisation des réseaux locaux sur paire
torsadée avec signal de porteuse
Ta slovenski standard je istoveten z: EN 62056-3-1:2014
ICS:
17.220.20 Merjenje električnih in Measurement of electrical
magnetnih veličin and magnetic quantities
35.110 Omreževanje Networking
91.140.50 Sistemi za oskrbo z elektriko Electricity supply systems
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN 62056-3-1
NORME EUROPÉENNE
March 2014
EUROPÄISCHE NORM
ICS 17.220; 35.110; 91.140.50 Supersedes EN 62056-31:2000

English version
Electricity metering data exchange - The DLMS/COSEM suite -
Part 3-1: Use of local area networks on twisted pair with carrier signalling
(IEC 62056-3-1:2013)
Échange des données de comptage de Datenkommunikation der elektrischen
l'électricité - Energiemessung -
La suite DLMS/COSEM - DLMS/COSEM -
Partie 3-1: Utilisation des réseaux locaux Teil 3-1: Nutzung lokaler Netzwerke mit
sur paire torsadée avec signal de Trägerfrequenz-Signalübertragung auf
porteuse verdrillten Zweidrahtleitungen
(CEI 62056-3-1:2013) (IEC 62056-3-1:2013)

This European Standard was approved by CENELEC on 2013-09-24. CENELEC members are bound to comply
with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard
the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the CEN-CENELEC Management Centre or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and notified
to the CEN-CENELEC Management Centre has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus,
the Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany,
Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland,
Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

CEN-CENELEC Management Centre: Avenue Marnix 17, B - 1000 Brussels

© 2014 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 62056-3-1:2014 E

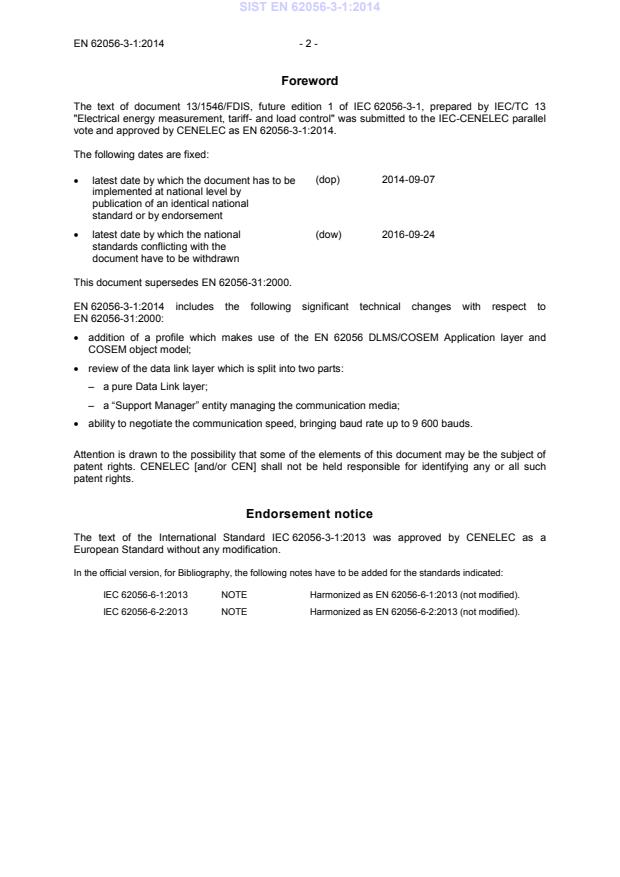

Foreword
The text of document 13/1546/FDIS, future edition 1 of IEC 62056-3-1, prepared by IEC/TC 13
"Electrical energy measurement, tariff- and load control" was submitted to the IEC-CENELEC parallel
vote and approved by CENELEC as EN 62056-3-1:2014.

The following dates are fixed:
(dop) 2014-09-07
• latest date by which the document has to be
implemented at national level by
publication of an identical national
standard or by endorsement
• latest date by which the national (dow) 2016-09-24
standards conflicting with the
document have to be withdrawn
This document supersedes EN 62056-31:2000.

EN 62056-31:2000:
• addition of a profile which makes use of the EN 62056 DLMS/COSEM Application layer and
COSEM object model;
• review of the data link layer which is split into two parts:
– a pure Data Link layer;
– a “Support Manager” entity managing the communication media;
• ability to negotiate the communication speed, bringing baud rate up to 9 600 bauds.

Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such
patent rights.
Endorsement notice
The text of the International Standard IEC 62056-3-1:2013 was approved by CENELEC as a
European Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standards indicated:

IEC 62056-6-1:2013 NOTE Harmonized as EN 62056-6-1:2013 (not modified).
IEC 62056-6-2:2013 NOTE Harmonized as EN 62056-6-2:2013 (not modified).

- 3 - EN 62056-3-1:2014
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications

The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.

NOTE  When an international publication has been modified by common modifications, indicated by (mod), the relevant EN/HD
applies.
Publication Year Title EN/HD Year

IEC 61334-4-41 1996 Distribution automation using distribution EN 61334-4-41 1996
line carrier systems -
Part 4: Data communication protocols -
Section 41: Application protocols -
Distribution line message specification

IEC 62056-51 1998 Electricity metering - Data exchange for - -
meter reading, tariff and load control -
Part 51: Application layer protocols

IEC 62056-5-3 2013 Electricity metering data exchange - The EN 62056-5-3 2014
DLMS/COSEM suite -
Part 5-3: DLMS/COSEM application layer

ISO/IEC 8482 1993 Information technology - - -
Telecommunications and information
exchange between systems - Twisted pair
multipoint interconnections
EIA 485 - Electrical characteristics of generators and - -
receivers for use in balanced digital
multipoint systems
IEC 62056-3-1 ®
Edition 1.0 2013-08
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Electricity metering data exchange – The DLMS/COSEM suite –

Part 3-1: Use of local area networks on twisted pair with carrier signalling

Échange des données de comptage de l'électricité – La suite DLMS/COSEM –

Partie 3-1: Utilisation des réseaux locaux sur paire torsadée avec signal de

porteuse
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX XE
ICS 17.220; 35.110; 91.140.50 ISBN 978-2-8322-1046-8

– 2 – 62056-3-1 © IEC:2013
CONTENTS
FOREWORD . 7
1 Scope . 9
2 Normative references . 9
3 Abbreviations . 10
4 General description . 11
4.1 Basic vocabulary . 11
4.2 Profiles, layers and protocols . 11
4.2.1 Overview . 11
4.2.2 Base profile (without DLMS) . 12
4.2.3 Profile with DLMS . 12
4.2.4 Profile with DLMS/COSEM . 13
4.3 Specification language . 13
4.4 Communication services for local bus data exchange without DLMS . 13
4.4.1 Overview . 13
4.4.2 Remote reading exchange . 14
4.4.3 Remote programming exchange . 14
4.4.4 Point to point remote transfer exchange . 16
4.4.5 Broadcast remote transfer frame . 16
4.4.6 Bus initialization frame . 16
4.4.7 Forgotten station call exchange . 17
4.4.8 Frame fields . 17
4.4.9 Principle of the energy remote supply . 18
4.4.10 Non-energized station preselection exchange . 19
4.4.11 Communication exchange after preselection . 20
4.4.12 Alarm function . 20
4.5 Communication services for local bus data exchange with DLMS . 21
4.6 Systems management . 22
5 Local bus data exchange without DLMS . 22
5.1 Physical layer . 22
5.1.1 Physical-62056-3-1 protocol . 22
5.1.2 Physical parameters . 23
5.1.3 Timing diagrams . 25
5.1.4 Physical services and service primitives . 26
5.1.5 State transitions . 27
5.1.6 List and processing of errors . 34
5.2 Data Link layer . 35
5.2.1 Link-62056-3-1 protocol . 35
5.2.2 Management of exchanges . 35
5.2.3 Data Link services and service primitives . 35
5.2.4 Data Link parameters . 36
5.2.5 State transitions . 36
5.2.6 List and processing of errors . 41
5.3 Application layer . 42
5.3.1 Application-62056-3-1 protocol . 42
5.3.2 Application services and service primitives . 42
5.3.3 Application parameters . 42

62056-3-1 © IEC:2013 – 3 –
5.3.4 State transitions . 43
5.3.5 List and processing of errors . 45
6 Local bus data exchange with DLMS . 45
6.1 Physical layer . 45
6.2 Data Link layer . 46
6.2.1 Link-E/D protocol . 46
6.2.2 Management of exchanges . 46
6.2.3 Data Link services and service primitives . 47
6.2.4 Data Link parameters . 47
6.2.5 State transitions . 48
6.2.6 List and processing of errors . 54
6.3 Application layer . 54
6.3.1 General . 54
6.3.2 Transport sub-layer . 54
6.3.3 Application sub-layer . 54
7 Local bus data exchange with DLMS/COSEM . 55
7.1 Model . 55
7.2 Physical Layer . 55
7.2.1 General . 55
7.2.2 Physical Parameters . 55
7.2.3 Speed negotiation. 55
7.2.4 E/COSEM Physical Services and service primitives . 56
7.2.5 State transitions . 57
7.3 Data Link layer . 65
7.3.1 General . 65
7.3.2 Identification of data units . 66
7.3.3 Role of the Data Link layer . 66
7.3.4 Management of exchanges . 66
7.3.5 Data Link services and service primitives . 66
7.3.6 Data Link parameters . 68
7.3.7 State transitions . 68
7.4 Support Manager layer . 75
7.4.1 Overview . 75
7.4.2 Initialisation of the bus . 75
7.4.3 Discover service . 76
7.4.4 Speed negotiation. 76
7.4.5 Support Manager parameters . 76
7.4.6 State transitions . 77
7.5 Transport Layer . 78
7.5.1 General . 78
7.5.2 Transport Data Units . 78
7.5.3 State transitions . 80
7.6 Application Layer . 82
7.6.1 General . 82
7.6.2 Broadcast Management . 82
7.6.3 Management of EventNotifications or InformationReports . 83
7.6.4 Priority Management . 83
7.6.5 Management of releasing Application Associations . 83
8 Local bus data exchange – Hardware . 83

– 4 – 62056-3-1 © IEC:2013
8.1 General . 83
8.2 General characteristics . 83
8.2.1 Signal transmission at 50 kHz . 83
8.2.2 Energy supply signal transmission . 84
8.2.3 Simple Secondary Station and multiple Secondary Station . 87
8.3 Bus specification . 88
8.3.1 General characteristics . 88
8.3.2 Cable characteristics . 88
8.3.3 Wiring . 89
8.4 Magnetic plug . 90
8.4.1 Function . 90
8.4.2 Common mechanical characteristics . 90
8.4.3 Electrical block diagram with simple plug . 91
8.4.4 Electrical Block Diagram with energy supply plug . 92
8.5 Functional specifications of Primary Station transmitter (for 50 kHz signal) . 93
8.6 Functional specifications of Primary Station receiver (for 50 kHz signal). 93
8.7 Functional specification of Secondary Station transmitter (for 50 kHz signal) . 94
8.8 Functional specifications of Secondary Station receiver (for 50 kHz signal) . 95
Annex A (normative) Specification language . 97
Annex B (normative) Timing types and characteristics . 100
Annex C (normative) List of fatal errors . 102
Annex D (normative) Coding the command code field of frames . 103
Annex E (normative) Principle of the CRC. 105
Annex F (normative) Random integer generation for response from forgotten stations . 106
Annex G (normative) Random number generation for authentication (profile without
DLMS) . 107
Annex H (normative) Systems management implementation . 108
Annex I (informative) Information about exchanges . 109
Bibliography . 113

Figure 1 – IEC 62056-3-1 communication profiles . 12
Figure 2 – Alarm mechanism. 21
Figure 3 – Exchanges in continuous operation . 25
Figure 4 – Alarm event without any communication in progress . 25
Figure 5 – Alarm event with a communication in progress . 25
Figure 6 – Signal envelope on the bus . 84
Figure 7 – Bus representation . 85
Figure 8 – Power supply characteristics . 85
Figure 9 – States associated to a session: for selected Secondary station . 86
Figure 10 – States associated to a session: for non-selected Secondary station . 86
Figure 11 – Simple and multiple Secondary stations . 87
Figure 12 – Equivalent diagram of the test equipment . 89
Figure 13 – Ferrite pot and bobbin . 90
Figure 14 – Associated components of the magnetic plug . 91
Figure 15 – Associated components of the energy supply plug . 92
Figure B.1 – Logical timing type . 100

62056-3-1 © IEC:2013 – 5 –
Figure B.2 – Physical timing type . 100
Figure B.3 – Results processing for timing defined with low and high limits . 101
Figure B.4 – Results processing for timing defined by a nominal value . 101
Figure I.1 – Non-energized station session . 109
Figure I.2 – Remote reading and programming exchanges . 110
Figure I.3 – Bus initialization . 111
Figure I.4 – Forgotten station call exchange . 112

Table 1 – Primary Station timing . 23
Table 2 – Secondary station timing . 24
Table 3 – Physical services and service primitives . 26
Table 4 – Physical-62056-3-1 state transitions: Primary station . 27
Table 5 – Power supply management state transitions (only for non-energized
secondary station) . 29
Table 6 – Physical-62056-3-1 state transitions: Secondary station . 31
Table 7 – Meaning of the states listed in the previous tables . 32
Table 8 – Definition of the procedures, functions and events classified in alphabetical
order . 33
Table 9 – Error summary table . 34
Table 10 – Data Link services and service primitives . 35
Table 11 – Link-62056-3-1 state transitions: Primary station . 36
Table 12 – Link-62056-3-1 State transitions: Secondary station . 39
Table 13 – Meaning of the states listed in the previous tables . 40
Table 14 – Definition of the procedures and functions classified in alphabetical order . 40
Table 15 – Error summary table . 41
Table 16 – Application services and service primitives . 42
Table 17 – Application-62056-3-1 state transitions: Primary station . 43
Table 18 – Application-62056-3-1 state transitions: Secondary station . 44
Table 19 – Meaning of the states listed in the previous tables . 44
Table 20 – Definition of the procedures and functions classified in alphabetical order . 45
Table 21 – Error summary table . 45
Table 22 – Data Link services and service primitives . 47
Table 23 – Link-E/D state transitions: Primary station . 48
Table 24 – Link-E/D state transitions: Secondary station. 50
Table 25 – Meaning of the states listed in the previous tables . 52
Table 26 – Definition of the procedures and functions classified in alphabetical order . 52
Table 27 – Error summary table . 54
Table 28 – Client_connect function definition . 54
Table 29 – E/COSEM Physical services and service primitives . 56
Table 30 – E/COSEM Physical state transitions: Primary station . 57
Table 31 – Power supply management state transitions (only for non-energized
Secondary station) . 60
Table 32 – E/COSEM Physical State transitions: Secondary station . 61
Table 33 – Meaning of the states listed in the previous tables . 63

– 6 – 62056-3-1 © IEC:2013
Table 34 – Definition of the procedures, functions and events classified in alphabetical
order . 64
Table 35 – Error summary table . 65
Table 36 – Data Link services and service primitives . 66
Table 37 – DLMS/COSEM Data Link E/D state transitions: Primary station . 68
Table 38 – DLMS/COSEM Link E/D state transitions: Secondary station . 71
Table 39 – Meaning of the states listed in the previous tables . 73
Table 40 – Definition of the procedures and functions classified in alphabetical order . 74
Table 41 – Commands managed by the Support Manager layer . 75
Table 42 – List of parameters . 76
Table 43 – Support Manager layer state transitions: Primary station . 77
Table 44 – Support Manager layer state transitions: Secondary station . 77
Table 45 – Meaning of the states listed in the previous table . 77
Table 46 – Definition of procedures, functions and events . 78
Table 47 – Transport services and services primitive . 79
Table 48 – Transport state transitions . 80
Table 49 – Meaning of the states listed in the previous table . 81
Table 50 – Definition of the procedures and functions classified in alphabetical order . 82
Table 51 – Primary station transmitter: Tev0 and Tev1 values . 93
Table 52 – Primary station receiver: Tev0 and Tev1 values . 94
Table 53 – Secondary station transmitter: Tev0 and Tev1 values . 94
Table 54 – Secondary station receiver: Tev0 and Tev1 values . 95
Table C.1 – FatalError error numbers . 102
Table D.1 – Command codes for local bus data exchange . 103
Table D.2 – Command codes with DLMS and DLMS/COSEM . 104
Table H.1 – Discovery service. 108
Table H.2 – Service specification . 108

62056-3-1 © IEC:2013 – 7 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
ELECTRICITY METERING DATA EXCHANGE –
THE DLMS/COSEM SUITE –
Part 3-1: Use of local area networks on twisted pair
with carrier signalling
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 62056-3-1 has been prepared by IEC technical committee 13:
Electrical energy measurement, tariff- and load control.
This first edition cancels and replaces the first edition of IEC 62056-31, issued in 1999, and
constitutes a technical revision.
The main technical changes with regard to the previous edition are as follows:
• addition of a profile which makes use of the IEC 62056 DLMS/COSEM Application layer
and COSEM object model,
• review of the data link layer which is split into two parts:
– a pure Data Link layer;
– a “Support Manager” entity managing the communication media;
• ability to negotiate the communication speed, bringing baud rate up to 9 600 bauds.

– 8 – 62056-3-1 © IEC:2013
The text of this standard is based on the following documents:
FDIS Report on voting
13/1546/FDIS 13/1552/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
A list of all parts of IEC 62056 series, published under the general title Electricity metering
data exchange – The DLMS/COSEM suite, can be found on the IEC website.
Future standards in this series will carry the new general title as cited above. Titles of existing
standards in this series will be updated at the time of the next eidition.
The numbering scheme has changes from IEC 62056-XY to IEC 62056-X-Y. For example,
IEC 62056-31 becomes IEC 62056-3-1.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
62056-3-1 © IEC:2013 – 9 –
ELECTRICITY METERING DATA EXCHANGE –
THE DLMS/COSEM SUITE –
Part 3-1: Use of local area networks on twisted pair
with carrier signalling
1 Scope
This part of IEC 62056 describes three profiles for local bus data exchange with stations
either energized or not. For non-energized stations, the bus supplies energy for data
exchange.
Three different profiles are supported:
• base profile: this three-layer profile provides remote communication services;
NOTE This first profile has been published in IEC 61142:1993 and became known as the Euridis standard.
• profile with DLMS: this profile allows using DLMS services as specified in IEC 61334-4-41;
NOTE This second profile has been published in IEC 62056-31 Ed. 1.0:1999;
• profile with DLMS/COSEM: this profile allows using the DLMS/COSEM Application layer
and the COSEM object model as specified in IEC 62056-5-3 Ed. 1.0:— and in IEC 62056-
6-2 Ed. 1.0:— respectively.
The three profiles use the same physical layer and they are fully compatible, meaning that
devices implementing any of these profiles can be operated on the same bus.
The transmission medium is twisted pair using carrier signalling and it is known as the Euridis
Bus.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and
are indispensable for its application. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 61334-4-41:1996, Distribution automation using distribution line carrier systems – Part 4:
Data communication protocol – Section 41: Application protocols – Distribution line message
specification
IEC 62056-51:1998 Electricity Metering – Data exchange for meter reading, tariff and load
control – Part 51: Application Layer Protocols
IEC 62056-5-3 Ed. 1.0:—, Electricity metering data exchange – The DLMS/COSEM suite –
Part 5-3: DLMS/COSEM application layer
ISO/IEC 8482:1993, Information technology – Telecommunications and information exchange
between systems – Twisted pair multipoint interconnections
EIA 485 – Standard for Electrical Characteristics of Generators and Receivers for Use in
Balanced Digital Multipoint Systems

– 10 – 62056-3-1 © IEC:2013
3 Abbreviations
Abbreviation English rendering
ADP Primary Station Address
ADG General Secondary Address. Broadcast Address
ADS Secondary Station Address
AGN Normal Wakeup
AGT General call for a General Energized Station
APDU Application Protocol Data Unit
APG General Primary Address
ARJ COM field value: Rejection of authentication in remote programming exchange
ASDU Application Service Data Unit
ASO COM field value: Call to Forgotten Stations
AUT COM field value: Authentication command
COM Control field of the Data Link layer
COSEM Companion Specification for Energy Metering
DAT COM field value: Response of remote reading exchange
DES Data Encryption Standard
DLMS Distribution Line Message Specification (IEC 61334-4-41)
Device Language Message Specification (IEC 62056-5-3)
DSDU Data link Service Data Unit
DRJ COM field value: Data Rejected
Value of COM notifying the rejection of remote programming exchange data
Dsap Transport data unit label. Coded over 3 bits. Its value is 6.
DTSAP Destination of Transport Service Access Point
ECH COM field value: Echo of remote programming exchange data
ENQ Remote reading exchange request
EOS COM field value: End of remote programming exchange
IB Initialisation of the bus
MaxRetry Maximum number retransmissions. Limited to 2.
MaxRSO Maximum number of RSO listening windows. Fixed at 3.
PDU Protocol Data Unit
PRE COM field value: Pre-selection of energised stations
REC COM field value: Remote programming exchange request
RSO COM field value: Response to a call to forgotten stations
SEL COM field value: Acknowledgement of the pre-selection of energized stations
STSAP Source Transport Service Access Point
TAB In the case of the Euridis profiles without DLMS and without DLMS/COSEM: data code.
In the case of profiles using DLMS or DLMS/COSEM: value at which the equipment is
programmed for Discovery
TABi List of TAB field
TASB Duration of an Alarm Signal on the Bus
TOAG Maximum wait time for an energized station once selected, to recognise a general call AGN
TOALR Wait before sending an AGN after reception of an AGN or AGT
TOL Maximum waiting time for a request from the upper layer

62056-3-1 © IEC:2013 – 11 –
Abbreviation English rendering
TOPRE Maximum waiting time for a response to a pre-selection.
TPDU Transport Protocol Data Unit
TSDU Transport Protocol Service Unit
TRA COM field value: Acknowledgement of point to point transfer
TRB COM field value: Broadcast remote transfer frame not acknowledged
TRF COM field value: Point to point remote transfer exchange
T1 Time out to wait for a response according to a request
XBA COM field value: Response to a change of speed request
XBR COM field value: Change of speed request
ZA1 Field reserved for bidirectional programming authentication
ZA2 Field reserved for bidirectional programming authentication
4 General description
4.1 Basic vocabulary
All communication calls upon two systems called Primary Station and Secondary Station. The
Primary Station is the system that decides to initialize a communication with a remote system
called Secondary Station; these designations remain valid throughout the duration of the
communication.
A communication is broken down into a certain number of transactions. Each transaction
consists of a transmission from the Transmitter to the Receiver. During the sequence of
transactions, the Primary Station and Secondary Station systems take turns to act as
Transmitter and Receiver.
For the local bus data exchange profile with DLMS or DLMS/COSEM, the terms Client and
Server have the same meaning as for the DLMS model (refer to IEC 61334-4-41 or
IEC 62056-5-3 Ed. 1.0:—). The Server (which is a Secondary Station) receives and processes
all submissions of specific service requests. The Client (which is a Primary Station) is the
system that uses the Server for a specific purpose by means of one or more service requests.
4.2 Profiles, layers and protocols
4.2
...
