EN 60670-22:2006

SLOVENSKI STANDARD
SIST EN 60670-22:2007
01-marec-2007
2PDULFHLQRKLãMD]DHOHNWULþQRRSUHPR]DJRVSRGLQMVWYRLQSRGREQHQHSUHPLþQH
HOHNWULþQHLQãWDODFLMHGHO3RVHEQH]DKWHYH]DSULNOMXþQHRPDULFHLQRKLãMD
,(&VSUHPHQMHQ
Boxes and enclosures for electrical accessories for household and similar fixed electrical
installations -- Part 22: Particular requirements for connecting boxes and enclosures (IEC
60670-22:2003, modified)
Dosen für Installationsgeräte für Haushalt und ähnliche ortsfeste elektrische
Installationen – Teil 22: Besondere Anforderungen für Verbindungsdosen
Boîtes et enveloppes pour appareillage électrique pour installations électriques fixes
pour usage domestique et analogue -- Partie 22: Regles particulieres concernant les
boîtes et enveloppes de connexion (IEC 60670-22:2003, modifiée)
Ta slovenski standard je istoveten z: EN 60670-22:2006
ICS:
29.120.99 'UXJDHOHNWULþQDGRGDWQD Other electrical accessories
RSUHPD
SIST EN 60670-22:2007 en,fr,de
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------

EUROPEAN STANDARD
EN 60670-22

NORME EUROPÉENNE
December 2006
EUROPÄISCHE NORM

ICS 29.120.10


English version


Boxes and enclosures for electrical accessories
for household and similar fixed electrical installations
Part 22: Particular requirements
for connecting boxes and enclosures
(IEC 60670-22:2003, modified)


Boîtes et enveloppes pour appareillage Dosen für Installationsgeräte
électrique pour installations électriques für Haushalt und ähnliche ortsfeste
fixes pour usage domestique et analogue elektrische Installationen
Partie 22: Règles particulières concernant Teil 22: Besondere Anforderungen
für Verbindungsdosen
les boîtes et enveloppes de connexion
(CEI 60670-22:2003, modifiée) (IEC 60670-22:2003, modifiziert)




This European Standard was approved by CENELEC on 2006-07-01. CENELEC members are bound to comply
with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard
the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and notified
to the Central Secretariat has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Cyprus, the Czech
Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain,
Sweden, Switzerland and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Central Secretariat: rue de Stassart 35, B - 1050 Brussels


© 2006 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 60670-22:2006 E

---------------------- Page: 2 ----------------------

EN 60670-22:2006 – 2 –

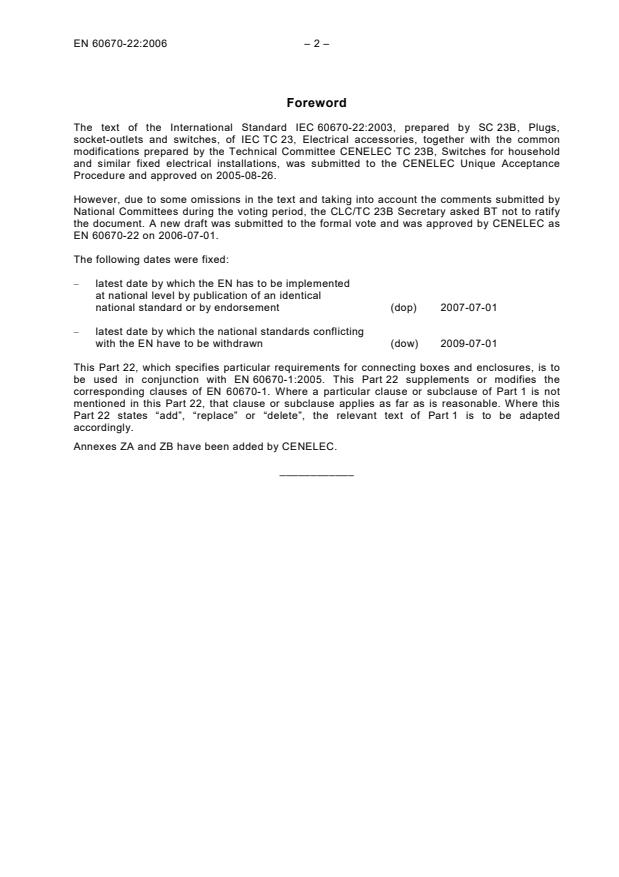

Foreword

The text of the International Standard IEC 60670-22:2003, prepared by SC 23B, Plugs,
socket-outlets and switches, of IEC TC 23, Electrical accessories, together with the common
modifications prepared by the Technical Committee CENELEC TC 23B, Switches for household
and similar fixed electrical installations, was submitted to the CENELEC Unique Acceptance
Procedure and approved on 2005-08-26.

However, due to some omissions in the text and taking into account the comments submitted by
National Committees during the voting period, the CLC/TC 23B Secretary asked BT not to ratify
the document. A new draft was submitted to the formal vote and was approved by CENELEC as
EN 60670-22 on 2006-07-01.

The following dates were fixed:

– latest date by which the EN has to be implemented
at national level by publication of an identical
national standard or by endorsement (dop) 2007-07-01

– latest date by which the national standards conflicting
with the EN have to be withdrawn (dow) 2009-07-01
This Part 22, which specifies particular requirements for connecting boxes and enclosures, is to
be used in conjunction with EN 60670-1:2005. This Part 22 supplements or modifies the
corresponding clauses of EN 60670-1. Where a particular clause or subclause of Part 1 is not
mentioned in this Part 22, that clause or subclause applies as far as is reasonable. Where this
Part 22 states “add”, “replace” or “delete”, the relevant text of Part 1 is to be adapted
accordingly.
Annexes ZA and ZB have been added by CENELEC.

____________

---------------------- Page: 3 ----------------------

– 3 – EN 60670-22:2006
Endorsement notice
The text of the International Standard IEC 60670-22:2003 was approved by CENELEC as a European
Standard with agreed common modifications as given below.
COMMON MODIFICATIONS
2 Normative references
Replace the reference to IEC 60999-1 by:
IEC 60999 (series), Connecting devices - Electrical copper conductors - Safety
requirements for screw-type and screwless-type clamping units
3 Definitions
3.107 Replace by:
3.107
terminal
conductive part of one pole comprising one or more clamping unit(s) and insulation if
necessary
4 General requirements
Replace the text by:
This clause of Part 1 is applicable with the following addition:
Terminals and connecting devices incorporated in connecting boxes shall comply with the
requirements of the EN 60998 series; integrated clamping units shall comply with the
requirements of the EN 60999 series.
6 Ratings
6.1 Replace by:
6.1 The preferred values of the rated voltage of the integrated or incorporated
connecting devices are 250 V, 300 V, 400 V, 500 V, 600 V, 690 V, 800 V, 1 000 V a.c.
and 1 500 V d.c.
6.2 Delete notes 1, 2, 3 and 4.
8 Marking
8.1 Add the following paragraph after m):
The information l) and m) are optional for boxes classified according to 7.101.4.
8.101 Replace the second line by :
2
Rated connecting capacity.……………………… mm or !

---------------------- Page: 4 ----------------------

EN 60670-22:2006 – 4 –
17 Creepage distances, clearances and distances through sealing compound
Add after the first paragraph:
This test does not apply to boxes for floating terminals or connecting devices classified
according to 7.101.4.
Delete the last but one paragraph.

---------------------- Page: 5 ----------------------

– 5 – EN 60670-22:2006
Annex ZA
(normative)

Normative references to international publications
with their corresponding European publications

The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.


NOTE  Where an International Publication has been modified by common modifications, indicated by (mod), the relevant EN/HD
applies.

Publication Year Title EN/HD Year

Addition:

IEC 60998 Series Connecting devices for low-voltage circuits for EN 60998 Series
(mod) household and similar purposes

IEC 60999 Series Connecting devices - Electrical copper EN 60999 Series
conductors - Safety requirements for screw-type
and screwless-type clamping units






Annex ZB
(normative)

Special national conditions



Special national condition: National characteristic or practice that cannot be changed even
over a long period, e.g. climatic conditions, electrical earthing conditions.

NOTE  If it affects harmonization, it forms part of the European Standard.

For the countries in which the relevant special national conditions apply these provisions are
normative, for other countries they are informative.

Subclause Special national condition

6.2, Note 3 United Kingdom
2
In the United Kingdom, a standard connecting capacity of 1,25 mm is used.

---------------------- Page: 6 ----------------------

NORME CEI
INTERNATIONALE IEC
60670-22
INTERNATIONAL
Première édition
STANDARD
First edition
2003-05
Boîtes et enveloppes pour appareillage électrique
pour installations électriques fixes pour usage
domestique et analogue –
Partie 22:
Règles particulières concernant
les boîtes et enveloppes de connexion
Boxes and enclosures for electrical accessories
for household and similar fixed electrical
installations –
Part 22:
Particular requirements for connecting boxes
and enclosures
 IEC 2003 Droits de reproduction réservés  Copyright - all rights reserved
Aucune partie de cette publication ne peut être reproduite ni No part of this publication may be reproduced or utilized in any
utilisée sous quelque forme que ce soit et par aucun procédé, form or by any means, electronic or mechanical, including
électronique ou mécanique, y compris la photocopie et les photocopying and microfilm, without permission in writing from
microfilms, sans l'accord écrit de l'éditeur. the publisher.
International Electrotechnical Commission, 3, rue de Varembé, PO Box 131, CH-1211 Geneva 20, Switzerland
Telephone: +41 22 919 02 11 Telefax: +41 22 919 03 00 E-mail: inmail@iec.ch  Web: www.iec.ch
CODE PRIX
N
Commission Electrotechnique Internationale PRICE CODE
International Electrotechnical Commission
Международная Электротехническая Комиссия
Pour prix, voir catalogue en vigueur
For price, see current catalogue

---------------------- Page: 7 ----------------------

60670-22  IEC:2003 – 3 –
CONTENTS
FOREWORD . 5
1 Scope . 9
2 Normative references. 9
3 Definitions . 9
4 General requirements .11
5 General notes on tests.11
6 Ratings .13
7 Classification .13
8 Marking .13
9 Dimensions.15
10 Protection against electric shock.15
11 Provision for earthing.15
12 Construction .15
13 Resistance to ageing, protection against ingress of solid objects and against
harmful ingress of water.17
14 Insulation resistance and electric strength .17
15 Mechanical strength.19
16 Resistance to heat .19
17 Creepage distances, clearances and distances through sealing compound.23
18 Resistance of insulating material to abnormal heat and to fire.23
19 Resistance to tracking .23
20 Resistance to rusting .25
21 Electromagnetic compatibility.25
Annex AA (informative) Examples of connecting boxes/enclosures .27
Figure 101 – Single terminal device .25
Figure 102 – Multiway terminal device.25
Table 101 – Relationship between rated connecting capacity and test current.21
Table 102 – Creepage distances, clearances and distances through sealing compound.23

---------------------- Page: 8 ----------------------

60670-22  IEC:2003 – 5 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
___________
BOXES AND ENCLOSURES FOR ELECTRICAL ACCESSORIES FOR
HOUSEHOLD AND SIMILAR FIXED ELECTRICAL INSTALLATIONS –
Part 22: Particular requirements for connecting boxes and enclosures
FOREWORD
1) The IEC (International Electrotechnical Commission) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of the IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, the IEC publishes International Standards. Their preparation is
entrusted to technical committees; any IEC National Committee interested in the subject dealt with may
participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. The IEC collaborates closely with the International
Organization for Standardization (ISO) in accordance with conditions determined by agreement between the
two organizations.
2) The formal decisions or agreements of the IEC on technical matters express, as nearly as possible, an
international consensus of opinion on the relevant subjects since each technical committee has representation
from all interested National Committees.
3) The documents produced have the form of recommendations for international use and are published in the form
of standards, technical specifications, technical reports or guides and they are accepted by the National
Committees in that sense.
4) In order to promote international unification, IEC National Committees undertake to apply IEC International
Standards transparently to the maximum extent possible in their national and regional standards. Any
divergence between the IEC Standard and the corresponding national or regional standard shall be clearly
indicated in the latter.
5) The IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with one of its standards.
6) Attention is drawn to the possibility that some of the elements of this technical report may be the subject of
patent rights. The IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 60670-22 has been prepared by subcommittee 23B: Plugs, socket-
outlets and switches, of IEC Technical Committee 23: Electrical accessories.
The text of this standard is based on the following documents:
FDIS Report on voting
23B/700/FDIS 23B/704/RVD
Full information on the voting for the approval of this document can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
This standard shall be used in conjunction with IEC 60670-1. It lists the changes necessary
to convert that standard into a specific standard for connecting boxes and enclosures.

---------------------- Page: 9 ----------------------

60670-22  IEC:2003 – 7 –
In this publication:
a) the following print types are used:
 requirements proper: in roman type.
 test specifications: in italic type.
 notes: in smaller roman type.
b) subclauses, figures or tables which are additional to those in Part 1 are numbered starting
from 101.
Annex AA is for information only.
The committee has decided that the contents of this publication will remain unchanged until 2008.
...
