EN 61158-4-14:2014

SLOVENSKI STANDARD
01-april-2015
1DGRPHãþD
SIST EN 61158-4-14:2012
Industrijska komunikacijska omrežja - Specifikacije za procesna vodila - 4-14. del:
Specifikacija protokola na ravni podatkovnih povezav - Elementi tipa 14 (IEC 61158
-4-14:2014)
Industrial communication networks - Fieldbus specifications - Part 4-14: Data-link layer
protocol specification - Type 14 elements (IEC 61158-4-14:2014)
Industrielle Kommunikationsnetze - Feldbusse - Teil 4-14: Protokollspezifikation des
Data Link Layer (Sicherungsschicht) - Typ 14-Elemente (IEC 61158-4-14:2014)
Réseaux de communication industriels - Spécifications des bus de terrain - Partie 4-14:
Spécification du protocole de la couche liaison de données - Eléments de type 14 (CEI
61158-4-14:2014)
Ta slovenski standard je istoveten z: EN 61158-4-14:2014
ICS:
25.040.40 Merjenje in krmiljenje Industrial process
industrijskih postopkov measurement and control
35.100.20 Podatkovni povezovalni sloj Data link layer
35.110 Omreževanje Networking
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD EN 61158-4-14

NORME EUROPÉENNE
EUROPÄISCHE NORM
October 2014
ICS 25.040.40; 35.100.20; 35.110 Supersedes EN 61158-4-14:2012
English Version
Industrial communication networks - Fieldbus specifications -
Part 4-14: Data-link layer protocol specification - Type 14
elements
(IEC 61158-4-14:2014)
Réseaux de communication industriels - Spécifications des Industrielle Kommunikationsnetze - Feldbusse - Teil 4-14:
bus de terrain - Partie 4-14: Spécification du protocole de la Protokollspezifikation des Data Link Layer
couche liaison de données - Eléments de type 14 (Sicherungsschicht) - Typ 14-Elemente
(CEI 61158-4-14:2014) (IEC 61158-4-14:2014)
This European Standard was approved by CENELEC on 2014-09-19. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2014 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN 61158-4-14:2014 E

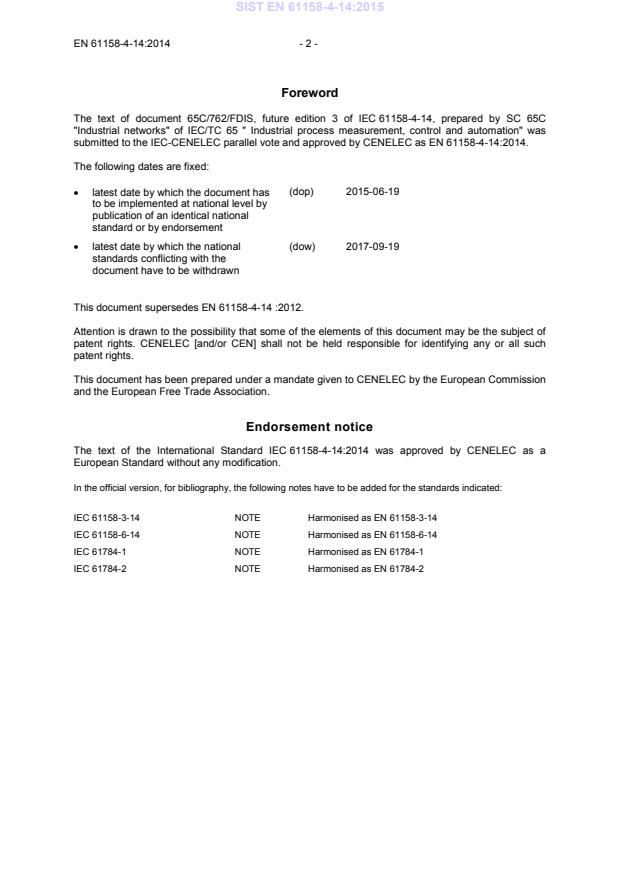

Foreword
The text of document 65C/762/FDIS, future edition 3 of IEC 61158-4-14, prepared by SC 65C
"Industrial networks" of IEC/TC 65 " Industrial process measurement, control and automation" was
submitted to the IEC-CENELEC parallel vote and approved by CENELEC as EN 61158-4-14:2014.

The following dates are fixed:
• latest date by which the document has (dop) 2015-06-19
to be implemented at national level by
publication of an identical national
standard or by endorsement
(dow) 2017-09-19
• latest date by which the national
standards conflicting with the
document have to be withdrawn
This document supersedes EN 61158-4-14 :2012.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such
patent rights.
This document has been prepared under a mandate given to CENELEC by the European Commission
and the European Free Trade Association.

Endorsement notice
The text of the International Standard IEC 61158-4-14:2014 was approved by CENELEC as a
European Standard without any modification.
In the official version, for bibliography, the following notes have to be added for the standards indicated:
IEC 61158-3-14 NOTE Harmonised as EN 61158-3-14
IEC 61158-6-14 NOTE Harmonised as EN 61158-6-14
IEC 61784-1 NOTE Harmonised as EN 61784-1
IEC 61784-2 NOTE Harmonised as EN 61784-2

- 3 - EN 61158-4-14:2014
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications

The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.

NOTE 1 When an International Publication has been modified by common modifications, indicated by (mod), the relevant
EN/HD applies.
NOTE 2 Up-to-date information on the latest versions of the European Standards listed in this annex is available here:
www.cenelec.eu.
Publication Year Title EN/HD Year
IEC 61158-1 -  Industrial communication networks - EN 61158-1 -
Fieldbus specifications
Part 1: Overview and guidance for the IEC
61158 and IEC 61784 series
IEC 61158-5-14 -  Industrial communication networks - EN 61158-5-14 -
Fieldbus specifications
Part 5-14: Application layer service definition
- Type 14 elements
ISO/IEC 7498-1 -  Information technology - Open Systems - -
Interconnection - Basic reference model:
The basic model
ISO/IEC 7498-3 -  Information technology - Open Systems - -
Interconnection - Basic reference model:
Naming and addressing
ISO/IEC 8802-3 -  Information technology - - -
Telecommunications and information
exchange between systems - Local and
metropolitan area networks - Specific
requirements
Part 3: Carrier sense multiple access with
collision detection (CSMA/CD) access
method and physical layer specifications
ISO/IEC 10731 -  Information technology - Open Systems - -
Interconnection - Basic Reference Model -
Conventions for the definition of OSI
services
IETF RFC 768 -  User Datagram Protocol - -
IETF RFC 791 -  Internet Protocol - DARPA Internet Program - -
Protocol Specification
IETF RFC 793 -  Transmission Control Protocol - DARPA - -
Internet Program Protocol Specification

IEC 61158-4-14 ®
Edition 3.0 2014-08
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Industrial communication networks – Fieldbus specifications –

Part 4-14: Data-link layer protocol specification – Type 14 elements

Réseaux de communication industriels – Spécifications des bus de terrain –

Partie 4-14: Spécification du protocole de la couche liaison de données –

Eléments de type 14
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX V
ICS 25.040.40; 35.100.20; 35.110 ISBN 978-2-8322-1726-9

– 2 – IEC 61158-4-14:2014 © IEC 2014
CONTENTS
FOREWORD . 4
INTRODUCTION . 6
1 Scope . 8
1.1 General . 8
1.2 Specifications . 8
1.3 Procedures . 8
1.4 Applicability . 9
1.5 Conformance . 9
2 Normative references . 9
3 Terms, definitions, symbols and abbreviations . 9
3.1 Reference model terms and definitions . 10
3.2 Service convention terms and definitions . 12
3.3 ISO/IEC 8802-3 terms . 12
3.4 Common terms and definitions . 13
3.5 Symbols and abbreviations . 16
4 Overview of the DL-protocol . 17
4.1 General . 17
4.2 Services provided by the DL . 18
4.3 Structure of deterministic communication scheduling . 19
5 Procedure of deterministic communication scheduling . 21
5.1 Overview . 21
5.2 State transitions . 21
5.3 State table . 23
5.4 Function descriptions . 24
6 Structure and encoding of ECSME PDU . 27
6.1 ECSME PDU structure . 27
6.2 Encoding of ECSME packet . 30
Bibliography . 33

Figure 1 – Relationships of DLSAPs, DLSAP-addresses and group DL-addresses . 14
Figure 2 – Communication model . 17
Figure 3 – Type 14 packet identifier . 19
Figure 4 – Time-sharing communication scheduling . 20
Figure 5 – State transitions of ECSME . 21
Figure 6 – Format of NonPeriodicDataAnnunciation PDU . 27
Figure 7 – Format of EndofNonPeriodicDataSending PDU . 28
Figure 8 – Format of Type 14 PDU. 29
Figure 9 – Format of Type 14 PDU for FRT application . 29

Table 1 – ECSME state transitions . 23
Table 2 – PeriodicDataSendingSuc() description . 24
Table 3 – NonperiodicDataAnnunciation() description . 24
Table 4 – PeriodicDataSending() description . 25

IEC 61158-4-14:2014 © IEC 2014 – 3 –
Table 5 – NonperiodicDataSendingSuc() description . 25
Table 6 – FirstNonperiodicDataSending() description . 25
Table 7 – NonperiodicDataPriority() description . 25
Table 8 – NonperiodicDataTimeEnough() description . 26
Table 9 – NonperiodicDataSending() description . 26
Table 10 – EndOfNonperiodicDataSending() description . 26
Table 11 – IsDeviceConfigured() description . 26
Table 12 – CountOffsetTime() description . 27
Table 13 – DataSendingTiming() description . 27
Table 14 – RecEndofNonPeriodicDataSending() description . 27
Table 15 – NonPeriodicDataAnnunciation message encoding . 30
Table 16 – EndofNonPeriodicDataSending message encoding. 30
Table 17 – Type 14 DL-management Tag encoding . 31
Table 18 – Type 14 message encoding . 31
Table 19 – Type 14 message for FRT application encoding . 32

– 4 – IEC 61158-4-14:2014 © IEC 2014
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
INDUSTRIAL COMMUNICATION NETWORKS –
FIELDBUS SPECIFICATIONS –
Part 4-14: Data-link layer protocol specification –
Type 14 elements
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
Attention is drawn to the fact that the use of the associated protocol type is restricted by its
intellectual-property-right holders. In all cases, the commitment to limited release of
intellectual-property-rights made by the holders of those rights permits a layer protocol type to
be used with other layer protocols of the same type, or in other type combinations explicitly
authorized by its intellectual-property-right holders.
NOTE Combinations of protocol types are specified in IEC 61784-1 and IEC 61784-2.
International Standard IEC 61158-4-14 has been prepared by subcommittee 65C: Industrial
networks, of IEC technical committee 65: Industrial-process measurement, control and
automation.
This third edition cancels and replaces the second edition published in 2010. This edition
constitutes a technical revision. The main changes with respect to the previous edition are
listed below:
• provide stability date for the publication;
• update the Communication model;

IEC 61158-4-14:2014 © IEC 2014 – 5 –
• update the Encoding of DL-management Tag for FRT applications in Subclause 6.2.3;
• corrections the edit error;
• update of the requirements for all conformance classes;
• update of the requirements for all conformance services.
The text of this standard is based on the following documents:
FDIS Report on voting
65C/762/FDIS 65C/772/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with ISO/IEC Directives, Part 2.
A list of all the parts of the IEC 61158 series, published under the general title Industrial
communication networks – Fieldbus specifications, can be found on the IEC web site.
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be:
• reconfirmed;
• withdrawn;
• replaced by a revised edition, or
• amended.
– 6 – IEC 61158-4-14:2014 © IEC 2014
INTRODUCTION
This part of IEC 61158 is one of a series produced to facilitate the interconnection of
automation system components. It is related to other standards in the set as defined by the
“three-layer” fieldbus reference model described in IEC 61158-1.
The data-link protocol provides the data-link service by making use of the services available
from the physical layer. The primary aim of this standard is to provide a set of rules for
communication expressed in terms of the procedures to be carried out by peer data-link
entities (DLEs) at the time of communication. These rules for communication are intended to
provide a sound basis for development in order to serve a variety of purposes:
a) as a guide for implementors and designers;
b) for use in the testing and procurement of equipment;
c) as part of an agreement for the admittance of systems into the open systems environment;
d) as a refinement to the understanding of time-critical communications within OSI.
This standard is concerned, in particular, with the communication and interworking of sensors,
effectors and other automation devices. By using this standard together with other standards
positioned within the OSI or fieldbus reference models, otherwise incompatible systems may
work together in any combination.
NOTE Use of some of the associated protocol types is restricted by their intellectual-property-right holders. In all
cases, the commitment to limited release of intellectual-property-rights made by the holders of those rights permits
a particular data-link layer protocol type to be used with physical layer and application layer protocols in Type
combinations as specified explicitly in profile parts. Use of the various protocol types in other combinations may
require permission from their respective intellectual-property-right holders.
The International Electrotechnical Commission (IEC) draws attention to the fact that it is
claimed that compliance with this document may involve the use of a patent concerning Type
14 elements and possibly other types given in Clause 5 as follows:
ZL 200410088676.7 [SPT]  Scheduling method with deterministic communication based on
Ethernet
ZL 03142040.0 [SPT]  A scheduling method for deterministic communication based on
Ethernet
ZL 200810171872.9 [SPG] [ZJU]  The communication method and equipment used in the
Ethernet
IEC takes no position concerning the evidence, validity and scope of these patent rights.
The holders of these patent rights have assured IEC that they are willing to negotiate licenses
either free of charge or under reasonable and non-discriminatory terms and conditions with
applicants throughout the world. In this respect, the statement of the holders of these patent
rights is registered with IEC. Information may be obtained from
[SPT] Zhejiang SUPCON Technology Co., Ltd.
Dongqin FENG Jian CHU
Liuhe Road 309, Bingjiang District,
Hangzhou, Zhejiang, 310053
China
[SPG] Zhejiang SUPCON Group Co., Ltd.
Dongqin FENG Jian CHU
Liuhe Road 309, Bingjiang District,
Hangzhou, Zhejiang, 310053
China
IEC 61158-4-14:2014 © IEC 2014 – 7 –

[ZJU] Zhejiang University
Dongqin FENG Jian CHU
Zheda Road 38,
Hangzhou, Zhejiang,310027
China
Attention is drawn to the possibility that some of the elements of this document may be the
subject of patent rights other than those identified above. IEC shall not be held responsible for
identifying any or all such patent rights.
ISO (www.iso.org/patents) and IEC (http://patents.iec.ch) maintain on-line databases of
patents relevant to their standards. Users are encouraged to consult the databases for the
most up to date information concerning patents.

– 8 – IEC 61158-4-14:2014 © IEC 2014
INDUSTRIAL COMMUNICATION NETWORKS –
FIELDBUS SPECIFICATIONS –
Part 4-14: Data-link layer protocol specification –
Type 14 elements
1 Scope
1.1 General
The data-link layer provides basic time-critical messaging communications between devices in
an automation environment.
This protocol provides communication opportunities to all participating data-link entities
a) in a synchronously-starting cyclic manner, according to a pre-established schedule, and
b) in a cyclic or acyclic asynchronous manner, as requested each cycle by each of those
data-link entities.
Thus this protocol can be characterized as one which provides cyclic and acyclic access
asynchronously but with a synchronous restart of each cycle.
1.2 Specifications
This standard specifies
a) procedures for the timely transfer of data and control information from one data-link user
entity to a peer user entity, and among the data-link entities forming the distributed data-
link service provider;
b) procedures for giving communications opportunities to all participating DL-entities,
sequentially and in a cyclic manner for deterministic and synchronized transfer at cyclic
intervals;
c) procedures for giving communication opportunities available for time-critical data
transmission together with non-time-critical data transmission without prejudice to the
time-critical data transmission;
d) procedures for giving cyclic and acyclic communication opportunities for time-critical data
transmission with prioritized access;
e) procedures for giving communication opportunities based on standard ISO/ IEC 8802-3
medium access control, with provisions for nodes to be added or removed during normal
operation;
f) the structure of the fieldbus DLPDUs used for the transfer of data and control information
by the protocol of this standard, and their representation as physical interface data units.
1.3 Procedures
The procedures are defined in terms of
a) the interactions between peer DL-entities (DLEs) through the exchange of fieldbus
DLPDUs;
b) the interactions between a DL-service (DLS) provider and a DLS-user in the same system
through the exchange of DLS primitives;
c) the interactions between a DLS-provider and a Ph-service provider in the same system
through the exchange of Ph-service primitives.

IEC 61158-4-14:2014 © IEC 2014 – 9 –
1.4 Applicability
These procedures are applicable to instances of communication between systems which
support time-critical communications services within the data-link layer of the OSI or fieldbus
reference models, and which require the ability to interconnect in an open systems
interconnection environment.
Profiles provide a simple multi-attribute means of summarizing an implementation’s
capabilities, and thus its applicability to various time-critical communications needs.
1.5 Conformance
This standard also specifies conformance requirements for systems implementing these
procedures. This standard does not contain tests to demonstrate compliance with such
requirements.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and
are indispensable for its application. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any
amendments) applies.
NOTE All parts of the IEC 61158 series, as well as IEC 61784-1 and IEC 61784-2 are maintained simultaneously.
Cross-references to these documents within the text therefore refer to the editions as dated in this list of normative
references.
IEC 61158-1, Industrial communication networks – Fieldbus specifications – Part 1: Overview
and guidance for the IEC 61158 and IEC 61784 series
IEC 61158-5-14, Industrial communication networks – Fieldbus specifications – Part 5-14:
Application layer service definition – Type 14 elements
ISO/IEC 7498-1, Information technology – Open Systems Interconnection – Basic Reference
Model: The Basic Model
ISO/IEC 7498-3, Information technology – Open Systems Interconnection – Basic Reference
Model: Naming and addressing
ISO/IEC 8802-3, Information technology – Telecommunications and information exchange
between systems – Local and metropolitan area networks – Specific requirements – Part 3:
Carrier sense multiple access with collision detection (CSMA/CD) access method and
physical layer specifications
ISO/IEC 10731, Information technology – Open Systems Interconnection – Basic Reference
Model – Conventions for the definition of OSI services
RFC 768, User Datagram Protocol (UDP), available at
RFC 791, Internet protocol, available at
RFC 793, Transmission Control Protocol, available at
3 Terms, definitions, symbols and abbreviations
For the purposes of this document, the following terms, definitions, symbols and abbreviations
apply.
– 10 – IEC 61158-4-14:2014 © IEC 2014
3.1 Reference model terms and definitions
This standard is based in part on the concepts developed in ISO/IEC 7498-1 and
ISO/IEC 7498-3, and makes use of the following terms defined therein.
3.1.1 called-DL-address [ISO/IEC 7498-3]
3.1.2 calling-DL-address [ISO/IEC 7498-3]
3.1.3 centralized multi-end-point-connection [ISO/IEC 7498-1]
3.1.4 correspondent (N)-entities [ISO/IEC 7498-1]
correspondent DL-entities  (N=2)
correspondent Ph-entities  (N=1)
3.1.5 demultiplexing [ISO/IEC 7498-1]
3.1.6 DL-address [ISO/IEC 7498-3]
3.1.7 DL-address-mapping [ISO/IEC 7498-1]
3.1.8 DL-connection [ISO/IEC 7498-1]
3.1.9 DL-connection-end-point [ISO/IEC 7498-1]
3.1.10 DL-connection-end-point-identifier [ISO/IEC 7498-1]
3.1.11 DL-connection-mode transmission [ISO/IEC 7498-1]
3.1.12 DL-connectionless-mode transmission [ISO/IEC 7498-1]
3.1.13 DL-data-sink [ISO/IEC 7498-1]
3.1.14 DL-data-source [ISO/IEC 7498-1]
3.1.15 DL-duplex-transmission [ISO/IEC 7498-1]
3.1.16 DL-facility [ISO/IEC 7498-1]
3.1.17 DL-local-view [ISO/IEC 7498-3]
3.1.18 DL-name [ISO/IEC 7498-3]
3.1.19 DL-protocol [ISO/IEC 7498-1]
3.1.20 DL-protocol-connection-identifier [ISO/IEC 7498-1]
3.1.21 DL-protocol-control-information
[ISO/IEC 7498-1]
3.1.22 DL-protocol-data-unit [ISO/IEC 7498-1]
3.1.23 DL-protocol-version-identifier [ISO/IEC 7498-1]
3.1.24 DL-relay [ISO/IEC 7498-1]
3.1.25 DL-service-connection-identifier [ISO/IEC 7498-1]
3.1.26 DL-service-data-unit [ISO/IEC 7498-1]
3.1.27 DL-simplex-transmission [ISO/IEC 7498-1]
3.1.28 DL-subsystem [ISO/IEC 7498-1]
3.1.29 DL-user-data [ISO/IEC 7498-1]

IEC 61158-4-14:2014 © IEC 2014 – 11 –
3.1.30 flow control [ISO/IEC 7498-1]
3.1.31 layer-management [ISO/IEC 7498-1]
3.1.32 multiplexing [ISO/IEC 7498-3]
3.1.33 naming-(addressing)-authority [ISO/IEC 7498-3]
3.1.34 naming-(addressing)-domain [ISO/IEC 7498-3]
3.1.35 naming-(addressing)-subdomain [ISO/IEC 7498-3]
3.1.36 (N)-entity [ISO/IEC 7498-1]
DL-entity
Ph-entity
3.1.37 (N)-interface-data-unit [ISO/IEC 7498-1]
DL-service-data-unit  (N=2)
Ph-interface-data-unit  (N=1)
3.1.38 (N)-layer [ISO/IEC 7498-1]
DL-layer  (N=2)
Ph-layer  (N=1)
3.1.39 (N)-service [ISO/IEC 7498-1]
DL-service  (N=2)
Ph-service  (N=1)
3.1.40 (N)-service-access-point [ISO/IEC 7498-1]
DL-service-access-point  (N=2)
Ph-service-access-point  (N=1)
3.1.41 (N)-service-access-point-address
[ISO/IEC 7498-1]
DL-service-access-point-address  (N=2)
Ph-service-access-point-address  (N=1)
3.1.42 peer-entities [ISO/IEC 7498-1]
3.1.43 Ph-interface-control-information
[ISO/IEC 7498-1]
3.1.44 Ph-interface-data [ISO/IEC 7498-1]
3.1.45 primitive name [ISO/IEC 7498-3]
3.1.46 reassembling [ISO/IEC 7498-1]
3.1.47 recombining [ISO/IEC 7498-1]
3.1.48 reset [ISO/IEC 7498-1]
3.1.49 responding-DL-address
[ISO/IEC 7498-3]
3.1.50 routing [ISO/IEC 7498-1]
3.1.51 segmenting [ISO/IEC 7498-1]
3.1.52 sequencing [ISO/IEC 7498-1]
3.1.53 splitting [ISO/IEC 7498-1]
3.1.54 synonymous name [ISO/IEC 7498-3]
3.1.55 systems-management [ISO/IEC 7498-1]

– 12 – IEC 61158-4-14:2014 © IEC 2014
3.2 Service convention terms and definitions
This standard also makes use of the following terms defined in ISO/IEC 10731 as they apply
to the data-link layer:
3.2.1 acceptor
3.2.2 asymmetrical service
3.2.3 confirm (primitive);
requestor.deliver (primitive)
3.2.4 deliver (primitive)
3.2.5 DL-confirmed-facility
3.2.6 DL-facility
3.2.7 DL-local-view
3.2.8 DL-mandatory-facility
3.2.9 DL-non-confirmed-facility
3.2.10 DL-provider-initiated-facility
3.2.11 DL-provider-optional-facility
3.2.12 DL-service-primitive;
primitive
3.2.13 DL-service-provider
3.2.14 DL-service-user
3.2.15 DL-user-optional-facility
3.2.16 indication (primitive)
acceptor.deliver (primitive)
3.2.17 multi-peer
3.2.18 request (primitive);
requestor.submit (primitive)
3.2.19 requestor
3.2.20 response (primitive);
acceptor.submit (primitive)
3.2.21 submit (primitive)
3.2.22 symmetrical service
3.3 ISO/IEC 8802-3 terms
This standard also makes use of the following terms defined in ISO/IEC 8802-3 as they apply
to the data-link layer:
IEC 61158-4-14:2014 © IEC 2014 – 13 –
3.3.1 destination address
3.3.2 frame check sequence
3.3.3 length/type
3.3.4 MAC frame
3.3.5 pad
3.3.6 source address
3.4 Common terms and definitions
For the purposes of this document, the following terms and definitions apply.
NOTE Many definitions are common to more than one protocol Type; they are not necessarily used by all protocol
Types.
3.4.1
communication macrocycle
set of basic cycles needed for a configured communication activity in a macro network
segment
3.4.2
communication phase
elapsed fraction of a cycle, measured from some fixed origin
3.4.3
communication scheduling
algorithms and operation for data transfers occurring in a deterministic and repeatable
manner
3.4.4
cyclic
repetitive in a regular manner
3.4.5
data DLPDU
DLPDU that carries a DLSDU from a local DLS-user to a remote DLS-user
3.4.6
destination FB Instance
FB instance that receives the specified parameters
3.4.7
DL-segment
link
local link
single DL-subnetwork in which any of the connected DLEs may communicate directly, without
any intervening DL-relaying, whenever all of those DLEs that are participating in an instance
of communication are simultaneously attentive to the DL-subnetwork during the period(s) of
attempted communication
3.4.8
DLSAP
distinctive point at which DL-services are provided by a single DL-entity to a single higher-
layer entity
– 14 – IEC 61158-4-14:2014 © IEC 2014
Note 1 to entry:  This definition, derived from ISO/IEC 7498-1, is repeated here to facilitate understanding of the
critical distinction between DLSAPs and their DL-addresses. (See Figure 1.)
DLS-user-entity
DLS-user-entity
DLS-users
DLSAP DLSAP DLSAP
DLSAP-
address DLSAP-
DLSAP-
group DL-
address
addresses
address
DL-layer
DL-entity
PhSA P PhSA P
Ph-layer
NOTE 2 DLSAPs and PhSAPs are depicted as ovals spanning the boundary between two adjacent layers.
NOTE 3 DL-addresses are depicted as designating small gaps (points of access) in the DLL portion of a DLSAP.
NOTE 4 A single DL-entity may have multiple DLSAP-addresses and group DL-addresses associated with a
single DLSAP.
Figure 1 – Relationships of DLSAPs, DLSAP-addresses and group DL-addresses
3.4.9
DL(SAP)-address
either an individual DLSAP-address, designating a single DLSAP of a single DLS-user, or a
group DL-address potentially designating multiple DLSAPs, each of a single DLS-user
Note 1 to entry:  This terminology is chosen because ISO/IEC 7498-3 does not permit the use of the term DLSAP-
address to designate more than a single DLSAP at a single DLS-user
3.4.10
(individual) DLSAP-address
DL-address that designates only one DLSAP within the extended link
Note 1 to entry:  A single DL-entity may have multiple DLSAP-addresses associated with a single DLSAP.
3.4.11
extended link
DL-subnetwork, consisting of the maximal set of links interconnected by DL-relays, sharing a
single DL-name (DL-address) space, in which any of the connected DL-entities may
communicate, one with another, either directly or with the assistance of one or more of those
intervening DL-relay entities
Note 1 to entry:  An extended link may be composed of just a single link.

IEC 61158-4-14:2014 © IEC 2014 – 15 –
3.4.12
FCS error
error that occurs when the computed frame check sequence value after reception of all the
octets in a DLPDU does not match the expected residual
3.4.13
frame
denigrated synonym for DLPDU
3.4.14
group DL-address
DL-address that potentially designates more than one DLSAP within the extended link
Note 1 to entry:  A single DL-entity may have multiple group DL-addresses associated with a single DLSAP. A
single DL-entity also may have a single group DL-address associated with more than one DLSAP.
3.4.15
micro segment
part of a network, where special scheduling is implemented
3.4.16
multipoint connection
connection from one node to many nodes
Note 1 to entry:  Multipoint connections allow data transfer from a single publisher to be received by many
subscriber nodes.
3.4.17
node
single DL-entity as it appears on one local link
3.4.18
offset
number of octets from a specially designated position
3.4.19
real-time
ability of a system to provide a required result in a bounded time
3.4.20
real-time communication
transfer of data in real-time
3.4.21
real-time Ethernet
RTE
ISO/IEC 8802-3-based network that includes real-time communication
Note 1 to entry:  Other communication can be supported, providing the real-time communication is not
compromised.
Note 2 to entry:  This definition is dedicated, but not limited, to ISO/IEC 8802-3. It could be applicable to other
IEEE 802 specifications, for example IEEE 802.11.
3.4.22
receiving DLS-user
DL-service user that acts as a recipient of DL-user-data
Note 1 to entry:  A DL-service user can be concurrently both a sending and receiving DLS-user.

– 16 – IEC 61158-4-14:2014 © IEC 2014
3.4.23
schedule
temporal arrangement of a number of related operations
3.4.24
scheduling macrocycle
time interval to implement a specific schedule
3.4.25
sending DLS-user
DL-service user that acts as a source of DL-user-data
3.4.26
time offset
time difference from a specially designated time
3.5 Symbols and abbreviations
ARP
Address resolution protocol
Cnf
Confirmation
CSMA/CD
Carrier sense multiple access with collision detection (protocol)
DHCP
Dynamic host configuration protocol
DL-
(as a prefix) Data-link-
DLCEP
Data-link connection endpoint
DLL
Data-link layer
DLE
Data-link entity
DLM
Data-link-management
DLS
Data-link service
DLSAP
Data-link service access point
DLSDU
DL-service-data-unit
ECSME
Type 14 communication scheduling management entity
EM_
(as a prefix) Type 14 management
FRT
Fast Real-time
Ind
Indication
IANA
Internet Assigned Numbers Authority
IP
Internet protocol
LLC
Logical link control
LMP
Link management protocol
MAC
Medium access control
MAU
Medium attachment unit
PAD
Pad (bits)
PDU
Protocol data unit
Req
Request
Rsp
Response
RTE
Real-time Ethernet
RT-Ethernet
Real-time Ethernet
IEC 61158-4-14:2014 © IEC 2014 – 17 –
SAP
Service access point
SDU
Service data unit
SME
System management entity
SNTP
Simple network time protocol
TCP
Transmission control protocol
UDP
User datagram protocol
.cnf
Confirm primitive
.ind
Indication primitive
.req
Request primitive
.rsp
Response primitive
4 Overview of the DL-protocol
4.1 General
4.1.1 DLL architecture
• According to the basic fieldbus reference model defined in IEC 61158-1, the Type 14 DLL
is modeled in Figure 2 as an integrated Data link layer with UDP(TCP), IP, MAC and LLC
sublayers defined in ISO/IEC 8802-3 and an extension protocol defined in this part of the
IEC 61158 series, where
• the Transfer Control Protocol (TCP) defined in RFC 793 is applied;
• the User Datagram Protocol (UDP) defined in RFC 768 is applied;
• the Internet Protocol (IP) defined in RFC 791 is applied;
• the Logic Link Control (LLC) protocol defined in ISO/IEC 8802-3 is applied;
• the Medium Access Control (MAC) layer protocol defined in ISO/IEC 8802-3 is applied.
Regular ISO/IEC 8802-3
Application layer
FRT applications
RT applications MRT applications
based applications
RFC 768(UDP)/RFC 793 (TCP)
RFC 791 (IP)
Data link layer
DLL extension sublayer
LLC/MAC defined in ISO/IEC 8802-3
Physical layer
ISO/IEC 8802-3 PhL
Figure 2 – Communication model
Additionally, a DLL extension sublayer is defined as the Type 14 communication scheduling
management entity (ECSME) on ISO/IEC 8802-3 data link protocol to manage the
deterministic communication and regular communication.
This ECSME provides the following functions:
• transparent data transferring between DLE and DLS_User specified in ISO/IEC 8802-3
without modifying the data;
• receiving DLS_User DATA from DLS_User and buffering them;

– 18 – IEC 61158-4-14:2014 © IEC 2014
• transferring DLS_User DATA to DLE in configured order and priority. The DLE will send it
to Ethernet network using the protocols defined in ISO/IEC 8802-3;
• transferring decoded DLPDU from DLE to DLS_User.
ECSME supports two ways of communication scheduling:
• free competitive communication scheduling based on the CSMA/CD;
• deterministic communication based on the time-sharing scheduling policy defined later.
When the former scheduling is used, ECSME shall directly transfer the data between DLE and
DLS_User without any buffering or handling.
When the latter k) is used, the ECSME in each Type 14 device shall transfer DLS_User DATA
to DLE according to the pre-configured timing order and priority, the DLE shall process the
data and send it to PhL, so that the collision is avoided.
4.1.2 Type 14 communication scheduling management entity (ECSME)
ECSME is the extension based on LLC defined in ISO/IEC 8802-3. It transfers data between
DLS_User and LLC without any changing.
ECSME does not alter the services provided by DLL to DLS_User defined in ISO/IEC 8802-3
as well as the interface between PhL and MAC. It only provides the transmission management
of the DLS_User data.
4.1.3 Transaction between DLL and PhL
The transactions between DLL and PhL defined in ISO/IEC 8802-3 are applied without any
changes.
4.1.4 Time synchronization
The time in all Type 14 devices shall be synchronized for the purpose of communication
scheduling (see IEC 61158-5-14).
4.2 Services provided by the DL
4.2.1 Overview
The DLL provides connectionless data transfer services and connection-mode data transfer
services defined in ISO/IEC 8802-3, RFC 791, RFC 768 and RFC 793 protocols.
4.2.2 Priority
Six levels of priority for packet transmission are defined in this specification, namely 0, 1, 2, 3,
4, 5. These are associated with the services defined
...
