EUROPEAN STANDARD EN 50134-2
NORME EUROPÉENNE
EUROPÄISCHE NORM
November 2017
ICS 13.320 Supersedes EN 50134-2:1999
English Version
Alarm systems - Social alarm systems - Part 2: Trigger devices
Systèmes d'alarme - Systèmes d'alarme sociale - Partie 2: Alarmanlagen - Personen-Hilferufanlagen - Teil 2:
Déclencheurs Auslösegeräte
This European Standard was approved by CENELEC on 2017-08-14. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden,
Switzerland, Turkey and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2017 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN 50134-2:2017 E

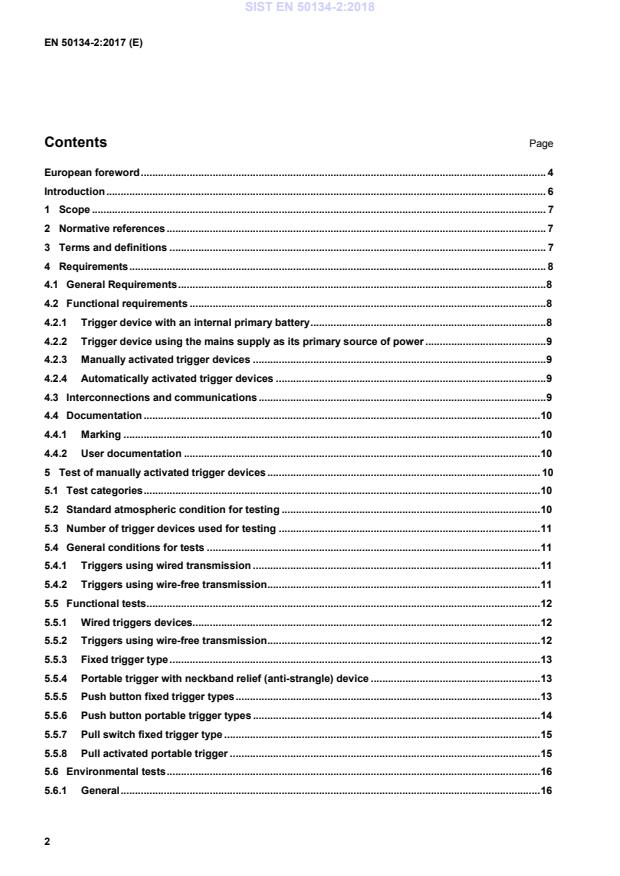

Contents Page
European foreword . 4
Introduction . 6
1 Scope . 7
2 Normative references . 7
3 Terms and definitions . 7
4 Requirements . 8
4.1 General Requirements . 8
4.2 Functional requirements . 8
4.2.1 Trigger device with an internal primary battery . 8
4.2.2 Trigger device using the mains supply as its primary source of power . 9
4.2.3 Manually activated trigger devices . 9
4.2.4 Automatically activated trigger devices . 9
4.3 Interconnections and communications . 9
4.4 Documentation . 10
4.4.1 Marking . 10
4.4.2 User documentation . 10
5 Test of manually activated trigger devices . 10
5.1 Test categories . 10
5.2 Standard atmospheric condition for testing . 10
5.3 Number of trigger devices used for testing . 11
5.4 General conditions for tests . 11
5.4.1 Triggers using wired transmission . 11
5.4.2 Triggers using wire-free transmission . 11
5.5 Functional tests . 12
5.5.1 Wired triggers devices. 12
5.5.2 Triggers using wire-free transmission . 12
5.5.3 Fixed trigger type . 13
5.5.4 Portable trigger with neckband relief (anti-strangle) device . 13
5.5.5 Push button fixed trigger types . 13
5.5.6 Push button portable trigger types . 14
5.5.7 Pull switch fixed trigger type . 15
5.5.8 Pull activated portable trigger . 15
5.6 Environmental tests . 16
5.6.1 General . 16
5.6.2 Selection of tests and severities (environmental classes) . 17
5.6.3 Tests applicable to the different environmental classes . 17
5.6.4 Environmental test exposures not applicable to different types of triggers . 17
Table 1 — Environmental tests for fixed trigger devices . 18
Table 2 — Environmental tests for Portable trigger devices . 19
5.6.5 Specific environmental test requirements for different types of trigger devices . 20
Annex A (normative) Measurements of contact and insulation resistances for mechanical contact
function . 26
A.1 General . 26
A.2 Measurements of contact resistance . 26
A.3 Measurements of insulation resistance . 26
Annex B (normative) Strain relief test jig . 27
Annex C (normative) Test set-up by using rf-shielded test fixtures. 28
C.1 RF-shielded test fixture for the trigger device . 28
C.2 RF-shielded test fixture for the local unit or controller . 28
C.3 Interconnection between trigger device and local unit or controller . 29
Bibliography . 30
European foreword
This document (EN 50134-2:2017) has been prepared by CLC/TC 79 “Alarm systems”.
The following dates are fixed:
• latest date by which this document has to be (dop) 2018-08-14
implemented at national level by publication of an
identical national standard or by endorsement
• latest date by which the national standards (dow) 2020-08-14
conflicting with this document have to be
withdrawn
This document supersedes EN 50134-2:1999.
— The scope has been extended to provide requirements for manually and automatically activated trigger
devices transmitting a triggering signal;
— The normative references have been updated to take account of latest revisions and to include ETSI EN 300
220-3-1 ETSI EN 303 406 for wireless radio trigger devices;
— The definitions have been updated to reflect changes in other parts of the series;
— in the general requirements, some requirements have been added to cover both manually and automatically
activated trigger devices;
— New or amended requirements have been added to include:
— The activation of one or many trigger devices not to inhibit the transmission of a triggering signal from any
other trigger device within the same or adjacent systems.
— Trigger devices to generate an alarm triggering signal that can be decoded and differentiated from that of
another trigger device connected to the same local unit or controller.
— Trigger devices using wire-free communications to transmit an identification code with sufficient different
combinations to prevent the operation of the trigger device producing unwanted triggering in an adjacent
system.
— Trigger devices using wire-free communications to automatically generate a triggering signal at least
once every 24 h to indicate their continued active presence.
— No longer require a portable trigger devices where its only function is to used as part of a social alarm
system to use primary non -rechargeable batteries.
— Functional Requirements:
— Require the manufacturer to state the normal expected rate of activation for the device being not less
than one activation per day.
— Require the trigger device to be capable of operating to the manufacturer’s specified performance
level for a period of at least 1 year or, if greater, the manufacturer’s stated duration without
recharging or replacement of the battery.
— For devices where the trigger device is activated by a push button require to be physically
distinguishable from any other controls.
— Revise the push button of activation area to a minimum of 150 mm , with a minimum dimension of
not less than 10 mm.
— For automatically activated trigger devices where the option exists, to indicate the return to the
normal condition to the local unit and controller the manufacturer to indicate the conditions by which
the normal state is determined.
— In interconnections & Communications, a requirement to comply with EN 50134-5 has been added.
— Addition for a trigger device using a wireless radio interconnection require to comply with the requirements of
ETSI EN 300 220-3-1 or ETSI EN 303 406 applicable to the frequency in use.
— Addition of requirements where a trigger device uses bi-directional techniques for communicating an alarm
triggering signal to the local unit and controller.
— In documentation, requirements have been amended for marking and user documentation.
— Tests for manually activated trigger devices have been amended to reflect revisions to reference standards.
— Removal of the requirement to test in accordance with EN 300-220-2 and publish results of tests for wire free
radio interconnections.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent rights.
CENELEC shall not be held responsible for identifying any or all such patent rights.
EN 50134, Alarm systems — Social alarm systems is currently composed of the following parts:
— Part 1: System requirements;
— Part 2: Trigger devices [the present document];
— Part 3: Local unit and controller;
— Part 5: Interconnections and communications;
— Part 7: Application guidelines [Technical Specification].
EN
...
