EN 61400-25-5:2007

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Wind turbines - Part 25-5: Communications for monitoring and control of wind power plants - Conformance testingSistemi generatorjev vetrne turbine - 25-5. del: Komunikacije za spremljanje in nadzor vetrnih elektrarn - Preskušanje skladnosti (IEC 61400-25-5:2006)Eoliennes - Partie 25-5: Communications pour la surveillance et la commande des centrales éoliennes - Essais de conformitéWindenergieanlagen - Teil 25-5: Kommunikation für die Überwachung und Steuerung von Windenergieanlagen - KonformitätsprüfungenTa slovenski standard je istoveten z:EN 61400-25-5:2007SIST EN 61400-25-5:2007en,de27.180Sistemi turbin na veter in drugi alternativni viri energijeWind turbine systems and other alternative sources of energyICS:SLOVENSKI
STANDARDSIST EN 61400-25-5:200701-november-2007

EUROPEAN STANDARD EN 61400-25-5 NORME EUROPÉENNE
EUROPÄISCHE NORM February 2007
CENELEC European Committee for Electrotechnical Standardization Comité Européen de Normalisation Electrotechnique Europäisches Komitee für Elektrotechnische Normung
Central Secretariat: rue de Stassart 35, B - 1050 Brussels
© 2007 CENELEC -
All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 61400-25-5:2007 E
ICS 27.180
English version
Wind turbines -
Part 25-5: Communications for monitoring
and control of wind power plants -
Conformance testing (IEC 61400-25-5:2006)
Eoliennes -
Partie 25-5: Communications
pour la surveillance et la commande
des centrales éoliennes - Essais de conformité (CEI 61400-25-5:2006)
Windenergieanlagen -
Teil 25-5: Kommunikation
für die Überwachung und Steuerung
von Windenergieanlagen -
Konformitätsprüfungen (IEC 61400-25-5:2006)
This European Standard was approved by CENELEC on 2007-02-01. CENELEC members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the Central Secretariat or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CENELEC member into its own language and notified to the Central Secretariat has the same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Cyprus, the Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and the United Kingdom.

- 2 -

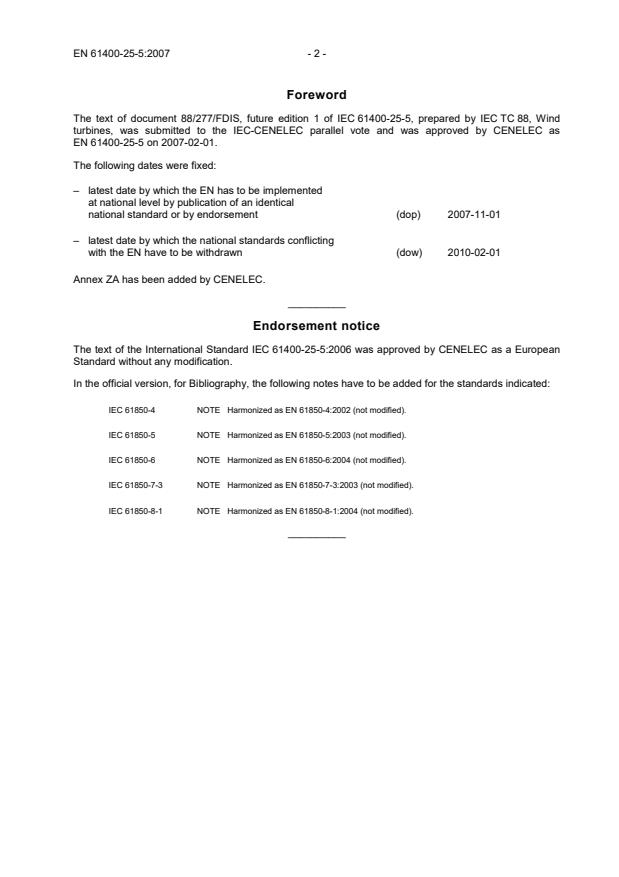

Foreword The text of document 88/277/FDIS, future edition 1 of IEC 61400-25-5, prepared by IEC TC 88, Wind turbines, was submitted to the IEC-CENELEC parallel vote and was approved by CENELEC as EN 61400-25-5 on 2007-02-01. The following dates were fixed: – latest date by which the EN has to be implemented
at national level by publication of an identical
national standard or by endorsement
(dop)
2007-11-01 – latest date by which the national standards conflicting
with the EN have to be withdrawn
(dow)
2010-02-01 Annex ZA has been added by CENELEC. __________ Endorsement notice The text of the International Standard IEC 61400-25-5:2006 was approved by CENELEC as a European Standard without any modification. In the official version, for Bibliography, the following notes have to be added for the standards indicated: IEC 61850-4 NOTE
Harmonized as EN 61850-4:2002 (not modified). IEC 61850-5 NOTE
Harmonized as EN 61850-5:2003 (not modified). IEC 61850-6 NOTE
Harmonized as EN 61850-6:2004 (not modified). IEC 61850-7-3 NOTE
Harmonized as EN 61850-7-3:2003 (not modified). IEC 61850-8-1 NOTE
Harmonized as EN 61850-8-1:2004 (not modified). __________

- 3 - EN 61400-25-5:2007 Annex ZA
(normative)
Normative references to international publications with their corresponding European publications
The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies.
NOTE
When an international publication has been modified by common modifications, indicated by (mod), the relevant EN/HD applies.
Publication Year Title EN/HD Year
IEC 61400-25 Series Wind turbines -
Part 25: Communications for monitoring and control of wind power plant EN 61400-25 Series
IEC 61850-7-1 2003 Communication networks and systems in substations -
Part 7-1: Basic communication structure for substation and feeder equipment - Principles and models EN 61850-7-1 2003
IEC 61850-7-2 2003 Communication networks and systems in substations -
Part 7-2: Basic communication structure for substation and feeder equipment - Abstract communication service interface (ACSI) EN 61850-7-2 2003
IEC 61850-7-4 2003 Communication networks and systems in substations -
Part 7-4: Basic communication structure for substation and feeder equipment - Compatible logical node classes and data classes EN 61850-7-4 2003
ISO/IEC 9646 Series Information technology - Open Systems Interconnection - Conformance testing methodology and framewor EN ISO/IEC 9646 Series

INTERNATIONAL STANDARD IEC61400-25-5 First edition2006-12 Wind turbines – Part 25-5: Communications for monitoring
and control of wind power plants – Conformance testing © IEC 2006
⎯
Copyright - all rights reserved No part of this publication may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from the publisher. International Electrotechnical Commission,
3, rue de Varembé, PO Box 131, CH-1211 Geneva 20, SwitzerlandTelephone: +41 22 919 02 11 Telefax: +41 22 919 03 00 E-mail: inmail@iec.ch
Web: www.iec.ch X For price, see current cataloguePRICE CODE
Commission Electrotechnique InternationaleInternational Electrotechnical Commission

– 2 – 61400-25-5 © IEC:2006(E) CONTENTS FOREWORD.3 INTRODUCTION.5
1 Scope.6 2 Normative references.7 3 Terms and definitions.7 4 Abbreviated terms.10 5 Introduction to conformance testing.11 5.1 General.11 5.2 Conformance test procedures.11 5.3 Quality assurance and testing.12 5.4 Testing.13 5.5 Documentation of conformance test report.15 6 Device related conformance testing.15 6.1 General guidelines.15 6.2 Standard test procedures.17 6.3 Conformance test procedures.17 7 Performance tests.39 7.1 General.39 7.2 Communications latency.40 7.3 Time synchronisation and accuracy.41 7.4 Stability test.43
Annex A (informative)
Examples of test procedure template.44
Bibliography.45
Figure 1 – Conceptual communication model of the IEC 61400-25 series.7 Figure 2 – Conceptual conformance assessment process.14 Figure 3 – Conceptual test system architecture.16 Figure 4 – Test procedure format.18 Figure 5 – Performance testing (black box principle).41 Figure 6 – Time synchronisation and accuracy test setup.42

61400-25-5 © IEC:2006(E) – 3 – INTERNATIONAL ELECTROTECHNICAL COMMISSION ____________
WIND TURBINES –
Part 25-5: Communications for monitoring
and control of wind power plants – Conformance testing
FOREWORD 1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with may participate in this preparatory work. International, governmental and non-governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for Standardization (ISO) in accordance with conditions determined by agreement between the two organizations. 2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international consensus of opinion on the relevant subjects since each technical committee has representation from all interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any misinterpretation by any end user. 4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications transparently to the maximum extent possible in their national and regional publications. Any divergence between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter. 5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any equipment declared to be in conformity with an IEC Publication. 6) All users should ensure that they have the latest edition of this publication. 7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and members of its technical committees and IEC National Committees for any personal injury, property damage or other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is indispensable for the correct application of this publication. 9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent rights. IEC shall not be held responsible for identifying any or all such patent rights. International Standard IEC 61400-25-5 has been prepared by IEC technical committee 88: Wind turbines.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2. The text of this standard is based on the following documents: FDIS Report on voting 88/277/FDIS 88/283/RVD
Full information on the voting for the approval of this standard can be found in the report on voting indicated in the above table. A list of all parts of the IEC 61400 series, under the general title Wind turbines can be found on the IEC website.

– 4 – 61400-25-5 © IEC:2006(E) The committee has decided that the contents of this publication will remain unchanged until the maintenance result date indicated on the IEC web site under "http://webstore.iec.ch" in the data related to the specific publication. At this date, the publication will be
• reconfirmed, • withdrawn, • replaced by a revised edition, or • amended. A bilingual version of this publication may be issued at a later date.

61400-25-5 © IEC:2006(E) – 5 – INTRODUCTION The IEC 61400-25 series defines communication for monitoring and control of wind power plants. The modeling approach of the IEC 61400-25 series has been selected to provide abstract definitions of classes and services such that the specifications are independent of specific protocol stacks, implementations, and operating systems. The mapping of these abstract classes and services to a specific communication profile may be found in IEC 61400-25-41. This part of IEC 61400-25 defines the methods and abstract test cases for conformance testing of devices used in wind power plants. The intended readers are test system developers. NOTE 1 It is recommended to obtain a common knowledge of the standards IEC 61400-25-1, IEC 61400-25-2, IEC 61400-25-3, and IEC 61400-25-4 before reading this part. NOTE 2 Abbreviations used in IEC 61400-25-5 may be listed in Clause 3 or may be found in other parts of IEC 61400-25 that are relevant for conformance testing.
————————— 1 To be published.
– 6 – 61400-25-5 © IEC:2006(E) WIND TURBINES –
Part 25-5: Communications for monitoring
and control of wind power plants – Conformance testing
1 Scope The focus of the IEC 61400-25 series is on the communications between wind power plant components such as wind turbines and actors such as SCADA Systems. Internal communication within wind power plant components is outside the scope of the IEC 61400-25 series. The IEC 61400-25 series is designed for a communication environment supported by a client-server model. Three areas are defined, that are modelled separately to ensure the scalability of implementations:
1) wind power plant information models,
2) information exchange model, and
3) mapping of these two models to a standard communication profile.
The wind power plant information model and the information exchange model, viewed together, constitute an interface between client and server. In this conjunction, the wind power plant information model serves as an interpretation frame for accessible wind power plant data. The wind power plant information model is used by the server to offer the client a uniform, component-oriented view of the wind power plant data. The information exchange model reflects the whole active functionality of the server. The IEC 61400-25 series enables connectivity between a heterogeneous combination of client and servers from different manufacturers and suppliers. As depicted in Figure 1, the IEC 61400-25 series defines a server with the following aspects: – Information provided by a wind power plant component, e. g., “wind turbine rotor speed” or “total power production of a certain time interval” is modelled and made available for access. The information modelled in the standard is defined in part IEC 61400-25-2, – services to exchange values of the modelled information defined in part IEC 61400-25-3, – mapping to a communication profile, providing a protocol stack to carry the exchanged values from the modelled information (part IEC 61400-25-4). The IEC 61400-25 series only defines how to model the information, information exchange and mapping to specific communication protocols. The IEC 61400-25 series excludes a definition of how and where to implement the communication interface, the application program interface and implementation recommendations. However, the objective of the IEC 61400-25 series is that the information associated with a single wind power plant component (such as the wind turbine) is accessible through a corresponding logical device. This part of IEC 61400-25 specifies standard techniques for testing of conformance of implementations, as well as specific measurement techniques to be applied when declaring performance parameters. The use of these techniques will enhance the ability of users to purchase systems that integrate easily, operate correctly, and support the applications as intended. NOTE The role of the test facilities for conformance testing and certifying the results are outside of the scope of IEC 61400-25-5.

61400-25-5 © IEC:2006(E) – 7 – Communication model of the IEC 61400-25 seriesClientServerInformation exchangemodel (get, set, report, log, control, publish / subscribe, etc.)defined in IEC 61400-25-3Information exchangemodel (get, set, report, log, control, publish / subscribe, etc.)defined in IEC 61400-25-3Wind power plant information model (rotor speed, break status, total power production, etc.)defined in IEC 61400-25-2Wind power plant information model (rotor speed, break status, total power production, etc.)defined in IEC 61400-25-2Wind power plant componente.g. wind turbineApplicationApplicationActore.g.SCADAMessaging through mapping to communication profile (Read, write, . message)defined inIEC 61400-25-4Messaging through mapping to communication profile (Read, write, . message)defined inIEC 61400-25-4Information exchangemodel (get, set, report, log, control, publish / subscribe, etc.)defined in IEC 61400-25-3Information exchangemodel (get, set, report, log, control, publish / subscribe, etc.)defined in IEC 61400-25-3Wind power plant information modeldefined in IEC 61400-25-2Wind power plant information modeldefined in IEC 61400-25-2Outside scopeOutside scope Figure 1 – Conceptual communication model of the IEC 61400-25 series 2 Normative references The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. IEC 61400-25 (all parts), Wind turbines - Part 25: Communications for monitoring and control of wind power plants IEC 61850-7-1:2003, Communication networks and systems in substations – Part 7-1: Basic communication structure for substations and feeder equipment – Principles and models IEC 61850-7-2:2003, Communication networks and systems in substations – Part 7-2: Basic communication structure for substations and feeder equipment – Abstract communication service interface (ACSI) IEC 61850-7-4:2003, Communication networks and systems in substations – Part 7-4: Basic communication structure for substations and feeder equipment – Compatible logical node and data classes ISO/IEC 9646 (all parts), Information technology – Open Systems Interconnection – Conformance testing methodology and framework 3 Terms and definitions For the purpose of this document, the terms and definitions defined in IEC 61400-25-1 and the following apply. 3.1
Factory Acceptance Test FAT customer agreed functional tests of the specifically manufactured substation automation system or its parts using the parameter set for the planned application.
IEC
2172/06
– 8 – 61400-25-5 © IEC:2006(E) The FAT shall be carried out in the factory of the manufacturer or other agreed-upon location by the use of process simulating test equipment 3.2
interoperability ability of two or more devices from the same vendor (or different vendors) to exchange information and use that information for correct co-operation. A set of values defined corresponds with the quantities or values of another set 3.3
Model Implementation Conformance Statement
MICS details the standard data object model elements supported by the system or device 3.4
negative test test to verify the correct response of a device or a system when subjected to: – IEC 61400-25 series conformant information and services which are not implemented in the device or system under test, – non IEC 61400-25 series conformant information and services sent to the device or system under test. 3.5
Protocol Implementation Conformance Statement PICS summary of the capabilities of the system to be tested 3.6
Protocol Implementation Extra Information For Testing PIXIT the Protocol Implementation eXtra Information for Testing document contains system specific information regarding the capabilities of the system to be tested and which are outside the scope of the IEC 61400-25 series NOTE The PIXIT is not subject to standardisation. 3.7
routine test performed by the manufacturer in order to ensure device operation and safety 3.8
Site Acceptance Test SAT verification of each data and control point and the correct functionality within the WPP and its operating environment at the whole installed plant by use of the final parameter set. The SAT is the precondition for the WPP being put into operation. 3.9
system test verification of correct behaviour of the WPP components and of the overall WPP under various application conditions NOTE The system test marks the final stage of the development of a WPP system component.

61400-25-5 © IEC:2006(E) – 9 – 3.10
test equipment all tools and instruments which simulate and verify the input/outputs of the operating environment of the WPP such as wind turbine, switchgear, transformers, network control centres or connected telecommunication units on the one side, and the communication links between the system components of the WPP on the other 3.11
test facility organisation able to provide appropriate test equipment and trained staff for conformance testing NOTE The management of conformance tests and the resulting information should follow a quality system. 3.12
type test verification of correct behaviour of the systems components of the WPP by use of the system tested software under the test conditions corresponding with the technical data
NOTE The type test marks the final stage of the hardware development and is the precondition for the start of the production. This test shall be carried out with system components which have been manufactured through the normal production cycle.
3.13
witness point point, defined in the appropriate document at which an inspection will take place on an activity. The activity may proceed without the approval of the initiator of the conformance test. The test facility provides a written notice to the initiator at an agreed time prior to the witness point. The initiator or his representative has the right, but is NOT obligated, to verify the witness point

– 10 – 61400-25-5 © IEC:2006(E) 4 Abbreviated terms ACSI Abstract Communication Service Interface BRCB Buffered Report Control Block DUT Device Under Test FAT Factory Acceptance Test GI General Interrogation HMI Human Machine Interface IED Intelligent Electronic Device IP Inter-networking protocol internet Protocol LCB Log Control Block LD Logical Device LN Logical Node MICS Model Implementation Conformance Statement PICS Protocol Implementation Conformance Statement PIXIT Protocol Implementation eXtra Information for Testing RCB Report Control Block RTU Remote Terminal Unit SAT Site Acceptance Test SCADA Supervisory Control And Data Acquisition SCSM Specific Communication Service Mapping SoE Sequence-of-Events SUT System Under Test TPAA Two Party Application Association
URCB Unbuffered Report Control Block UTC Coordinated Universal Time
WPP Wind Power Plant
61400-25-5 © IEC:2006(E) – 11 – 5 Introduction to conformance testing 5.1 General There are many steps involved from the development and production of a device to the proper running of a complete system designed according the specific needs of a customer. Suitable test steps are incorporated in this process. Many internal tests during the development of a device (or a system kit) result in a type test (unit level test) performed at least by the provider and – if required by applicable standards – by an independent test authority. In the context of this part of the IEC 61400-25 series, the term type test is restricted to the functional behaviour of the device excluding communication. Continuing routine tests in the production chain are necessary to ensure a constant quality of delivered devices in accordance with the quality procedures of the producer.
A conformance test is the type test for communication and – since communication establishes a system – the basic integrated systems test of the incorporated system components. As a global communications standard, the IEC 61400-25 series includes standardised conformance tests to insure that all suppliers comply with applicable requirements. Type tests and conformance tests do not completely guarantee that all functional and performance requirements are met. However, when properly performed, such tests significantly reduce the risk of costly problems occurring during system integration in the factory and on-site.
Conformance testing does not replace project specific system tests such as the FAT and SAT. The FAT and SAT are based on customer requirements for a dedicated WPP system and are done by the system integrator and normally witnessed by the customer. These tests increase the confidence level that all potential problems in the system have been identified and solved. These tests establish that the delivered WPP system is performing as specified. 5.2 Conformance test procedures In general, conformance testing of the communication behaviour of a system component should address the functional requirements and performance requirements of typical applications supported by these devices in a WPP.
Conformance testing demonstrates the capability of the Device Under Test (DUT) to operate with other system components in a specified way according to the IEC 61400-25 series.
Conformance testing requires consideration of the following issues: – The problem of all testing is the completeness of the tests. The number of all possible situations can be very large. It may be possible to cover all normal operating cases, but this may not be true for all failure cases. – It is impossible to test all system configurations using system components from different world-wide suppliers. Therefore, standardised test architecture with device simulators should be used. The use of such test architecture implies agreement about its configuration and the test procedures applied in order to achieve compatible results.
– A communication standard does not standardise the functions of the communicating equipment. Therefore, the failure modes of the functions are outside the scope of this part of the IEC 61400-25 series. But both the existence of distributed functions and the impact of function response in devices on the data flow, create some interdependence. – Depending on the definition range of the IEC 61400-25 series, some properties of the device may be proven by information and documents provided with the DUT for the conformance testing instead of the conformance test itself.

– 12 – 61400-25-5 © IEC:2006(E) The conformance test establishes that the communication of the DUT works according the IEC 61400-25 series.
Since the IEC 61400-25 series defines no new communication stacks, the conformance to all seven ISO/OSI layers may be proven by documentation that communication stack software compliant with the corresponding specifications is implemented and may have been pre-tested and optionally certified. In the standard conformance test, only the application according to ACSI can be tested. 5.3 Quality assurance and testing 5.3.1 General In order to assure the quality during conformance testing, a quality assurance system has to be in place.
In general, quality surveillance is used to monitor and verify the status of components during all phases of the conformance tests. For this purpose, inspections are carried out, based on hold and witness points that are indicated by the initiator or its representative in the test and the inspection plan that is supplied by the test facility. These inspections are process related and will provide information and confidence on the quality of the tests. Quality surveillance will reduce the risks of failure during the FAT and SAT. 5.3.2 Quality plan 5.3.2.1 Conformance test quality plan The test facility will supply, for evaluation, a quality plan for the conformance test. The plan shall describe all measures for the scope of work and/or deliveries in the areas of organisation, time, information and quality. There is only one plan for the test facility and its sub-suppliers. The conformance test quality plan is proposed to contain the following: – A complete and detailed description of the work methods. This will help insure that all verifiable activities will fulfil all applicable requirements and conditions as stated in the scope of work during the time allowed. – A detailed description of all tasks to be performed, including references to the schedule, an overview of the involved staff, materials and work methods as well as relevant methods and procedures. – A detailed description of the organisation, including the assignments, tasks and responsibilities of mentioned staff during the different stages of the test programs. The description shall include all tests, inspections, research and audits during the various stages of the tests and the dates on which they will take place. These descriptions will be part of the test and inspection plan. – A method for handling deviations, changes and modifications during all stages of the test. – A sign off procedure and a description of the documentation to be supplied. 5.3.2.2 Test and inspection plan The conformance test quality plan shall contain a test and inspection plan. In this plan, the test facility specifies, for all phases of the tests: – what will be inspected, tested and registered; – the purpose of the inspections and tests; – the procedures and standards to which inspections, tests and registrations will be performed;

61400-25-5 © IEC:2006(E) – 13 – – the expected results of the inspections and tests; – identification of persons to perform the inspections, tests and registrations. The test facility is responsible for the correct and timely performance of all activities mentioned in the test and inspection plan. The test facility will include a proposal for so called hold, witness and review points in the test and inspection plan. There are several methods to perform a hold or witness point. The initiator of the conformance test or a representative can be present during the execution of a test or inspection. It is also possible to review the associated quality documents, e.g. checklists, verification and validation documents. This review can take place at the test facilities site during the execution of a test or inspection can be made at the initiator’s site. All hold and witness points will be announced by the test facility at least a predefined time before they take place. A period of at least one week is recommended, depending on the time needed for making travel arrangements and the availability of the needed resources. The initiator of a conformance test has the right to conduct audits on the quality system of the test facility and its sub-suppliers. The test facility shall co-operate and provide access to all locations applicable for the conformance test. The initiator’s right to check the quality of the conformance test does not dismiss the test facility from its responsibilities. Inspections and tests by the initiator of a conformance test shall be possible at mutually agreeable times at the locations, offices and factories of the test facility and all applicable third parties and sub-suppliers. 5.4 Testing 5.4.1 General Conformance testing shall be customised for each device under test based on the capabilities identified in the PICS, PIXIT and MICS provided by the vendor. When submitting devices for testing, the following shall be provided: – device for testing; – Protocol Implementation Conformance Statement (PICS); – Protocol Implementation eXtra Information for Testing (PIXIT) statement; – Model Implementation Conformance Statement (MICS); – instruction manuals detailing the installation and operation of the device. The requirements for conformance testing fall into two categories: a) static conformance requirements (define the requirements the implementation shall fulfil); b) dynamic conformance requirements (define the requirements that arise from the protocol used for a certain implementation). The static and dynamic conformance requirements shall be defined in a Protocol Implementation Conformance Statement or PICS. The PICS serves three purposes: 1) selection of the appropriate set of tests; 2) ensure that the tests appropriate to a claim of conformance are performed; 3) provide the basis for the review of the static conformance. Concrete PICS shall be as defined for the SCSMs.

– 14 – 61400-25-5 © IEC:2006(E) A Model Implementation Conformance Statement or MICS shall be provided detailing the standard data object model elements supported by the system or device.
In addition to the PICS, a PIXIT document shall be provided. The process of assessing the conformance is shown in Figure 2.
Figure 2 – Conceptual conformance assessment process 5.4.2 Device testing A single device shall be conformance tested against a single test device. The device specific conformance tests contain the positive and negative testing of the following as appropriate: – inspection of the documentation and version control of the device, – test of device configuration file against the device related object model (IEC 61400-25-2), – test of communication stack implementation against applicable SCSM (IEC 61400-25-4), – test of implemented ACSI services against ACSI definition (IEC 61400-25-3), Start Static conformance
review Selection and parameterisation Dynamic tests _________________________
Basic Interconnection testing
Capability testing
Behaviour testing Analysis of results Final conformance review Synthesis and conclusion Test report production End PICS PIXIT Static conformance
requirements Dynamic conformance
requirements Conformance
test suite
Control flow
Data flow MICS IEC
2194/06
61400-25-5 © IEC:2006(E) – 15 – – test of device specific extensions according to rules given by the IEC 61400-25 series in general. 5.5 Documentation of conformance test report A conformance test report shall include the following information: – A reference list of all documents that describe or specify any qualifying tests that have been performed. These documents may include the vendor's standard operating and testing procedures, and local, national and international standards. International standards shall be cited by document number, date, Clause and Sub clauses. References to other documents shall include a complete source address and document identification. A complete and contextually accurate summary or extract of the document may be included for convenience. – A list of any specialised test equipment or computer programs used for performing the conformance tests. – Name and address of the vendor. – Name and address of the initiator of the conformance test (if different from vendor name). – Name of the tested device. – All of the variants (hardware, firmware, etc.) of tested device. – Name and address of the test facility. – Date of issue of test report. – Name and signature of the tester. – Unique reference number. – A list of test items performed to verify conformance. – Comments and problems found. – For each test item, the following subjects shall be documented: • description of the test item with the objective of the test, the test procedure and the expected result; • reference to the IEC 61400-25 series part, chapter and paragraph; • unique identifier per test item; • test result: passed, failed, inconclusive, not applicable; • comparison of the test result to the expected result. Changes or alterations to the device made at any point in the test, particularly those made to correct a test deficiency, shall be completely described. Conformance test documentation shall be supplied to the initiator.
6 Device related conformance testing 6.1 General guidelines 6.1.1 Test methodology Communication testing needs at least two devices to communicate with each other. Comprehensive interoperability testing of all possible products is not feasible. Therefore, the test concept shall include test devices, test configurations, and test scenarios. The dynamic behaviour should be tested properly by using well-defined test cases.

– 16 – 61400-25-5 © IEC:2006(E) Special attention shall be given to communication equipment such as star-couplers, switches, etc., which shall support all requested features of the IEC 61400-25 series but not introduce additional contingencies and limitations. The impact of the communication method (client-server, FTP/IP etc.) used by the device under test shall be considered properly in the test procedures. Verification of functional applications is not part of a conformance test even if advanced tools may offer such analysis. 6.1.2 Test system architectures In order to be able to perform a device test, a minimum test set-up is necessary (see Figure 3). Beside the DUT, a device (for example, a simulator) which acts as a client and server is required to initiate and generate messages and record and process resulting information. Background load on the network may be provided by an additional load simulator, which may also contain a master for time synchronisation (the time sync master). An optional HMI on the network may be used for independent monitoring of the test system. The optional HMI may include a network monitoring facility and the engineering software on a system and device level. Network analyzers shall be used to monitor the system for errors during testing.
Figure 3 – Conceptual test system architecture In the case of testing devices with client-server roles, the test system shall provide connection points for server devices, for client devices and for devices acting as both. The test system shall include documentation regarding the following points: – test configuration of the test system hardware; – test configuration of the test system software; – test simulator or background load simulator or time sync master. IEC
2195/06
61400-25-5 © IEC:2006(E) – 17 – 6.2 Standard test procedures 6.2.1 Inspection of documentation and version control of the device The following issues shall be addressed during the test: – PICS, – version control, and – vendor documentation. 6.2.2 Test of basic system related communication functions The following issues shall be addressed during the test: – clock synchronisation; – time stamping; – loss of communication. 6.3 Conformance test procedures 6.3.1 General This Subclause describes the test procedure requirements, test structure, the test cases (what is to be tested) and the format and a few examples of test procedures (how it is to be tested).
6.3.2 Test procedure requirements The test procedure requirements are: – The test cases describe what shall be tested; the test procedures describe how a test engineer or a test system shall perform the test. – Test cases include a reference to the applicable paragraph(s) in the referenced document(s). – The test results shall be reproducible in the same test lab and in other test labs. – Support automated testing with minimal human intervention, as far as reasonably possible. – The tests shall focus on situations that cannot easily be tested during, for example, a factory or site acceptance test, and prevent inter-operability risks, for example: • check behaviour of the device on delayed, lost, double and out of order packets, • configuration, implementation, operation risks, • mismatching names, parameters, settings, or data types, • exceeding certain limits, ranges or timeouts, • force situations to test negative responses, • check all (control) state machine paths, and • force simultaneous control operations from multiple clients. – The ACSI tests focus on the application layer (mapping).

– 18 – 61400-25-5 © IEC:2006(E) – The Device Under Test (DUT) is considered as a black box. The I/O and the communication interface are used for testing. – The test includes testing the versions, data model and configuration file, and the use of applicable ISO/IEC 9646 series terminology. The test procedures shall be formatted as outlined in Figure 4. With this format, the test procedures document can also be used as test report. A few test procedure examples are depicted in Annex A.
… Passed … Failed … Inconclusive
Expected result
Test description
Comment
Figure 4 – Test procedure format 6.3.3 Test structure The server test cases are structured as follows: a) Documentation and version control (IEC 61400-25-5). b) Data model (IEC 61400-25-2). c) Mapping of ACSI models and services (IEC 61400-25-3); the corresponding sub clauses that define the abstract test cases are given in brackets: – application association ( 6.3.4.5) – server, logical device, logical node, and data model ( 6.3.4.6) – data set ( 6.3.4.3)
– reporting ( 6.3.4.7) – logging ( 6.3.4.9) – control ( 6.3.4.10) – time and time synchronization ( 6.3.4.11) 6.3.4 Test cases to test a server 6.3.4.1 General This part of the IEC 61400-25-5 series specifies abstract test cases (see
6.3.4.5 to
6.3.4.12). The abstract test cases shall be used for the definition of concrete test cases to run in tests. Area for comments during testing,
e.g. problems found and remarks Step by step description of how to perform the test Definition of the expected behavior after a step Test reference:

e.g. RptP3 Test result Test purpose, e.g. 'Test if association is set up correctly' References to the IEC 61400-25 documents and paragraph IEC
2196/06
61400-25-5 © IEC:2006(E) – 19 – NOTE 1 The concrete syntax of test cases depends on the test system environment, i.e., mainly on the test script language. The concrete test cases are to be provided by test facilities agreed upon by the market participants. NOTE 2 The server tests may require a base load generator. The definition of base load is beyond the scope of this part of the IEC 61400-25 series.
6.3.4.2 Documentation and version control test procedure overview Check if the manufacturer’s PICS, MICS and PIXIT documentation and hardware and software versions of the DUT match (IEC 61400-25-4). 6.3.4.3 Data model test cases The data model test cases shall: – verify presence of mandatory objects for each LN (presence = M, optional = O), – verify non-presence of conditional presence false objects, – verify data type of all objects for each LN, – verify data attribute values from the device are in specified range (this is a continuous effort during the whole conformance test). The test result is a list of object references with data type, common data class, data attribute type, M/O presence indication (from IEC 61400-25-2).
The data model extensions shall be checked according to the standardised extension rules including the use of namespaces. The manufacturer-specific data model extensions shall be documented. To enable this, the MICS shall include definitions of the specific logical nodes, common data classes and data attribute types in the same format as IEC 61400-25
...
