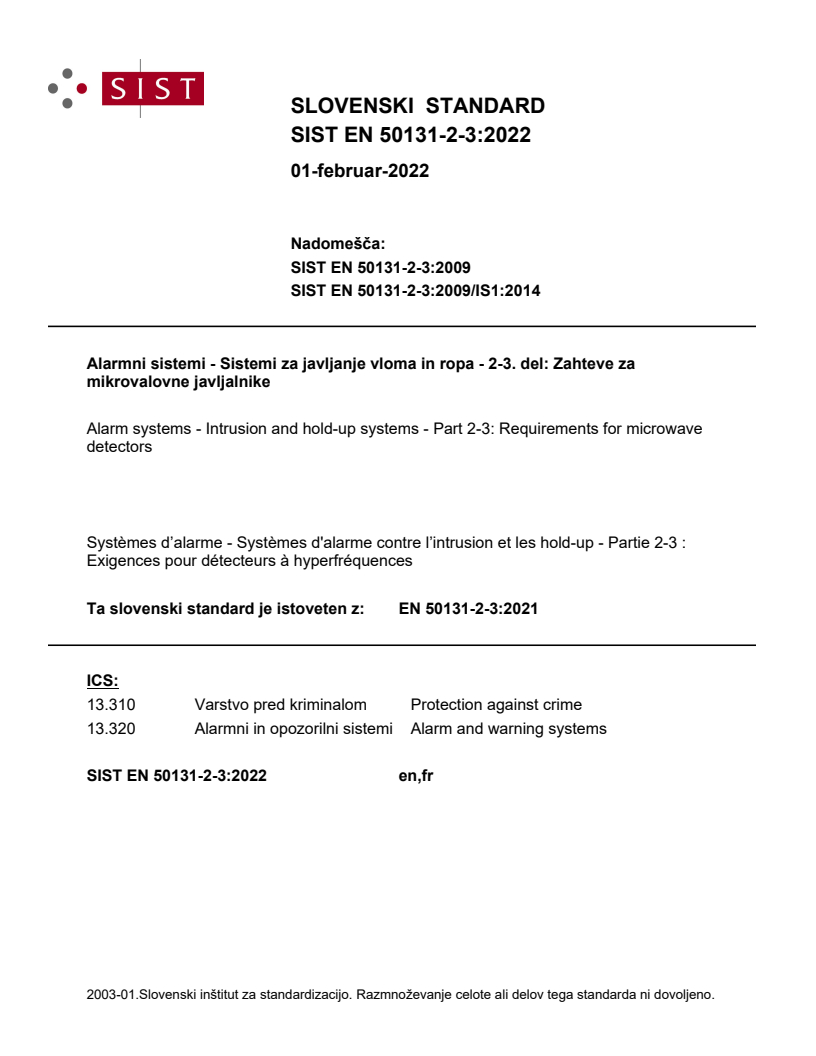

EN 50131-2-3:2021

SLOVENSKI STANDARD
01-februar-2022
Nadomešča:
SIST EN 50131-2-3:2009
SIST EN 50131-2-3:2009/IS1:2014
Alarmni sistemi - Sistemi za javljanje vloma in ropa - 2-3. del: Zahteve za
mikrovalovne javljalnike
Alarm systems - Intrusion and hold-up systems - Part 2-3: Requirements for microwave
detectors
Systèmes d’alarme - Systèmes d'alarme contre l’intrusion et les hold-up - Partie 2-3 :
Exigences pour détecteurs à hyperfréquences
Ta slovenski standard je istoveten z: EN 50131-2-3:2021
ICS:
13.310 Varstvo pred kriminalom Protection against crime
13.320 Alarmni in opozorilni sistemi Alarm and warning systems
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

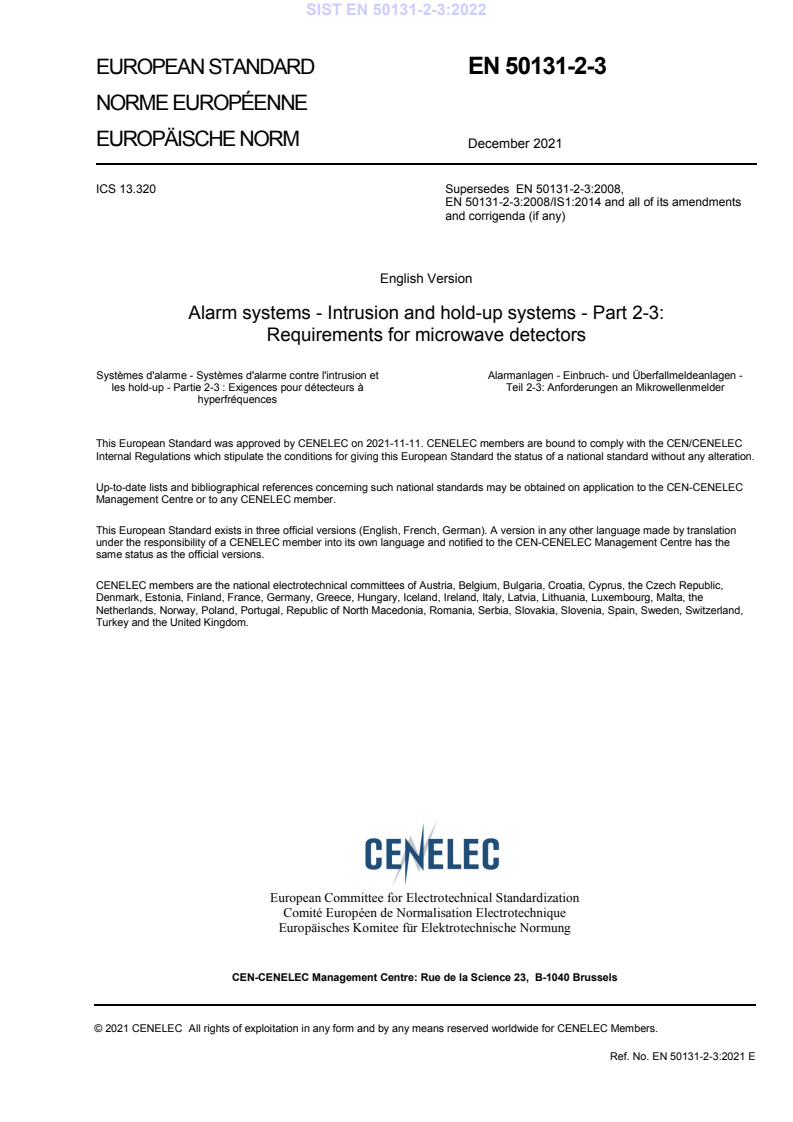

EUROPEAN STANDARD EN 50131-2-3

NORME EUROPÉENNE
EUROPÄISCHE NORM
December 2021
ICS 13.320 Supersedes EN 50131-2-3:2008,
EN 50131-2-3:2008/IS1:2014 and all of its amendments
and corrigenda (if any)
English Version
Alarm systems - Intrusion and hold-up systems - Part 2-3:
Requirements for microwave detectors
Systèmes d'alarme - Systèmes d'alarme contre l'intrusion et Alarmanlagen - Einbruch- und Überfallmeldeanlagen -
les hold-up - Partie 2-3 : Exigences pour détecteurs à Teil 2-3: Anforderungen an Mikrowellenmelder
hyperfréquences
This European Standard was approved by CENELEC on 2021-11-11. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2021 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN 50131-2-3:2021 E

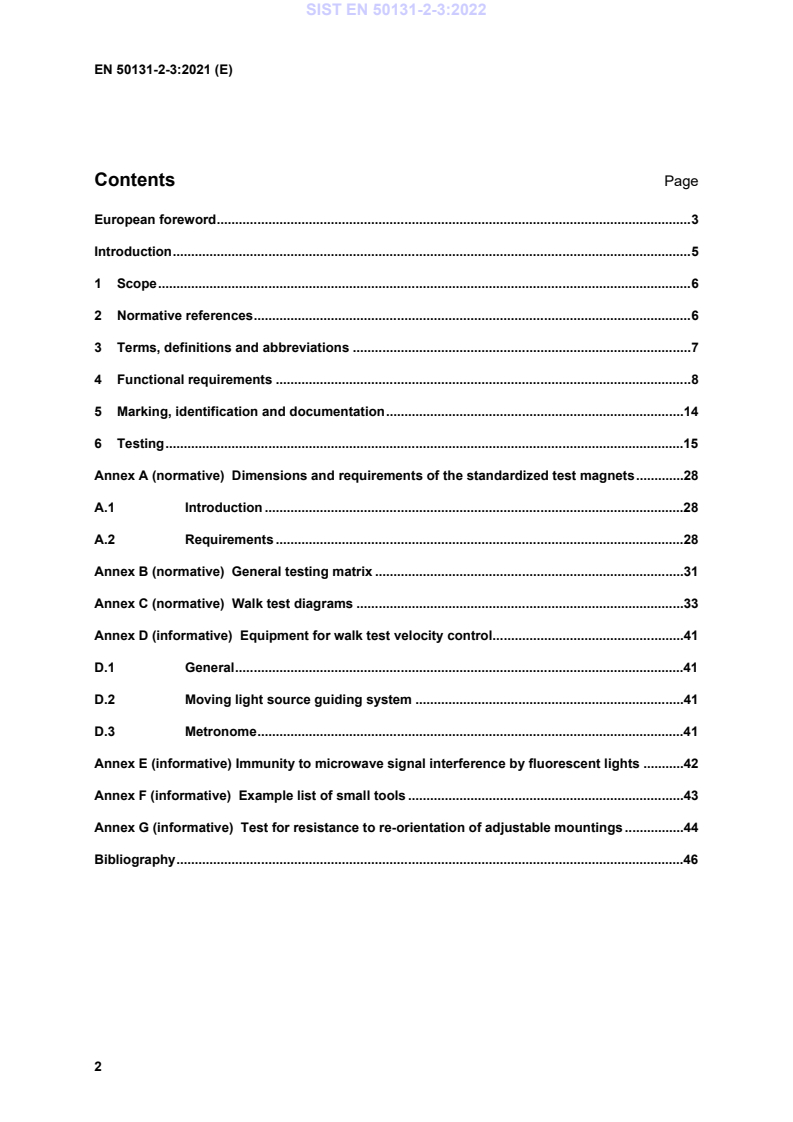

Contents Page
European foreword . 3
Introduction . 5
1 Scope . 6
2 Normative references . 6
3 Terms, definitions and abbreviations . 7
4 Functional requirements . 8
5 Marking, identification and documentation .14
6 Testing .15
Annex A (normative) Dimensions and requirements of the standardized test magnets .28
A.1 Introduction .28
A.2 Requirements .28
Annex B (normative) General testing matrix .31
Annex C (normative) Walk test diagrams .33
Annex D (informative) Equipment for walk test velocity control.41
D.1 General .41
D.2 Moving light source guiding system .41
D.3 Metronome .41
Annex E (informative) Immunity to microwave signal interference by fluorescent lights .42
Annex F (informative) Example list of small tools .43
Annex G (informative) Test for resistance to re-orientation of adjustable mountings .44
Bibliography .46

European foreword
This document (EN 50131-2-3:2021) has been prepared by CLC/TC 79, “Alarm systems”.
The following dates are fixed:
• latest date by which this document has to be (dop) 2022-11-11
implemented at national level by publication of
an identical national standard or by
endorsement
• latest date by which the national standards (dow) 2024-11-11
conflicting with this document have to be
withdrawn
This document supersedes EN 50131-2-3:2008 and all of its amendments and corrigenda (if any).
EN 50131-2-3:2008:
— editorial changes and refinement of wording;
— clarification to significant reduction of range requirements;
— clarification to the Electrical requirements section and certain environmental conditions;
— addition of requirements, tests and corresponding Annexes throughout the overall standard, to
support ceiling mounted detectors;
— improvement of the requirements of the supplied documentation;
— improvement of the standard conditions for testing;
— addition of chapter which defines the condition for the mounting height while the tests are
performed;
— refinement of the standard requirements for the Testing procedures;
— refinement of the Immunity to air flow test to allow for better repeatability of the test results;
— verifying and clarifying of the wording of the test for resistance to or detection of re-orientation of
adjustable mountings;
— updating of the test magnet specification for resistance to magnetic field interference;
— verifying and clarifying of the wording for the detection of detector masking in regards to the
conditions and the test material;
— review and optimization of the methods for temperature adjustments for the test environment;
— review of Sample Testmatrix;
— review and verifying of references to other standards.
EN 50131 will consist of the following parts, under the general title Alarm systems - Intrusion and hold-
up systems:
— Part 1: System requirements
— Part 2–2: Intrusion detectors – Passive infrared detectors
— Part 2–3: Intrusion detectors – Microwave detectors
— Part 2–4: Intrusion detectors – Combined passive infrared / Microwave detectors
— Part 2–5: Intrusion detectors – Combined passive infrared / Ultrasonic detectors
— Part 2–6: Intrusion detectors – Opening contacts
— Part 2–7–1: Intrusion detectors – Glass break detectors – Acoustic
— Part 2–7–2: Intrusion detectors – Glass break detectors – Passive
— Part 2–7–3: Intrusion detectors – Glass break detectors – Active
— Part 3: Control and indicating equipment
— Part 4: Warning devices
— Part 5–3: Requirements for interconnections equipment using radio frequency techniques
— Part 6: Power supplies
— Part 7: Application guidelines
— Part 8: Security fog devices
Introduction
This document deals with microwave detectors (to be referred to as the detector) used as part of
intrusion alarm systems installed in buildings. It includes four security grades and four environmental
classes.
The purpose of the detector is to emit microwave signals and analyse the signals that are returned to
detect an intruder and to provide the necessary range of signals or messages to be used by the rest of
the intrusion alarm system.
The number and scope of these signals or messages will be more comprehensive for systems that are
specified at the higher grades.
This version of the standard contains limited requirements for Grade 4 detectors. Future revisions of the
standard are expected to include enhanced requirements for Grade 4 detectors.
This document is only concerned with the requirements and tests for the detector. Other types of
detector are covered by other documents identified as in the EN 50131-2 series.
NOTE Each country has certain regulations in regards to which part of the microwave spectrum is allowed to
be used in this application. This information can be found in ERC recommendation 70-03.
1 Scope
This document is for microwave detectors installed in buildings and provides for security grades 1 to 4
(see EN 50131-1), specific or non-specific wired or wire-free detectors, and uses environmental classes
I to IV (see EN 50130-5). This document does not include requirements for detectors intended for use
outdoors.
The purpose of the detector is to emit microwave signals and analyse the signals that are returned to
detect an intruder and to provide the necessary range of signals or messages to be used by the rest of
the intrusion alarm system.
The grade-dependent requirements of this document apply and it is essential that a detector fulfils all
the requirements of the specified grade.
Functions additional to the mandatory functions specified in this document can be included in the
detector, providing they do not influence the correct operation of the mandatory functions.
Requirements for system interconnections are not included in this document.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 50130-4, Alarm systems - Part 4: Electromagnetic compatibility - Product family standard: Immunity
requirements for components of fire, intruder, hold up, CCTV, access control and social alarm systems
EN 50130-5, Alarm systems - Part 5: Environmental test methods
EN 50131-1, Alarm systems - Intrusion and hold-up systems - Part 1: System requirements
EN 60404-5, Magnetic materials - Part 5: Permanent magnet (magnetically hard) materials - Methods
of measurement of magnetic properties (IEC 60404-5)
EN 60404-8-1, Magnetic materials - Part 8-1: Specifications for individual materials - Magnetically hard
materials (IEC 60404-8-1)
EN 60404-14, Magnetic materials - Part 14: Methods of measurement of the magnetic dipole moment
of a ferromagnetic material specimen by the withdrawal or rotation method (IEC 60404-14)
3 Terms, definitions and abbreviations
3.1 Terms and definitions
For the purposes of this document, the terms, definitions and abbreviations given in EN 50131-1 and
the following apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— IEC Electropedia: available at https://www.electropedia.org/
— ISO Online browsing platform: available at https://www.iso.org/obp
3.1.1
basic detection target
microwave reflector designed to verify the operation of a detector
3.1.2
coverage angle
width of field of view in degrees provided by the detector when measured in the horizontal plane
3.1.3
detection settings
adjustments which influence the performance of the detector (e.g. Sensitivity (distance moved), gain
settings (detection range)
3.1.4
detector reference axis
virtual line determined by the detector manufacturer projecting from the point of origin of the detection
coverage pattern
3.1.5
incorrect operation
physical condition that causes an inappropriate signal from a detector in the context of this document
3.1.6
masking
interference with the ability to detect human intruders by the introduction of a physical obstruction such
as metal, plastic, paper or sprayed paints or lacquers on or in close proximity to the detector
3.1.7
microwave detector
device used to determine the presence of human intruders by sensing the differences between emitted
and reflected microwave signals due to movement
3.1.8
simulated walk test target
non-human microwave reflector designed to simulate the standard walk test target
3.1.9
standard walk test target
human being of defined weight and height clothed in close fitting garments
3.1.10
walk test
operational test to demonstrate detection performance during which a detector is stimulated by the
standard walk test target in a controlled environment
3.1.11
walk test attitude, crawling
orientation of the standard walk test target moving with hands and knees in contact with the floor
3.1.12
walk test attitude, upright
orientation of the standard walk test target standing and walking with arms held at the sides of the body
3.2 Abbreviations
EMC Electromagnetic Compatibility
S
...
